USER MANUAL ESWS20 PANASONIC

Thank you for choosing a Panasonic epilator. Please read all instructions before use. Parts identification A Protection cap B Epilation head f or legs/ arms

Main body 9 Head release b utton

Switch 0 = off 1 = low speed 2 = normal speed Soc ket Accessor ies: F Adaptor/po wer cor

(Do not use adaptors/ power cords other than the ones provided.) G Cleaning brush Quick steps for epilating 1 Setting up

2 Selecting the head

Page 6-7) Important WARNING - Keep the appliance dry. Make sure skin is clean before and after use. In the following cases, please consult your physician. Having eczema, rashes, sensitive skin, proneness to infections, varicose veins, diabetes, hemophilia, poor blood clotting or other skin conditions The following might result in bacteria entering the skin and cause damage and inflammation. Using just before swimming and sports activities Sharing with other persons Always attach an epilation head and its frame or a shaver head and its frame to the epilator when turning on. Failure to do so might cause finger injury, hair entanglement in the spinning gears or mechanical malfunction. The following might cause sensitive skin damage, injury, inflammation, pain, bleeding, and severe pain. Using the appliance if the epilation discs, the frame, or the outer foil have been damaged. Using on or near your face, genitals, warts, pimples, bruises, rashes, wounds or loose skin. Using around moles. Applying strong pressure to the skin, repeatedly moving over the same area or using a jabbing motion. Using before or during menstruation, pregnancy, about one month after giving birth. Using when ill, sunburned, etc. Using the adaptor Always ensure the appliance is used on an electric power source matched to its rated voltage. Never remove or insert the adaptor into the socket with wet hands.

TR H RO SK CZ PL FIN DK S N P NL E I F D GB Using the epilator Never use the appliance if the cord or the adaptor is damaged, overly hot or if the plug fits loosely in a household outlet. Do not drop or hit the appliance as the frame or the epilation discs can be damaged. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. The recommended use temper ature is 0 -35 °C. If you use the appliance in temperature outside of the recommended range, it may stop functioning. Do not use the epilation head for legs/arms to epilate your under arms and bikini-line. Do not use the appliance while bathing or being in the shower. Cleaning the epilator Regularly clean the cord connector to prevent dust. Do not use nail polish remover, benzine, alcohol, etc. to clean the appliance. Always unplug the adaptor from a household outlet and from the epilator before cleaning the appliance. Wipe the main body only with a dry cloth. The use of alcohol etc. might cause discoloration or deformation of the main body. Take care not to damage the frame during cleaning. Storing the epilator Do not bend, twist, pull, or modify the cord. Do not wrap the cord tightly around the appliance. Keep the appliance out of the reach of children or invalids.

Keep the appliance away from sinks, bathrooms or other high

humidity areas where it could be exposed to water and moisture after use. Keep the appliance away from where it will be exposed to high temperatures or direct sunlight. When storing the epilator, always attach the protection cap for the epilation head and the bikini comb for the shaver head. Tips for best epilation results The hair removal is not permanent, so after the 2nd use we recommend that you epilate the arms and legs about once every two weeks.

When epilating for the first time, or when using for the first time in a while, you may feel considerable pain. Therefore we recommend warming the skin to soften the skin before use.

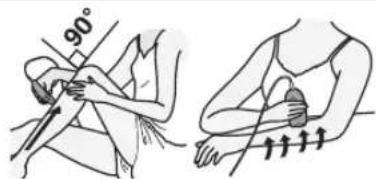

Apply the epilator at a 90˚ angle to your skin. Always make sure that the appliance is in contact with your skin and press gently while moving it slowly against the hair growth.

90˚ Massaging with a body puff may help to prevent ingrown hairs.

Reddening might appear after use. A cool towel will help if you feel pain or there is a rash.

If your skin gets dry after epilation, we recommend applying a moisture lotion two days after epilation.

This appliance can only be used for Dry Epilation and is not rechargeable. It must be plugged into an electrical outlet when in use.

1. Plug the adaptor/po

wer cord into the epilator (a) and a household outlet (b). Changing the head

Remove the head while holding the head release button.

Push the head until it clicks. Best length of hair for epilation Trim your hair before epilating for the first time or if you have not epilated for a long time. Hair removal is easier and less painful when the hair is short. <Legs/arms> 2-3mm

Cut your hair to between 2 mm and 3 mm long. You can shave hair leaving the length of 2-3 mm by using the bikini comb attached. Using the bikini comb Place the bikini comb onto the shaver head and slide trimmer up. When the bikini comb is in place, make sure the comb is in close contact with the skin.

Epilating Before epilating, wipe away water or sweat on your skin. Also, spread out paper etc. to catch the falling hairs. Areas suitable for epilation The epilator can be used on the areas. Using the epilator on other areas may cause pain or skin trouble. Areas not suitable for epilation The epilator should not be used on the inner side of the upper arms and areas such as elbows or knees which are prone to sagging.

Slide the switch [E] to the 1 (low speed) or 2 (normal speed) position and carry out epilation.7 TR H RO SK CZ PL FIN DK S N P NL E I F D GB If you are concerned about pain during epilation, then please use with 1 (low speed) setting. <Epilating legs or arms> Upwards from the bottom of the leg. Inwards from the outside of the arm. Shaving Before shaving, wipe away water or sweat on your skin.

Check that the outer foil is not deformed or damaged.

Slide the switch [E] to the 1 (low speed) or 2 (normal speed) position and carry out shaving. Press gently so that the whole blade is in close contact with the skin and the surface of the blade does not move up and down.

Cleaning Always clean the frames and discs after use to keep them in a hygienic state. Switch off and unplug the appliance before cleaning.

1. Remove the frame by

holding the frame release rib [B2] or pushing the frame release button [D7].

2. Clean the epilation head [B] and

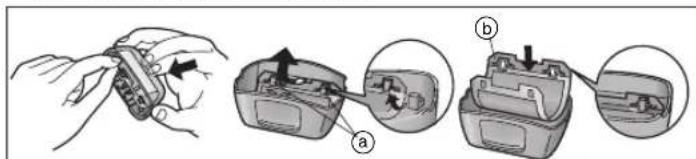

the shaver head [D] with the cleaning brush [G]. Replacing the outer foil We recommend replacing the outer foil [D4] every year and the inner blade every two years. Remove the outer foil of the shaver head [D] only when replacing it.

1. While pushing the outer f

oil gently with the fingers, use a fingernail to release the plastic panel (b) on the blade from the hooks (a) on the inside of the frame.

w outer f oil should be slightly bent and pushed in until it is hooked in the frame.

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal. Guarantee Please visit Panasonic web site http://panasonic.net or contact an authorized service center (you find its contact address in the pan european guarantee leaflet.) if you need information or if the epilator or the cord get damaged. Specifications Power supply: See the rating plate on the product. (Automatic voltage conversion) You can see the voltage, manufacturer, country of origin, etc. by detaching the head attachment. This product is intended f or house-hold use only. Airborne Acoustical Noise Epilation head for legs/arms: 67 (dB(A) re 1pW) Shaver head: 66 (dB(A) re 1pW)9 TR H RO SK CZ PL FIN DK S N P NL E I F D GB Vielen Dank, dass Sie sich für einen Epilierer von Panasonic entschieden haben Bitte lesen Sie sich vor der Inbetriebnahme alle Anweisungen aufmerksam durch Bauteile-Bezeichnungen
