USER MANUAL ESWD70 PANASONIC

Operating Instructions

Epilator

Model No. ES-WD70

Before operating this unit, please read these instructions completely and save them for future use.

English 4 Dansk 73
Deutsch 11 Suomi 81
Francais 19 Polski 89
Italiano 27 Cesky 97
Espanol 35 Slovenica. 105
Nederlands 43 Romana 113
Portugues 51 Magyar 121
Norsk 59 Türkce 130
Svenska 66

1

2

Thank you for choosing a Panasonic WET/DRY epilator. With our WET/DRY technology, you can enjoy using your Panasonic epilator dry or in the shower or bath for gentle and easy epilation.

Please read all instructions before use.

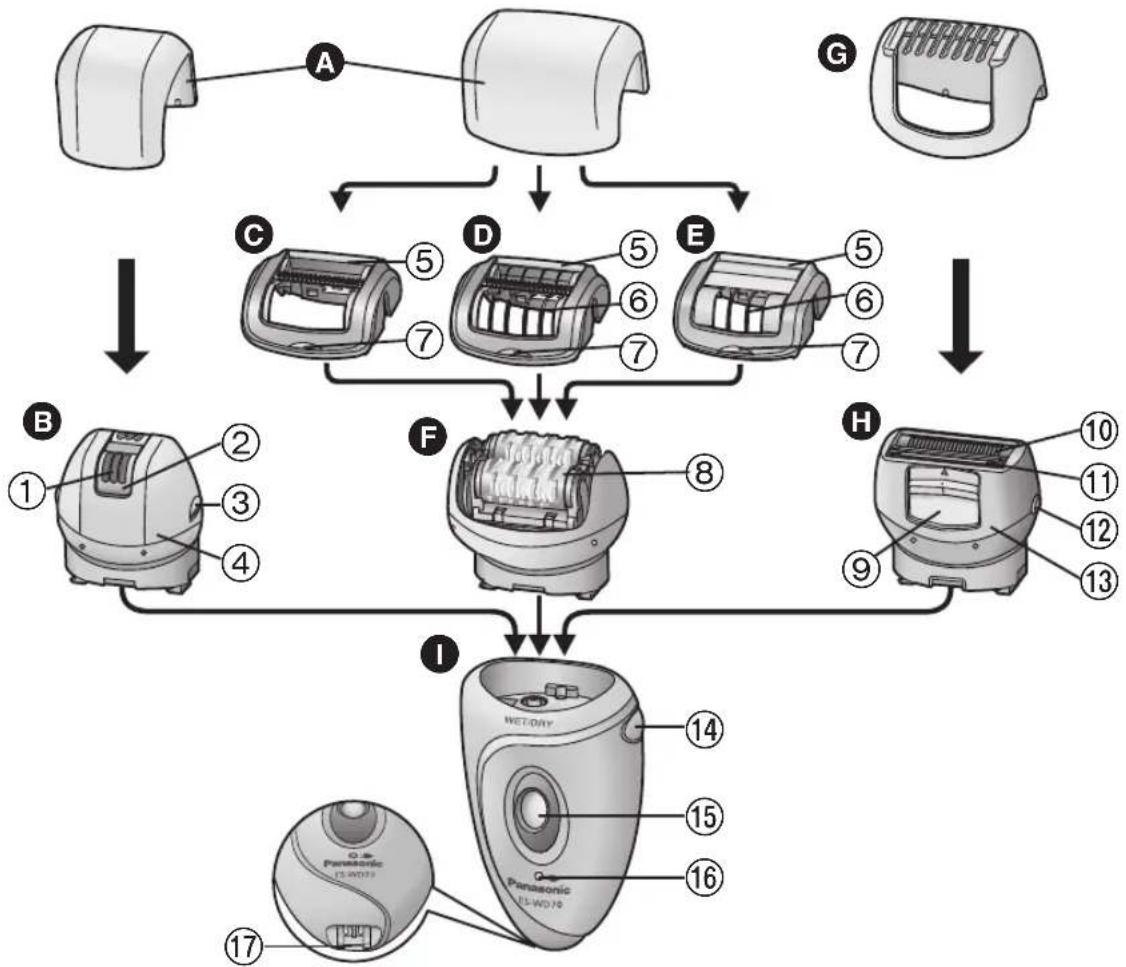

Parts identification

Protection cap
Epilation head br underarms/bikini-line

① Epilation discs (inside)
② Skin protector (metal part on the outside)
③ Frame release rib
④ Frame

Fast cap
Gentle cap (Page 6)
Beginner cap (Page 6)

⑤ Foam wiper
⑥ Skin protector
⑦ Cap release rib

Epilation head for legs/ arms
⑧ Epilation discs
6 Bikini comb (▶ Page 7)

Shaver head

⑨ Pop-up trimmer switch
10 Outer foil
⑪ Timmer
⑫ Frame release button
⑬ Frame

1 Main body

14 Head release button
15 OFF/ON switch
16Charging light
⑰ Socket

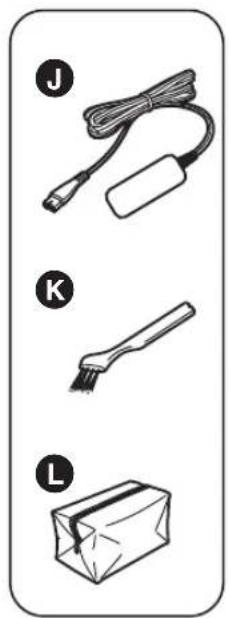

Accessories:

Charger (RE7-46)
(Do not use chargers other than the one provided.)
K Cleaning brush
Pouch

Quick steps for epilating

Important

The appliance can be used for wet or dry epilation. The following is the symbol for a wet epilator. It means that the appliance can be used in a bath or shower.

• Make sure skin is clean before and after use.

• In the following cases, please consult your physician.

• Having eczema, rashes, sensitive skin, proneness to infections, varicose veins, diabetes, hemophilia, poor blood clotting or other skin conditions

• The following might result in bacteria entering the skin and cause damage and inflammation.

• Using just before swimming and sports activities

• Sharing with other persons

• Always attach an epilation head and its frame/cap or a shaver head and its frame to the epilator when turning on. Failure to do so might cause finger injury, hair entanglement in the spinning gears or mechanical malfunction.

• The following might cause sensitive skin damage, injury, inflammation, pain, bleeding, and severe pain.

• Using the appliance if the epilation discs, the skin protector, the frame, the fast cap, the gentle cap, the beginner cap or the outer foil have been damaged.
• Using on or near your face, genitals, warts, pimples, bruises, rashes, wounds or loose skin.
• Using around moles.
• Applying strong pressure to the skin, repeatedly moving over the same area or using a jabbing motion.
• Using before or during menstruation, pregnancy, about one month after giving birth, when ill and sunburned etc.

Charging the epilator

• Never use the charger in a bathroom.
• Always ensure the appliance is used on an electric power source matched to its rated voltage.
• The charging light may not turn on after a few minutes in some cases. However, it will turn on eventually if you continue charging.
• The appliance can be left plugged in after it is fully charged without deteriorating the battery life.
• The life of the battery is 3 years if charged approximately once every week. The battery in this epilator is not intended to be replaced by consumers. Replace it at an authorized service center.

Using the epilator

• Never use the appliance if the cord or the charger is damaged, overly hot or if the plug fits loosely in a household outlet.
• Do not drop or hit the appliance as the skin protector, the frame, the fast cap, the gentle cap, the beginner cap or the epilation discs can be damaged.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The recommended use temperature is 5 - 35^ . If you use the appliance in temperature outside of the recommended range, it may stop functioning or might reduce the operating time.
• Do not use the epilation head for legs/arms to epilate your underarms and bikini-line.

Cleaning the epilator

Regularly clean the cord connector to prevent dust.
- Do not use nail polish remover, benzine, alcohol, etc. to clean the appliance.
- Always unplug the charger from a household outlet and from the epilator before cleaning the appliance.
- Wipe the main body only with a dry cloth. The use of alcohol etc. might cause discoloration or deformation of the main body.
- Take care not to damage the skin protector, the frame, the fast cap, the gentle cap and the beginner cap during cleaning.

Storing the epilator

• Do not bend, twist, pull, or modify the cord.
• Do not wrap the cord tightly around the appliance.
• Keep the appliance out of the reach of children or invalids.
• Keep the appliance away from sinks, bathrooms or other high-humidity areas where it could be exposed to water and moisture after use.
• Keep the appliance away from where it will be exposed to high temperatures or direct sunlight.
• When storing the epilator, always attach the protection cap for the epilation head and the bikini comb for the shaver head.

Tips for best epilation results

Please refer to "Quick User Card" as well.

The hair removal is not permanent, so after the 2nd use we recommend that you epilate the underarms about once a week and the arms and legs about once every two weeks.

When epilating for the first time, or using for the first time in a while, we recommend using the beginner cap. The beginner cap narrows the epilating area thus reducing the number of hairs removed at one time. It provides a more gentle epilation for beginners and those with sensitive skin.

• We also recommend warming the skin to soften the skin before use.

The gentle cap has a skin protector for gentler epilation. So it can remove hairs by holding the skin down to reduce pain.

1. Remove the fast cap [O].

2. Attach the gentle cap [D]/the beginner cap [E].

Apply the epilator at a 90^ angle to your skin. Always make sure that the appliance is in contact with your skin and press gently while moving it slowly against the hair growth.

• When using the appliance, pull your skin taut where the area is prone to sagging (on the inside of the knees and elbows).
  Massaging with a body puff may help to prevent ingrown hairs.
  We recommend regular use of massage sponges or exfoliation to prevent ingrown hair.
  Reddening might appear after use. A cool towel will help if you feel pain or there is a rash.
  If your skin gets dry after epilation, we recommend applying a moisture lotion two days after epilation.

Before use

Charging the appliance

For best performance, fully charge the appliance before use.

Charging time = Approx. 1 hour

The epilator can be used for approximately 30 minutes (40 minutes when using the beginner cap/gentle cap) after 1 hour of charging. (This will differ depending on the temperature.)

Plug the charger into the epilator (a) and a household outlet (b).

The recommended charge temperature is 15-35 ^ C

Red light appears.

After charging is completed

Blinks once every second.

10 minutes after charging is completed

Blinks once every 2 seconds.

Abnormal Charging

Blinks twice every second.

Changing the head

1 Remove the head while holding the head release button.
2 Push the head until it clicks.

Trim your hair before epilating for the first time or if you have not epilated for a long time. Hair removal is easier and less painful when the hair is short.

Legs/arms Underari

Cut your hair to between 2 mm and 3 mm long.

Shave your hair using the shaver head with the bikini comb attached.

'bikini-line

Cut your hair to between 1 mm and 2 mm long.

We recommend that you shave 3 to 5 days before using the epilator.

Using the bikini comb

Place the bikini comb onto the shaver head and slide trimmer up.

• When the bikini comb is in place, make sure the comb is in close contact with the skin.

Epilating

Dry epilation

Before epilating, wipe away water or sweat on your skin. Press the OFF/ON switch to turn on the power.

Wet/foam epilation

WET epilation (epilating after wetting the skin and epilator and then applying foam) makes the skin softer so is gentler to your skin when epilating.

1 Wet your skin.

2 Wet the discs and place a small quantity of liquid body soap on the discs.

Always use body soap when you epilate in wet condition.
- Rinse any body soap out of your hands.

3 Press the OFF/ON switch to turn on the power.

Foam is created. Foam makes the epilator slide better, so you can move it fast.

Upwards from the bottom of the leg. Inwards from the outside of the arm.

Move in several directions as underarm hair grows in different directions.

Shaving

Dry shaving

Before shaving, wipe away water or sweat on your skin.

1 Attach the shaver head [O].
2 Remove the bikini comb [G].
3 Check that the outer foil is not deformed or damaged.
4 Press the OFF/ON switch [15] to turn on the power.

• Press gently so that the whole blade is in close contact with the skin and the surface of the blade does not move up and down.

Wet/foam shaving

Shaving with soap lather makes the skin slippery for a closer shave.

1 Attach the shaver head [D].
2 Remove the bikini comb [G].
3 Check that the outer foil is not deformed or damaged.
4 Wet your skin and put soap lather on your skin. - Do not use shaving cream, skin cream or skin lotion as it will clog the blades.
5 Press the OFF/ON switch [1] to turn on the power.

Cleaning

Always clean the frames, fast/gentle/beginner caps and discs after use to keep them in a hygienic state.

Switch off and unplug the appliance before cleaning.

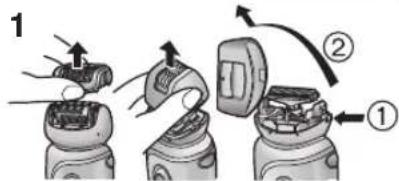

Dry cleaning

1. Lift the frame, fast/ gentle/beginner caps upward while holding the frame release rib [63]the cap release rib [6D87] or remove the frame by pushing the frame rele

1. Clean the epilation head [B, F] and the shaver head [H] with the cleaning brush [K].

Wet cleaning

1. Lift the frame, fast/gentle/beginner caps upward while holding the frame release rib [B③]/the cap release rib [CDE] or remove the frame by pushing the frame release button [H②].
2. Apply liquid hand soap to 2-4 the discs and the blades.
3. Turn the switch on and then wet the discs and the blades to create foam.

4. Wash the head with water to wash out hair.

5. Do not use hot water.

6. If soap is not completely washed away, then a white deposit can accumulate and prevent the discs and the blades from moving smoothly.

7. Turn the switch off, wipe the appliance with a dry cloth and dry it well.

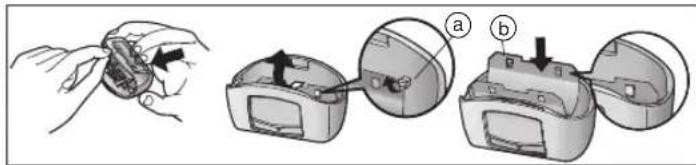

Replacing the outer foil

We recommend replacing the outer foil [H] every year and the inner blade every two years. Remove the outer foil of the shaver head [H] only when replacing it.

1. While pushing the outer foil gently with the fingers, use a fingernail to release the plastic panel (b) on the blade from the hooks (a) on the inside of the frame.
2. The new outer foil should be slightly bent and pushed in until it is hooked in the frame.

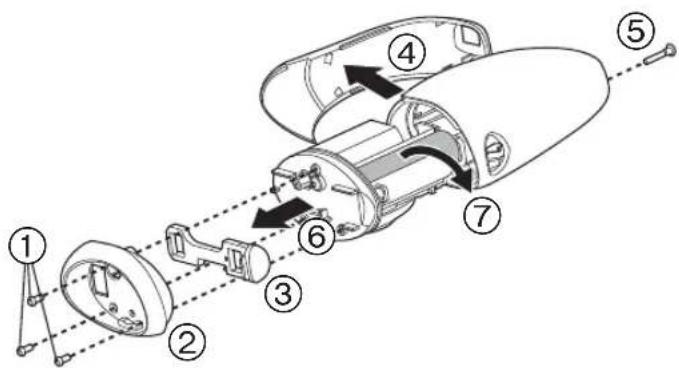

Removing the built-in rechargeable battery

Remove the built-in battery when disposing of the epilator. Perform steps ① to ⑦ to disassemble the epilator using a screwdriver.

• Unplug the charger from the epilator before disassembling it.

• Press the OFF/ON switch to turn on the power and then keep the power on until the battery is completely discharged.

• Please take care not to short-circuit the battery.

For environmental protection and recycling of materials

This epilator contains a Li-ion battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Guarantee

Please visit Panasonic web site http://panasonic.net or contact an authorized service center (you find its contact address in the pan european guarantee leaflet.) if you need information or if the epilator or the cord get damaged.

Specifications

Power supply: See the name plate on the product.

(Automatic voltage conversion)

You can see the voltage, manufacturer, country of origin, etc. by detaching the head attachment.

Charging time: Approx. 1 hour

This product is intended for house-hold use only.

Airborne Acoustical Noise

Epilation head for legs/arms: 67 (dB(A) re 1pW)

Epilation head for underarms/bikini-line: 64 (dB(A) re 1pW)

Shaver head: 62 (dB(A) re 1pW)

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Nasse/Schaum Epilation

③ Utløserbryter for ramme

④ Ramme

Hurtigdeksel

Varsomt deksel (Side 61)

Begynnerdeksen (Side 61)

(5) Skumavtorker

(6) Hudbeskytelse

⑦ Utlserbryter for deksel

Harfjernerhode for ben/arme

(8) Härfjernerskiver

Bikinikam (Side 62)

Barberhode

Ladetid = Omtrent 1 time

Legger/armor Under a

Klipp haret sikat det er mellom 2 og 3 mm langt.

Bruk vedlagte barberingshode med bikinikam til a barbare haret.

he/bikinlinje

Klipp haret sikat det er mellom 1 og 2 mm langt.

Vi anbefaler at du barberer
harene 3-5 dager for harfjerning.

Bruke bikinikammen

Ladetid: Omtrent 1 time.

Dette Produktet er kun ment til husholdningsbruk.

Barberhode: 62 (dB(A) re 1pW)

Doba nabijeni = pribl. 1 hodina
