Operating Instructions

(Household) Epilator

Model No. ES-WS24/ES-WS14

C E

GB English 5 DK Dansk 87 Cz Cesky 163
D Deutsch 17 P Portugues 99 SK Slovensky 175
F Frangais 31 Norsk 113 Magyar 187
Italiano 45 S Svenska 125 Ro Romana 201
NL Netherlands 59 FIN Suomi 137 TR Türkiye 213
Espanol 73 Polski 149

Panasonic

Operating Instructions

(Household) Epilator

Model No. ES-WS24/ES-WS14

Contents

Safety precautions 8

Intended use 11

Quick steps for using. 11

Parts identification 12

Before use 12

How to use 12

After use 14

Cleaning 14

Replacing the outer foil and

the inner blade 14

Troubleshooting 15

Guarantee 16

Specifications 16

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.
• Do not use anything other than the supplied AC adaptor for any purpose.

Also, do not use any other product with the supplied AC adaptor. (See page 12.)

• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

• Keep the appliance dry.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

This product

Never modify, disassemble, or repair.

• Doing so may cause ignition or injury due to abnormal operation.

Contact an authorized service centre for repair.

In case of an abnormality or malfunction Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.


The main unit, adaptor or cord is deformed or abnormally hot.

• The main unit, adaptor or cord smells of burning.
• There is abnormal sound during use of the main unit, adaptor or cord.
• Immediately request inspection or repair at an authorized service centre.

Preventing accidents

Do not place within reach of children or infants.
Do not let them use it.
- Doing so may cause an accident or injury due to accidental ingestion of the inner blade, brush, etc.

Do not immerse the appliance and AC adaptor in water or wash it with water.

Do not place the appliance and AC adaptor over or near water filled sink or bathtub.

• Doing so may cause electric shock or fire due to a short circuit.

WARNING

Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

• Doing so may cause electric shock or injury.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage or modify, or forcefully bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord.

• Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

• Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor or appliance plug.

• Failure to do so may cause fire or electric shock.

Always unplug the adaptor from a household outlet when cleaning.

• Failure to do so may cause electric shock or injury.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

• Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

CAUTION

To protect the skin

The following persons should not use this appliance:

• Persons suffering from atopic dermatitis or rashes and other skin diseases
• Persons with allergic diathesis or persons who are easily irritated by cosmetics, clothing, metals, etc.
• Persons who are easily supplurated
• Persons suffering from varicose veins, diabetes, hemophilia, etc.
• Persons who have trouble stopping bleeding
  -Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use in the following cases:

During menstruation, pregnancy, or about one month after giving birth

• When you are not well or when you feel an abnormality in your skin or body
  After drinking alcohol or taking medicine, or when you are very tired
  -Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use in the following body area:

• Injury, rash, moles, bruises, warts, pimples, etc.
• On suntanned skin
• Doing so may cause injury, inflammation of the skin, or bleeding.

CAUTION

Do not use the epilation head for legs/arms to epilate your underarms and bikini-line.

• Doing so may cause injury or inflammation of the skin.

Do not press on the blade too strongly when using the shaver head.

• Doing so may cause damage which results in injury to the skin.

Do not touch the blade section (metallic section) of the inner blade when using the shaver head.

• Doing so may cause injury to your hands.

Do not turn ON the switch without the head attached. - Doing so may cause finger injury or cause hair or clothing entanglement and damage.

Do not use with the frame removed.

• Doing so may cause finger injury or cause hair or clothing entanglement and damage.

Before using, check that the skin protector, disc, blade, frame are free from deformities, cracks, and damage.

• Failure to do so may cause injury to the skin.

The outer foil is easily deformed, so store with the protection cap attached.

-Failure to do so may result in deformation or damage to the outer foil which may cause injury to skin.

Apply the skin protector at a 90^ angle to your skin with gentle force.

• Failure to do so may cause injury to the skin or cause hair or clothing entanglement and damage.

Note the following precautions

Do not share with your family or others.

• Doing so may cause infection or inflammation.

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

• Doing so may cause electric shock or fire due to a short circuit.

Do not wrap the cord around the adaptor when storing.

• Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Do not drop or subject to shock. - Doing so may cause injury.

Disconnect the adaptor from the household outlet when not using.

• Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

• Disconnecting by holding onto the cord may cause electric shock or injury.

About using the epilation/shaver head Do not use in the following body area:

• Face, genitals and genital area, or thighs

• Inner side of the upper arms and areas such as elbows or knees which are prone to sagging

• Doing so may cause injury, inflammation of the skin, or bleeding.

CAUTION

The following persons should not use this appliance:

• Persons who have suffered skin problems (suppuration, inflammation, etc.) caused by epilation (plucking, depilation, waxing, etc.)
  -Use in such cases may cause the skin to become sensitive or cause inflammation, bleeding, or increased pain.

Do not use epilation/shaver head in the following ways:

• Using just before swimming or sea bathing (use at least 2 days before such activities)
  Using just before bathing
• Engaging in extreme sports or exercise right after epilation
• Doing so may cause infection or inflammation resulting from bacteria that enter the body through the pores.

Do not apply strong pressure to the skin, move repeatedly over the same area or move back and forth in one area. Also, do not use with a jabbing motion.
- Doing so may cause injury or inflammation of the skin, or increased pain.

If skin problems continue for 2 days or longer after treatment, stop using the unit and contact a dermatologist.
- Failure to do so may cause symptoms to worsen.

Intended use

• Do not use alcohol, nail polish remover, or detergent (ex. liquid hand soap), etc. to clean the appliance. Doing so may cause failure, cracking or discoloration of the main body. Wipe with a cloth soaked in soapy water and wrung tightly.
• Keep the appliance away from sinks, bathrooms or other high-humidity areas where it could be exposed to water and moisture after use.
• Keep the appliance away from where it will be exposed to high temperatures or direct sunlight.
• When storing the epilator, always attach the protection cap for the shaver head.

Quick steps for using

Selecting the head

Page 12

Setting up

Page 12

How to use

Page 12

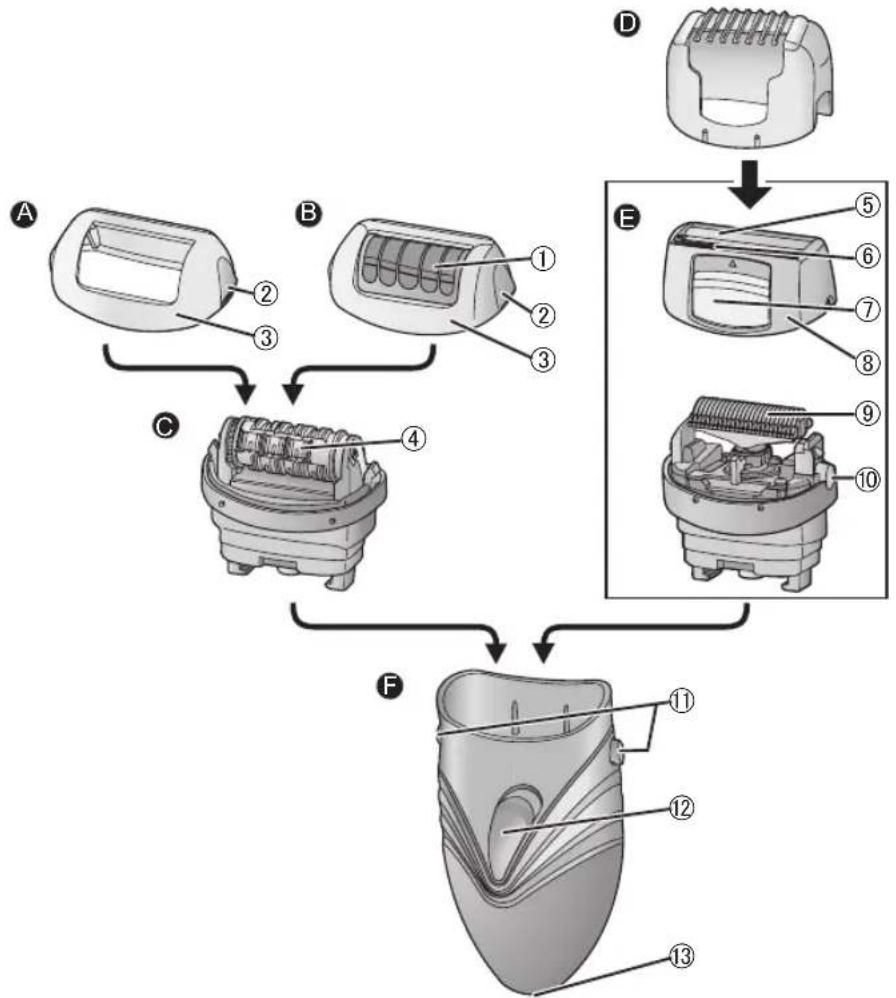

Parts identification

A Fast cap

Gentle cap (▶ Page 13)

① Skin protector
② Frame release ribs
③ Frame

Epilation head for legs/ arms

④ Epilation disc

Bikini comb (Protection cap for shaver head) ES-WS24
E Shaver head ES-WS24

⑤ Outer foil
⑥ Trimmer
⑦ Pop-up trimmer switch
⑧ Frame
⑨ Inner blade
⑩ Frame release button

Main body

⑪ Head release button

⑫ Switch

$$ 0 = \text {o f f} $$

1 = low speed

2 = normal speed

⑬ Socket

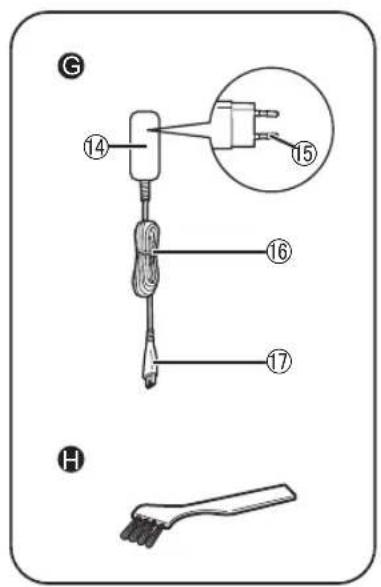

AC adaptor (RE7-87)

Adaptor
15 Power plug
16 Cord
⑦ Appliance plug

Accessory:

Cleaning brush

Before use

Selecting the head

1 Remove the head while pushing the head release button.
2 Push the head until it clicks.

Using the bikini comb ES-WS24

Place the bikini comb onto the shaver head and slide trimmer up.

• When the bikini comb is in place, make sure the comb is inclose contact with the skin.

Setting up

This appliance can only be used for Dry Epilation and is not rechargeable. It must be plugged into a household outlet when in use.

Plug the AC adaptor into the epilator (@) and a household outlet (@).

How to use

Epilation head

Areas suitable for epilation

The epilator can be used on the areas.

• Using the epilator on areas other than those marked may cause pain or skin trouble.

Areas not suitable for epilation

The epilator should not be used on the inner side of the upper arms and areas such as elbows or knees which are prone to sagging.

Slide the switch [F②] to the 1 (low speed) or 2 (normal speed) position and carry out epilation.

• If you are concerned about pain during epilation, then please use with 1 (low speed) setting.
• Apply the epilator at 90^ to your skin and move it slowly so that it slides over your skin.

Upwards from the bottom of the leg. Inwards from the outside of the arm.

Tips for best epilation results

The hair removal is not permanent, so after the 2nd use we recommend that you epilate the arms and legs about once every two weeks.

When epilating for the first time, or when using on sensitive skin, we recommend using the gentle cap.

The gentle cap has a skin protector for gentler epilation, to remove hair by holding the skin down to reduce pain.

We recommend warming the skin to soften the skin before use.
We also recommend to use with 1 (low speed) setting. This page

1. Remove the fast cap [A].

2. Attach the gentle cap [3].

• Massaging with a body puff may help to prevent ingrown hairs.
• Reddening might appear after use. A cool towel will help if you feel pain or there is a rash.
  If your skin gets dry after epilation, we recommend applying a moisture lotion two days after epilation.
  Make sure skin is clean before and after use.

Trim your hair before epilating for the first time or if you have not epilated for a long time. Hair removal is easier and less painful when the hair is short.

Shaver head ES-WS24

Before shaving, wipe dry any moisture or sweat from the skin.

1 Attach the shaver head [E].
- Confirm the bikini comb [D] is detached.
2 Check that the outer foil is not deformed or damaged.
3 Slide the switch [F] to the 1 (low speed) or 2 (normal speed) position and carry out shaving.
- Press gently so that the whole blade is in close contact with the skin and the surface of the blade does not move up and down.

After use

1. Slide the switch (F②) to the 0 position.
2. Remove the AC adaptor from the household outlet, and remove the appliance plug from the main body.

Cleaning

• Always clean the heads and caps after use to keep them in a hygienic state.

• Switch off and unplug the appliance before cleaning.
  Take care not to damage the skin protector, the frame, the fast cap and the gentle cap during cleaning.

• Lift fast/gentle caps upward while holding the frame release ribs [AB②] or remove the frame by pushing the frame release button [E⑩].

1. Clean the gentle cap [B], the epilation head for legs/arms [C] and the shaver head [E] with the cleaning brush [F].

Replacing the outer foil and the inner blade ES-WS24

We recommend replacing the outer foil [E5] every year and the inner blade [E9] every two years. Remove the outer foil of the shaver head [E] only when replacing it.

Replacing the outer foil

1. While pushing the outer foil gently with the fingers, use a fingernail to release the plastic panel (on the blade from the hooks on the inside of the frame.
2. The new outer foil should be slightly bent and pushed in until it is hooked in the frame.

Replacing the inner blade

1. Remove the inner blade by holding it at both ends and pulling straight away from the shaver.
2. Insert the inner blade by holding it at both ends and press downward.

Troubleshooting

Problem Possible cause Action
The appliance does not operate.	When epilating	The skin protector or disc is deformed, cracked, or damaged.
	When epilating or shaving	Hair dust has accumulated. Clean the hair dust.
Cannot remove hair.	When epilating	The appliance is used on long hair.
The hair becomes stubble.		The way the unit is applied or moved is not correct.
The appliance stops during operation.		The appliance is pressed against skin too hard.
The appliance is not removing the hair as well as before.		Hair dust has accumulated. Clean the hair dust.
		The skin protector or disc is deformed, cracked, or damaged.
The appliance is not cutting as well as before.	When shaving	Hair dust has accumulated. Clean the hair dust.
		The blade is deformed.
		The blade is worn out.

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Guarantee

Please visit Panasonic web site http://www.panasonic.com or contact an authorized service centre (You find its contact address in the pan european guarantee leaflet.) if you need information or if the epilator or the cord get damaged.

Specifications

Power supply	See the name plate on the AC adaptor. (Automatic voltage conversion)
Airborne Acoustical Noise	Epilation head for legs/arms: 71 (dB (A) re 1 pW) Shaver head: 63 (dB (A) re 1 pW)

This product is intended for household use only.

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Panasonic

Betriebsanleitung

Epilatore (Household)

Identification of dele

A Hurtig-haette

Skansom-haette (Side 95)

①Hudbeskytter
② Rammefrigorelsessribber
③ Ramme

Model No. ES-WS24/ES-WS14

Icindekiler

33, Wanbao North Street, Wanbao Industry Zone, Zhongcun,

Panyu District, Guangzhou City, Guangdong Province, China

YETKILI TEMSILCI

Ithalatci Firma:

Tesan Iletisim A.Ş.

Cobançesme Mah. Bilge Sok. No:17

34196 Yenibosna- Istanbul

Tel: [phone] Faks: 0212 454 60 20

www.tesan.com.tr

URUNUN KULLANIM OMRU 7 YILDIR

© Panasonic Corporation 2016

EN, GE, FR, IT, DU, SP, DA, PT, NW, SW, FI, PL, CZ, SK, HU, RO, TK

Printed in China

ES9700WS241503 S1216-0
