USER MANUAL SBCHC8372 PHILIPS

Wireless FM Transmitter

XP SBC HC 8372/00-1

25-06-2001 18:11 Pagina 2 Figure 1

Figure 3 Figure 2 TRANSMITTER

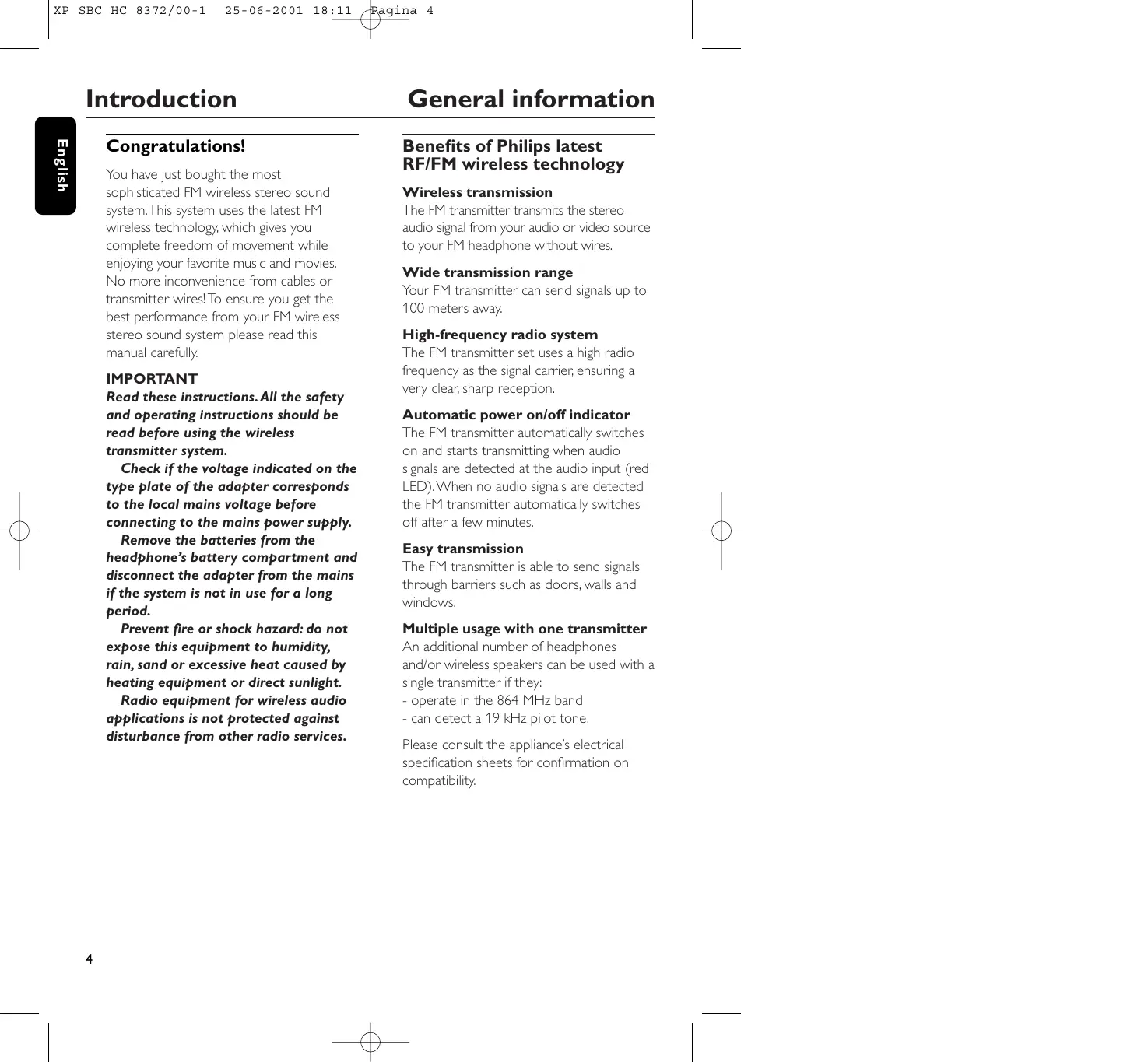

VOLUME CONNECTOR CABLE (INCLUDED) HEADPHONE (WHITE) LEFT RIGHT (RED) LEFT CHANNEL (WHITE) Congratulations! You have just bought the most sophisticated FM wireless stereo sound system.This system uses the latest FM wireless technology, which gives you complete freedom of movement while enjoying your favorite music and movies. No more inconvenience from cables or transmitter wires! To ensure you get the best performance from your FM wireless stereo sound system please read this manual carefully. IMPORTANT Read these instructions.All the safety and operating instructions should be read before using the wireless transmitter system. Check if the voltage indicated on the type plate of the adapter corresponds to the local mains voltage before connecting to the mains power supply. Remove the batteries from the headphone’s battery compartment and disconnect the adapter from the mains if the system is not in use for a long period. Prevent fire or shock hazard: do not expose this equipment to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight. Radio equipment for wireless audio applications is not protected against disturbance from other radio services.

Pagina 4 General information Benefits of Philips latest RF/FM wireless technology Wireless transmission The FM transmitter transmits the stereo audio signal from your audio or video source to your FM headphone without wires. Wide transmission range Your FM transmitter can send signals up to 100 meters away. High-frequency radio system The FM transmitter set uses a high radio frequency as the signal carrier, ensuring a very clear, sharp reception. Automatic power on/off indicator The FM transmitter automatically switches on and starts transmitting when audio signals are detected at the audio input (red LED).When no audio signals are detected the FM transmitter automatically switches off after a few minutes. Easy transmission The FM transmitter is able to send signals through barriers such as doors, walls and windows. Multiple usage with one transmitter An additional number of headphones and/or wireless speakers can be used with a single transmitter if they: - operate in the 864 MHz band - can detect a 19 kHz pilot tone. Please consult the appliance’s electrical specification sheets for confirmation on compatibility. 25-06-2001 18:11 Controls Pagina 5 Installation Kit contents Transmitter power supply This FM transmitter system consists of the following accessories: IMPORTANT Use only Philips SBC CS030/00 12 Volt/200 mA AC/DC adapter. (For UK, use only Philips SBC CS030/05) 1 x SBC HC8372 FM transmitter 1 x SBC CS030/00 12Volt / 200mA AC/DC adapter (for UK: SBC CS030/05 12 Volt/ 200 mA AC/DC adapter) 1 x 3.5 mm stereo plug to 2x RCA audio cable (15 cm) 1 x 3.5 mm plug to 6.3 mm stereo adapter plug 1 x antenna tube Controls Transmitter (figure 1) 1 Power indicator – lights up when audio signals are detected at the audio input. 2 DC power – connect to the 12 Volt/ 200 mA AC/DC adapter 3 3.5 mm stereo transmitter audio input – the audio cable connects your FM transmitter to an audio source 1 Make sure the adapter’s rated voltage corresponds to the mains socket voltage. 2 Connect the DC connector of the AC/DC adapter to the 12 Volt DC power input connector located at the rear of the transmitter. 3 Connect the 12 Volt/200 mA AC/DC adapter to the mains socket. – Always disconnect the AC/DC adapter if the transmitter is not to be used for a long period of time. 4 Insert the antenna tube in the hole, located on the top of the transmitter. Ensure that the wire which is hanging out of that hole, is guided in the antenna tube. – Installing the antenna tube correctly, will improve the transmission range. 4 Channel switch – select one of 2 channels for best reception.We advise you to select channel 1 as a first option. 5 Controls plate Environmental Information All redundant packing material has been omitted.We have done our best to make the packaging easily separable into two materials: cardboard and polyethylene Your unit consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

XP SBC HC 8372/00-1

XP SBC HC 8372/00-1

25-06-2001 18:11 Installation English Audio Connections Option 1 (figure 2) Connecting the FM transmitter to a headphone output of an audio source 1 Connect the 3.5mm stereo plug of the stereo audio cable to the headphone output of an audio source, such as TV, HiFi or PC. – In case your audio source has a 6.3 mm headphone output, use the supplied

3.5 mm to 6.3 mm stereo adapter plug.

2 Switch on your audio source and carefully increase the volume of the audio source. The red power indication LED of the transmitter lights up if receiving an audio signal. 3 Select one of the 2 channels for best reception.We advise you to select channel 1 as a first option. Option 2 (figure 3) Connecting the FM transmitter to a line output of an audio source, e.g. REC OUT, LINE OUT. 1 Connect the 3.5 mm stereo plug of the stereo audio cable (15 cm) to the FM transmitter’s 3.5 mm headphone input. Pagina 6 Audio Connections 2 Connect the 2 RCA plugs of the stereo audio cable to a line output (REC OUT or LINE OUT) of an audio source, e.g.TV, HiFi or PC: – Check if the red RCA plug (right channel) is connected to the right channel (red) of the audio source. – Check if the white RCA plug (left channel) is connected to the left channel (white) of the audio source. 3 Switch on your audio source.The red power indication LED of the transmitter lights up if receiving an audio signal. 4 In case the line output of the audio source has an adjustable output level, adjust the line output level of the audio source to the highest acceptable undistorted level. 5 Select one of the 2 channels for best reception.We advise you to select channel 1 as a first option. Basic operation When the FM transmitter is connected to a headphone output of an audio source. 1 Switch on your audio source and carefully increase the volume of the audio source. The red power indication LED of the transmitter lights up if receiving an audio signal. Hearing Safety! Continuous use at a high volume may permanently damage your hearing.

XP SBC HC 8372/00-1

25-06-2001 18:11 Pagina 7 If a fault occurs, first check the points listed below before taking the set for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Under no circumstances should you try to repair the set yourself, as this

would invalidate the warranty. Problem Remedy No sound – Check if the AC/DC adapter is fully inserted into the AC outlet and that its DC connector is properly inserted into the 12 Volt DC input connector located at the rear of the transmitter. – Check if the audio source is switched on and tuned to a channel with audio. – Volume not adjusted. Adjust the volume on the audio source/ transmitter to a higher level. – Change the transmitter’s tuning frequency. Select one of the 2 channels for best reception.We advise you to select channel 1 as a first option. Distorted sound – Distance from the transmitter is too large. Move closer to the transmitter. – Interference from fluorescent lamps/ other radio sources. Move transmitter elsewhere/ change the transmitter’s channel. Maintenance – Do not leave the transmitter near heat sources. Do not expose to direct sunlight, excessive dust, moisture, rain or any kind of mechanical shock. – Do not use alcohol, thinner or petroleum-based substances to clean the transmitter. Use a slightly dampened chamois cloth to clean the housing. – Do not use cleaning agents containing alcohol, spirits, ammonia or abrasives as these may harm the housing.

English Troubleshooting

XP SBC HC 8372/00-1

25-06-2001 18:11 Pagina 8 Specifications Regulations English System: Radio Frequency (RF) Carrier Frequency: (Transmitter HC8372) Channel 1: 863.5 MHz Channel 2: 864.5 MHz Modulation: Frequency Modulation (FM) Radiated Output Power: <10m Watt Effective Transmission Range: up to100 meters, omni directional (360º) Input level: 500 mVrms (1 kHz sine wave) Power supply – transmitter: 12Volt / 200 mA DC, centre positive Distortion: < 1.0% THD Channel separation: > 30 dB European Regulations This product has been designed, tested and manufactured according the European R&TTE Directive 1999/5/EC. Following this Directive, this product can be brought into service in the following states: R&TTE Directive 1999/5/EC

CH ✔ This product complies with class 3 requirements as set down in ETS 300 445.

25-06-2001 18:11 Pagina 9 Introduction Information générale Félicitations! Plage de transmission effective: 500 mVrms (1 kHz sinusgolf ) Voeding – zender: Frequenza Radio (RF) 500 mVrms (1 kHz sinus) Strömmatning – sändare: 1 x SBC HC8372 FM-sender Norge D (FM) 12Volt / 200 mA DC, Philips Info-Center Tel: 0180 / 535 67 67 Fax: 0180 / 535 67 68
