EG601A - Generator MAKITA - Free user manual and instructions

Product type	Portable generator
Brand	Makita
Model	EG601A
Rated voltage (AC)	230 V
Rated frequency	50 Hz
Rated power (AC)	4600 W
Maximum power (AC)	6000 W
Rated current (AC)	20 A
DC output	12 V, 8.3 A
Engine type	Robin EX35D, 4-stroke, OHC, forced air cooling
Displacement	404 cm³
Fuel	Unleaded gasoline
Fuel tank capacity	22 L
Engine oil capacity	1.2 L
Starting system	Recoil starter (electric model optional)
Dimensions (L x W x H)	725 x 510 x 580 mm
Dry weight	86 kg
Regulation type	Automatic voltage regulator (AVR)
Safety devices	AC circuit breaker, oil sensor, DC circuit breaker

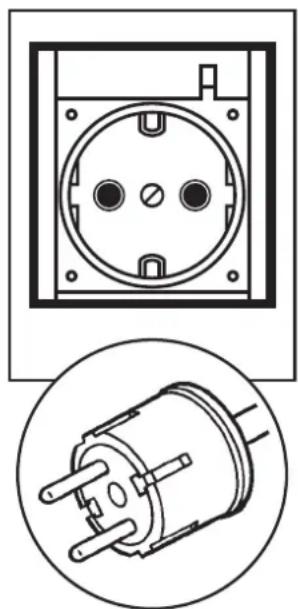

AC outlet	1 x 20 A

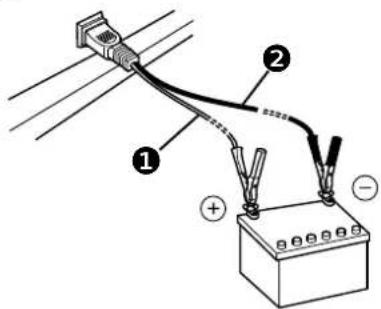

DC outlet	1 x 12 V (battery charging)
Instruments	Voltmeter, fuel gauge
Routine maintenance	Oil check, air filter, spark plug, oil change every 100 h
Sound level	Not specified

Frequently Asked Questions - EG601A MAKITA

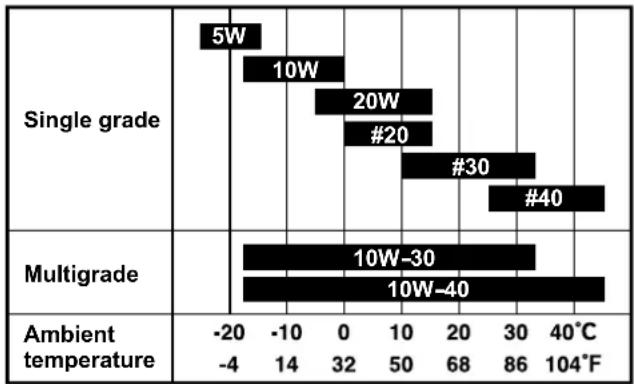

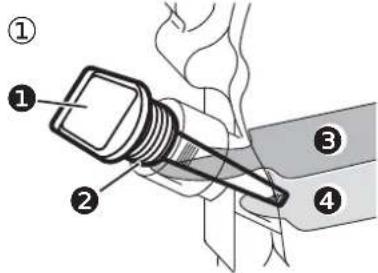

What type of engine oil to use?

Use a detergent 4-stroke engine oil of API SE class or higher (SG, SH, SJ recommended). Recommended viscosity for general use is SAE 10W-30 or 10W-40. Adjust viscosity to ambient temperature if necessary.

What fuel to use?

Use unleaded automotive gasoline. Do not use fuel mixed with oil (2-stroke). The tank capacity is 22 L.

How to start the generator?

1) Set the engine switch to ON. 2) Open the fuel valve. 3) If engine is cold, close the choke. 4) Pull the starter handle slowly until resistance is felt, then pull quickly. 5) After starting, gradually open the choke.

What to do if the engine does not start?

Check: fuel level, choke position (closed when cold), fuel valve open, engine switch ON, spark plug (clean and connected), and oil level (oil sensor stops engine if low).

What is the maximum power I can use?

Rated power is 4600 W, maximum power is 6000 W for short peaks. Do not exceed these values. Account for starting surge of electric motors.

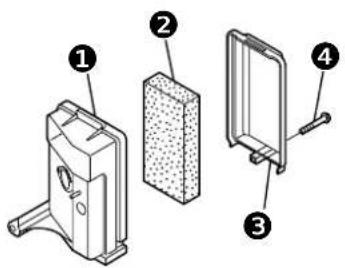

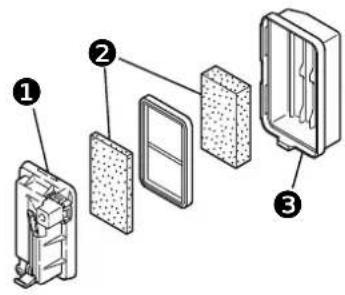

How to maintain the air filter?

Clean the urethane foam element every 50 hours. Wash it in kerosene or detergent solution, rinse, dry, then soak in clean engine oil and squeeze out excess.

How often to change the oil?

Change oil after the first 20 hours, then every 100 hours. Use fresh quality oil. Drain while warm by removing drain plug and filler cap.

Can I use the generator in the rain?

No, never use it in rain, wet conditions, or with wet hands. Risk of electric shock. Use only outdoors, in a dry and well-ventilated area.

How to store the generator for long periods?

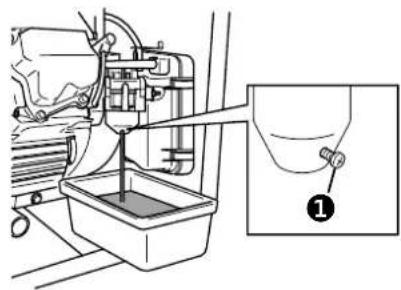

Drain fuel from tank and carburetor (drain screw). Change oil. Clean the unit. Pull starter handle until resistance. Store in a dry and ventilated area.

What to do if the AC circuit breaker trips?

The breaker trips in case of overload or short circuit. Disconnect devices, ensure they do not exceed rated power, then reset the breaker. If problem persists, contact a Makita service center.

USER MANUAL EG601A MAKITA

Line drawing of a portable electricity generator unit with fan and control panel (no text or symbols)

EN INSTRUCTIONS FOR USE
FR MANUEL D'UTILISATION
DE BEDIENUNGSANLEITUNG
NL GEBRUIKSAANWIJZING
ES MANUAL DE INSTRUCCIONES
IT MANUALE D'USO E MANUTENZIONE
PT MANUAL DE INSTRUÇÕES

GR ΟΔΗΓΙΕΣ ΧΡΗΣΕΩΣ ΚΑΙ ΣΥΝΤΗΡΗΣΕΩΣ ΚΙΝΗΤΗΡΩΝ
NO INSTRUKTIONSBOK
SE BRUKSANVISNING
FI KÄYTTÖ-JA HUOLTO-OHJEET
DK BRUGSANVISNING
RU РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

1

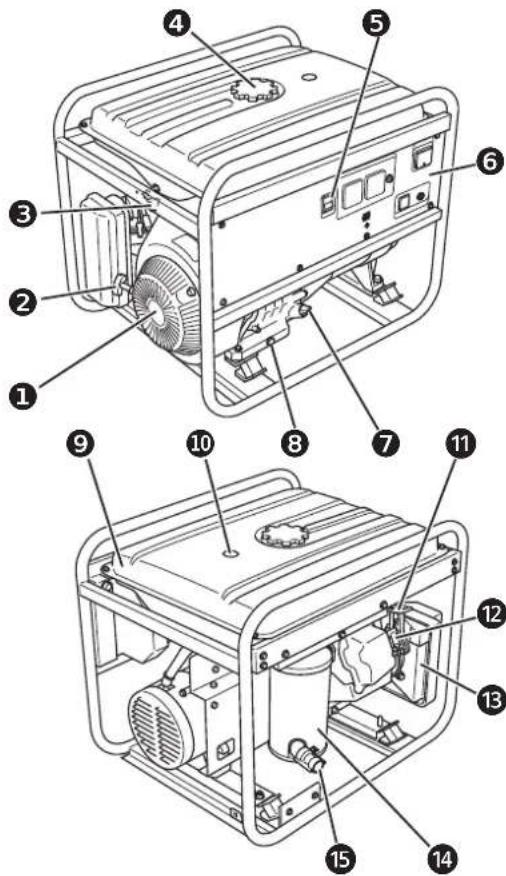

① EG241A, EG321A, EG321AE EG441A, EG441AE

Technical diagram of a two-part electric generator with numbered components for identification.

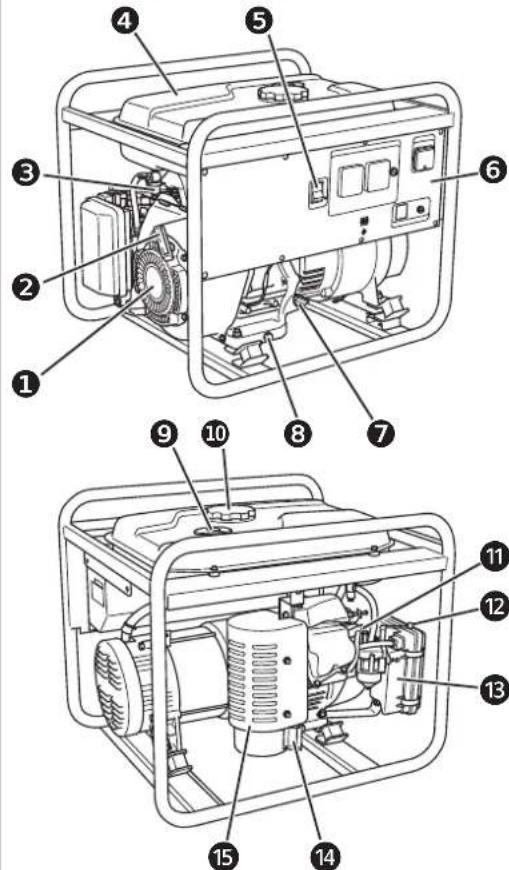

② EG601A, EG601AE EG671A, EG671AE

Technical diagram of a two-part electric generator with numbered components for identification.

2

Diagram of a medical or laboratory procedure showing labeled components and tissue layers

②

③

EG241A, EG321A, EG321AE EG441A, EG441AE

EG601A, EG601AE EG671A, EG671AE

E I F ② ①

④

Diagram showing three labeled parts of a water pump or drain system with annotations 1, 2, and 3.

⑤

Technical diagram showing a cable or wire connection with labeled component 1, likely for industrial or automotive assembly.

⑥

Diagram of a hand pump with a symbol indicating a weight or load, labeled with number 1

⑦

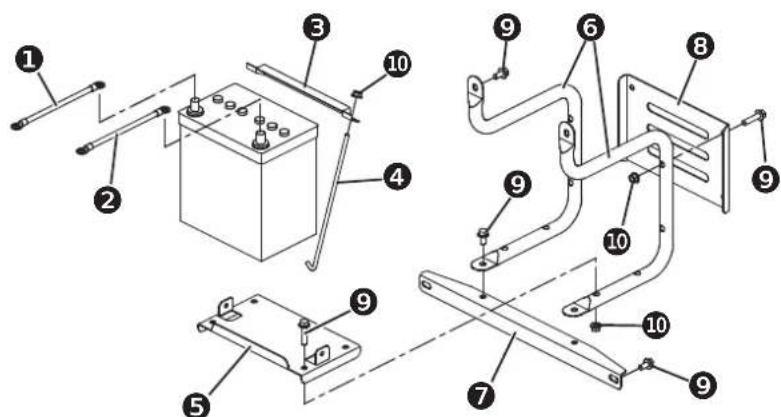

Technical diagram of a battery assembly with numbered components for identification

EN

[appendix]

Instructions for treatment as waste

When disposing this product, make sure that the fuel and oil should be drained from the engine, and submit to local regulations.

FR

[Annexe]

Simple line drawing of a folded document and a curved arrow (no text or symbols)

⑥

Technical diagram showing mechanical assembly with numbered components and directional arrow indicating motion

⑤

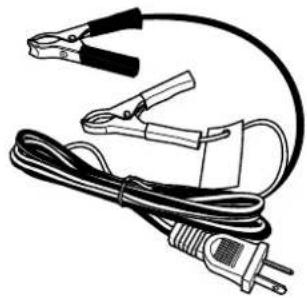

Coiled electrical components including clampers and a power plug (no text or symbols visible)

②

Diagram of a mechanical device with numbered parts and curved arrows indicating motion or assembly steps

4
①

⑥

Simple line drawing of a folded paper or envelope with a curved arrow indicating downward motion (no text or symbols)

③

Technical diagram of a mechanical assembly with numbered components and directional arrow indicating motion or force

②

⑦

Diagram of a device with labeled parts and directional arrows indicating movement or change.

④

Technical diagram showing a hand using a screwdriver to adjust or install a mechanical component, with labeled parts ① and ④.

③

Diagram showing a cable or wire connection with labeled components and polarity indicators

⑧

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

⑤

Diagram of a dial indicator with numbered parts and directional arrow, likely illustrating a measurement or calibration process.

④

⑨

Technical diagram showing mechanical assembly with labeled component 1 and directional arrow

5

Technical diagram of a mechanical assembly with labeled parts, showing structural components and alignment indicators.

②
EG241A, EG321A, EG321AE

Exploded view diagram of a refrigerator with labeled parts including front panel, door, and lid

③

EG441A, EG441AE

Technical diagram showing three labeled components of a mechanical or electrical component, including a housing, block, and housing panel.

④
EG601A, EG601AE EG671A, EG671AE

Technical diagram showing four labeled parts of a mechanical device, including a housing, panel, and clamping mechanism.

⑤

0.6 ~ 0.7 mm

⑥

Technical line drawing of a mechanical assembly with cross-sectional views (no text or symbols)

⑦

Technical line drawing of a mechanical component with mounting holes and a triangular base (no text or symbols)

1

10~11mm

2

⑧

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical assembly with numbered components for identification

6
①

Technical diagram showing a mechanical assembly with labeled component 1, including a magnified inset view.

Hand pouring liquid into a container (no text or symbols visible)

CE symbol label

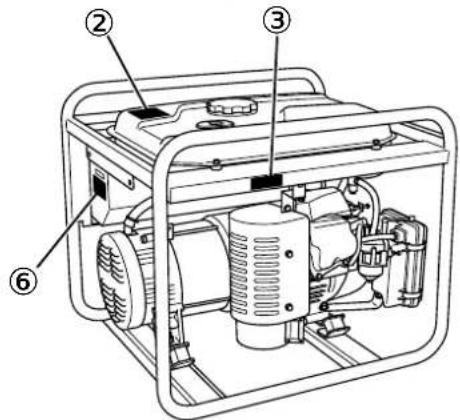

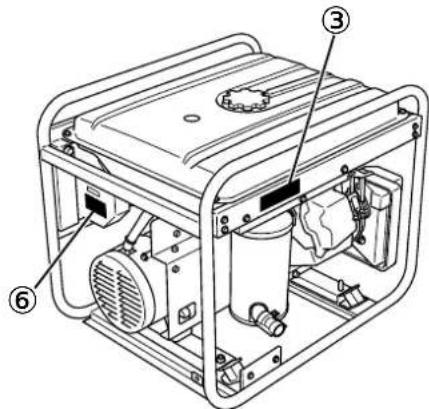

Technical diagram of a portable electricity generator with labeled components

Technical diagram of a portable gas generator with labeled components

EG601A, EG601AE EG671A, EG671AE

Technical diagram of a portable power supply unit with numbered components labeled 1 to 5

Technical diagram of a portable gas generator with labeled components

①

Safety warning icons including warning triangle, no crossing symbol, open book, no-nozzle, and fuel pump

②

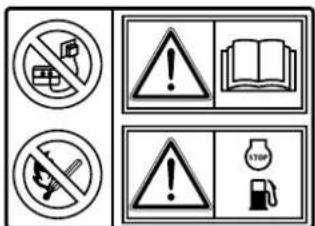

Warning sign set with no smoking and pictograms, including warning symbols for incorrect use and education.

③

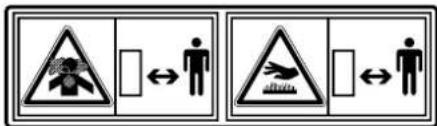

Traffic warning sign showing a person crossing a barrier with pictograms and directional arrows

④

⑤

⑥

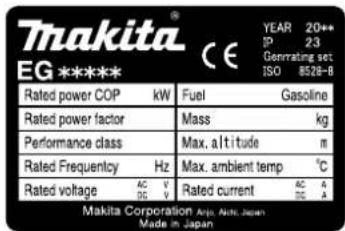

TMakita® EG ***** CE YEAR 20++ IP 23 Genrating set: ISO 8528-8 Rated power COP kW Fuel Gasoline Rated power factor Mass kg Performance class Max. altitude m Rated Frequency Hz Max. ambient temp °C Rated voltage AC V V Rated current AC A DC SG A Makita Corporation Anjo. Natn. Japan Made in Japan

EC- DECLARATION OF CONFORMITY EG-KONFORMITÄTSERKLÄRUNG DÉCLARATION DE CONFORMITÉ "EC" EU VERKLARING VAN CONFORMITEIT DICHIARAZIONE DI CONFORMITA EC ΔΗΛΩΣΗ ΣΥΜΜΟΡΦΩΣΗΣ Ε.Ε.
DECLARACIÓN DE CONFORMIDAD DE LA CE CE-DECLARAÇÃO DE CONFORMIDADE EG-FÖRSÄKRAN OM ÖVERENSTÄMMELSE EC-YHDENMUKAISUUSSELVITYS EC-KONFORMITETS DEKLARASJON EU-DEKLARATION OM KONFORMITET

Manufacturer	Fabricante	MAKITA INTERNATIONAL EUROPE LTD.
Hersteller	Fabricante	Michigan Drive, Tongwell, Milton keynes, Bucks MK15 8JD, U.K.
Fabricant	Tillverkare
Fabrikant	Valmistaja
Costruttore	Produsent
Κατασκευαστής	Fabrikant

Name and address of the person who keeps the Technical Documentation

Name und Anschrift der Person, die für technische Dokumentation verantwortlich ist

Nom et adresse de la personne qui garde la Documentation Technique

Naam en adres van de degene bij wie de Technische Documentatie berust

Nome e indirizzo della persona che conserva la documentazione tecnica

'Ovoja kai diεύθυνση υπευθύνου για τις Τεχνικές Τεκμηριώσεις

Nombre y dirección del encargado de la documentación técnica

Nome e endereço do responsável pela conservação da Documentação Técnica

Namn och adress gällande den juridiska person som förvarar den tekniska dokumentationen

Sen tahon nimi ja osoite, jonka hallussa teknillinen dokumentaatio on

Navn og adresse på personen som står for teknisk domumentasjon

Navn og adresse på den person, der opbevarer den tekniske dokumentation

MAKITA INTERNATIONAL EUROPE LTD.
Michigan Drive, Tongwell, Milton keynes, Bucks MK15 8JD, U.K.
Tomoyasu Kato	Director

Authorized Compiler In The Community Autorisiertes Montageunternehmen im Gebiet Compilateur autorisé dans la Communauté Erkende vertegenwoordiger in het rayon Compilatore autorizzato nella comunità Εγκεκριμένος από την Κοινότητα μεταγλωττιστής

Compilador autorizado en la Comunidad

Compilador autorizado na comunidade

Auktoriserad sammanställare inom gemenskapen

Paikallinen edustaja

Autorisert kompilator i EU

Autoriseret computer i samfundet

MAKITA INTERNATIONAL EUROPE LTD.Michigan Drive, Tongwell, Milton keynes,Bucks MK15 8JD, U.K.Tomoyasu Kato Director

Description of the equipment	Descripción del equipo
Beschreibung des Geräts	Descrição do equipamento
Description de l'équipement	Beskrivning av utrustningen
Beschrijving van de apparatuur	Laitteiston kuvaus
Descrizione dell'apparecchiatura	Beskrivelse av utstyret
Περιγραφή μηχανήματος	Beskrivelse af udstyret

Product	:Power Generator	Trade name	:EG241A	Start serial number	:RGM300-1010001
Produkt	:Stromgenerator	Handelsbezeichnung	:EG321A / EG321AE	Erste Seriennummer	:RGM380-1010001
Produit	:Générateur d'alimentation	Marque déposée	:EG441A / EG441AE	Numéro de série de démarrage	:RGM510-1010001
Product	:Stroomgenerator	Handelsnaam	:EG601A / EG601AE	Eerste serienummer	:RGM710-1010001
Prodotto	:Generatore di energia elettrica	Denominazione commerciale	:EG671A / EG671AE	Numero di serie iniziale	:RGM780-1010001
Προϊόν	:Ηλεκτροπαραγωγική Γεννήτρια	Εμπορικό Όνομα		Αρχικός αύξων αριθμός
Produto	:Grupo electrógeno	Nombre comercial		Número de serie inicial
Produto	:Gerador de Força	Nome comercial		Número de série inicial
Produkt	:Kraftgenerator	Handelsnamn		Start serienummer
Tuote	:Sähkögeneraattori	Kauppanimi		Käynnistyksen sarjanumero
Produkt	:Kraftgenerator	Handelsnavn		Startserienummer
Produkt	:Strømgenerator	Handelsbetegnelse		Startløbenummer:

The undersigned, T. Kato, representing the manufacture, herewith declares that the product in conformity with the provisions the following EC–directives;

Other national standards or specifications used:

Thank you very much for purchasing a MAKITA GENERATOR.

This manual covers operation and maintenance of the MAKITA GENERATOR.

This MAKITA GENERATOR can be used for general electrical equipments, appliances, lamps, tools as an AC power source. With regards to DC application, the terminals are used only for charging 12 volt battery.

Never use this generator for any other purposes.

Please take a moment to familiarize yourself with the proper operation and maintenance procedures in order to maximize the safe and efficient use of this product.

Keep this owner's manual at hand, so that you can refer to it at any time.

Due to constant efforts to improve our products, certain procedures and specifications are subject to change without notice.

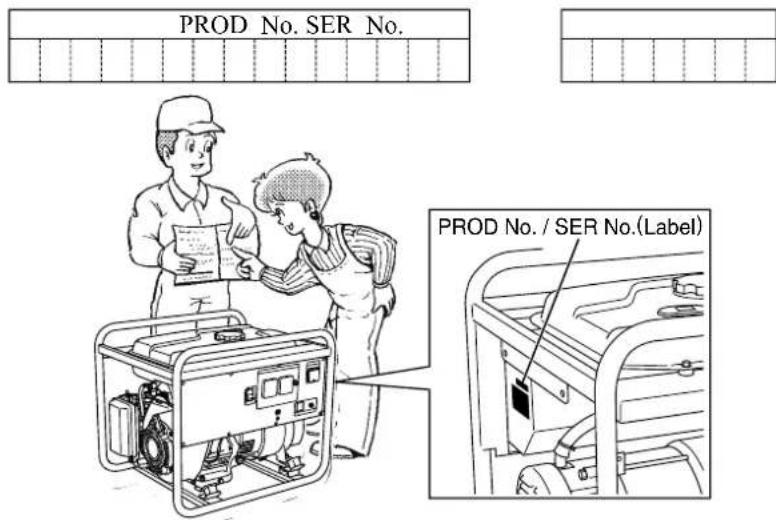

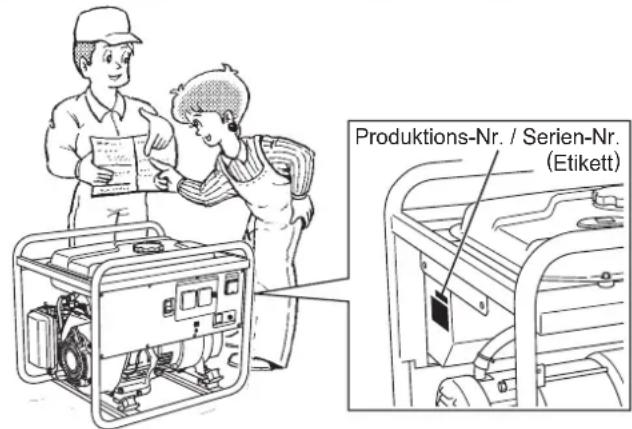

When ordering spare parts, always give us the MODEL, PRODUCTION NUMBER (PROD No.) and SERIAL NUMBER (SER No.) of your Product.

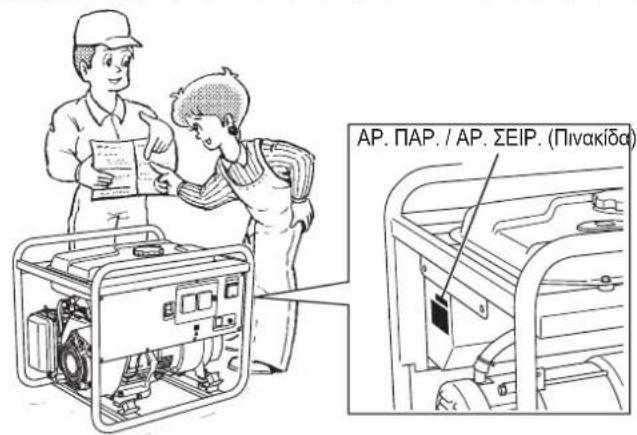

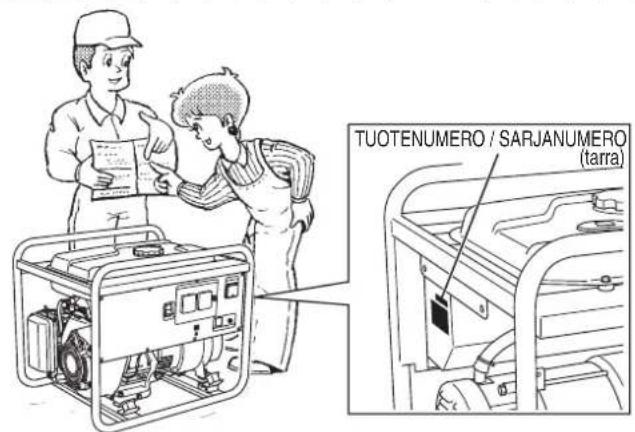

Please fill in the following blanks after checking the production number on your product. (Location of label is different depending on the product model.)

PROD No. SER No. PROD No. / SER No.(Label)

CONTENTS

Page

1. SAFETY PRECAUTIONS ..... 2

2. COMPONENTS....5

3. PRE-OPERATION CHECKS....5

4. OPERATING PROCEDURES .....7

5. WATTAGE INFORMATION....11

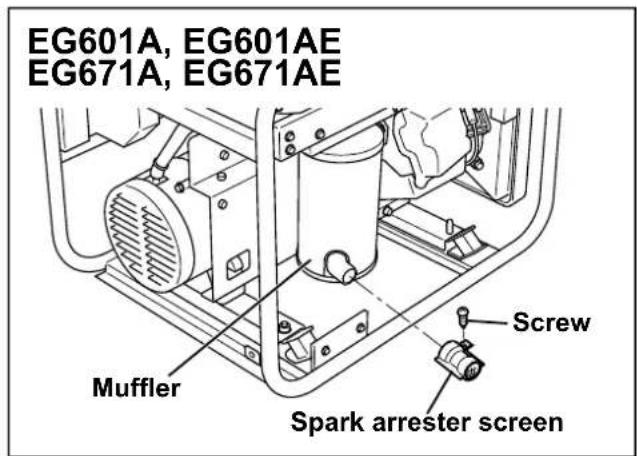

6. SPARK ARRESTER 12

7. MAINTENANCE SCHEDULE 13

8. "HOW-TO" MAINTENANCE ..... 14

9. PERIODIC OPERATION AND INSPECTION ..... 15

10. TRANSPORTING 15

11. PREPARATION FOR STORAGE 16

12. TROUBLESHOOTING 16

13. SPECIFICATIONS....17

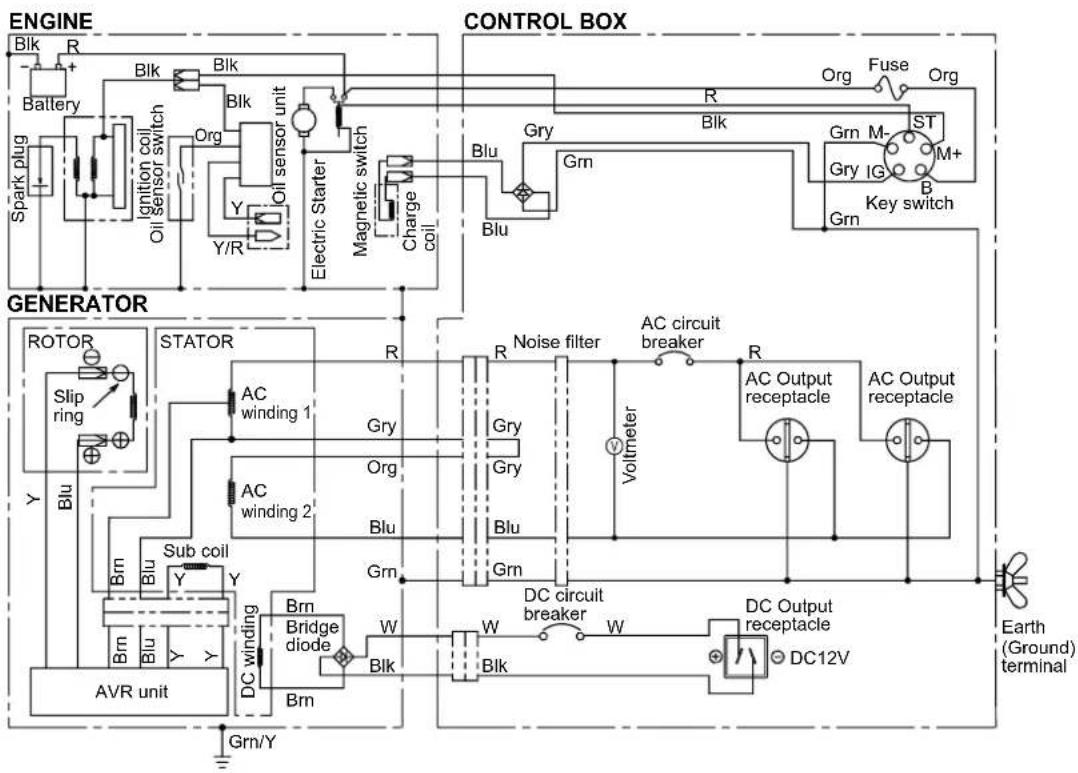

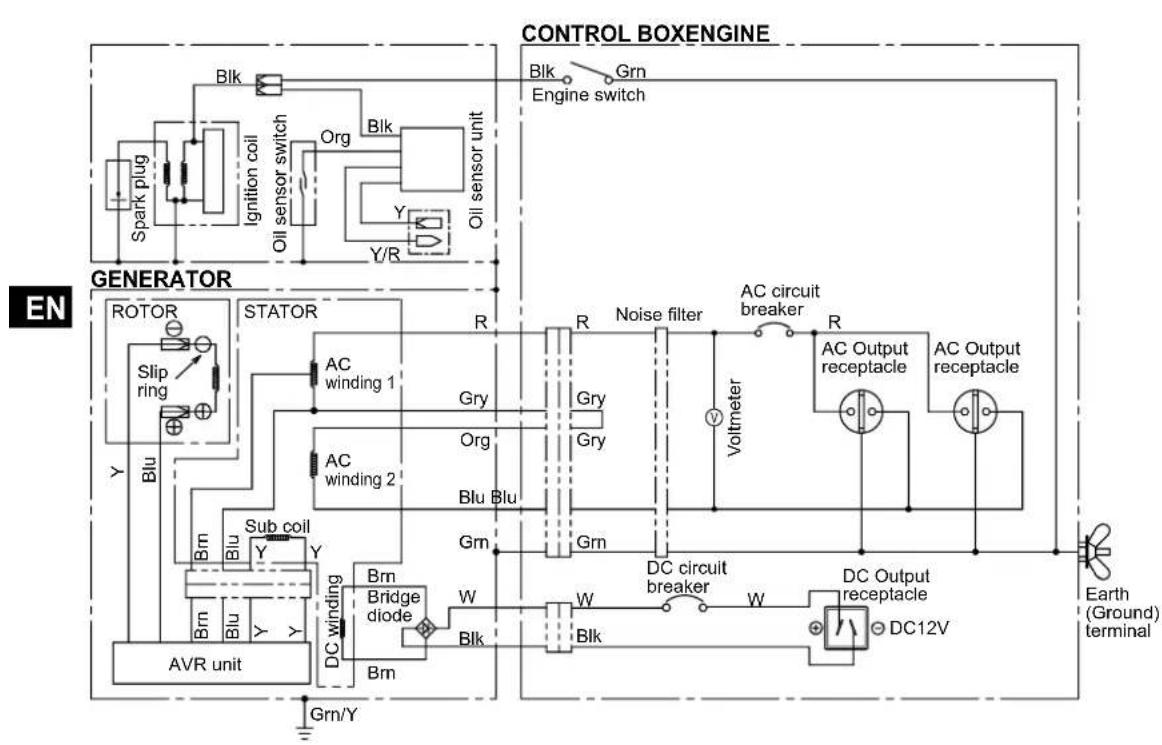

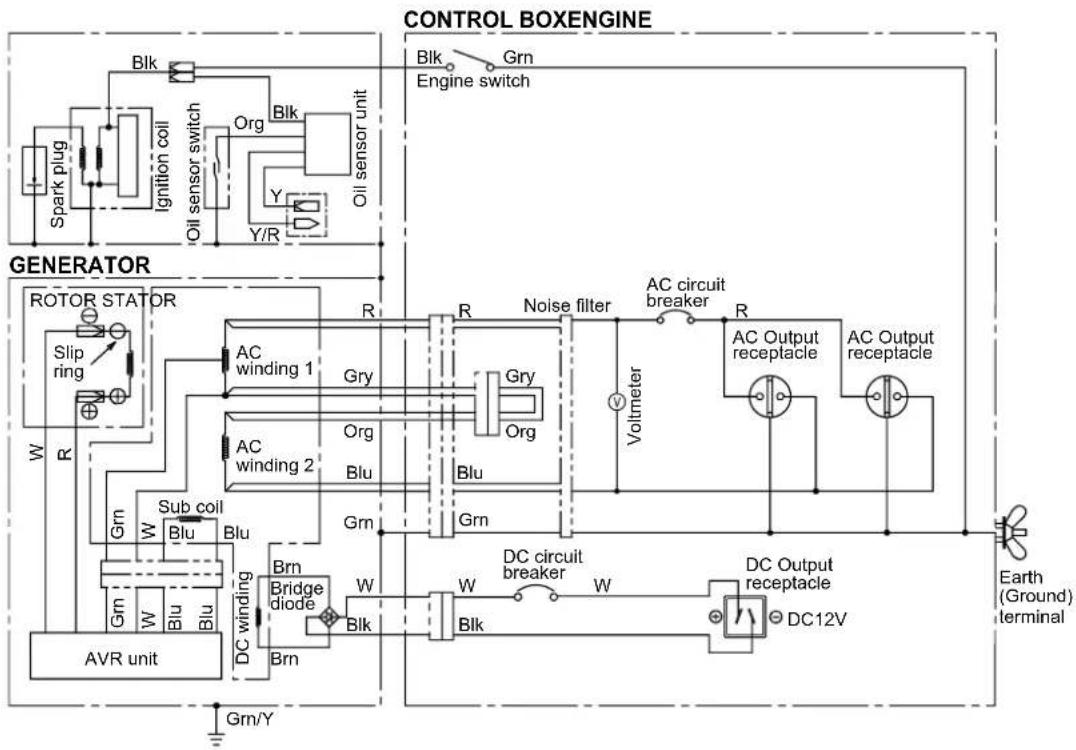

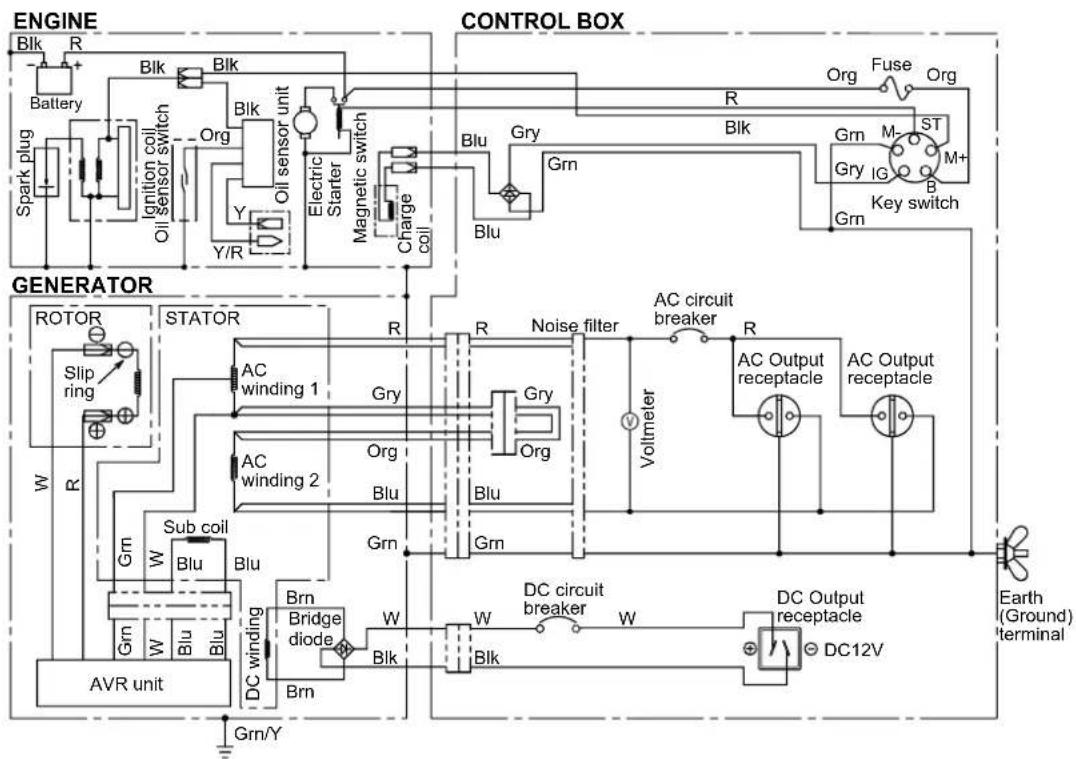

14. WIRING DIAGRAM 18

15. OPTIONAL PARTS....20

NOTE

Please refer to the illustrations on the back page of the front cover or back cover for Fig.1 to 6 indicated in the sentence.

1. SAFETY PRECAUTIONS

Please make sure you review each precaution carefully.

Pay special attention to statement preceded by the following words.

WARNING

"WARNING" indicates a strong possibility of severe personal injury or loss of life if instructions are not followed.

CAUTION

"CAUTION" indicates a possibility of personal injury or equipment damage if instructions are not followed.

WARNING

Do not operate the generator near gasoline or gaseous fuel because of the potential danger of explosion or fire.

Do not fill the fuel tank with fuel while the engine is running. Do not smoke or use open flame near the fuel tank. Be careful not to spill fuel during refueling.

If fuel is spilt, wipe it off and let dry before starting the engine.

WARNING

Do not place in fl ammables near the generator.

Be careful not to place fuel, matches, gunpowder, oily cloths, straw, trash, or any other in fl ammables near the generator.

WARNING

Do not operate the generator inside a room, cave, tunnel, or other insufficiently ventilated area.

Always operate it in a well-ventilated area, otherwise the engine may become overheated, and the poisonous carbon monoxide gas, an odorless, colorless, poison gas, contained in the exhaust gas will endanger human lives.

Operate generator only outdoors and far from open windows, doors, ventilation intakes and other openings.

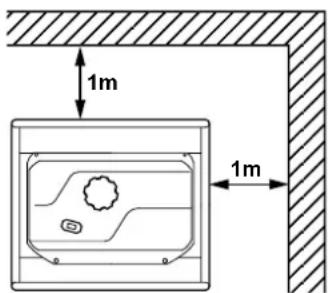

Keep the generator at least 1 meter (3 feet) away, including overhead, from any structure or building use.

1m 1m

WARNING

Do not enclose the generator nor cover it with a box.

The generator has a built-in forced air cooling system, and may become overheated if it is enclosed.

If generator has been covered to protect it from the weather during non use, be sure to remove it and keep it well away from the area during generator use.

WARNING

Operate the generator on a level surface.

It is not necessary to prepare a special foundation for the generator.

However, the generator will vibrate on an irregular surface, so choose a level place without surface irregularities.

If the generator is tilted or moved during operation, fuel may spill and / or the generator may tip over, causing a hazardous situation.

Proper lubrication cannot be expected if the generator is operated on a steep incline or slope. In such a case, piston seizure may occur even if the oil is above the upper level.

WARNING

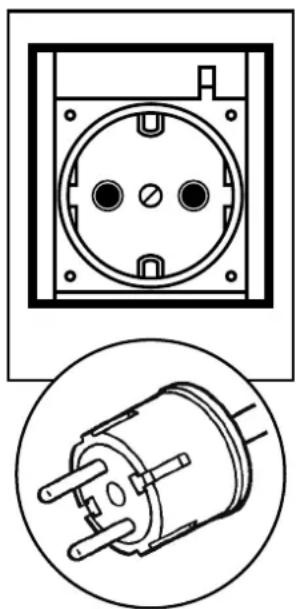

Pay attention to the wiring or extension cords from the generator to the connected device.

If the wire is under the generator or in contact with a vibrating part, it may break and possibly cause a fi re, generator burnout, or electric shock hazard.

Replace damaged or worn cords immediately.

WARNING

Do not operate in rain, in wet or damp conditions, or with wet hands.

The operator may suffer severe electric shock if the generator is wet due to rain or snow.

WARNING

If wet, wipe and dry it well before starting. Do not pour water directly over the generator, nor wash it with water.

WARNING

Be extremely careful that all necessary electrical grounding procedures are followed during each and every use. Failure to do so can be fatal.

WARNING

Do not contact the generator to a commercial power line. Connection to a commercial power line may short circuit the generator and ruin it or cause electric shock hazard.

Use the transfer switch for connecting to domestic circuit.

WARNING

No smoking while handling the battery. The battery emits fl ammable hydrogen gas, which can explode if exposed to electric arcing or open flame.

Keep the area well-ventilated and keep open fl ames/sparks away when handling the battery.

WARNING

Engine becomes extremely hot during and for some time after operation.

Keep combustible materials well away from generator area.

Be very careful not to touch any parts of the hot engine especially the muffler area or serious burns may result.

WARNING

Keep children and all bystanders at a safe distance from work areas.

WARNING

It is absolutely essential that you know the safe and proper use of the power tool or appliance that you intend to use. All operators must read, understand and follow the tool/appliance owners manual. Tool and appliance applications and limitations must be understood. Follow all directions given on labels and warnings. Keep all instruction manuals and literature in a safe place for future reference.

WARNING

Use only "LISTED" extension cords.

When a tool or appliance is used outdoors, use only extension cords marked "For Outdoor Use". Extension cords, when not in use should be stored in a dry and well ventilated area.

WARNING

Always switch off generator's AC circuit breaker and disconnect tools or appliances when not in use, before servicing, adjusting, or installing accessories and attachments.

CAUTION

Make sure the engine is stopped before starting any maintenance, servicing or repair.

Make sure maintenance and repair of the generator set are performed by properly trained personnel only.

Symbols and Meanings

In accordance with the European requirements (eec Directives), the specified symbols as shown in the following table are used for the products and this instruction manual.

	Read the operator's instruction manual.		Fire, open light and smoking prohibited.
	Stay clear of the hot surface.		Do not connect the generator to the commercial power lines.
	Exhaust gas is poisonous.Do not operate in an unventilated room.		Do not operate in rain or snow.
	Stop the engine before refueling.		Call for maintenance.
	Caution, risk of electric shock.		Keep dry.
	HOT, avoid touching the hot area.

	ON(power and Engine)		IN-position of a bistable push control		Engine start (Electric start)
	OFF(power and Engine)		Protective earth (ground)		Engine stop
	Alternating current		Fuse		Gasoline
	Direct current		Engine oil		Fast
	Plus; positive polarity		Add oil		Slow
	Minus; negative polarity		Battery charging condition		Fuel start / Open
	OUT-position of a bistable push control		Choke; cold starting aid		Fuel stop / Close

P_r	Rated power (kW)	COP	Continuous power	COS_r	Rated power factor
f_r	Rated frequency (Hz)	U_r	Rated voltage (V)	I_r	Rated current (A)
H_max	Maximum site altitude above sea-level (m)	T_max	Maximum ambient temperature (°C)	m	Mass (kg)

2. COMPONENTS 3. PRE-OPERATION CHECKS

(See Fig. 1) (See Fig. 2)

NOTE

Please refer to the illustrations on the back page of the front cover or back cover for Fig.1 to 6 indicated in the sentence.

EG241A, EG321A, EG321AE, EG441A, EG441AE (See Fig. 1 -①)

① RECOIL STARTER
② RECOIL STARTER HANDLE
③ FUEL STRAINER (FUEL VALVE)
④ FUEL TANK
⑤ ENGINE SWITCH
⑥ CONTROL PANEL
⑦ OIL GAUGE (OIL FILLER)
⑧ OIL DRAIN PLUG
⑨ FUEL GAUGE
⑩ TANK CAP
⑪ SPARK PLUG CAP
⑫ CHOKE LEVER
13 AIR CLEANER
14 EXHAUST OUTLET
15 MUFFLER COVER

EG601A, EG601AE, EG671A, EG671AE (See Fig. 1 -②)

① RECOIL STARTER
② RECOIL STARTER HANDLE
③ FUEL STRAINER (FUEL VALVE)
④ TANK CAP
⑤ ENGINE SWITCH
⑥ CONTROL PANEL
⑦ OIL GAUGE (OIL FILLER)
⑧ OIL DRAIN PLUG
⑨ FUEL TANK
10 FUEL GAUGE
⑪ CHOKE LEVER
⑫ SPARK PLUG CAP
13 AIR CLEANER
14 MUFFLER
15 EXHAUST OUTLET

1. CHECK ENGINE OIL (See Fig. 2 -①,②)

Before checking or refi lling oil, be sure generator is located on stable and level surface with engine stopped.

■ Remove oil filler cap and check the engine oil level. (See Fig.2 -①)
① OIL GAUGE
② OIL FILLER
③ UPPER LEVEL
④ LOWER LEVEL

■ If oil level is below the lower level line, refi ll with suitable oil (see table) to upper level line. Do not screw in the oil fi ller cap when checking oil level. (See Fig.2 -②)

① UPPER LEVEL

② LOWER LEVEL

■ Change oil if contaminated. (See "How-To" Maintenance.)

Oil capacity (Upper level) : (L)
EG241A	0.6
EG321A, EG321AE	0.6
EG441A, EG441AE	1.0
EG601A, EG601AE	1.2
EG671A, EG671AE	1.2

Recommended engine oil:

Use 4-stroke automotive detergent oil of API service class SE or highergrade (SG, SH or SJ is recommended). SAE 10W-30 or 10W-40 is recommended for general, all-temperature use.

If single viscosity oil is used, select the appropriate viscosity for the average temperature in your area.

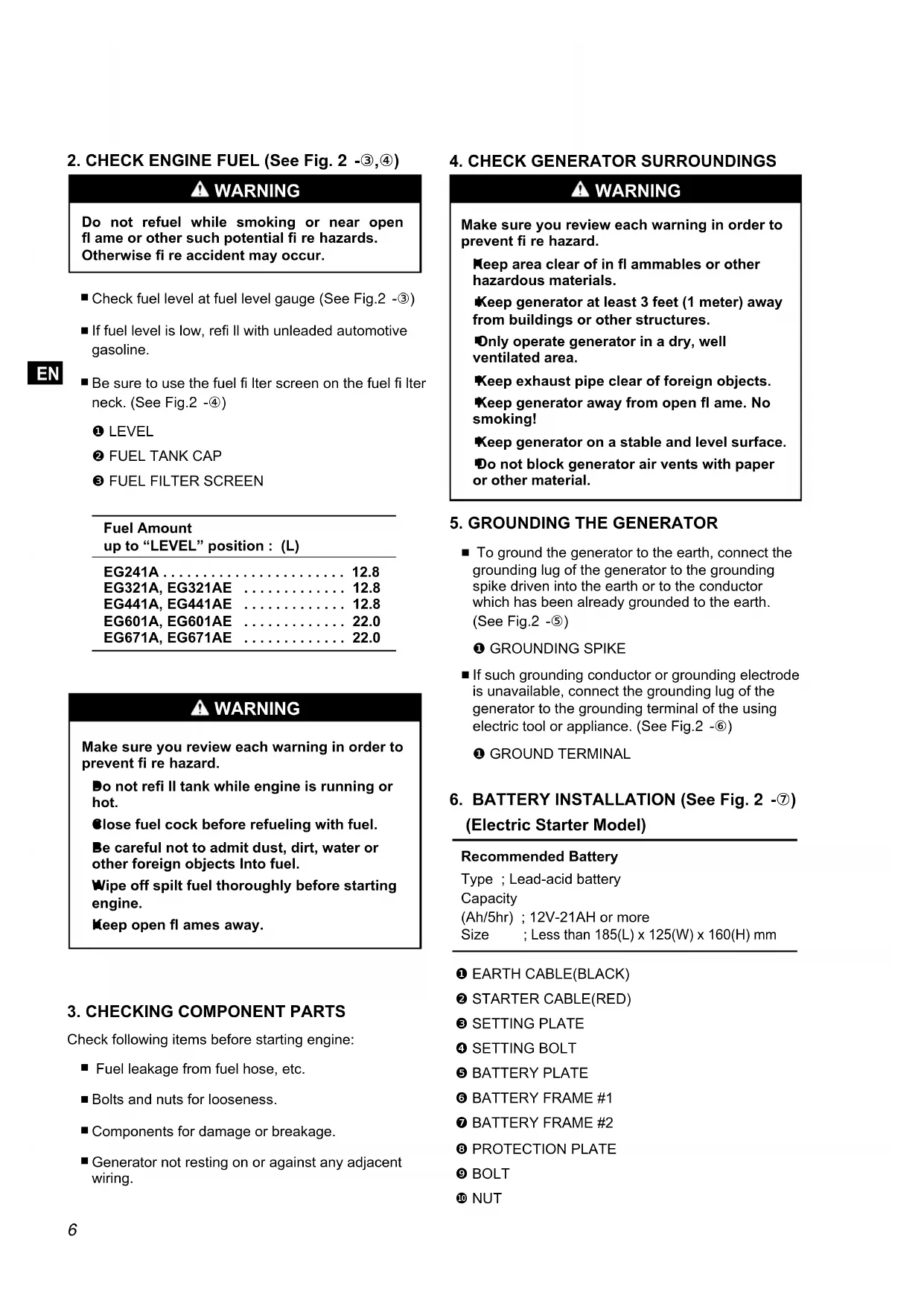

2. CHECK ENGINE FUEL (See Fig. 2 -③,④)

WARNING

Do not refuel while smoking or near open fl ame or other such potential fi re hazards. Otherwise fi re accident may occur.

■ Check fuel level at fuel level gauge (See Fig.2 -③)
■ If fuel level is low, refi II with unleaded automotive gasoline.
■ Be sure to use the fuel fi Iter screen on the fuel fi Iter neck. (See Fig.2 -④)

① LEVEL
② FUEL TANK CAP
③ FUEL FILTER SCREEN

Fuel Amount up to "LEVEL" position : (L)

EG241A	12.8
EG321A, EG321AE	12.8
EG441A, EG441AE	12.8
EG601A, EG601AE	22.0
EG671A, EG671AE	22.0

WARNING

Make sure you review each warning in order to prevent fi re hazard.

Do not refi ll tank while engine is running or hot.
- close fuel cock before refueling with fuel.
Be careful not to admit dust, dirt, water or other foreign objects Into fuel.
Wipe off spilt fuel thoroughly before starting engine.
Keep open fl ames away.

3. CHECKING COMPONENT PARTS

Check following items before starting engine:

■ Fuel leakage from fuel hose, etc.
■ Bolts and nuts for looseness.
■ Components for damage or breakage.
- Generator not resting on or against any adjacent wiring.

4. CHECK GENERATOR SURROUNDINGS

WARNING

Make sure you review each warning in order to prevent fi re hazard.

Keep area clear of in flammables or other hazardous materials.

• Keep generator at least 3 feet (1 meter) away from buildings or other structures.
  ■Only operate generator in a dry, well ventilated area.
  Keep exhaust pipe clear of foreign objects.
• Keep generator away from open flame. No smoking!
  Keep generator on a stable and level surface.
  Do not block generator air vents with paper or other material.

5. GROUNDING THE GENERATOR

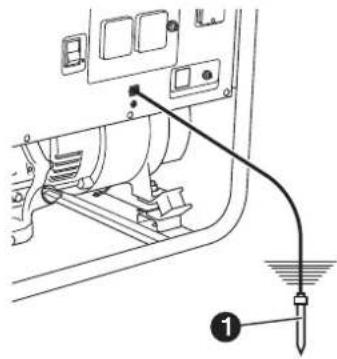

■ To ground the generator to the earth, connect the grounding lug of the generator to the grounding spike driven into the earth or to the conductor which has been already grounded to the earth. (See Fig.2 -⑤)
① GROUNDING SPIKE
■ If such grounding conductor or grounding electrode is unavailable, connect the grounding lug of the generator to the grounding terminal of the using electric tool or appliance. (See Fig.2 -⑥)
① GROUND TERMINAL

6. BATTERY INSTALLATION (See Fig. 2 -⑦) (Electric Starter Model)

Recommended Battery

Type ; Lead-acid battery

Capacity

(Ah/5hr) ; 12V-21AH or more

Size ; Less than 185(L) x 125(W) x 160(H) mm

① EARTH CABLE(BLACK)
② STARTER CABLE(RED)
③ SETTING PLATE
④ SETTING BOLT
⑤ BATTERY PLATE
⑥ BATTERY FRAME #1
⑦ BATTERY FRAME #2
⑧ PROTECTION PLATE
⑨ BOLT
10 NUT

WARNING

Death, personal injury and/or property damage may occur unless instructions are followed carefully.

Use battery of recommended capacity.

Turn the starter switch to the “○” (STOP) position when mounting or dismounting battery. When mounting battery, connect the positive (+) cable fi rst and then the negative (-) cable to the battery. Be careful not to short battery cables. When dismounting battery, disconnect negative (-) cable fi rst.

RED CABLE : To positive (+) terminal BLACK CABLE : To negative (-) terminal

Should the connection be made in incorrect manner, the generator will be broken.

Tighten bolts and nuts on terminals securely so they will not be loosened by vibration.

Disconnect battery cables when charging battery.

4. OPERATING PROCEDURES

(See Fig. 3)

1. STARTING THE GENERATOR

CAUTION

Check the oil level before each operations as outlined by the article "CHECK ENGINE OIL"

(a) Turn the Engine switch to the position “ | ” (ON). (See Fig.3 -①)

① “ | ” (ON)

② “O” (OFF)

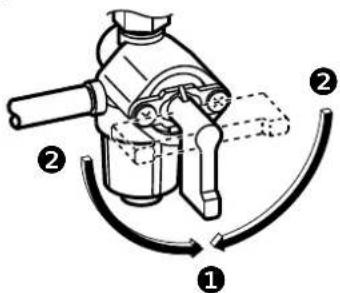

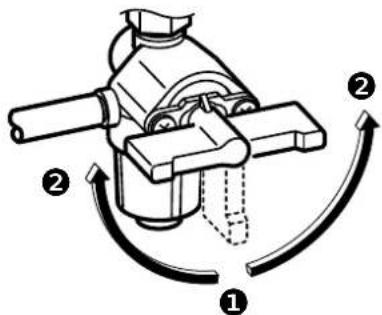

(b) Open the fuel valve. (See Fig.3 -②)

① OPEN

② CLOSE

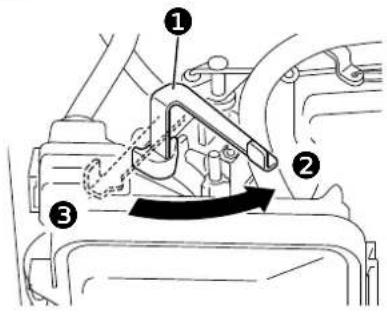

(c) Set choke lever to close if the engine is cold. (See Fig.3 -③)

① CHOKE LEVER

② CLOSE

③ OPEN

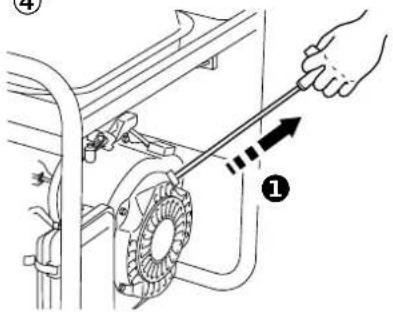

Pull the starter handle slowly until passing the compression point (resistance will be felt), then return the handle to its original position and pull briskly. (See Fig.3 -④)

① PULL BRISKLY

■ If the engine fails to start after several attempts, repeat above procedures with choke lever returned to "OPEN" position.

■ Do not fully pull out the rope.

■After starting, allow the starter handle to return to its original position while still holding the handle.

(e) [Electric starter model]

Insert the key into the key switch and turn it clockwise to the “|” (RUN) position to start the engine.

Then turn the key further to the “💡” (START) position.

The engine will be started by starting motor. (See Fig.3 -⑤)

① “O” (STOP)

② " | " (RUN)

③ “ 🔍 ” (START)

CAUTION

Do not run the starting motor over 5 seconds continuously.

If the engine fails to start, return the key to the “|” (RUN) position and wait about 10 seconds then start again.

Do not turn the key switch to “ ⏻ ” (START) position when the engine is running to prevent damage of starting motor.

When starting the engine by recoil starter, set the key switch at the “|” (RUN) position and pull the starter handle.

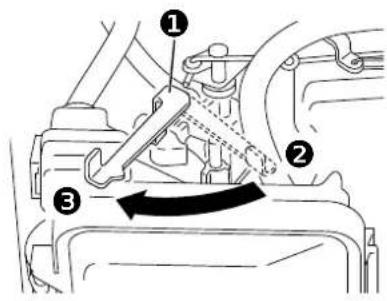

(f) After the engine started, return the choke lever gradually to "OPEN" position.

(See Fig.3 -⑥)

① CHOKE LEVER

② CLOSE

③ OPEN

(g) Warm up the engine without a load for a few minutes.

2. USING ELECTRIC POWER

WARNING

Make sure that the appliance is switched OFF before connecting it to the generator.

Do not move the generator while it is running.
Be sure to ground the generator if the connected appliance is grounded. Failure to ground unit may lead to electrical shock.

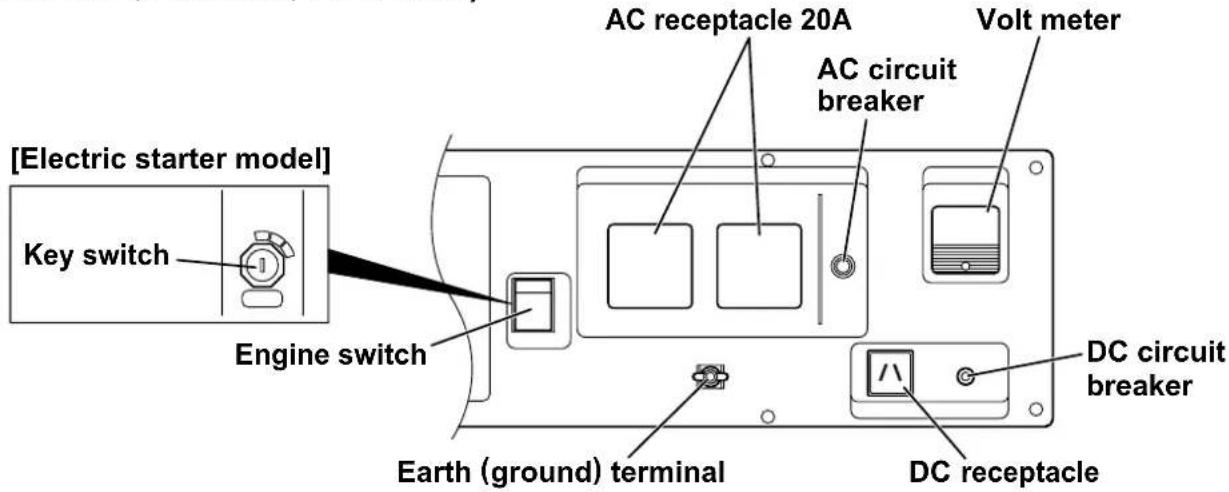

CONTROL PANEL

EN

(EG241A, EG321A, EG321AE)

[Electric starter model] Key switch Engine switch AC receptacle 20A AC circuit breaker Volt meter DC circuit breaker Earth (ground) terminal DC receptacle

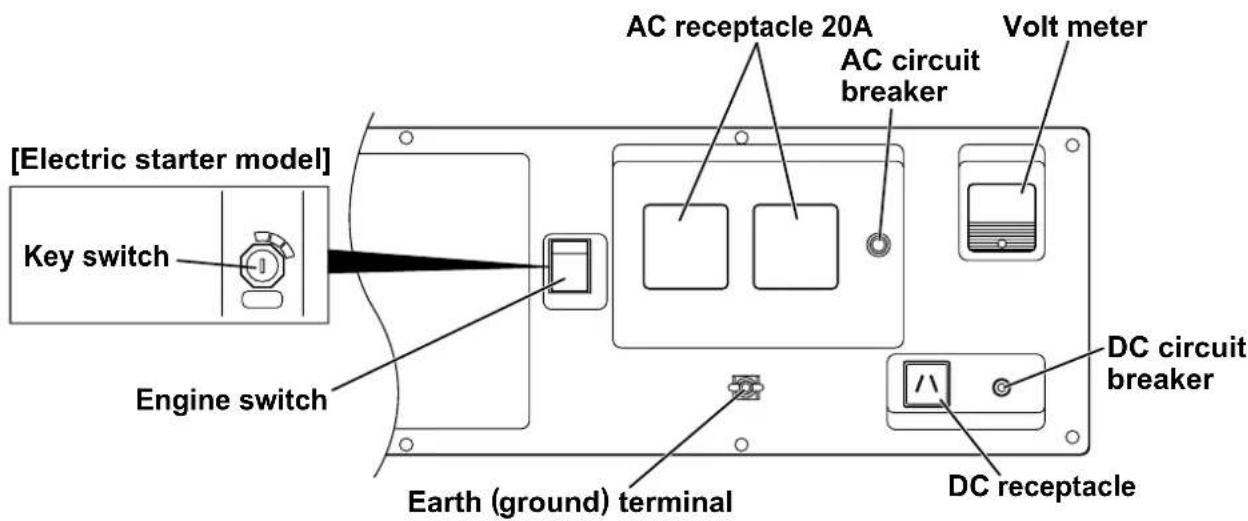

(EG441A, EG441AE, EG601A, EG601AE, EG671A, EG671AE)

[Electric starter model] Key switch Engine switch AC receptacle 20A AC circuit breaker Volt meter DC circuit breaker Earth (ground) terminal DC receptacle

(1) AC APPLICATION

(a) Check the voltmeter for proper voltage. (See Fig.4 -①)

■ This generator is thoroughly tested and adjusted in the factory. If the generator does not produce the specified voltage, consult your nearest Makita factory or authorized service center.
(b) Turn off the switch (es) of the electrical appliance (s) before connecting to the generator.
(c) Insert the plug (s) of the electrical appliance(s) into the receptacle.

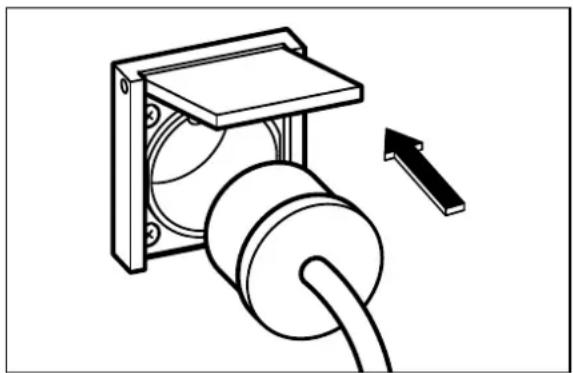

Technical diagram of a cable connector with a pull-up arrow indicating direction (no text or symbols)

• Check the amperage of the receptacles, and be sure not to take a current exceeding the specified amperage.
  ■ Be sure that the total wattage of all appliances dose not exceed the rated output of the generator.

CAUTION

Do not put foreign objects into the plug receptacle.

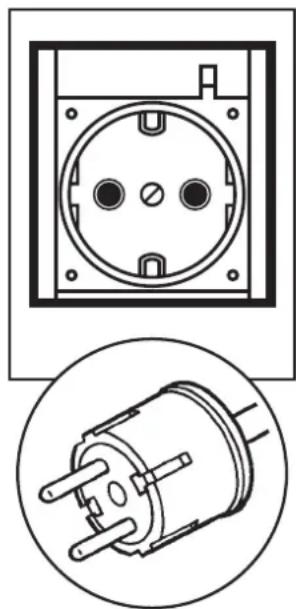

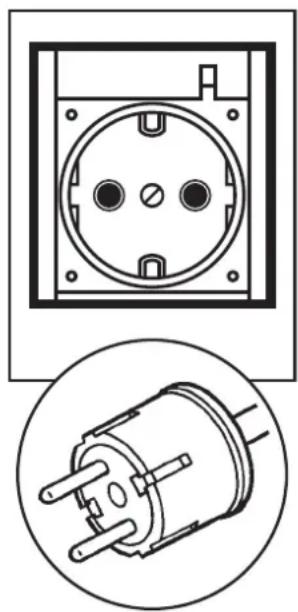

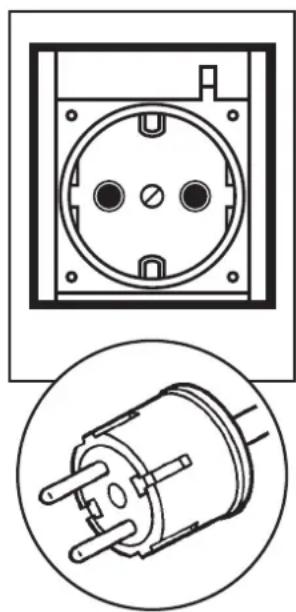

Technical line drawing of a wall socket and its corresponding terminal pin (no text or symbols)

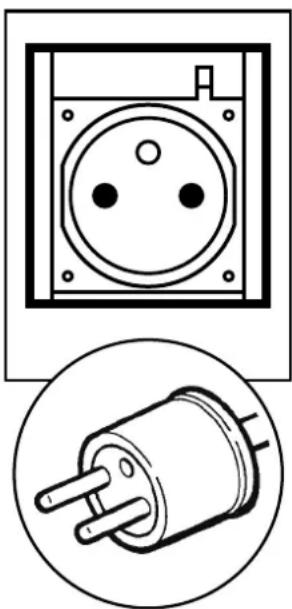

Technical line drawing of a circular electrical socket with two pins, shown in top and side views (no text or symbols)

WARNING

Be sure to ground the generator if the connected electrical device is grounded.

NOTE

When the AC circuit breaker turns off during operation, the generator is over loaded or the appliance is defective.

Stop the generator immediately, check the appliance and / or generator for overloading or detect and have repaired as necessary by Makita factory or authorized service center.

(d) Check and confirm whether circuit breaker position is “|” (ON). (See Fig.4 -②)

① “ | ” (ON)

(e) Turn on the switch of the appliance.

(2) DC APPLICATION

(Only for charging 12 volt battery)

DC receptacle (Only for charging 12 volt battery) (See Fig.4 -③)

For charging 12 voltage battery, 12V-8.3A (100W) of maximum AC power can be taken out from the DC receptacle by means of the exclusive DC cable.

(See Fig.4 -④)

The exclusive DC cable is come with your generator set (included in the package) (See Fig.4 -⑤).

DC Circuit Breaker

DC circuit breaker is turned off to shut down the DC power, when the DC is over the usage range or the battery is defective.

Check the generator and/or battery for overloading or defect, and turn on the DC circuit breaker after no problem and defect are found out.

Connection of exclusive DC cable :

■ Connect positive (red) clip of DC cable to positive (+) terminal on battery.
■ Connect negative (black) clip of DC cable to negative (-) terminal on battery.

Battery Charging Procedures :

1) Stop engine.
2) Remove all connections from battery.
3) Insert the plug of exclusive DC cable into DC receptacle.
4) Connect positive (red) clip of DC cable to positive (+) terminal on battery, and then connect negative (black) clip of DC cable to negative (-) terminal on battery.
5) Take out all plugs at the battery electrolyte fluid filler ports.
6) Check the electrolyte fluid level, and refi ll the distilled water as necessary.
7) Start engine.
8) Make sure that the pilot lamp is turned on.
9) Make sure that the DC circuit breaker is in the ON position.
10) Battery charging will be started.

CAUTION

Do not use both AC and DC output at the same time.

Install correct positive (red) or negative (black) cable to the correct polarity on the battery.

●Connect and disconnect DC cable with engine stopped.

An explosive hydrogen gas is discharged through vent holes in the battery during the charging process.

Do not allow spark or open flame around the generator or battery during the charging process.

Electrolyte fluid contains sulphuric acid, and so the fluid can burn eyes and clothing. Be extremely careful to avoid contact.

If injured, wash the affected area immediately with large quantities of water and consult a doctor for treatment.

●Charging time is varied according to the kind of battery and discharged level of battery.

Measure the specific gravity of electrolyte fluid by means of hydrometer every one hour during battery charging.

Make sure if the DC circuit breaker is not turned off.

Battery charging is completed when the specific gravity is in the range of 1.26 to 1.28.

3. STOPPING THE GENERATOR

(a) Turn off the power switch of the electric equipment and unplug the cord from receptacle of the generator.
(b) Allow the engine about 3 minutes to cool down at no-load before stopping.

(c) [Recoil starter model]

Turn the engine switch to the position “O” (OFF). (See Fig.4 -⑥)

① “ | ” (ON)
② “○” (OFF)

[Electric starter model]

Turn the key switch to the STOP position.

(See Fig.4 -⑦)

① “O” (STOP)
② “ | ” (RUN)
③ “ 🔍 ” (START)

(a) The oil sensor detects the fall in oil level in the crankcase and automati-cally stops the engine when the oil level falls below a predetermined level.

(b) When engine has stopped automatically, switch off generator's AC circuit breaker, and check the oil level.

Refi II engine oil to the upper level as instructed on page 5 and restart the engine.

(c) If the engine does not start by usual starting procedures, check the oil level.

Some appliances need a "surge" of energy when starting.

This means that the amount of electrical power needed to start the appliance may exceed the amount needed to maintain its use.

Electrical appliances and tools normally come with a label indicating voltage, cycles / Hz, amperage (amps) and electrical power needed to run the appliance or tool.

Check with your nearest dealer or service center with questions regarding power surge of certain appliances or power tools.

■ Electrical loads such as incandescent lamps and hot plates require the same wattage to start as is needed to maintain use.
■ Loads such as fluorescent lamps require 1.2 to 2 times the indicated wattage during start-up.
■ Loads for mercury lamps require 2 to 3 times the indicated wattage during start-up.
- Electrical motors require a large starting current. Power requirements depend on the type of motor and its use. Once enough “surge” is attained to start the motor, the appliance will require only 50% to 30% of the wattage to continue running.
■ Most electrical tools require 1.2 to 3 times their wattage for running under load during use. For example, a 5,000 watt generator can power a 1800 to 4000 watt electrical tool.
■ Loads such as submersible pumps and air compressors require a very large force to start. They need 3 to 5 times the normal running wattage in order to start. For example, a 5,000 watt generator would only be able to drive a 1,000 to 1,700 watt pump.

NOTE

The following wattage chart is general guide only. Refer to your specific appliance for correct wattage.

To determine the total wattage required to run a particular electrical appliance or tool, multiply the voltage figure of the appliance/tool by the amperage (amps) fi gure of same. The voltage and amperage (amps) information can be found on a name plate which is normally attached to electrical appliances and tools.

Applications	Applicable Wattage(W)
	EG241A	EG321A EG321AE	EG441A EG441AE	EG601A EG601AE	EG671A EG671AE
Incandescent lamp, Heater 2000 2400	3600 4600	5500
Fluorescent lamp, Electric tool 1100	1300 2000	2550 3050
Mercury lamp 800 950 1450 1850 2	200
Pump, Compressor 500 600 900	1150 1400

VOLTAGE DROP IN ELECTRIC EXTENSION CORDS

When a long electric extension cord is used to connect an appliance or tool to the generator, a certain amount of voltage drop or loss occurs in the extension cord which reduces the effective voltage available for the appliance or tool. The chart below has been prepared to illustrate the approximate voltage loss when an extension cord of 300 feet (approx. 100 meters) is used to connect an appliance or tool to the generator.

Nominal cross section

A.W.G.

Allowable current

No.of strands / strands dia.

Resistance

Current Amp.

mm^2

No. A No./mm

Ω /100m 1

A 3A 5

A 8A

10A 12

A 15A

Voltage drop

0.75

18

7

30/0.18

2.477

2.5V

8V

12.5V

—

—

—

—

1.27

16

12

50/0.16

1.486

1.5V

5V

7.5V

12V

15V

18V

—

2.0

14

17

37/0.26

0.952

1V

3V

5V

8V

10V

12V

15V

3.5

12 to 10

23

45/0.32

0.517

—

1.5V

2.5V

4V

5V

6.5V

7.5V

5.5

10 to 8

35

70/0.32

0.332

—

1V 2

V 2.5

5V 3.5

5V 4

V 5V

6. SPARK ARRESTER

In a dry or wooded area, it is recommendable to use the product with a spark arrester. Some areas require the use of a spark arrester. Please check your local laws and regulations before operating your product.

The spark arrester must be cleaned regularly to keep it functioning as designed.

A clogged spark arrester :

●Prevents the flow of exhaust gas
- Reduces engine output
• Increases fuel consumption
●Makes starting diffi cult

If the engine has been running, the muffler and the spark arrester will be very hot. Allow the muffler to cool before cleaning the spark arrester.

EN

How to remove the spark arrester

1. Remove the fl ange bolts from the muffl er cover and remove the muffl er cover.
2. Remove the special screw from the spark arrester and remove the spark arrester from the muffler.

EG601A, EG601AE EG671A, EG671AE Muffler Screw Spark arrester screen

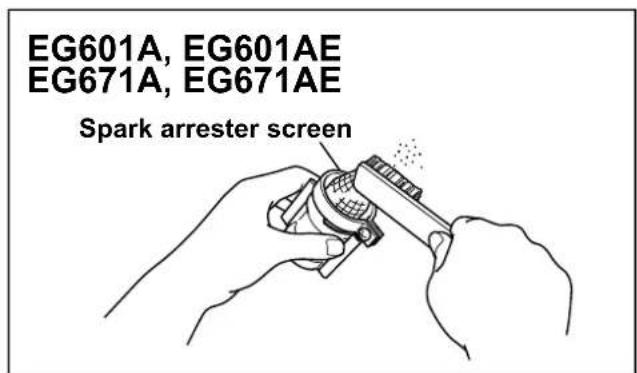

Clean the spark arrester screen

Use a brush to remove carbon deposits from the spark arrester screen.

Be careful to avoid damaging the screen.

The spark arrester must be free of breaks and holes. Replace the spark arrester if it is damaged.

Install the spark arrester, and muffler protector in the reverse order of disassembly.

EG601A, EG601AE EG671A, EG671AE Spark arrester screen

DAILY	■ Check oil level.■ Check all components according to “PRE-OPERATION CHECKS.”
EVERY50 HOURS	■ Wash cleaner element. -more often if used in dirty or dusty environments.■ Check spark plug, clean if necessary.
EVERY100 HOURS	■ Change engine oil. *-more often if used in dusty or dirty environments.■ Clean spark arrester.
EVERY200 HOURS	■ Adjust spark plug gap.■ Clean fuel strainer.
EVERY500 HOURS	■ Replace spark plug and cleaner element.■ Clean and adjust carburetor, valve clearance, and valve seat along with cylinder head.■ Check and replace carbon brushes
EVERY1,000 HOURS(24 MONTHS)	■ Inspect control panel parts.■ Check rotor and starter.■ Replace engine mount rubber.■ Overhaul engine.■ Change fuel lines.

NOTE : (\*)

■ Initial oil change should be performed after first twenty (20) hours of use. Thereafter change oil every 100 hours.
■ Before changing the oil, check for a suitable way to dispose of the old oil.
Do not pour it down sewage drains, onto garden soil or into open streams.
Your local zoning or environmental regulations will give you more detailed instructions on proper disposal.

8. "HOW-TO" MAINTENANCE

CAUTION

Make sure the engine is stopped before starting any maintenance, servicing or repair.

NOTE

It is recommended to use ear protection when performing operation, maintenance and repair of the generator set.

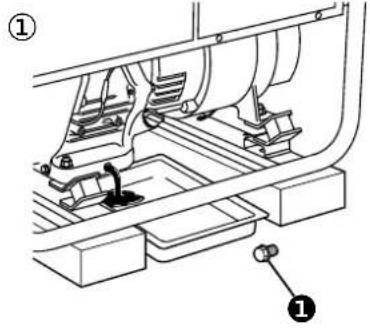

ENGINE OIL CHANGE (See Fig. 5 -①)

■ Change engine oil every 100 hours. (For new engine, change oil after 20 hours.)

(a) Drain oil by removing the drain plug and the oil filler cap while the engine is warm.

① OIL DRAIN PLUG

(b) Reinstall the drain plug and fi ll the engine with oil until it reaches the upper level on the oil fi ller cap.

■ Use fresh and high quality lubricating oil to the specified level as directed on page 5. If contaminated or deteriorated oil is used or the quantity of the engine oil is not sufficient, the engine damage will result and its life will be greatly shortened.

SERVICING THE AIR CLEANER

(See Fig. 5 -② thru ④)

Maintaining an air cleaner in proper condition is very important.

Dirt induced through improperly installed, improperly serviced or inadequate elements damages and wears out engines. Keep the element always clean.

① BASE
② ELEMENT
③ AIR CLEANER COVER
④ BOLT

(a) Remove the bolt of air cleaner cover.
(EG601A, EG601AE, EG671A, EG671AE)
(See Fig.5 -④)
Remove the air cleaner cover and cleaner element.

(b) Urethane form : Wash urethane form element in kerosene or diesel fuel.

Then saturate the element in a mixture of 3 parts kerosene or diesel fuel and 1 part engine oil.

Squeeze the element to remove the mixture and install it in the air cleaner.

NOTE

Instead of washing oil (kerosene), it is possible to wash the urethane foam element in a solution of mild detergent and warm water.

Then rinse the element thoroughly in clean water. Allow the element to dry thoroughly. Soak the element in clean engine oil and squeeze out excess oil.

CLEANING AND ADJUSTING SPARK PLUG (See Fig. 5 -⑤)

(a) If the plug is contaminated with carbon, remove it using a plug cleaner or wire brush.

(b) Adjust the electrode gap to 0.6 to 0.7 mm.

Spark plug : BR-6HS (NGK)

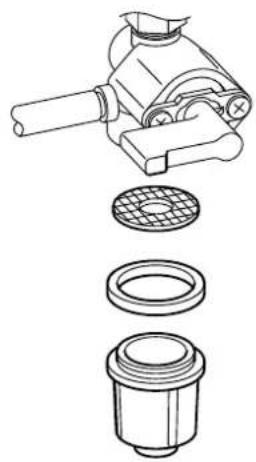

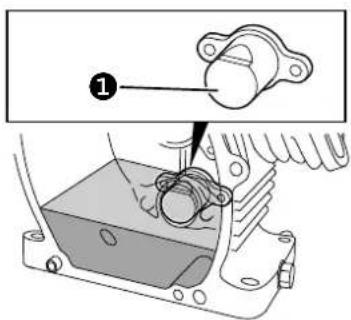

CLEANING FUEL STRAINER

(See Fig. 5 -⑥)

Dirt and water in the fuel are removed by the fuel strainer.

(a) Remove the strainer cup and throw away water and dirt.

(b) Clean the screen and strainer cup with gasoline.

(c) Tightly fasten the cup to main body, making sure to avoid fuel leak.

CHECKING CARBON BRUSH

Brush Maintenance Essentials (Effective Length)

The brush is the area which touches the slip ring, and its surface must be kept smooth.

If it is not smooth then carbon and other substances will adhere between the brush and slip ring.

This must be buffed with sandpaper or the like because it is hazardous.

The usable length of the brush is 5\~11mm, so if the brush is 5mm long or less replace it with a new one.

(See Fig.5 -⑦)

① LENGTH WHEN NEW
② EFFECTIVE BRUSH LENGTH

This is done because if the length of the brush gets any shorter, its contact pressure with the slip ring will decrease, resulting in a drop in generator efficiency and the output voltage.

Check the brush every 500 hours to confirm its length. In addition, check the brush length if the generator malfunctions, such as when it is not generating power or its voltage is low.

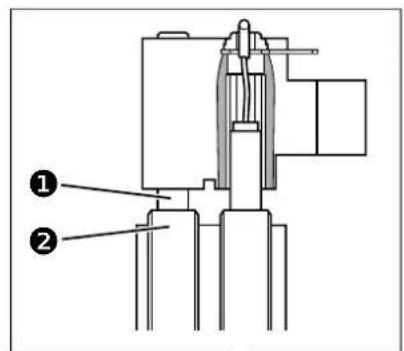

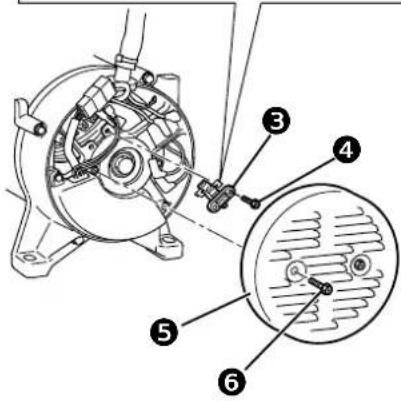

Brush Maintenance Essentials (Disassembly and Assembly) (See Fig. 5 -⑧)

① BRUSH
② SLIP RING
③ BRUSH HOLDER
④ FLANGE BOLTS
⑤ BRACKET COVER
⑥ FLANGE BOLTS

Disassembly

1. Remove the two flange bolts (M5 x 20), then remove the bracket cover.
2. Remove the two fl ange bolts (M5 x 16), then remove the brush.

Assembly

1. While pressing the brush against the slip ring, secure it (1.5\~2N·m) by tightening it with the two flange bolts (M5 × 16).
   When doing so, confirm that the brush is in the proper position relative to the slip ring.
2. Secure the bracket cover (3\~4N·m) by tightening it with the two fl ange bolts (M5 × 20).

9. PERIODIC OPERATION AND INSPECTION

When furnishing the generator as emergency electric power source, periodic operation and inspection are needed.

Fuel (gasoline) and engine oil will be deteriorated with time, and this causes that the engine is difficult to start and as the results improper engine operation and fault.

CAUTION

Since the fuel (gasoline) will be deteriorated with time, replace fuel (gasoline) with fresh one periodically; once every three (3) months is recommended.

(a) Check the fuel (gasoline), engine oil and air cleaner.
(b) Start engine.
(c) With appliance such as lightings activated, run the engine for over ten minutes.
(d) Check for the following items;

■ Proper engine running.
■ Adequate output and the indicator lamp turned on properly.
■ The engine switch normally operated.
■ No leakage of engine oil and fuel (gasoline).

10. TRANSPORTING

When transporting the generator, make sure that the fuel (gasoline) should be drained from the tank.

WARNING

To prevent fuel spillage due to the vibration and impact, never transport the generator with the fuel (gasoline) filled in the tank.
Secure the tank cap thoroughly.

To avoid the risk of the gasoline fl immability, never leave the generator in an area exposed to direct sunlight or high temperatures for a long time.

Keep the fuel (gasoline) in the exclusive gasoline storage tank made by steel when transporting.

(a) Turn the engine switch to the "STOP" position.
(b) Drain the fuel from the tank.
(c) Secure the tank cap.

CAUTION

Do not place any heavy objects on the generator.
Select and place the generator in the proper position of the transport vehicle so that the generator not be moved or fallen down.

Fix the generator with rope as necessary.

11. PREPARATION FOR STORAGE

(See Fig. 6)

The following procedures should be followed prior to storage of your generator for periods of 6 months or longer.

■ Drain fuel from fuel tank carefully by disconnecting the fuel line.
Gasoline left in the fuel tank will eventually deteriorate making engine-starting diffi cult.
■ Remove the carburetor float chamber and also drain the carburetor. (See Fig.6 -①)

① DRAIN SCREW

■ Change engine oil.
■ Check for loose bolts and screws, tighten them if necessary.

■ Clean generator thoroughly with oiled cloth.

Spray with preservative if available. NEVER USE WATER TO CLEAN GENERATOR!

■ Pull starter handle until resistance is felt, leaving handle in that position.
■ Store generator in a well ventilated, low humidity area.

12. TROUBLESHOOTING

When generator engine fails to start after several attempts, or if no electricity is available at the output socket, check the following chart. If your generator still fails to start or generate electricity, contact your nearest Makita factory or authorized service center for further information or corrective procedures.

When Engine Fails to Start:

Check if choke lever is in its proper position. Set the choke lever to “CLOSE” position.
Check if fuel valve is open.	If closed, open fuel valve.
Check fuel level.	If empty, refill fuel tank making sure not to overfill.
Check if engine switch is in OFF. Turn engine switch to ON.
Check to make sure generator is not connected to an appliance.	If connected, turn off the power switch on the connected appliance and unplug.
Check spark plug for loose spark plug cap.	If loose, push spark plug cap back into place.
Check spark plug for contamination. Remove spark plug and clean electrode.

When No Electricity Is Generated at Receptacle:

Check to make sure AC circuit breaker is in the “ON” position.	After making sure that the total wattage of the electrical appliance is within permissible limits and there are no defects in the appliance, turn the AC circuit breaker to the “ON” position. If breakers continue to actuate, consult your nearest servicing dealer.
Check AC receptacle and DC terminals for loose connection.	Secure connection if necessary.
Check to see if engine starting was attempted with appliances already connected to generator.	Turn off switch on the appliance, and disconnect cable from receptacle. Reconnect after generator has been started properly.
Low power. Carbon brushes are excessively worn

MODEL EG241A			EG321AEG321AE	EG441AEG441AE	EG601AEG601AE	EG671AEG671AE
Generator	Type Brush, self-exciting, 2-poles, single	phase
	Voltage regulating system AVR type
	AC OutputRated voltage-Frequency V-Hz 230 - 50
	Rated current A 8.7 10.4 15.7 20.0	23.9
	Rated output VA (W) 2000 2400 3600	4600 5500
	Maximum output VA (W) 2400 3200	4400 6000 6700
	Rated power factor 1.0
	Safety device type Fuse-less circuit breaker
	DC OutputRated voltage V	12
	Rated current A	8.3
	Safety device type Fuse-less circuit breaker
Engine	Model	EX17D	EX21D	EX30D	EX35D	EX40D
	Type	ROBIN, Air-cooled, 4-stroke, OHC, Gasoline Engine
	Displacement mL	169 211	287	404
	Fuel	Automotive Unleaded Gasoline
	Fuel tank capacity L	12.8			22.0
	Engine oil capacity L	0.6		1.0	1.2
	Rated continuous operation H	10.5	9.0	5.6	7.5	6.6
	Spark plug	BR-6HS (NGK)
	Starting system	Recoil starter	Electric starter / Recoil
	3/4Load Fuel consumption L/H	1.0	1.3	1.9	2.7	2.9
Direction of rotation		Counter - clockwise
Dimension	Length mm	600	620(870)*1	675(925)*1	725(975)*1
	Width mm	420 450	510	530
	Height mm	500 500	540	580
Dry weight kg		47	51(56)*2	67(77)*2	86(96)*2	88(98)*2
Gross weight Weight according to EPTA procedure 01/2003 kg		57	61(66)*2	78(88)*2	104(114)*2	106(116)*2

Specifications are subject to change without notice.

*1: ( ) shows dimensions with Battery frame.
*2: ( ) shows weight with Electric starter.

EG241A, EG321A (50Hz-230V) [Recoil starter model]

Wiring color code

Blk : Black

Blk/W : Black/White

Blu : Blue

LBlu : Light blue

Brn : Brown

Brn/W : Brown/White

Grn : Green

Grn/W : Green/White

Org : Orange

Gry : Gray

R : Red

W : White

Y : Yellow

W/Blk : White/Black

Grn/Y : Green/Yellow

Pur : Purple

EG321AE (50Hz-230V) [Electric starter model]
EG441A, EG601A, EG671A (50Hz-230V) [Recoil starter model]
Wiring color code

Blk	Black
Blk/W	Black/White
Blu	Blue
LBlu	Light blue
Brn	Brown
Brn/W	Brown/White
Grn	Green
Gm/W	Green/White
Org	Orange
Gry	Gray
R	Red
W	White
Y	Yellow
W/Blk	White/Black
Grn/Y	Green/Yellow
Pur	Purple

EG441AE, EG601AE, EG671AE (50Hz-230V) [Electric starter model]


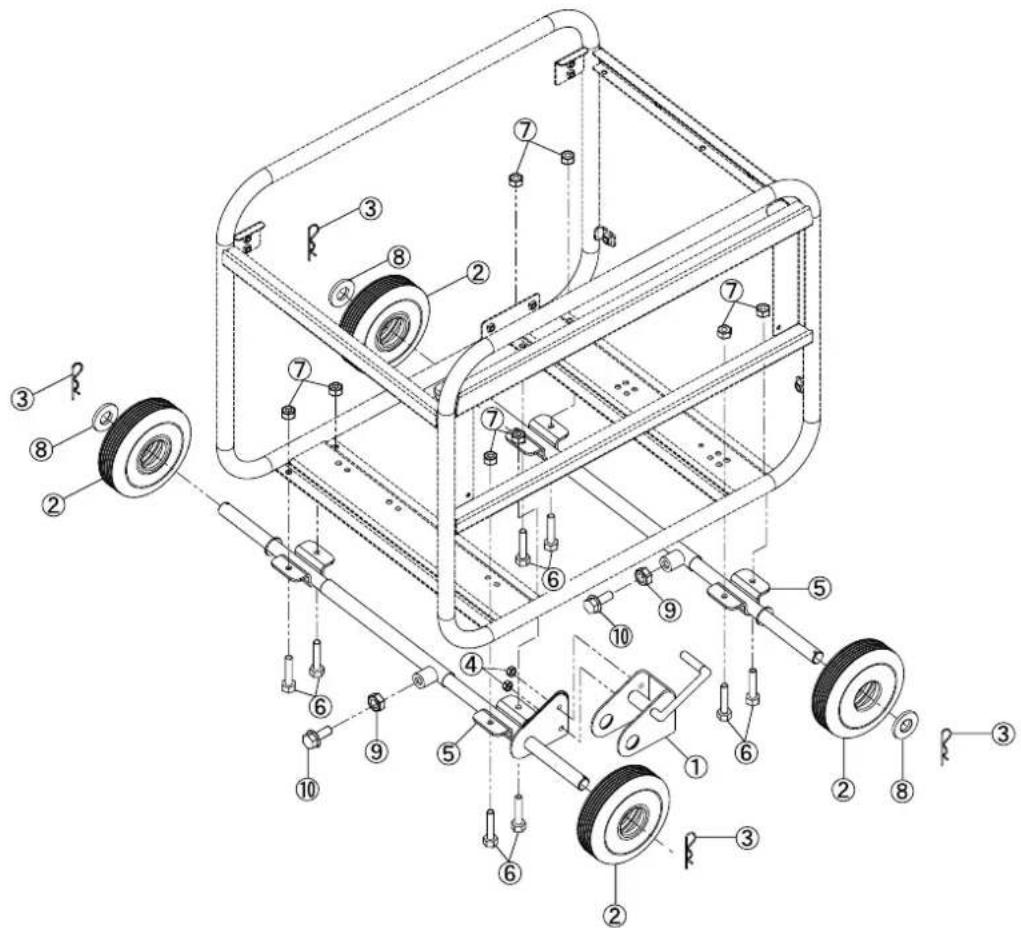

Wheel Kit Installation

(1) Check the supplied accessories
(2) Tool preparation

■ Crane or square bar (about 100mm by 100mm)
■ Pliers
■ 2 sets of spanners (12mm)

(3) Installation procedures

A) Raise the generator about 100mm with the crane or square bar.
B) Install the wheel and stopper in the wheel shaft.

EN

Install wheel shaft ⑤ into stopper ① so that wheel ② is inserted between them and fasten with pin ③. Next, tighten wheel shaft ⑤ and stopper ① with nut ④.

Install wheel ② and washer ⑧ onto wheel shaft ⑤ and fasten with pin ③.

C) Check that the wheel rotates smoothly.
D) Loosen length adjustment nut ⑨ for wheel shaft ⑤ and bolt ⑩, then align the position of the hole on the frame with the mounting hole of wheel shaft ⑤ and tighten bolt ⑥ and nut ⑦ to fix this in place.

Tightening torque: 20 to 25N·m (2.0 to 2.5kg·m)

E) Tighten length adjustment nut ⑨ for wheel shaft ⑤ and bolt ⑩ to fix the length of wheel shaft ⑤.

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

AVANT-PROPOS

(1) APPLICATION C.A.

Technical line drawing of a mechanical assembly with a cable and housing, showing no text or symbols.

Four technical line drawings of electrical socket components, shown from different angles (front, side, top, and bottom) without any text or symbols.

AVERTISSEMENT

① “ | ” (MARCHE)
② “O” (ARRÊT)

① “○” (ARRÊT)
② “ | ” (MARCHE)
③ “ 🔍 ” (START)

Technical diagram of a vehicle chassis with numbered components for identification and assembly reference.

VORWORT

PROD No. SER No.

① “ | ” (EIN)
② “○” (AUS)

① “O” (STOPP)
② “ | ” (EIN)
③ “ ” (START)

VORSICHT

Technical line drawing of a mechanical device with a cable and housing, showing no text or symbols.

Technical line drawing of a wall socket and its corresponding terminal socket (no text or symbols)

Technical line drawing of a wall socket with mounting holes and internal components, shown in two views (top: circular, bottom: straight)

WARNING

① “ | ” (EIN)
② “○” (AUS)

[Elektrostartermodelle]

① “O” (STOPP)
② “ | ” (EIN)
③ “ 🔍 ” (START)

Technical diagram of a vehicle chassis with numbered components for identification and assembly reference.

VOORWOORD

PROD No. SER No. PROD No. / SER No. (Label)

INHOUD

Bladzijde

1. VEILIGHEIDSMAATREGELEN....2
2. COMPONENTEN ....5
3. CONTROLES VOOR HET IN WERKING STELLEN....5
4. BEDIENINGPROCEDURES ...... 7
5. INFORMATIE OVER HET VERMOGEN....11
6. VONKENVANGER .....12
7. ONDERHOUDSSCHEMA 13
8. ZELF UIT TE VOEREN ONDERHOUD....14
9. PERIODIEKE HANDELINGEN EN INSPECTIES....15
10. VERVOER....15
11. VOORBEREIDINGEN VOOR OPSLAG 16
12. OPLOSSEN VAN PROBLEMEN.... 16
13. TECHNISCHE GEGEVENS ....17
14. BEDRADINGSSCHEMA....18
15. OPTIONELE ONDERDELEN .....20

OPMERKING

(Ah/5hr) ; 12V-21AH of meer

Afmetingen ; Minder dan 185(L) x 125(W) x 160(H) mm

② STARTKABEL (ROOD)
③ INSTELPLAAT
④ INSTELBOUT
⑤ ACCUPLAAT
⑥ ACCUFRAME #1
⑦ ACCUFRAME #2
⑧ BESCHERMPLAAT
⑨ BOUT
⑩ MOER

① AARDINGSKABEL (ZWART)

WAARSCHUWING

Technical line drawing of a mechanical device with a cable and housing, showing no text or symbols.

Four technical line drawings of electrical socket components, shown from different angles (front, side, top, and bottom) without any text or symbols.

⚠ WAARSCHUWING

① “ | ” (AAN)
② “O” (UIT)

[Model met elektrische startmotor]

① “○” (STOPPEN)
② “ | ” (ANN)
③ “ 🔍 ” (START)

Technical diagram of a vehicle chassis with numbered components for identification and assembly reference.

INTRODUCCIÓN

① “ | ” (ON)
② “O” (OFF)

(b) Abra la llave de combustible. (Ver Fig.3 -②)

① ABRIR
② CERRAR

① “O” (PARADA)
② “ | ” (MARCHA)
③ “ 🔍 ” (ARRANQUE)

PRECAUCIÓN

Technical line drawing of a mechanical assembly with a cable and housing, showing no text or symbols.

Four technical line drawings of electrical socket components, shown from different angles (front, side, top, and bottom) without any text or symbols.

AVISO

① “ | ” (ON)
② “○” (OFF)

Technical diagram of a vehicle chassis with numbered components for identification and assembly reference.

INTRODUZIONE

PROD No. SER No. N. PROD. N. SER. (etichetta)

SOMMARIO

Pag.

Technical line drawing of a mechanical assembly with a cylindrical component and mounting bracket (no text or symbols)

Technical line drawing of a wall socket and its corresponding terminal socket (no text or symbols)

Technical line drawing of a wall socket with two pins and a close-up view of the internal components (no text or symbols)

AVVISO

■ Connect positive (red) clip of DC cable to positive (+) terminal on battery.
■ Connect negative (black) clip of DC cable to negative (-) terminal on battery.

① “ | ” (MARCIA)
② “○” (ARRESTO)

Technical diagram of a vehicle chassis with numbered components for identification and assembly reference.

INTRODUÇÃO

Technical line drawing of a mechanical assembly with a coiled cable and mounting bracket (no text or symbols)

Technical line drawing of a wall socket and its corresponding terminal socket (no text or symbols)

Technical line drawing of a wall socket with mounting holes and internal components, shown in two views (top: circular, bottom: straight)

ADVERTÊNCIA

Technical diagram of a vehicle chassis with numbered components for identification and assembly reference.

ΠΡΟΛΟΓΟΣ

PROD No. SER No.

Technical line drawing of a mechanical assembly with a cable and housing, showing no text or symbols.

Technical line drawing of a wall socket with two pins, shown in two views: top view (no text or symbols)

Technical line drawing of a wall socket and its internal circuit socket (no text or symbols)

KINDYNOΣ

① BIDA AΠΟΣΤΡΑΓΓΙΕΗΣ

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

FORORD

PROD No. SER No.

(Ah/5hr) ; 12V-21AH eller mer

Technical line drawing of a mechanical device with a cable and housing, showing no text or symbols.

Four technical illustrations of electrical socket components, shown from different angles (front, side, top, and bottom) with no visible text or symbols.

ADVARSEL

Kretsbryter for likestrøm

VEDLIKEHOLD AV LUFTRENSEREN

(Se fig. 5 -② thru ④)

Tennplugg : BR-6HS (NGK)

RENGJ∅RING AV BENSINFILTERET (Se fig. 5 -⑥)

Technical diagram of a vehicle chassis with numbered components for identification and assembly reference.

FÖRORD

PROD No. SER No. PROD No. / SER No. (Skylt)

INNEHÅLL

Sida

1. SÄKERHETSFÖRESKRIFTER....2

2. KOMPONENTER 5

3. KONTROLLER FÖRE START ....5

4. DRIFTRUTINER ....7

5. INFORMATION OM WATTFÖRBRUKNING....11

6. GNISTSLÄCKARE 12

7. SERVICESCHEMA....13

8. SERVICEANVISNINGAR 14

9. PERIODISK INSPEKTION OCH KONTROLL AV DRIFT .....15

10. TRANSPORT 15

11. FÖRBEREDELSER FÖR FÖRVARING 16

12. FELSÖKNING....16

13. SPECIFICATIONER ..... 17

14. KOPPLINGSSCHEMA ..... 18

15. TILLVALSDELAR ....20

OBSERVERA

Technical line drawing of a mechanical assembly with a cylindrical component and mounting bracket (no text or symbols)

Technical line drawing of a wall socket and its corresponding terminal socket (no text or symbols)

Technical line drawing of a wall socket and its internal plug (no text or symbols)

WARNING

5. INFORMATION OM WATTFÖRBRUKNING

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

JOHDANTO

PROD No. SER No.

TUOTENUMERO / SARJANUMERO (tarra)

SISÄLLYSLUETTELO

Sivu

1. TURVAOHJEET ..... 2

2. OSIEN NIMET 5

3. TARKASTUKSET ENNEN KÄYNNISTÄMISTÄ 5

4. GENERAATTORIN KÄYTTÄMINEN....7

5. TEHOTIEDOT 11

6. KIPINÄNSAMMUTIN....12

7. HUOLTOAIKATAULU 13

8. HUOLTO 14

9. MÄÄRÄAIKAINEN KÄYTTÖ JA TARKASTUS 15

10. KULJETUS .... 15

11. TOIMENPITEET ENNEN PITKÄAIKAISTA SÄILYTYSTÄ 16

12. VIANHAKU 16

13. TEKNISET TIEDOT....17

14. KYTKENTÄKAAVIO .... 18

15. LISÄOSAT....20

HUOM.

Technical line drawing of a mechanical assembly with a cable and housing, showing no text or symbols.

Technical line drawing of a wall socket and its corresponding electrical plug (no text or symbols)

Technical line drawing of a wall socket and its internal components (no text or symbols)

VAROITUS

Technical diagram of a vehicle chassis with numbered components for identification and assembly reference.

FORORD

Tak fordi du valgte en MAKITA GENERATOR.

Sørg for at læse alle advarsler for at undgå brandfare.

Sørg for at læse alle advarsler for at undgå brandfare.

Technical line drawing of a mechanical assembly with a coiled cable and mounting bracket (no text or symbols)

(c) [Rekyl starter model]

Stil motorkontakten på “O” (SLUKKET). (Se fi g.4 -⑥)

① “ | ” (TÆNDT)
② “○” (SLUKKET)

[Elektrisk starter model]

① “O” (STOP)
② “ | ” (K∅R)
③ “ ” (START)

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

ВВЕДЕНИЕ

Illustration of two workers inspecting a portable electricity generator (no text or symbols visible)

EG601A, EG601AE 22,0

EG671A, EG671AE 22,0

ПРЕДУПРЕЖДЕНИЕ

① “ | ” (ВКЛ)
② "O" (ВЫКЛ)

① “O” (CTOP)
② " | " (ВКЛ.)
③ “ ⓞ ” (ПУСК)

ВНИМАНИЕ

Technical line drawing of a mechanical assembly with a cable and housing, showing a directional arrow (no text or symbols)

Technical line drawing of a wall socket and its corresponding terminal socket (no text or symbols)

Technical line drawing of a wall socket with two pins and a close-up view of the internal components (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ

① “ | ” (ВКЛ)
② “○” (ВЫКЛ)

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

Makita Corporation

3-11-8, Sumiyoshi-cho

Anjo, Aichi 446-8502 Japan
