RockmanL - Docking station HAMA - Free user manual and instructions

Product type	Bluetooth® RockmanL Docking Station
Brand	Hama
Model	RockmanL
Dimensions	17.3 x 7.2 x 4.9 cm
Weight	~440 g
Power supply	Li-ion battery 3.7 V, 2150 mAh, charging via micro USB 5 V / 500 mA
Charging time	~6 hours
Battery life	~6 h (Bluetooth®) / ~16 h (AUX)
Wireless technology	Bluetooth® v4.1 + EDR, Class II
Bluetooth® range	< 10 m
Supported Bluetooth® profiles	A2DP V1.2, AVRCP V1.4, HFP V1.5
Sound system	Stereo (2x 1.5 W RMS)
Impedance	4 Ω
Audio inputs	3.5 mm jack (AUX IN), micro USB (charging)
Protection rating	IPX5 (protection against water jets)
Hands-free function	Yes (via Bluetooth®)
Number of paired devices	8
Status LED color	Red (charging), blue (Bluetooth®), green (AUX)
Care and cleaning	Slightly damp lint-free cloth, no harsh detergents
Safety instructions	Keep out of reach of children, do not expose to heat, use appropriate charger
Package contents	RockmanL speaker, micro USB cable, 3.5 mm audio cable, user manual

Frequently Asked Questions - RockmanL HAMA

How do I pair my phone with the RockmanL via Bluetooth?

Make sure the speaker is on and the LED is flashing blue. On your phone, enable Bluetooth and select 'Rockman-S/ Rockman-L' from the list. If a password is requested, enter 0000.

How do I charge the RockmanL battery?

Use the provided micro USB cable and a suitable USB charger (5V, 500 mA minimum). Connect the cable to the speaker and charger. The red LED stays on during charging and turns off when the battery is full (about 6 hours).

What should I do if Bluetooth does not connect automatically?

Check that the speaker is within 10 meters of your device, no obstacles are interfering, and the audio cable is not plugged in. If necessary, repeat the pairing procedure by simultaneously pressing the - and + buttons until the LED flashes blue.

Can I use the RockmanL in the rain?

The speaker is IPX5 certified, which protects it against water jets. However, do not use the product in heavy rain, underwater, or in the shower. Protection is only guaranteed when the connector cover is closed.

How do I use the hands-free function?

When an incoming call arrives, press the ▶ button once to answer. To reject, hold ▶ for 2 seconds. During the conversation, hold ▶ to put on hold or press once to hang up. To redial the last number, hold ▶ for 2 seconds.

What is the battery life?

Battery life varies by usage: approximately 6 hours in Bluetooth® playback and up to 16 hours via AUX input, depending on volume and audio content.

How do I reset Bluetooth pairing?

To unpair all devices and start a new search, simultaneously press the - and + buttons until the LED flashes blue and a beep sounds. The current connection will be disconnected.

Can I connect multiple devices at the same time?

The speaker can remember up to 8 paired devices, but only one active connection at a time. To switch to another device, disconnect the first and pair the second.

How do I clean the RockmanL?

Use a slightly damp lint-free cloth. Do not use harsh detergents and ensure no liquid enters the device, especially near the connectors.

What should I do in case of malfunction?

Contact Hama customer service by phone at [phone] (German/English) or visit www.hama.com for more information. Do not open the device yourself, as this will void the warranty.

USER MANUAL RockmanL HAMA

Mobile Bluetooth® Speaker ROCKMAN S/ROCKMAN L

Technical line drawing of a hama-branded electronic device with grid pattern and mounting feet (no text or symbols)

Operating Instructions

Bedienungsanleitung

Mode d'emploi

Technical line drawing of a rectangular electronic component with internal grid pattern (no text or symbols)

Top-down schematic of a vehicle chassis showing internal components and a labeled connector (no text or symbols present)

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

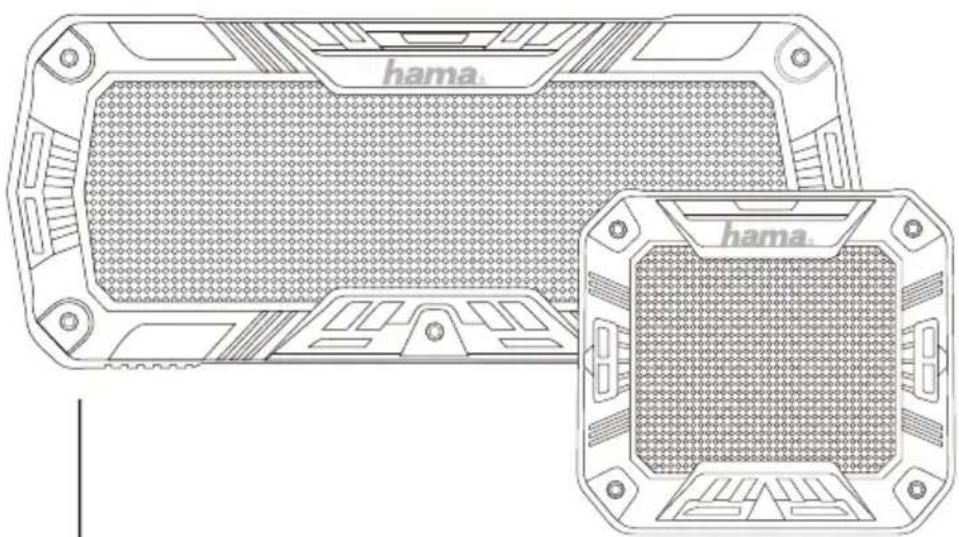

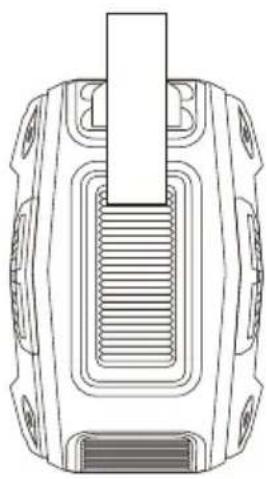

Controls and Displays

1. Status LED
2. Function button ⏻
3. Function button —
4. Function button▶‖
5. Function button +
6. 14 " thread

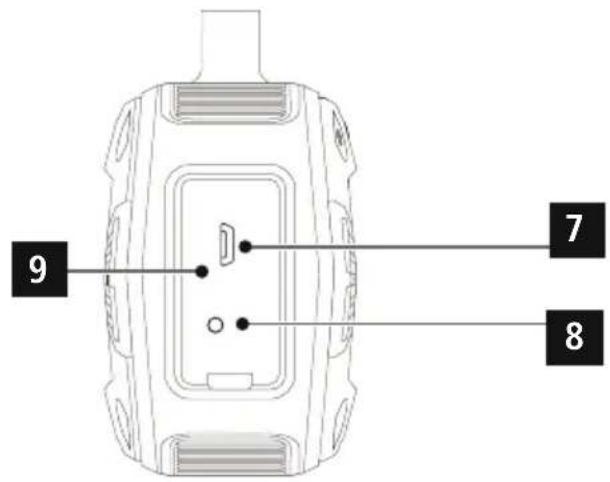

7. Micro-USB connection (USB)
8. AUX input
9. Connection cover

Thank you for choosing a Hama product.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

1. Explanation of Warning Symbols and Notes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This is used to indicate additional information or important notes.

2. Package Contents

• MobileBluetooth® Speaker Rockman-S/Rockman-L
• Micro-USB charging cable
  • 3.5 mm audio cable
  • These operating instructions

3. Safety Notes

• The product is intended for private, non-commercial use only.
• Do not use the product in the immediate vicinity of heaters or other heat sources or in direct sunlight.
• Keep this product, as all electrical products, out of the reach of children!
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits given in the specifications.
• Do not use the product in areas where the use of electronic devices is not permitted.
• Be considerate. Loud volumes can have a detrimental effect on your surroundings.
• Do not open the device or continue to operate it if it becomes damaged.
• Since the battery is integrated and cannot be removed, you will need to dispose of the product as a whole. Do this in compliance with the legal requirements.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately according to locally applicable regulations.
• Do not modify the product in any way. Doing so voids the warranty.

4. General information

Note – Protected against spraying water

• This product is spray-proof on all sides as defined in IPX5, meaning that it is ideal for use outdoors or in bathrooms, kitchens, etc.
• This protection only works when the connection cover (9) is closed. If a cable (audio, USB) is connected or the connection cover (9) is not closed properly, splash protection cannot be guaranteed and the device could be damaged.
• Do not use the product in heavy rain, under water, in the shower or for water sports, etc.

4.1 Switching the product on and off

- Press and hold the function button (2) for about 4 seconds to switch the speaker on or off. An acoustic signal will sound and the status LED (1) will start flashing or go off.

Note - Automatic shutdown

Note that the speaker will automatically switch off after 10 minutes without action (no audio playback/no Bluetooth® function).

4.2 Charging the battery

Warning – Rechargeable battery

• Only use suitable charging devices with USB connections for charging.
• As a rule, do not use charging devices or USB connections that are defective and do not try to repair them yourself.
• Avoid storing, charging or using batteries in extreme temperatures.

• When stored for a long period of time, batteries should be charged regularly (at least every three months).

• Charge the speaker fully before using it for the first time.

• Connect the included Micro-USB charging cable to the speaker's Micro-USB port (7).
• Connect the unused connector on the Micro-USB charging cable to a suitable USB charger. Please refer to the operating instructions for the USB charger used.
• The status LED (1) lights up constantly in red during the charging process.
• If the battery is fully charged, the status LED (1) will go out.

Note - Charging

• It takes approx. 6-7 hours to completely charge the product.
• The speaker's battery can be charged whether the speaker is on or off.
• If the battery capacity is less than 10%, the speaker will emit two acoustic signals. You will only receive this information if the speaker is on.
• Depending on the terminal device connected (Bluetooth®), the speakers' battery level will appear on the device.
• The actual battery life varies depending on use of the device, the settings and the ambient conditions (rechargeable batteries have a limited service life).

4.3 Audio playback via the included audio cable (3.5 mm jack)

• Ensure that the speaker is switched off.
• Connect your mobile terminal device (MP3 player, smartphone, etc.) and the AUX-IN input (8) of the speaker using the included 3.5 mm audio cable.
• Set the volume on your terminal device to a low level.
• Switch on the speakers as described4.11,
  Switching the product on and off the status LED (1) is now green.
• Start and control audio playback on the connected terminal device accordingly.
• Press the function button – (3) to reduce the volume.
• Press the function button + (5) to increase the per volume.
• Press the function button||▶(4) to mute the speaker.

Note

Please note that you cannot establish the Bluetooth® connection described under 4.4 and 4.5 if an audio cable is connected.

4.4 Bluetooth® pairing

Note

• Check whether your mobile device (MP3 player, mobile phone, etc.) iBluetooth® capable.
• If not, you can only use the speaker for playback using the included audio cable.

• Note that the maximum range Bluetooth® is 10 metres without obstacles such as walls, people, etc.

• Make sure that your Bluetooth® capable terminal device is on and Bluetooth® is activated.

• Make sure that the speaker is located within the Bluetooth® range of max. 10 metres.

- Switch on the speakers as described in Switching the product on and off.

- The status LED (1) starts to flash in blue. The speaker searches for a connection.

- Open the Bluetooth® settings on your terminal device and wait until Hama Rockman/Rockman-L appears in the list Bluetooth® devices found.

- Select Hama Rockman-S/Rockman-L and wait until the speaker is listed as connected in the Bluetooth® settings on your terminal device. An acoustic signal confirms that connection was successful.

- The status LED (1) now remains blue.

Note -Bluetooth® password

• Some terminal devices require a password in order to connect to another Bluetooth® device.
• If your terminal device requests a password for connection to the speaker, enter 0000.

Note - Connection to a new device

• If you want to connect a Bluetooth® terminal device to the speaker, press the function buttons – (3) and + (5) at the same time until the status LED (1) begins to flash in blue and an acoustic signal sounds.
• The current connection is disconnected and the search for new terminal devices starts.
• The speaker always stores the last eight terminal devices paired.
• The speaker will automatically connect to the last terminal device paired when it is switched on the next time.

4.5 Automatic Bluetooth® connection (after successful pairing)

• Make sure that your Bluetooth ^ capable terminal device is on and Bluetooth ^ is activated.
• Make sure that the speaker is located within the Bluetooth® range of max. 10 metres.
• Switch on the speakers as described in Switching the product on and off.
• After successful connection, the status LED (1) will light up in blue. An acoustic signal confirms that connection was successful.

Note - Connection impaired

• After the speaker and terminal device have been paired, a connection is established automatically. If the Bluetooth® connection is not established automatically, check the following:
• Check the Bluetooth® settings of your terminal device to see whether Hama Rockman-S/Rockman-L is connected. If not, repeat the steps listed under Bluetooth® pairing.
• Check whether your terminal device and the speaker are less than 10 metres apart. If not, move them closer together.
• Check whether obstacles are impairing the range. If so, move the devices closer together.
• Check whether the audio cable is connected to the speaker. If so, disconnect it.

4.6 Audio playback (viaBluetooth®)

Start and control audio playback on the connected terminal device accordingly. Alternatively, audio playback can also be controlled on the speaker (if the connected device supports this function).

• Press the ➤ function button (4) to start or pause audio playback.
• Briefly press the function button + (5) to increase t volume.
• Briefly press the function button – (3) to reduce the volume.

4.7 Hands-free function

You can use the speaker as a hands-free set for your mobile phone. For this function, the mobile phone must be connected to the speaker vBluetooth®.

• Press the function button||▶(4) once to answer an incoming call.
• Press and hold the function button (▶4) for approx. 2 seconds to reject an incoming call.
• You can put a call on hold by pressing and holding the function button ▶▶(4) for approx. 2 seconds.
• Press and hold the function button 3(4) again to continue the call.
• During a call, press the function button) (4) once to end the call.
• Press and hold the function button 2(4) for approx. 2 seconds to call the most recently dialled number.

Note - Call quality

To increase the call quality, make sure that you are near the speaker with your mobile phone during the call.

5. Care and Maintenance

- Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

6. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

7. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English) Further support information can be found here: www.hama.com

1. Technical Data

Mobile Bluetooth® Speaker Rockman-S	R	ockman-L
Bluetooth® Technology	Bluetooth® v4.1 + EDR Class II	Bluetooth® v4.1 + EDR Class II
Supported profiles A2DP V1.2, AVRCP	V1.4, HFP V1.5 A2DP V1.2, AVRCP	V1.4, HFP V1.5
Frequency for the Bluetooth® transfers	2.402 GHz ~ 2.480 GHz 2.402 GHz ~ 2.480 GHz
Bluetooth® transfers power Max. 4 dBm	Max. 4 dBm
Frequency 180 Hz - 20 kHz 180 Hz	- 20 kHz
Range < 10 m	<	10 m
Maximum number of paired devices	88
Output	3 W1,5 W (Sinus)	6 W2x 1,5 W (Sinus)
Charging voltage Max. 5V ± 0.25V	==500 mA	Max. 5V ± 0.25V 500 mA
Sound System	Mono	Stereo
Impedanc	4 Ω	4 Ω
Distortion (THD)	≤ 1%	≤ 1%
Size	95 x 90 x 55 mm	185 x 77 x 50 mm
Weight	~ 295 g	~ 440 g
Connections	3.5 mm stereo plugAUX input, Micro-USB for 5 V /500 mA charging function	3.5 mm stereo plugAUX input, Micro-USB for 5 V /500 mA charging function
IP rating	IPX 5	IPX 5
Battery
Type	3.7V Li-Ion min.:2150 mAh / 7.96 Wh	3.7V Li-Ion min.:2150 mAh / 7.96 Wh
Charging time	~ 6 h	~ 6 h
Playback	Via Bluetooth®: ~ 10 hVia AUX: ~ 20 hdepending on volume and audio content	Via Bluetooth®: ~ 6 hVia AUX: ~ 16 hdepending on volume and audio content

9. Recycling Information

Note on environmental protection:

After the implementation of the European

Directive 2012/19/EU and 2006/66/EU in the

national legal system, the following applies:

Electric and electronic devices as well as

batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.

10. Declaration of Conformity

CE Hama GmbH & Co. KG hereby declares that the device complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. See www.hama.com for the declaration of conformity with the relevant directive.

Avertizare – accumulator

86652 Monheim/ Germany

www.hama.com

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hama GmbH & Co KG is under license. Other trademarks and trade names are those of their respective owners.

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
