eprel.ec.europa.euEN RH423, RH429, RH439, RH449 Explanation of symbols

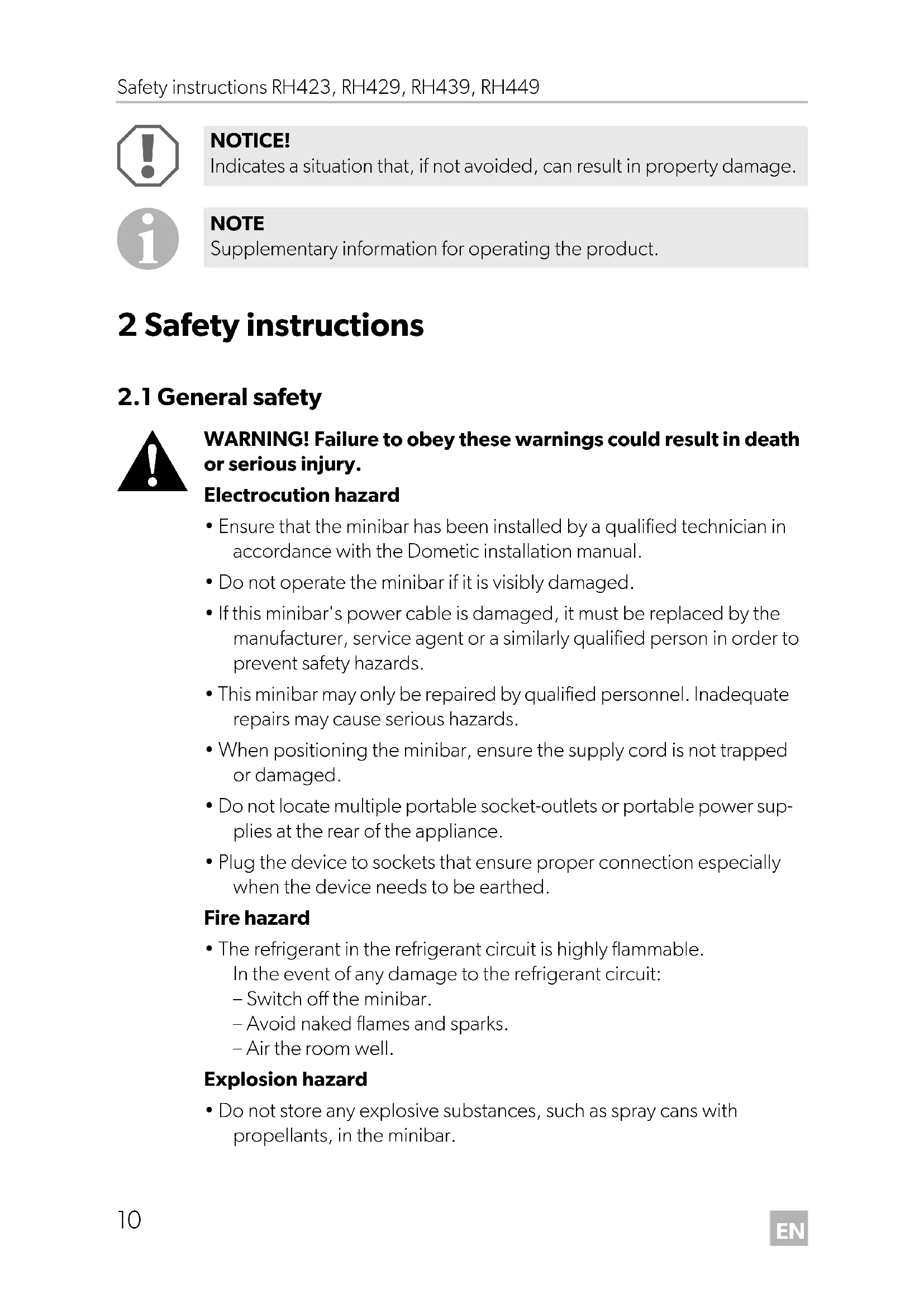

DANGER! Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.EN Safety instructions RH423, RH429, RH439, RH449

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard

• Ensure that the minibar has been installed by a qualified technician in accordance with the Dometic installation manual.

• Do not operate the minibar if it is visibly damaged.

• If this minibar's power cable is damaged, it must be replaced by the manufacturer, service agent or a similarly qualified person in order to prevent safety hazards.

• This minibar may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.

• When positioning the minibar, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power sup- plies at the rear of the appliance.

• Plug the device to sockets that ensure proper connection especially when the device needs to be earthed. Fire hazard

• The refrigerant in the refrigerant circuit is highly flammable. In the event of any damage to the refrigerant circuit: – Switch off the minibar. – Avoid naked flames and sparks. – Air the room well. Explosion hazard

• Do not store any explosive substances, such as spray cans with propellants, in the minibar. NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product.EN RH423, RH429, RH439, RH449 Safety instructions

• Never open the absorber unit. It is under high pressure and can cause injury if it is opened.

• This minibar can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the minibar in a safe way and understand the hazards involved.

• Children shall not play with the minibar.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload the minibar.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Risk of crushing

• Do not put your fingers into the hinge. Health hazard

• Foodstuff may only be stored in its original packaging or in suitable containers.

• Check that the voltage specification on the type plate is the same as that of the power supply.

• The minibar is not suitable for storing substances which are caustic or contain solvents.

• The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center.

• Keep the drainage outlet clean at all times.

• Do not open the refrigerant circuit under any circumstances.

• Only carry the minibar upright.EN Safety instructions RH423, RH429, RH439, RH449

DANGER! Failure to obey these warnings will result in death or serious injury. Electrocution hazard

• Do not touch exposed cables with your bare hands.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard

• Before starting the minibar, ensure that the power supply line and the plug are dry. Health hazard

• Make sure that you only put items in the minibar which may be chilled at the selected temperature.

• Food may only be stored in its original packaging or in suitable containers.

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the minibar.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• If the minibar is left empty for long periods: – Switch off the minibar. – Defrost the minibar. – Clean and dry the minibar. – Leave the door open to prevent mould developing within the minibar.

• Do not use electrical devices inside the minibar unless they are recom- mended by the manufacturer for that purpose.

• Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).

• Ensure that the ventilation vents are not covered.

• Never immerse the minibar in water.

• Protect the minibar and the cable against heat and moisture.

• Make sure that foodstuffs do not touch the walls of the cooling area.EN RH423, RH429, RH439, RH449 Intended use

3 Intended use The refrigeration appliance (also referred to as minibar) is intended to be used in household and similar applications such as:

• Staff kitchens in stores, offices and other work areas

• Hotels, motels and other residential type environments

• Bed and breakfast type environments

• Catering and similar non-retail applications The minibar is not suitable for installation in caravans or mobile homes. The minibar is intended to be used either as a built-in appliance or as freestanding refrigeration appliance. Refer to the installation instructions. The minibar is designed exclusively for cooling and storing of beverages and foods in closed containers. The minibar is not suitable for storing fresh foods and medicine or freezing food- stuffs. This minibar is only suitable for the intended purpose and application in accordance with these instructions. This manual provides information that is necessary for proper installation and/or operation of the mibinbar. Poor installation and/or improper operating or mainte- nance will result in unsatisfactory performance and a possible failure. The manufacturer accepts no liability for any injury or damage to the minibar resulting from:

• Incorrect assembly or connection, including excess voltage

• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer

• Alterations to the minibar without express permission from the manufacturer

• Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications.EN Technical description RH423, RH429, RH439, RH449

4 Technical description The minibar can cool products and keep them cool. A grid divider can be used to separate foodstuffs, e.g. bottles and sweets.

No. infig. 1, page 3Description1 Evaporator2 Evaporator cover3 LED of interior light with door opening sensor4 Door opening sensor (behind evaporator)5 Door6 Door lock (optional)7 Foot8 Automatic door control LED (optional) 9 Air sensor10 Shelves11 Door racks NOTE For devices with a door lock, the manufacturer does not accept liability for loss or damage of the keys. In this case, a complete door lock can be supplied (see dometic.com/dealer). No. infig. 0, page 6Description1 Red button: Resets the door control monitor2 Black button: Resets the minibar 3 Yellow button: Sets inside temperature to 3 °C or 7 °C 4 Blue button: Sets inside temperature to 5 °C or 12 °CEN RH423, RH429, RH439, RH449 Installation

The minibar is designed for free-standing installation, but can be built-in if the follow- ing conditions are kept to ensure satisfactory operation and maximum cooling effi- ciency.

• The minibar must be leveled carefully to ensure proper function.

• The socket outlet for the mains connection must be freely accessible.

• The minibar must not be exposed to radiated heat (sunlight, radiator, oven).

1. Disconnect the mains.

2. Lay down the minibar carefully on its back.

3. Proceed as shown (fig. 2, page 4 – fig. 5, page 4).

4. Check that the door closes easily and is sealed properly.

5.2 Changing the decorative plate (free-standing only)

• Ventilation must be provided as shown in alternatives A, B, C or D.

• Ventilation grills (1), if used, must have openings of at least 200 cm² each. CAUTION! Health hazard To avoid a hazard due to instability of the device, it must be fixed in accordance with the instructions. NOTICE! Damage hazard Do not use extension cords or ungrounded (two pin) adapters. NOTE For reversing the door, a different hinge is needed.EN Operation RH423, RH429, RH439, RH449

• The minimum clearance between the minibar‘s back and the surrounding struc- ture should be as follows:

• The ventilation duct must at least measure 105 mm x the width of the minibar.

• The entire cooling unit must project into the ventilation duct as shown.

• Air passing through the ventilation duct must not be preheated by any source of heat.

• The ventilation duct must be kept free from any obstacles. Especially portable multi socket outlets or portable power supplies, which can get warm, must not be kept at the rear of the minibar. ➤ Fix the minibar through its fixing feet as shown (fig. b, page 8). 6Operation

6.1 Before first use

Before first use, clean the minibar inside and outside with a damp cloth for hygienic reasons (see also chapter “Cleaning and maintenance” on page 20).

• Only open the minibar as often and for as long as necessary.

• Avoid unnecessarily low temperature settings.

• For optimal energy consumption, position the shelves and drawers according to their position on delivery.

• On a regularly basis, make sure the door seal still fits properly.

• Clean dust and dirt from the condenser at regular intervals. No. in fig. a, page 7 Min. distance 220mm 3105mmEN RH423, RH429, RH439, RH449 Operation

1. Place the minibar on a firm base.

2. Connect the connection cable to the AC mains supply.

✔ The minibar performs a self test. After approx. 10 seconds the interior light (fig. 1 3, page 3) illuminates for 2 seconds. In case of a failure the interior light changes to a constant flashing. ✔ The minibar starts cooling the interior. WARNING! Suffocation hazard If children climb into unused minibars and close the door behind them, they can suffocate inside the device. If you are not going to use the minibar for a long time, take the following precautionary steps:

• Leave the shelves in place so that children cannot easily climb inside. NOTICE! Damage hazard

• Ensure that the objects placed in the minibar are suitable for cooling to the selected temperature.

• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy the glass containers.

• Ensure that your minibar is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents. NOTE

• The empty minibar needs about 6 to 7 hours at normal ambient tem- perature to reach the proper temperature in the interior.

• A few water drops may form inside the minibar if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the minibar falls. The minibar is not defective. Wipe it out with a dry cloth if necessary.EN Operation RH423, RH429, RH439, RH449

To avoid food waste, note the following:

• Keep temperature fluctuation as low as possible. Only open the minibar as often and for as long as necessary. Store the foodstuff in such a way that the air can still circulate well.

• The minibar is equipped with an automatic temperature regulation function. Select the average of the possible temperature values.

• Adjust the temperature to the quantity and type of the foodstuff. The minibar is equipped with an automatic temperature regulation function. With the optional remote control (fig. 0, page 6) you can adjust the temperature to four different levels using two buttons (on the remote control). With each press of the buttons on the remote control, the cooling temperature switches between the possible values. By pressing a button, a red LED illuminates on the remote control.

1. Remove the plastic insulation from the battery holder before initial use.

2. Align the upper side of the remote control to the door opening sensor

NOTE The red LED illuminates as soon as a signal has been sent out. Check the batteries if the LED does not illuminate. Button (fig. 0 page 6) Inside temperature LED signal Yellow button (

3 °C or 7 °C If the LED of the interior light flashes 3 times, the temperature is set to 3 °C. If the LED of the interior light flashes 7 times, the temperature is set to 7 °C. Blue button (

5 °C or 12 °C If the LED of the interior light flashes 5 times, the temperature is set to 5 °C. If the LED of the interior light flashes 12 times, the temperature is set to 12 °C.EN RH423, RH429, RH439, RH449 Operation

1. If you wish to switch the minibar off, unplug the connection cable.

2. Clean the interior to make sure it is dry enough.

6.6 Using the automatic door control (optional)

The automatic door control (optional) indicates via an LED (fig. 1 8, page 3) that the door has been opened. If the LED is lit:

The minibar is equipped with an auto-defrost function.

6.8 LED of interior light

NOTICE! Damage hazard The lamp can only be replaced by the manufacturer, a service agent or similarly qualified person to avoid hazard.EN Cleaning and maintenance RH423, RH429, RH439, RH449

7 Cleaning and maintenance

1. Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the

2. Wash out the minibar using clean water and dry it thoroughly.

3. At annual intervals, remove dust from the cooling aggregate at the back of the

minibar using a brush or a soft cloth. 8 Troubleshooting WARNING! Electrocution hazard Always disconnect the device from the power supply before you clean and service it. NOTICE! Damage hazard

• Never clean the minibar under running water or in dish water.

• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the minibar. Problem Possible cause Suggested remedy The cooling is poor. Too much food was put in. Remove some food. Door is not closed properly.Close the door.Internal air circulation is restricted.Provide internal air circulation.There is no cooling. Plug is not properly connected to the mains socket.Put the plug into the mains socket properly.There is no voltage in the mains socket.Establish voltage.LED of interior light is constantly flashing.The temperature of the evaporator is too high.Check if the minibar is overloaded. Remove some food.Check if the door is properly closed.Check if the minibar is levelled.Check if the ventilation for the minibar is sufficient.EN RH423, RH429, RH439, RH449 Warranty

9Warranty The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault Note that self-repair or non-professional repair can have safety consequences and might void the warranty. 10 Disposal Recycling packaging material Recycling products with non-replaceable batteries, rechargeable batter- ies or light sources ➤ Place the packaging material in the appropriate recycling waste bins wher- ever possible. ➤ If the product contains any non-replaceable batteries, rechargeable batteries or light sources, you don't have to remove them before disposal. ➤ If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the appli- cable disposal regulations. ➤ The product can be disposed free of charge.EN Technical data RH423, RH429, RH439, RH449

Total volume: 28 l 29 l Connection voltage: 220 – 240 Vw Power consumption: 65 W 75 W Temperature range: +3 °C to +12 °CEN RH423, RH429, RH439, RH449 Technical data

Energy consumption (ambient temperature +12 °C to +25 °C):

Total volume: 35 l 36 Connection voltage: 220 – 240 Vw Power consumption: 65 W 75 W Temperature range: +3 °C to +12 °C Energy consumption (ambient temperature +12 °C to +25 °C):
