Features	Details
Product type	Water pump
Maximum flow rate	7500 L/h
Maximum pressure	5.5 bars
Power	750 W
Power supply	230 V / 50 Hz
Dimensions	350 x 250 x 300 mm
Weight	8 kg
Body material	Reinforced plastic
Recommended use	Watering, drainage, pond emptying
Maintenance	Regularly check seals and clean the filter
Safety measures	Do not immerse the motor, wear gloves during maintenance
Warranty	2 years

Frequently Asked Questions - TSP 7525 K Grizzly

How do I start the Grizzly TSP 7525 K pump?

Make sure the pump is properly connected to a power source, check that the water tap is open, and press the start button.

What should I do if the pump does not turn on?

Check the power cable and make sure it is not damaged. Also, ensure the power outlet is working by plugging in another device.

Why is my Grizzly TSP 7525 K pump not delivering water?

This may be due to a low water level, a clogged filter, or a leak in the hose. Check these items and make sure the pump is properly submerged.

How do I clean the pump filter?

Unplug the pump, remove the filter cover, and clean it under running water to remove debris. Replace the filter and plug the pump back in.

What is the maximum capacity of the Grizzly TSP 7525 K pump?

The pump has a maximum capacity of 7500 liters per hour, depending on usage conditions and discharge height.

How can I prevent my pump from overheating?

Make sure the pump operates under recommended conditions and is not blocked. Avoid running the pump dry.

Is the Grizzly TSP 7525 K pump suitable for outdoor use?

Yes, the pump is designed for outdoor use, but it is important to protect it from weather and not expose it to extreme temperatures.

What is the warranty for the Grizzly TSP 7525 K pump?

The pump typically comes with a 2-year warranty. Please refer to the user manual for more details on warranty conditions.

How can I contact customer service for technical issues?

You can contact Grizzly customer service by phone or through their website. Contact details are usually provided in the user manual.

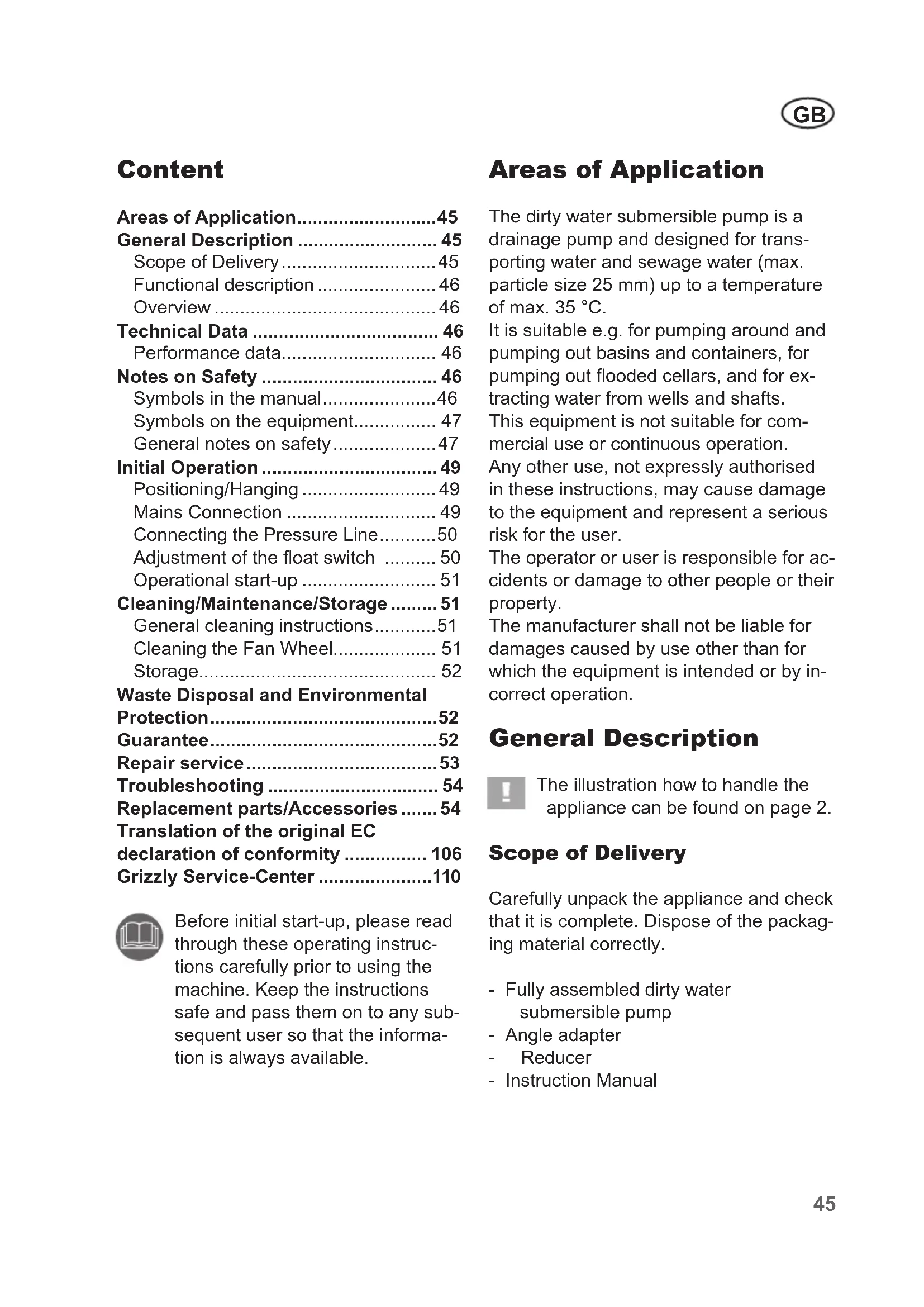

USER MANUAL TSP 7525 K Grizzly

Translation of the original instructions for use

Grizzly Service-Center 110

Grizzly Service-Center 111

Grizzly Service-Center 110

Grizzly Service-Center 110

Areas of Application 45

General Description 45

Scope of Delivery 45

Functional description 46

Overview 46

Technical Data 46

Performance data. 46

Notes on Safety 46

Symbols in the manual. 46

Symbols on the equipment. 47

General notes on safety 47

Initial Operation 49

Positioning/Hanging 49

Mains Connection 49

Connecting the Pressure Line. 50

Adjustment of the float switch 50

Operational start-up 51

Cleaning/Maintenance/Storage 51

General cleaning instructions. 51

Cleaning the Fan Wheel. 51

Storage 52

Waste Disposal and Environmental

Protection. 52

Guarantee 52

Repair service 53

Troubleshooting 54

Replacement parts/Accessories 54

Translation of the original EC

declaration of conformity 106

Grizzly Service-Center 110

Before initial start-up, please read through these operating instructions carefully prior to using the machine. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.

Areas of Application

The dirty water submersible pump is a drainage pump and designed for transporting water and sewage water (max. particle size 25mm ) up to a temperature of max. 35^ .

It is suitable e.g. for pumping around and pumping out basins and containers, for pumping out flooded cellars, and for extracting water from wells and shafts.

This equipment is not suitable for commercial use or continuous operation.

Any other use, not expressly authorised in these instructions, may cause damage to the equipment and represent a serious risk for the user.

The operator or user is responsible for accidents or damage to other people or their property.

The manufacturer shall not be liable for damages caused by use other than for which the equipment is intended or by incorrect operation.

General Description

The illustration how to handle the appliance can be found on page 2.

Scope of Delivery

Carefully unpack the appliance and check that it is complete. Dispose of the packaging material correctly.

• Fully assembled dirty water submersible pump
• Angle adapter
• Reducer
• Instruction Manual

Functional description

The pump is fitted with a float switch, which automatically switches the equipment on or off.

The motor is protected from overload by a thermal safety switch.

Please refer to the following descriptions for the function of the operating parts.

Overview

1 Round handle
2 Pump housing
3 Pump outlet

4 Floor plate
5 Foot part
6 Mains connection cable
7 Float switch
8 Float switch grating 9 Reducer
10 Angle adapter

Technical Data

Rated voltage 230 V~50 Hz
Rated power input/
Power consumption. 400 W
Max. discharge rate (Q max)......7'500 l/h
Max. discharge head (H max) 5 m
Max. depth of immersion 5 m
Max. water temperature (T max) .... 35 °C
Hose connection. 1", 1¼", 1½
Max. foreign body size 25 mm
Mains cable 10 m
Weight (incl. accessories)...approx. 3.4kg
Safety class
Degree of protection.. IPX8

Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are without guarantee. Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.

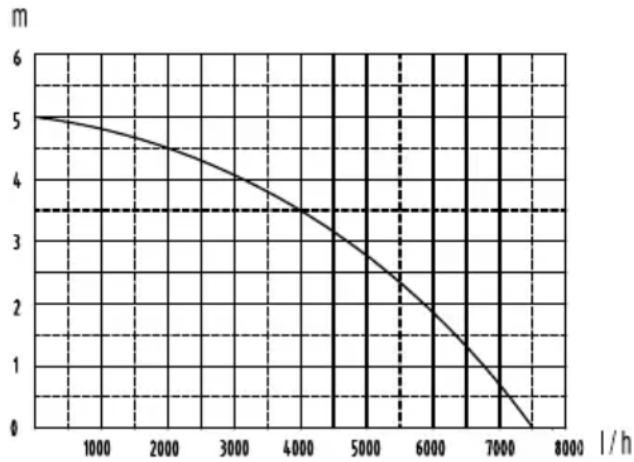

Performance data

The maximum performance data are measured with a straight, direct outlet flow. The angle piece and backflow valve may reduce performance.

Notes on Safety

This section deals with the general safety regulations for working with the equipment.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

Symbols on the equipment

Caution! Do not use for water with a high sand content!

Before beginning work, familiarise yourself thoroughly with all the operating elements, particularly with how they function and operate. Ask a specialist if necessary.

Read and follow the operat ing instructions provided for the device!

Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.

Greatest possible operating immersion depth.

Electric appliances should not be disposed of in the domestic garbage.

General notes on safety

Working with the equipment:

Caution: to avoid accidents and injuries:

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of ex

experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• People who are unfamiliar with the operating instructions are not permitted to use the equipment. Local regulations or bylaws may determine the minimum age for using the device.
• Wear sturdy footwear to protect against electric shock.
• Should there be people in the water, do not operate the equipment. Risk of electric shock!
  Take appropriate measures to keep children away from the equipment whilst it is running. There is a risk of injury!
• Do not use the equipment in the vicinity of flammable liquids or gases. Non-observance will result in a risk of fire or explosion.
• Store the equipment in a dry place and out of reach of children.

Caution! To avoid damage to the equipment and any possible person injury resulting from this:

• The transportation of aggressive, abrasive (grinding effect, e.g. sandwater), corrosive,

combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted. The temperature of the liquid being transported must not exceed 35^ . Non-observation can lead to device damage and create a risk for the user.

• Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electrical protection measures are in place.
  Monitor the equipment during operation (particularly in residential spaces, in order to detect automatic switching off or dry running of the pumps in time. Regularly check the function of the float switch (see chapter "initial operation"). Non-observation will invalidate all guarantee and liability claims.
• Please note that the pump is not suitable for continuous operation (e.g. for watercourses in garden ponds). Check the equipment regularly for correct functioning.
• Note that the lubricants used in the equipment may cause damage or contamination if they escape. Do not use the pump in garden ponds with fish stocks or valuable plants.

• Do not carry or fix the equipment by the cable or pressure line.

• Protect the equipment from frost and from running dry.

• Use only original accessories and do not carry out conversion work on the equipment.
• Please read the notes in the operating instructions on the topic of "maintenance and cleaning". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Electrical safety:

Caution: to avoid accidents and injuries from electric shocks:

• The equipment is not to be operated if there are people in the water. There is a risk of electric shock.
• After erection, the mains plug must be freely accessible when the equipment is in operation.

• Before operating your new pump, have a specialist check:

• The earthing, the protective multiple earthing; the residual current circuit breaking must be compliant with the safety regulations of the energy supply company and function without fault,

• The protection of the electrical plug connections from the wet.

• If there is a risk of flooding, fix the plug connections in an area that is safe from flooding.

• Ensure that the mains voltage matches the specifications on the rating plate.
  The electrical installation shall be according to national wiring rules.

• Connect the appliance to a power socket with a residual current circuit breaker of rated residual current no more than 30mA ; minimum fuse 6 amperes.
• Before each use, check the equipment, cable and plug for damage. Defective cables are not to be repaired, but rather replaced by new ones. Have damage on your equipment repaired by an authorised specialist.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards. The line must be minimum 10 m long.
• Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.
• Do not carry or fix the equipment by the cable.

• Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage. The flexible lead cross-section of the extension cord must at least 2.5mm^2

• Disconnect the mains plug from the socket before all work on the equipment, in case of leaks in the water system, during work breaks, and when not in use.

Initial Operation

Positioning/Hanging

• The dimensions of the pump shaft must be not less than 40 × 40 × 50 cm , in order that the float switch (7) can move freely.
• The pump can be suspended by the round handle ( 1 ) or placed on the shaft floor.

The pump can be suspended and/or removed using the nylon cord (11) provided. Never suspend the pump by the hose.

Ensure that the equipment is not hung up or held by the mains cable. There is a risk of electric shock from damaged mains cables.

Note that, over time, dirt and sand may collect on the bottom of the shaft, which could damage the pump.

We recommend standing the pump on a brick.

If the water level is too low, the silt in the shaft can quickly dry out and impede the pump when warming up.

Mains Connection

The pump you have purchases is already fitted with an earthed plug. The equipment

is designed for connection to an earthed wall socket with a residual current operated device (RCD switch) at 230V 50Hz .

Connecting the Pressure Line

The pump is installed

• Either with a fixed pipeline
• Or with a flexible hose line.

1. Screw the bracket adapter (10) onto the pump outlet (3).

2. Fit the hose over the reducer (9) and secure it with a hose clamp. Or use a screw connection at the bracket adapter (10) or the reducer (9).

Outlet with a 1 12 internal thread on the pump for connection of the angle adapter (10) or for direct connection of a hose with a 1 12 external thread;
Outlet with 112 external thread at the bracket adapter (10) for connection of the reducer (9) or a 112 screw connection;
Outlet on reducer (9) for connection of a 1 14 or 1 12 hose as a compression joint (fixing with a hose clamp);
Outlet with 1" external thread at the reducer (9) for connection of a 1" screw connection;
Outlet with 1 12 thread at the reducer (9) for connection of a 1" hose as clamp connection (fixing with a hose clamp).

Note that the particle size may be max. 19mm if the reducer ( 19.3mm) is used, otherwise the reducer and hose can become blocked.

Adjustment of the float switch

The float switch (7) is adjusted so that it can be started up immediately. In the case of stationary installation, check regularly (no less then once every three months) that the float switch is working.

The ON and OFF switching point of the float switch can be adjusted by changing the position of the float switch in the float switch grating. Please check the following points before start of operation.

• The float switch must be attached so that the switching point ON level and the switching point OFF level can be reached easily and with little expenditure of energy. Check this by placing the pump into a vessel filled with water and lift the float switch carefully by hand and then lower it again. In this case, you can see whether the pump switches on and off.
• Also ensure that the separation distance between the float switch head and the float switch latching mechanism (8) is not too small. In the case of a separation distance which is too small, trouble-free functioning cannot be guaranteed.
• During the adjustment of the float switch, ensure that the float switch does not contact the floor before the pump switches off.

There is a risk of dry running if the float switch cable is selected to be too long

Operational start-up

• Check that the pump is standing firmly on the bottom of the shaft or hung up safely.

• Check whether the pressure line has been attached correctly and the unused pump outlet is fully closed.

• Avoid that the pump runs dry. Regularly check the function of the float switch. In case of non-observation or if the pump runs dry, guarantee and liability claims are invalidated.
• Check that the electrical connection is 230V 50Hz
• Check the proper status of the electrical plug socket and make sure that the plug socket is sufficiently fused (at least 6 A, RCD switch). Insert the pump plug into the plug socket and the pump is ready for operation.
  Make sure that moisture or water never come in contact with the mains connection. There is a risk of electrocution.

Cleaning/Maintenance/Storage

Clean and maintain your equipment regularly. This will guarantee its performance and long durability.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.

This will prevent damage to the equipment and any resulting personal injury.

Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.

General cleaning instructions

• In case of transport for utilization in different locations, the pump must be cleaned with clear water after every use.
• In case of stationary installation, the function of the float switch (7) is to be checked regularly (at the latest every three months).
• With a water jet, remove fluff and fibrous particles which are possibly present in the pump casing
• Regularly remove sludge from the pit base (at the latest every 3 months) and also clean the shaft walls
• Clean precipitation from the float switch with clear water,
• In the case of a long period of non-use, the pump must be thoroughly cleaned after the last use and before the new use, since difficulties in startup can arise due to precipitation and residues.

Cleaning the Fan Wheel

In case of soiling or blockage of the impeller, this can be cleaned via the pump outlet (3) or by removing the floor plate (4):

1. Unscrew the bracket adapter (10) from the pump outlet (3).

2. Remove the 3 screws on the bottom of the base (5) and take off the base plate (4).

3. Clean the fan wheel using clean water.

4. To re-assemble, reverse this order.

Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Storage

• Keep the equipment clean, dry, frost-free and out of the reach of children.
• Unscrew the bracket adapter (10) for storage.

Waste Disposal and Environmental Protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Hand over the device at an utilization location. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.

Defective units returned to us will be disposed of for free.

Guarantee

• We grant a 24-month warranty for this appliance. Commercial use or continuous operation will invalidate the guarantee.
• Damage due to natural wear and tear, overload or incorrect use is excluded from the guarantee. Certain components are subject to normal wear and tear and are excluded from the guarantee. These include in particular: filters, attachments or seals provided that the claims are not traced back on material defects.
• In the case of pumping water containing sand or aggressive liquids or other incorrect, non-design-appropriate use, as well as in case of non-observation of the operating manual, application of force in use or inappropriate or insufficient maintenance, no guarantee claim exists, since seals, impeller wheel, motor or other parts are damaged by this. Also, sewage water pumps are not suitable for the pumping of abrasive materials (sand, stone).

Note: submersible pumps are drainage pumps. This kind of pump is constructed with the purpose of transporting or removing a certain volume of water - depending on its output category - as quickly as possible. Submersible pumps are not intended as irrigation (for example, in garden irrigation systems) or as constant water-flow pumps (such as in artificial streams or ornamental fountains). Inappropriate use will invalidate the

warranty.

• In particular, the guarantee is likewise void in the case of employment of the sewage water pumps without base plate or (this applies for all pumps) in case of damages which are caused by supporting on or suspending from the mains cable. The pumps must not be run dry or exposed to frost.
• Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.

This requires that the appliance is returned to our service center undismantled and with proof of purchase and guarantee.

Repair service

• Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate.

We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.

Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.

Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

Defective units returned to us will be disposed of for free.

Troubleshooting

Faults Causes Remedies
Pump does not start	Mains voltage is not applied Check mains voltage
	Float switch (7) does not switch	Bring float switch into higher position
Pumps has no discharge	Buckled pressure hose Repair point at which the line is bent
	Trapped air in the pump casing	Tip the pump underwater until the air escapes
Pump does not switch off	Float switch (7) cannot drop	Set up pumps correctly on the pit base
Flow rate insufficient	Reduces pump performance, through severely contaminated water and additions in the water which produce a grinding effect	Clean pumps and replace wear parts
Pump switches off after a short period	Motor contactor disconnects the pumps because of water pollution that is too severe.	Pull out power plug and clean the pump as well as shaft
	Water temperature too high, motor contactor breaks	Note maximum water temperature of 35 °C!

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you have any other questions, contact the "Service-Center" (see "Service-Center").

Spis tresci

Przeznaczenia 55

Opis ogolny. 55

Grizzly Service-Center 110

Grizzly Service-Center 110

Grizzly Service-Center 110

Grizzly Service-Center 110

Grizzly Service-Center 110

Pred prvym uvedenim do pre-vadzky si pozorne precitajte tento navod na pouzivanie,aby ste za-branili nespravnemu zaobchodzaniu.Navod na pouzivanie dobre uschovajte,aby ste mali informacia kedykolvek k dispozicii.

Učel použitia

Grizzly Service-Center

Unit 3, Beldray Park

Beldray Road, Mount Pleasant

Bilston, West Midlands WV14 7NH

Tel.: [phone]

e-mail: [e-mail]

I.T.S. Winschoten bv
