Technical Specifications	Digital air fryer, 4.5-liter capacity, 1500 W power, adjustable temperature up to 2006C.
Cooking Modes	Air frying, grilling, baking, roasting.
Usage	Easy to use thanks to a digital screen, quick preheating, built-in timer.
Maintenance	Removable basket and accessories dishwasher safe, easy cleaning.
Safety	Overheat protection system, insulated handle to prevent burns.
General Information	Compact design, ideal for small kitchens, 2-year manufacturer warranty.

Frequently Asked Questions - Air Fry Digital Grill TAURUS

How do I clean my TAURUS Air Fry Digital Grill fryer?

To clean your fryer, unplug it and let it cool down. Wash the basket and the pan with warm soapy water. Use a soft sponge to avoid scratching the surfaces.

Why is my fryer not heating up?

Check that the fryer is properly plugged in and that the power button is activated. Also, make sure the basket is properly in place.

Can I use oil in my TAURUS Air Fry fryer?

Yes, you can add a little oil to improve the texture of the food, but it is not necessary. The fryer mainly operates without oil.

What are the recommended cooking temperatures for different foods?

For fries, set to 2006C for 15-20 minutes. For chicken, use 1806C for 25-30 minutes. For vegetables, 2006C for 10-15 minutes.

How do I know if my food is cooked inside?

Use a kitchen thermometer to check the internal temperature of the food. For example, chicken should reach 756C.

My fryer makes strange noises, is this normal?

A slight fan noise is normal, but if you hear loud or unusual noises, turn it off and contact customer service.

Can I cook frozen foods in the fryer?

Yes, you can cook frozen foods. Adjust the cooking time according to the package instructions and check the cooking halfway through.

Are there recommended recipes for my TAURUS fryer?

Yes, consult the user manual for specific recipes. You can also find online recipes suitable for air frying.

How do I reset my fryer if it is not working properly?

Unplug the fryer, wait a few minutes, then plug it back in. This may reset the settings.

Where can I find spare parts for my fryer?

Spare parts can be ordered from TAURUS customer service or on their official website.

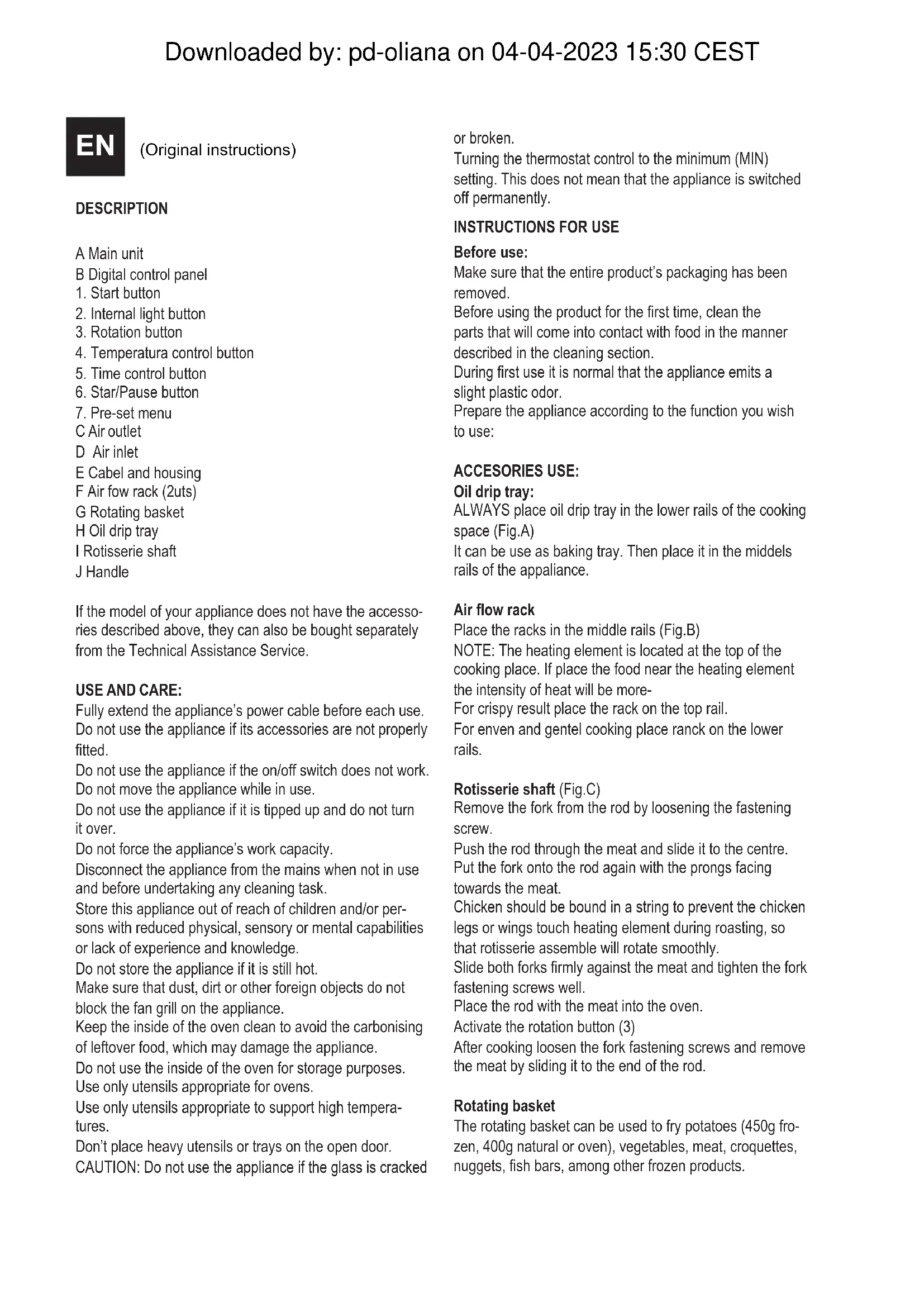

USER MANUAL Air Fry Digital Grill TAURUS

(Original instructions)

DESCRIPTION

A Main unit

B Digital control panel

1.Start button

1. Internal light button

2. Rotation button

3. Temperatura control button

4. Time control button

5. Star/Pause button

6. Pre-set menu

C Air outlet

D Air inlet

E Cabel and housing

F Air fow rack (2uts)

G Rotating basket

H Oil drip tray

I Rotisserie shaft

J Handle

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE:

Fully extend the appliance's power cable before each use. Do not use the appliance if its accessories are not properly fitted.

Do not use the appliance if the on/off switch does not work. Do not move the appliance while in use.

Do not use the appliance if it is tipped up and do not turn it over.

Do not force the appliance's work capacity.

Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

Store this appliance out of reach of children and/or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge.

Do not store the appliance if it is still hot.

Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

Keep the inside of the oven clean to avoid the carbonising of leftover food, which may damage the appliance.

Do not use the inside of the oven for storage purposes.

Use only utensils appropriate for ovens.

Use only utensils appropriate to support high temperatures.

Don't place heavy utensils or trays on the open door.

CAUTION: Do not use the appliance if the glass is cracked.

or broken.

Turning the thermostat control to the minimum (MIN) setting. This does not mean that the appliance is switched off permanently.

INSTRUCTIONS FOR USE

Before use:

Make sure that the entire product's packaging has been removed.

Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

During first use it is normal that the appliance emits a slight plastic odor.

Prepare the appliance according to the function you wish to use:

ACCESORIES USE:

Oil drip tray:

ALWAYS place oil drip tray in the lower rails of the cooking space (Fig.A)

It can be use as baking tray. Then place it in the middels rails of the appliance.

Air flow rack

Place the racks in the middle rails (Fig.B)

NOTE: The heating element is located at the top of the cooking place. If place the food near the heating element the intensity of heat will be more

For crispy result place the rack on the top rail.

For enven and gentel cooking place ranck on the lower rails.

Rotisserie shaft (Fig.C)

Remove the fork from the rod by loosening the fastening screw.

Push the rod through the meat and slide it to the centre. Put the fork onto the rod again with the prongs facing towards the meat.

Chicken should be bound in a string to prevent the chicken legs or wings touch heating element during roasting, so that rotisserie assemble will rotate smoothly.

Slide both forks firmly against the meat and tighten the fork fastening screws well.

Place the rod with the meat into the oven.

Activate the rotation button (3)

After cooking loosen the fork fastening screws and remove the meat by sliding it to the end of the rod.

Rotating basket

The rotating basket can be used to fry potatoes (450g frozen, 400g natural or oven), vegetables, meat, croquettes, nuggets, fish bars, among other frozen products.

NOTE: For even cooking, DO NOT overfill the basket. Make sure the basket is tightly closed before starting the cooking process.

To place the basket in the appliance, first insert the left side (Fig.D) and then hook the right side (Fig.E) into the bracket.

Activate the rotation button (3)

Use:

Extend the cable completely before plugging it in.

Connect the appliance to the mains.

Open the door

If you don't use the oil tray pan (H) as baking tray place it at the bottom part of the appliance.

Use the appropriate accessory according to the food you want to cook.

Prepare the food, place it in the accessory and insert it into the appliance.

Close the door

Press the power button during few seconds. The screen will activate.

Then select the temperature by pressing the temperature control button (4).

Select the appropriate time by pressing the time control button (5) for cooking or select the pre-defined program (7) if you wish.

NOTE: keep in mind that the cooking time may vary depending on the food, quantity and size.

If you use rotisserie accessory or the rotating basket, you may select Rotation Button (3).

By pressing the internal light button (2) you can check the cooking process while the appliance is operating.

If you open the door, the appliance will pause automatically and the light will come on. When you close it again, the appliance will start up again.

After the selected time or once the pre-defined menu is finished, the appliance will stop automatically and emit a beep.

To completely turn off the appliance press the power button until the screen turns off.

Open the door and remove the food.

CAUTION: Always use oven gloves to protect your hands.

The metallic parts can become very hot during use. Take care when touching the rods and the forks.

To minimize the generation of acrylamide during the food cooking process, do not allow food to turn dark tan or black.

Let the appliance and tools cool down before cleaning.

Rotisserie Function:

PRESET MENU GUIDE

Button Temperature

Time

Drumstick 180°C 20min
Fish 200°C 12min
Shrimp 160°C 6min
Pizza 180°C 8min
Frys 200°C 20min
Rotisserie 200°C 25min
Steaks/Chops 180°C 9min
Dehydration 65°C 360min

Rotisserie cooking time can vary depending on the weight of the piece, you can use a thermometer to check if the internal temperature is correct according to the below internal temperature chart.

NOTE: when selecting any predefined menu, the cooking time will begin to reverse once the appliance reaches the desired temperature. If you are using the appliance for the first time, and select a menum the panel will show the selected temperature and time, but will not start counting until the optimum cooking temperature is reached.

INTERNAL TEMPERATURE CHART:

Food Type Internal	Temp.
Beef& Veal Grind 70°C
Steaks, roasts-medium
Steaks, roasts-rare	63°C
Poultry Breasts	75°C
Grind, stuffed
Whole bird, legs, wings, ...
Seafood	Any type
Lamb	Grinded 70°C
	Steaks, roasts-medium
	Steaks, roasts-rare
Pork	Choped, grinded, ribs, roasts
	Fully cooked ham

Once you have finished using the appliance:

Turn the appliance off, using the on/off switch.

Unplug the appliance from the mains.

Allow to cool.

Clean the appliance.

CLEANING

Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.

Never submerge the appliance in water or any other liquid or place it under running water.

It is advisable to clean the appliance regularly and remove any food remains.

If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

The following pieces may be washed in a dishwasher (using a soft cleaning program):

Oil drip tray

Racks

Rotating basket

Rotisserie shaft

Handle

Then dry all parts before its assembly and storage.

RECOMMENDATIONS TABLE

Here you can find our recommendation on the time and temperature for frying different meals.

Note: these settings are merely indicative. Foodstuffs can vary in origin, size, shape and brand, so we cannot guarantee the best settings for any specific food.

COOKING GUIDE

Food Time (min) Temperature (℃) Extra information
Potatoes & fries
Thin frozen fries 9-16 200
Thick frozen fries 11-20 200
Home-made fries (8×8mm) 16-20 200 Add 1/2 tbsp oil
Home-made potato wedges 18-22 180 Add 1/2 tbsp oil
Home-made potato cubes 12-18 180 Add 1/2 tbsp oil
Roti 15-18 180
Potato gratin 15-18 200
Meat & Poultry
Steak 8-12 180
Pork chops	10-14 180
Hamburger	7-14 180
Sausage roll	13-15 180
Drumsticks	18-22 180
Chicken breast	10-15 180
Snacks
Spring rolls	8-10 200 Use oven-ready
Frozen chicken nuggets	6-10 200 Use oven-ready
Frozen fish fingers	6-10 200 Use oven-ready
Frozen bread crumbed cheese snacks	8-10 180 Use oven-ready
Stuffed vegetables	10	160
Baking			Use baking tin
Cake	20-25 160 Use baking tin/oven dish
Quiche	20-22 180 Use baking tin
Muffins	15-18 200 Use baking tin/oven dish

PROBLEM SOLUTION

Problem Possible cause Solution
The AIR FRYER does not work.	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the Timer.	Turn on the appliance by pressing the power button for a few seconds. Select the desired time and temperature and close the door properly.
The foods fried with the AIR FRYER are not done.	The quantity of food in the basket is too much.	Put smaller batches of food in the basket. Smaller batches are fried move evenly.
	The set temperature is too low.	Temperature setting - refer to the cooking guide for reference.
The food is fried unevenly in the AIR FRYER.	Certain food types need to be turned halfway through the cooking time.	Turn food over halfway to ensure food cooks equally on both sides.
Fried snacks are not crispy when they come out of the AIR FRYER.	Incorrect food type used. Refer	food manufactures cooking instructions.
The door does not close properly.	The door comes out of the hinge.	Align the hinge and make sure the joints drop over the grooves. Then close the door. Make sure to properly align the racks or tray over the slots. Then close the door.
White smoke Comes out from the Appliance.	Food with high oil content has been used. Oil has been added to the food.	Do not use food groups with high oil content or add extra oil that is not required. An air fryer uses technology where low or no oil is required.
	Grease drip tray still contains grease residue from previous use.	White smoke is caused by grease heating up on the drip tray. Make sure you clean the drip tray after every use.

FR

Numai in cazul in care aparatul are termostat:

(Metapaaon aTIO TIPWTOTUTEc oyniecs)

NEPIIgPAΦH

Papatnpnoeic TpvTn xpno:

Bebaiwthe oTe ixTe aepoei oTa uikacukeuaoc Tou Pioovtoc.

Piv xpoaioioeTo TPOiov yia TPOwn opa, KaapioTe Ta epn Tou EpxovTai OE ETTaepn Me TPOpma otWc Tepiypapetai OTNV TAPayapo yia TIV KApatiotna.

Kata nTv npwn xpon eivai quoioloyiok n ouokun va mupiciE IeAqpwoC TAAOTIKO.

Ipoetoiaote Tn oukeun avaoya e Tn aeitoupyia Tou EeTE va npayatotoinoET:

XPHSHTQN EAPTHMATQN

AioKoCouLoyiS liTouc

ToTOnTeTeIe IANTA Tov dioKo, OTO KAtw MePoC TnC φpItε-ζac aEpoC φoúpvo. (Fig.A)

Av va xpnaioortoinaeteTov dioko oulloync wC taui npiautoc, toe 0a npetnei vaTov Eoiayayete OTO KEVTPIKO OTnpiyma Tc φpitezac.

Exapee ynoiatoos

Eioayayete TIG oxapes ynoiatoC, xpoiopoioiwTAC TIG evoiueoec pavyc. (Fig.B)

SHMEIΩS: n avioaon Bioketai OTO eTavw Mepoc, oTote 0o TIO TIOA TOIOEINOeTE TIG OXapec, too TEPIOOTepn ZcOTn 0a aToppoPnoeTo TpOphiO.

Av 0eE Ev a Tio payav o anotel eoua, toothe nte tn oxapa oTo ETVW TuHa.

Av 3EAE TIO nTIO KAI OoIoOpOo YnOIO, XpNoiOTIOI-OTe Tn Eoia n Tnv KAtw paya.

Egptnua TepioppeoEvns OoubaC (Fig.C)

ApaipoeTn qoupketa nC ooubaC, xaapovotac nBida stepewonC.

oubetaTe To kpeac TnV paoKai OpiwEe Tnv Tpoc To KevTpo Tns.

TToTOeItoeKai TAI Tn QoupketoN Oouba,Me TIG uTEc oTpaupeves TPOCS TO Kpeac.

To kotontouau npetie va eivai demuvo e oxoi, yia va unv ayyizouv ta nobia n o1 ptepuyec tokotontouau

TIC avtiotáεIc θερμótntac, KATA TO ψησιmo, KAI YIA VA μTIOpεI va γυριζεI σωτα.

TIAOTpOte KAI TIC DIO QoUpkETcVa uTouv Oiyoupa Meoa
STO KPeac KAI OphiTE TIC BiEc StnpIgns Touc.

ToTOnTe TnV pABo To Kpeac OTOV foOpvo.

Evpyoio note To Koupi Tepoqns (3) ia va paeypeute ooiopopa to pphi.

MetaTo ynoiio, xalapwote Tc Bioc otnpiengs twv
qoupketwov kai Byale To Kpeac, yIoTpawvtac to Tpoc tnV
akpn Tns ooubetaac.

PiTpeΦoEvKaλaθi

To TEPOTPEPOVEKALAHTI MTOPEI VA XPNOTIOIEITAI YIA VA TNYAVIOTE PATAECS (450g KATEPSUYEVCS, 400g KAVOVIEC SNOUPVOU), LAXAVIKACPEAC, KPOKETC,Nuqgets, YAPOKPOKETC, METAUAAWV KATEPSUYEVWTPOIOTWV. ZHMEIΩSEH:YIA VA ETTUXYTE OMOIOOPPO ΨNtIO, MH TEMIZETE UEPBoIAKA TO KALAHTI.

Bεβaiωθeǐe οTi TO kaλαθI éxé I KλεισεI kaλa, Tpotoú apxioTe η δiδiKaσia ψηομatoç.

Tia va toTioTeiTo KaAai Otn OuaKeun, Tpwa Bale Tnv apiotepn akpn (x. D) Tou kaaoiou kai otn ouvexia Koupiwote n dejia akpn otn theon tns (x. E).

Eepyoioiote to koumi tns peipotpOHS (3)

Xpno:

EtuaiTeealeiwc To Kaawio Piv ouvdeote Tn oukeun OTO peua.

Downloaded by: pd-oliana on 04-04-2023 15:30 CEST

jai jai jai gaa aagaa aal algai gai gai gai gai gai

Ioljgul ay -aull

Lol Joo: jai, pabal g yj -paoa

_ g 且 :

.

Laaa o aabg 05gall

Laa aiea jiai iue:lae -y

a 1

a a a a a a a a a a a a a a a a a a a a a a

| x^ | = | x| .

		-9
\( \ddot{a}_{\text{gjz}} a_{\text{gjz}} \cdot V - \)	\( p_{\text{gjz}} p_{\text{gjz}} - \)
	\( \ddot{o}_{\text{gjz}} o_{\text{gjz}} a_{\text{gjz}} \cdot \)
	\( \ddot{a}_{\text{gjz}} a_{\text{gjz}} a_{\text{gjz}} \cdot \)
\( \ddot{a}_{\text{gjz}} a_{\text{gjz}} c_{\text{gjz}} OV - \)	\( j_{\text{gjz}} j_{\text{gjz}} - \)	\( j_{\text{gjz}} j_{\text{gjz}} - \)
	\( j_{\text{gjz}} o_{\text{gjz}} p_{\text{gjz}} p_{\text{gjz}} - \)
	\( ...a_{\text{gjz}} j_{\text{gjz}} j_{\text{gjz}} j_{\text{gjz}} j_{\text{gjz}} j_{\text{gjz}} - \)
\( \ddot{a}_{\text{gjz}} a_{\text{gjz}} r_{\text{gjz}} r_{\text{gjz}} - \)	\( g_{\text{gjz}} g_{\text{gjz}} \)	\( g_{\text{gjz}} g_{\text{gjz}} \)
		\( g_{\text{gjz}} g_{\text{gjz}} \)
	\( \ddot{o}_{\text{gjz}} o_{\text{gjz}} a_{\text{gjz}} \cdot \)
	\( \ddot{o}_{\text{gjz}} o_{\text{gjz}} a_{\text{gjz}} a_{\text{gjz}} \cdot \)
\( \ddot{a}_{\text{gjz}} a_{\text{gjz}} o_{\text{gjz}} \cdot V - \)	\( \dot{e}_{\text{gjz}} e_{\text{gjz}} \), \( e_{\text{gjz}} e_{\text{gjz}} \), \( e_{\text{gjz}} \), \( e_{\text{gjz}} \)	\( \dot{e}_{\text{gjz}} \)
\( \ddot{a}_{\text{gjz}} a_{\text{gjz}} r_{\text{gjz}} r_{\text{gjz}} - \)	\( d_{\text{gjz}} d_{\text{gjz}} - \)

jIgaiJluo

j 1 j 0

yuljul juaa no juaaui

.

jglzll

：aL

jou j 100000000000000000000000000000

aioj 5jo oJl Jooi Jao y jao 1o Jy no aolgi Jo aod 01 Jg jao jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao Jao

.5d

aai aai 1

aai jao 1abil joi yba g a jraag alln aoa deabj jalbi

a 1

jglal aai 111 100

jaiiiaai 4aai yg jT jIw g o163 jqaiy

Downloaded by: pd-oliana on 04-04-2023 15:30 CEST

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

François

GARANTIE ET ASSISTANCE TECHNIQUE

a a a a a a a a a a a a a a a a a a a a a a a a

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

http://taurus-home.com (a)

Jlll lIe IaI all 1s 100glo b 1b 15

.

gbl 1e 1 1 1 1 1 1 1 1 1 1 1 1

http://taurus-home.com

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus 20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos		35722711300
Czech Republic Milady Horakove 357/4, 568 02, Svitavy 420 461 540 130
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
Espana	Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]	902 118 050
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar	11 Horse Barrack Lane, 54000, Gibraltar	00350 200 75397 / 00350 200 41023
Greece Sapfous 7-9, 10553, Athens		[phone]
Hong Kong	Unit H,13/F., World Tech Centre, Hong kong	(852) 2448 0116 / 9197 3519
Hungary	Késmárk utca 11-13, 1158, Budapest	[phone]
India	C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi	([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Luxembourg Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Marruecos Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca		([phone]
Mauritania 134 Avenue Gamal Abdener Ilot D, Nouakchott 2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro Rastovac bb, 81400, Niksic [phone]
Netherlands Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos 23408023360099
Paraguay Denis Roa 155 c/ Guido Spano, Asunción 21665100
Peru Calle los Negocios 428, Surquillo, Lima [phone]
Portugal	Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa	[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic [phone]
Slovakia	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam	Lot 7 Ind. Zone for, Ha Noi	84437658111 / 84437658110

Downloaded by: pd-oliana on 04-04-2023 15:30 CEST

taurus

www.taurus-home.com
