M18 FSG0X - Screwdriver MILWAUKEE - Free user manual and instructions

Product type	Cordless screwdriver
Battery voltage	18 V
Battery capacity	Not specified
No-load speed	0-550 / 0-2000 rpm
Maximum torque	Not specified
Weight	Not specified
Recommended use	Screwing and unscrewing tasks in various materials
Included accessories	Not specified
Maintenance	Clean regularly, check battery and accessories condition
Safety	Use protective glasses, do not expose to water
Warranty	Not specified
General information	Compatible with Milwaukee M18 battery range

Frequently Asked Questions - M18 FSG0X MILWAUKEE

How do I charge the battery of the MILWAUKEE M18 FSG0X screwdriver?

To charge the battery, insert it into the compatible MILWAUKEE charger and plug the charger into a power outlet. The LED indicators will show you the charging status.

What should I do if my screwdriver does not work?

First, check if the battery is charged. If the battery is charged but the screwdriver still does not work, inspect the battery connections and the motor for any damage.

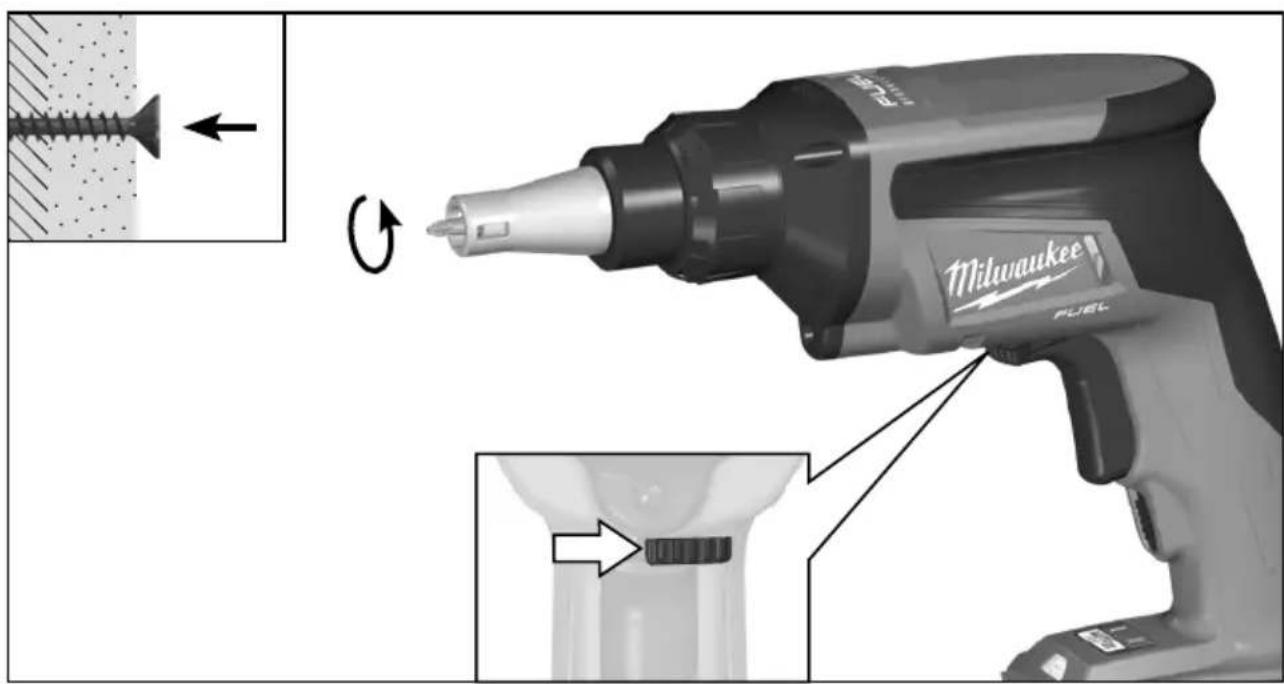

How do I adjust the torque on the screwdriver?

Use the torque adjustment located on the top of the screwdriver. Turn the dial to select the desired torque level depending on the task to be performed.

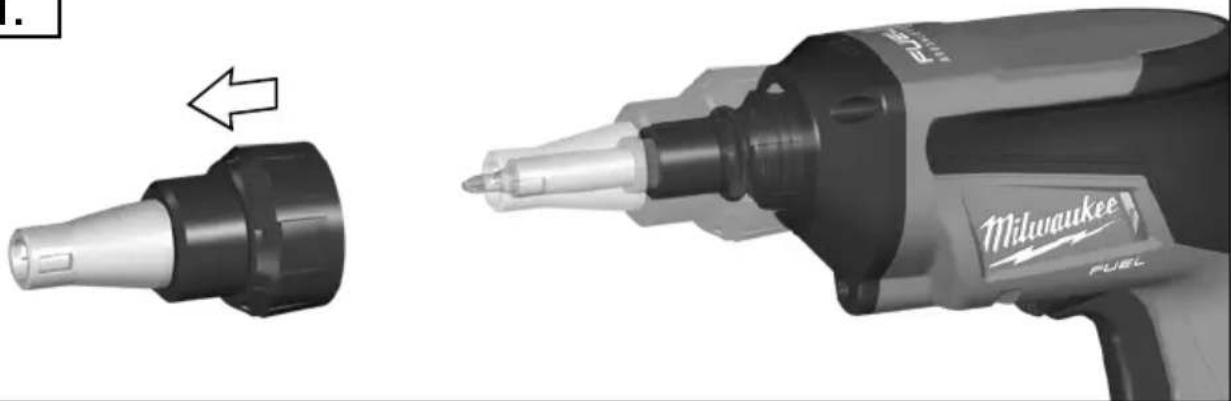

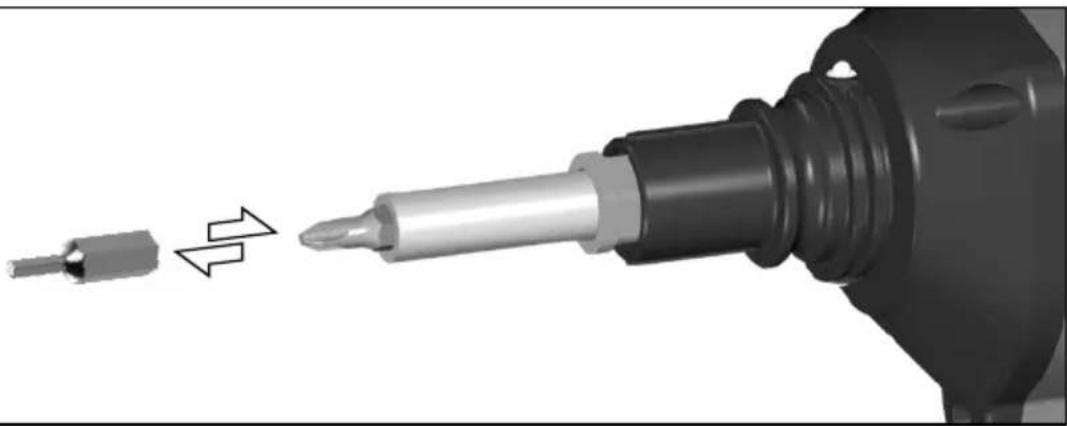

How do I change the screwdriver bit?

To change the bit, pull the chuck to unlock it, remove the worn bit, and insert the new bit. Release the chuck to lock it in place.

What is the maximum drilling capacity of the MILWAUKEE M18 FSG0X screwdriver?

The maximum drilling capacity depends on the material. For wood, the capacity is about 38 mm, and for steel, it is about 13 mm.

How do I clean my screwdriver?

Disconnect the battery and use a dry cloth to clean the outside of the screwdriver. Avoid using harsh chemicals or solvents.

Where can I find spare parts for the MILWAUKEE M18 FSG0X screwdriver?

Spare parts can be purchased from authorized MILWAUKEE dealers or on the brand's official website.

Is the screwdriver under warranty?

Yes, the MILWAUKEE M18 FSG0X screwdriver is generally covered by a 2 to 5 year warranty, depending on the purchase conditions. Check your warranty details on the MILWAUKEE website.

How do I know if my screwdriver battery is at the end of its life?

If the screwdriver does not hold a charge or if the power significantly decreases during use, this may indicate that the battery is at the end of its life.

Can I use the screwdriver in the rain?

It is not recommended to use the screwdriver in the rain or in wet conditions, as this can damage the electronic components.

USER MANUAL M18 FSG0X MILWAUKEE

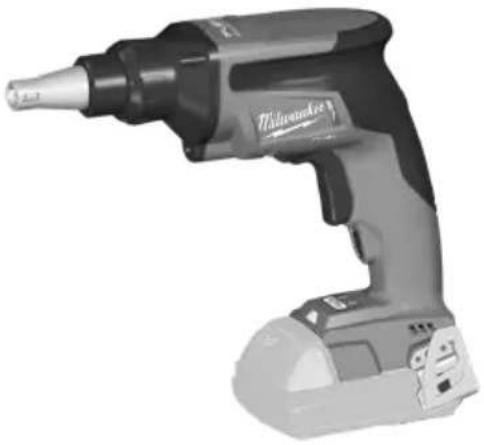

Exterior view of a Milwaukee electric shaver tool (no text or symbols visible on body)

M18 FSG

Original instructions

Exterior view of a modern office building (no signage)

Exterior view of a Milwaukee electric drill putter (no text or symbols visible)

3D rendered image of a black plastic object with a cutaway view (no text or symbols visible)

Two metallic mechanical components, one cylindrical and one elongated, shown without any text or symbols.

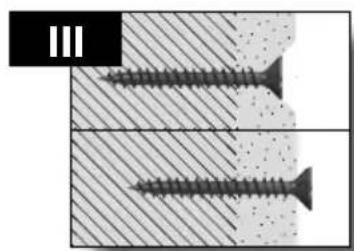

Close-up of two screws in a cross-sectional view, showing surface texture and hole (no text or symbols)

IV

V START STOP

VI TIP

Black plastic electronic component with a small circular cutout (no visible text or symbols)

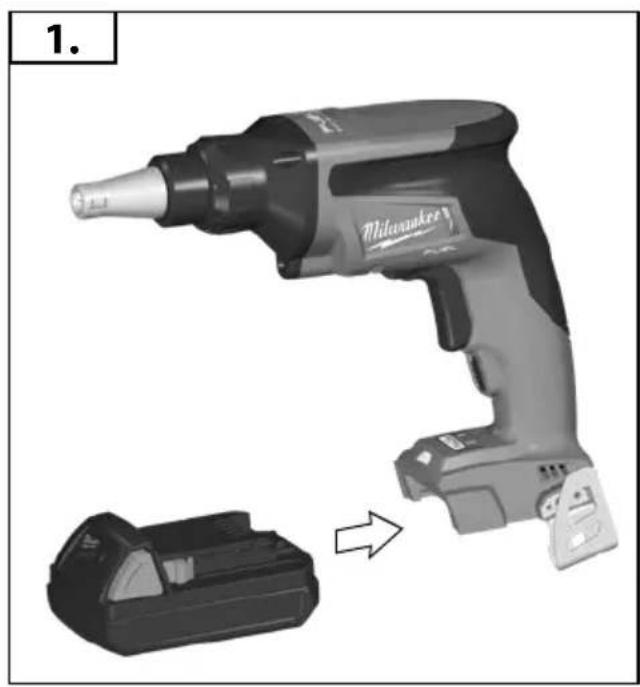

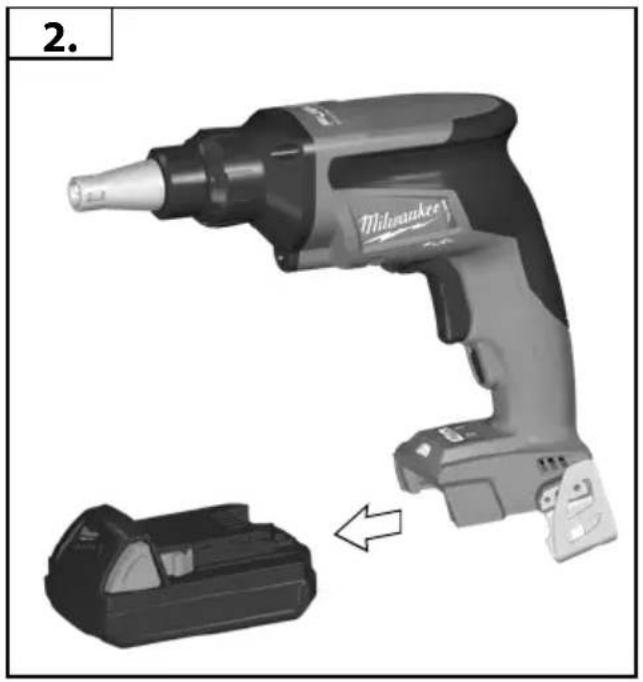

Product photo of a Milwaukee electric drill with a battery and tool, showing no visible text or symbols.

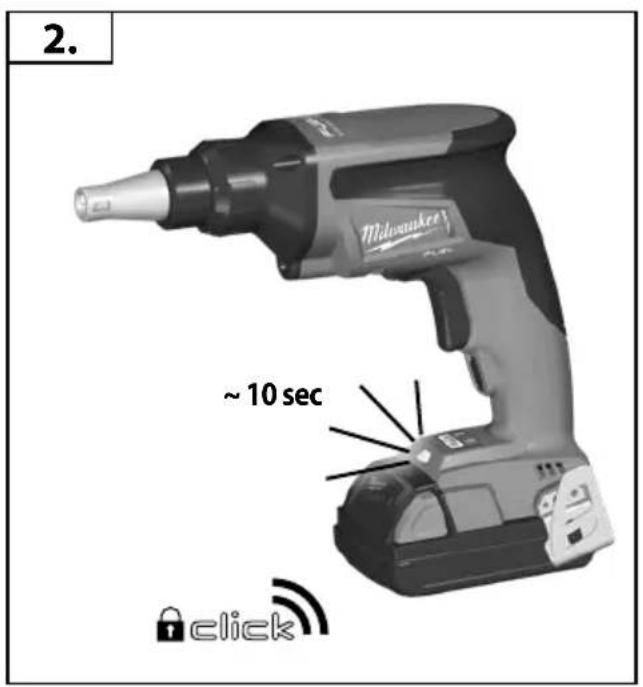

2. MILWAMKER ~ 10 sec click

Milwaukee electric shaver with open button and lock mechanism (no text or symbols on the device itself)

Milwaukee electric drill putter with attached battery pack and disassembly (no text or symbols visible)

3D rendered image of a black plastic electronic component (no text or symbols visible)

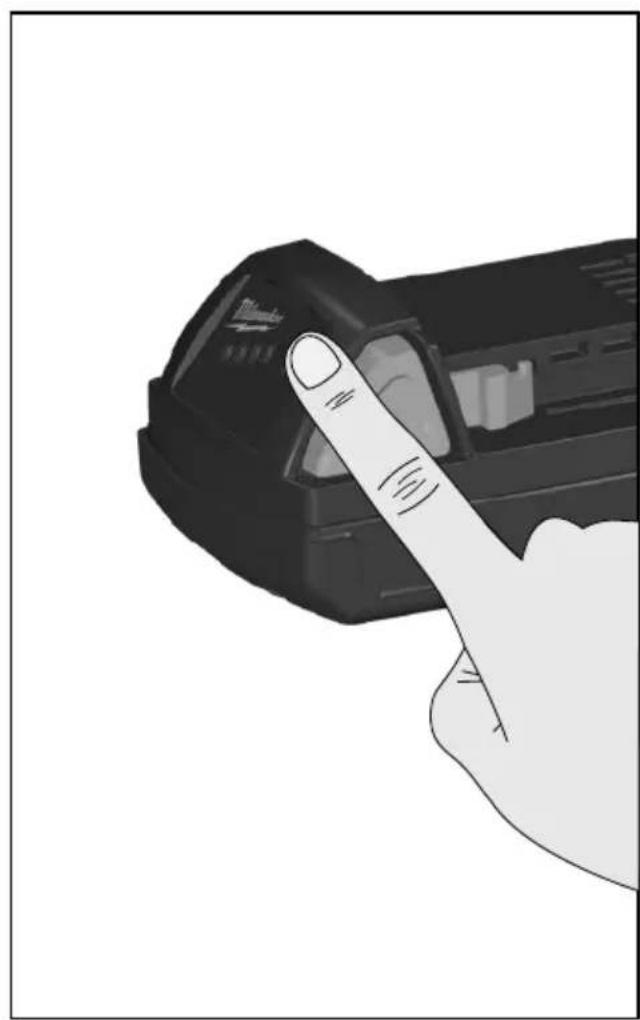

Hand pointing at a black electronic device component (no visible text or symbols)

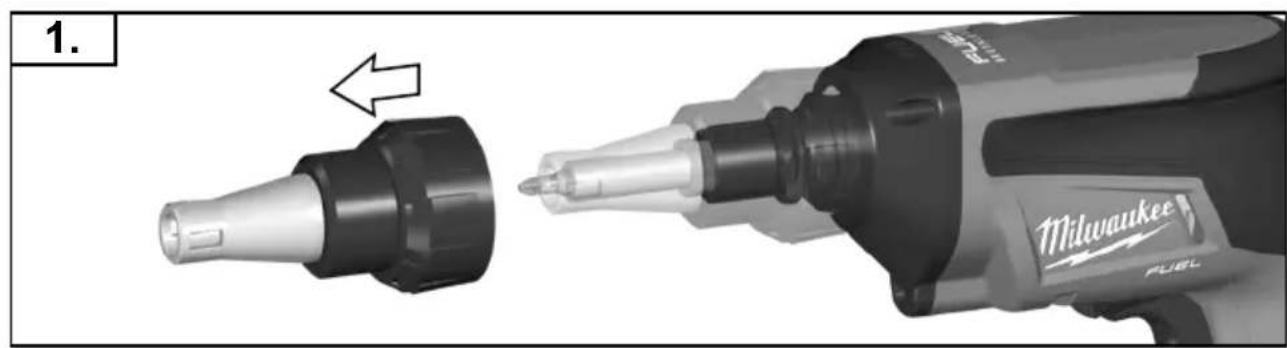

Two mechanical components: a cylindrical screw and a flat screwdriver (no text or symbols visible)

1.

Close-up of a Milwaukee fuel power tool with a separate close-up of its tip and nozzle (no text or symbols visible on the tool itself)

2.

Close-up of a mechanical tool with a small component and a metallic tip, showing a change in motion (no text or symbols visible)

1.

click Milwaukee

Two metallic screwdrivers shown from different angles (no text or symbols visible)

Close-up of a Milwaukee electric drill with a tip, showing the tool's tip and base (no text or symbols on the drill itself)

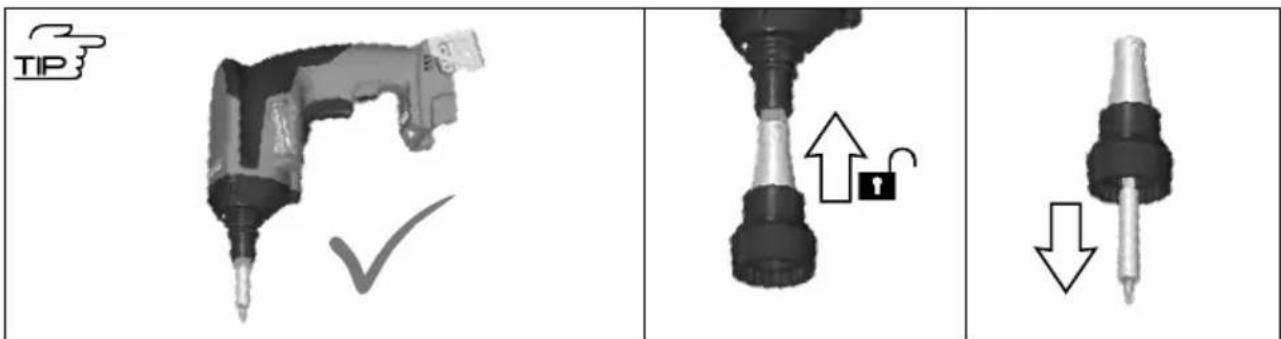

TIP ✓ ↑ ↓

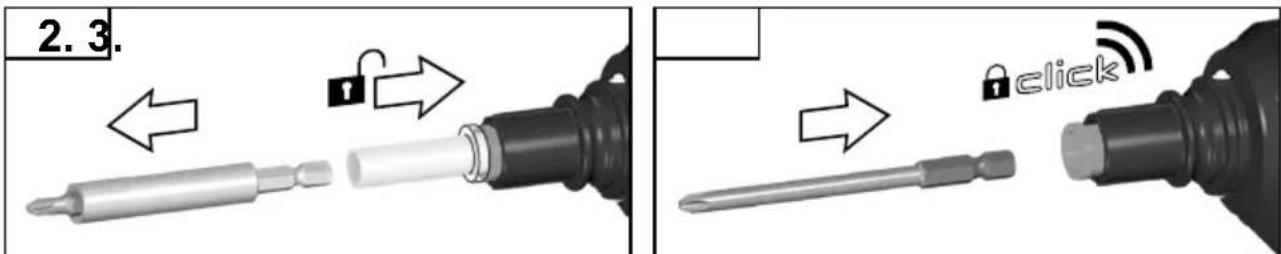

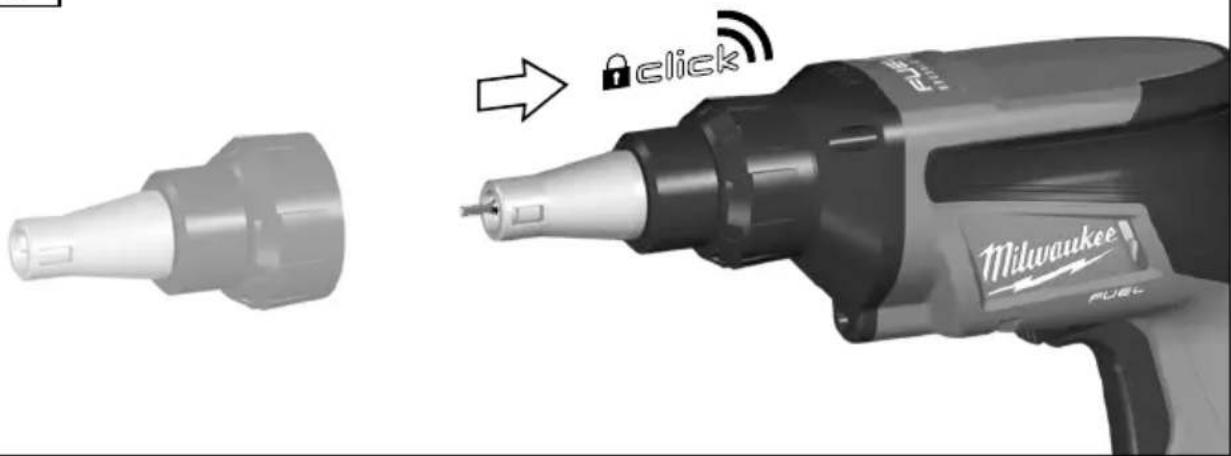

2.3. click

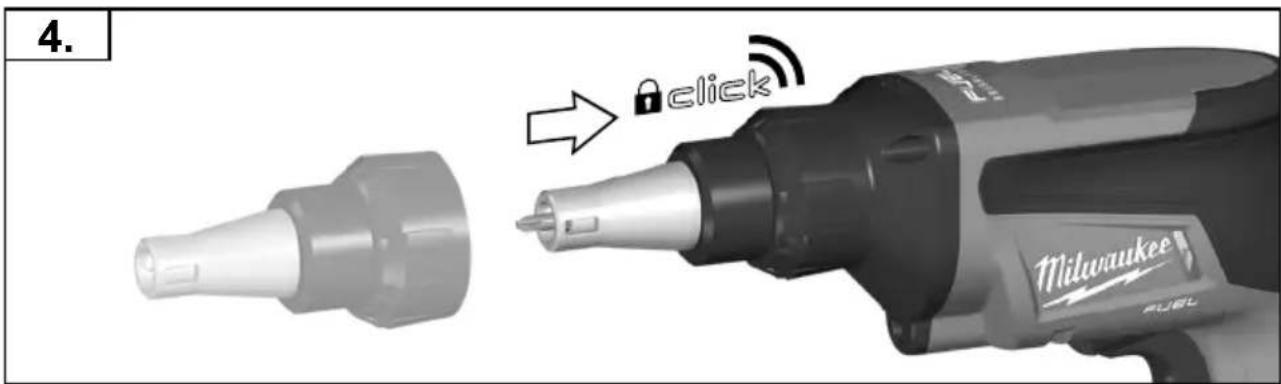

4. click Milwaukee FUEL

Two screws in a cross-sectional view showing different surface patterns (no text or symbols)

Close-up of a drill bit with screw and pin, showing mechanical assembly (no text or symbols visible)

Technical illustration of a drill bit with screw and drill bit, showing mechanical components (no text or symbols)

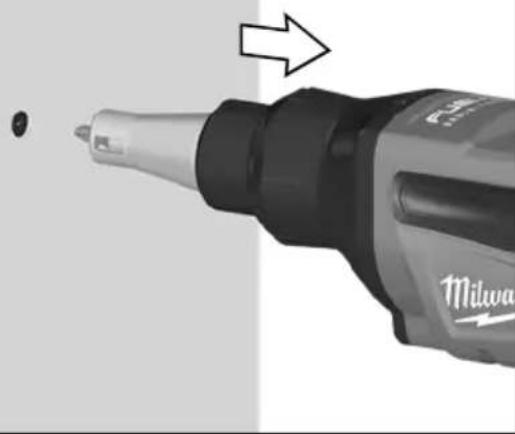

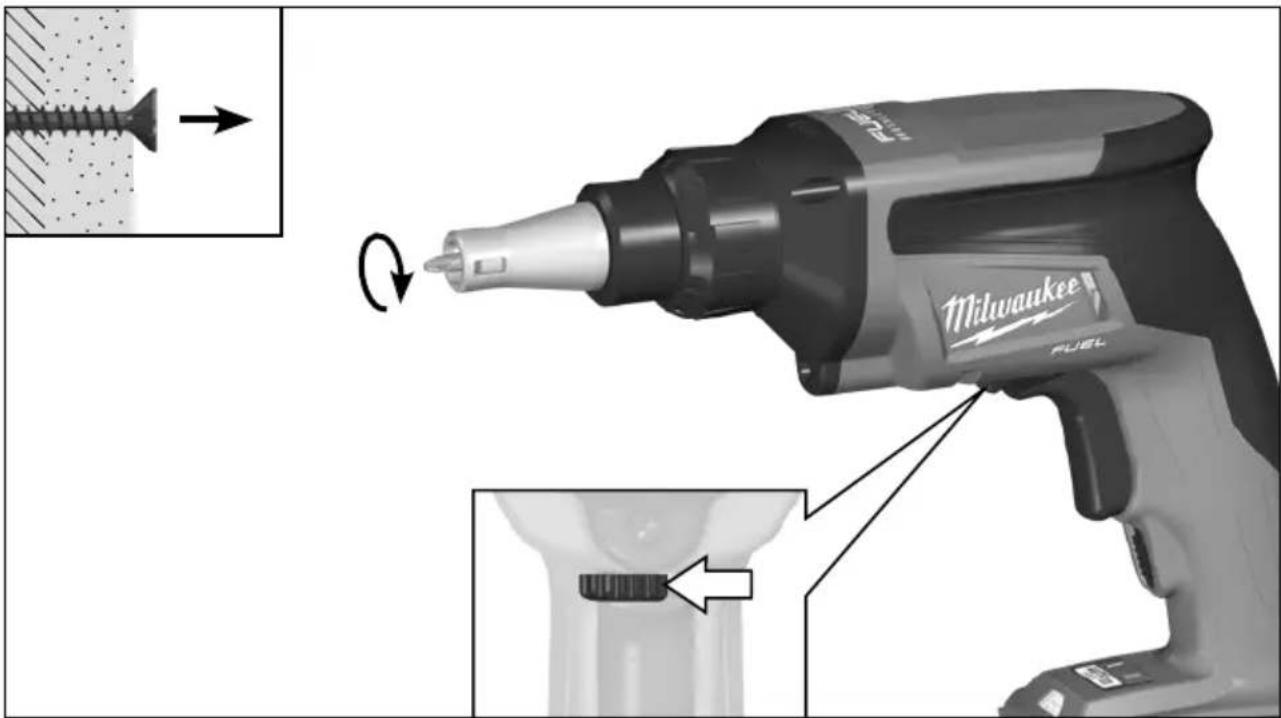

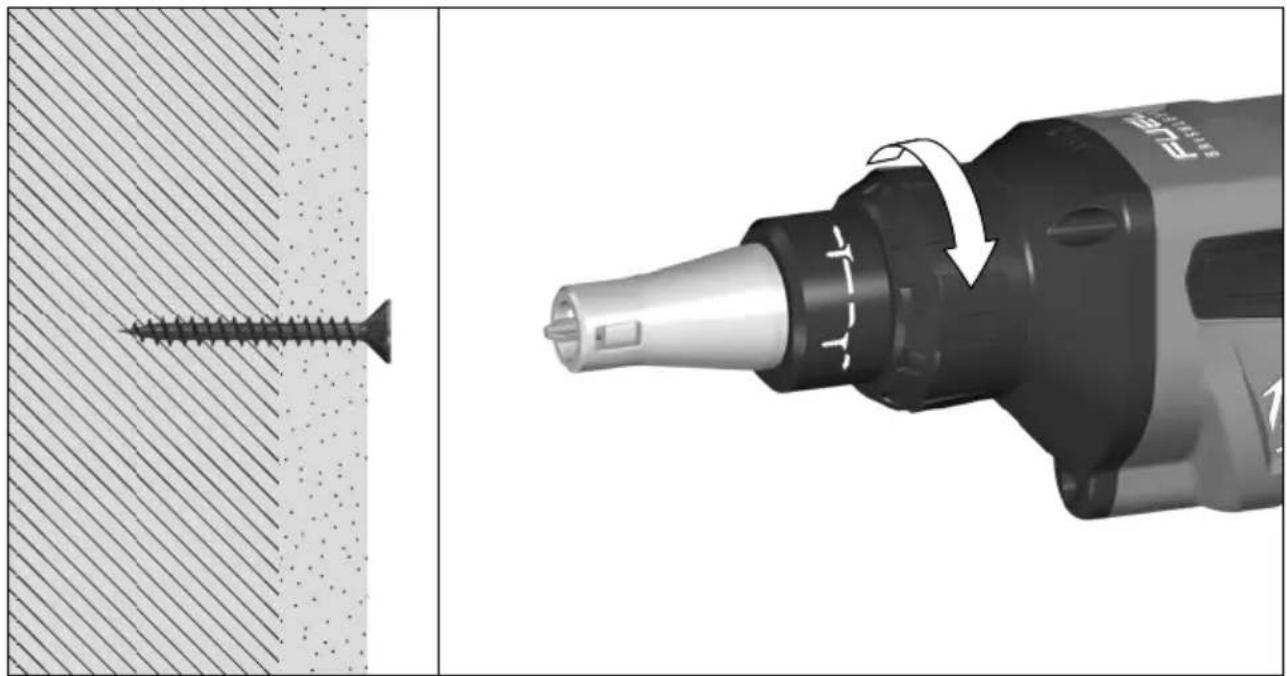

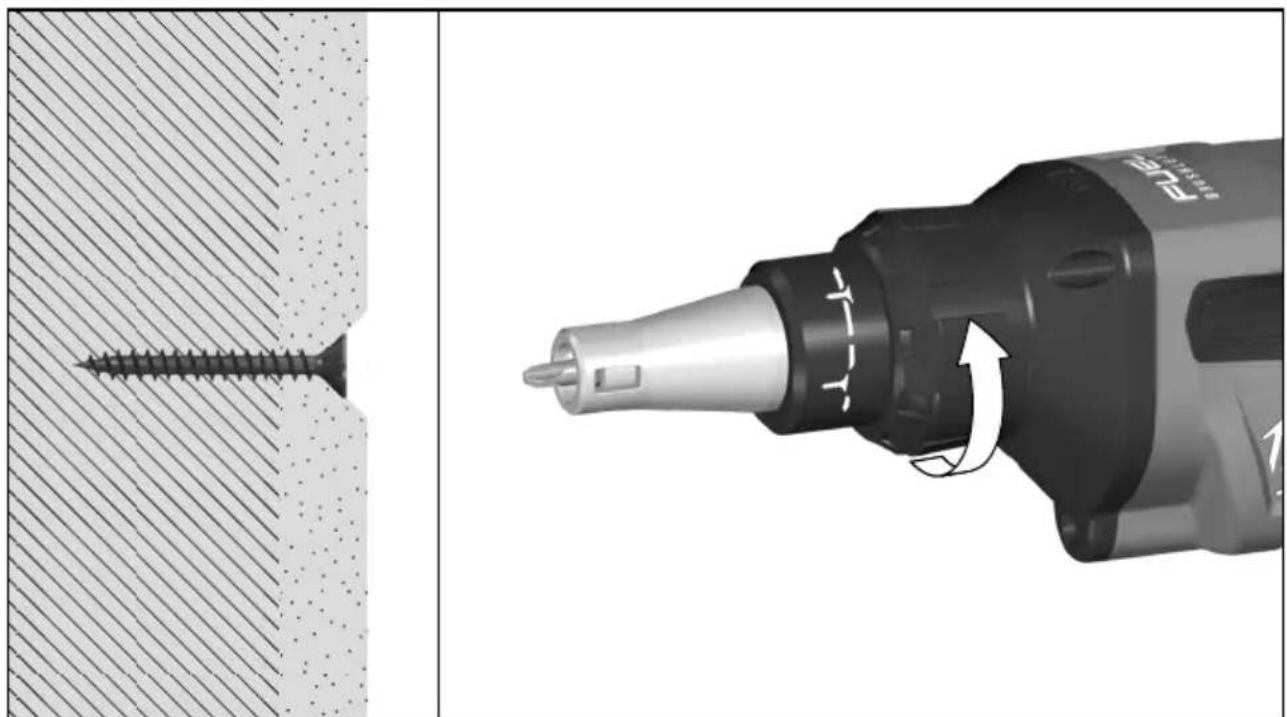

Diagram showing a screw inserted into a material with directional arrows indicating flow or movement (no text or symbols)

Close-up of a Milwaukee fueler tool with a screw, showing internal components and a close-up of its tip (no text or symbols visible)

Milwaukee FUEL

START STOP

< START STOP

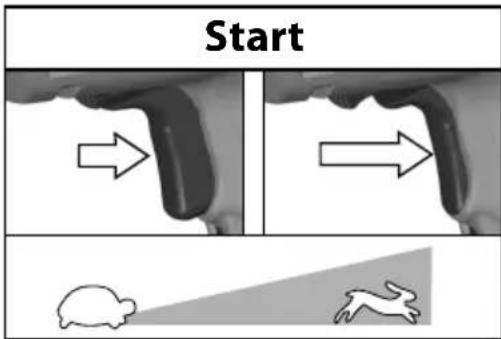

Start → → → → → ← ←

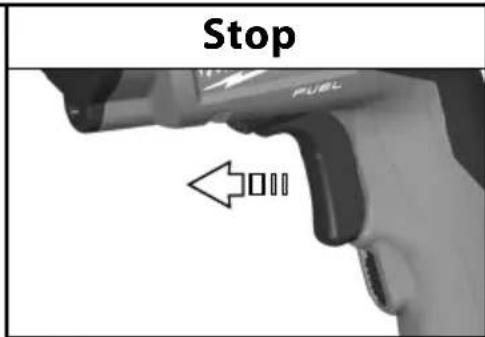

Stop ←DIII

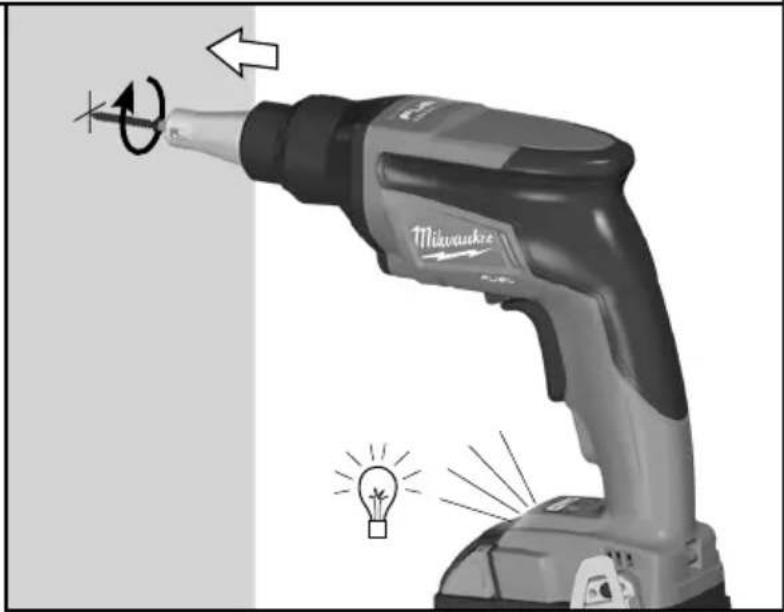

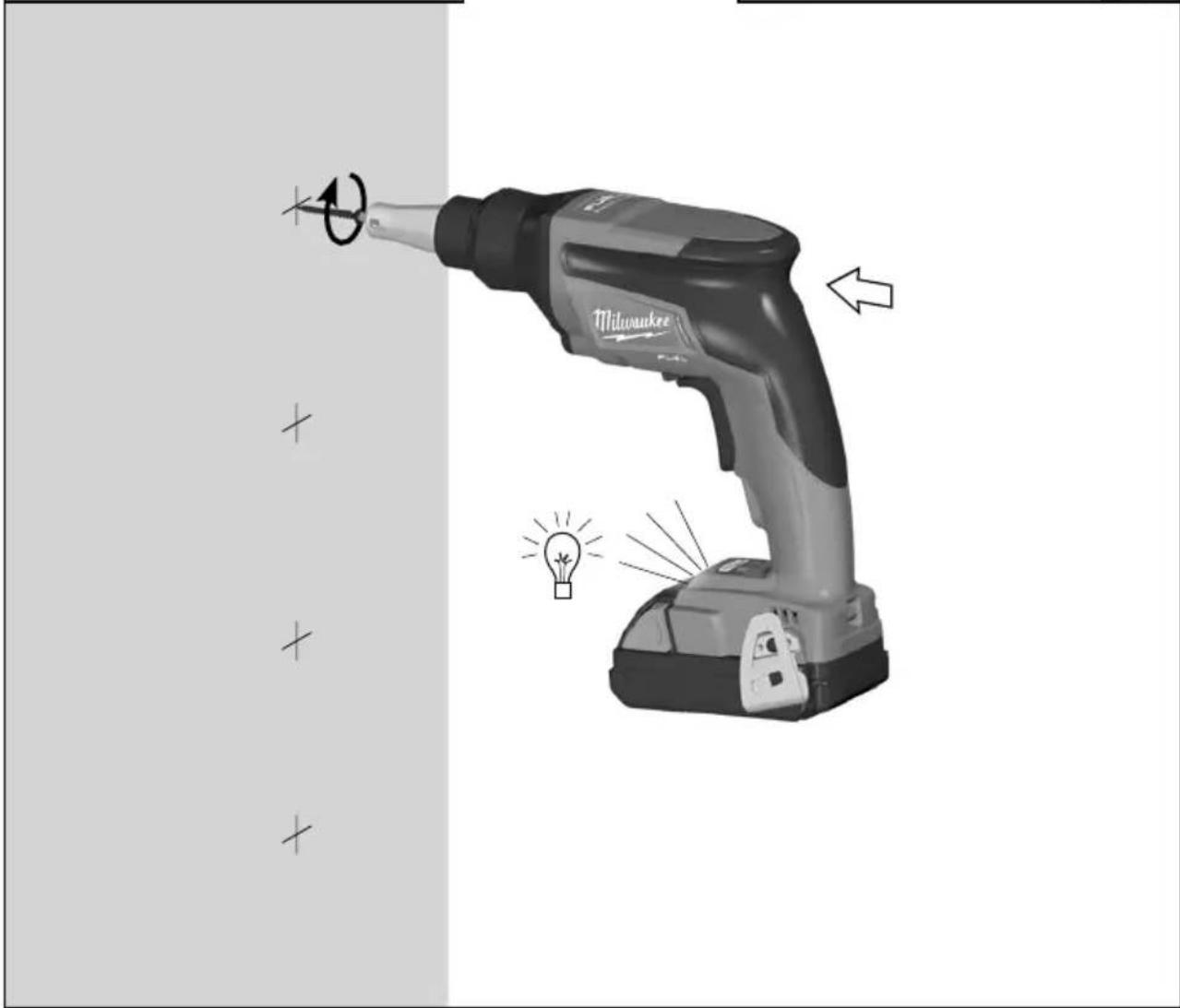

Illustration of a Milwaukee electric drill with a light bulb and directional arrows indicating motion (no text or symbols)

START STOP

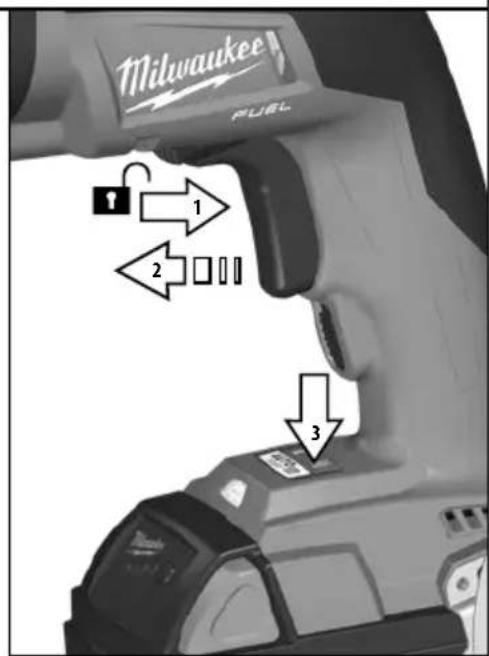

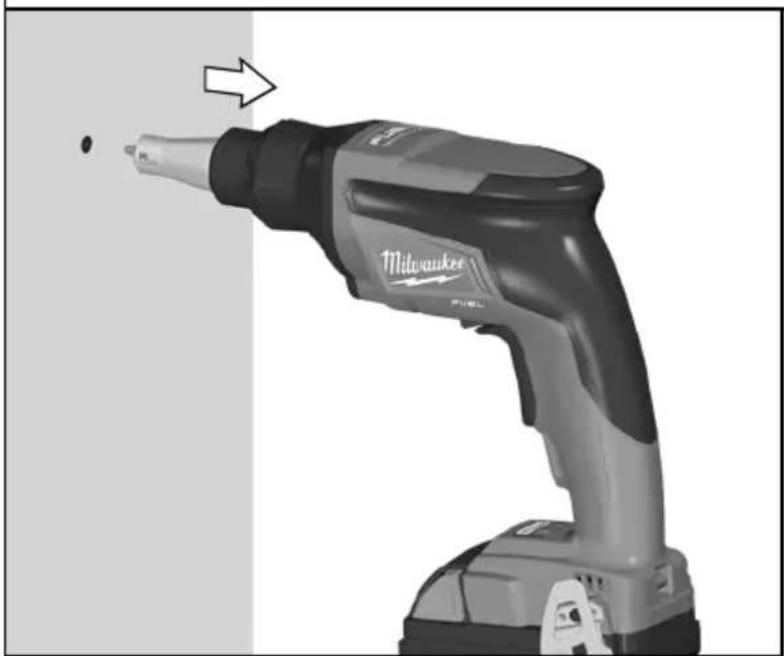

Auto Start

Milwaukee 2 3 1

Illustration of a Milwaukee electric drill with a light bulb and directional arrows indicating motion (no text or symbols)

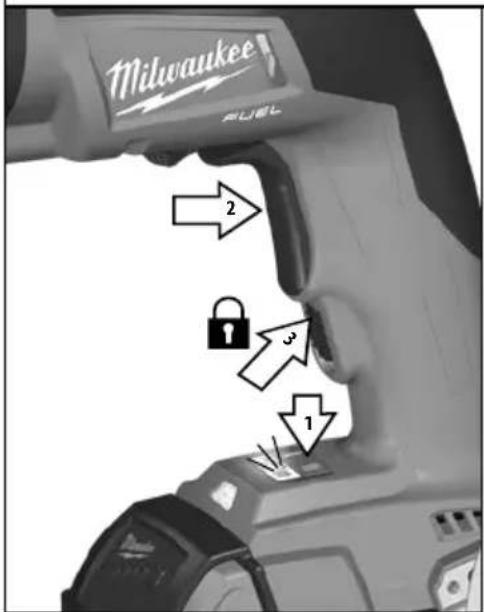

Auto Stop

Close-up of a Milwaukee electric drill with a tool and probe, showing no text or symbols on the device itself.

Milwaukee FUEL 1 2 3

START STOP

1.

Close-up of a Milwaukee fuel drill with screwdriver and screw tip (no text or symbols on the tool itself)

1. Auto Start


Close-up of a drill bit with a screw and directional arrow indicating rotation (no text or symbols)

1.

Close-up of a Milwaukee electric drill bit with a pointed tip and arrow indicating motion (no text or symbols on the drill bit itself)

1. Auto Stop


Close-up of a Milwaukee electric drill bit with black and white casing (no visible text or symbols)

TIP

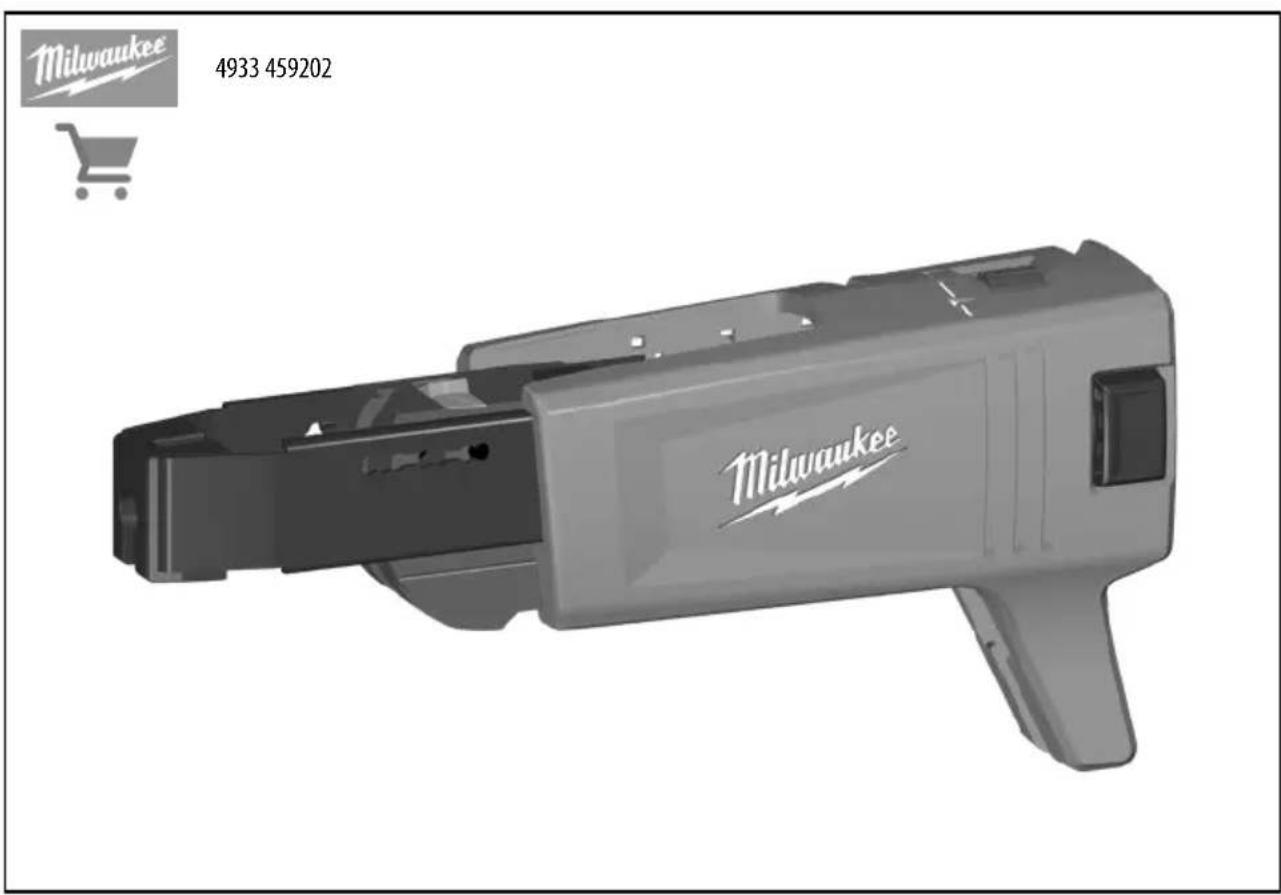

Milwaukee 4933 459202 Milwaukee

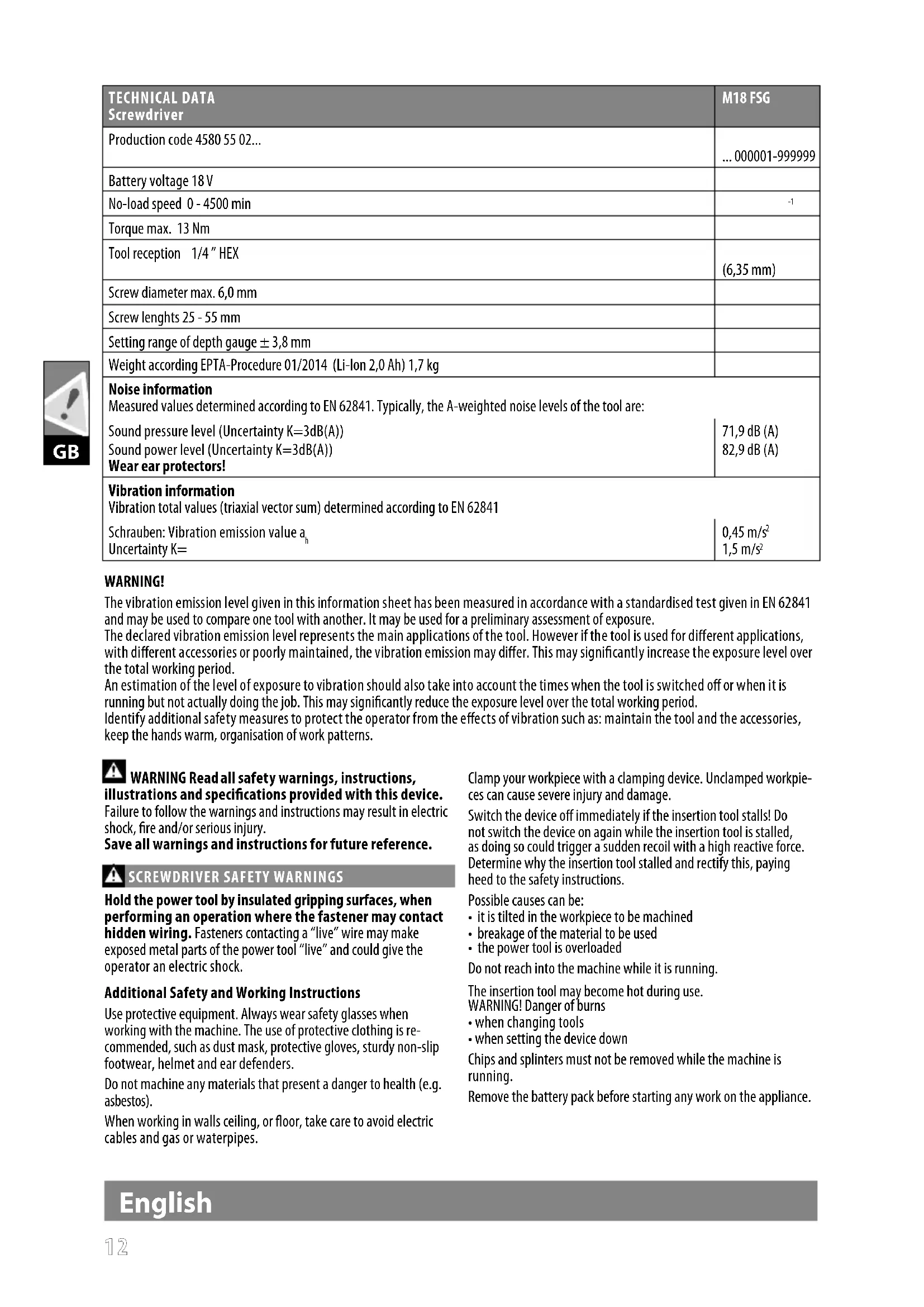

TECHNICAL DATAScrewdriver	M18 FSG
Production code 4580 55 02...	... 000001-999999
Battery voltage 18 V
No-load speed 0 - 4500 min	-1
Torque max. 13 Nm
Tool reception 1/4" HEX	(6,35 mm)
Screw diameter max. 6,0 mm
Screw lenghts 25 - 55 mm
Setting range of depth gauge ± 3,8 mm
Weight according EPTA-Procedure 01/2014 (Li-Ion 2,0 Ah) 1,7 kg
Noise informationMeasured values determined according to EN 62841. Typically, the A-weighted noise levels of the tool are:
Sound pressure level (Uncertainty K=3dB(A))	71,9 dB (A)
Sound power level (Uncertainty K=3dB(A))	82,9 dB (A)
Wear ear protectors!
Vibration informationVibration total values (triaxial vector sum) determined according to EN 62841
Schrauben: Vibration emission value ah	0,45 m/s2
Uncertainty K=	1,5 m/s2

WARNING!

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

WARNING Read all safety warnings, instructions, trations and specifications provided with this device.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

SCREWDRIVER SAFETY WARNINGS

Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Additional Safety and Working Instructions

Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear, helmet and ear defenders.

Do not machine any materials that present a danger to health (e.g. asbestos).

When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.

Clamp your workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage.

Switch the device off immediately if the insertion tool stalls! Do not switch the device on again while the insertion tool is stalled, as doing so could trigger a sudden recoil with a high reactive force. Determine why the insertion tool stalled and rectify this, paying heed to the safety instructions.

Possible causes can be:

- it is tilted in the workpiece to be machined

- breakage of the material to be used

• the power tool is overloaded

Do not reach into the machine while it is running.

The insertion tool may become hot during use.

WARNING! Danger of burns

- when changing tools

- when setting the device down

Chips and splinters must not be removed while the machine is running.

Remove the battery pack before starting any work on the appliance.

English

SPECIFIED CONDITIONS OF USE

The screwdriver is suited for setting dry wall screws when fixing gypsum plaster boards to wood furring or metal furring.

BATTERIES

Battery packs which have not been used for some time should be recharged before use.

Temperatures in excess of 50^ C ( 122^ F) reduce the performance of the battery pack. Avoid extended exposure to heat or sunshine (risk of overheating).

The contacts of chargers and battery packs must be kept clean.

For an optimum life-time, the battery packs have to be fully charged, after use.

To obtain the longest possible battery life remove the battery pack from the charger once it is fully charged.

For battery pack storage longer than 30 days: :

• Store the battery pack where the temperature is below 27°C and away from moisture
• Store the battery packs in a 30% - 50% charged condition
• Every six months of storage, charge the pack as normal.

Do not dispose of used battery packs in the household refuse or by burning them. Milwaukee Distributors offer to retrieve old batteries to protect our environment.

Do not store the battery pack together with metal objects (short circuit risk).

Use only System C18 chargers for charging System C18 battery packs. Do not use battery packs from other systems.

No metal parts must be allowed to enter the battery section of the charger (short circuit risk).

Never break open battery packs and chargers and store only in dry rooms. Keep dry at all times.

Battery acid may leak from damaged batteries under extreme load or extreme temperatures. In case of contact with battery acid wash it off immediately with soap and water. In case of eye contact rinse thoroughly for at least 10 minutes and immediately seek medical attention.

TRANSPORTING LITHIUM BATTERIES

Lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.

Transportation of those batteries has to be done in accordance with local, national and international provisions and regulations.

The user can transport the batteries by road without further requirements.

Commercial transport of Lithium-Ion batteries by third parties is subject to Dangerous Goods regulations. Transport preparation and transport are exclusively to be carried out by appropriately trained persons and the process has to be accompanied by corresponding experts.

When transporting batteries:

Ensure that battery contact terminals are protected and insulated to prevent short circuit. Ensure that battery pack is secured against movement within packaging. Do not transport batteries that are cracked or leak. Check with forwarding company for further advice

MAINTENANCE

The ventilation slots of the machine must be kept clear at all times. Use only Milwaukee accessories and Milwaukee spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).

If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives:

2011/65/EU (RoHS)

2014/30/EU

2006/42/EC

and the following harmonized standards have been used.

EN 62841-1:2015

EN 62841-2-2:2014

EN 55014-1:2017:A11 2020

EN 55014-2:2015

EN IEC 63000:2018

Winnenden, 2020-11-10

Alexander Krug / Managing Director

Authorized to compile the technical file

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

We declare as the manufacturer under our sole responsibility that the product described under „Technical Data“ fulfills all the relevant provisions of the following Regulations

S.I. 2012/3032 (as amended), S.I. 2008/1597 (as amended),

S.I. 2016/1091 (as amended) and that the following designated standards have been used:

BS EN 62841-1:2015

BS EN 62841-2-2:2014

BS EN 55014-1:2017+A11:2020

BS EN 55014-2:2015

BS EN IEC 63000:2018

Winnenden, 2020-11-10

Alexander Krug / Managing Director

Authorized to compile the technical file

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLS

CAUTION! WARNING! DANGER!

Remove the battery pack before starting any work on the appliance.

Please read the instructions carefully before starting the machine.

Accessory - Not included in standard equipment, available as an accessory.

Do not dispose of electric tools together with household waste material. Electric tools and electronic equipment that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.

Class II tool. Tool in which protection against electric shock does not rely on basic insulation only, but in which additional safety precautions, such as double insulation or reinforced insulation, are provided.

European Conformity Mark

British Conformity Mark

Ukraine Conformity Mark

EurAsian Conformity Mark

Winnenden, 2020-11-10

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany
