Brand	Ansmann
Model	HS4500RDUO
Product type	Rechargeable LED floodlight with powerbank function
Dimensions (L x W x H)	288 x 176 x 131 mm
Weight (with battery)	2140 g
Mains power supply	100-240 V AC, 50/60 Hz, output 20 V DC / 1.1 A
Battery type	Li-ion 14.8 V / 5200 mAh / 76.96 Wh, removable
Max. luminous flux	4500 lumens
Brightness levels	4 levels: 25 %, 50 %, 75 %, 100 %
Max. runtime	Up to 12 h (at 25 % power)
Charging time	Approx. 4.5 h
Color temperature	5700 K
Color Rendering Index (CRI)	Ra > 80
Protection rating	IP54 (housing closed)
Impact resistance	IK07
Protection class	III (SELV)
Main functions	Foldable LED lamps, rotating foot, carrying handle, removable battery pack, USB port for external charging (5 V / 2.1 A max)
Care and cleaning	Wipe with a slightly damp cloth, do not immerse, do not use abrasive cleaners
Safety	Do not look directly at the LED, keep a minimum distance of 10 cm from illuminated objects, do not cover, keep out of reach of children
Spare parts and repairability	Replaceable battery; non-replaceable LED light source, replace the entire lamp at end of life
Warranty	3 years (excluding damage from improper use)

Frequently Asked Questions - HS4500RDUO ANSMANN

How to charge the lamp battery?

Remove the battery pack from the lamp by pressing the release button. Connect the supplied charging cable to the battery pack's charging socket, then connect the power adapter to the mains. The charging time is approximately 4.5 hours.

Can I use the lamp while charging?

No, the battery pack must be removed from the lamp for charging. Therefore, the lamp cannot be used during charging.

How to interpret the status LEDs on the lamp?

The 5 LEDs indicate the remaining capacity or charge status. For example: 1 blinking LED = 0-20%, 5 LEDs on = 100%. During use, the LEDs blink to indicate remaining capacity (5 blinks = 81-100%, 1 blink = less than 10%).

How to use the powerbank function?

Remove the battery pack from the lamp. Connect your device (smartphone, etc.) to the USB port of the battery pack using a standard USB cable. The maximum output current is 2.1 A. Disconnect after use.

What does the low battery warning mean?

When the battery is nearly discharged, the lamp turns off three times quickly every 15 seconds to alert the user. The battery pack must then be recharged immediately.

How to clean the lamp?

Always disconnect the power before cleaning. Use a slightly damp cloth, then wipe with a dry cloth. Never immerse the lamp in water and avoid liquid entering the housing.

What are important safety precautions?

Never look directly into the light beam. Keep a distance of at least 10 cm between the lamp and illuminated objects. Do not cover the lamp and do not use in a humid or explosive environment. Keep out of reach of children.

Is the battery replaceable?

Yes, the Li-ion battery pack is removable and replaceable. Press the release button to remove it. However, the LED light source is not replaceable; at the end of life, the entire lamp must be replaced.

What is the lamp's runtime?

The runtime depends on the selected brightness level: 2 h at 100% (4500 lm), 3.5 h at 75%, 6 h at 50%, 12 h at 25% (750 lm).

What does IP54 rating mean?

IP54 means the lamp is protected against dust (5) and water splashes (4) from all directions, provided the housing is closed. It is therefore suitable for outdoor use in light rain.

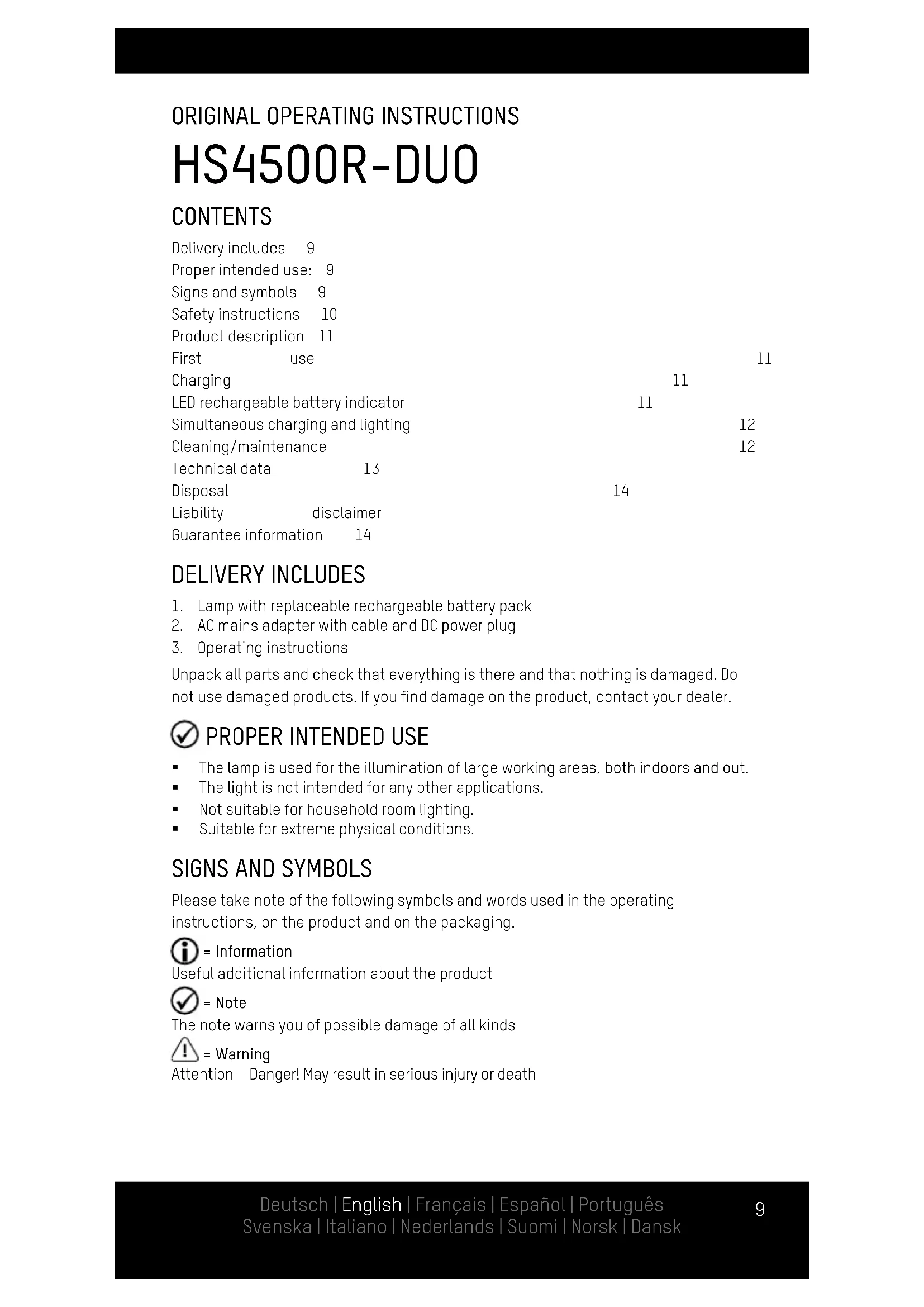

USER MANUAL HS4500RDUO ANSMANN

Technical line drawing of a mechanical device with symmetrical panel structures and mounting brackets (no text or symbols)

1600- 0358

HS4500R-DUO

Safety instructions 10

Product description 11

First use 11

Charging 11

LED rechargeable battery indicator 11

Simultaneous charging and lighting 12

Cleaning/maintenance 12

Technical data 13

Disposal 14

Liability disclaimer

Guarantee information 14

DELIVERY INCLUDES

1. Lamp with replaceable rechargeable battery pack

2. AC mains adapter with cable and DC power plug

3. Operating instructions

Unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer.

PROPER INTENDED USE

■ The lamp is used for the illumination of large working areas, both indoors and out.
■ The light is not intended for any other applications.
■ Not suitable for household room lighting.
■ Suitable for extreme physical conditions.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

i = Information

Useful additional information about the product

√ = Note

The note warns you of possible damage of all kinds

! = Warning

Attention – Danger! May result in serious injury or death

⚠ SAFETY INSTRUCTIONS

These operating instructions contain important information for the first use and normal operation of the following product: The following text refers to the hand lamp simply as the lamp or the product.

Read this manual carefully before using the lamp for the first time and proceed accordingly. Keep these operating instructions for future use or for the reference of future users. Failure to follow the operating instructions and safety instructions may result in damage to the product and hazards (injuries) for the operator and other persons.

The operating instructions refer to applicable standards and regulations of the European Union. Please also adhere to the laws and guidelines specific to your country.

Observe safety instructions!

Avoid eye injuries - Never look directly into the beam of light or shine it into other people's faces. If this occurs for too long, the blue light portion of the beam can cause retinal damage. If the light beam shines into the eyes, close the eyes and turn the head away from the light beam. This lamp exceeds the conditions for risk-free use.

The risk when using it depends on how the user handles the lamp.

- Information for the light and mains adapter as well as mains voltage on the socket must match with the type plate.

- Do not use the product if there is damage to the housing, plug, cable or mains adapter. Contact your local authorised specialist or the service address of the manufacturer.

- Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.

- Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product.

This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the product!

- The LED light source cannot be replaced. When the LED comes to the end of its service life, the complete lamp must be replaced.

- All illuminated objects must be at least 10cm away from the light!

- The lamp may only be used in accordance with the intended use.

- The lamp shall not be placed face-down or allowed to topple face-down. There is a risk of fire with this. In order to prevent toppling, the lamp must be used only as intended.

■ Do not cover the product.

■ This product is not a toy to be played with.

- Keep out of the reach of children!

- Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device!

- The operating instructions for devices to which the USB connection will be connected must also be read

■ Always keep the product dry

ATTENTION

- The product contains a replaceable li-ion rechargeable battery pack. Do not throw the product into a fire!

• The product may only be charged in closed, dry and spacious rooms, away from combustible materials and liquids. Disregard can result in burns and fires.
  ■ Never open, crush or heat a rechargeable battery or set it on fire.
• Do not use the product in potentially explosive areas or in the rain and do not expose it to excessive heat.
• Do not use the product if it appears to be damaged
• Never submerge the product in water or other liquids. Never touch a device that is connected to the mains if it has fallen into water. In this case, remove the mains plug immediately.

Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device!

PRODUCT DESCRIPTION

1 Carry handle
2 On/off button
3 Rechargeable battery capacity indicator
4 Fold-out LED lamp
5 Rotating base
6 Rechargeable battery pack

7 Unlocking button
8 Button for rechargeable battery capacity indication
9 Rechargeable battery capacity indicator
10 USB port
11 Charge socket

FIRST USE

The switch is on the top of the housing.

Press 1x: 25%

Press 2x: 50%

Press 3x: 75%

Press 4x: 100%

Press 5x: Off

CHARGING

Charge the rechargeable battery pack fully before first use. When storing over an extended period of time, charge at least 2x per year during storage in order to prevent the rechargeable battery pack deep-discharging.

Charging can be carried out with the mains adapter provided. To do so, take the rechargeable battery pack out of the lamp. To do this, press the unlocking button and pull the battery pack out of the lamp. Then plug the charging cable into the charging socket and plug the mains adapter into the mains outlet.

LED RECHARGEABLE BATTERY INDICATOR

Charge status or remaining capacity is indicated by the status LEDs on the top of the lamp or on the replaceable rechargeable battery pack.

Charge status and capacity indication during charging:

1 LED | 1 LED flashing: 0 - 20%
2 LED | 1 LED illuminated + 1 LED flashing: 21 - 40%
3 LED | 2 LEDs illuminated + 1 LED flashing: 41 - 60%
4 LED | 3 LEDs illuminated + 1 LED flashing: 61 - 80%
5 LED | 4 LEDs illuminated + 1 LED flashing: 81 - 99%
5 LED | 5 LEDs illuminated 100% (fully charged)

Remaining capacity indication during use:

5 LEDs illuminated: 81 - 100 %
4 LEDs illuminated: 61 - 80 %
3 LEDs illuminated: 41 - 60 %
2 LEDs illuminated: 21 - 40 %
1 LED illuminated: 10 - 20 %
1 LED flashing: <10 %

Warning of low battery capacity:

The warning starts ca. 10 minutes before the torch switches off automatically. The warning is displayed by turning the light off 3 times in quick succession. This function is repeated every 15 seconds. When this happens the rechargeable battery pack should be charged immediately.

i SIMULTANEOUS CHARGING AND LIGHTING

The lamp cannot be operated while it is charging because the rechargeable battery pack must be removed from the lamp for charging.

HOLDING DEVICES (STANDS, MAGNETS, ETC.)

If the lamp is to be fastened with a holding device, ensure that the holding device is firmly/properly fastened in place in order to avoid possible damage due to the lamp falling.

USB CHARGE SOCKET (POWERBANK FUNCTION) ON THE RECHARGEABLE BATTERY PACK

Devices with a max. charge current of 2100mA can be charged with the USB charge port on the rechargeable battery pack. To do so, connect the device to be charged with a USB cable and then plug it into the charge socket. When not being used, disconnect the cable again.

The powerbank function can only be used if the rechargeable battery pack has been removed from the lamp.

CLEANING/MAINTENANCE

Carry out cleaning tasks only when the mains plug is removed from the mains power!

■ Clean only with a slightly damp cloth, then rub it dry.
■ Never submerge the product in water or other liquids.
- Do not allow fluids to enter the housing.
- Do not use hard brushes or sharp objects for cleaning.

√ Improper usage of the lamp may result in it being damaged:

• Do not throw or drop
  ■ Use only in original condition
  ■ Do not use while still in packaging
  ■ Turn off after use

TECHNICAL DATA FOR LAMP

Article no. 1600-0358
Input voltage 20V DC
Input current 1.1A
Rechargeable battery	Li-ion rechargeable battery pack 14.8V | 5200mAh | 76.96Wh
Luminous flux 100%: 4500lm | 75%: 3000lm | 50%: 1500lm | 25% 750lm
Battery life 100%: 2h | 75%: 3.5h | 50%: 6.0h | 25%: 12.0h
Charge time 4.5h
LED colour temperature 5700k
Colour rendering index CRI Ra > 80
Site floodlight protection class	IP54 (only with closed housing)
Shock resistance IK07
Protection class III
Storage temperature -20°C to 60°C
Operating temperature -10°C to 40°C
Charging temperature 0C° to 40°C
Weight of light incl. rechargeable battery	2140g
Dimensions of light 288 x 176 x 131mm
Installation height range	0m - max. 2.99m

TECHNICAL DATA FOR MAINS ADAPTER

Input voltage	100 - 240V AC
Input AC frequency	50/60Hz
Input current	0,6A
Output voltage	20,0V DC
Output current	1,1A
Output power	22,0W
Average active efficiency	85,9%
Efficiency at low load (10 %)	76,4%
No-load power consumption	0,10W
Protection class	II
Storage temperature	-20°C to 60°C
Operating temperature	0°C to 40°C

LEGEND

Class 2 equipment

Class 3 equipment

Indoor use only

Conforms to European directives

Do not look into the lamp

Waste Electrical and Electronic Equipment (WEEE-Guideline)

Read the operating instructions carefully before use!

Minimum distance from lighted objects

Energy efficiency level 6

ENVIRONMENTAL INFORMATION | DISPOSAL

The product should not be discarded in the normal household waste under any circumstances. Dispose of the product via an authorised disposal centre or your municipal waste disposal facility. Observe the current applicable regulations. Contact your waste disposal facility in the event of any doubt. Dispose of all packaging materials via an environmentally friendly disposal facility. Used batteries and rechargeable batteries are special waste and must be disposed of in accordance with national regulations and not with the normal household waste.

LIABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the light.

Guarantee information

The product has a 3-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. You can find our warranty terms online at www.ansmann.de.

Subject to technical changes. We assume no liability for printing errors.
