USER MANUAL Quigo II BOSCH

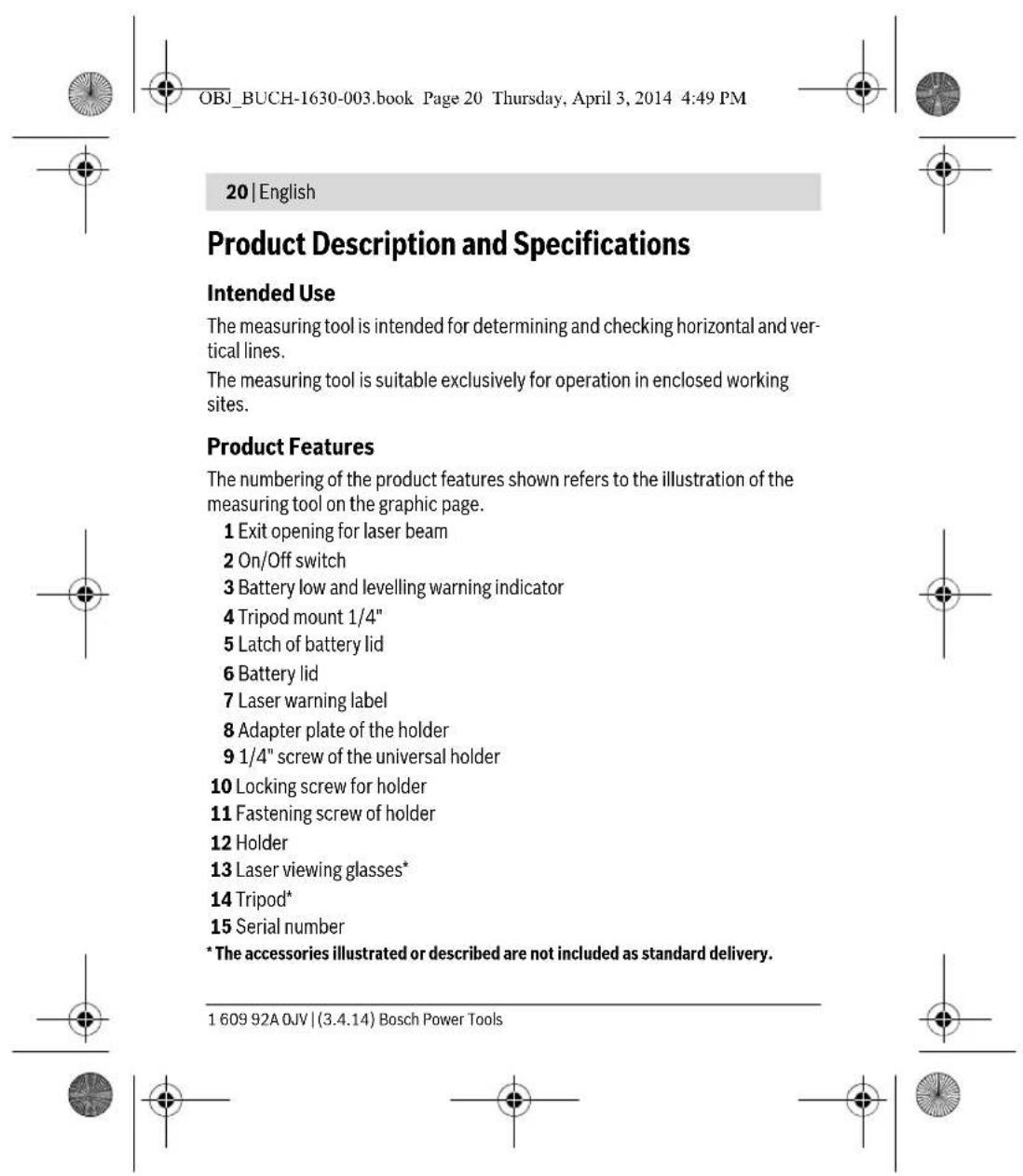

• The accessories illustrated or described are not included as standard delivery. OBJ_BUCH-1630-003.book Page 20 Thursday, April 3, 2014 4:49 PMEnglish | 21 Bosch Power Tools 1 609 92A 0JV | (3.4.14) Technical Data Cross-line Laser Quigo Article number 3 603 F63 200 Working range, min.

Levelling Accuracy –at0° – at ±4° ±0.8 mm/m ±1.0 mm/m Self-levelling range, typically ±4° Levelling duration, typically

Tripod mount 1/4" Batteries 2x1.5VLR03(AAA) Operating time, approx. >3h Weight according to EPTA-Procedure 01/2003

1) The working range can be decreased by unfavourable environmental conditions (e.g. direct
