| Product type | Bagless canister vacuum cleaner |
| Brand | OK |
| Model | OVC 3115 A |
| Power supply | 220-240 V ~ 50/60 Hz |
| Rated power | 800 W |
| Protection class | II |
| Energy class | A |
| Indicative annual consumption | 24.9 kWh/year (50 cleaning tasks) |
| Noise level | 78 dB(A) |
| Filter type | Washable main filter + exhaust air filter |
| Dust container capacity | 1.5 L (approx.) |
| Dimensions (L x l x H) | 400 x 280 x 200 mm (approx.) |
| Weight | 5 kg (approx.) |
| Power cord length | 5 m (approx.) |
| Operating radius | 8 m (approx.) |
| Included accessories | Floor nozzle with floor/carpet selector, crevice tool/dusting brush, telescopic tube, suction hose |
| Features | Automatic cord rewind, suction adjustment via air deflector, parking position storage |
| Maintenance | Empty the container after each use, wash the filters regularly with water and dry completely |
| Safety | Do not vacuum liquids, hot ashes, flammable substances; do not leave unattended; unplug before maintenance |
| Repairability | Consult an authorized repairer for any repairs; power cord not replaceable by user |
Frequently Asked Questions - OVC 3115 A OK
User questions about OVC 3115 A OK
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual OVC 3115 A - OK and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OVC 3115 A by OK.
USER MANUAL OVC 3115 A OK

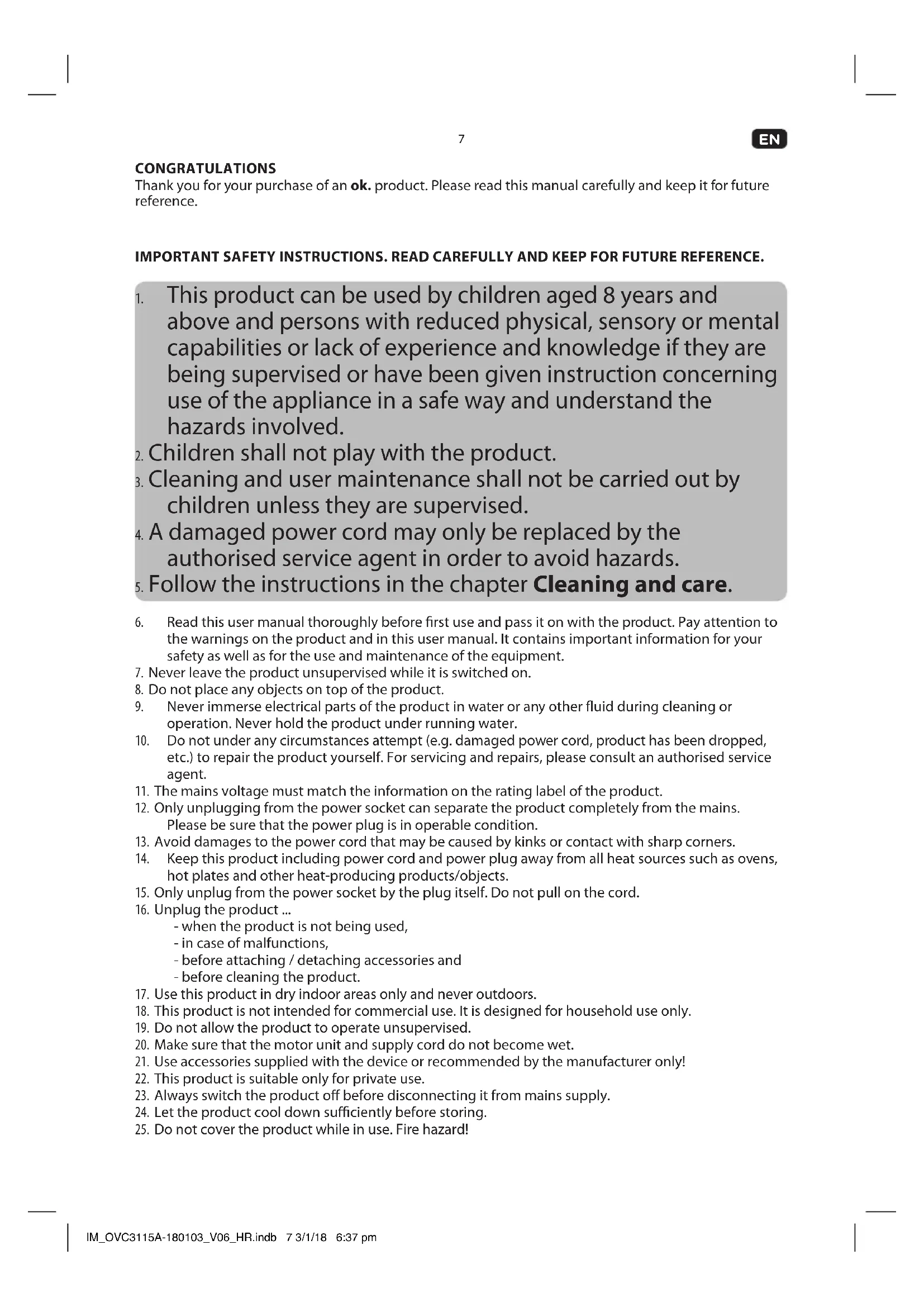

Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
- This product can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the product.
- Cleaning and user maintenance shall not be carried out by children unless they are supervised.
- A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
-
Follow the instructions in the chapter Cleaning and care.
-
Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
- Never leave the product unsupervised while it is switched on.
- Do not place any objects on top of the product.
- Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.
- Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
- The mains voltage must match the information on the rating label of the product.
- Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
- Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
- Only unplug from the power socket by the plug itself. Do not pull on the cord.
-
Unplug the product ...
-
when the product is not being used,
-in case of malfunctions, - before attaching / detaching accessories and
-
before cleaning the product.
-
Use this product in dry indoor areas only and never outdoors.
- This product is not intended for commercial use. It is designed for household use only.
- Do not allow the product to operate unsupervised.
- Make sure that the motor unit and supply cord do not become wet.
- Use accessories supplied with the device or recommended by the manufacturer only!
- This product is suitable only for private use.
- Always switch the product off before disconnecting it from mains supply.
- Let the product cool down sufficiently before storing.
- Do not cover the product while in use. Fire hazard!
EN
8
- Do not suck up liquids with the product. Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!
- Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms with explosive gases or liquids.
- Be especially careful when cleaning the stairs
- When in use, keep the product away from clothes and body parts (fingers, hair, face).
- Do not try to clean people or animals with the product.
- Make sure that the power supply cord does not become a tripping hazard while using the product
INTENDED USE
The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury.
The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.
COMPONENTS
A. Suction tube handle
B. Auxiliary air flap
C. Dust canister release button
D. Carrying grip
E. Suction hose connection
F. Filter unit (main filter)
G. Dust canister
H. Exhaust filter (in the wheel, not shown)
I. Wheel
J. Parking system
K. Power cable with plug (retractable cable)
L. Floor nozzle
M. Button for hard floor or carpet floor nozzle
N. Suction tube bracket
O. On/Off button
P. Cable retraction button
Q. Dusting nozzle with integrated crevice nozzle
R. Telescopic tube
S. Telescopic tube locking mechanism
T. Suction hose
BEFORE FIRST TIME USE
Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care.
ASSEMBLING THE VACUUM CLEANER
Fig.1 Insert the suction hose into the hose connection and rotate it to the right (bayonet lock). Make sure that it has clicked into place.
Fig. 2 Place the floor nozzle on the lower end and the suction tube handle on the upper end of the telescopic tube.
Fig. 3 Adjust the telescopic tube to the desired length by pressing the locking mechanism down and then pushing the telescopic tube out or squeezing it together.
USE OF THE ACCESSORIES PROVIDED
Floor nozzle
Fig. 4 To vacuum hard floors, press the toggle switch down. To vacuum carpeted areas, press the toggle switch again in order to retract the brushes.
Dusting nozzle / Crevice nozzle
Fig. 5 For vacuuming upholstered furniture, mattresses, cushions, curtains, etc. For vacuuming folds, crevices and corners.
OPERATION
Fig. 6 Pull out the connection cable to the desired length and insert the power plug into a receptacle.
Fig.7 Press the On/Off switch to turn the vacuum cleaner on/off. Tip: If the vacuum can only be guided with difficulty over carpeted areas due to excessively high suction power, adjust the suction power down by opening the auxiliary air flap on the handle.
Fig. 8 Switch the vacuum cleaner off after use and unplug it when you have finished working. Wind the power cable around the cable storage device by pressing the automatic cable retraction switch. While you are doing this keep the cable taut, if possible.
Parking system for pauses in vacuuming
Fig. 9 You can store the telescopic tube with the combination nozzle on the vacuum cleaner.
Transport
Fig. 10 To carry your vacuum cleaner take it at carrying grip.
CLEANING AND CARE
Warning!
When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
Warning!
Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.
EN
10
Emptying the dust canister
Fig. 11
If the suction power diminishes, the dust canister must be emptied and the filters must be cleaned. We recommend to empty the dust canister outside of the house.
a) Remove the suction hose from the dust canister. Press the dust canister release button and remove the canister by bringing it forward.
b) To empty the dust canister, simply push the bottom release button so that the bottom of the canister opens and the dust falls out. Hold the dust canister over a rubbish container whilst you are emptying it.
c) Loosen the filter lid and remove the entire filter insert from the dust canister. Empty the remaining dust from the dust canister.
d) Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.
Cleaning the main filter
Fig. 12
a) Loosen the filter lid and remove the entire filter insert from the dust canister. Break down the filter into all of its individual parts. Tap the filter to remove the dust and clean all other parts with water and dry them thoroughly.
b) Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.
Cleaning the exhaust air filter
Fig.13
Remove the wheel cap and take out the filter. Gently pat the filter until dust falls off / use brush to clean the filter. Assembly is carried out in reverse order. Insert the filter in the right direction so that the correct side is facing the motor.
TROUBLESHOOTING
If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.
| Problem Possible causes Solution | ||
| Product does not work | Interrupted power supply | Check the power supply |
| Product cannot absorb dust or loose suction power | Filters are blocked with dirtDust container fullSuction hose/ telescopic tube blocked with dirt | Clean and wash the filtersEmpty dust containerClean and wash the suction hose/ telescopic tube |
SPECIFICATION
Rated voltage: 220 - 240 V~50/60 Hz
Rated power input:800W
Protection class : II
This is a general purpose vacuum cleaner
The Erp test method is according to (EU) No 666/2013 +Amd. (EU) 2016/2282; (EU) No 665/2013 +Amd. (EU) 2017/254; EN 60312-1:2017; EN 60704-1:2010/A11:2012 & EN 60704-2-1:2015
- Please refer to below website for detail technical information, or contact the manufacturer for technical document: www.ok-online.com
DISPOSAL
Do not dispose of this product as municipal waste. Return it to a designated collection point for the recycling of electrical and electronic equipment. Contact your retailer or local authorities for more information.
ENHORABUENA
- Energy efficiency class: A
- Indicative annual energy consumption 24,9 kWh per year, based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.
- Carpet cleaning performance class: D
- Hard floor cleaning performance class: A
Dust re-emission class: A
Sound power level: 78 dB
The rated input power: 800W
