Product type	Canister vacuum cleaner
Brand	OK
Model	OVC 3114 A
Nominal voltage	220-240 V ~ 50/60 Hz
Nominal power	800 W
Protection class	II
Energy efficiency class	A
Indicative annual consumption	24.9 kWh/year
Carpet cleaning (class)	D
Hard floor cleaning (class)	A
Dust re-emission (class)	A
Acoustic power level	78 dB
Filter type	Motor filter + air outlet filter
Dust container capacity	Dust bag (microfiber included)
Included accessories	Suction hose, telescopic tube, floor nozzle, upholstery nozzle with crevice tool, 1 microfiber bag
Main functions	Suction power control, automatic cord rewind, filling level indicator, parking storage system
Maintenance and cleaning	Replacing the dust bag, regular cleaning of the motor filter and air outlet filter
Safety	Protection against humidity (do not vacuum liquids), automatic shut-off not mentioned, indoor use only
Spare parts and reparability	Replaceable filters, standard dust bags; repair by authorized service
General information	Domestic use, dry vacuuming only, compliant with ERP standards

Frequently Asked Questions - OVC 3114 A OK

How to assemble the OVC 3114 A vacuum cleaner?

Insert the suction hose into the connector and turn clockwise to lock. Place the floor brush onto the lower end of the telescopic tube and the handle onto the upper end. Adjust the tube length by pressing the locking button.

How to replace the dust bag?

When the filling indicator is completely red, open the cover, remove the used bag from the holder, insert a new bag into the receptacle and close the cover.

How to clean the motor filter?

Remove the filter from the motor, tap it to remove dust, then reinsert it in the correct direction (the side that was facing the dust bin must not be oriented towards the motor). Never use the vacuum cleaner without a filter.

Why is my vacuum cleaner losing suction power?

Possible causes: dirty filter, full dust bag, or blocked hose. Clean the filters, empty the bag, and check the suction hose and telescopic tube.

Can I use the vacuum cleaner to vacuum liquids?

No, the vacuum cleaner is designed only for dry dust. Never vacuum liquids, as this would damage the appliance.

How to adjust the suction power?

Use the suction control on the vacuum cleaner body. If the vacuum is difficult to maneuver on carpet, open the auxiliary air deflector on the handle to reduce power.

How to use the upholstery nozzle?

Attach the upholstery nozzle (with integrated crevice tool) to the telescopic tube. It is ideal for upholstered furniture, mattresses, cushions, curtains, folds, and corners.

What to do if the power cord does not retract?

Press the cable rewind button while keeping the cord taut. If the problem persists, check that the cord is not stuck.

Can the vacuum cleaner be used by children?

Children over 8 years old can use it under supervision. Children must not play with the appliance, and cleaning must not be performed by children without supervision.

How to transport and store the vacuum cleaner?

Carry the vacuum cleaner by the transport handle. For storage, you can place the telescopic tube with the nozzle on the support provided at the back of the appliance.

USER MANUAL OVC 3114 A OK

Technical diagram illustrating a mechanical assembly or cleaning process with numbered steps and component illustrations.

IH_OVC3114A_190108_V05

www.ac.jp/room

Immuno GmbH Warkostrasse 3 050-16 registered. Germany www.immro.s.

ok.

OVC 3114 A

STAUBSAUGER // VACUUM CLEANER // ASPIRADORA // ASPIRATEUR

Black vacuum cleaner with coiled hose and handle (no visible text or symbols)

MANUAL OF INSTRUCOMES 11

1. HOSEOTHELO

2.0 ПОЧЕРТСКИМЕНТ 10

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 99.

100 TEDNASZALOTNEZWOMYJS

17 MANUALE DELL'UTENTE?

NL. ANNUALE DELL'UTENTE 11

INSTRUCIA OESUAR 55

A B C D E F G H I J K L M N U T S R Q P O

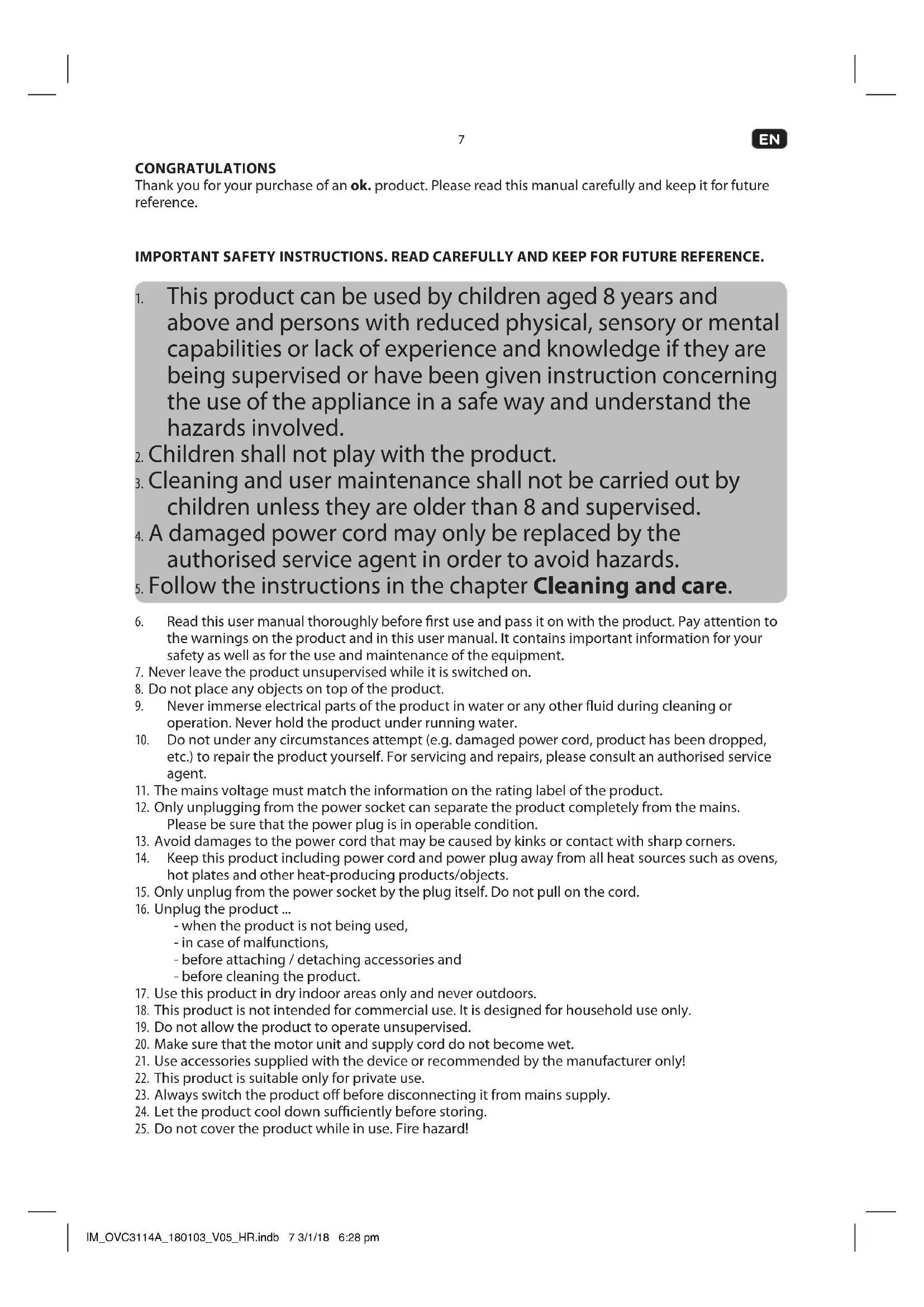

HERZLICHEN GLÜCKWUNSCH!

Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instruction concerning the use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be carried out by children unless they are older than 8 and supervised.
4. A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

5. Follow the instructions in the chapter Cleaning and care.

6. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

7. Never leave the product unsupervised while it is switched on.

8. Do not place any objects on top of the product.

9. Never immerse electrical parts of the product in water or any other fluid during cleaning or operation. Never hold the product under running water.

10. Do not under any circumstances attempt (e.g. damaged power cord, product has been dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

11. The mains voltage must match the information on the rating label of the product.

12. Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

13. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

14. Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.

15. Only unplug from the power socket by the plug itself. Do not pull on the cord.

16. Unplug the product ...

17. when the product is not being used,

18. in case of malfunctions,
19. before attaching / detaching accessories and

20. before cleaning the product.

21. Use this product in dry indoor areas only and never outdoors.

22. This product is not intended for commercial use. It is designed for household use only.

23. Do not allow the product to operate unsupervised.

24. Make sure that the motor unit and supply cord do not become wet.

25. Use accessories supplied with the device or recommended by the manufacturer only!

26. This product is suitable only for private use.

27. Always switch the product off before disconnecting it from mains supply.

28. Let the product cool down sufficiently before storing.

29. Do not cover the product while in use. Fire hazard!

EN

8

1. Do not suck up liquids with the product. Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!
2. Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms with explosive gases or liquids.
3. Be especially careful when cleaning the stairs.
4. When in use, keep the product away from clothes and body parts (fingers, hair, face).
5. Do not try to clean people or animals with the product.
6. Make sure that the power supply cord does not become a tripping hazard while using the product.

INTENDED USE

The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

COMPONENTS

A. Suction hose
B. Telescopic tube locking mechanism
C. Telescopic tube
D. Cable retraction button
E. Suction level control
F. On/Off button
G. Telescopic tube holder
H. Parking system
I. Exhaust air filter
J. Floor nozzle
K. Power cable with plug (retractable cable)
L. Wheel
M. Upholstery nozzle with integrated crevice nozzle
N. Dust canister cover release button
O. Dust bag holder
P. Dust canister cover
Q. Suction hose inlet
R. Carrying grip
S. Fill level indicator
T. Auxiliary air flap
U. Suction tube handle

incl. 1 x micro textile dust bag (not shown)

BEFORE FIRST TIME USE

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care.

ASSEMBLING THE VACUUM CLEANER

Fig.1 Insert the suction hose into the hose connection. Make sure that it's fit in correctly and turn it clockwise to fasten.

Fig. 2 Place the floor nozzle on the lower end and the suction tube handle on the upper end of the telescopic tube.

Fig. 3 Adjust the telescopic tube to the desired length by pressing the locking mechanism down and then pushing the telescopic tube out or squeezing it together.

USE OF THE ACCESSORIES PROVIDED

Floor nozzle

Fig. 4 To vacuum hard floors, press the toggle switch down. To vacuum carpeted areas, press the toggle switch again in order to retract the brushes.

Dusting / Crevice nozzle

Fig. 5 For vacuuming upholstered furniture, mattresses, cushions, curtains, etc. For vacuuming folds, crevices and corners.

OPERATION

Fig. 6 Pull out the connection cable to the desired length and insert the power plug into a receptacle.

Fig. 7 Press the On/Off switch to turn the vacuum cleaner on/off. Adjust the suction power with the suction control.

Tip: If the vacuum can only be guided with difficulty over carpeted areas due to excessively high suction power, adjust the suction power down by opening the auxiliary air flap on the handle.

Fig. 8 Switch the vacuum cleaner off after use and unplug it when you have finished working. Wind the power cable around the cable storage device by pressing the automatic cable retraction switch. While you are doing this keep the cable taut, if possible.

Parking system for pauses in vacuuming

Fig. 9 You can store the telescopic tube with the combination nozzle on the vacuum cleaner.

Transport and storage

Fig. 10 Carry the vacuum cleaner by the handle.

CLEANING AND CARE

Warning!

When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

Warning!

Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

EN

Changing of the dust bag

Fig. 11

If the dustbag fill indicator shows red or if the suction power diminishes, the dust bag must be changed and the filters must be cleaned.

Open the lid and remove the dust bag by taking it out of the dust bag holder.

Insert a new dust bag into the dust bag holder and close the lid.

Cleaning the motor filter

Fig. 12

Remove the motor filter and tap it to remove the dust. Then re-insert it. Insert the filter in the right direction so that the correct side is facing the motor. The side which faced the dust bin before should not face the motor when re-inserting it again.

Warning: Never use the vacuum cleaner without a motor filter, as otherwise, the motor will soon get dirty and will be subject to wear. If the motor filter gets dirty, the suction power will diminish.

Reassemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Cleaning the exhaust air filter

Fig. 13

Open the flap, take the filter out and tap it to remove the dust. Assembly is carried out in reverse order.

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work	Interrupted power supply	Check the power supply
Product cannot absorb dust or loose suction power	Filters are blocked with dirtDust container fullSuction hose/ telescopic tube blocked with dirt	Clean and wash the filtersEmpty the dust containerClean and wash the suction hose/telescopic tube

SPECIFICATION

Rated voltage: 220 - 240 V\~ 50/60 Hz

Rated power input : 800 W

Protection class : II

• This is a general purpose vacuum cleaner
• The Erp test method is according to (EU) No 666/2013 +Amd. (EU) 2016/2282; (EU) No 665/2013 +Amd. (EU) 2017/254; EN 60312-1:2017; EN 60704-1:2010/A11:2012 & EN 60704-2-1:2015
- Please refer to below website for detail technical information, or contact the manufacturer for technical document: www.ok-online.com

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

ENHORABUENA

• Energy efficiency class: A
- Indicative annual energy consumption 24,9 kWh per year, based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.
- Carpet cleaning performance class: D
• Hard floor cleaning performance class: A
• Dust re-emission class: A
• Sound power level: 78 dB
• The rated input power: 800 W

ES
