USER MANUAL BXJE200E BLACK & DECKER

LENGLISH (Original instructions)

SLOW JUICER BXJE200E Dear customer, Many thanks for choosing to purchase a Black+Decker brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

SAFETY ADVICE AND WARN-

INGS Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an acci- dent. Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. This appliance can be used by peo- ple with reduced physical, sensory or mental capabilities or lack of ex- perience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance. Always switch off the appliance and disconnect from supply if it is left unattended and before changing ac- cessories or approaching parts that move in use, assembling, disassem- bling and cleaning. Do not use the appliance if the rotating sieve is damaged or the protecting cover is damaged or has visible cracks. If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard. Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance. Connect the appliance to a socket that can supply a minimum of 10 amperes. The appliance’s plug must t into the mains socket prop- erly. Do not alter the plug. Do not use plug adaptors. Keep the working area clean and well lit. Cluttered and dark areas invite accidents. Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar. Keep children and bystanders away when using this appliance. The appliance must be used and placed on a at, stable surface. Do not use the appliance if the cable or plug is damaged. If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock. Do not use the appliance if it has fallen on the oor, if there are visible signs of damage or if it has a leak. Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance. Do not wrap the power cord around the appliance. Do not clip or crease the power cord. Do not allow the power cord to come into contact withENGLISH (Original instructions)

the appliance’s hot surfaces. Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance. Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock. The appliance is not suitable for outdoor use. If using the appliance outdoors, use a suitable cord extension. Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used. Do not use or store the appliance outdoors. Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock. Do not touch the plug with wet hands. Take the necessary measures to avoid starting the appliance involuntarily. Do not touch any of the appliance’s moving parts while it is operating. The temperature of the accessible surfaces may be high when the appliance is in use. Use and care: Fully unroll the appliance’s power cable before each use. Do not use the appliance if its accessories are not properly tted. Do not use the appliance if the accessories attached to it are defective. Replace them immediately. Do not use the appliance if the on/off switch does not work. This appliance is for household use only, not profession- al, industrial use. Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge. Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly. Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation. To push out the food from the tube always use the squeezing applicator, never use your nger or other accessories. Never leave the appliance unattended while in use. Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance. Do not use the appliance for more than 30 minutes at any one time. Do not use the appliance with frozen goods or those containing bones. CAUTION: Do not use the appliance if the glass is cracked or broken. Service: Make sure that the appliance is serviced only by special- ist personnel, and that only original spare parts or acces- sories are used to replace existing parts/accessories. CAUTION: There is a risk of re if the appliance’s clean- ing is not done according to these instructions. Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer’s liability null and void. DESCRIPTION A Pusher B Feeding tube C Juice auger D Filter E Juicer bowl F Base G Residue exit H Juice exit I Jugs (one to collect residue and one to collect juice). J On/off button K Reverse function L Antidrip

INSTRUCTIONS FOR USE

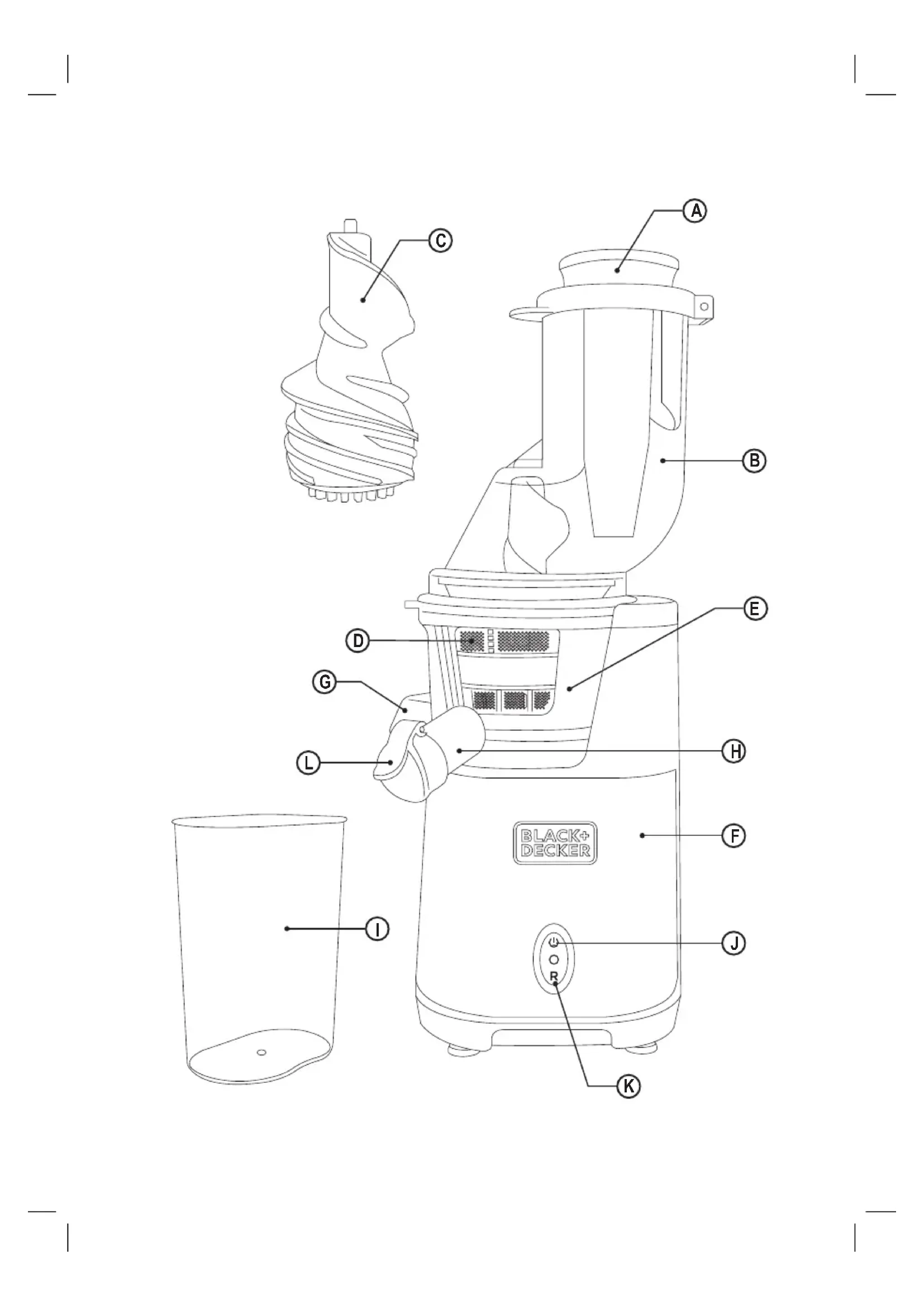

Before use: Make sure that all products’ packaging has been removed. Before using the product for the rst time, clean the parts that will come into contact with food in the manner described in the cleaning section. Use: Unroll the cable completely before plugging it in. Put the juicer bowl (E) on the base (F) (Inserting the slots and rotating slightly clockwise to stop) Put the lter (D) in the middle of the juice bowl (E), making sure it is tted together, aligning the two points marked Put the juice auger (C) into the lter.ENGLISH (Original instructions)

Put the feeding tube (B) onto the juice bowl, making sure it is well tted, turning to the right, toward the lock position. NOTES: If the auger (C) is not fully inserted, the cover will not close properly. Make sure the auger is well placed, turning and pressing down. Put the juicer bowl on the base (no need turn it tight clockwise). Wash the fruit and /or vegetable and cut them into pieces that t into the feeding tube. Please make sure that the switch is turned at “O” before to connect to the power. Connect the appliance to the mains. Put the juicer cup and residue cup under the juice and dregs spout. Turn the appliance on, by turning the control knob to setting “ON”. Put the pre- cut pieces in the feeding tube and gently press them down towards the rotating lter. Only use the aid of the pusher when necessary. In order to make the fruit go into the feeding chute with- out getting stuck, please slice the fruit into small pieces. NOTES: This product is only used for extract juice. Peel only the ingredients with thick skin such as citrus fruits, bananas, pineapples, melon and so on. Remove the stone from the fruits such as plums, peach- es, cherries, apricots and so on. Other fruit with soft peel should be washed before extracting such as apples, carrots, grapes, strawberry and so on. Never put fruit stone kernel, excessively hard foods (ice cubes, sugar cubes), extremely brous food or meat into your juicer because they would damage the lter net and pusher. Switch “ON” stand for rotating clockwise, switch R stands for rotating reversely, switch “O” stands for stop. When there is some fruit stuck between lter net and pusher, please turn the switch to speed “R” to make the fruit exit, then turn the switch to ON for extracting. Put the fruits into the feeding chute slowly, and using the pusher to push it. NOTES: Please do not put your ngers or other objects to the feeding chute is blocked, please use the pusher or other fruit slice to push and remove the stuck fruit. If it still won´t work, stop the machine and clean up the stuck fruit. Turn the switch to “O” if the juice cup or dregs jar is full; please also turn off the machine if there is no fruit. Empty the cup and clean the lter net and feeding chute for the next extracting. CLEANING Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task. Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry. Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance. Never submerge the appliance in water or any other liquid or place it under running water. It is advisable to clean the appliance regularly and remove any food remains. If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance’s useful life and could become unsafe to use. Then dry all parts before its assembly and storage.

WARRANTY AND TECHNICAL ASSISTANCE

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our ofcial technical assistance services. You can nd the closest one by accessing the following web link: http://www.2helpu.com/. You can also request related information, by contacting us (see the last page of the manual). You can download this instruction manual and its updates at http://www.2helpu.com/.

ANOMALIES AND REPAIR

Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous. For EU product versions and/or in case that it is requested in your country: Ecology and recyclability of the product The materials of which the packaging of this appliance consists are included in a collection, classication and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material. The product does not contain concentrations of substances that could be considered harmful to the environment.ENGLISH (Original instructions)

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE). This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.FRANÇAIS (Instructions initiales)
