BFCJ300 - Citrus juicers BLACK & DECKER - Free user manual and instructions

Product Type	Electric Juicer
Brand	Black & Decker
Model	BFCJ300
Input Voltage	220-240 V AC
Power	30 W
Weight	0.8 kg
Bowl Capacity	Not specified (removable bowl)
Bowl Material	Plastic (not dishwasher safe)
Included Cones	Small cone and large cone (removable)
Included Filters	Filter A and filter B (removable)
Operation	Automatic by pressing on cone
Usage	Household use only
Child Safety	Not suitable for children under 8 years without supervision
Automatic Shut-off	No (manual shut-off)
Power Cord	Removable? Not specified (fixed)
Cleaning	Parts washable with soapy water (except motor unit)
Motor Unit Maintenance	Wipe with a damp cloth, do not immerse
Repairability	Spare parts available through authorized repairer
Warranty	24 months (manufacturing defects)
Additional Accessories	None

Frequently Asked Questions - BFCJ300 BLACK & DECKER

How to use the BFCJ300 juicer?

Place the bowl on the motor unit, insert filters A and B, then the small cone. Plug in the appliance, cut a citrus fruit in half and press lightly on the cone. Operation is automatic.

Can I use the large cone?

Yes, if the fruits are large. The large cone locks onto the two tabs of the small cone.

How to clean the appliance?

Unplug and remove the cone and filters. Wash all parts in hot soapy water. Wipe the motor unit with a damp cloth. Do not immerse the motor unit.

Is the bowl dishwasher safe?

No, the bowl is not dishwasher safe. Wash it by hand.

What to do if the appliance does not work?

Check the outlet, cord, and that the bowl is properly locked. If the problem persists, contact an authorized repairer.

How long can I use the appliance continuously?

Do not use for more than 3 consecutive operations. Let it cool for 15 seconds between each operation.

Is the appliance safe for children?

Children over 8 years old may use it under supervision. Do not let children play with the appliance. Keep it out of reach of children under 8.

How to get spare parts?

Contact an authorized Black & Decker repairer or visit www.2helpU.com to find the nearest one.

Can I use the appliance for fruits other than citrus?

No, the appliance is designed only to extract juice from citrus fruits (oranges, lemons, etc.).

What to do if the cord is damaged?

Unplug immediately. Do not use it. Have it repaired by an authorized repairer. Do not attempt to repair it yourself.

USER MANUAL BFCJ300 BLACK & DECKER

BLACK+ DECKER™

Line drawing of a simple electric kettle with a slimmer and handle, no text or symbols present

Diagram of eight labeled parts of a kitchen appliance, showing exploded view from top to bottom with numbered annotations.

A

Line drawing of a kettle with a lid and a downward arrow indicating compression or lifting process (no text or symbols)

Line drawing of a hand pressing down on a kettle with a downward arrow indicating compression (no text or symbols)

Illustration of a hand holding a kettle with an upward arrow, next to a dome-shaped lid and a filter (no text or symbols)

Diagram showing two bowl-shaped objects with a small object above, and a double-headed arrow indicating vertical displacement (no text or symbols)

Line drawing of a hand cleaning a sink with a brush and water filter (no text or symbols)

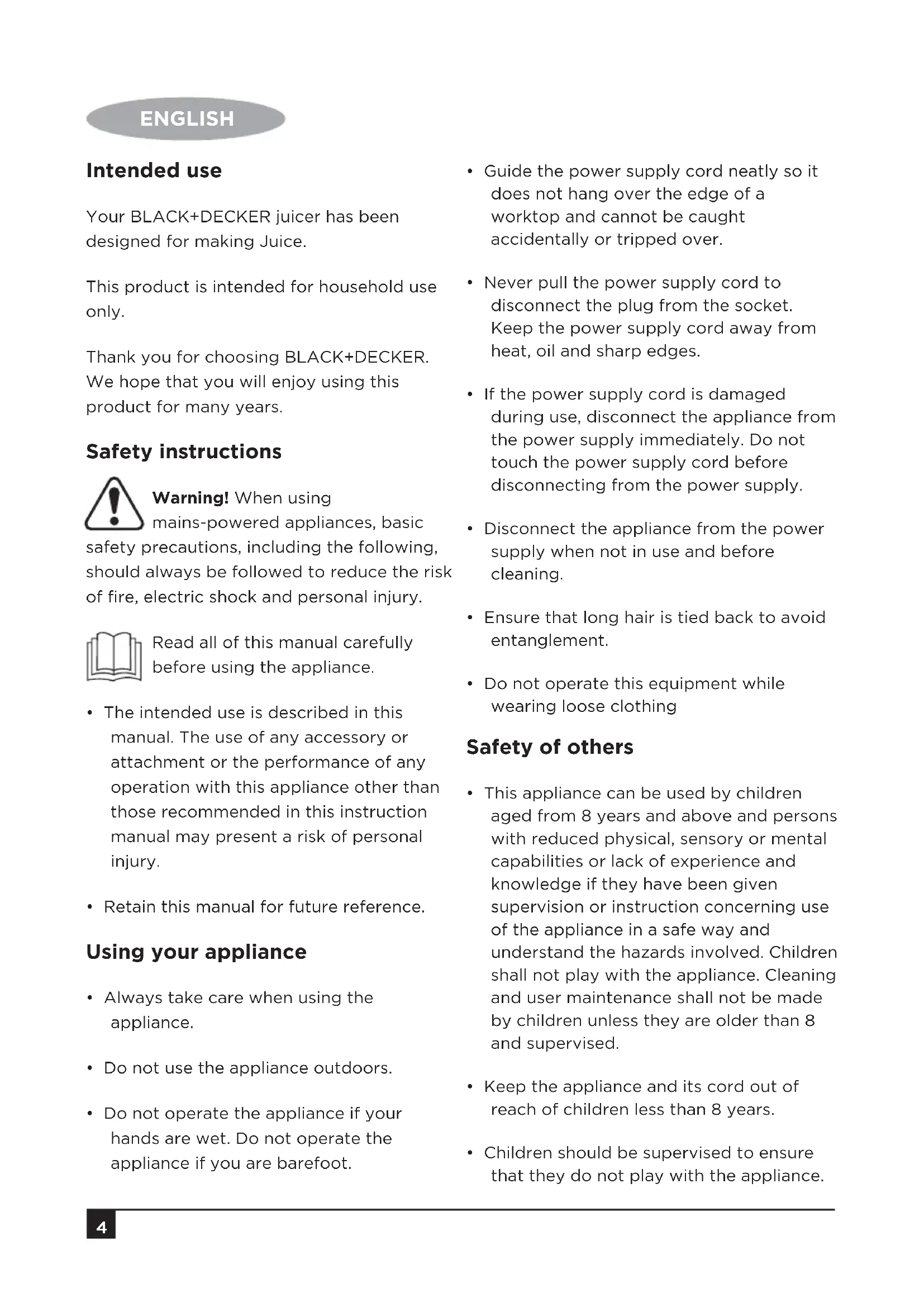

Intended use

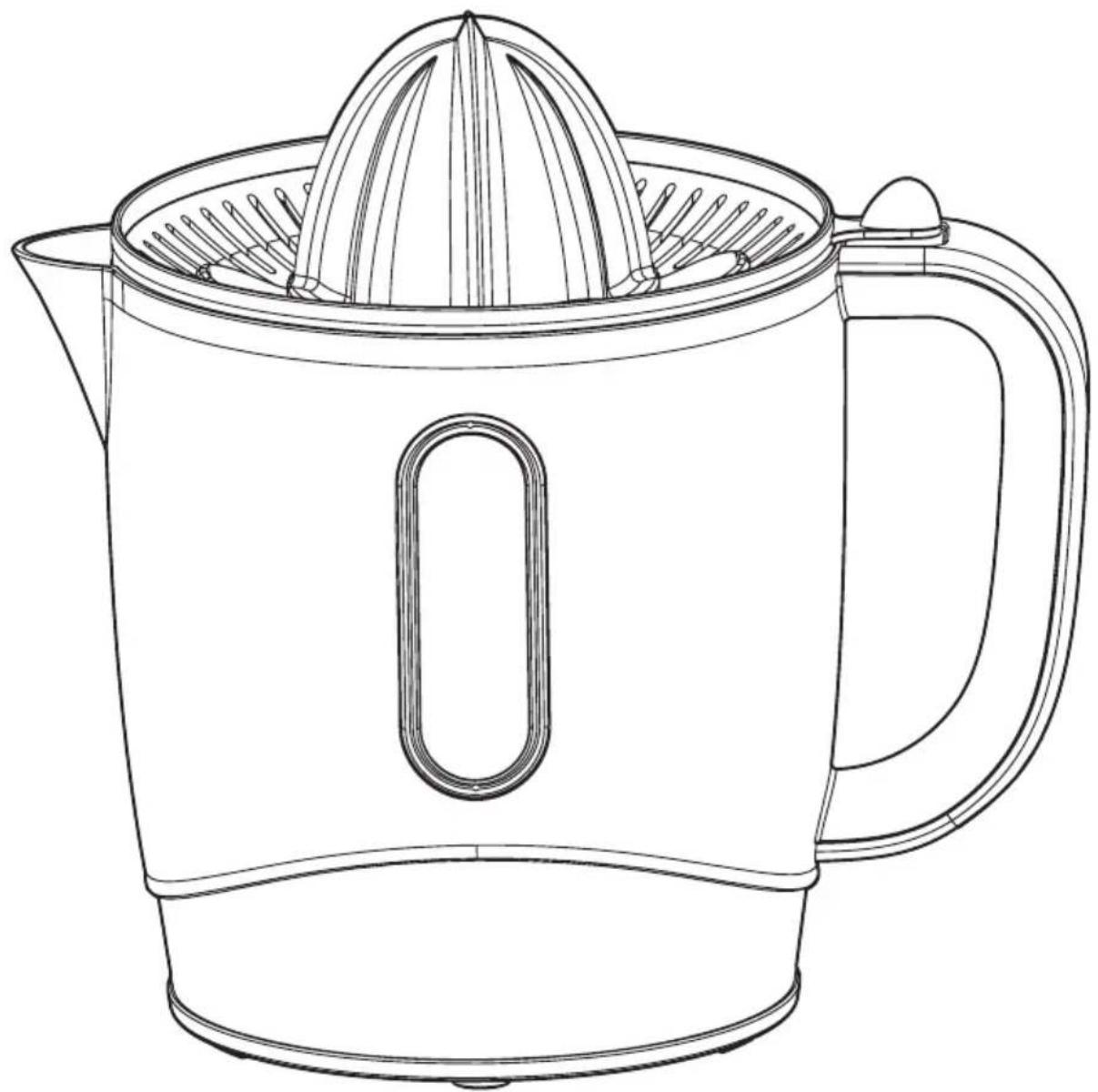

Your BLACK+DECKER juicer has been designed for making Juice.

This product is intended for household use only.

Thank you for choosing BLACK+DECKER. We hope that you will enjoy using this product for many years.

Safety instructions

Warning! When using

mains-powered appliances, basic

safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury.

Read all of this manual carefully before using the appliance.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.

Using your appliance

• Always take care when using the appliance.
- Do not use the appliance outdoors.
- Do not operate the appliance if your hands are wet. Do not operate the appliance if you are barefoot.

• Guide the power supply cord neatly so it does not hang over the edge of a worktop and cannot be caught accidentally or tripped over.
• Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.
• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
• Disconnect the appliance from the power supply when not in use and before cleaning.
• Ensure that long hair is tied back to avoid entanglement.
• Do not operate this equipment while wearing loose clothing

Safety of others

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
  • Children should be supervised to ensure that they do not play with the appliance.

After use

• Switch off, remove the plug from the socket and let the appliance cool down before leaving it unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Before use, check the power supply cord for signs of damage, ageing and wear.
• Do not use the appliance if the power supply cord or mains plug is damaged or defective.
• If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.
• Never attempt to remove or replace any parts other than those specified in this manual.

Additional safety instructions for Juicers

Warning! Allow appliance to rest at least 15 seconds between

operations. Do not use continuously for more than 3 operations.

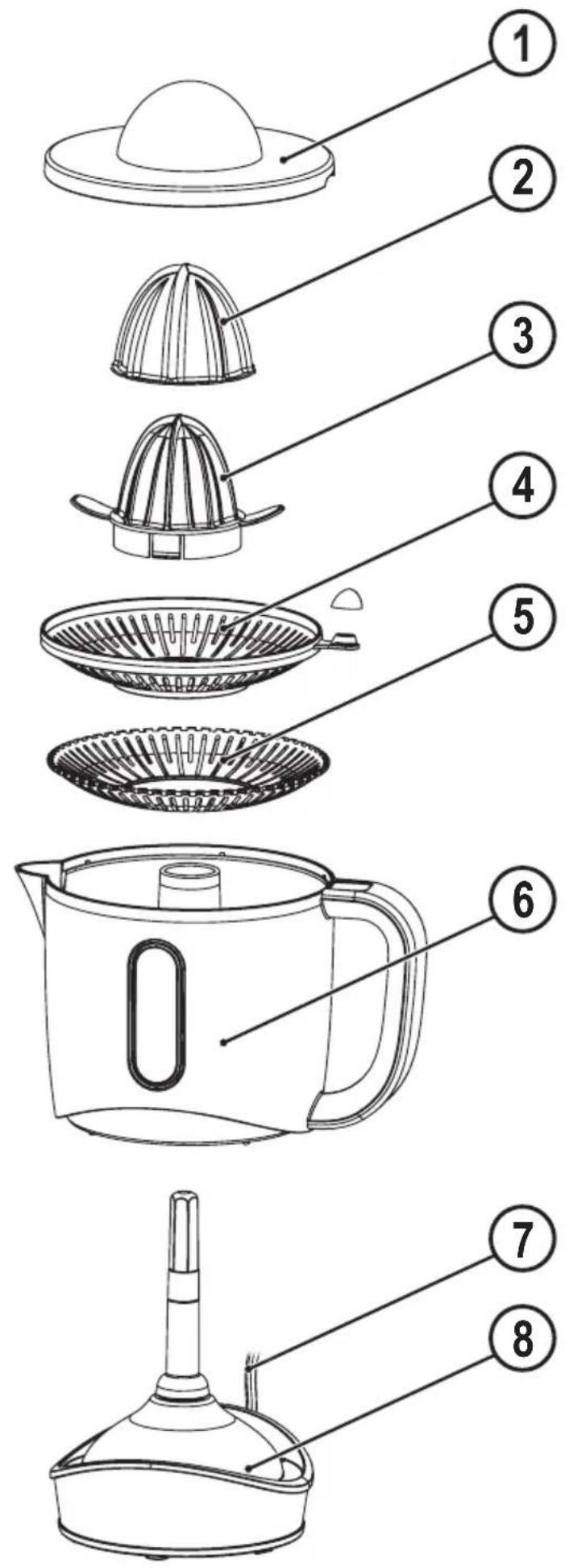

Features

1. Transparent Cover
2. Large Cone
3. Small cone
4. Filter A
5. Filter B
6. Cup
7. Mains Lead
8. Motor Unit

Use

Warning! Do not exceed the maximum capacity of the cup.

Making juice

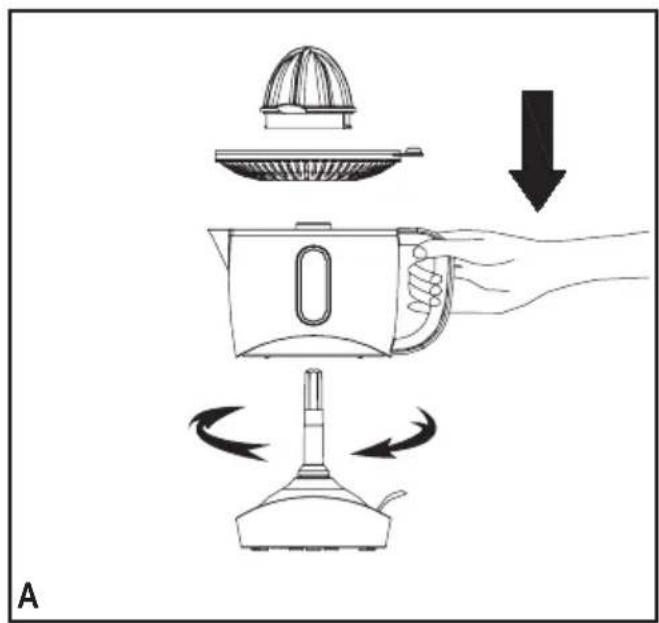

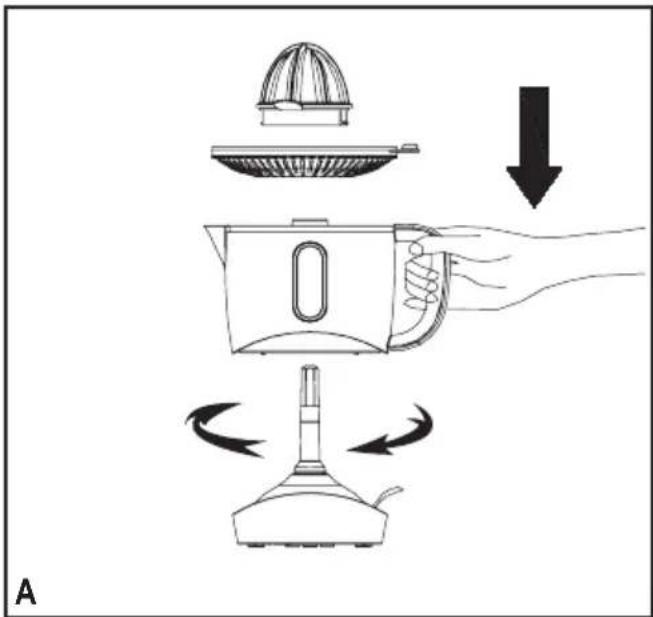

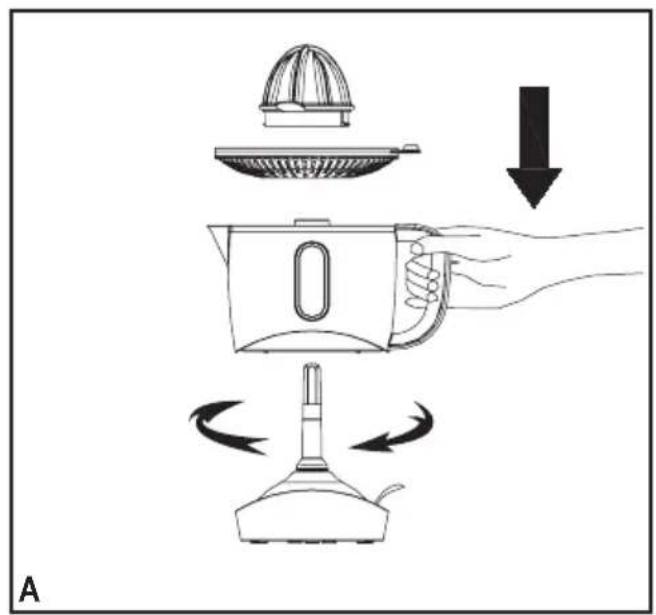

• Place the Cup (6) on the Motor Unit (8). Turn it clockwise to lock into position (Fig.A).
• Place Filter A (4) onto Filter B (5). Rotate left and right to position it correctly in the Cup (6) (Fig. A).

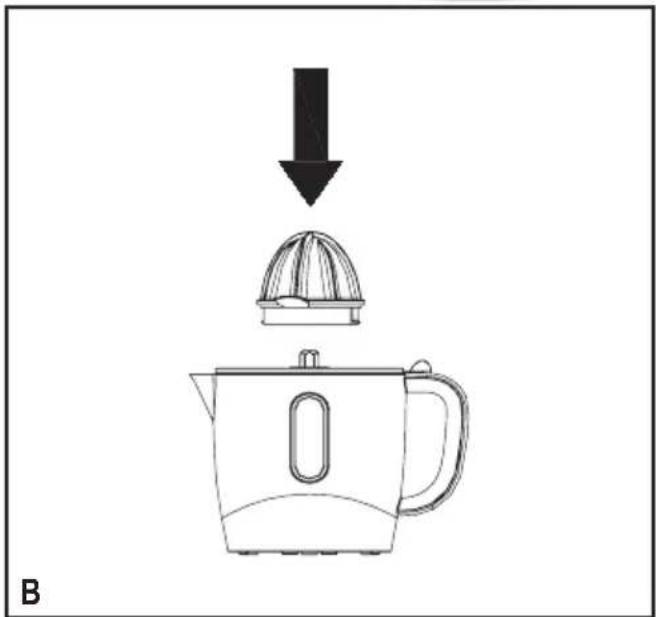

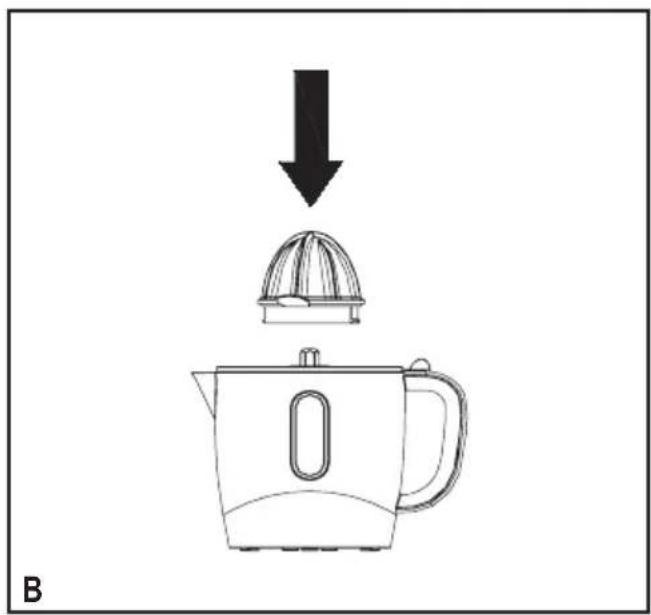

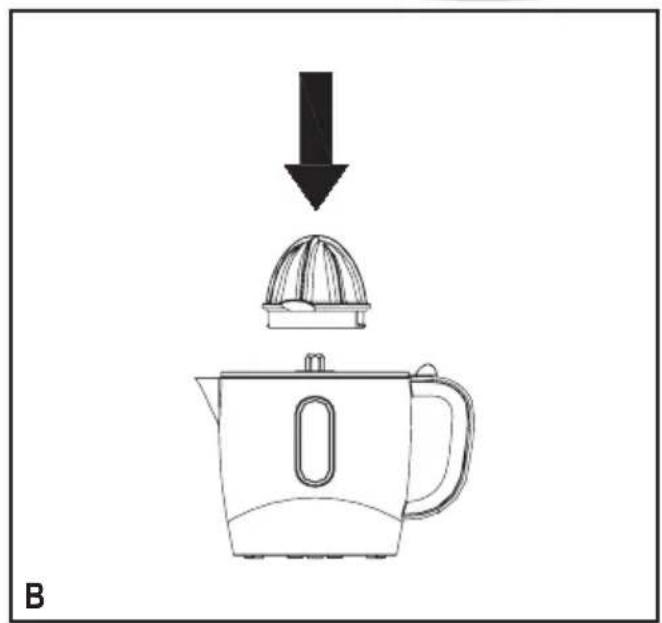

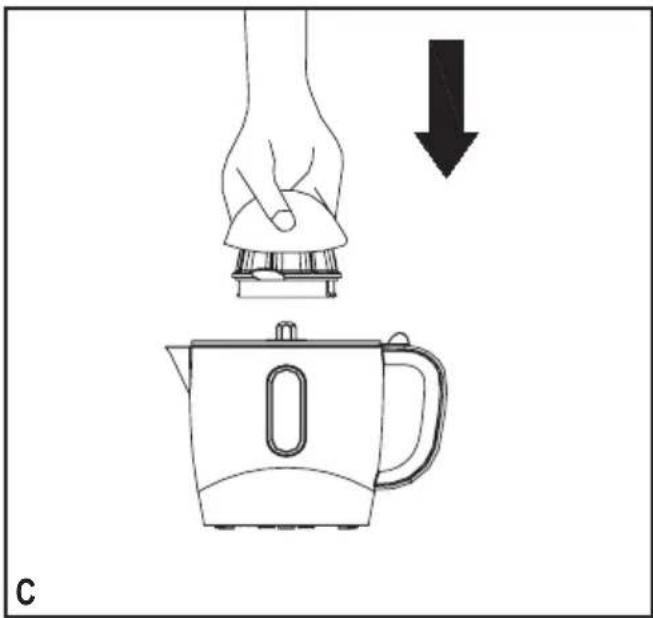

• Put Small cone (3) on the shaft of the Motor Unit (8). (Fig.2).
• Plug in the Appliance.
• Cut the Orange into 2 pieces.
• Press 1 section of Orange gently onto the Cone. The citrus press will begin operating automatically.

ENGLISH

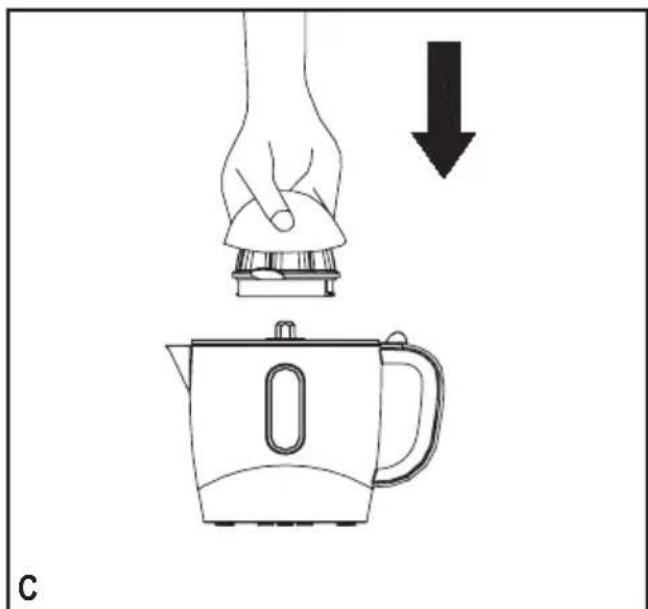

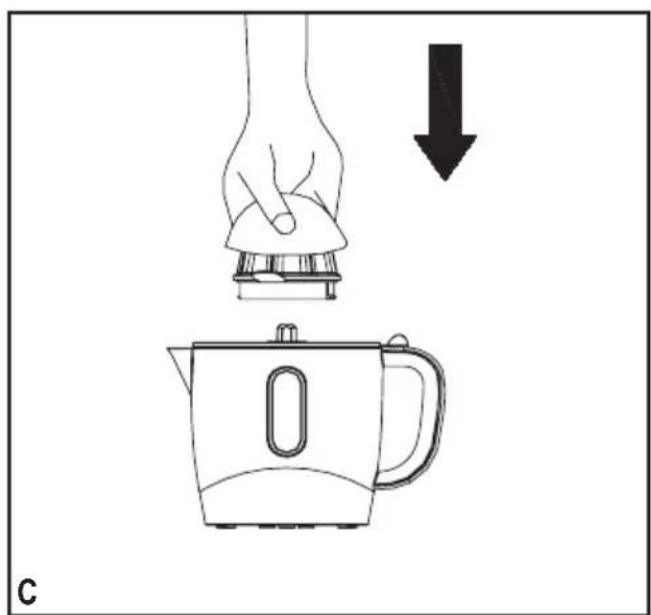

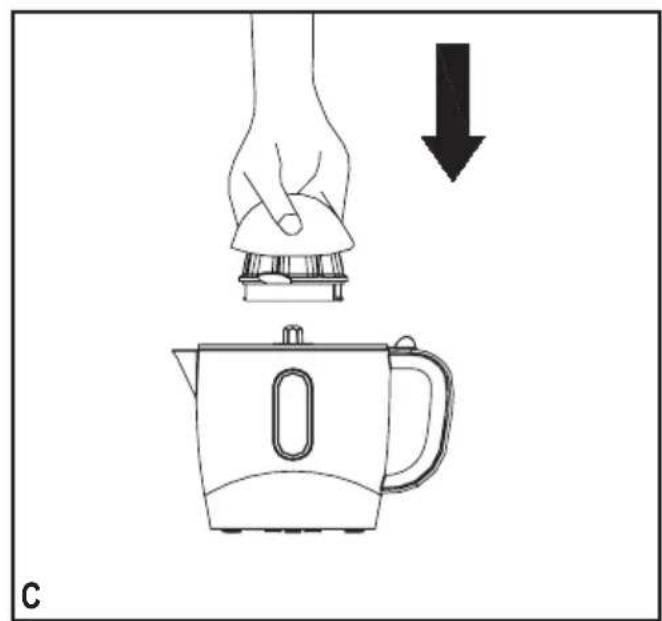

• If the Orange is too large, use the Large Cone. Lock the 2 gaps on the Large Cone over the 2 wings on the Small Cone.
• Enjoy your Juice.

Cleaning and maintenance

Warning! Before cleaning and maintenance, switch the appliance off and remove the plug from the socket.

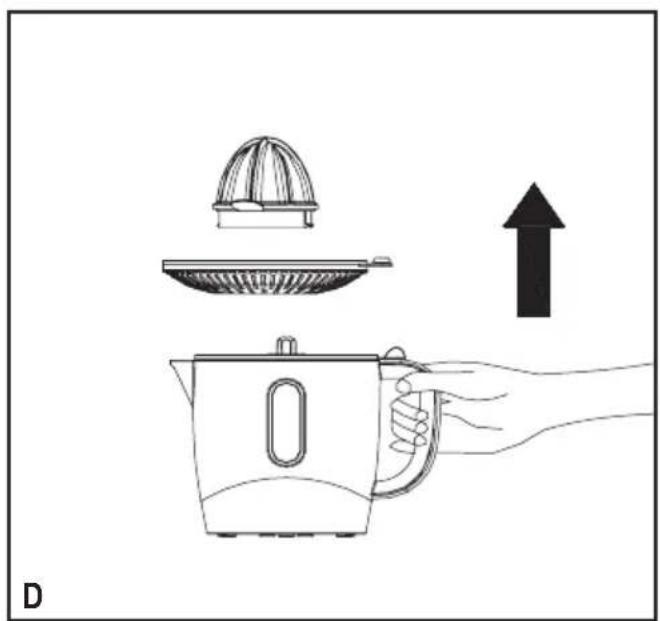

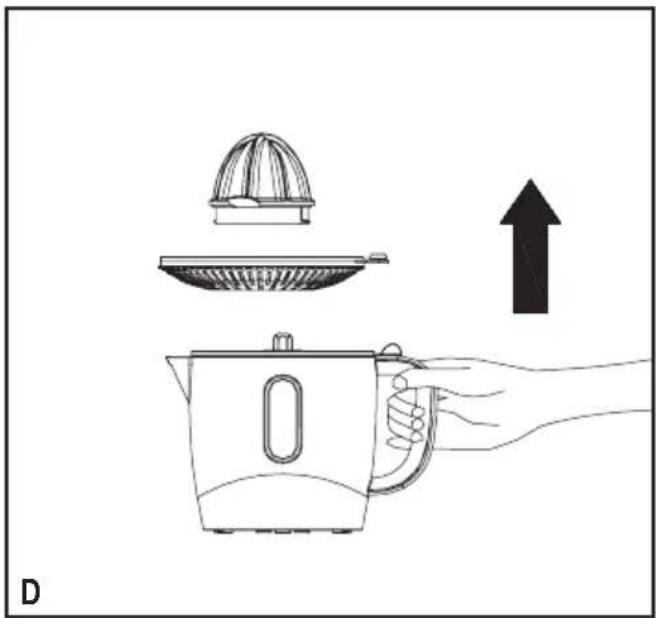

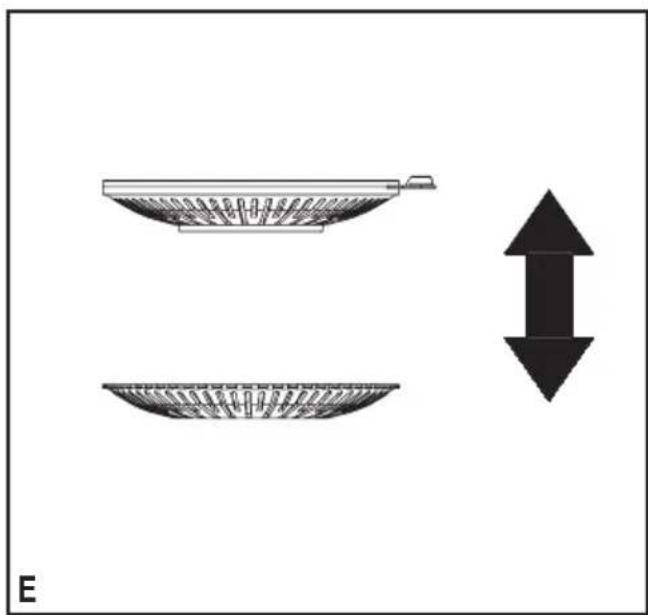

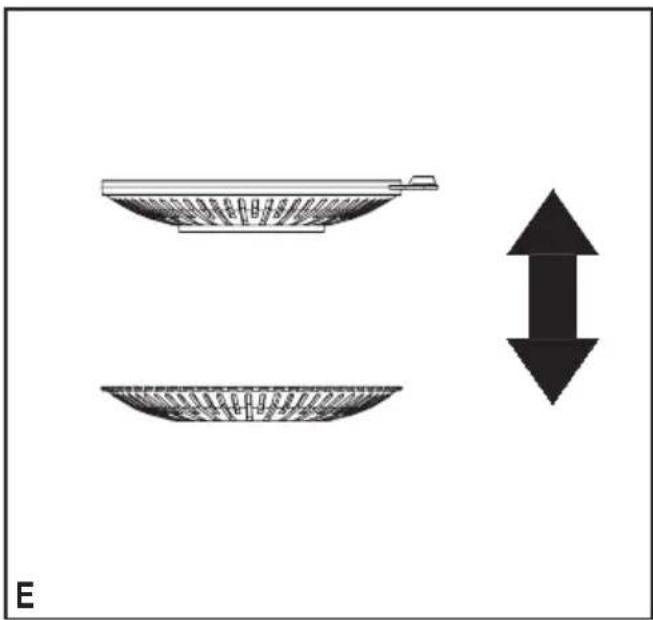

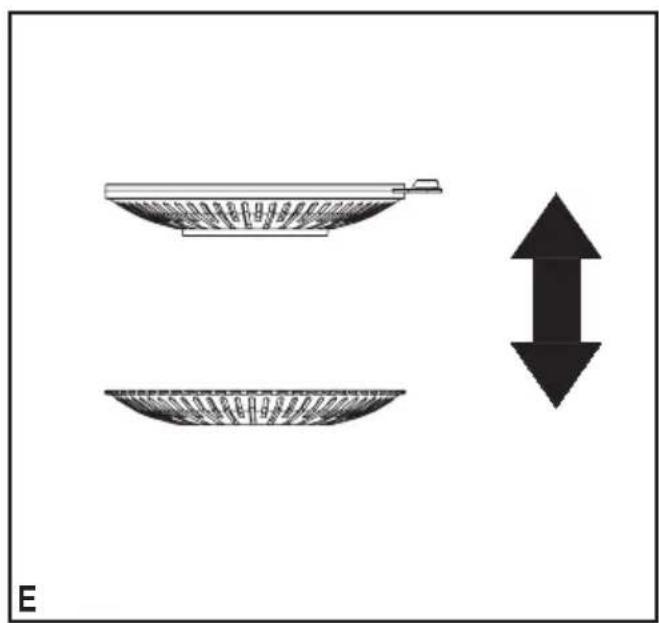

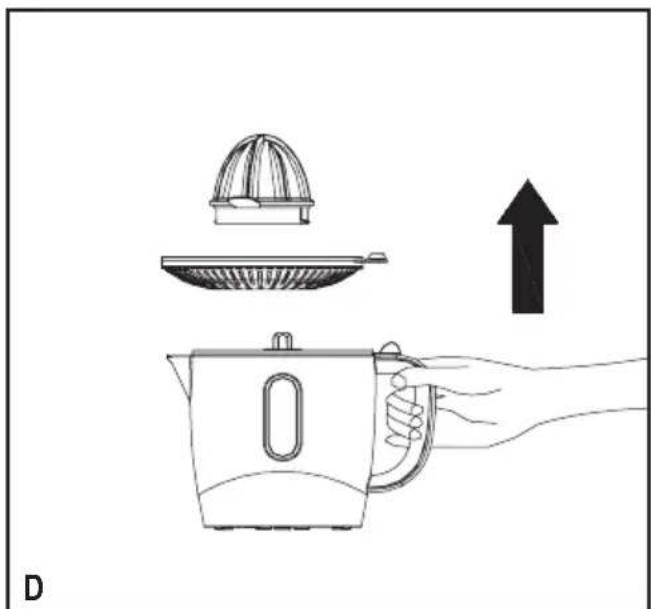

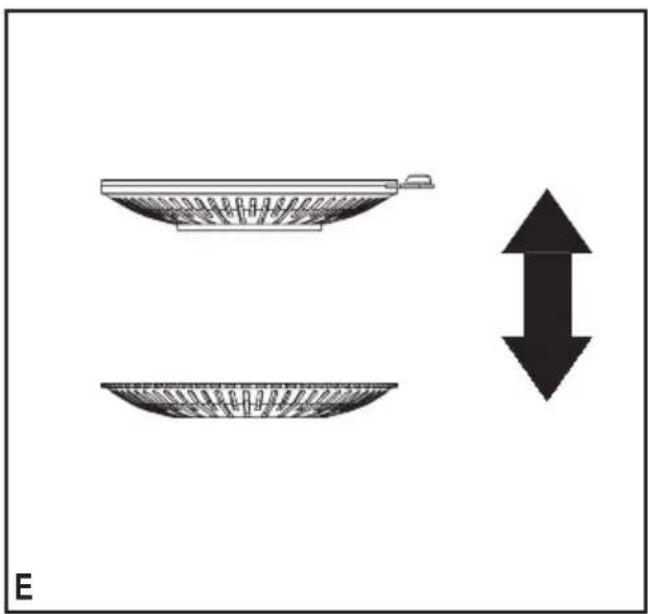

• When finished using, remove the Cone, Filter A and Filter B (Fig D - E).

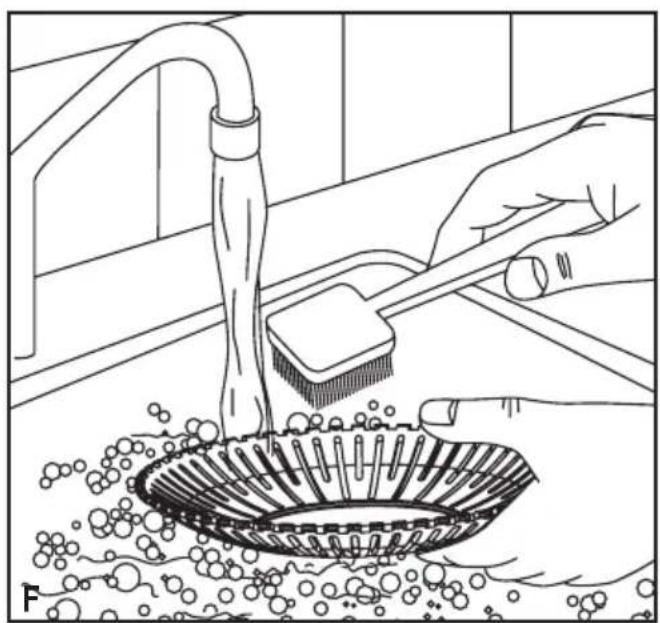

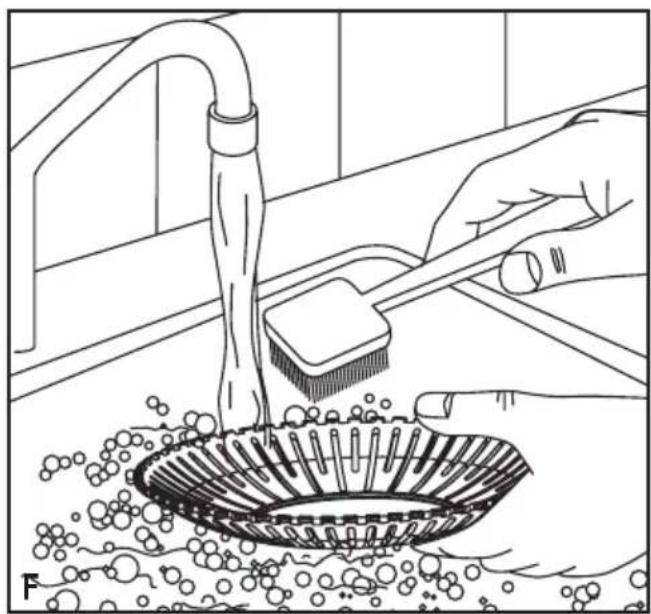

• Wash all items thoroughly in hot soapy water (Fig. F) dry all parts with a clean cloth and store them in box.
• Wipe the outside of the appliance with a damp cloth.

Note: The carafe is not dishwasher proof.

Warning! Do not immerse the Motor Unit in water. Clean with damp

cloth.

Warning! Do not immerse unit, cord or plug in any liquid.

Technical data

BFCJ300
Input voltage	VAC 220	-240
Power input W	30
Weight kg 0.8

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black+Decker product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.

• Black+Decker provides a facility for recycling Black+Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
• You can check the location of your nearest authorised repair agent by contacting your local Black+Decker office at the address indicated in this manual. Alternatively, a list of authorized Black+Decker repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.

Warranty

Black+Decker is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

The warranty is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black+Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black+Decker warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or Black+Decker service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black+Decker office at the address indicated in this manual.

Alternatively, a list of authorised Black+Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.
