BXCJ30E - Citrus juicers BLACK & DECKER - Free user manual and instructions

Product type	Citrus juicer
Brand	Black & Decker
Model	BXCJ30E
Power supply	220-240 V ~ 50/60 Hz
Power	150 W (estimated)
Juice container capacity	Approximately 1 L
Bidirectional rotation	Yes, for better extraction
Automatic shut-off	Yes, by releasing pressure on the cone
Max continuous operation time	5 minutes
Dishwasher-safe parts	Tray, cones, filter, juice container (gentle cycle)
Filter material	Stainless steel
Child safety	Use under adult supervision for children over 8
Use	Household use only
Warranty	In accordance with applicable law
Weight	Approximately 1.2 kg
Dimensions (L x W x H)	20 x 18 x 25 cm (estimated)
Cable length	Approximately 80 cm

Frequently Asked Questions - BXCJ30E BLACK & DECKER

How to use the BXCJ30E citrus juicer?

Cut citrus fruits in half. Plug in the appliance. Place a half-fruit on the cone and press. The cone rotates in both directions for better extraction. Release pressure to stop the appliance.

Can I wash the parts in the dishwasher?

Yes, the tray, cones, filter and juice container can be washed in the dishwasher on a gentle cycle. Dry well before reassembling.

What to do if the cone does not rotate?

Check that the appliance is properly plugged in and that the cone is not blocked by excessive pressure. If the problem persists, clean the filter and ensure the parts are correctly assembled.

Can the appliance operate continuously?

No, do not use it for more than 5 minutes continuously. Let it cool down before reusing.

How to clean the filter?

Rinse the filter under hot water after each use. For deep cleaning, wash it in the dishwasher or with a soft brush. Avoid abrasive products.

Is the appliance suitable for children?

Children under 8 years old should not use the appliance. For children over 8, adult supervision is required. The appliance is not a toy.

What to do in case of leakage?

Unplug the appliance immediately. Check the seal and the assembly of the parts. If the leak persists, contact an authorized technical service.

Can I use the appliance for other fruits?

This juicer is designed only for citrus fruits (oranges, lemons, grapefruits). Do not use it for other hard or seeded fruits.

How to store the cable?

After use, unplug the appliance and store the cable in the compartment provided under the base of the appliance.

Where to find spare parts?

Contact an authorized Black & Decker technical support service. You can find the nearest one on the website 2helpu.com.

USER MANUAL BXCJ30E BLACK & DECKER

BLACK+ DECKER™

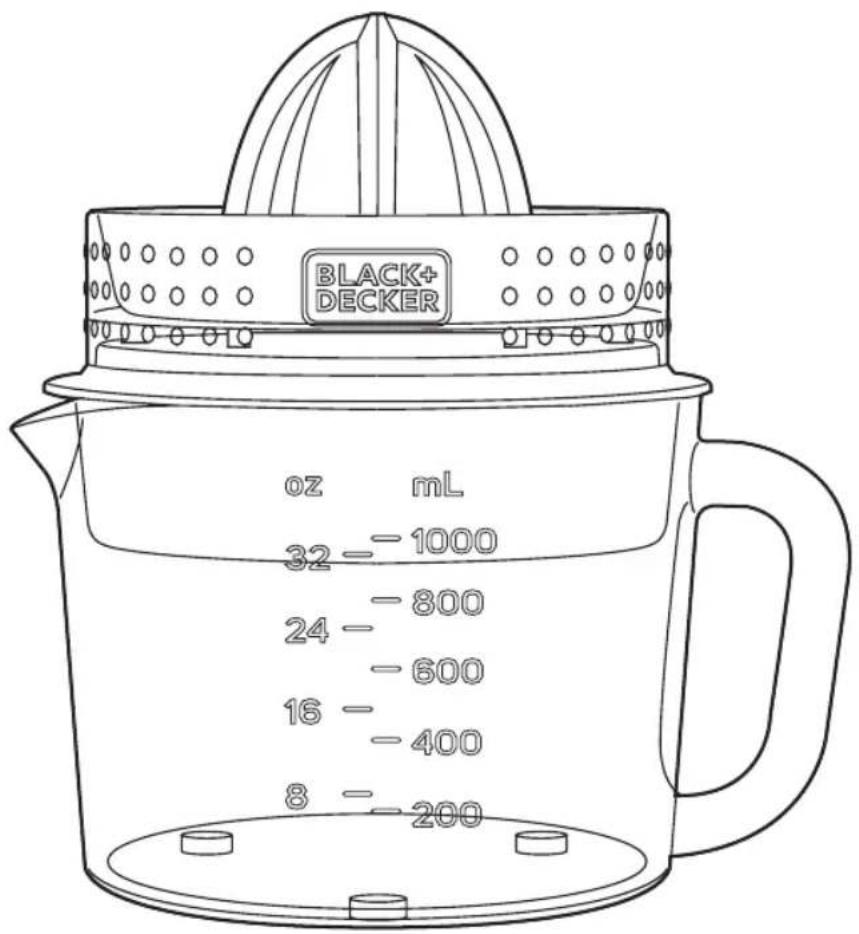

BLACK+ DECKER oz mL 32 - 1000 -800 24 - -600 16 - -400 8 - -200

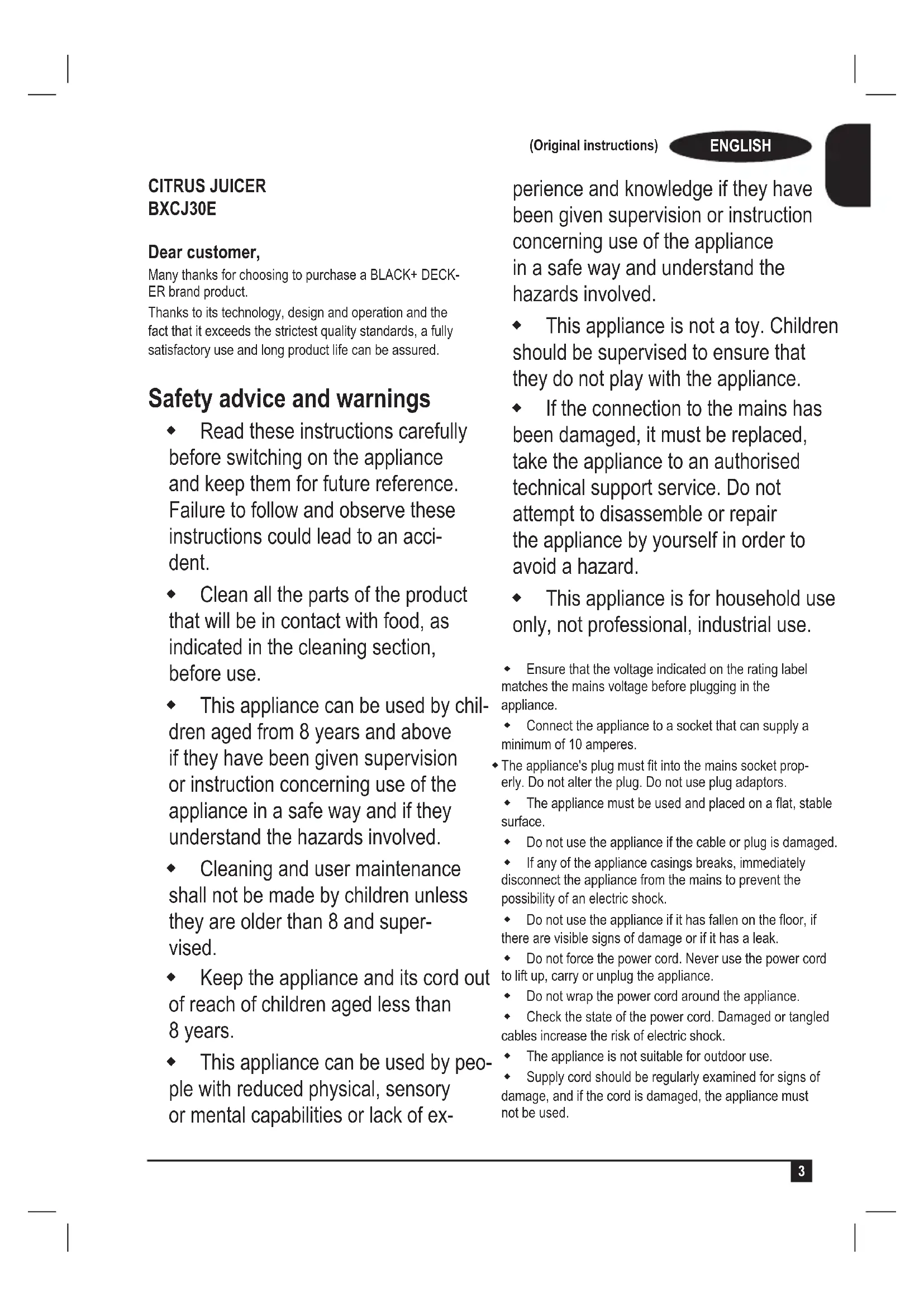

CITRUS JUICER BXCJ30E

Dear customer,

Many thanks for choosing to purchase a BLACK+ DECKER brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Safety advice and warnings

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children aged less than 8 years.
• This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of ex-

(Original instructions)

ENGLISH

perience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- This appliance is for household use only, not professional, industrial use.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• The appliance must be used and placed on a flat, stable surface.
• Do not use the appliance if the cable or plug is damaged.
  If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
  Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
  Do not wrap the power cord around the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• The appliance is not suitable for outdoor use.
  Supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

ENGLISH

(Original instructions)

Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
Do not touch the plug with wet hands.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance if the on/off switch does not work.
  Do not move the appliance while in use.
  ◆ Use the appliance handle/s, to catch it or move it.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

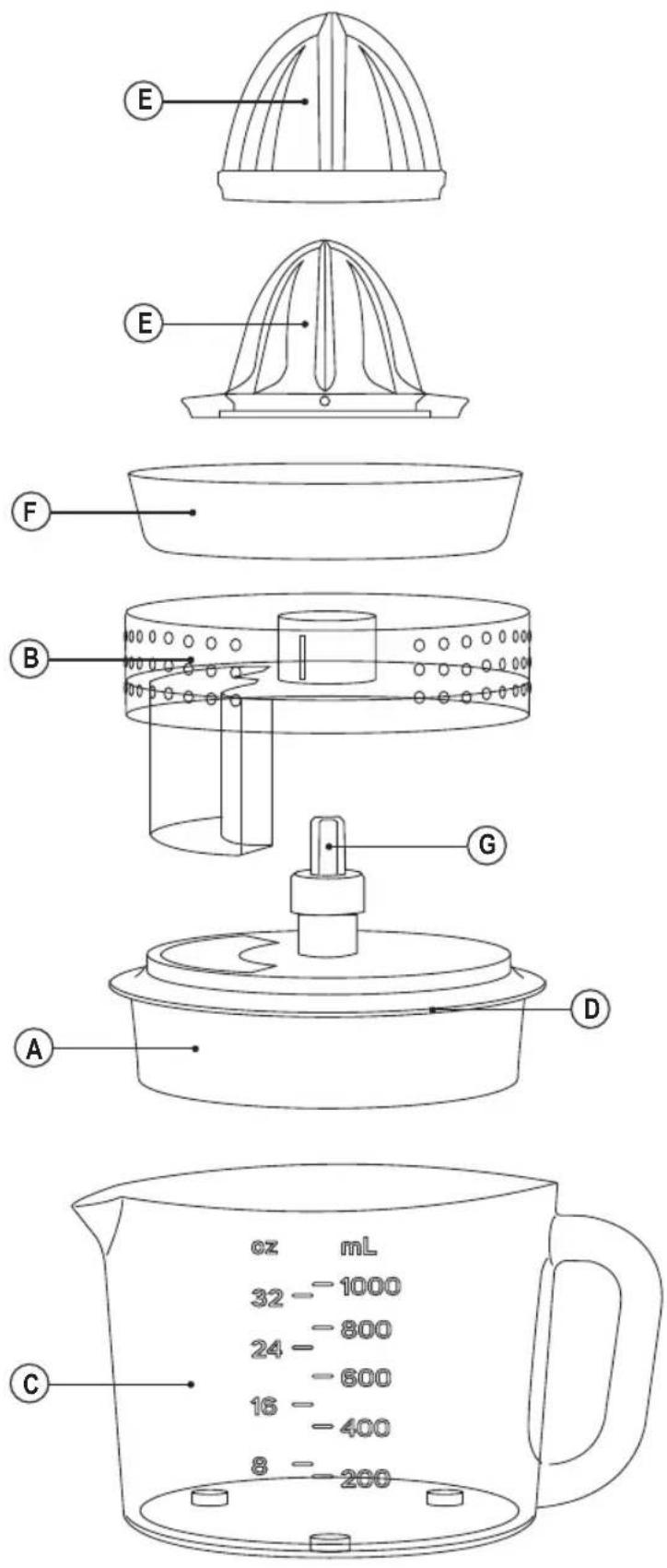

Description

A Motor body
B Tray
C Juice container
D Body sealing gasket
E Cones
F Filter
G Axis

Instructions for use

Before use:

• Make sure that all products' packaging has been removed.
  Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

Use:

• Connect the appliance to the mains.
  ◆ Cut the citrus fruit/s to be squeezed in half.
• Turn on the appliance by pushing down on the
  ♦ piece of citrus fruit, once it has been placed on
  the juicing cone.
  ◆ In order to achieve an ideal extraction, the cone
• turns in both directions.
  ♦ Excessive pressure on the cone may block
  ♦ rotation.
  Do not use the extractor continuously for more
• than five minutes.

◆ To stop the appliance, simply stop applying
◆ pressure to the cone.
◆ Remove the motor body unit so you can empty
the jug.
◆ Remark: If you process a large quantity of fruit,
- you must periodically clean the filter and remove the remains of the pulp.

Once you have finished using the appli- ance:

◆ Unplug the appliance from the mains.
◆ Put the cable back in the cable housing.
- Clean the appliance.

Cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
  Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• It is advisable to clean the appliance regularly and remove any food remains.

• The following pieces may be washed in a dishwasher (using a soft cleaning program):

• Tray

• Cones
• Filter
• Juice container

- Then dry all parts before its assembly and storage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

WARRANTY AND TECHNICAL ASSISTANCE

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://www.2helpu.com/

You can also request related information, by contacting us (see the last page of the manual).

You can download this instruction manual and its updates at http://www.2helpu.com/
