USER MANUAL Junior Isofix Osann

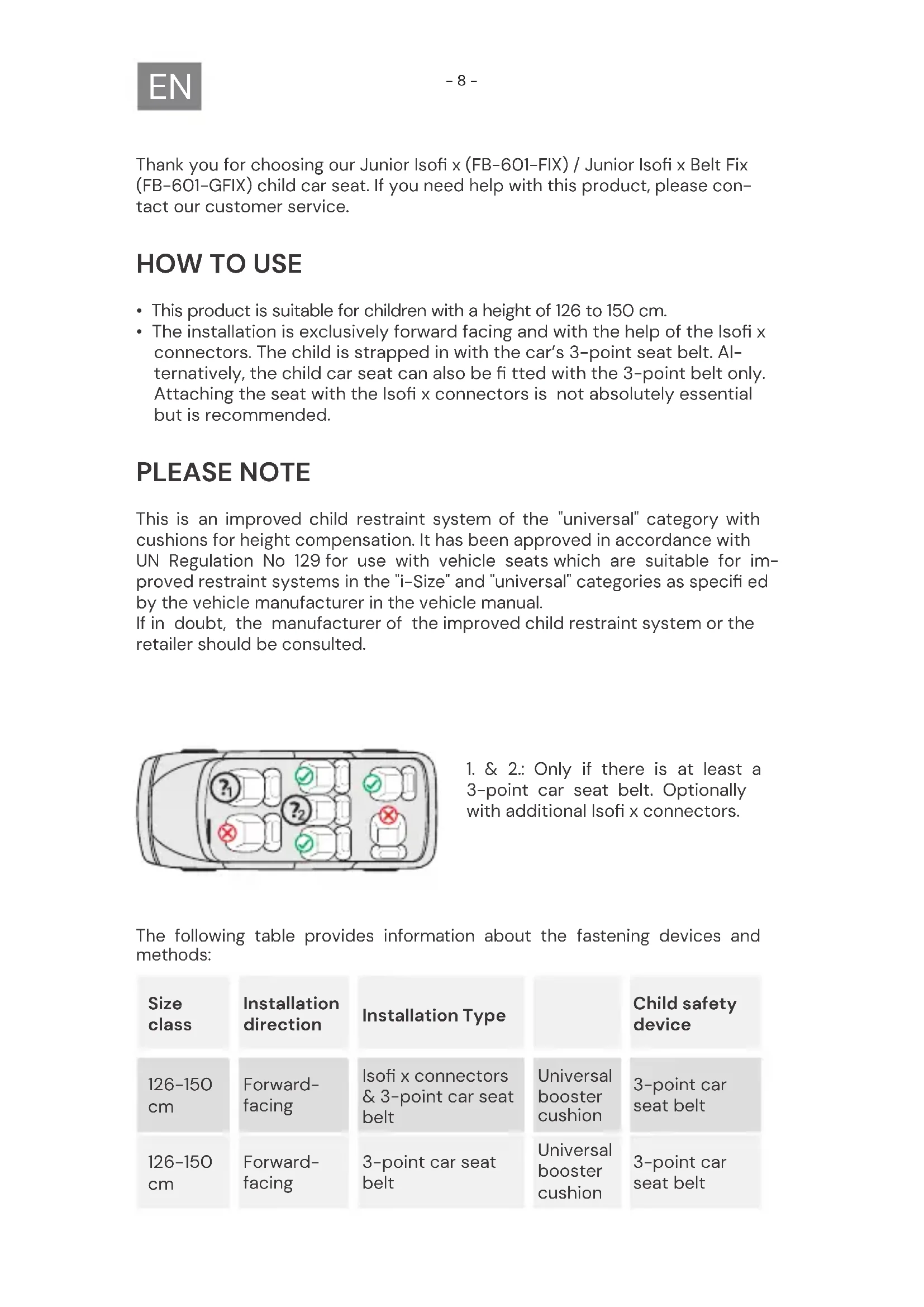

Thank you for choosing our Junior Isofi x (FB-601-FIX) / Junior Isofi x Belt Fix (FB-601-GFIX) child car seat. If you need help with this product, please con- tact our customer service.

• This product is suitable for children with a height of 126 to 150 cm.

• The installation is exclusively forward facing and with the help of the Isofi x connectors. The child is strapped in with the car’s 3-point seat belt. Al- ternatively, the child car seat can also be fi tted with the 3-point belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended. PLEASE NOTE This is an improved child restraint system of the "universal" category with cushions for height compensation. It has been approved in accordance with UN Regulation No 129 for use with vehicle seats which are suitable for im- proved restraint systems in the "i-Size" and "universal" categories as specifi ed by the vehicle manufacturer in the vehicle manual. If in doubt, the manufacturer of the improved child restraint system or the retailer should be consulted. Size class Installation direction Installation Type Child safety device 126-150

Forward- facing Isofi x connectors & 3-point car seat belt Universal booster cushion 3-point car seat belt 126-150

Forward- facing 3-point car seat belt Universal booster cushion 3-point car seat belt The following table provides information about the fastening devices and methods:

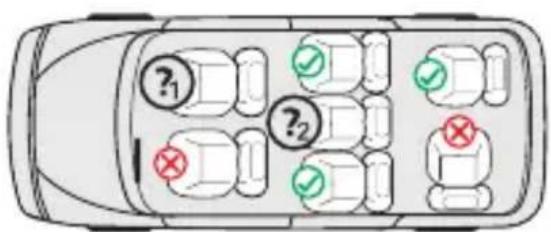

1. & 2.: Only if there is at least a

3-point car seat belt. Optionally with additional Isofi x connectors.- 9 -

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the manual. Non-compliance with the instructions in this manual may result in serious injuries to your child.

• For Isofi x installation: Be sure to read the car manufacturer’s manual.

• Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.

• Do not use this child car seat at home. It has been designed exclusively for use in a car.

• Do not leave your child unsupervised in the seat at any time.

• The child seat must be replaced if it has been subject to severe mechanical stress in an accident.

• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.

• Always make sure that all straps that attach the child car seat to the ve- hicle are secure and that all belts that restrain the child are adjusted to fi t the child’s body. Ensure that the belts are not twisted.

• Items of luggage or other objects that could cause injury in the event of a collision must be properly secured.

• The rigid elements and plastic parts of a child restraint system must be positioned and installed so that they cannot get caught by a movable seat or a vehicle door.

• It is important that belts that sit low hold the child’s pelvis fi rmly in place. Your child should always be fastened in to stop them falling out.

• It is dangerous to make changes or additions to the product without ap- proval from the responsible authority. Non-compliance with the installa- tion instructions provided by the manufacturer of the child restraint sys- tem may also present risks to the safety of your child.

• Never overload the child seat by transporting more than one child or ad- ditional loads in it.

• The child restraint system must not be used without the seat cover.

• The seat cover must not be replaced by a cover other than that recom- mended by the manufacturer, as this seat cover is an important compo- nent of the restraint system.- 10 -

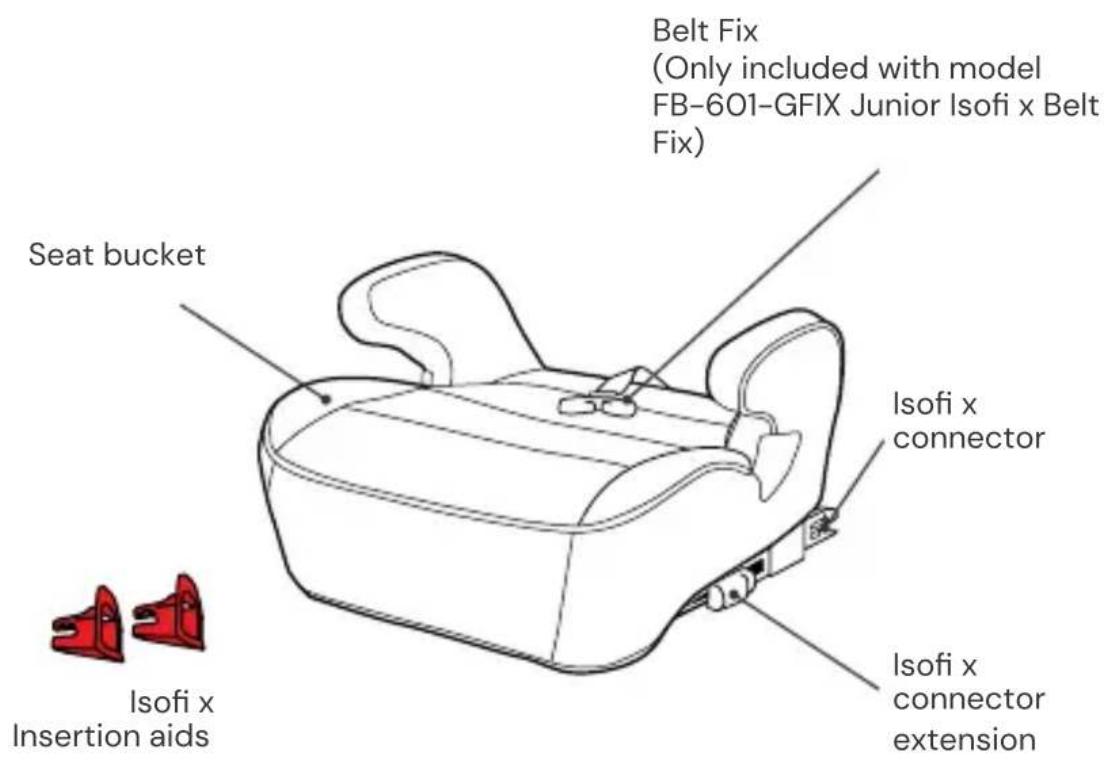

SEAT PARTS Front view Isofi x connector extension Seat bucket Isofi x Insertion aids Isofi x connector Isofi x connectors

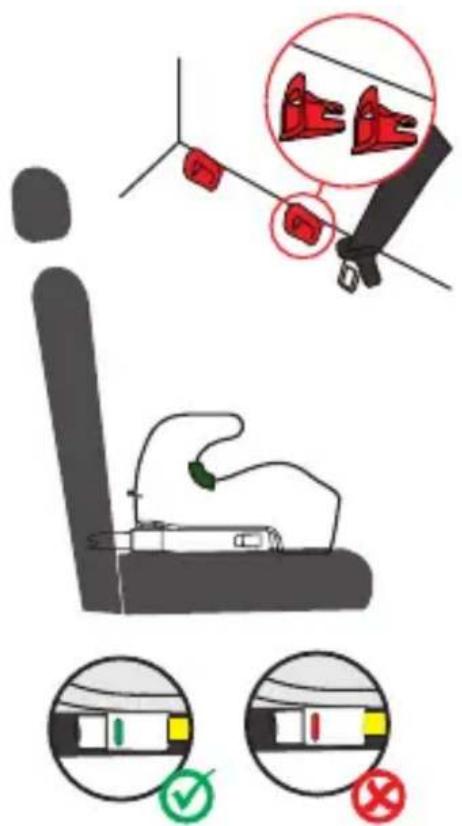

• Push the insertion aids through the slot in the cushion between the backrest and seat into the Isofi x anchor points.

• When doing this, the fl at side of the in- sertion aids must be facing downwards. This step is not necessary if the vehicle already has fi xed insertion aids.

• Press the two lateral Isofi x connector buttons in order to extend the length of the Isofi x connectors.

• Push the Isofi x connectors into the in- sertion aids until you hear them click into place.

• Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isofi x indicators are switched to green. Belt Fix (Only included with model FB-601-GFIX Junior Isofi x Belt Fix)- 11 -

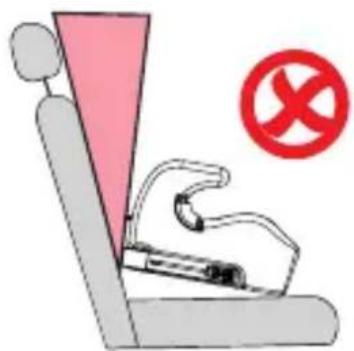

• When installing the child car seat, please ensure that it rests completely on the seat surface of your car seat and that it has good stability. It should not rest, for example, with the back against the backrest of the front car seat.

• Please do not place any additional wedges or cushions under the child car seat, e.g. to change the seating position. CLEANING To guarantee the long-term usage of your child car seat, do not use any sol- vents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and of the seams after each wash. When wash- ing the fabric, carefully follow the instructions on the label (see below). MAINTENANCE Regularly check the condition of the product for possible damage. In the event of damage, the child car seat must no longer be used and must be stored out of the reach of children. In case of any issues, please contact Osann customer service on +49 (0)7731 970077. DO NOT bleach Tumble dry at low temperature Wash at 30 °C, gentle wash cycle DO NOT iron DO NOT dry clean

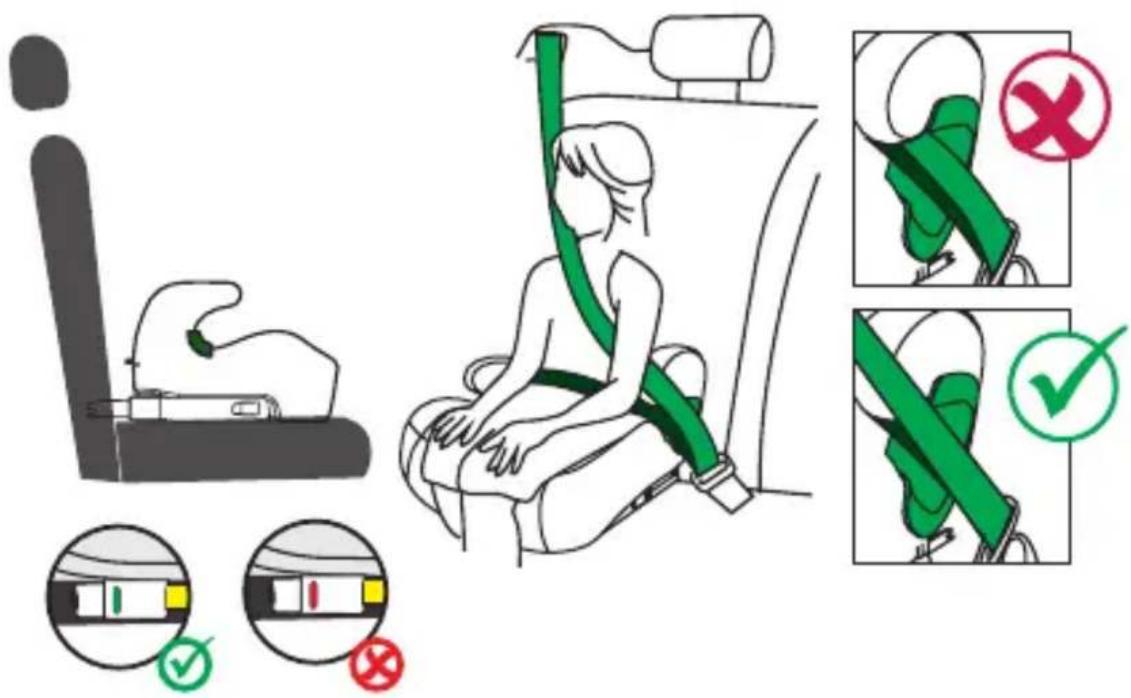

1 . Press the two lateral Isofi x connector buttons in order to extend the length of the Isofi x connectors. 2 . Guide the Isofi x connectors to the Isofi x anchor points on the car seat and snap them into place. 3 . Push the child car seat in until it rests securely against the backrest. En- sure that both Isofi x indicators are switched to green. 4 . Put your child in the child car seat. 5 . Buckle your child in by closing the buckle of the 3-point harness until you hear a click. 6 . Make sure that the lap belt runs underneath the two armrests along the green belt guides. The diagonal strap must run above the armrest. 7 . Pull on the diagonal strap to tighten it. Make sure that the straps are not twisted. Installation without Isofi x: Alternatively, the child car seat can also be fi tted with the 3-point belt only. Attaching the seat with the Isofi x connectors is not absolutely essential but is recommended. Removal of the child car seat: Loosen the Isofi x connector buttons on both sides of the child car seat until the two indicators show red and remove the child car seat from your car. For the version with Belt Fix, additionally thread the green belt fi x on the diagonal belt of the 3-point belt of the car. Adjust the length of the strap so that it runs along the diagonal strap just above your child's shoulder. The use of the belt fi x is optional. Retrofi tting the Belt Fix to the factory version without Belt Fix (FB-601-FIX - Junior Isofi x) is not permitted. PLEASE NOTE Only for variant Junior Isofi x with Belt Fix (FB-601-GFIX):- 14 -
