Coco iSize - Car seat Osann - Free user manual and instructions

Product type	Car seat (i-Size baby carrier)
Brand	Osann
Model	Coco iSize
Category	40 to 80 cm (approx. 0-12 months)
Approval	i-Size regulation (R129) and standard EN12790:2009
Installation	Seat belt or Isofix base (optional)
Seat weight	Approx. 4.5 kg (without base)
Dimensions (W x D x H)	Approx. 44 x 66 x 38 cm
Cover material	Hand washable fabric (30°C max)
Adjustments	3-position handle, 3-height harness with central adjustment
Hood	Removable with height adjustment
Sun protection	Integrated hood
Stroller compatibility	Yes, with adapter not included
Anti-shock safety	Rigid shell with force distribution
Cleaning	Hand wash at 30°C max, no bleach, no tumble dryer, no ironing
Spare parts	Cover, harness, buckle, hood, headrest, padding, handle, Isofix base (option)
Repairability	Interchangeable parts by manufacturer or approved service
Warranty	2 years (according to manufacturer conditions)

Frequently Asked Questions - Coco iSize Osann

Can I install the Coco iSize on the front passenger seat?

Yes, but only rear-facing and provided the passenger airbag is deactivated. Never use with an active airbag.

How do I adjust the height of the shoulder straps?

Pull the silver stop towards you and move it to the desired height. Regularly check that the straps are at the correct height for your child.

How to install the carrier with the Isofix base?

Press the base into the Isofix anchors until it clicks (green indicator). Adjust the support leg until it touches the floor (green indicator). Place the carrier onto the base until it clicks (green indicator).

Can the carrier be used on a stroller?

Yes, but requires an adapter (not included). Follow the assembly instructions: handle in front position for installation, then handle in rear maximum position for attachment.

How to clean the seat cover?

Hand wash at 30°C maximum. Do not use bleach, harsh detergents, or tumble dryer. Do not iron.

What to do after a car accident with the seat?

The car seat must not be reused after a severe impact, even without visible damage. Replace it to ensure safety.

Is the Coco iSize compatible with all vehicles?

It is i-Size approved and compatible with seating positions marked i-Size or indicated by the vehicle manufacturer. If in doubt, consult the vehicle manual.

How to check that the harness is tight enough?

Pull the central adjustment strap to tighten the shoulder straps. Make sure they are snug against the child's body, not twisted. Also check the vehicle seat belt.

Can the carrier be used in cradle position outside the car?

Yes, the handle can be set to cradle position (B) for outdoor use. Never leave the child unattended.

How to remove the carrier from the Isofix base?

Pull the adjustment lever above the support leg to release the carrier. Then lift the carrier upwards using the handle.

USER MANUAL Coco iSize Osann

Thank you for purchasing our 40-80 cm i-Size infant carrier. If you have any questions referring to the product or need any help, please contact our customer service.

1. Safety instructions

• This is an „i-size“ child restraint system. It is approved in accordance with Regulation No. 129 for use in „i-size compatible“ vehicle seating positions as specified by the vehicle manufacturers in the vehicle owner's manual.
• If in doubt, contact the manufacturer or retailer.
• The baby carrier complies with EN12790: 2009.
• Always make sure all straps that secure the seat are tight. Likewise, all straps must be adapted to the child's body. Make sure that no strap is twisted.
• Never leave your child unattended.
• Do not use the seat against the direction of travel on the front passenger seat if it is equipped with an airbag.
• After a collision or an accident, the child seat must not be used again.
• When not using the child seat, it is recommended that it is strapped into the vehicle to prevent injury in the event of an accident.
• Make sure all straps are tight and not loose.
• Attach the safety belt according to the markings on the seat and the operating instructions.
• Make sure that items of baggage or other objects that could cause injury in the event of a collision are properly secured.
  Note that no parts of the child seat are loose and lie around, so that these parts can not be pinched.
• In order to avoid a fall, your child should always be strapped.
• It is dangerous to modify the child seat in any way without having received instructions from the manufacturer.
• Failure to follow these instructions will endanger your child's safety.
• The child seat may not be used without cover.
• The cover should not be replaced unless the cover is recommended by the manufacturer. Any change can affect the function of the child seat.
• Please use a different restraint system as soon as your child is able to sit independently.
• Before you make any changes to your car, take your child out of the baby carrier.
• Protect the seat from direct sunlight to prevent your child from getting burned.
• We advise against second-hand products because of their unknown prehistory.

2. Component Parts

1 Handle
2 Handle Button
3 Shoulder Pad
4 Crotch Pad
5 Buckle
6 Webbing
7 Center function adjustment

8 Adjustment webbing
9 Side webbing guide
10 Canopy
11 Headrest
12 Inner Pad
13 Carrier shell

3. Adjustment of the handle

Handle button

To set the carrying handle, simultaneously press handle button on the left and right of the carrying handle. There is the possibility of 3 settings.

Please make sure that the handle is locked.

A: Vehicle position in the car or carrying position outside the vehicle.
B: Cradle position
C: Rest position or the position to put the baby in the shell.

4. Adjusting the straps

4.1 Adjusting the strap length

1. Loosen the shoulder straps by pressing on the central belt adjuster (1).
2. While holding down the central belt adjustment, pull the shoulder straps (2) forwards at the same time.

4.2 Adjusting the belt height

1. Release the lock on the flap by pressing the tab downwards.

2.Pull the silver lock towards you and move it up or down to bring the straps to the desired height.

1. Check the positioning of the shoulder straps at regular intervals - your child will grow!

5. Installation in the vehicle

1. First, open the buckle by pressing the red button on the lock.
2. Put the straps on the side of the baby carrier and place your child in the carrier.

1. Close the buckle by inserting both locking hooks into the buckle and closing it with an audible „click“
2. Gently pull on the central belt adjustment strap to tighten the shoulder straps. Please note that these are adapted to the body of your child.

5.1 Installation without Isofix base

1. Pull the safety belt of the vehicle and carry out the lap belt under the side guide (1) right and left.
2. Pull the shoulder strap along the back of the infant carrier through the guide (3).
3. Close the seat belt of the vehicle and make sure that it is tightened.

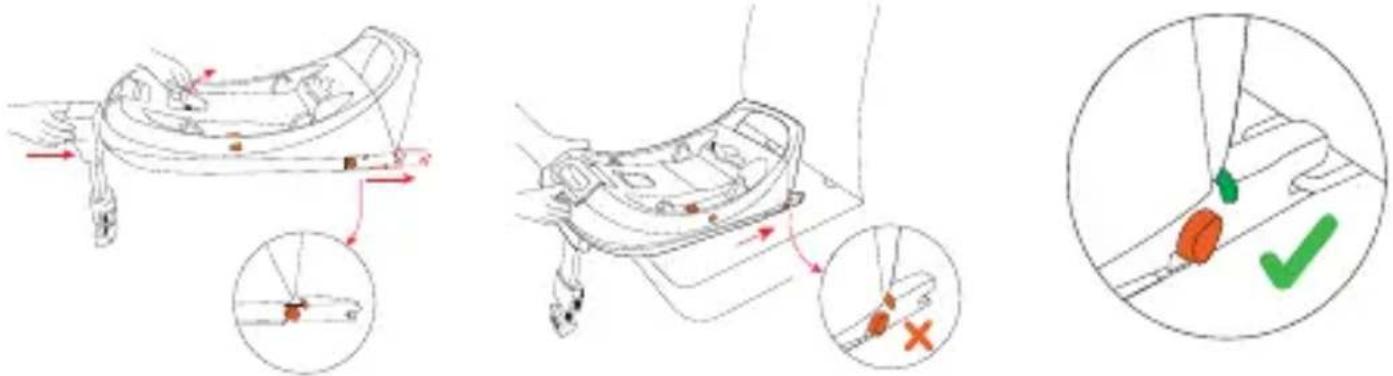

5.2 Installation with Isofix base (optional)

Adjustment knob of the stand

1. Pull up on the stand adjustment lever and at the same time press the adjustment on the stand itself to bring it to the last position.
2. Gently push the base into the Isofix anchorage of your car to connect the base to the car.
3. Check if the Isofix anchorage is correctly installed. The color must change from orange to green.
4. Push the base back toward the back of the car so that the baby carrier is as close as possible to it.

1. Press the button on the base of the station (1) and move the stand down so that it touches the floor of the car and the color indicator changes from orange to green.
2. Place the baby carrier on the base and place it so that it clicks into place. When the color indicator turns green, the baby carrier is placed correctly.

6. Removal of the baby seat

6.1 Removal without Isofix base

1. Release the strap from the seat belt of your vehicle.
2. Pass the shoulder strap along the back of the infant carrier and release it from the guide.
3. Release the lap belt from the guides on the right and left as well.

6.2 Removal with Isofix base (optional)

1. Pull the adjustment lever on the base above the pedestal (1) to release the infant carrier.

Pull the carrycot straight up (2) so that it comes loose from the base.

1. Pull the lever up in the front half of the base.

1. Press the orange button on the Isofix anchorage inward on both sides (1), at the same time pull the orange button on the anchorage on both sides (2).
2. Now loosen the Isofix base by pulling it towards you. (3)

7. Infant carrier on stroller (opti onal)

7.1 Attaching to the stroller

Please note that attachment to the stroller requires an additional adapter, which is not included.

1. To attach the infant carrier, place the baby carrier on the adapters so they fit right and left into the bezel. The carrying handle must be in the foremost positi on (1). Press the baby seat down slightly so that the baby seat sits properly on the adapters.

2. Now place the carrying handle in the rearmost positi on (2), this locks the infant carrier in and the hold is granted.

Please note that the carrycot only holds while the carrying handle is in the rearmost positi on (2).

7.2. Removing from the stroller

1. To release the baby carrier, move the carrying handle to the frontmost position on (1). By adjusting the carrying handle, the baby carrier is loose.

2. You can now take the carrycot by the carry handle and pull straight up (2). Now the baby carrier can be solved easily.

6. Washing instructi ons

Never use a solvent, chemical cleaning agent or lubricant to clean the child seat.

Hand wash, water temperature below 30^

Do not bleach

dry cleaning, all solvents except trichlorethylene

Not suitable for dryer

Do not iron
