Technical specifications	Capacity: 40 liters, Power supply: 12/24V DC and 230V AC, Temperature: up to 206C below ambient temperature.
Usage	Ideal for travel, camping, and outdoor activities. Can be used in vehicles and at home.
Maintenance and repair	Regularly clean the interior with a damp cloth. Check electrical connections and compressor operation.
Safety	Do not expose to water. Use only with specified voltages. Avoid blocking ventilation.
General information	Weight: approximately 15 kg, Dimensions: 58 x 39 x 44 cm, Warranty: 2 years.

Frequently Asked Questions - B40 ACDC Mobicool

How do I connect the Mobicool B40 ACDC to a power outlet?

To connect the Mobicool B40 ACDC to a power outlet, use the supplied power cable and connect it to a standard 220-240V socket.

The fridge is not cooling, what should I do?

Make sure the fridge is properly plugged in and the outlet is working. Also check that the temperature is set correctly and that the fridge is not too full, which can obstruct air circulation.

What is the storage capacity of the Mobicool B40 ACDC?

The Mobicool B40 ACDC has a storage capacity of about 40 liters, which is sufficient for several bottles and food items.

Can the Mobicool B40 ACDC be used in a car?

Yes, the Mobicool B40 ACDC can be used in a car by plugging it into a 12V cigarette lighter socket with the appropriate supplied cable.

How do I clean the inside of the fridge?

To clean the inside of the Mobicool B40 ACDC, unplug the unit, empty it, and use a soft cloth with soapy water. Avoid harsh chemicals.

The fridge is making noise, is this normal?

A slight fan noise is normal during operation. However, if the noise is loud or unusual, check if the unit is level and if objects are blocking the fan.

What is the battery life when the fridge is running on battery?

Battery life depends on battery capacity and ambient temperature. On average, a car battery can power the fridge for 4 to 6 hours.

How do I adjust the temperature of the Mobicool B40 ACDC?

The temperature can be adjusted using the control panel located on top of the fridge. Turn the knob to select the desired temperature.

Is there a warranty for the Mobicool B40 ACDC?

Yes, the Mobicool B40 ACDC typically comes with a 2-year warranty against manufacturing defects. Check the specific conditions in the user manual.

Can the fridge be used outdoors?

Yes, the Mobicool B40 ACDC is designed for outdoor use, but avoid exposing it to extreme weather conditions or moisture.

USER MANUAL B40 ACDC Mobicool

DANGER! Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING! Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. _B40.book Seite 5 Mittwoch, 20. April 2011 3:28 15EN Safety instructions B40 DC/AC

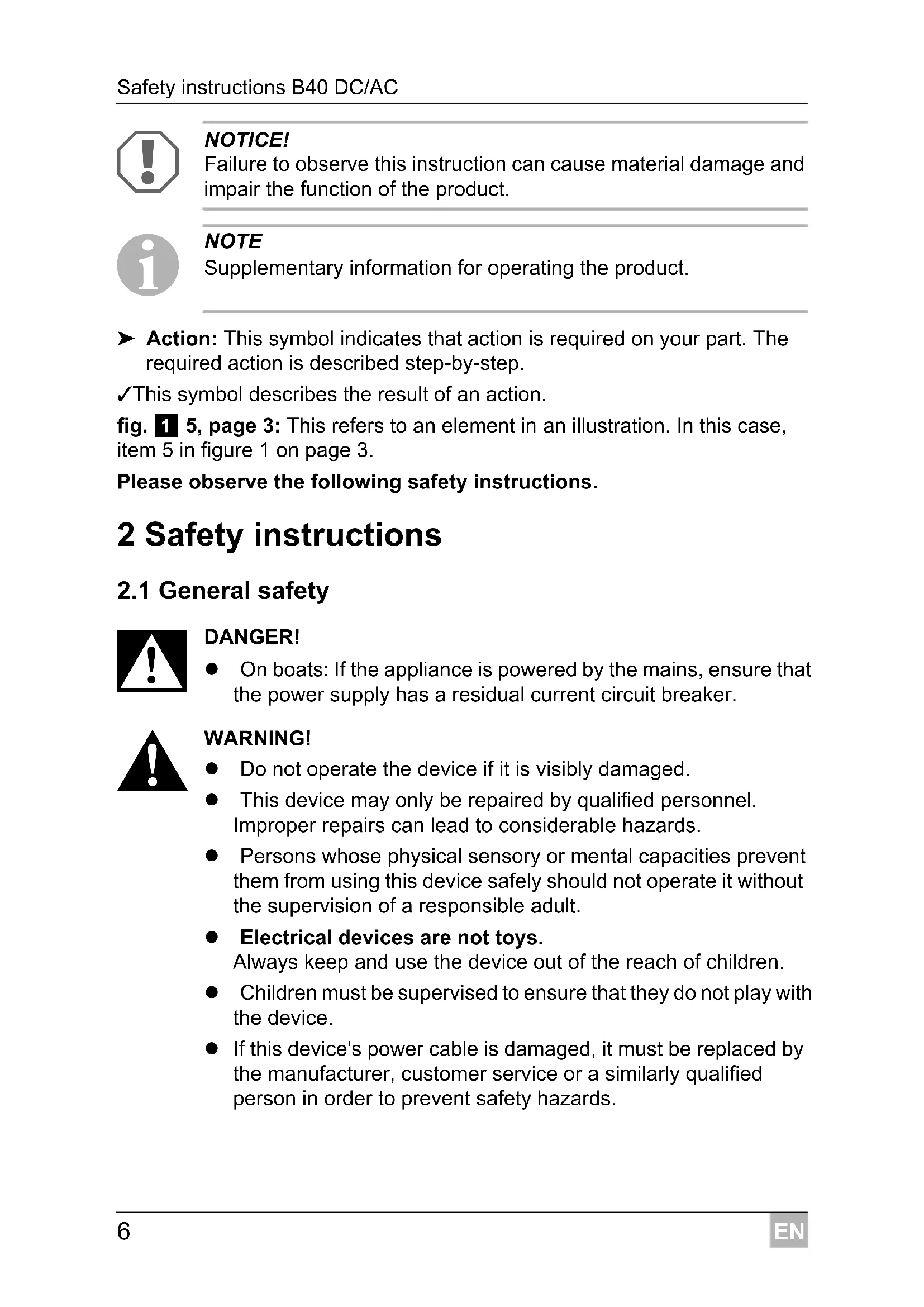

NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE Supplementary information for operating the product. ➤ Action: This symbol indicates that action is required on your part. The required action is described step-by-step. ✓ This symbol describes the result of an action. fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3. Please observe the following safety instructions. 2 Safety instructions

DANGER! On boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.

WARNING! Do not operate the device if it is visibly damaged. This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Persons whose physical sensory or mental capacities prevent them from using this device safely should not operate it without the supervision of a responsible adult. Electrical devices are not toys. Always keep and use the device out of the reach of children. Children must be supervised to ensure that they do not play with the device. If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards. _B40.book Seite 6 Mittwoch, 20. April 2011 3:28 15EN B40 DC/AC Safety instructions

CAUTION! Disconnect the device from the mains – before cleaning and maintenance –after use Food may only be stored in its original packaging or in suitable containers.

NOTICE! Only connect the device as follows: – With the 12 V cable to a 12 V plug socket in the vehicle (e. g. cigarette lighter) – Or with the 230 V connection cable to the 230 V AC mains supply Check that the voltage specification on the type plate corresponds to that of the energy supply. The cooling device is not suitable for transporting caustic materials or materials containing solvents. Never pull the plug out of the socket by the cable. If the cooler is connected to the 12 V socket: Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device. If the cooler is connected to the 12 V socket: Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.

2.2 Operating the device safely

DANGER! Do not touch exposed cables with your bare hands. This especially applies when operating the device with an AC mains power supply.

CAUTION! Before starting the device, ensure that the power supply line and the plug are dry.

NOTICE! Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose. _B40.book Seite 7 Mittwoch, 20. April 2011 3:28 15EN Intended use B40 DC/AC

Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.). Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate. Ensure that the ventilation slots are not covered. Do not fill the inner container with ice or fluid. Never immerse the device in water. Protect the device and the cable against heat and moisture. 3 Intended use In compressor mode the cooler is suitable for cooling and deep freezing foodstuffs. In thermoelectric mode the cooler is only suitable for cooling foodstuffs. The device is designed for use with: a 12 V vehicle electrics socket of a car (such as a cigarette lighter), boat or caravan (see voltage specification on the type plate) a 230 V AC mains supply The appliance may also be used for camping use. The appliance shall not to be exposed to rain.

CAUTION! Health hazard! If you wish to cool medicines, please check if the cooling capacity of the device is suitable for the medicine in question. 4 Scope of delivery No. in fig. 1, page 3Quantity Description1 1 Cooling device– 1 Instruction manual _B40.book Seite 8 Mittwoch, 20. April 2011 3:28 15EN B40 DC/AC Accessories

5 Accessories 6 Technical description The hybrid cooler is suitable for portable use. It is equipped with two separate cooling systems. The device features a Peltier cooling system with heat discharged by a fan, as well as a compressor cooling system. The cooling system is non-wearing. In thermoelectric mode (connection to 12 Vg), it can cool goods down to max. 20 °C below ambient temperature and keep them cool. In compressor mode (connection to 230 V), it can cool goods down to –15 °C and keep them cool. In compressor mode, you can use the continuously variable thermostat to set the temperature within a range from +12 °C to –15 °C.

6.1 Description of the device

CAUTION! Health hazard! Food may only be stored in its original packaging or in suitable containers.

NOTE Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and mainte- nance” on page 12). A few water drops may form inside the cooler if it has been cool- ing for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.

7.1 Energy saving tips

Choose a well ventilated installation location which is protected against direct sunlight. Allow warm food to cool down first before placing it in the device to keep cool. Do not open the cooling device more often than necessary. Do not leave the cooler unit open for longer than necessary. _B40.book Seite 10 Mittwoch, 20. April 2011 3:28 15EN B40 DC/AC Operation

NOTICE! Risk of damage Only operate the device from a single energy source. Simultaneous use of the thermoelectric cooling system and the compressor is not permitted. Ensure that the objects or goods placed in the cooling device are suitable for cooling to the selected temperature. Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers. Ensure that your cooler is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents. ➤ Place the cooler on a firm base. Connecting the cooler to 12 V (thermoelectric mode)

NOTE In thermoelectric mode, the thermostat has no function and the device cannot deep freeze. ➤ Make sure the cable between the cooler and the battery is protected by a fuse (maximum 5 A). ➤ Plug the 12-V connection cable (fig. 1 2, page 3) into the cigarette lighter socket or a 12-V socket in the vehicle. ✓ The cooler starts cooling the interior. ➤ To switch off the cooler: – Disconnect the plug. – Wind the cable around the two holders on the back of the device for storage.

NOTE Disconnect the cooler from the battery when the engine is not running, as otherwise the battery will run down. Connecting the cooler to 230 V (compressor mode) ➤ Connect the 230-V connection cable (fig. 1 3, page 3) to the 230-V AC mains supply. ➤ Open the lid of the thermostat (fig. 2 3, page 3) by pressing down on it. _B40.book Seite 11 Mittwoch, 20. April 2011 3:28 15EN Cleaning and maintenance B40 DC/AC

NOTE Press down on the lid again to close it. ➤ Turn the thermostat (fig. 2 3, page 3) clockwise to the required position.

NOTE The further you turn the thermostat towards “MAX”, the lower the refrigerating temperature. ✓ The cooler starts cooling the interior. ➤ To switch off the cooler: – Turn the thermostat (fig. 2 3, page 3) anti-clockwise to “0”. – Disconnect the plug. – Wind the cable around the two holders on the back of the device for storage.

7.3 Connecting to the cigarette lighter

NOTE If you connect the cooler to the cigarette lighter, remember that the ignition must be turned on to supply it with power. 8 Cleaning and maintenance

WARNING! Always disconnect the device from the mains before you clean and service it.

NOTICE! Risk of damage Never clean the cooler under running water or in dish water. Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler. ➤ Occasionally clean the device interior and exterior with a damp cloth. _B40.book Seite 12 Mittwoch, 20. April 2011 3:28 15EN B40 DC/AC Troubleshooting

9 Troubleshooting 10 Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. Problem Possible cause Suggested remedyYour device is not work-ing (plug is inserted).There is no voltage flow-ing from the DC socket (cigarette lighter) in your vehicle.The ignition must be switched on in most vehicles to supply current to the cigarette lighter.No voltage present in the AC voltage socket.Try using another plug socket.The inner fan or the cooling element or the compressor is defective.This can only be repaired by an authorised repair centre.When operating from the DC socket (cigarette lighter):The ignition is on and the cooler is not working.The fuse of the DC plug is dirty. This results in a poor electrical contact.If the plug of your cooler becomes very warm in the DC socket fitting, either the fitting must be cleaned or the plug has not been assembled correctly.The fuse of the DC plug has blown.Replace the fuse of the DC plug with one of the same rating (fig. 3 1, page 4).The vehicle fuse has blown.Replace the vehicle's DC socket fuse (usually 15 A). Please refer to the operating manual of your vehicle. _B40.book Seite 13 Mittwoch, 20. April 2011 3:28 15EN Technical data B40 DC/AC
