COOL BOXES MCG15 MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 1 Freitag, 16. April 2021 2:17 14© 2021 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 2 Freitag, 16. April 2021 2:17 14MCG15

DANGER! Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 4 Freitag, 16. April 2021 2:17 14EN MCG15 Safety instructions

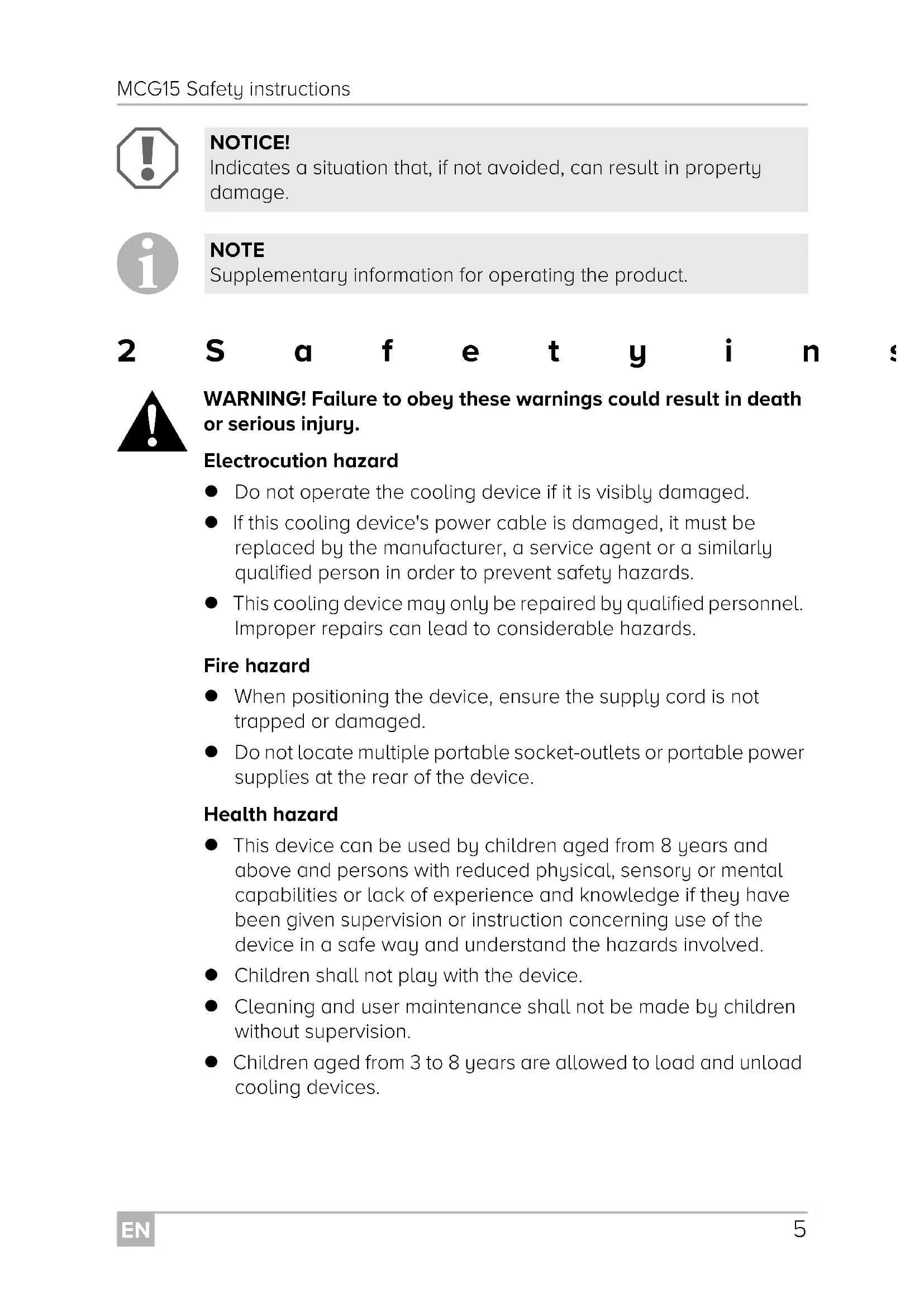

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard Do not operate the cooling device if it is visibly damaged. If this cooling device's power cable is damaged, it must be replaced by the manufacturer, a service agent or a similarly qualified person in order to prevent safety hazards. This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Fire hazard When positioning the device, ensure the supply cord is not trapped or damaged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device. Health hazard This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload cooling devices. NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 5 Freitag, 16. April 2021 2:17 14EN Safety instructions MCG15

Explosion hazard Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard Before starting the cooling device, ensure that the power supply line and the plug are dry. Disconnect the cooling device from the power supply – before each cleaning and maintenance – after every use Health hazard To avoid contamination of food, please respect the following instructions: Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool. Food may only be stored in its original packaging or in suitable containers. Opening the cooling device for long periods can cause signifi- cant increase of the temperature in the compartments of the device. Clean regularly surfaces that can come in contact with food and accessible drainage systems. If the device is left empty for long periods: – Switch off the device. – Defrost the device. – Clean and dry the device. – Leave the lid open to prevent mould developing within the device.

NOTICE! Damage hazard Check that the voltage specification on the type plate corresponds to that of the energy supply. Only connect the cooling device as follows: – With the DC connection cable to a DC power supply in the vehicle – Or with the AC connection cable to an AC power supply Never pull the plug out of the socket by the cable. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 6 Freitag, 16. April 2021 2:17 14EN MCG15 Safety instructions

If the cooling device is connected to a DC outlet: Disconnect the cooling device and other power consuming devices from the bat- tery before connecting a quick charging device. If the cooling device is connected to a DC outlet: Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery. The cooling device is not suitable for transporting caustic materials or materials containing solvents. The insulation of the cooling device contains flammable cyclo- pentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center. Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose. Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.). Risk of overheating! Ensure at all times that there is a minimum of 50 mm ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components. Do not place the cooling device in closed compartments or areas with none or minimal air flow. Ensure that the ventilation openings are not covered. Do not fill the inner container with ice or fluids. Never immerse the cooling device in water. Protect the cooling device and cables against heat and moisture. The device shall not to be exposed to rain. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 7 Freitag, 16. April 2021 2:17 14EN Scope of delivery MCG15

3Scope of delivery 4 Intended use The cooling box is suitable for cooling food. The cooling box is also suitable for use on vehicles. The cooling box is designed to be operated from a DC power supply socket of a vehicle or from an AC power supply. The cooling box is suitable for camping use. The cooling box is not suitable for: storage of corrosive, caustic or solvent-containing substances freezing of food This cooling box is not intended to be used as a built-in appliance. This cooling box is only suitable for the intended purpose and application in accordance with these instructions. This manual provides information that is necessary for proper installation and/or operation of the cooling box. Poor installation and/or improper operat- ing or maintenance will result in unsatisfactory performance and a possible failure. The manufacturer accepts no liability for any injury or damage to the product resulting from: Incorrect assembly or connection, including excess voltage Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer Alterations to the product without express permission from the manufac- turer Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. Quantity Description 1Cooler 1 DC connection cable 1 AC connection cable 1Operating manual MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 8 Freitag, 16. April 2021 2:17 14EN MCG15 Function description

5 Function description The cooler can chill products and keep them cool. A low maintenance refrig- erant circuit with compressor provides the cooling. The generous insulation and powerful compressor ensure efficient and fast cooling. The cooler is portable. The cooler can withstand a short-term inclination of 30°, for example on boats.

5.1 Scope of functions

A battery monitor to protect the vehicle battery switches off automatically at low battery voltage Electronic system to prevent polarity reversal Display with temperature gauge

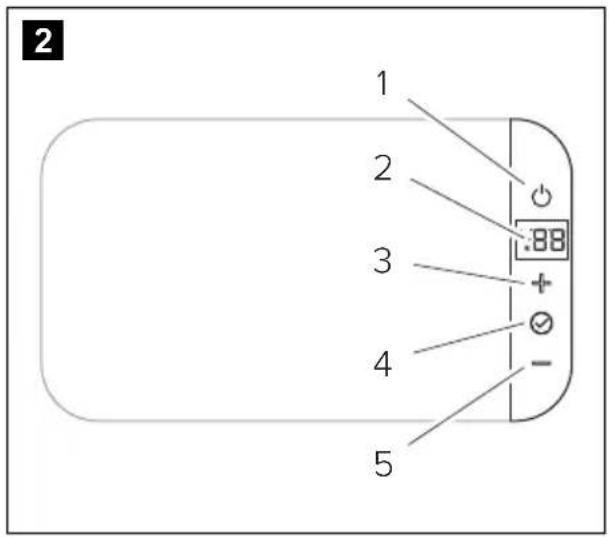

POWER “P” Switches the cooler on or off when the button is pressed for two seconds 2 Display screen Shows the information 3 “+” To increase the value press the button once. 4 To enter setting mode press the button once. To set the temperature ( –18 °C to +20 °C) press the button twice and choose a value using “+” and “-”. The set tempera- ture will flash 3 times. The flashing temperature will be saved after 5 seconds. To set the brightness press the button three times and choose a value using “+” and “-” (Bright d0 > d1 > d2 Dark). The setting button will be locked automatically after 15 seconds without any operation. To unlock the buttons press this button for 3 seconds. A beep- ing sound confirms the unlocking. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 9 Freitag, 16. April 2021 2:17 14EN Operation MCG15

Choose a well ventilated location which is protected from direct sunlight. Allow warm food to cool down first before placing it in the cooling device to keep cool. Do not open the cooling device more often than necessary. Do not leave the cooling device open for longer than necessary. If the cooler has a basket: For optimal energy consumption, position the basket according to its position on delivery. On a regularly basis, make sure the lid seal still fits properly. Defrost the cooler once a layer of ice forms. Avoid unnecessarily low temperatures. 5 “–” To decrease the value press the button once.Item Description1DC socket2 Fuse holder3 DC indication patch4 AC indication patch5 Fuse holder6AC socket NOTE Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 15). Item Description Explanation MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 10 Freitag, 16. April 2021 2:17 14EN MCG15 Operation

6.3 Connecting the cooler

Using the fused DC plug

➤ Plug the DC connection cable into the DC voltage socket of the cooler (fig. 3 1, page 3). ➤ Connect the connection cable to a DC power outlet. Connecting to an AC power supply

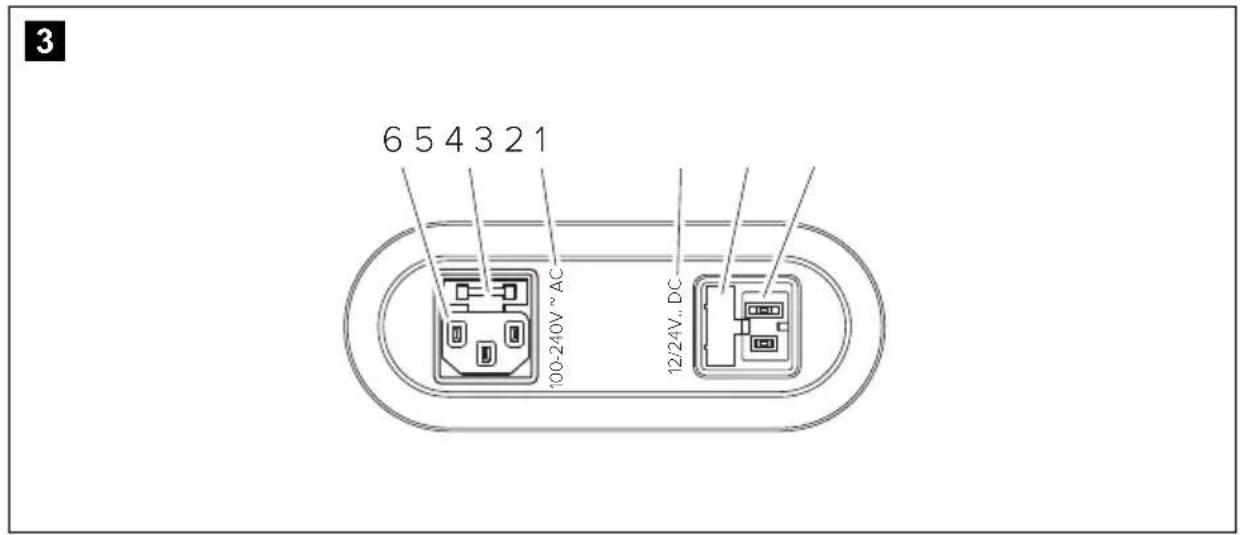

➤ Plug the AC connection cable into the AC voltage socket of the cooler (fig. 3 6,page 3). ➤ Connect the connection cable to an AC power outlet.

6.4 Using the battery monitor

NOTICE! Damage hazard Failure to obey this instruction may result in damage to the device. For protection of the device the DC cable supplied includes a fuse inside the plug. Do not remove the fused DC plug. Only use the DC cable supplied. Disconnect the cooling device and other consumer units from the vehicle battery before you connect the vehicle battery to a quick charging device. Overvoltage can damage the electronics of the cooling device. DANGER! Electrocution hazard Failure to obey these warnings will result in death or serious injury. Never handle plugs and switches with wet hands or if you are standing on a wet surface. If you are operating your cooler on board a boat from a AC power supply, you must install a residual current circuit breaker between the AC power supply and the cooler. Seek advice from a trained technician. NOTICE! Damage hazard Failure to obey this instruction may result in damage to the battery. When switched off by the battery monitor, the battery will no longer be fully charged. Avoid starting repeatedly or operating current consumers without longer charging phases. Ensure that the battery is recharged. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 11 Freitag, 16. April 2021 2:17 14EN Operation MCG15

The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board DC supply. If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level. The cooler will switch back on once the battery has been recharged to the restart voltage level.

6.5 Using the cooler

➤ Place the cooler on a firm foundation.

➤ Connect the cooler (chapter “Connecting the cooler” on page 11). ✔ The cooler starts cooling the interior.

Switch-off voltage at 12 V 11 V Restart-voltage at 12 V 12 V Switch-off voltage at 24 V

Restart voltage at 24 V

NOTICE! Damage hazard Failure to obey this instruction may result in damage to the device. Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate. We recommend keeping a gap of at least 50 mm around ventilation holes. NOTE Place the cooler as shown (fig. 1, page 3). If you operate the cooler in a different orientation it can be damaged.

NOTICE! EXCESSIVELY LOW TEMPERATURE HAZARD

Failure to obey this instruction may result in damage to the objects placed in the cooler. Ensure that only those objects are placed in the cooler that are intended to be cooled at the selected temperature. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 12 Freitag, 16. April 2021 2:17 14EN MCG15 Operation

To avoid food waste, note the following: Keep temperature fluctuation as low as possible. Only open the cooling box as often and for as long as necessary. Store the foodstuff in such a way that the air can still circulate well. Adjust the temperature to the quantity and type of the foodstuff. Foodstuff can easily absorb or release odor or taste. Always store food- stuff covered or in closed containers/bottles.

6.6 Latching the cooler lid

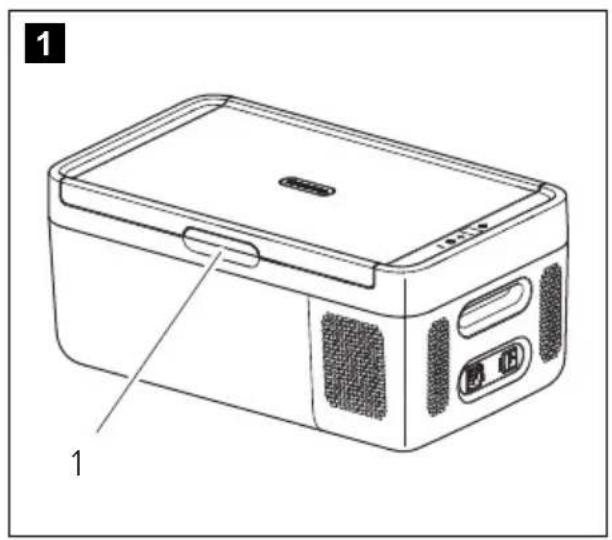

➤ Lift the latch (fig. 1, page 3) and close the lid. ➤ Release the latch. ✔ The latch audibly clicks in place and secures the cooling device lid.

6.7 Setting the temperature

➤ To unlock the buttons press the button for 3 seconds(fig. 2 4, page 3). ✔ A beeping sound confirms the unlocking. ➤ To enter setting mode press the button once. ➤ To enter temperature settings press the button once. ➤ Use the “+” (fig. 2 3, page 3) and “–” (fig. 2 5, page 3) buttons to select the cooling temperature. ✔ The set temperature appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed again.

6.8 Switching off the cooler

➤ Empty the cooler. NOTE – Displayed temperature The temperature displayed is that of the middle of the interior. The temperature elsewhere can deviate from this temperature. NOTE When operating from a battery, the display switches off automati- cally if the battery voltage is low. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 13 Freitag, 16. April 2021 2:17 14EN Operation MCG15

➤ Switch the cooler off. ➤ Pull out the connection cable. If you do not want to use the cooler for a longer period of time: ➤ Leave the lid slightly open. This prevents odor build-up.

6.9 Defrosting the cooler

Humidity can form frost in the interior of the cooling device or on the evapora- tor. This reduces the cooling capacity.

To defrost the cooler, proceed as follows: ➤ Take out the contents of the cooler. ➤ If necessary, place them in another cooling device to keep them cool. ➤ Switch off the device. ➤ Leave the lid open. ➤ Wipe off the defrosted water.

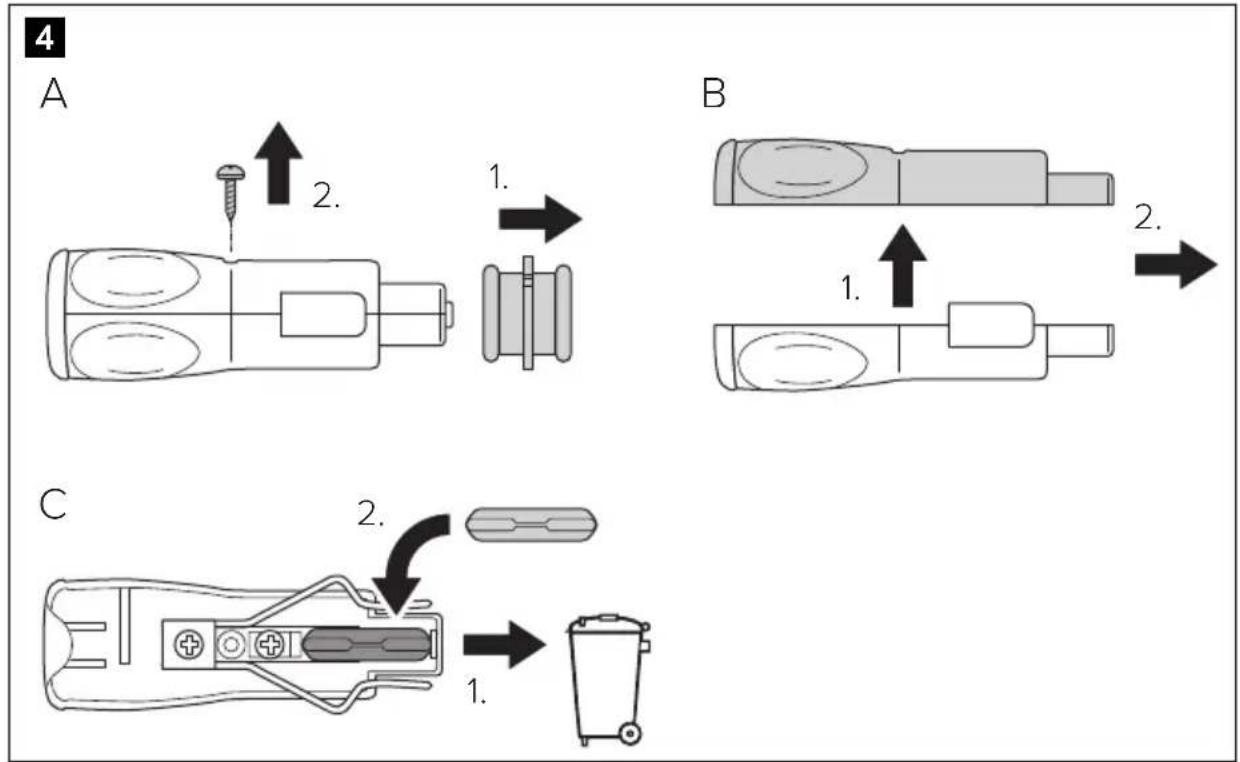

➤ Disconnect the power supply to the device. ➤ Remove the connection cable. ➤ Replace the fuse (8 A 32 V) as shown (fig. 4, page 3). ➤ Reconnect the power supply to the device. NOTICE! Damage hazard Failure to obey this instruction may result in damage to the device. Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place. WARNING! Electrocution hazard Failure to obey this warning will result in death or serious injury. Disconnect the power supply and the connection cable before you replace the device fuse. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 14 Freitag, 16. April 2021 2:17 14EN MCG15 Cleaning and maintenance

7 Cleaning and maintenance

➤ Occasionally clean the device interior and exterior with a damp cloth. ➤ Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged. WARNING! Electrocution hazard Failure to obey this warning could result in death or serious injury. Always disconnect the device from the power supply before you clean and service it. NOTICE! Damage hazard Failure to obey these instructions may result in damage to the device. Never clean the cooler under running water or in dish water. Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 15 Freitag, 16. April 2021 2:17 14EN Troubleshooting MCG15

8 Troubleshooting Fault Possible cause Suggested remedy Device does not function (DC plug is inserted). There is no voltage present in the DC power socket. The ignition must be switched on in most vehicles to apply current to the DC power socket. Defective compressor. This can only be repaired by an authorised repair centre. Voltage of the vehi- cle battery is too low. Test the vehicle battery and charge it as needed. The DC power socket is dirty. This results in a poor electrical con- tact. If the plug of your cooler becomes very warm in the DC power socket, either the DC power socket must be cleaned or the plug has not been assembled correctly. The fuse of the DC plug has blown. Replace the fuse (8 A) in the DC plug, see chapter “Replacing the fuse” on page 14. The vehicle fuse has blown. Replace the vehicle’s DC power socket fuse. Please refer to your vehi- cle’s operating manual. Device does not function (AC plug is inserted). There is no voltage present in the AC power socket. Make sure the connection for AC plug is good. Defective compressor. This can only be repaired by an authorised repair centre. The AC power socket is dirty. This results in a poor electrical con- tact. If the plug of your cooler becomes very warm in the AC power socket, either the AC power socket must be cleaned or the plug has not been assembled correctly. The display shows an error message (e.g. “E1”) and the device does not cool. The device has switched off due to an internal fault. This can only be repaired by an authorised repair centre. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 16 Freitag, 16. April 2021 2:17 14EN MCG15 Warranty

9 Warranty The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see dometic.com/dealer) or your retailer. For repair and warranty processing, please include the following documents when you send in the device: A copy of the receipt with purchasing date A reason for the claim or description of the fault 10 Disposal ➤ Place the packaging material in the appropriate recycling waste bins, wherever possible.

If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. MobicoolMCG15_OPM_4445103306_EMEA16_202x-xx-xx.book Seite 17 Freitag, 16. April 2021 2:17 14EN Technical data MCG15

Test/certificates: The coolant circuit contains R134a. This product contains fluorinated greenhouse gases. The cooling unit is hermetically sealed. MCG15Connection voltage: 12/24 Vg100 to 240 VwRated current: 12 Vg: 4 A24 Vg: 2 A100 Vw: 0.85 A240 Vw: 0.4 ACooling capacity: –18 °C to +20 °CTotal volume: 15 lClimate class: NAmbient temperature: +16 °C to +32 °CRefrigerant volume: 35 g
