USER MANUAL T26 Mobicool

EN Thermoelectric cooler Operating manual .... 3

Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Contents

1 Explanation of symbols 4
2 Safety instructions....4
3 Intended use....6
4 Accessories....7
5 Technical description .... 7
6 Operation ....8
7 Cleaning and maintenance....11
8 Troubleshooting....12
9 Disposal....12
10 Technical data 12

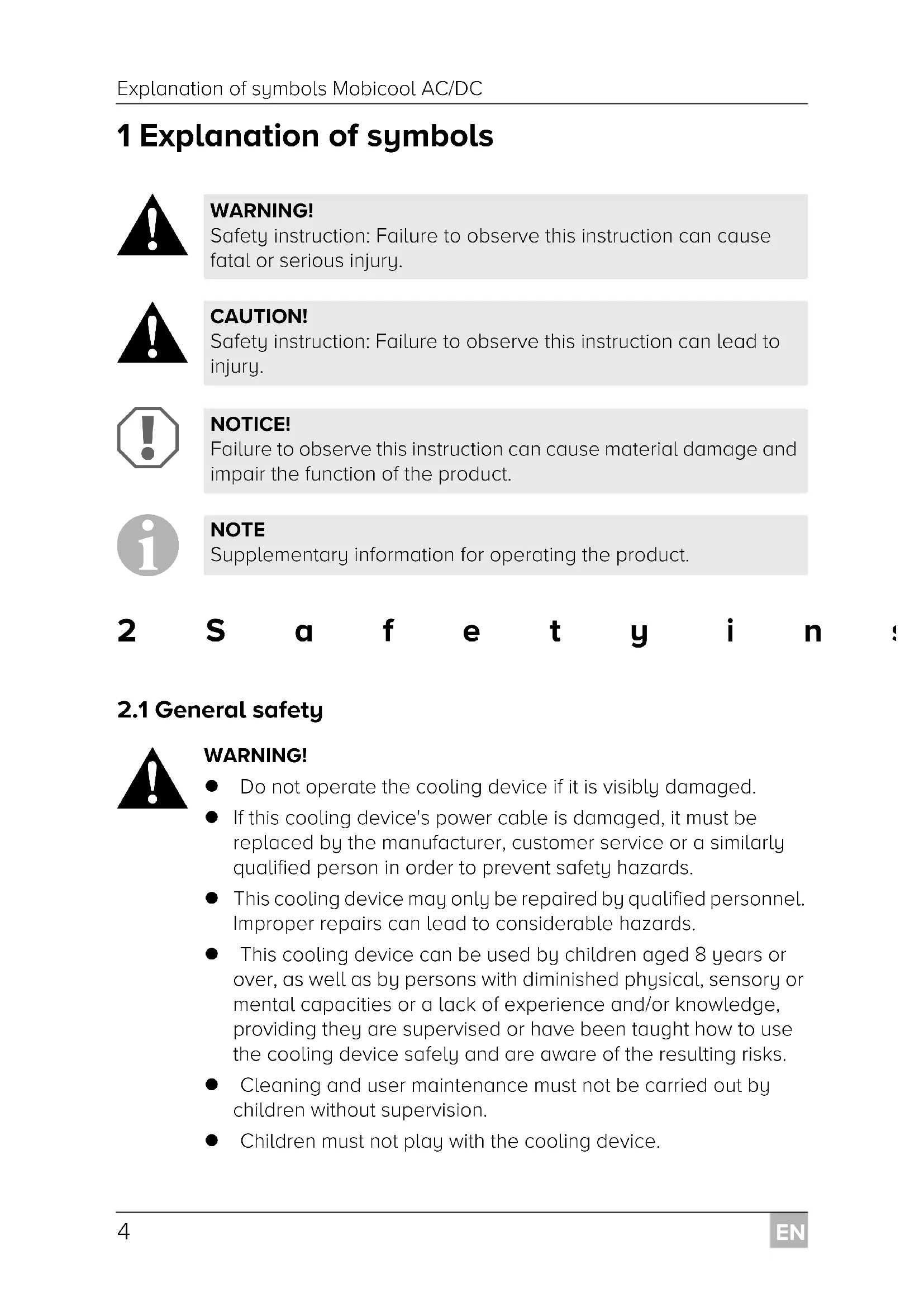

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

2 S a f e t y i n :

2.1 General safety

WARNING!

• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• This cooling device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the cooling device safely and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children without supervision.
  ● Children must not play with the cooling device.

● Children must be supervised to ensure that they do not play with the cooling device.
● Always keep and use the cooling device out of the reach of children under the age of 8 years.
- Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION!

• Disconnect the cooling device from the power supply
  – before each cleaning and maintenance
• after every use

- Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
  ● Only connect the cooling device as follows:
• With the DC connection cable to a DC power supply in the vehicle
• Or with the AC connection cable to the AC power supply

● Never pull the plug out of the socket by the cable.
- If the cooling device is connected to the DC outlet: Disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device.
- If the cooling device is connected to the DC outlet: Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery.
- The cooling device is not suitable for transporting caustic materials or materials containing solvents.
- The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling.

2.2 Operating the cooling device safely

CAUTION!

- Before starting the cooling device, ensure that the power supply line and the plug are dry.

NOTICE!

• Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
  ● Danger of overheating!

Ensure at all times that there is a minimum of 50 mm ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components.

Do not place the cooling device in closed compartments or areas with none or minimal air flow.

● Ensure that the ventilation openings are not covered.
- Do not fill the inner container with ice or fluids.
● Never immerse the cooling device in water.
- Protect the cooling device and the cable against heat and moisture.

3 Intended use

The cooling device is suitable for cooling foodstuffs.

The device is also able to heat using the additional heating feature.

The device is designed for use with:

● a DC vehicle electrics socket of a car (such as a cigarette lighter), boat or caravan (see voltage specification on the type plate)

● a 230 V AC mains supply

The appliance may also be used for camping use. The appliance must not to be exposed to rain.

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.

4 Accessories

Available as accessory (not included in scope of delivery):

Designation Description

Y24 24/12 DC/DC converter

for connecting 12 V--- cooling device to 24 V---

5 Technical description

The cooler is portable. It can cool items and keep them cool or heat items and keep them warm (with the additional heating feature) to max. 65 °C.

Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan.

When the cooler is connected to a 230 V AC mains supply, it can be used in two different operating modes:

● ECO mode: the cooler consumes less energy
● MAX mode: the cooler reaches maximum cooling capacity

The desired cooling capacity is selected with the cooling capacity control:

▶ To increase the cooling capacity, turn the cooling capacity control clockwise.
For the maximum cooling capacity turn the cooling capacity control clockwise all the way to the stop (max position).
▶ To decrease the cooling capacity, turn the cooling capacity control counterclockwise.
To turn off the cooler, turn the cooling capacity control counterclockwise all the way to the stop (off position).

When the cooler is connected to the DC socket, the cooling capacity cannot be adjusted. In this case the cooler cools maximal.

5.1 Optional accessories

The device is available in different versions. The version you bought may have the following additional features:

• Heating
  The contents of your cooler can be warmed or kept warm to max. 65 °C.
  ● ABS (activatable battery protection)

An integrated battery monitor can be switched on to protect your vehicle battery from discharging to dangerously low levels.

- Insulating lid

The lightweight insulating lid can be used as an alternative to the unit lid when transporting. Make sure that the insulating lid does not cool.

- Bottle hatch

A single drinks bottle can be removed via the bottle hatch.

- Additional pockets

Pockets on the outside provide additional storage space. Note that objects stored in them are not cooled.

6 O p e r a t i o r

CAUTION! Health hazard!

Food may only be stored in its original packaging or in suitable containers.

NOTICE! Risk of damage

• Ensure that all objects placed in the cooler are suitable for cooling or heating (with the additional heating feature) to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively refrigerated. Drinks or liquid foods expand when they freeze and can therefore destroy the glass containers.
• Ensure that your cooler is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents.

NOTE

• Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 11).
• A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary.

NOTE For coolers with fold in handles

If the handle is folded back or if the cooler is being carried, the lid is locked. You can only open the lid when the handle is folded forwards.

6.1 Energy saving tips

• Choose a well ventilated location which is protected from direct sunlight.
• If you want to set an increased energy efficiency and a limited cooling capacity for the cooler device, use the device's ECO mode.
• Allow warm food to cool down first before placing it in the cooling device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
• Remove individual drinks bottles through the bottle hatch, if present.

6.2 Using the cooler in DC mode

▶Place the cooler on a firm base.
▶Connect the DC cable to the cigarette lighter or the DC socket in the vehicle.

Coolers without the additional heating feature

√The cooler starts cooling the interior.
▶To switch off the cooler, disconnect the plug.

Coolers with the additional heating feature

▶Push the switch on the control panel to HOT or COLD to switch the cooler on.
√The indicators on the control panel show you the operating mode:

Operating display Operating mode

Red Heating

Green Cooling

√The cooler starts cooling/heating the interior.
▶To switch off the cooler,

- push the switch on the control panel from HOT or COLD to the OFF position,

- disconnect the plug.

6.3 Using the cooler in AC mode

▶Place the cooler on a firm base.
▶Connect the 230 V connection cable to the AC mains.

▶Turn the cooling capacity control to the desired position.
For the additional ABS feature: Switch the battery monitor off (OFF position).

Coolers without the additional heating feature

√The cooler starts cooling the interior.
▶To switch off the cooler, turn the cooling capacity control to the OFF position.

Coolers with the additional heating feature

▶Push the switch on the control panel to HOT or COLD to switch the cooler on.
√The indicators on the control panel show you the operating mode:

Operating display Operating mode

Red Heating

Green Cooling

√The cooler starts cooling/heating the interior.
▶To switch off the cooler, push the switch on the control panel from HOT or COLD to the OFF position.

6.4 Connecting to vehicle power

NOTE

If you connect the cooling device to the vehicle power, remember that you may have to turn on the ignition to supply it with power.

7 Cleaning and maintenance

WARNING!

Always disconnect the device from the power supply before you clean and service it.

NOTICE! Risk of damage

● Never clean the cooler under running water or in dish water.
- Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

▶Occasionally clean the device interior and exterior with a damp cloth.
▶Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

8 Troubleshooting

Problem Possible cause Suggested remedy
Your device is not working (plug is inserted).	There is no voltage flowing from the DC socket (cigarette lighter) in your vehicle.	The ignition must be switched on in most vehicles to supply current to the cigarette lighter.
	No voltage present in the AC voltage socket.	Try using another plug socket.
	The inner fan or the cooling element is defective.	This can only be repaired by an authorised repair centre.
When operating from the DC socket (cigarette lighter): The ignition is on and the cooler is not working.	The fitting of the DC plug is dirty. This results in a poor electrical contact.	If the plug of your cooler becomes very warm in the DC socket fitting, either the fitting must be cleaned or the plug has not been assembled correctly.
	The fuse of the DC plug has blown.	Replace the fuse of the DC plug with one of the same rating.
	The vehicle fuse has blown.	Replace the vehicle's DC socket fuse (usually 15 A). Please refer to the operating manual of your vehicle.

9 D i s p o s a l

▶Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

10 Technical data

Technical data can be found on the type plate and in the table, page 174.
