HD 660 S - Earphones SENNHEISER - Free user manual and instructions

Technical Specifications	Type: Open, dynamic
Impedance	150 ohms
Frequency Response	10 - 41,000 Hz
Sound Pressure	104 dB
Weight	260 g
Connectivity	Detachable cable, 6.3 mm (1/4") jack
Usage	Ideal for home listening, mixing, and mastering
Maintenance	Regularly clean the ear pads, replace cables if necessary
Safety	Avoid prolonged exposure to high volumes to prevent hearing damage
General Information	Designed for audiophiles, offers exceptional sound quality

Frequently Asked Questions - HD 660 S SENNHEISER

What type of connection do the SENNHEISER HD 660 S headphones use?

The SENNHEISER HD 660 S headphones use a wired connection with a 6.35 mm jack connector.

Are the SENNHEISER HD 660 S compatible with mobile devices?

Yes, but you will need an adapter from 6.35 mm jack to 3.5 mm for mobile devices.

How can I clean my SENNHEISER HD 660 S headphones?

Use a soft, dry cloth to clean the ear pads and headphone structure. Avoid using chemicals or water.

What should I do if the headphone sound is low?

Check the volume of your source device, ensure the headphones are properly connected, and test with another device.

Do the SENNHEISER HD 660 S have a special impedance?

Yes, these headphones have an impedance of 150 ohms, making them ideal for use with dedicated amplifiers.

What is the frequency response range of the SENNHEISER HD 660 S?

The frequency response range of the SENNHEISER HD 660 S is from 10 Hz to 41 kHz.

Are the SENNHEISER HD 660 S headphones suitable for long listening sessions?

Yes, they are designed for comfort with velvet ear pads and lightweight, allowing extended listening sessions.

How can I tell if my headphones are broken?

Test the headphones with multiple devices. If the problem persists on all devices, there may be a hardware issue.

Are the SENNHEISER HD 660 S noise isolating?

No, these headphones are semi-open, meaning they do not completely block outside noise.

Where can I buy replacement parts for the SENNHEISER HD 660 S?

You can buy replacement parts on the official Sennheiser website or from authorized dealers.

USER MANUAL HD 660 S SENNHEISER

High-definition open-back headphones

DE Bedienungsanleitung
EN Instruction manual
JA 取掇說明書
FR Notice d'emploi
ES Instrucciones de manejo
PT Manual de instruções
NL Gebruiksaanwijzing
IT Istruzioni per l'uso
DA Betjeningsvejledning
SE Bruksanvisning
FI Kayttöohje
EL O8nyiec 5eitoupyia
PL Instrukcja obslugi
TR Kullanma kilavuzu
RU INHCTpyKcIyno 3KcNlyaTaCIN
ZH 使用说明书

TW使用說明書
K0
ID Bukupetunjuk
EE Kasutusjuhend
LV Lietošanas instrukcija
LT Naudiojimo instrukcija
CS Návod k obssluze
SK Návod na obsluhu
HU Használati utmutató
RO Instruetioni de utiliser
BG PbKOBOdCTBO 3a ekCnNoaTaun
SL Navodila za uporabo
HR Upute za upotrebu

E

Pinbelegung / Pin assignment / ヒン割り当て /

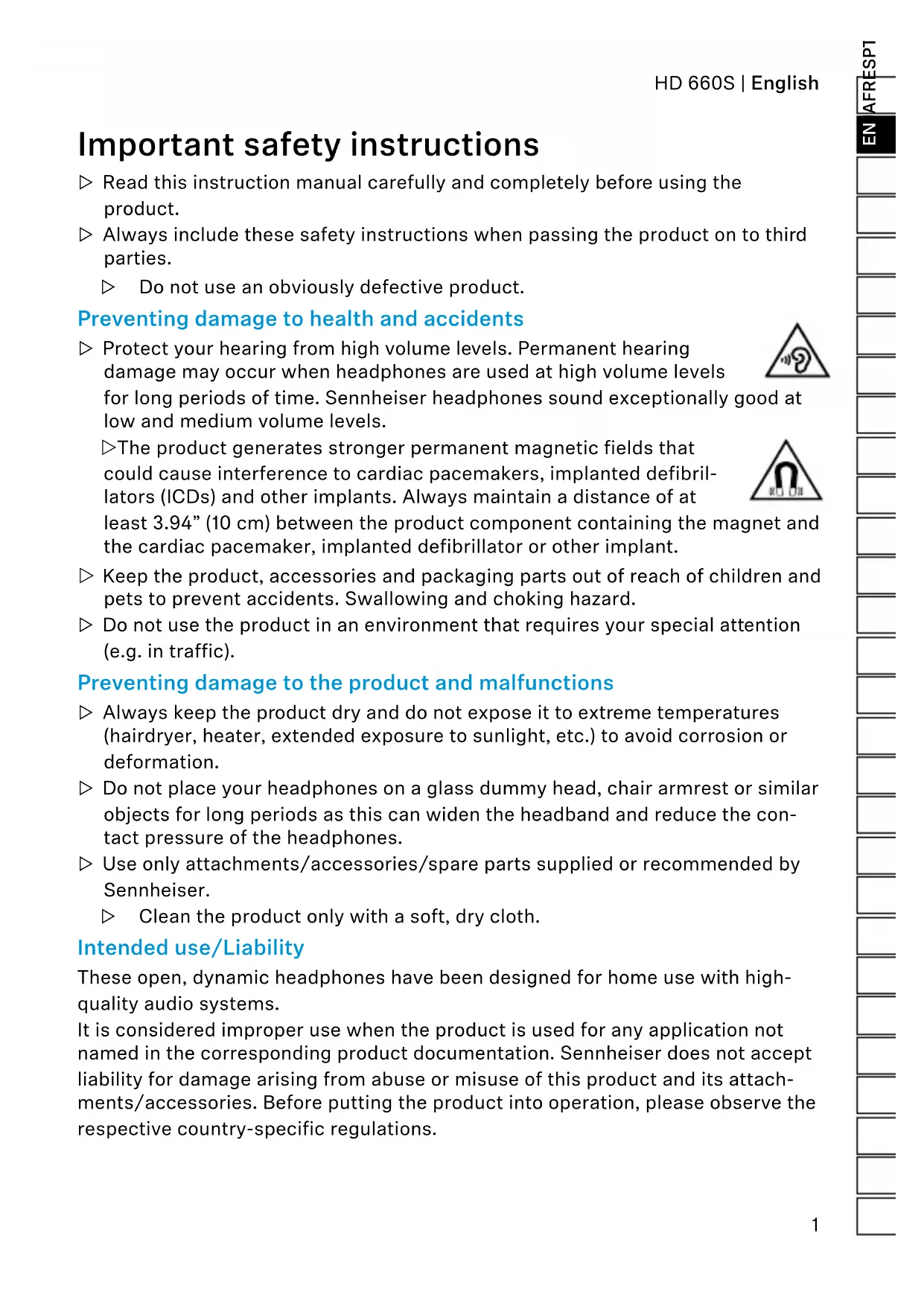

Important safety instructions

Read this instruction manual carefully and completely before using the product.
Always include these safety instructions when passing the product on to third parties.
Do not use an obviously defective product.

Preventing damage to health and accidents

Protect your hearing from high volume levels. Permanent hearing damage may occur when headphones are used at high volume levels for long periods of time. Sennheiser headphones sound exceptionally low and medium volume levels.

The product generates stronger permanent magnetic fields that could cause interference to cardiac pacemakers, implanted defibrillators (ICDs) and other implants. Always maintain a distance of at

least 3.94" (10 cm) between the product component containing the magnet and the cardiac pacemaker, implanted defibrillator or other implant.

• Keep the product, accessories and packaging parts out of reach of children and pets to prevent accidents. Swallowing and choking hazard.
  Do not use the product in an environment that requires your special attention (e.g. in traffic).

Preventing damage to the product and malfunctions

Always keep the product dry and do not expose it to extreme temperatures (hairdryer, heater, extended exposure to sunlight, etc.) to avoid corrosion or deformation.
Do not place your headphones on a glass dummy head, chair armrest or similar objects for long periods as this can widen the headband and reduce the contact pressure of the headphones.
Use only attachments/accessories/spare parts supplied or recommended by Sennheiser.
Clean the product only with a soft, dry cloth.

Intended use/Liability

These open, dynamic headphones have been designed for home use with high-quality audio systems.

It is considered improper use when the product is used for any application not named in the corresponding product documentation. Sennheiser does not accept liability for damage arising from abuse or misuse of this product and its attachments/accessories. Before putting the product into operation, please observe the respective country-specific regulations.

Package contents

1 HD 660S open, dynamic headphones
1 connection cable with 1/4'' (6.35 mm) stereo jack plug (connected ex works), unbalanced
1 connection cable with 4.4mm stereo jack plug, balanced

1 stereo jack adapter

(1/4" (6.35 mm) to 3.5 mm)

1 instruction manual
1 storage box

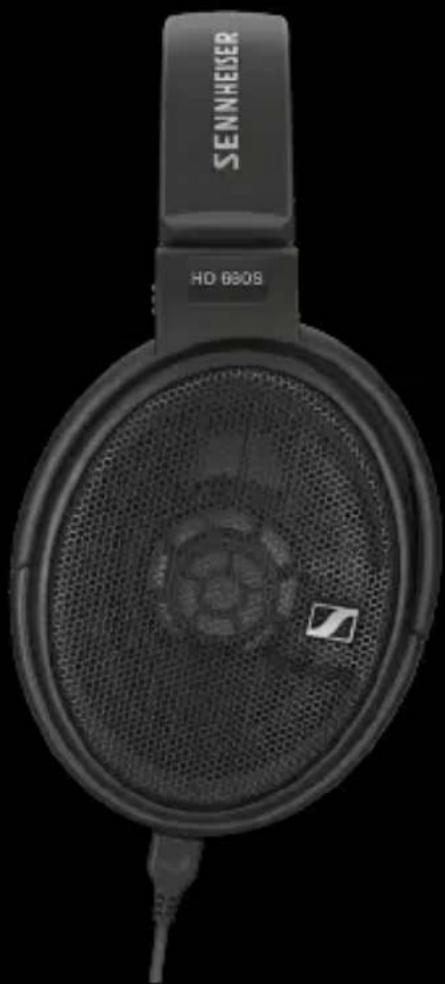

Your HD 660S

The HD 660S retains all the virtues of its legendary predecessor, the HD 650, but also represents a decisive step forward technology-wise. Thanks to advanced simulation possibilities, our engineers were able to further optimize the magnet system and the shape of the diaphragm. The new transducers are meticulously measured for each headphones and are hand-selected in pairs. In terms of sound, the HD 660S sets a new benchmark in its class and masters the balancing act between perfect control and fascinating musicality in a playful way. With powerful bass, seductive timbres and breathtaking clarity, the HD 660S lets you experience the pure joy of music. The Sennheiser HD 660S will inspire you.

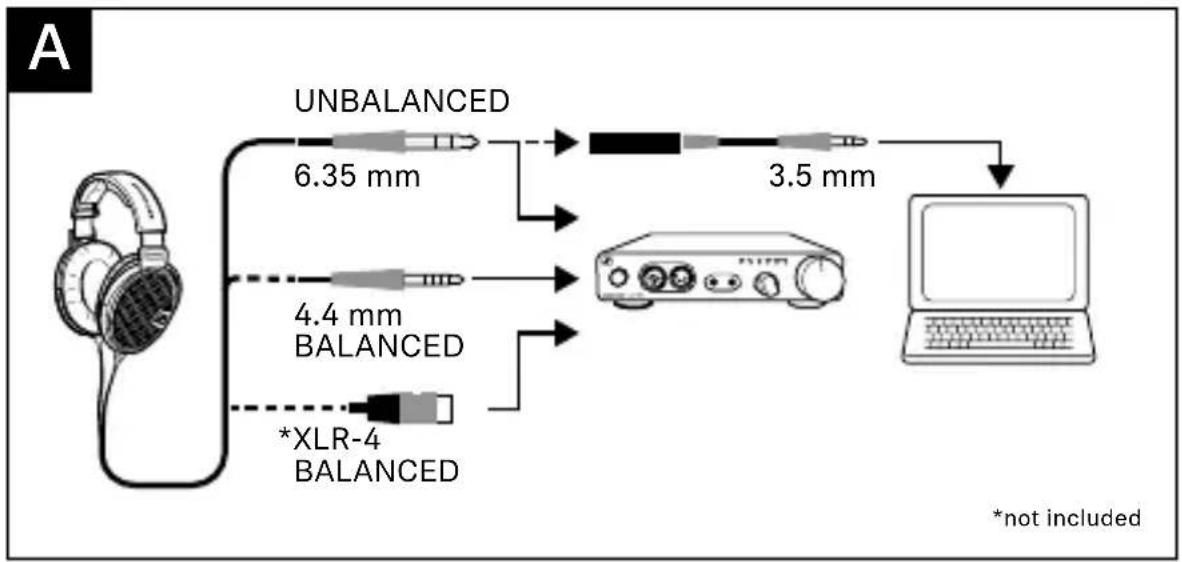

A Connecting the headphones\*

Select the suitable connection cable and, if necessary, an adapter for your audio source to which you want to connect the headphones, and change the connection cable as described in section C:

• 1/4'' (6.35 mm) stereo jack plug, unbalanced (can also be connected to a 3.5 mm stereo jack socket by using the supplied adapter)
• 4.4 mm stereo jack plug, balanced
• XLR-4, balanced (Sennheiser CH 650 S, optional accessory)

Connect the headphones to your audio source.

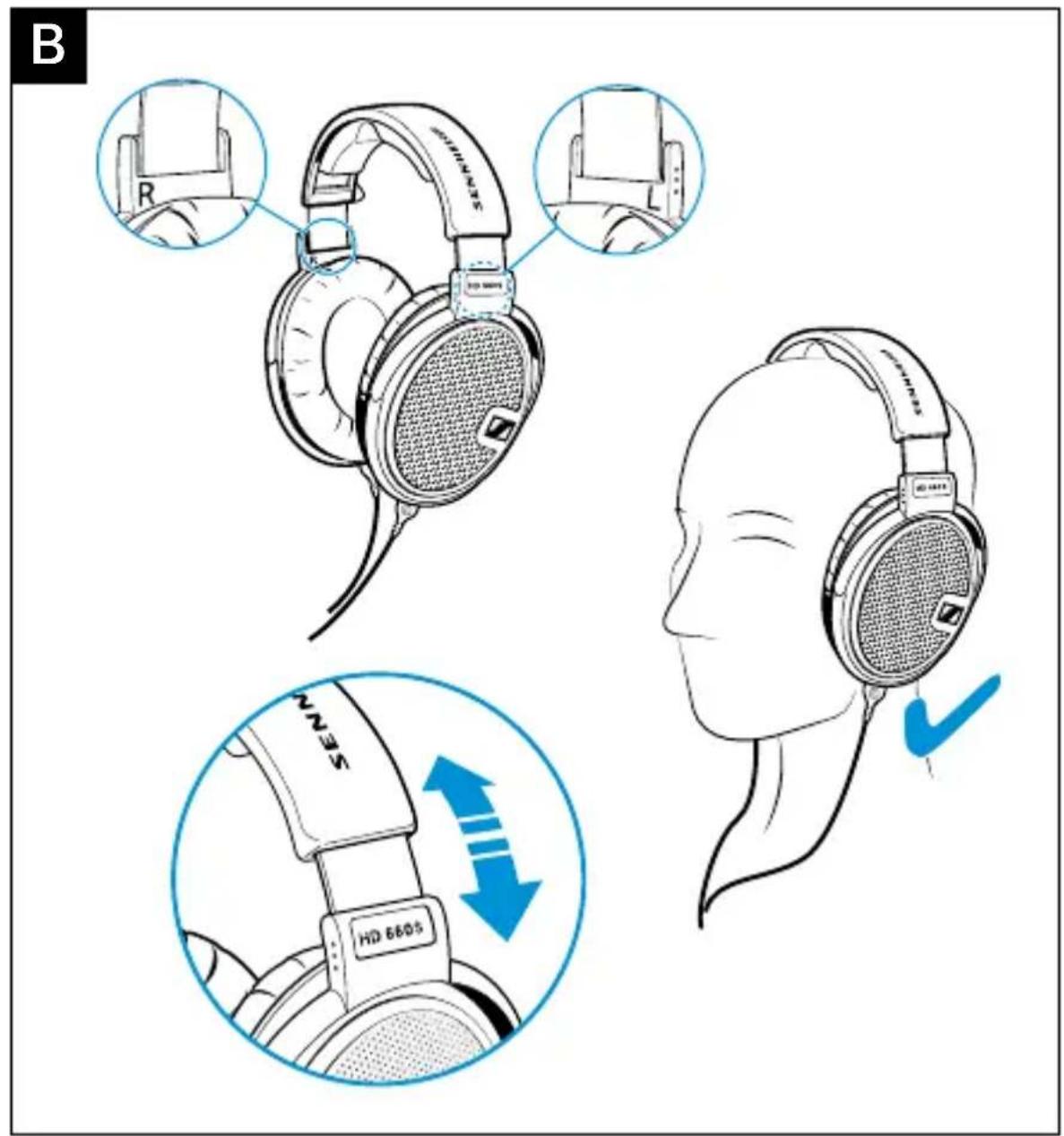

B Putting on the headphones and using them*

Put on your headphones and then pull the ear cups down until they rest comfortably over the ears. Make sure you wear them the right way round by observing the "R" (right) and "L" (left) markings on the ear cup bands.
For optimum sound quality, ensure that the ear cups are not covered.

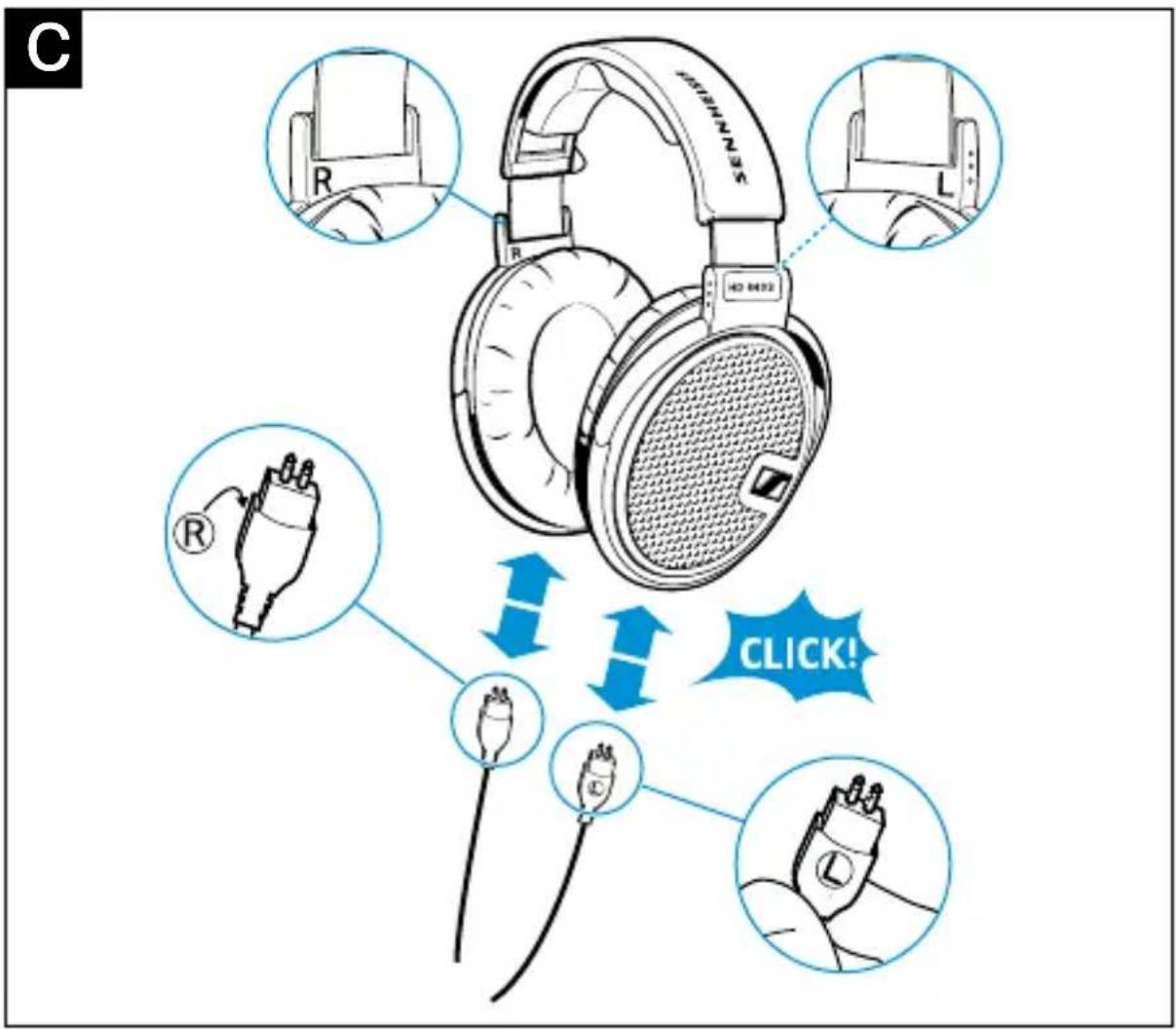

C Changing the connection cable*

Make sure the "R" (right) and "L" (left) markings on the connectors match the markings on the ear cups. The marking on the connectors must point outward.
Insert the connector until it locks into place with an audible click.

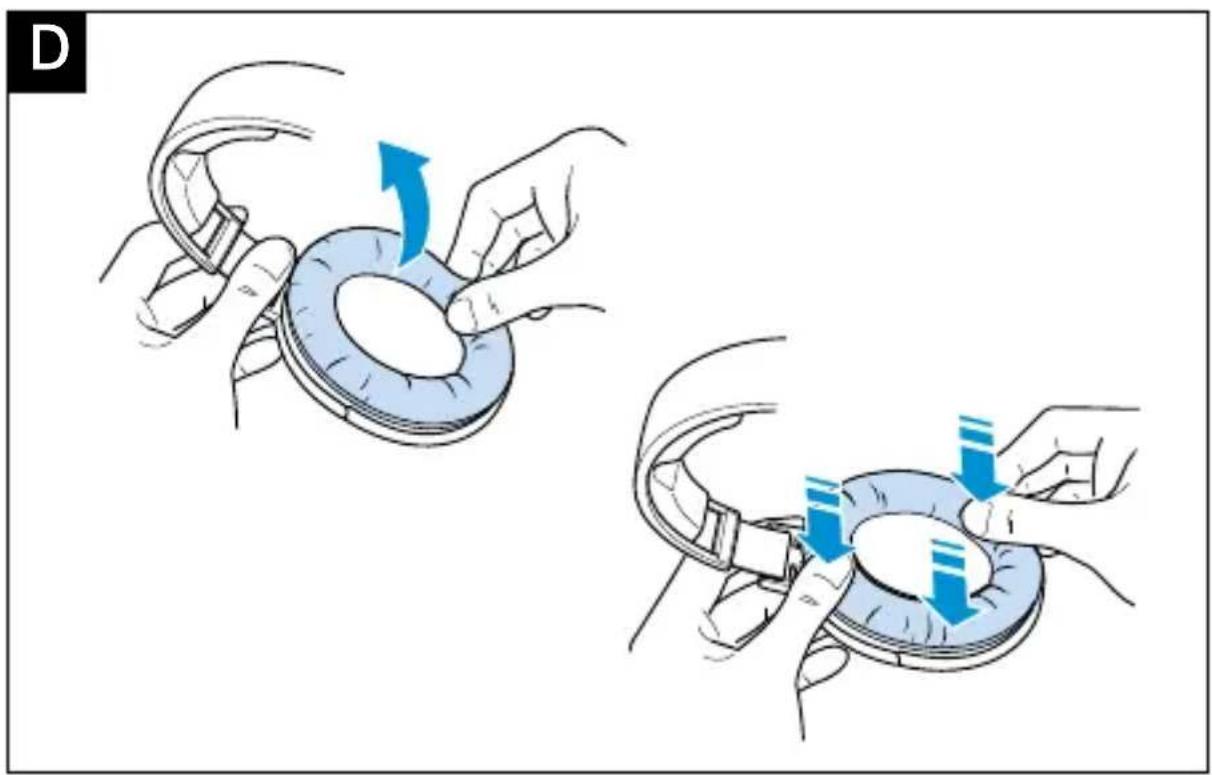

D Replacing the ear pads*

For reasons of hygiene, you should replace the ear pads from time to time. Spare parts are available from your Sennheiser partner. To find a Sennheiser partner in your country, search at www.sennheiser.com.

Grasp behind the ear pads and pull them up and away from the ear cups.
Place the new ear pads onto the ear cups and attach the ear pads by pressing firmly around them.

The headband padding can be replaced by the Sennheiser repair service. Please contact your Sennheiser partner.

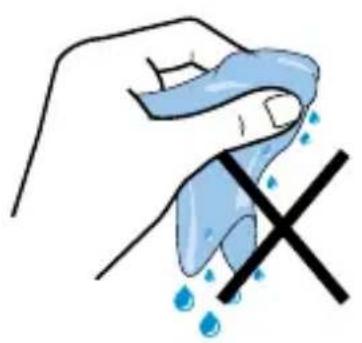

E Cleaning and storing the headphones\*

Clean the product only with a dry and soft cloth.

Store the product in a clean, dust-free place, e.g. in its storage box.

Specifications

Transducer principle dynamic, open
Frequency response 9 to 41,500 Hz (-10 dB)
Frequency characteristic diffuse field equalized
Ear coupling	circum-aural
Contact pressure	approx. 6.0 N ± 1.0 N
Nominal impedance	150 Ω
Sound pressure level at 1 kHz	104 dB at 1 Vrms
Long-term input power	max. 500 mW as per EN 60-268-7
THD	≤ 0.04% (1 kHz, 100 dB)
Cable	oxygen-free copper cable (OFC), 3 m
Connector	stereo jack plug, gold-plated
(see pin assignment on	1/4" (6.35 mm), unbalanced, 3-pin
inside cover page)	4.4 mm, balanced, 5-pin
Weight	approx. 260 g (without cable)
Maximum value of the static magnetic field at the surface	2.5 mT
Operating temperature	-10 °C to +55°C

Manufacturer declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.

For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

FOR AUSTRALIA ONLY

Sennheiser's goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is in addition to other rights or remedies under law. Nothing in this warranty excludes, limits or modifies any liability of Sennheiser which is imposed by law, or limits or modifies any remedy available to the consumer which is granted by law.

To make a claim under this warranty, contact: Sennheiser Technical Services and Spare Parts Sales, c/o Linox, Gate 3, 1 Fox Lane, Erskine Park, 2759, NSW Australia, phone: [phone] email: [e-mail]

All expenses of claiming the warranty will be borne by the person making the claim.

The Sennheiser International Warranty is provided by Sennheiser Australia Pty Ltd (ABN 68 165 388 312), The Zenith, Tower A, L14, 821 Pacific Highway Chatswood NSW 2067, Australia.

In compliance with the following requirements

EU declaration of conformity

RoHS Directive (2011/65/EU)

The full text of the EU declaration of conformity is available at the following internet address: www.sennheiser.com/download.

Notes on disposal

WEEE Directive (2012/19/EU)

The symbol of the crossed-out wheeled bin on the product, the battery/rechargeable battery (if applicable) and/or the packaging indicates that these products must not be disposed of with normal

household waste, but must be disposed of separately at the end of their operational lifetime. For packaging disposal, please observe the legal regulations on waste segregation applicable in your country.

Further information on the recycling of theses products can be obtained from your municipal administration, from the municipal collection points, or from your Sennheiser partner.

The separate collection of waste electrical and electronic equipment, batteries/rechargeable batteries (if applicable) and packagings is used to promote the reuse and recycling and to prevent negative effects caused by e.g. potentially hazardous substances contained in these products. Herewith you make an important contribution to the protection of the environment and public health.

重要安全情报

• Directive RoHS (2011/65/UE)

• Directa RoHS (2011/65/UE)

D Substituir as almofadas\*

www.sennheiser.com/download.

Avfallshantering

WEEE-directivet (2012/19/EU)

RoHS Yonergesi (2011/65/AB)

AB Uygunluk Beyanin tam metni asaigidaki internet adresinde incelenebilir: www.sennheiser.com/download.

OuNTka HayshnKOB n nx xpaHeHne\*

OuHuaTe n3deneToIbKO cyXoMgKo TpAnKoN.

XpaHnTe n3dJIne B uNCTOM, 3aUuIeHHOM OT nbIIN MeCTe, HApPIMep B CpeuaJbHOJ Kopo6Ke dIy XpaHeHry.

Texhnueckne xapaKtepncnkn

www.sennheiser.com/download.

用吉人

WEEE (2012/19/EU)

Baqui daliin 丛LJIeIeJHepEhOaHgA hNtJeHn (HeT)

用法使用，如：

iJ 10000000000000000000000000000000000000000000000000000000000000000000

Olulised ohutusjuhised

www.sennheiser.com/download.

Sila pritlaku cca 6,0 N ± 1,0 N

Impedance 150 Ω

• Directa RoHS (2011/65/UE)

IpeodotbpaTbaHe Ha ets no npodykTa n Ha Hen3npaBHOCTn

Подьржайтпpoукta BинагиВсухОсьстогиЕИ He ro n3naarTe HnToHa ekCTpeMHO HnCKN, HnTO Ha ekCTpeMHO BnCOKN TeMnepaTypn (cewoap, OTOpJIeHne, npoDbIJIKITeHNO n3JaRaHe Na CnBnueBO O6IbYBaHe n T.H.), 3a Da npeDoTbPaTnte 6ba3yBaHe Ha Kopo3nia n DeΦopMaци.
He nocTaBnTe 3a IbIro BpeMe CnyuAnKnTe Ha CTbKneH MaHeKeH, OBeIerAnKa Ha cTOn IIN IOIo6Hn OBeKtN, Tb' KATO TOBa MoKe Da pa3TeIIN JeHTaTa 3a rIaBa N da HAmAIn KOHTaKTHOHaIraHe Ha CnyuAnKnTe.
Ползваши само ддьншелни устpoиства/aKcecoapn/pe3epBHHЧаст,празoctавени ппрорьчани OT Фирma Sennheiser.

NocntBaIte npOdykTa cAmO c MeKa, cyXa Kbpna.

I3noJ3BaHe no npedHa3HaueHne/OTROBOPHOCT

Te3n OTbOpEni DnHaMnUHn CnyuAnKn 6a pa3pa6oTeHn 3a DomaunHa ynoTpe6a Ha BnCOKOkaueCTBeHn ayDIO CNCTeMn.

Ipnema ce, ye npodukTbT He ce n3no13Ba no npedHa3NaueHne, aKO rO nol3BaTe no haun, pa3nueh ot onncahneTo, daJeHO B npinlekaaTa My dokymeHTaCn. Sennheiser He hocn OTROBOPHOCT pRn 3NoynoTpe6a nn HnnpabnHOTo n3No13BaHe Ha npodukTa, KaKTO n Ha DonbHLnteHNte ypeu/aKcecoapn. Ipei NyckaHe Ha npodukTa B eKcnloaTaCn 3aBJIxHTeJHo Tp8Ba Da ce B3emat npedvnd CneuΦnuHNTe 3a BCa DbpjkaBa pa3npope6n.

Osem Ha doCTaBkata

1 OTBOpEn DnHaMnHn CnyuAnKn HD 660S
1 cBbP3BaU npOBoHnK c 6,35-mm cTepeo Jka (cBbP3aH npu DoCTaBka), He6aHaHCnpaH
1 cBbP3BaU npOBoHnK c 4,4-mm-CTepeo JkaK, CmMeTpnueH

1 ctepeo kak aanTep 6,35 mm Ha 3,5 mm
1 pboBOOCTBO 3a ekcnnoTaun
1 KyTna 3a cbXpaHeHne

Bauи HD 660S

HD 660S Ima BCnuk npedimctBa Ha IereHdapnna npedwecBeHnK HD 650, Ho npobJnxaba TexHOIouHNO peHNTeHNHe CTbPK. BnaOdapeHne Ha CbBpeMeHHte Bb3MOxHOCTNa 3a CNMyaun, NaHTe INHKeHepn MOXaxa Da ONTUMN3npaT MaHHTHaTa CNCTema nΦopMaTa Ha Mem6paHata. HOBTe npoe6pa3yBaTeiN Ce N3MepBaT BHMaTeHNo 3a BCraKa cnUaJaN a PbUHO n36paHn NO DBOkN. OOHEnuHO HD 660S 3aDaBa HO Kpntepn B CBOA Klac. ToI ngPnBO npoeoJnBa 6aIaNcHpaHeto Mejdy nepfekTeH KOHTpol N ouapOBaTeHa My3NKaJIHoCT. CMoUHn 6acn, Cb6la3HtEHN TeM6pn N HeBepoTHa JCHota, HD 660S OTKnIOUvBa PbLnHaTa paDOCT OT My3NKaTa.

Sennheiser HD 660S ue Bn pa3BbIHyBa.

A Cbbp3BaHe cnyuans

Изберети похорьшя CBbp3Baц npOBODнК 3a Baшя aydno n3TOUHnK, KbM KOITOnNCKaTe Да CBpЖeTe CnyшалkaТа И Смehete 3axpaHbaцnЯ Ka6eI, KaKTo e OпиcaHoВ pa3deI C:

• 6,35 mm ctepeo jkaK, He6aIaHcnpan (MoKe Ja ce CbByke CbUO KbM 3,5 mm 6yKca Ha ctepeo JkaK npE3 DoCTaBeHnA aIaNTep)
  4,4mm ctepeo jak, 6anaHcapaH
  XLR-4,6aIaHcnpaH (Sennheiser CH 650 S,doJIbIHTeIeH aKcecoap)
  Cbpxe cnyaiknte KbMa Bauia aynno n3ToHnK.

B Noctabete cnywaankute n n3no13baayTe\*

Пoctabete BaunTe cIywaIkn n n3dbpnaIte HayuHnCInTe haOny, taKa Ye Te da ca ydo6Hn 3a yUnTe. Cna3BaIte MapKupOBknte ^ drcHO n ^ IaBO Ha n3BvBKnTe Ha hayuHnCInTe 3a npabUNHo opneHTnpaHe.
3a ONTImaJIHo KaueCTBO Ha 3Byka KaIcYIInTe He TpI6Ba Ia Ce NOKpINBaT.

C CmHa CBbp3Baui npOBoHnK\*

O6bpeTe BnMaHne Ha pa3npedeHneTo, R" JAcHO n,L" JIABO Ha Cbbp3Baunia quencen Cbc CbOTBeTHna Hayshnk. HApncBt Ha uenceJa Tp6Ba da coyn HabbH.
NocTaBete uenceNa,doKaTo upaKHe rcho.

D CmHa Ha Bb3rIaBnUKN 3a ywn\*

OT cbo6paXeHn 3a XrHneHa, OT BpeMe Ha BpeMe Tp6Ba Da CMeHrTe Bb3rNaBnUcKlTe 3a yu. Pe3epBHN qacTn ige nOlyuHTe npn Baunia Sennheiser napThbOp. NapThbOp 3a BaWata cTpaHa ige HamePte Ha www.sennheiser.com.

XbaHete OTdOly Bb3rnaBnKnte 3a yuN nI3IbPnaTe.

Пocтавete HOBNTe Bb3rnaBnUKN 3a yuN BbpxH HayuHnUte n rH npTncHeTe HABcRAKbIe.

Bb3rnaBnukata 3a rnaBa moKe da 6bde cmeHeHa KaTo peMOHTHa ycLyra. 3a ceTtce o6bpHete KbM Baunr Sennheiser napThbOp.

Am Labor 1, 30900 Wedemark, Germany

www.sennheiser.com

Publ. 07/19, 576029/A03
