Product Type	Wireless headset
Brand	HyperX
Model	Cloud Flight
Headphone type	Circum-aural, closed back
Drivers	50mm dynamic with neodymium magnets
Frequency response	10 Hz – 20 kHz
Impedance	32 Ω
Sound pressure level	99.5 dBSPL/mW at 1 kHz
Total harmonic distortion	< 1%
Weight (without mic)	310 g
Weight (with mic)	320 g
Microphone	Electret condenser, bidirectional, noise-cancelling
Microphone frequency response	50 Hz – 18 kHz
Microphone sensitivity	-40.5 dBV (1 V/Pa at 1 kHz)
Battery life	30 hours (at 50% volume)
Wireless range	Up to 20 m (2.4 GHz)
Connectivity	Wireless USB adapter
Power supply	Rechargeable battery via USB (cable included); Qi wireless charging compatible
Main features	Virtual 7.1 surround sound, game/chat audio balance, microphone control, detachable mic
LED indicators	Battery status, pairing, mic muted
Compatibility	PC, PlayStation 4
Software	HyperX NGENUITY (EQ and button customization)
Box contents	Headset, detachable mic, USB adapter, USB charging cable
Safety	Warning: Prolonged exposure to high sound levels may damage hearing

Frequently Asked Questions - Cloud Flight HYPERX

How to set up the HyperX Cloud Flight headset on PC?

Plug the wireless USB adapter into a USB port on your PC. Turn on the headset. In Windows sound settings, set HyperX Cloud Flight S Game as the default device and HyperX Cloud Flight S Chat as the default communication device. For 7.1 surround sound, configure the speakers as 7.1 Surround via the sound control panel.

How to enable 7.1 surround sound?

Press the 7.1 Surround Sound button (I) on the headset to turn virtual surround sound on or off. The headset must be set to 7.1 mode in your PC sound settings.

What is the battery life of the HyperX Cloud Flight?

The battery life is 30 hours with volume set to 50%. The battery charges via USB or Qi wireless charging.

How to charge the HyperX Cloud Flight headset?

Use the included USB charging cable to plug it into a USB port. The LED indicates charge level: solid green for full charge, breathing green for 15-99%, breathing red for less than 15%. The headset is also compatible with Qi wireless chargers: place the left earcup on the pad.

How to use the game/chat audio balance feature?

Press the left button (B) to increase game volume and the right button (C) to increase chat volume. This allows independent mixing of the two audio sources. Note: Not available on PlayStation 4.

Is the microphone of the HyperX Cloud Flight detachable?

Yes, the microphone is removable (K). You can take it off when not needed. The mic also has a mute LED (L) that glows red when the mic is active and turns off when muted.

What to do if the headset does not turn on?

Check that the headset is sufficiently charged. Press and hold the Power button (H) for 3 seconds. If it still does not turn on, connect it to the charger and wait a few minutes before trying again.

How to check the headset battery level?

The status LED (G) indicates charge: solid green for 90-100%, blinking green for 15-90%, blinking red for less than 15%. You can also check via the HyperX NGENUITY software.

Can I use the HyperX Cloud Flight with a PlayStation 4?

Yes, plug the USB adapter into the console. In audio settings, select USB Headset (HyperX Cloud Flight S) for input and output, then set output to headset as All Audio. Note: The game/chat balance feature is not available on PS4.

Where to download the HyperX NGENUITY software?

Download the software from the official website: hyperxgaming.com/ngenuity. It allows you to customize EQ profiles, programmable buttons, and check battery status.

USER MANUAL Cloud Flight HYPERX

HyperX Cloud Flight S

Find the language and latest documentation for your HyperX Cloud Flight S here.

HyperX Cloud Flight S Installation Guide

For instructions in English, Spanish, German, French, Italian, Portuguese, Polish, Russian, Turkish, Japanese, Vietnamese, and more.

Simplified Chinese......简体中文说明书

Traditional Chinese ....繁體中文說明

.

HyperX Cloud Flight™ S

Part Numbers

HX-HSCFS-SG/WW

TABLE OF CONTENTS

Overview 3

Specifications 4

Setting up with PC 5

Setting up with Discord 9

Setting up with PlayStation 4 10

Controls 11

Mic monitoring toggle 11

Game/Chat balance 11

Microphone mute toggle 11

Status LED 12

Power button. 12

7.1 Surround Sound 12

Volume Wheel 13

Charging the Headset. 14

Qi wireless charging 14

Wired charging 14

HyperX NGENUITY Software 15

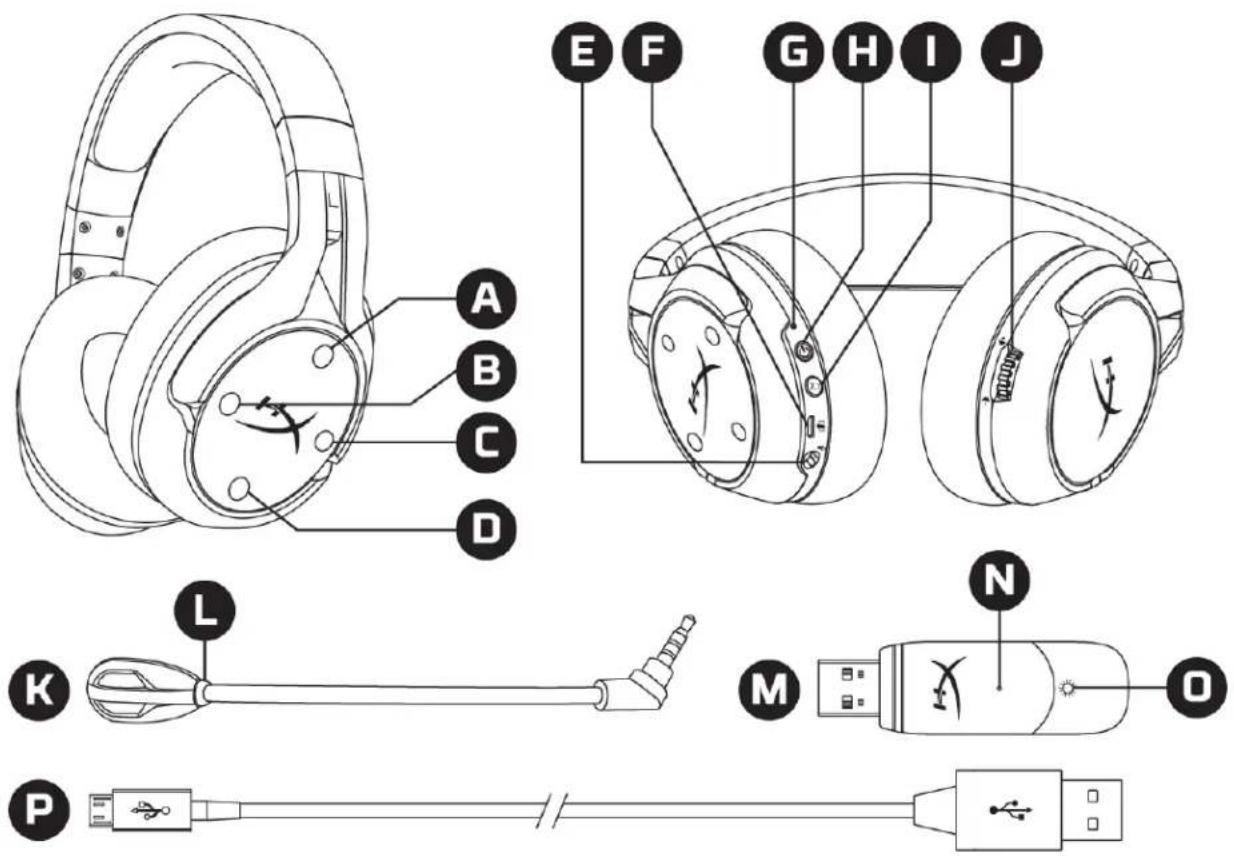

Overview

A. Up button - Mic monitoring toggle B. Left button - Game balance C. Right button - Chat balance D. Down button - Mic mute toggle E. Microphone port F. USB charge port G. Status LED H. Power button

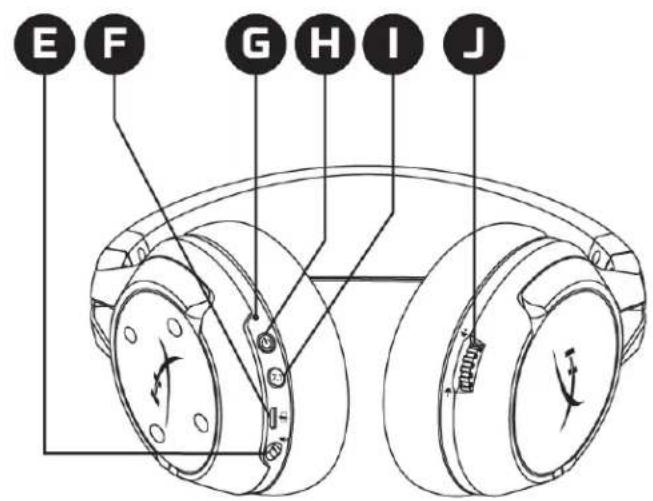

I. 7.1 Surround Sound button J. Volume wheel K. Detachable microphone L. Microphone mute LED M. USB adapter N. Wireless pairing pin hole O. Wireless status LED P. USB charge cable

Specifications

Headphone

Driver: Dynamic, 50mm with neodymium magnets

Type: Circumaural, Closed back

Frequency response: 10 Hz - 20 kHz

Impedance: 32 Ω

Sound pressure level: 99.5 dB SPL/mW at 1 kHz

T.H.D.: < 1%

Weight: 310 g

Weight with mic: 320 g

Cable length and type: USB charge cable (1 m)

Microphone

Element: Electret condenser microphone

Polar pattern: Bi-directional, Noise-cancelling

Frequency response: 50Hz-18kHz

Sensitivity: -40.5dBV (1V/Pa at 1kHz)

Battery life*

30 hours

Wireless Range**

2.4 GHz

Up to 20 meters

*Tested at 50% headphone volume

**Wireless range may vary due to environmental conditions

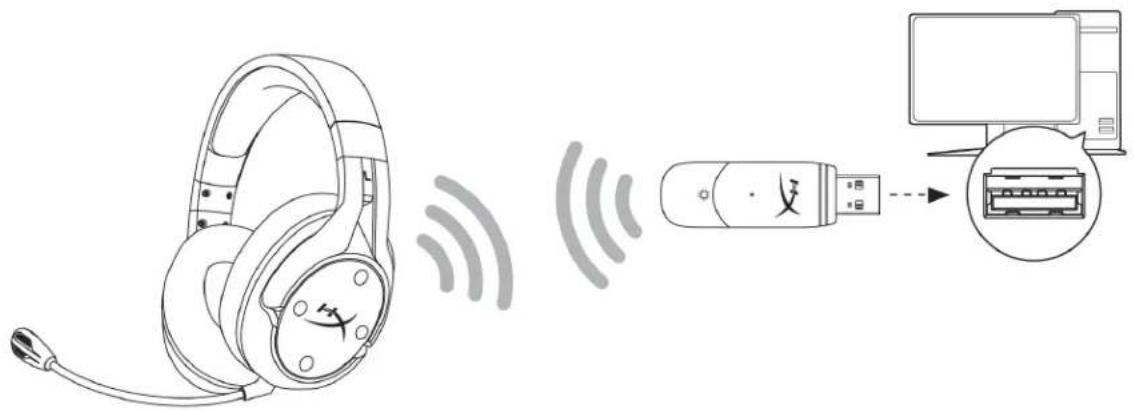

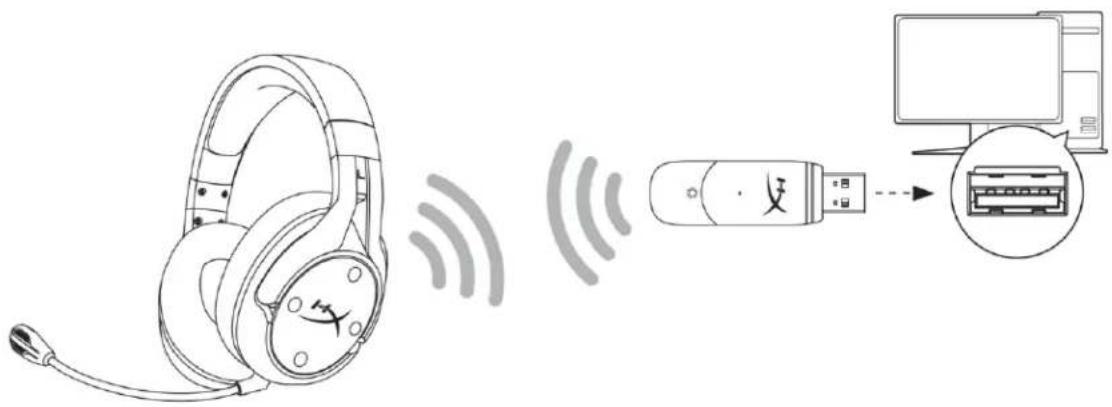

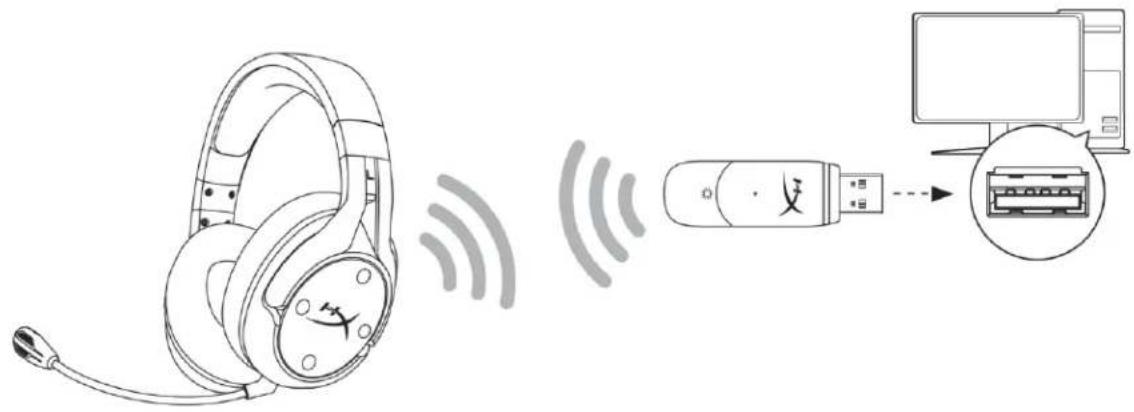

Setting up with PC

1. Connect the wireless USB adapter to the PC.

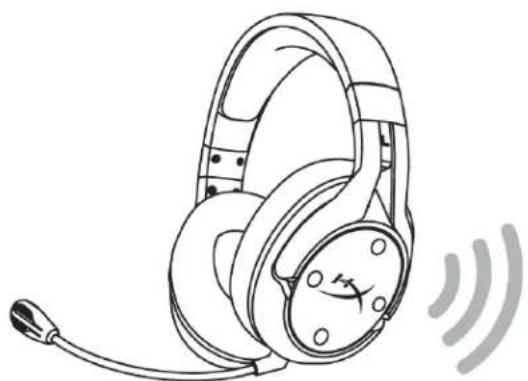

2. Power on the headset.

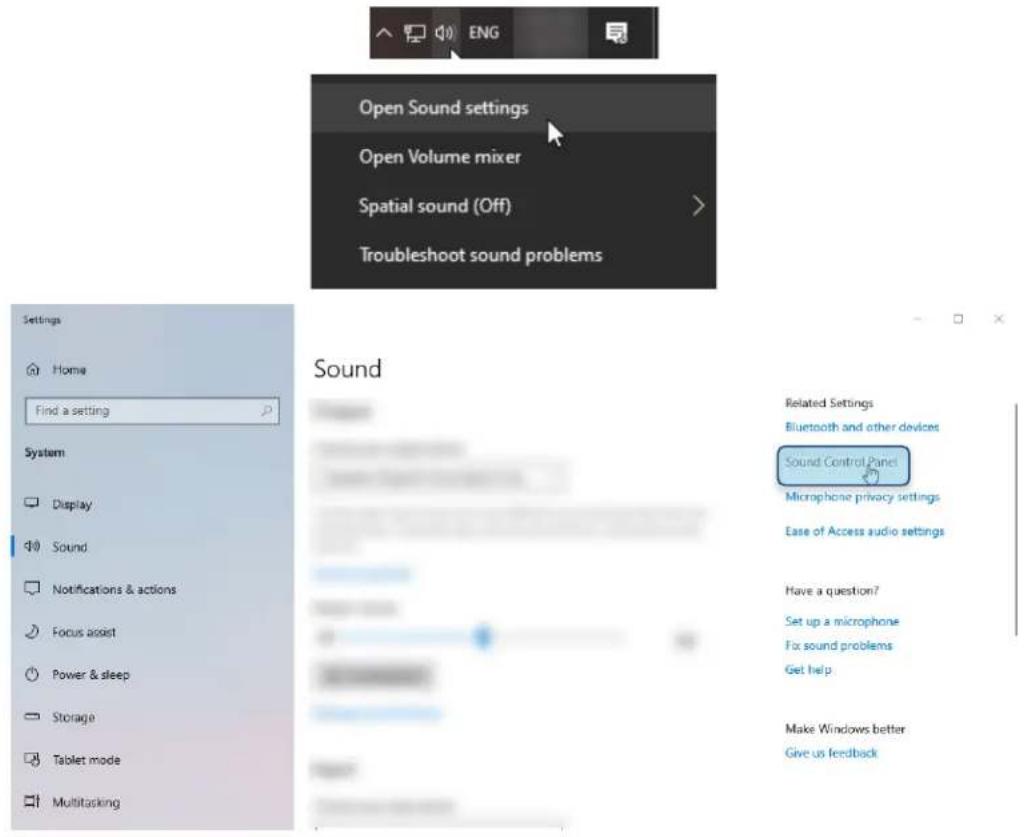

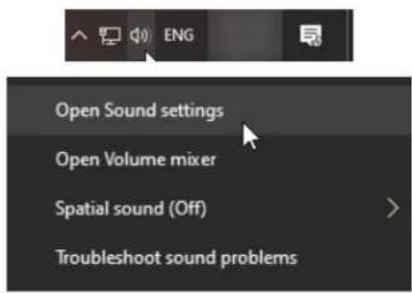

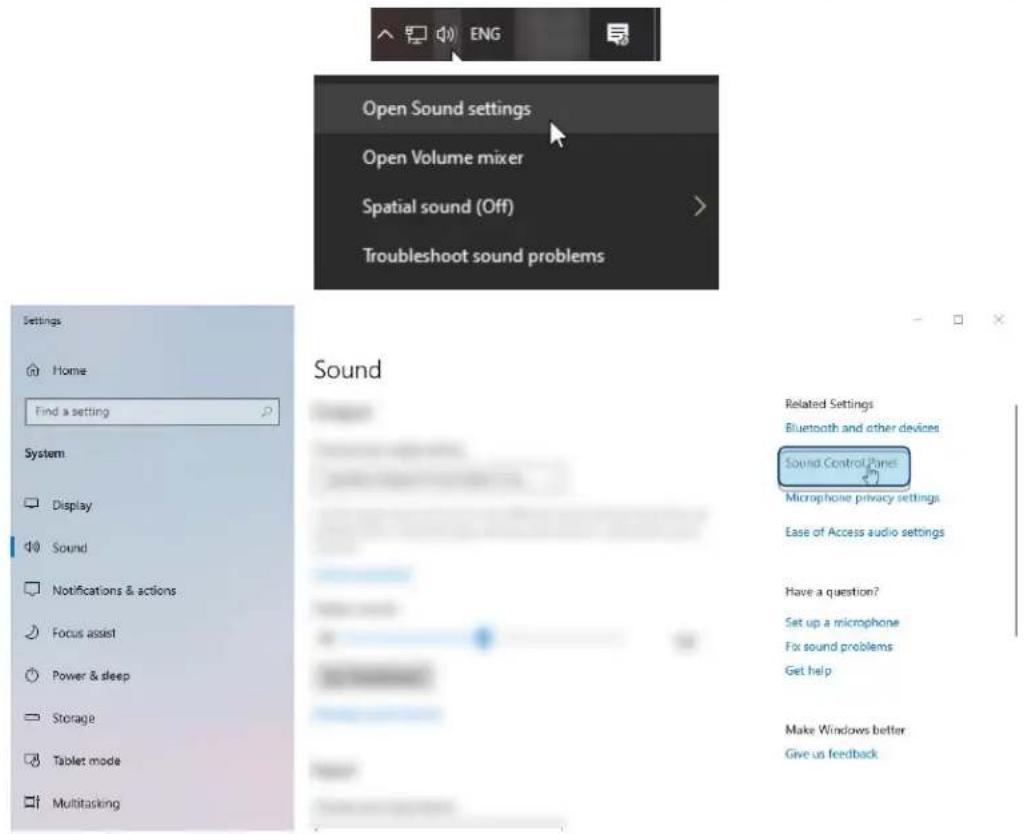

3. Right click speaker icon > Select Open Sound settings > Select Sound Control Panel

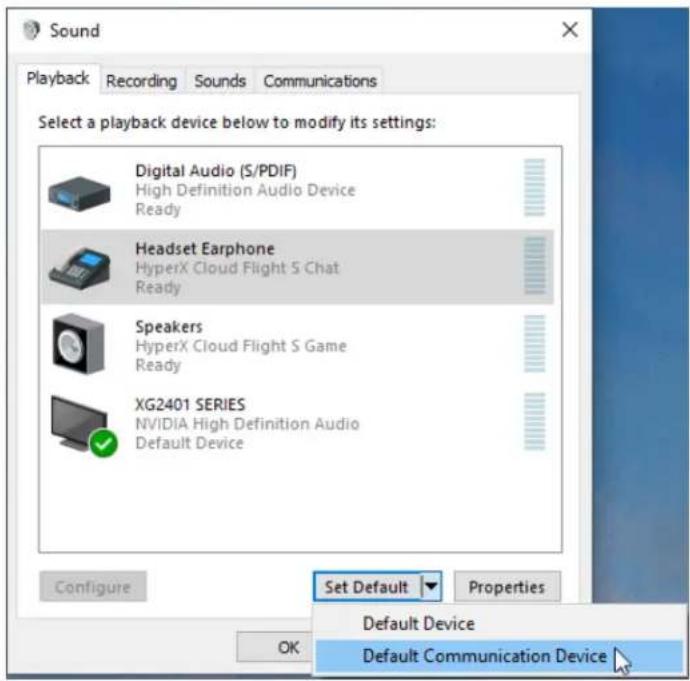

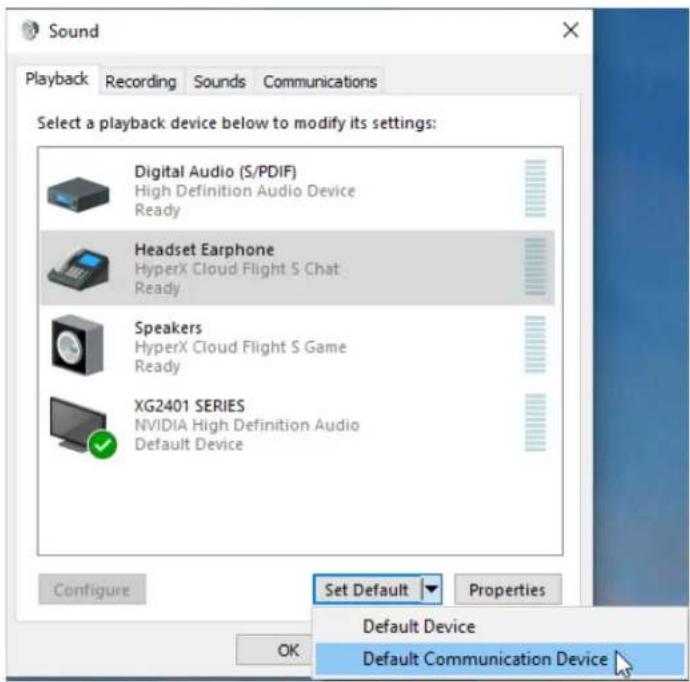

1. Under the Playback tab, click on "HyperX Cloud Flight S Chat". Then click on the down arrow next to Set Default and select Default Communication Device.

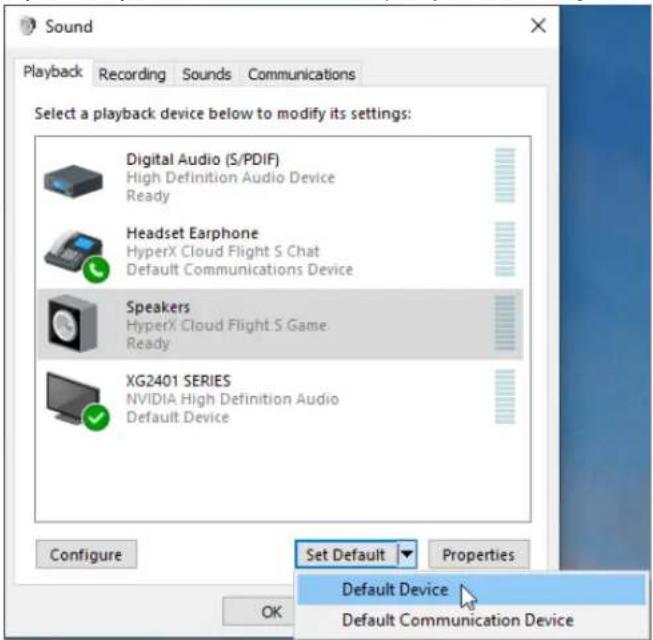

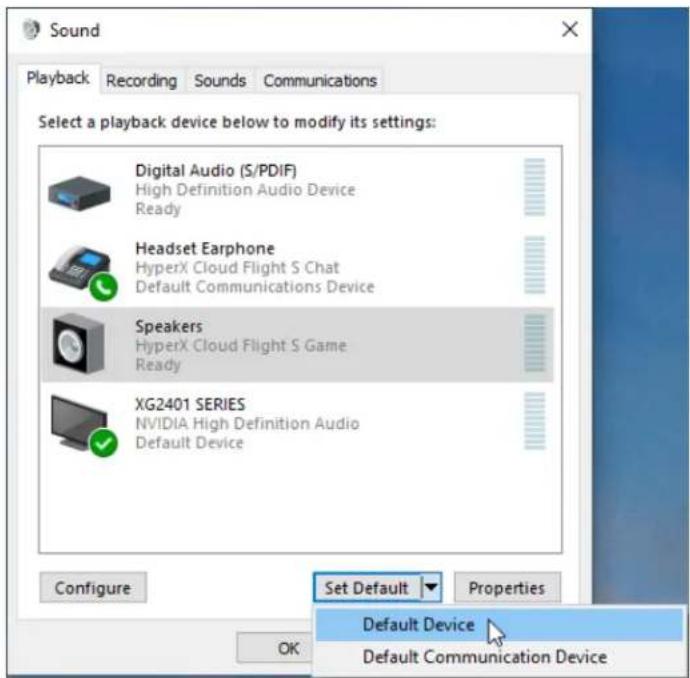

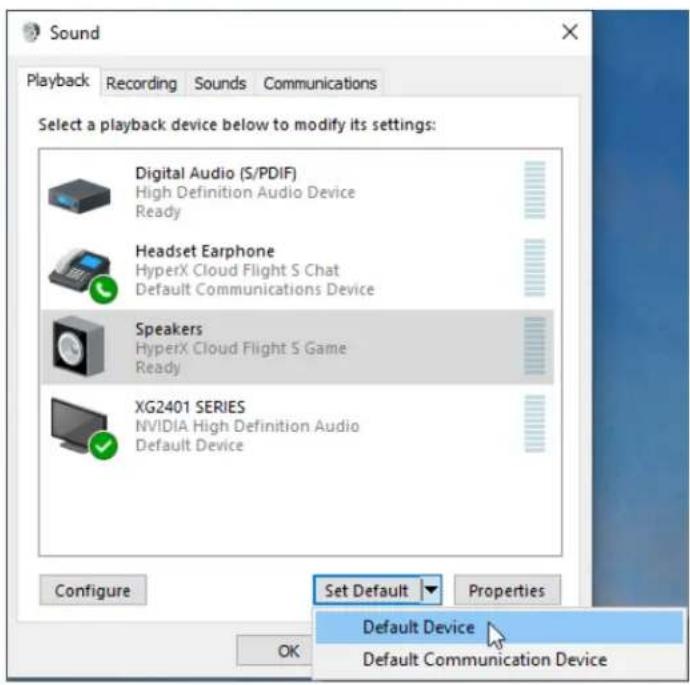

1. Click on "HyperX Cloud Flight S Game". Then click on the down arrow next to Set Default and select Default Device.

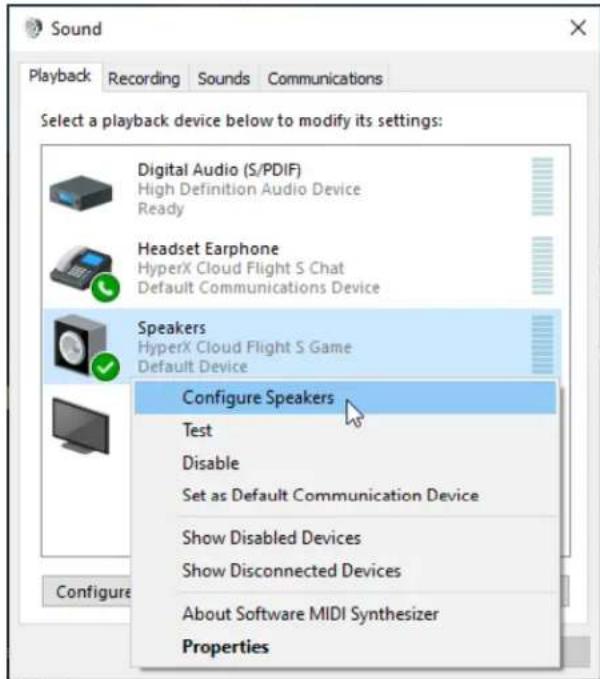

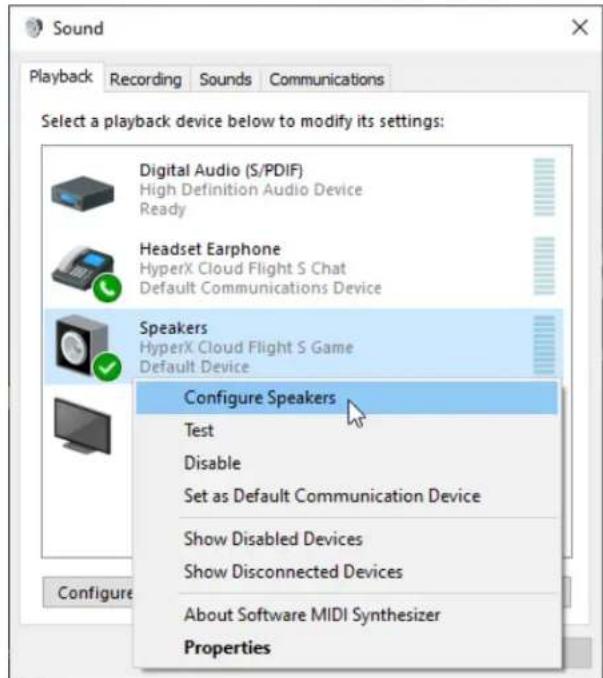

1. Right click on "HyperX Cloud Flight S Game" and click on Configure Speakers.

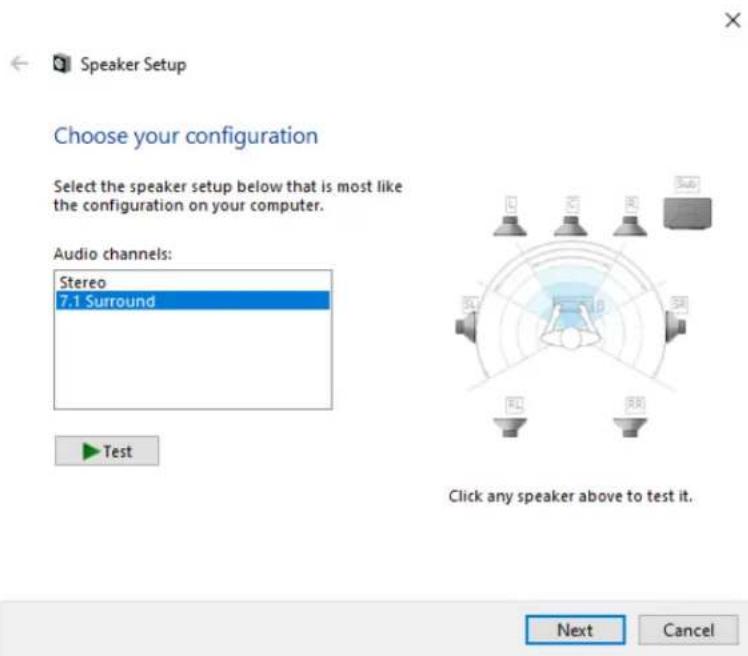

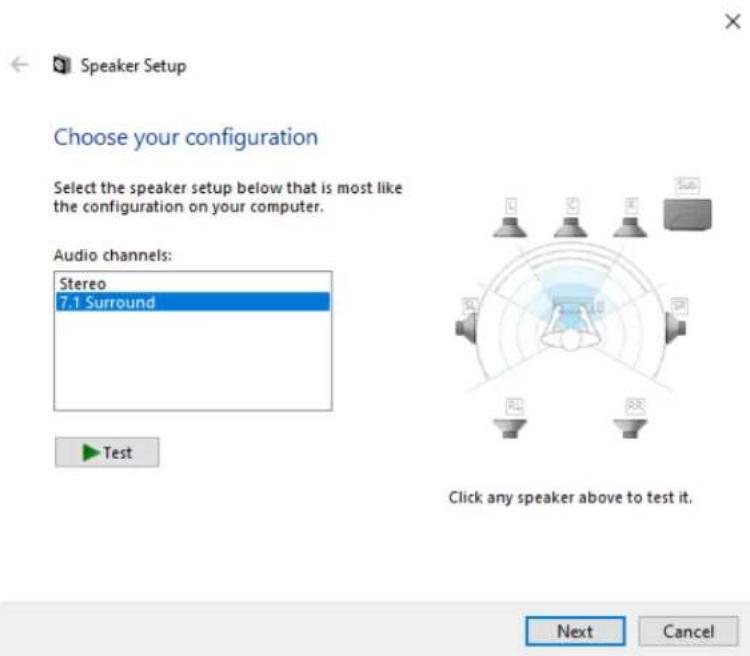

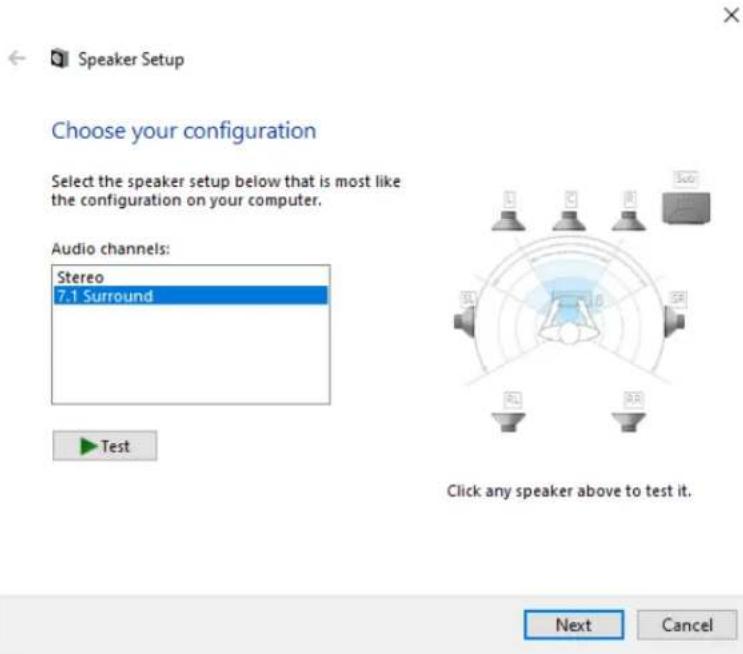

1. Select 7.1 Surround as the speaker configuration and click next.

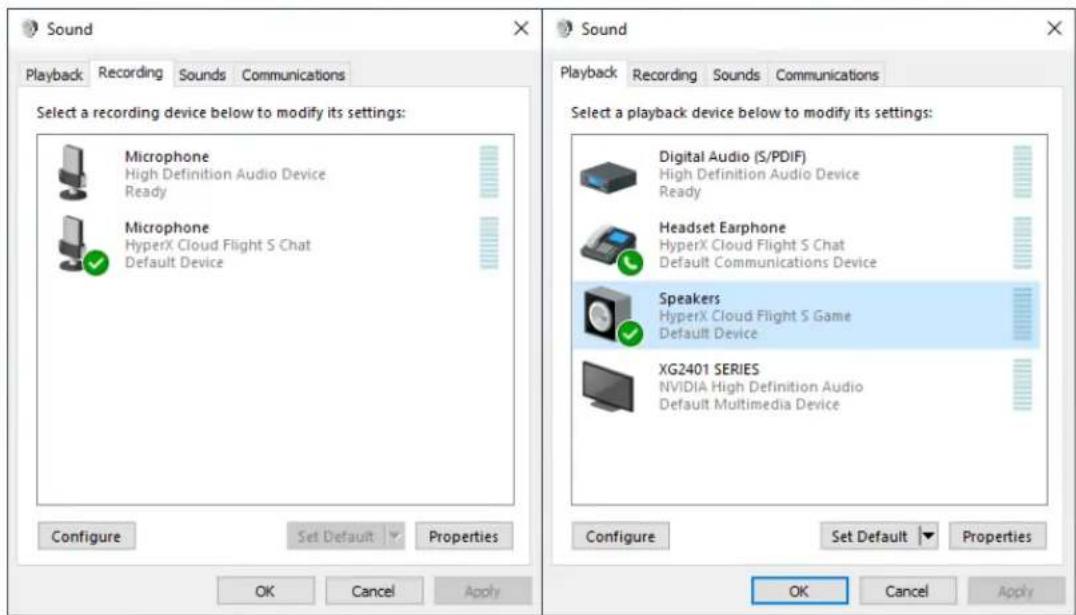

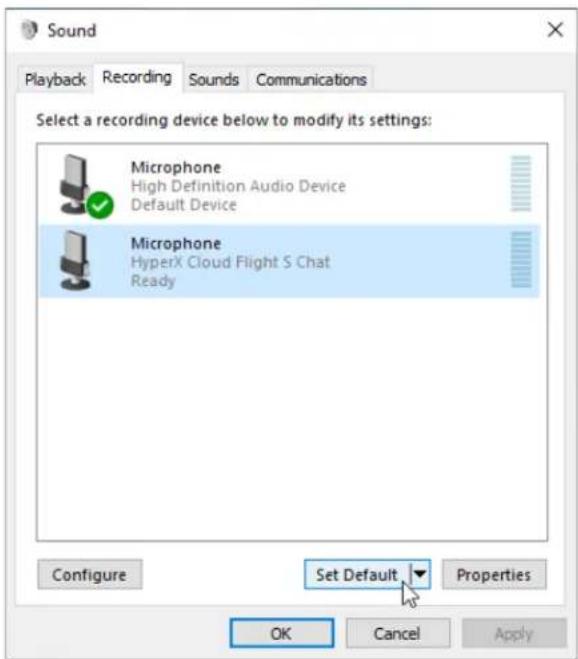

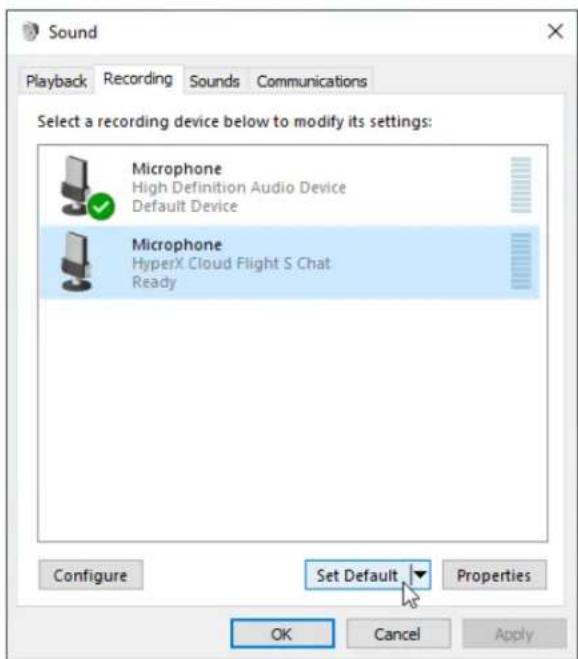

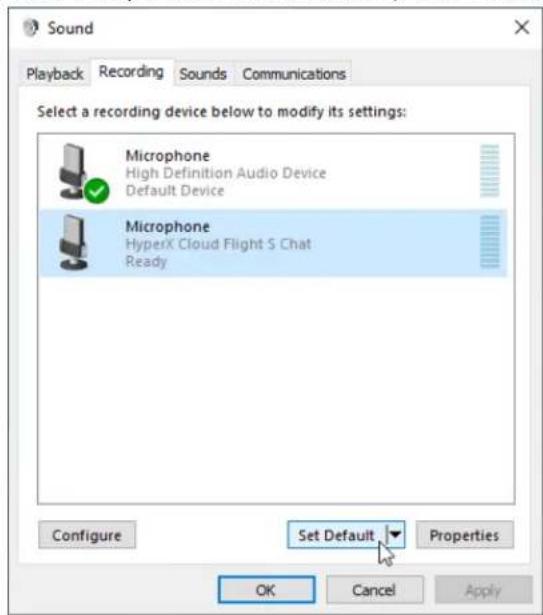

1. Under the Recording tab, click on "HyperX Cloud Flight S Chat" and click on the Set Default button.

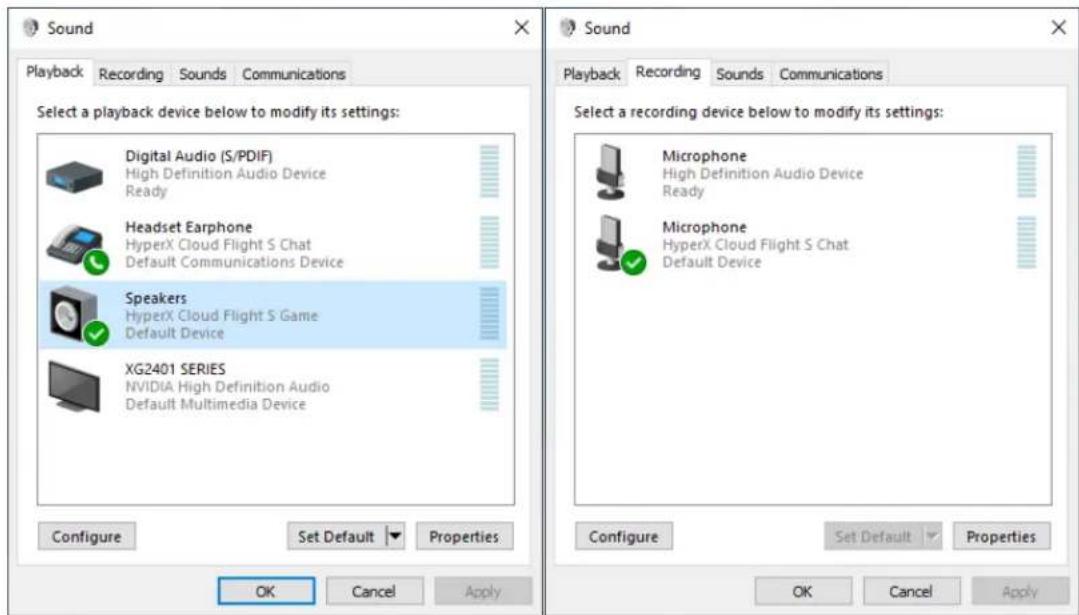

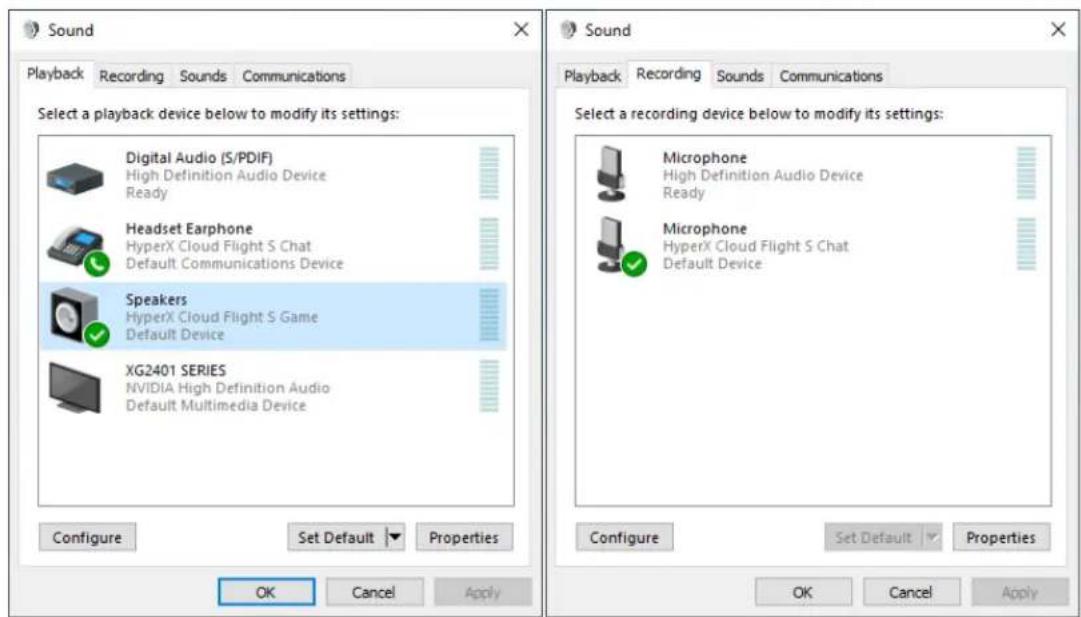

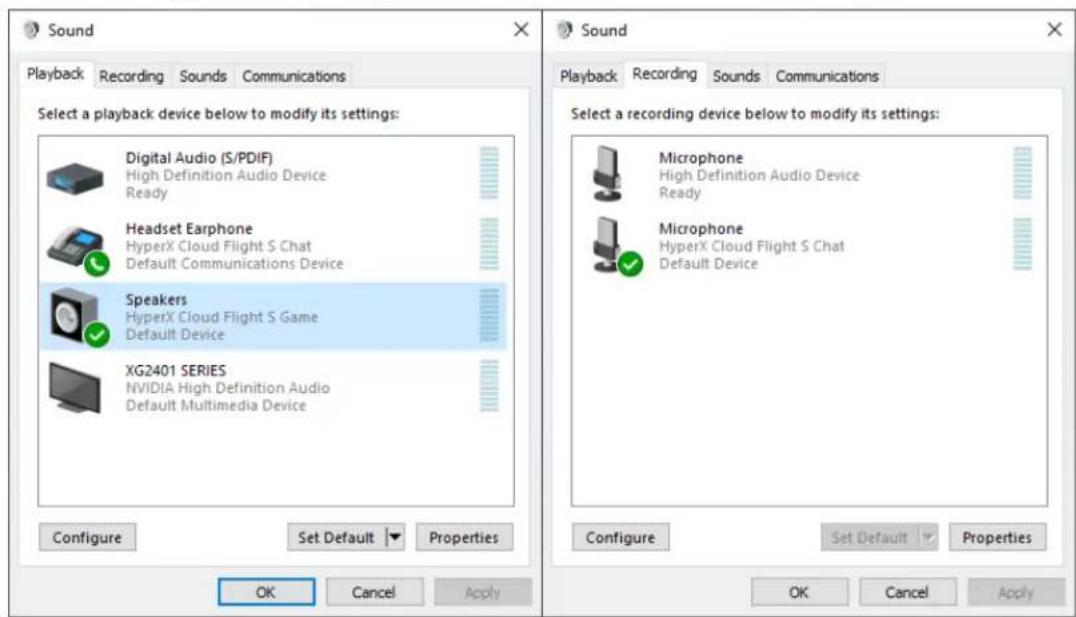

1. Under the Playback tab, verify that "HyperX Cloud Flight S Game" is set as Default Device and "HyperX Cloud Flight S Chat" is set as Default Communication Device. Under the Recording tab, verify that "HyperX Cloud Flight S Chat" is set as Default Device.

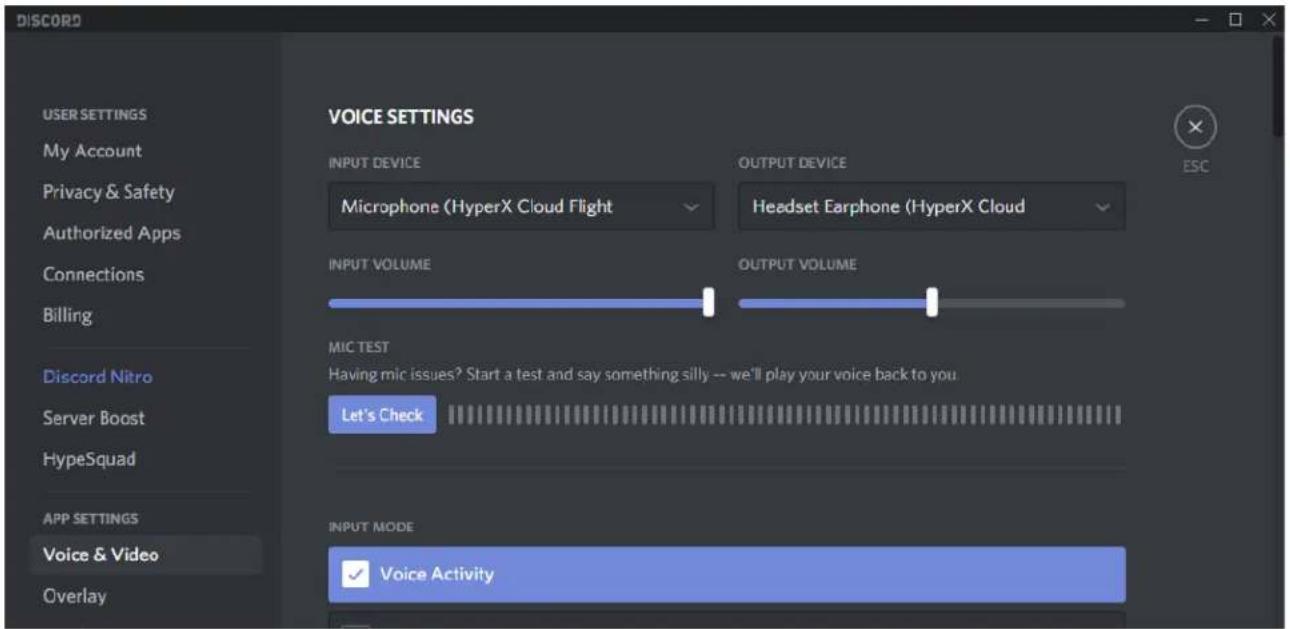

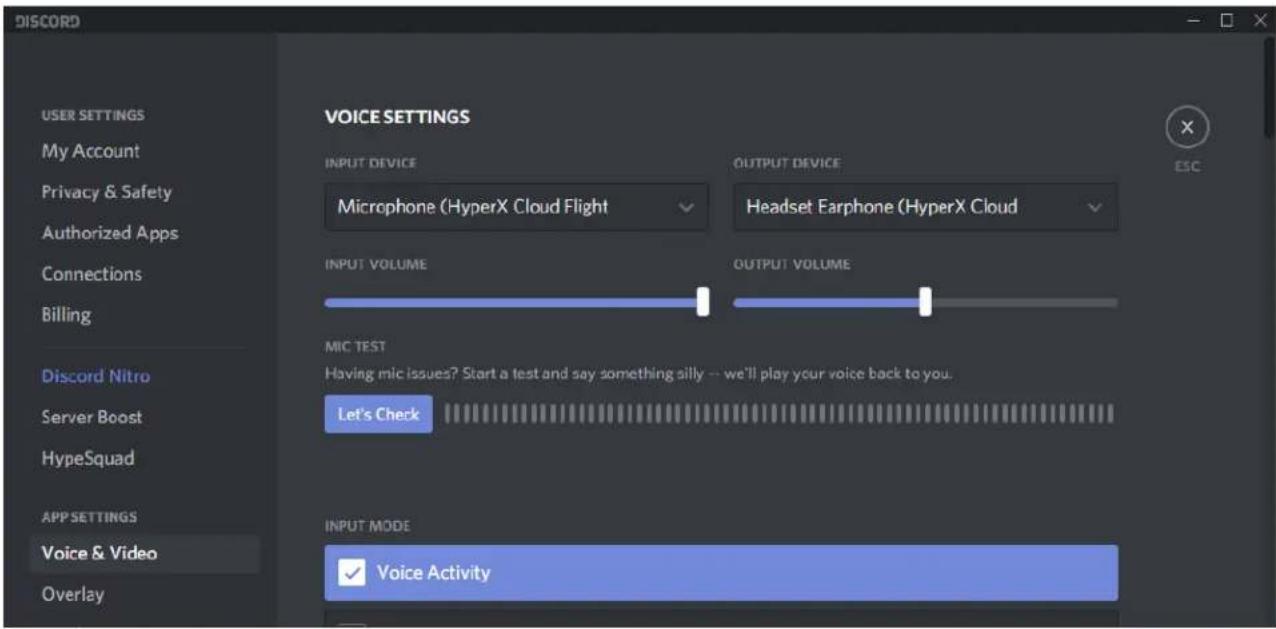

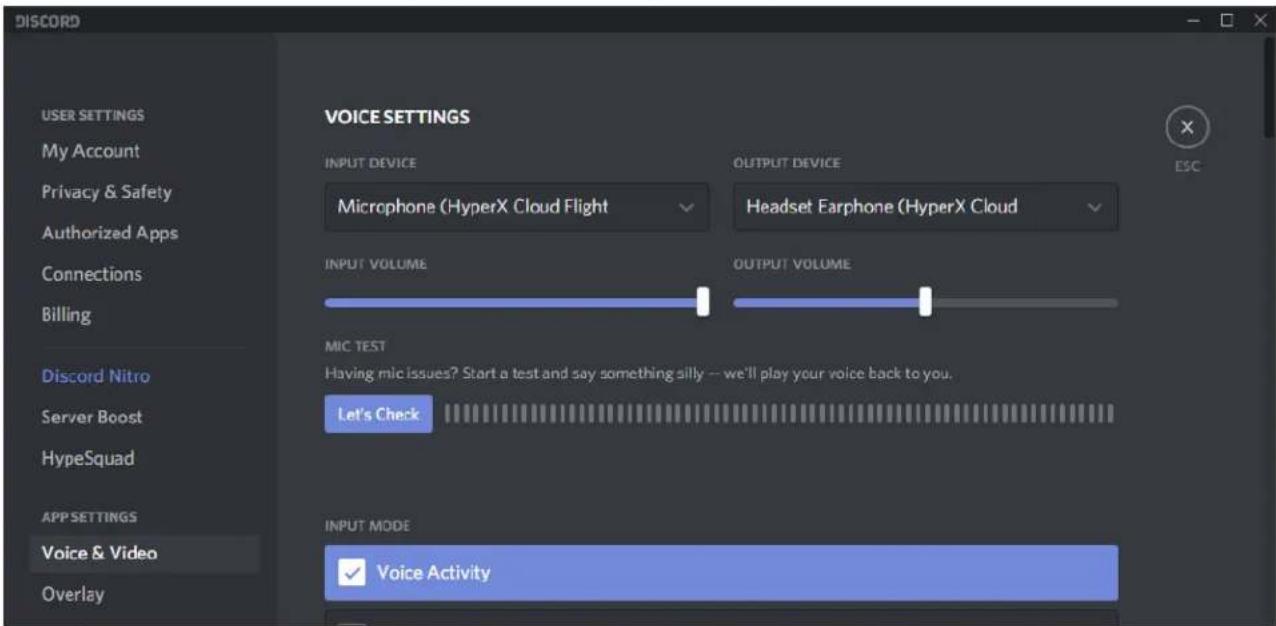

Setting up with Discord

1. In Discord settings, select Voice & Video.
2. Under Voice Settings, set Input Device to "Microphone (HyperX Cloud Flight S Chat)".
3. Set Output Device to "Headset Earphone (HyperX Cloud Flight S Chat)".

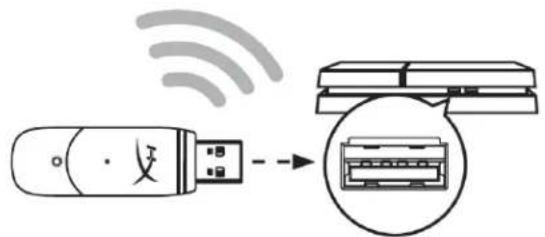

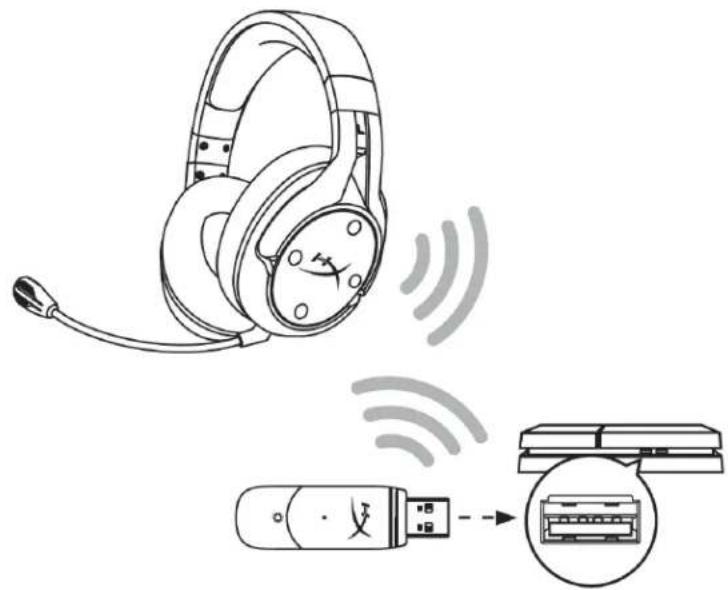

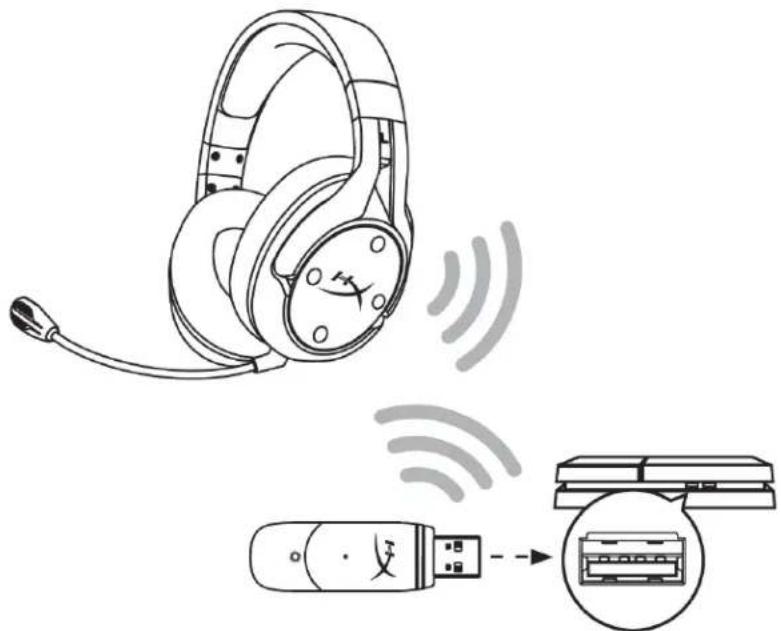

Setting up with PlayStation 4

1. Set Input Device to USB Headset (HyperX Cloud Flight S)
2. Set Output Device to USB Headset (HyperX Cloud Flight S)
3. Set Output to Headphones to All Audio
4. Set Volume Control (Headphones) to maximum.

Audio Devices

Input Device

USB Headset (HyperX Cloud Flight S)

Output Device

USB Headset (HyperX Cloud Flight S)

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

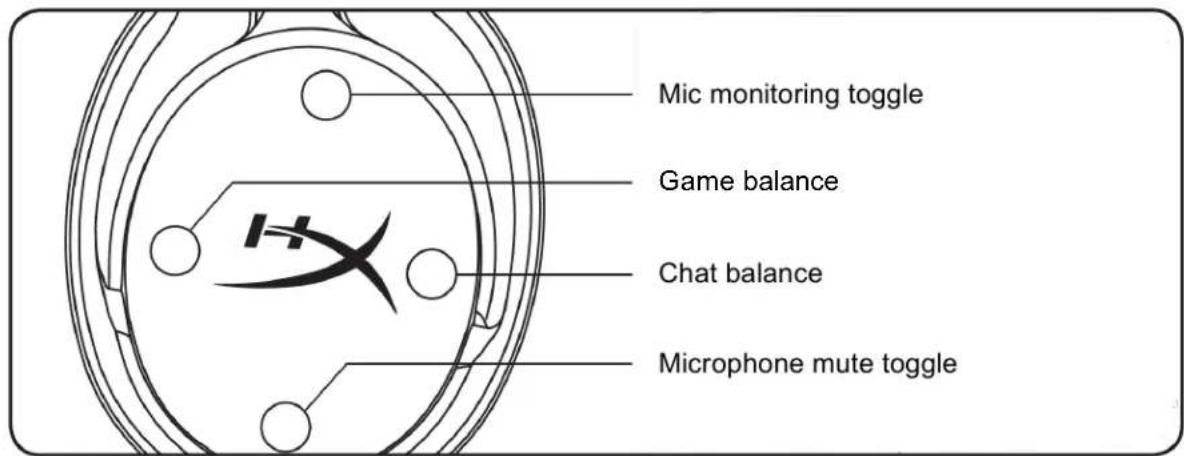

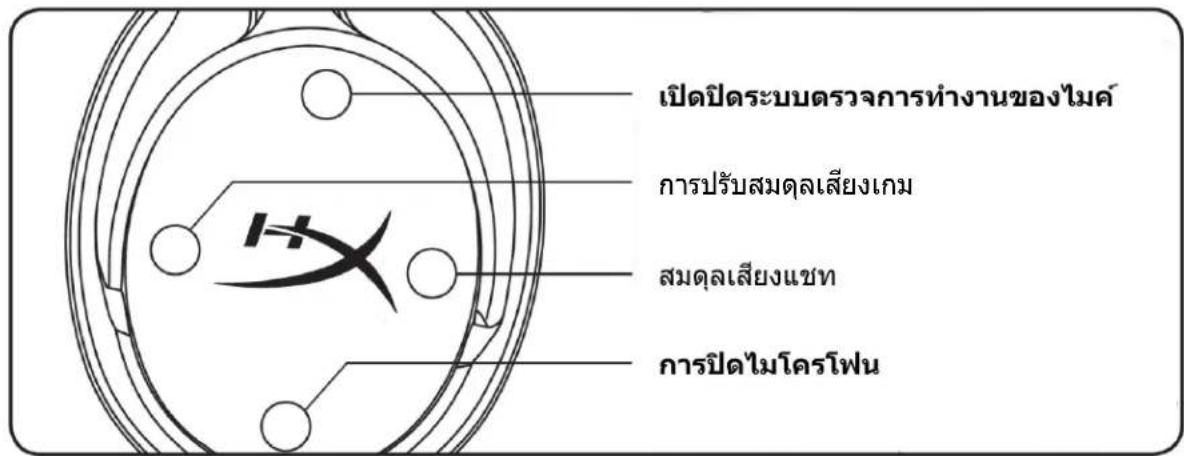

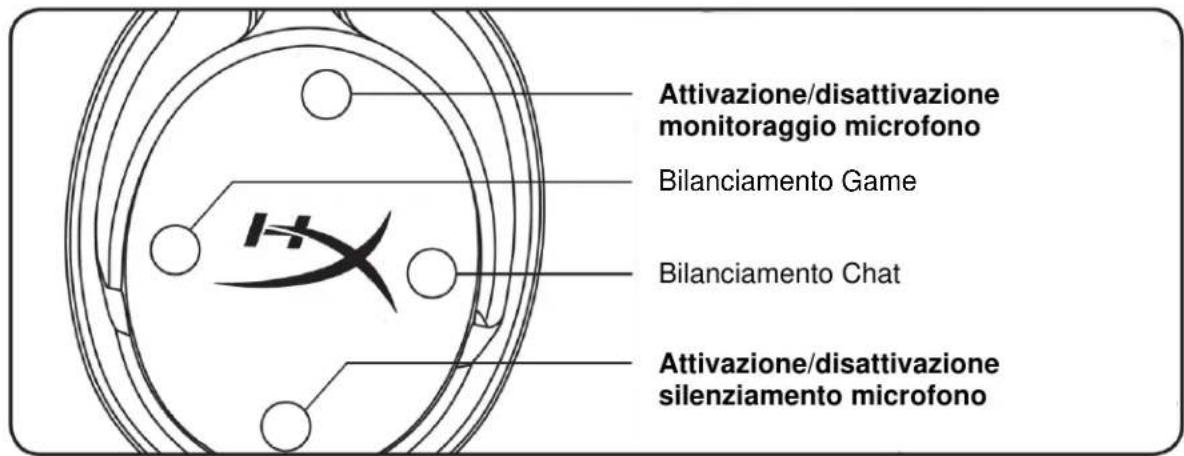

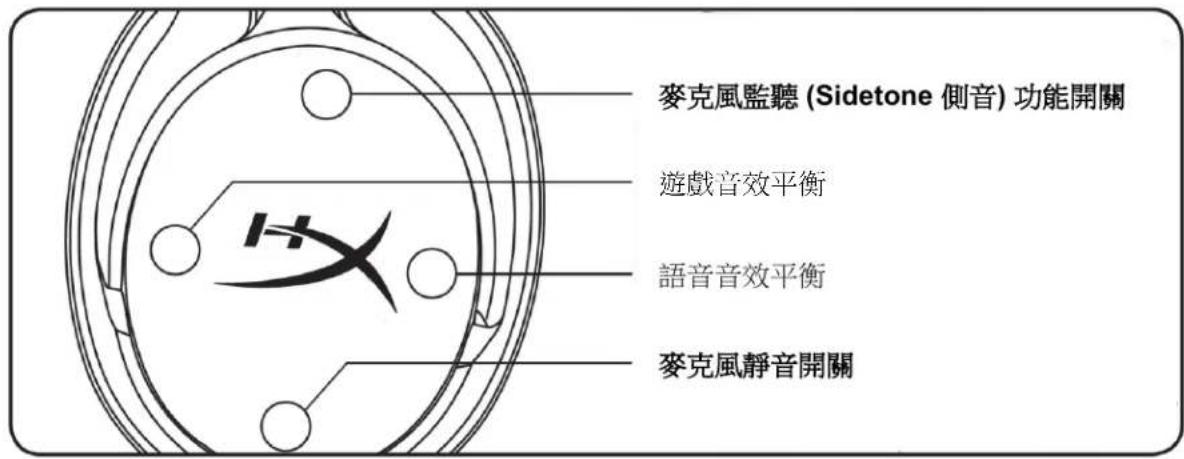

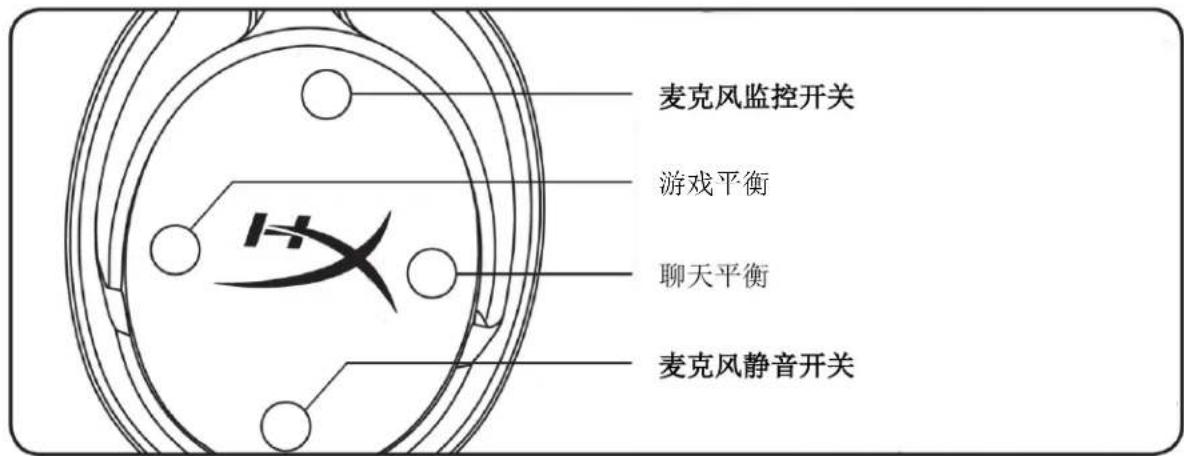

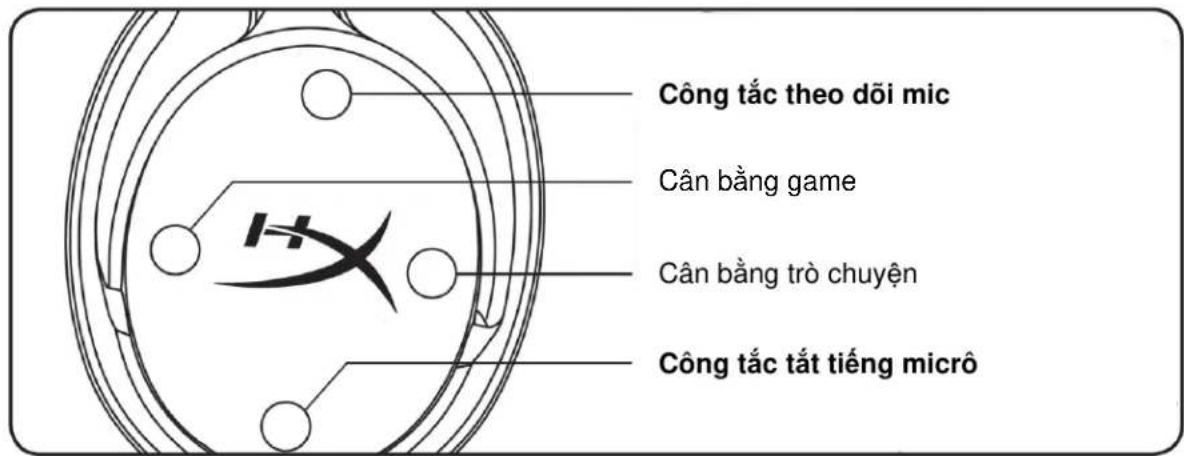

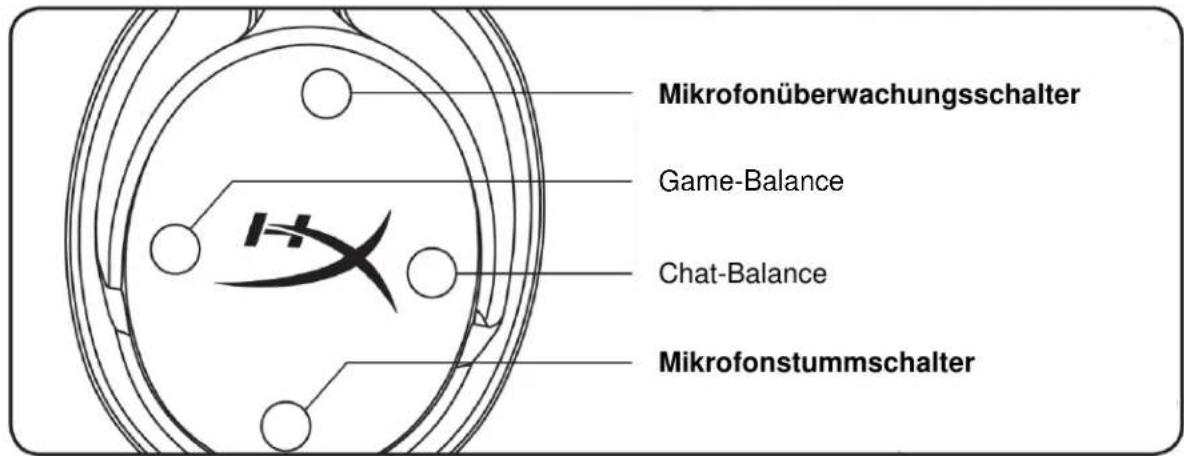

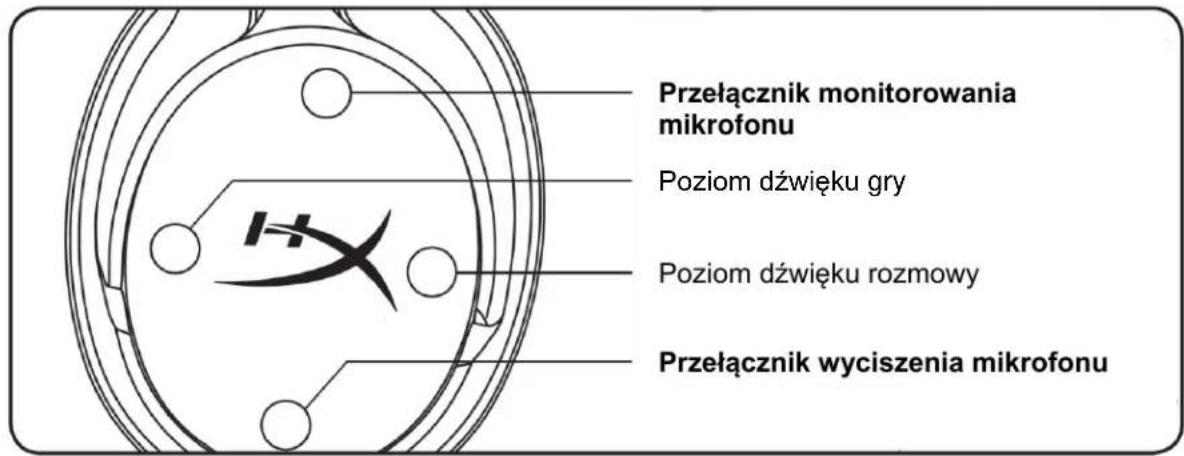

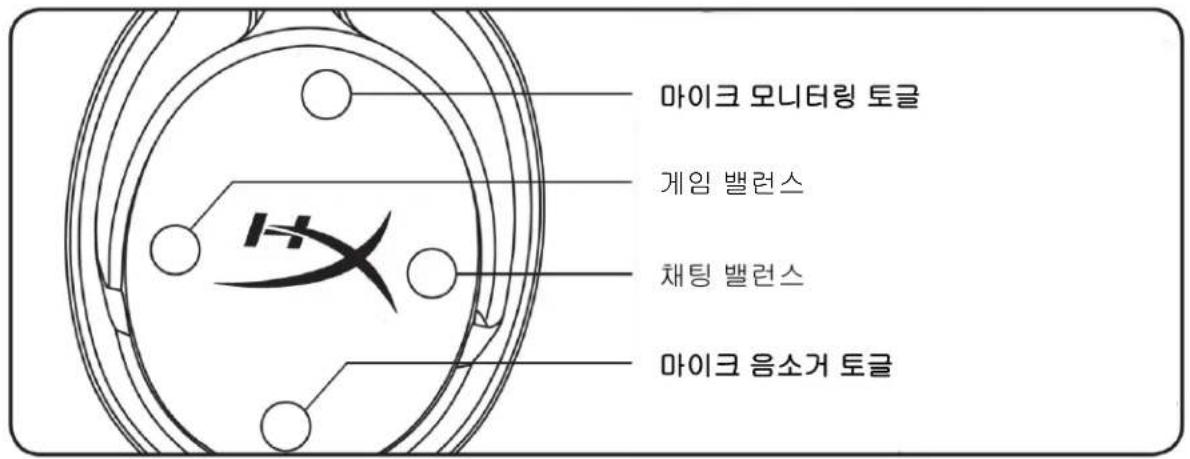

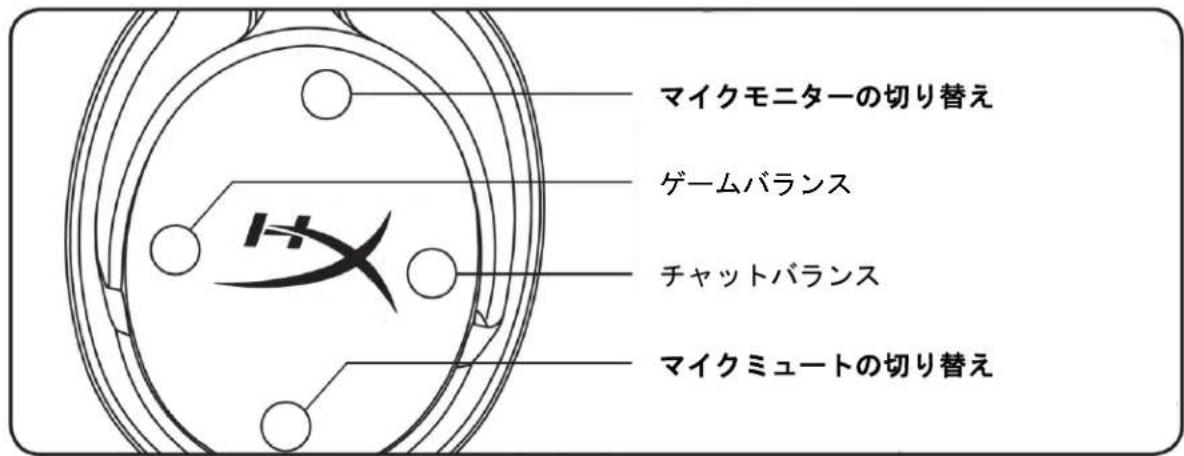

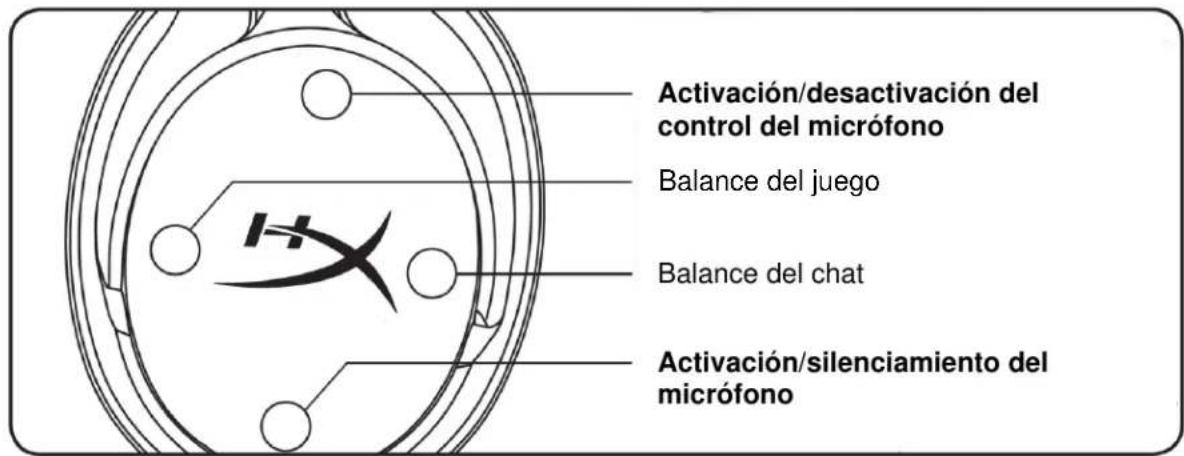

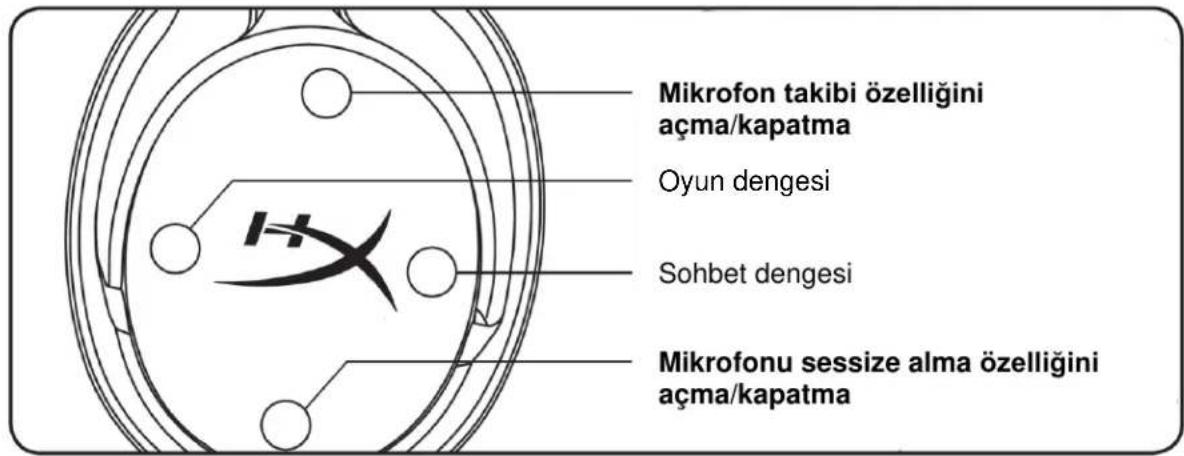

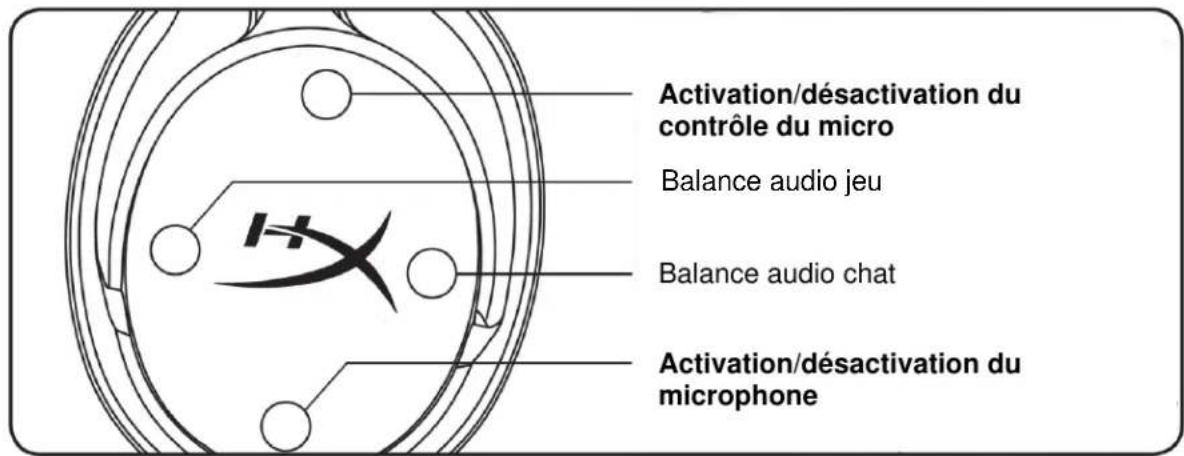

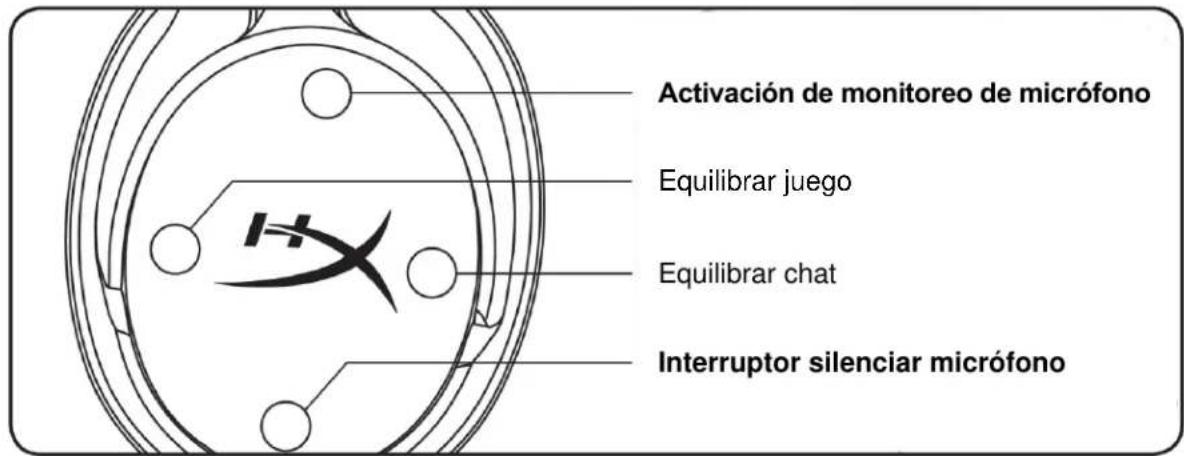

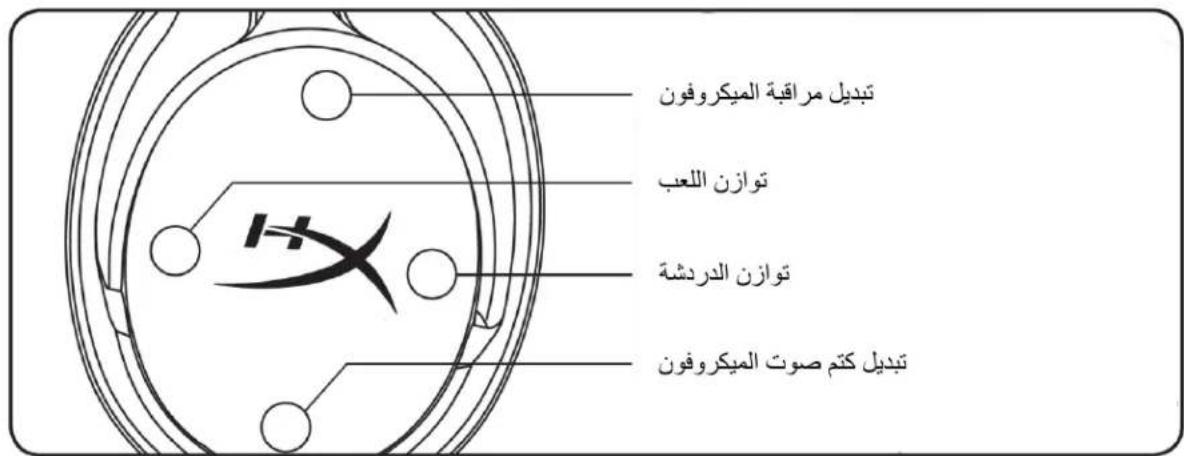

Controls

Mic monitoring toggle

Press to toggle mic monitoring on/off.

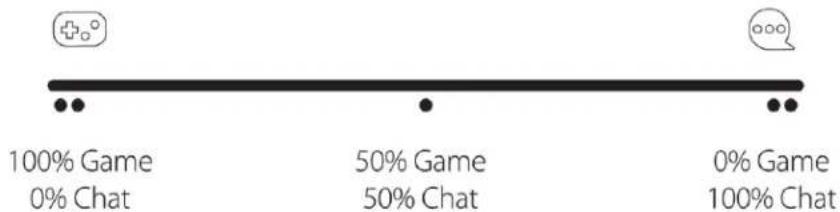

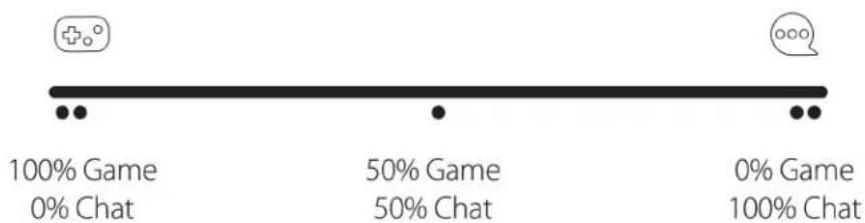

Game/Chat balance

Press to adjust mix between game audio and chat audio.

The game/chat balance functionality operates independently from the overall headset audio volume.

1 Game/chat balance function is unavailable when using headset on PlayStation 4.

Microphone mute toggle

Press to toggle microphone mute on/off. The microphone mute LED will indicate the current mute status.

Microphone Mute LED	Mute Status
Red	Mute on
Off	Mute off

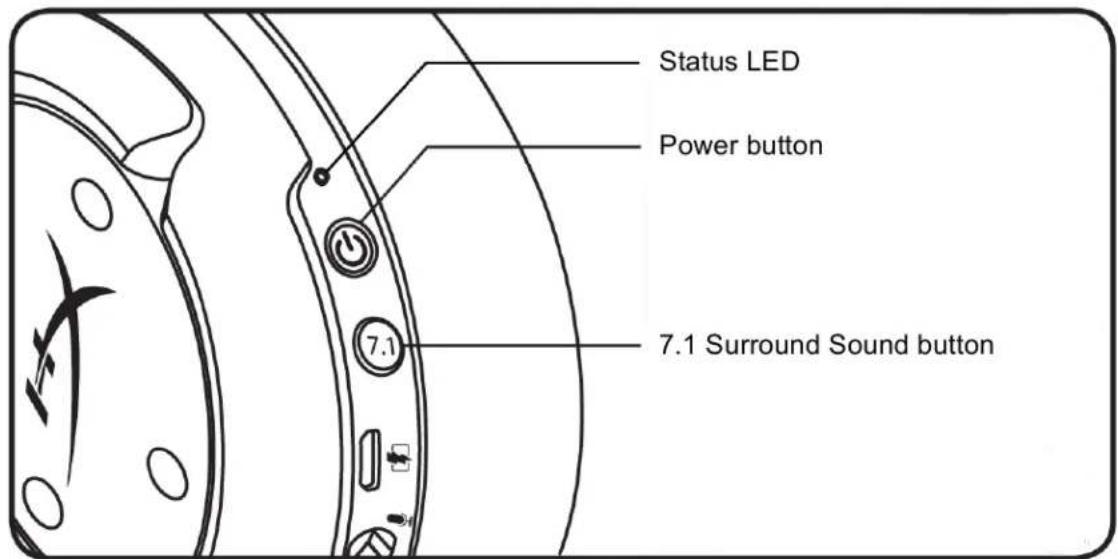

Status LED

Status	Battery Level	LED
Pairing	-	Flash green and red every 0.5s
Searching	-	Slow breathing green
Connected	90% - 100%	Solid green
	15% - 90%	Blinking green
	< 15%	Blinking red

Power button

Hold for 3 seconds to power the headset on/off.

7.1 Surround Sound

Press to toggle 7.1 Surround Sound on/off.

Virtual 7.1 surround sound outputs as a 2 channel stereo signal to be used with stereo headphones.

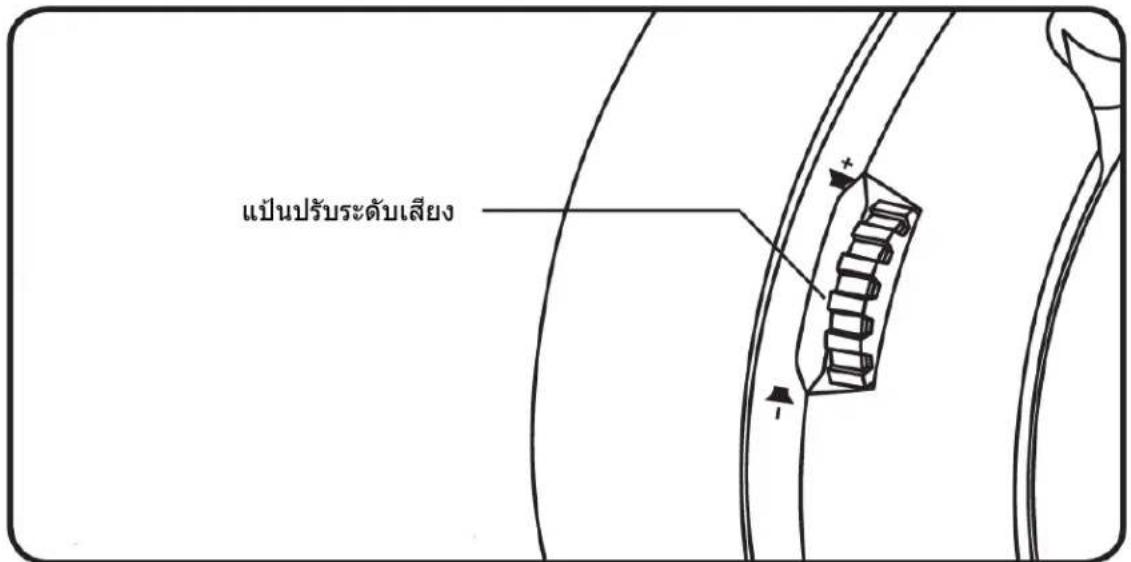

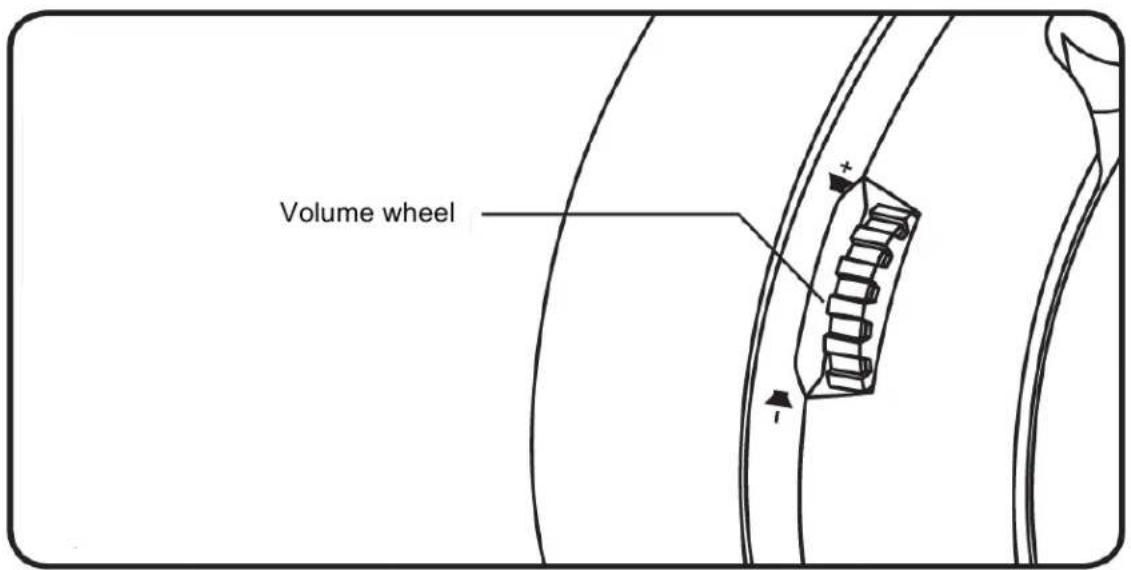

Volume Wheel

Scroll up and down to adjust volume level.

WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time.

Charging the Headset

It is recommended to fully charge your headset before first use.

When charging the headset, the headset status LED will indicate the current charge status.

Status LED	Charge Status
Solid green	Fully charged
Breathing green	15% - 99% battery level
Breathing red	< 15% battery level

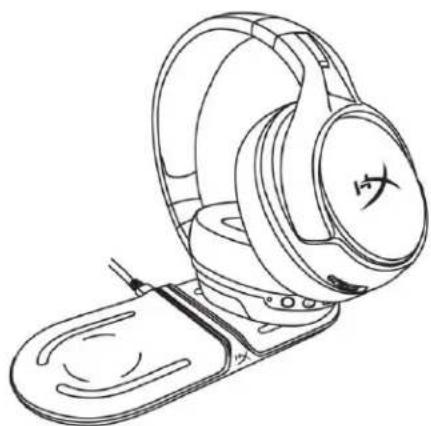

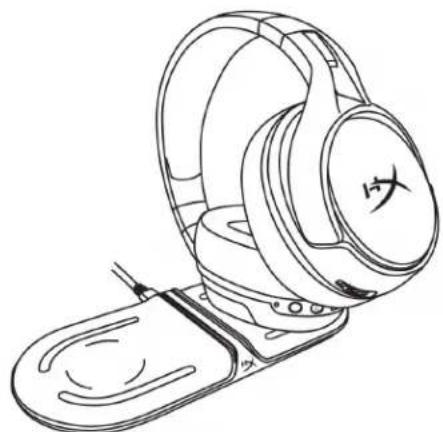

Qi wireless charging

To charge the headset via Qi wireless, place the left earcup onto a Qi wireless charging base.

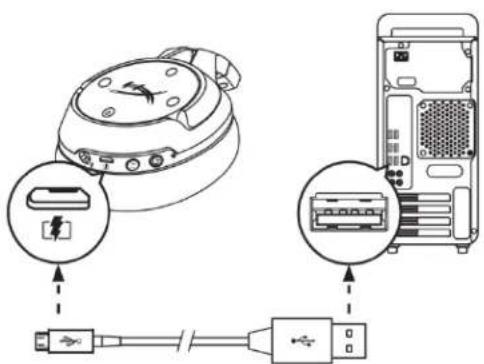

Wired charging

To charge the headset via wired, plug the headset to a USB port with the USB charge cable.

HyperX NGENUITY Software

To customize EQ profiles, programmable buttons, and check battery status, download the HyperX NGENUITY software at: hyperxgaming.com/ngenuity

Questions or Setup Issues?

Contact the HyperX support team at: hyperxgaming.com/support/

HyperX Cloud Flight™ S

Choose your configuration

Select the speaker setup below that is most like the configuration on your computer.

Audio channels:

Test

Click any speaker above to test it.

Cancel

Adjust Microphone Level

Volume Control (Headphones)

1

Output to Headphones

Switch Output Device Automatically

Controls

7.1 Surround Sound 12

Volume Control 13

Charging the Headset 14

Wireless Qi Charging 14

Choose your configuration

Select the speaker setup below that is most like the configuration on your computer.

Audio channels:

Test

Click any speaker above to test it.

Cancel

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

Controls

Adjust Microphone Level

Volume Control (Headphones)

1

Output to Headphones

All Audio

Switch Output Device Automatically

Commands

Choose your configuration

Select the speaker setup below that is most like the configuration on your computer.

Audio channels:

Test

Click any speaker above to test it.

Cancel

Adjust Microphone Level

Volume Control (Headphones)

1

Output to Headphones

Switch Output Device Automatically

Controls

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

Controls

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

Service

LED indicator status 12

Power button 12

7.1 Surround Sound technology 12

Volume control knob 13

Headset charging 14

Qi wireless charging 14

Wired charging 14

Software HyperX NGENUITY 15

Overview

A. Up arrow button — microphone volume switch B. Left arrow button — game sound control C. Right arrow button — chat sound control D. Down arrow button — microphone mute E. Microphone port F. USB charging port G. Status indicator light

H. Power button I. 7.1 surround sound button J. Volume control wheel K. Detachable microphone L. Microphone mute button indicator light M. USB adapter N. Contact hole for wireless device pairing O. Wireless device status indicator light P. USB charging cable

Technical specifications

Headphones

Driver: Dynamic, 50mm with neodymium magnets

Type: Over-ear, closed-back

Frequency response: 10Hz-22kHz

Impedance: 32Ω

Sound pressure level: 99.5 dB SPL/mW at 1kHz

Total harmonic distortion: < 1%

Weight: 310 g

Weight with microphone: 320 g

Cable length: USB charging cable (1m)

Element: electric condenser microphone

Directionality: bidirectional, with noise cancellation

Frequency response: 50 Hz - 18 kHz

Sensitivity: -40.5 dBV (1 V/Pa at 1 kHz)

Battery life

30 hours

Wireless connection range

2.4 GHz

Up to 20 meters

*Test conducted at 50% headphone volume

**Wireless connection range may vary depending on environmental conditions.

PC setup

1. Connect the wireless USB adapter to the PC. 2. Turn on the headset power. 3. Right-click the speaker icon in the taskbar and select Open Sound settings > Sound Control Panel.

1. On the Playback tab, select "HyperX Cloud Flight S Chat" (HyperX Cloud Flight S chat). Then click the down arrow next to Set Default and choose Default Communication Device.

1. Click on the "HyperX Cloud Flight S Game" (HyperX Cloud Flight S for gaming) option, then click on the arrow next to the Set Default label and select the Default Device option.

1. Right-click on the "HyperX Cloud Flight S Game" (HyperX Cloud Flight S for gaming) option and click on Configure Speakers.

1. Select 7.1 Surround as the speaker configuration and click "Next".

1. On the Recording tab, click on the "HyperX Cloud Flight S Chat" (HyperX Cloud Flight S for chat) option and click on Set Default.

1. On the Playback tab, make sure that the HyperX Cloud Flight S Game" (HyperX Cloud Flight S for gaming) parameter is set to Default Device, and the HyperX Cloud Flight S Chat" (HyperX Cloud Flight S for chat) parameter is set to Default Communication Device. On the Recording tab, make sure that the HyperX Cloud Flight S Chat" (HyperX Cloud Flight S for chat) parameter is set to Default Device.

Configuring for use with Discord

1. In the Discord settings area, select Voice & Video. 2. In the Voice Settings area, for the Input Device parameter, set the option to "Microphone (HyperX Cloud Flight S Chat)".
2. For the Output Device parameter, set the option to "Headset Earphone (HyperX Cloud Flight S Chat)".

Configuring for use with PlayStation 4

1. For the Input Device parameter, set the option to USB Headset (HyperX Cloud Flight S).
2. For the Output Device parameter, set the option to USB Headset (HyperX Cloud Flight S).
3. For the Output to Headphones parameter, select the option All Audio.
4. Set the Volume Control (Headphones) parameter to the maximum value.

Audio Devices

Input Device

USB Headset (HyperX Cloud Flight S)

Output Device

USB Headset (HyperX Cloud Flight S)

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

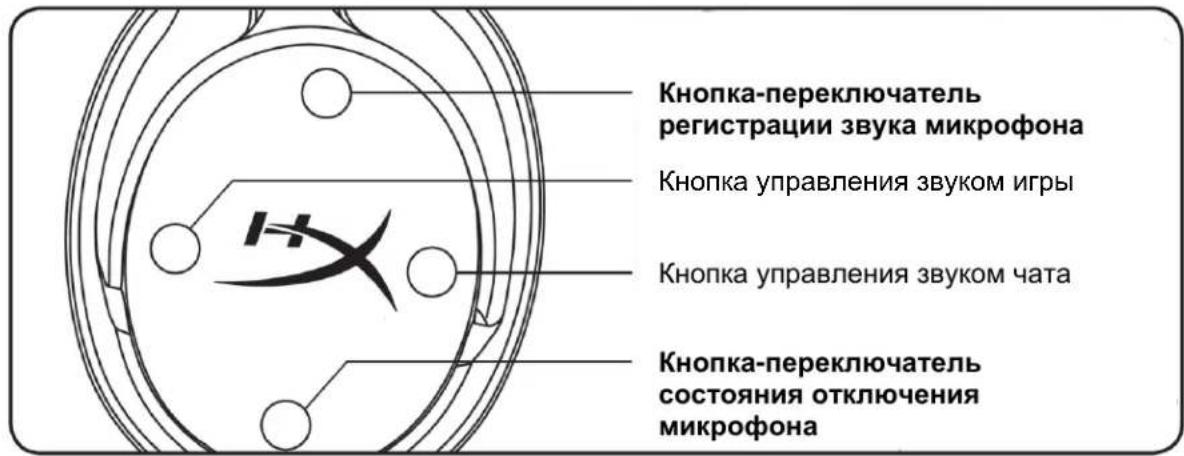

Controls

Microphone mute button

Press this button to enable or disable microphone audio recording.

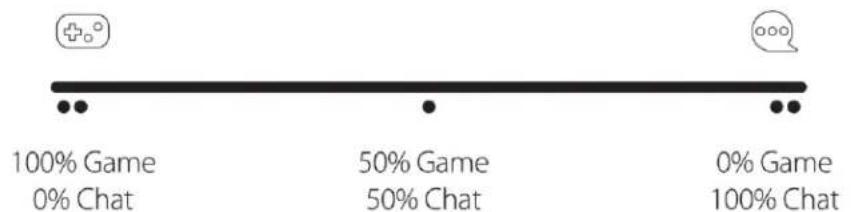

Game/chat audio balance

Press these buttons to adjust the balance between game audio and chat audio.

The game/chat balance adjustment function is independent of the overall headphone volume.

The game/chat balance adjustment function is available when using the headset with PlayStation 4.

Press the mute button to turn the microphone on or off.

Press this button to turn the microphone on or off.

The LED indicator on the microphone shows the current state of the 'Mute' mode.

LED indicator

Contact HyperX technical support at: hyperxgaming.com/support/.

HyperX Cloud Flight™ S

Part Numbers

HX-HSCFS-SG/WW

CONTENTS

Overview 3

Technical specifications 4

PC settings 5

Discord settings 9

PlayStation 4 settings 10

Controls 11

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

Controller

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

Tool

Microphone Monitor Switch Source

Choose your configuration

Select the speaker setup below that is most like the configuration on your computer.

Audio channels:

Test

Click any speaker above to test it.

8.

1. "HyperX Cloud Flight S Game" is a popular flight simulator, it can be used to simulate the flight of a plane.

Discord is used

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

Switch Output Device Automatically

JH

Microphone Level

Microphone Level 100

Note

1

1. speaker icon > Open Sound settings > Sound Control Panel

1. Playback "HyperX Cloud Flight S Chat" Set Default Default Communication Device

1. HyperX Cloud Flight S Game" Set Default Default Device

1. "HyperX Cloud Flight S Game" Configure Speakers

1. 17.1 Surround 1

1. Recording "HyperX Cloud Flight S Chat" Set Default

1. Playback "HyperX Cloud Flight S Game" Default Device "HyperX Cloud Flight S Chat" Default Communication Device Recording "HyperX Cloud Flight S Chat" Default Device

Discord

1. Discord settings Voice & Video
2. Voice Settings Input Device "Microphone (HyperX Cloud Flight S Chat)"
3. Output Device "Headset Earphone (HyperX Cloud Flight S Chat)"

PlayStation 4

1. Input Device USB Headset (HyperX Cloud Flight S)
2. Output Device USB Headset (HyperX Cloud Flight S)
3. Output to Headphones All Audio
4. Volume Control (Headphones)

Audio Devices

Input Device

USB Headset (HyperX Cloud Flight S)

Output Device

USB Headset (HyperX Cloud Flight 5)

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

1

LED 用电压表读数/电压表读数

xiaodu	xiaodu	LED
xiaodu	-	nchwuleuunwuuunwun 0.5 m
xiaodu	-	nchwuleuunwuuunwun
nchwuleuun	90% - 100%	nchwuleuunwuuunwun
	15% - 90%	nchwuleuunwuuunwun
	< 15%	nchwuleuunwuuunwun

7.1

LED smartwatch	smartwatch

Zawwun HyperX NGenuity

UeueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueueUE: hyperxgaming.com/ngenuity

HyperX: hyperxgaming.com/support/

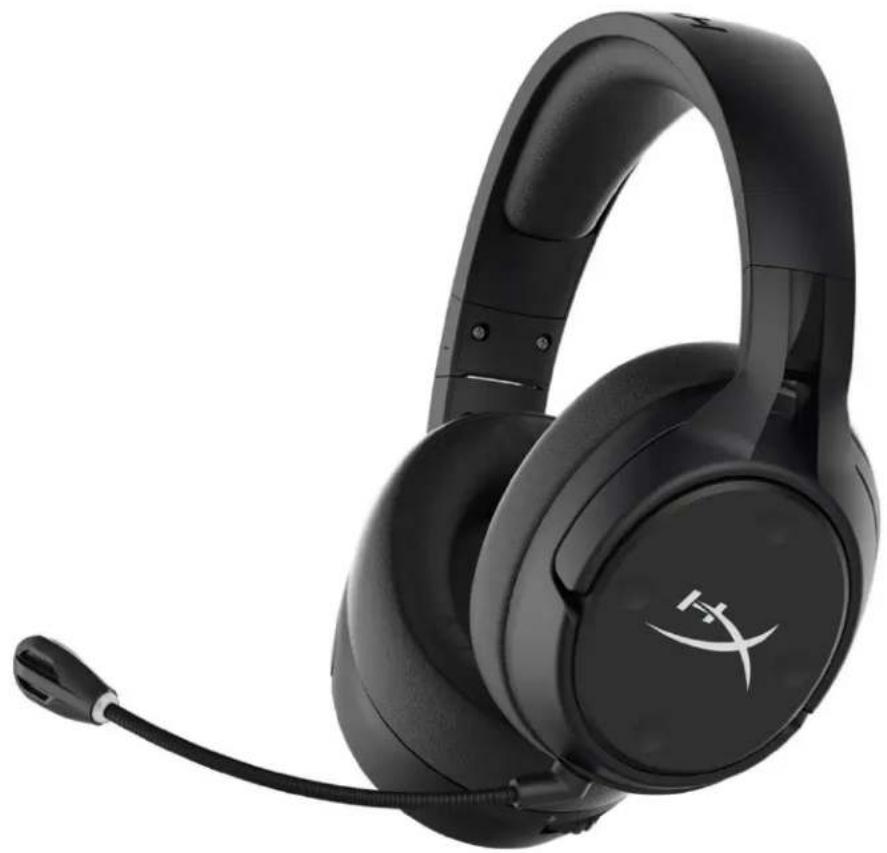

HyperX Cloud Flight™ S

Product code

HX-HSCFS-SG/WW

Table of contents

Overview 3 Specifications 4 Setup with PC 5 Setup with Discord 9 Setup with PlayStation 4. 10 Control buttons 11 Mic monitoring switch 11 Game/chat balance 11 Micro mute switch 11 LED status 12 Power button 12 7.1 virtual surround sound 12 Volume knob 13 Charging headset 14 Qi wireless charging 14 Wired charging 14 HyperX NGENUITY software 15

Tong quan

1. Data Input Device than USB Headset (HyperX Cloud Flight S)
2. Data Output Device than USB Headset (HyperX Cloud Flight S)
3. Data Output to Headphones than All Audio
4. Data Volume Control (Headphones) set to maximum.

Audio Devices

Input Device

USB Headset (HyperX Cloud Flight S)

Output Device

USB Headset (HyperX Cloud Flight S)

Adjust Microphone Level

Volume Control (Headphones)

1

Output to Headphones

Switch Output Device Automatically

Control knob

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

Switch Output Device Automatically

All Audio

Controls

Microphone Monitor Switch

Press and hold to turn microphone monitoring on/off.

Game/Chat Balance

hyperxgaming.com/ngenuity

Questions or setting issues?

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

Switch Output Device Automatically

Control Function

hyperxgaming.com/ngenuity

Have any installation or usage questions?

Please contact the HyperX support team at: hyperxgaming.com/support/

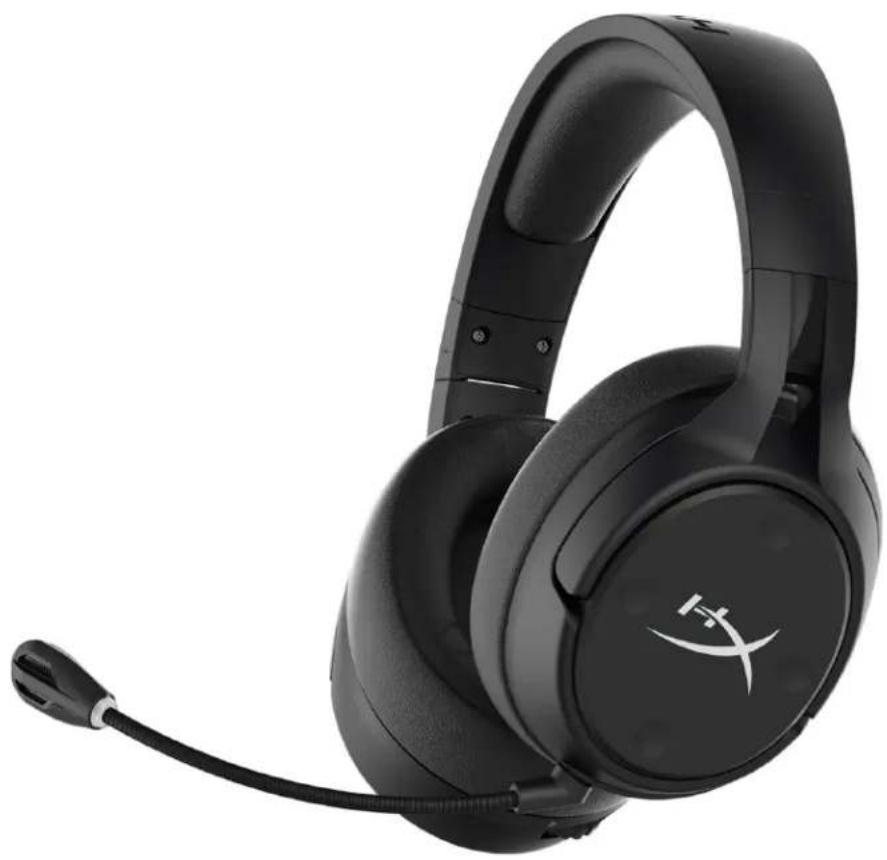

HyperX Cloud Flight™ S

1jz1pla

HX-HSCFS-SG/WW

Jg

1. 1
5. 1
10. LED 4u
12. 7.1
13. 14
15. 15 HyperX NGENUITY

7.1 1

A

Gswal Gsinu 12c J

A. j = -j_left B

Jill J

a a 2

J 1 LED

jg yall 1

USB .M

jSallia .E

sLwUJ JzJU W

USB

AaIILLED

LED G

USB

Microphone privacy settings

Ease of Access audio settings

Have a question?

Set up a microphone.

Fix sound problems

Get help

Make Windows better

Give us feedback.

4.

"HyperX Cloud Flight S" 6

7.

X

Speaker Setup

Choose your configuration

Select the speaker setup below that is most like the configuration on your computer.

Audio channels:

Test

Click any speaker above to test it.

Next

Cancel

HyperX Cloud Flight S

HyperX Cloud Flight S

HyperX Cloud Flight S

1

1.

1. (HyperX Cloud Flight S) 2.

2. (HyperX Cloud Flight S)

PlayStation

1. USB (HyperX Cloud Flight S)

2. USB (HyperX Cloud Flight S)

1. 1

4.

Audio Devices

Input Device

USB Headset (HyperX Cloud Flight S)

Output Device

USB Headset (HyperX Cloud Flight S)

Adjust Microphone Level

Volume Control (Headphones)

Output to Headphones

All Audio

Switch Output Device Automatically

HyperX

hyperxgaming.com/ngenuity

1

hyperxgaming.com/support/ HyperX
