Essen 170 - Car radio BLAUPUNKT - Free user manual and instructions

Product Type	Car stereo with CD/MP3/WMA player, FM/AM tuner, Bluetooth, USB and TF card
Brand and Model	Blaupunkt Essen 170
Dimensions (W x D x H)	178 x 160 x 50 mm
Weight	Approximately 1.5 kg
Power Supply	12 V DC, negative ground
Power Consumption	10 A max
Maximum Output Power	4 x 40 W
FM Tuner	Range 87.5 - 109 MHz, sensitivity 4 µV (S/N=30 dB)
AM (MW) Tuner	Range 522 - 1620 kHz, sensitivity 36 dBµV (S/N=20 dB)
CD Player	Signal-to-noise ratio >55 dB, channel separation >45 dB, frequency response 40 Hz - 18 kHz
Supported Audio Formats	CD audio, MP3, WMA
Main Functions	RDS (AF, TA, REG, EON), preset equalizer (FLAT, CLASSICS, POP, ROCK, XBASS), hands-free Bluetooth (A2DP, phonebook, calls), AUX input, USB port, TF card reader, detachable front panel, remote control
Bluetooth	Version not specified, range ~3 m, default code 0000, compatible with A2DP and hands-free profile
Sound Adjustments	Bass, treble, balance, fader, volume, LOC on/off, STEREO/MONO, beep
Display	LCD screen with backlight
Maintenance and Cleaning	Clean the front panel with a cotton swab soaked in isopropyl alcohol. Avoid harsh solvents.
Safety	Disconnect power before cleaning. Do not insert non-standard discs. Use identical replacement fuses.
Spare Parts and Repairability	Parts not available online. Consult an authorized dealer for repair. Warranty according to terms at www.blaupunkt.com.
Package Contents	Car stereo, remote control, mounting hardware, user manual
Operating Temperature	Not specified, but avoid extreme temperatures

Frequently Asked Questions - Essen 170 BLAUPUNKT

How to set the time on the Blaupunkt Essen 170?

Press and hold the DISP button for 2 seconds. The time flashes. Use the ◀/▶ or ▼/▲ buttons to adjust the hours, then briefly press DISP to go to minutes. Confirm with DISP. You can also activate RDS synchronization (stable AF symbol) for automatic time setting.

What to do if the car stereo does not turn on?

First check that the car ignition is in ACC or on position. Then inspect the fuse: if blown, replace it with an identical fuse (10 A). If the problem persists, contact an authorized dealer.

How to connect my phone via Bluetooth?

Enable Bluetooth on your phone. On the stereo, make sure Bluetooth is enabled (hold SRC for 2 seconds). Search for devices, select BP 170 BT and enter code 0000 if prompted. The BT icon appears on the screen once connected.

How to use the RDS function for traffic information?

In the system menu (hold MENU for 2 seconds), navigate to TA and activate it. When traffic information is broadcast, the stereo automatically switches to the TP station. You can set the TA volume in the same menu (TA VOL, from 20 to 43).

Why does the CD not play or skip?

The disc may be dirty, scratched, or warped. Clean it with a soft cloth. If the problem persists, try another disc. Also check that the disc is inserted correctly (label side up). In case of condensation, leave the device off for one hour.

How to reset the car stereo?

Use a thin object (pen, paperclip) to press the RESET button on the front panel. A reset clears user settings (preset stations, equalizer, etc.). Only reset in case of malfunction.

Can I use a USB flash drive or TF card?

Yes, plug a USB flash drive into the front port (up to 32 GB, max 500 folders, 999 files) or insert a TF card into the slot. The device automatically reads MP3/WMA files. Folder navigation is done with the DIR- and DIR+ buttons.

How to memorize a radio station?

Tune to the desired station, then press and hold a numeric key (1 to 6) for 2 seconds. The station is stored. To recall, briefly press the corresponding key. Automatic storage is done via the TS button (hold for 2 seconds).

Why is the sound weak or distorted?

Check the volume and bass/treble settings (audio menu). If the sound is distorted, reduce the volume. Also check the balance and fader. In radio mode, enable LOCAL mode if stations are weak. Ensure the mounting angle does not exceed 30°.

How to detach the front panel?

Press the release button (unlock icon) on the front panel. Gently pull the panel toward you. To reattach, align it and push until it clicks. Store it in its case to avoid scratches.

USER MANUAL Essen 170 BLAUPUNKT

Location of keys 4 Turn on/off the unit 5 Mute. 5 Faceplate release 5 Sound adjustment 5 REG on/off 5 TA volume 5 LOC on/off 5 Stereo/mono 5 Beep on/off 5 AREA 5 EQ 6 XBASS 6 Display information. 6 Set the time 6 Liquid crystal display 6 ESP function 6 Auxiliary input 6 Reset function 6 Radio operation 6 Switching to radio mode 6 Selecting the frequency band 6 Selecting station 7 Automatic memory storing& program scanning. 7 Manually store station & recall presentation 7 RDS (Radio Data System) operation CD/ MP3/WMA operation 8 Switching to disc mode 8 Selecting tracks/file 8 Pausing playing 8 Scan play all tracks/files 8 Repeating the same track/file 8 Playing all tracks/files in random 8

Ejecting a disc 8 Select directory up/down. 8 Selecting files by button .9 USB play operation 9 TF operation 9 Disc notes 10 Bluetooth operation*) .11 Remote control 13 Specification 14 Trouble shooting .15 Installation instructions 208

*) Only for devices with Bluetooth function

Declaration of conformity

The Blaupunkt Competence Center Car Multimedia-Evo Sales GmbH declares that the device complies with the basic requirements and the other relevant regulations of the directive 2014/53/EU. The declaration of conformity can be found on the Internet under www.blaupunkt.com

CE

Declaration of Conformity with regard to the RE Directive 2014/53/EU Declaration of Conformity with regard to the RoHS Directive 2011/65/EU

Warranty

The warranty terms can be called up from www.blaupunkt.com

Warranty

If you ever need to use a repair service, you will find information about service partners in your country under www.blaupunkt.com

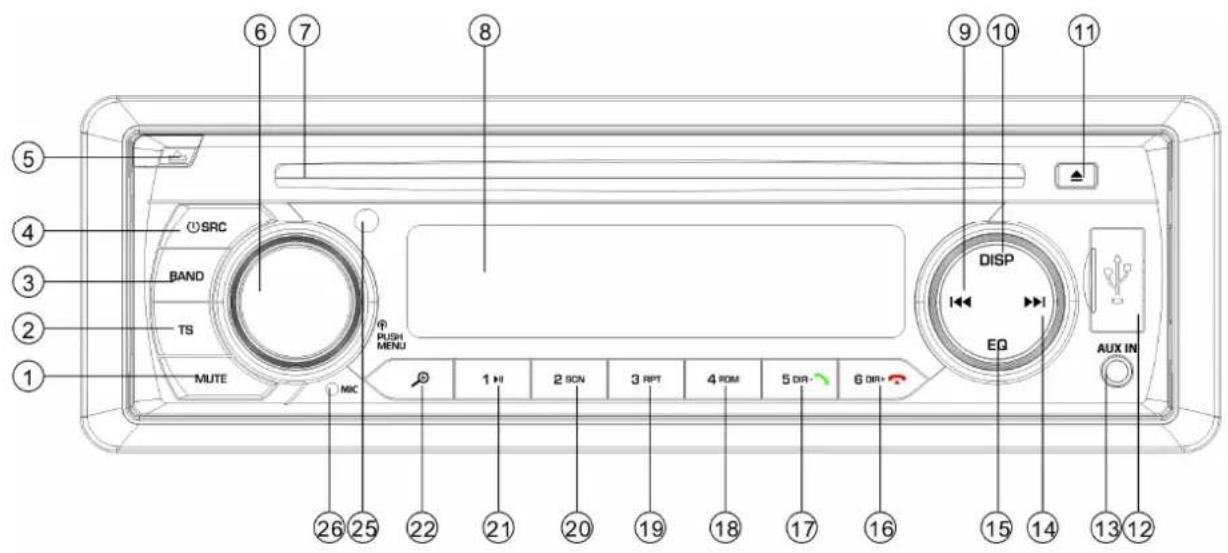

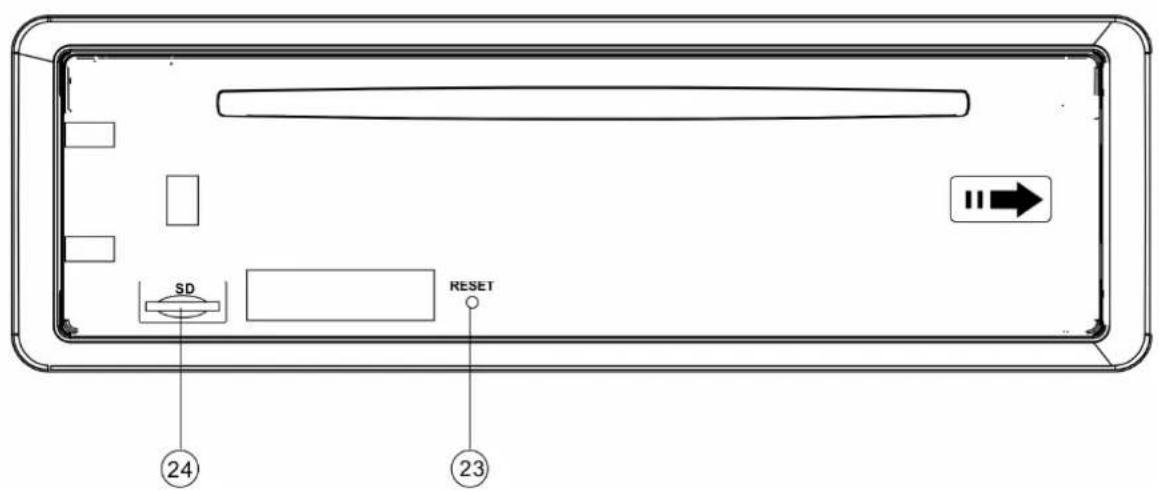

LOCATION OF KEYS

1. "MUTE" button.
2. "TS" button.
3. "BAND" button.
4. "①/SRC (source)" button.
5. "▲" (panel release) button.
6. "VOL/MENU" button.
7. DISC Slot.
8. LCD display.
9. "SEEK DOWN" button.
10. "DISP" button.
11. "Eject" button.
12. USB port.
13. "AUX IN" jack.
14. "SEEK UP" button.
15. "EQ" button.
16. "6 DIR+/" button.*)
17. "5 DIR- f button.*)"
18. "4 RDM" button
19. "3 RPT" button.
20. "2 SCN" button.
21. "1 button.
22. MP3 search button
23. RESET button.
24. TF card slot. 25.IR SENSOR 26.MICPHONE *) Only for devices with Bluetooth function

OPERATION

TURN ON/OFF THE UNIT

Turn on the unit by pressing button(4). When system is on. Press and hold button (4) for 2 seconds to turn off the unit.

MUTE

Shortly press MUTE button(1) to muting the audio output. Press it again to recover output.

FACEPLATE RELEASE

Press release button (5) to detach the removable faceplate.

SOUND ADJUSTMENT

Press MENU button (6) shortly to select the desired adjustment mode. The adjustment mode will change in the following order: -BAS-TRE-BAL-FAD-VOL-

BAS: bass

TRE: treble

BAL: balance

FAD: fader

VOL: volume

By rotating the audio knob (6) it is possible to adjust the desired sound quality.

Press and hold MENU button (6) for 2 seconds into the system menu as below:

TA: Traffic Announcement

REG: region

TAVOL: TA volume

LOC: local

STEREO

AREA: Europe

REG on/off

When AF function is on, you can switch REG on or off in the REG item of the system menu. Some broadcasting stations change their program from normal broadcasting to regional broadcasting for a certain time period. When REG is on, the

current listening program remains unchanged.

TA volume

This function allows you to define the minimum volume for traffic announcements. The adjustable range is 20 to 43. The default value is 25. Rotate the volume knob to adjust the volume of the traffic announcements.

LOC on/off

In this item, rotate the audio knob (6) to turn the local function on or off. In LOC ON mode, the unit will reduce the receiving sensitivity when you search for stations. That means you can receive stations with good sound quality, and it will ignore stations with poor sound. In LOC OFF mode, it will increase the receiving sensitivity when you search for stations, allowing you to receive more stations.

STEREO/MONO

In this item, rotate the audio knob (6) to choose STEREO or MONO mode. In STEREO mode, you can receive FM stereo signals. In MONO mode, stereo stations will be switched to monaural. Sometimes when the signal is not good, switching to MONO mode will reduce the noise.

BEEP on/off

The car audio device is equipped with 2 beep tone modes. Rotate the volume knob to choose one.

• Beep on mode: The confirmation beep sound is heard whenever a button is pressed.
• Beep off mode: The confirmation beep is switched off whenever a key is pressed.

AREA

In this item, rotate the volume to select Europe/USA/LAT area.

OPERATION

XBASS

Press and hold the EQ button for 2 seconds to activate the XBASS function. Press and hold it again to cancel this function.

EQ (Equalization)

Press the EQ button briefly to select the preset EQ mode as below:

FLAT - CLASSICS - POP - ROCK - EQ OFF

DISPLAY INFORMATION

Press the DISP button (10) to show the time for 5 seconds. Then it returns to show the information.

SET THE TIME

(1) Manual setting:

Press and hold the DISP button for 2 seconds. The hour of the time will flash. Press the ▸ / ▸ button to set the correct hour.

Press the DISP button briefly to change to minutes. Also use the button to set the correct minutes. After that, press the DISP button to confirm.

(2) Synchronize the time from the RDS station:

To receive an RDS station which has a good signal (the AF symbol on the LCD does not flash). Several minutes later, the time will be synchronized to the correct time by the station's signal. (Note: Non-RDS stations do not have this function.)

LIQUID CRYSTAL DISPLAY

Display the current frequency and activated functions on the display.

ESP FUNCTION

The unit can be shockproof for between ten and twenty seconds.

AUXILIARY INPUT

The unit can be connected to a portable

audio player through the AUX IN jack (13). Press the SRC button to switch to AUX mode when an audio source is inserted into the unit.

RESET FUNCTION

The RESET button (23) must be activated with either a ballpoint pen or a thin metal object.

The RESET button is to be activated for the following reasons:

• Initial installation of the unit when all wiring is completed.
• All the function buttons do not operate.
• Error symbol on the display.

Note: If pressing the RESET button (23) does not make the unit work, please use a cotton swab soaked in isopropyl alcohol to clean the socket on the front panel.

RADIO OPERATION

SWITCHING TO RADIO MODE

Press the SRC button (4) to select radio mode. The radio mode appears on the display along with the memory band and frequency.

In radio mode, press the BAND button (3) to select the desired band.

The reception band will change in the following order:

SELECTING STATION

Press button (14) or button (9) briefly to activate the automatic seek function. It will automatically search up or down for a station. Press and hold for 2 seconds until "MANUAL" appears on the display, then manual tuning mode is selected. In this

mode, you can turn up or down a step frequency one by one until you find a station. If neither button has been pressed for 5 seconds, it will return to seek tuning mode and "AUTO" appears on the display.

AUTOMATIC STORING & PROGRAM SCANNING

Automatic storing

• Press the TS button (2) for 2 seconds. The radio searches from the 87.5MHz frequency and checks the signal strength until one cycle of searching is finished. Then some strong stations are stored into the corresponding preset number buttons of the FM3 band. In the first cycle, it will be in LOCAL mode to receive the stronger stations. If there are fewer than 6 stations, it will search in the second cycle in LOCAL OFF mode.
• Program scanning

Press the TS button (2) briefly to scan preset stations. The radio holds at each preset number for 5 seconds with mute released.

- MANUALLY STORE STATION & RECALL PRESET STATION

To store a received station, press one of the preset buttons (1~6) for 2 seconds. The current station is stored into that number button. Briefly press the preset button (1~6) to directly listen to the station saved in the corresponding preset button.

In the AF item of the system menu, rotate the audio knob to switch the AF function on or off.

Whenever AF is on, the symbol "AF" appears on the display.

Program name is displayed on receiving

a RDS station.

"AF" starts blinking if the broadcasting signal is getting worse.

"ALARM" will be displayed when an emergency broadcast is received, meanwhile the sound output level will be adjusted to the preset output level automatically when the volume control is set at minimum.

Regional Program Operation

When AF function is on. In REG item of system menu. Rotating audio knob to turn the REG function on or off. When AF function is off. The REG function can't be set to off.

Some broadcasting stations change their program from normal broadcasting to regional broadcasting for a certain time period. When region is on, the current listening program remains unchanged. When region is off, it allows the reception to move to the regional station.

- Listening to Traffic Announcement

In TA item of system menu. Rotating audio knob to switch on or off the TA function. When TA mode is on and a traffic announcement is transmitted:

When the unit was in CD (MP3) or AUX mode, it will switch temporarily to radio mode.

Temporary switch over to an EON linked station when EON detects a traffic announcement on that other program.

If the volume level was under the threshold point it will be raised to the threshold point.

When TA mode is on, TA of individual segment is turned on. When a TP station is received, TP of individual segment is turned on.

TA interruption function

The current traffic announcement is cancelled by turning the TA function to STOP (in TA item of RDS menu, when

the TA station is not received it only has

on/off. But when received a TA station the TA item will have on/stop/off for your selection).But the TA mode will not be off.

unwanted EON TA switching, which EON TA information was received from current station and the radio switched to that EON linked station, but no Information could not be received because the EON linked station is located too far from that area. So the radio is switched back to current station again. In above operation, a customer listens to a wrong program or mute sound for a while. The RDS data used are the PI, PS, AF, TP, TA, EON and PTY data.

PS: Program Service Name

Broadcast station name data expressed in alphanumeric characters

AF: Alternative Frequencies

Frequency list of broadcasting stations transmitting the same program

TP: Traffic Program Identification

Identification data for traffic information-broadcasting station

TA: Traffic Announcement Identification Identification data showing traffic information is being transmitted or not.

EON: Enhanced Other Networks Information

Broadcasting information on PI, AF, TP, TA, etc, relating to networks other than the network used for current reception.

SWITCHING TO DISC MODE

If there is no disc inserted in the driver:

Gently insert a disc with the printed side uppermost into the disc compartment until you feel some resistance. The disc is drawn into the driver automatically. disc playback begins.

If a disc is already inserted in the driver: Keep pressing SRC button (4) shortly until the DISC mode display appears.

- SELECTING TRACKS/FILES

Press button (14) or button (9) to move to the previous track/file or the following track/file. Track/file number

shows on the display.

Hold button (14) or button (9) to fast reverse or fast forward. disc play starts from when you release the button.

- PAUSING PLAYING

Press button (21) to pause playing.

Press it again to resume play.

- SCAN PLAY ALL TRACKS/FILES

Press SCN button (20) to play first several seconds of each track/file. Press again to stop intro play and listen to track/file.

- REPEATING

THE SAME

TRACK/FILE

Press RPT button (19) to continuously repeat the same track/file. Press it again to repeat all the tracks/files.

- PLAYING ALL TRACKS IN RANDOM

Press RDM button (18) to play all tracks/files in random order. Press it again to cancel the random function.

EJECTING A DISC

Press the ▲ button (11) to stop disc playing and eject the disc from the disc slot (6).

SELECT DIRECTION UP/DOWN

Press the DIR- button (17) or DIR+ button (16) to select the previous directory or next directory. If the MP3/WMA disc does not contain any directory, pressing the DIR- button (17) or

DIR+ button (16) has no function.

- SELECTING FILES BY BUTTON

(22) is assigned as the selection button in MP3/WMA operation.

When pressed, it activates the selection of each mode as below:

Search from folder. => Search file number.

Search From Folder

Press the button once. It enters "Searching from folder" mode. Rotate the VOL knob to select the desired folder. After that, press

the MENU knob (6) to enter the folder. Rotate knob (6) to select the desired file. Then press MENU knob (6) again to play. Press the button to go back to the previous folder.

Search File number

Press the button twice. It activates the "Search file number" mode. Rotate knob (21) to select the file number, then press MENU knob (4) to confirm. The unit searches for the selected file to play. You can also enter the file's number. On the front panel, except for 1~6 digits, please note 7/8/9/0 as below:

EQ:7

:8

:9

DISP:0.

If the file number was selected, the unit waits for a few seconds. The unit searches for the track after a few seconds, even if the MENU (4) button is not pressed.

USB PLAY OPERATION

On the front panel of the unit, there is a USB interface (10). You can connect a USB drive through this interface (12).

When you connect a USB drive through the interface, the unit will search for MP3/WMA files on the USB drive and start playing. If you are in another mode, you can also press the

SRC button to select USB mode.

When playing MP3/WMA files from the device, the operation is the same as the CD/MP3/WMA operation described above.

Note:

The main unit can only support standard USB memory devices that are approved by Microsoft. - USB MP3 players are not standardized, meaning different brands or models have their own standards. Therefore, our product cannot support every MP3 player. - When connecting an MP3 player that uses a normal battery (non-rechargeable), you should remove the battery from the MP3 player before connecting it to the USB interface. Otherwise, it may cause the battery to burst.

TF OPERATION

There is a TF interface (24) on the front panel of the unit.

When you insert a TF card into the TF interface, the unit will search for MP3/WMA files on the card and start playing. The operation is the same as the

CD/MP3/WMA operation described above.

If in other mode. You can also press SRC (4) button to select SD mode.

SUPPORTED MP3/WMA DECODING MODES

The main unit supports MP3/WMA (Windows Media Audio) decoding modes as below.

Standard	Bit Rate (kbps)	Supports Mode
MPEG1 Audio Layer 3 (44.1kHz)	32,48,64,96, 128,192,256, 320	Stereo
Windows Media Audio (44.1kHz)	64,96,128,192	Stereo

The USB solution can support:

1. Folder: 500 max.
2. File: 999 max.
3. Depth of folder: 8 layers
4. Size: 32 GB

CAUTION

When there are important files in the USB device or TF card, do not connect it to the main unit to play. And don't play the CD-R/RW disc that has important files in it. Because any wrong operation may cause files loss. And our company assumes no responsibility for this.

DISC NOTES

A. Notes on discs:

Attempting to use non-standard shape discs (e.g. square, start, heart) may

1. damage the unit. Be sure to use round shape CD discs only for this unit.
2. Do not stick paper or tape, etc., onto the label side or the recording side of any discs, as it may cause a malfunction.
3. Dirt, dust, scratches, and warping discs will cause mis-operation.

B. Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable CDs):

1. Be sure to use discs with the following marks only for the unit to play:

DIGITAL AUDIO

DIGITAL AUDIO

Recordable

DIGITAL AUDIO

ReWritable

1. The unit cannot play a CD-R and CD-RW that is not finalized. (Please refer to the manual of your CD-R/CD-RW recorder or CD-R/CD-RW software for more information on the finalization process).

CD-R/CD-RW software for more information on finalization process).

1. Depending on the recording status, conditions of the disc and the equipment used for the recording, some

a: Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x.

*1: To have more reliable playback, please see the following recommendations:

a: Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x.

b. Use CD-Rs with speed 1x to 8x and write with speed 1x to 2x.

c. Do not play a CD-RW which has been written for more than 5 times.

C. Notes on MP3 files (MP3 Version Only):

1. The disc must be in the ISO9660 level 1 or level 2 format, or Joliet or Romeo in the expansion format.
2. When naming a MP3 file, be sure the file name extension is ".MP3".
3. For a non-MP3 file, even though the file name extension is ".MP3", the unit cannot recognize it.

(i) When using Bluetooth, please make sure the mobile phone supports Bluetooth function. (ii) For different kinds of mobile phones, Bluetooth emissive power has some difference. To get the best conversation quality, it is recommended that the distance between the mobile phone and the unit is within 3m. And please don't put any metal object or any obstacle between the path of the mobile phone and the unit.

PAIRING

1) On the mobile phone, select the Bluetooth setup. (Please refer to the instruction manual of your mobile phone on how to operate Bluetooth.) 2) "CAR KIT" should appear in the list on your

mobile phone, please select "BP 170 BT" and then input password "0000" if it needs a password. 3) When successfully paired, the BT mark will be displayed on LCD.

- Answering / rejecting an incoming call

When there is a phone call coming in, press key to answer the call. Press key to reject the call.

- Hang up a call

When finished a conversation, press key to hang up this call.

Checking phone book / received / dialed / missed call (for Android and iPhone mobile)

Press the SRC key; it will show "PHONE" on the display. Press the button; it will show "BOOK" on the LCD. Then repeatedly press it; it will show items as below:

Note: The first time, your mobile will receive a message that the unit will visit your mobile through Bluetooth. You have to agree and press "YES" to confirm.

(Note: It is necessary that the phone number is in the phone, not in the SIM card.)

- Call out

1) Making an outgoing call by inputting the phone number manually.

Press the SRC key; it will show "PHONE" on the

display. Press and hold the key. The LCD

will become blank. Then you can enter the phone number and press the key to confirm

the dialing. (Note: If you inputted wrong

numbers, press the key to cancel wrong numbers.)

On the front panel, except for the 1~6 digits, please note 0/7/8/9/*/# as below:

0: DISP button. 7: EQ. 8: [missing]. 9: [missing].

*: press and hold the 5 key for 2 seconds. #: press and hold the 6 key for 2 seconds.

1) Redialing an outgoing call

Press the SRC key; it will show "PHONE" on the display. Press and hold the key for 2 seconds; it will redial the last phone number.

2) Making an outgoing call from the phone book / received / dialed / missed call (for Android and iPhone mobile)

• Please reference "Checking phone book / received / dialed / missed call" item then select a phone number. Press key to dial.

Note: If there are 2 SIM cards in your mobile phone, when you dial out a call from the front panel of the unit, the call will be dialed out from the default card (or asking which card to use each time you dial out).

• Transfer the call between mobile phone and unit

During the talking mode, you can press

button (22) to transfer the phone call

between the mobile phone and the unit.

• Bluetooth audio (A2DP function)

Press SRC button (4) and it will show "PHONE" on the display. Then turn on the music player of your mobile phone and play a song. The sound will come out from the speaker of the

unit. Press key (21) on the front panel of the unit to pause/play the song. Press button (14) or button (9) to select next/previous song.

Connect/disconnect Bluetooth

Press and hold the SRC button for 2 seconds to connect/disconnect Bluetooth.

*) Only for devices with Bluetooth function

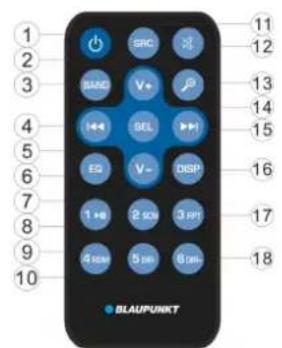

FUNCTION KEY & CONTROL

1.	Power ON/OFF Button.
2.	VOL+: Volume up button.
3.	BAND: To select FM1/FM2/FM3/AM1/AM2 band in RADIO mode.
4.	In RADIO mode: Press it shortly for seek down function. Press and hold it for manual turn down. In CD/MP3/WMA mode: Press it shortly for skip previous one track/file. Press and hold it for fast reverse.
5.	VOL-: Volume down button.
6.	EQ: It is EQ button.
7.	2 SCN: In RADIO mode: Number 2. See page 11 MANUALLY STORE STATION & RECALL PRESET STATION. In CD/MP3/WMA mode: Press it turn on/off SCANNING function.
8.	1▶1 In RADIO mode: Number 1. See page 11 MANUALLY STORE STATION & RECALL PRESET STATION. In CD/MP3/WMA mode: Press to pause/resume playing.
9.	4 RDM: In RADIO mode: Number 4. See page 11 MANUALLY STORE STATION & RECALL PRESET STATION. In CD/MP3/WMA mode: turn on/off random function.
10.	5 DIR-: In RADIO mode: Number 5. See page 11 MANUALLY STORE STATION & RECALL PRESET STATION. In MP3/WMA mode: Press it back to previous folder. It is key in BT mode.*)
11.	SRC: It is SRC key.
12.	Press it to mute/recover the sound.
13.	In RADIO mode: It is TS function. See page 11 AUTOMATIC STORING & PROGRAM SCANNING In MP3/WMA mode: It is file searching function. (See page 12). In PHONE mode. Its function seeing page 15 BLUETOOTH OPERATION
14.	SEL: Press it shortly for audio menu. Press and hold for system menu (See page 9). In MP3/WMA searching mode press it for confirm function (See page 13).
15.	In RADIO mode: Press it shortly for seek down function. Press and hold it for manual turn up. In CD/MP3/WMA mode: Press it shortly for skip next one track/file. Press and hold it for fast forward.
16.	DISP: Press DISP to show the time.
17.	3 RPT: In RADIO mode: Number 3. See page 11 MANUALLY STORE STATION & RECALL PRESET STATION. In CD/MP3/WMA mode: Press it turn on/off repeat function.
18.	6 DIR+: In RADIO mode: Number 6. See page 11 MANUALLY STORE STATION & RECALL PRESET STATION. In MP3/WMA mode: Press it to next folder When incoming a call or finish a call. It is key.*)

SPECIFICATION

GENERAL

Power Supply Requirements: DC 12 Volts, Negative Ground

Chassis Dimensions: 178 (W) x 160 (D) x 50 (H)

Tone Controls

• Bass (at 100 Hz): ±10 dB
• Treble (at 10 kHz): ±10 dB
• Maximum Output Power: 4x40 watts
• Current Drain: 10 Ampere (max.) (For Normal Power Version)

CD PLAYER

Signal to Noise Ratio: More than 55 dB

Channel Separation: More than 45 dB

Frequency Response: 40Hz - 18 kHz

RADIO

FM

Frequency Coverage 87.5 to 108 MHz

IF 10.7 MHz

Sensitivity (S/N = 30 dB) 4 µV

Stereo Separation >25 dB

AM (MW)

Frequency Coverage 522 to 1620 kHz

IF 450 kHz

Sensitivity (S/N = 20 dB) 36 dBuV

Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer.

Symptom Cause Solution
No power.	The car ignition switch is not on.	If the power supply is connected to the car accessory circuits, but the engine is not moving, switch the ignition key to "ACC".
	The fuse is blown. Replace the fuse.
Disc cannot be loaded or ejected.	Presence of CD disc inside the player.	Remove the disc in the player, then put a new one.
	Inserting the disc in reverse direction.	Insert the compact disc with the label facing upward.
	Compact disc is extremely dirty or detective disc.	Clean the disc or try to play a new one.
	Temperature inside the car is too high.	Cool off or until the ambient temperature return to normal.
	Condensation.	Leave the player off for an hour or so, then try again.
No sound.	Volume is in minimum	Adjust volume to a desired level.
	Wiring is not properly connected.	Check wiring connection.
Sound skips.	The installation angle is more than 30 degree.	Adjust the installation angle less than 30 degree.
	The disc is extremely dirty or defective disc.	Clean the compact disc, then try to play a new one.
The operation keys do not work.	The built-in microcomputer is not operating properly due to noise.	Press the RESET button. Front panel is not properly fix into its place.
The radio does not Work. The radio station automatic selection does not work.	The antenna cable is not connected.	Insert the antenna cable firmly.
	The signals are too weak.	Select a station manually.

TABLE OF CONTENTS

Operation 18

Key locations 18

DIGITAL AUDIO ReWritable

Activate/deactivate LOC 35

Stereo / mono mode 35

Activate / deactivate the beep sound 35

ZONE 35

EQ 36

DIGITAL AUDIO ReWritable

DISPLAY INFORMATION

Time setting. 102

SELECT CATALOG UP/DOWN

DIGITAL AUDIO ReWritable

DISPLAY 150

AUX INPUT 150

RESET FUNCTION 150

RADIO OPERATION. 150

RDS (RADIO DATA SYSTEM) OPERATION 151

TA INTERRUPT FUNCTION 151

CD / MP3 / WMA OPERATION 152

SELECT CATALOG UP/DOWN

OPERATING THE USB PLAYER 153

TF OPERATION 153

DECODING STATES THAT

SUPPORT MP3/WMA 154

WARNING 154

DISC NOTES 154

BLUETOOTH OPERATION*) 154

FUNCTION KEY & CONTROL 157

GENERAL INFORMATION 159

LIQUID CRYSTAL DISPLAY

TP: Identification of traffic program

Identification data for traffic information station

TA: Identification of traffic announcements

Identification data showing whether traffic information is being transmitted or not.

BOOK --- RECEIVED --- DIALED --- MISSED ---PHONE

(Phonebook -> Received -> Calls -> Missed -> Phone)

In each item, you can use the button or the button to control the corresponding number.

0: DISP button. 7: EQ: 8: 9:

*: Press and hold the 5 button for 2 seconds.

: Press and hold the 6 key for 2 seconds.

Removal of the front panel 164

Playback with "scan" of all

Starting playback 183

0: Display button (DISP)

7: EQ:

8:

9:

*: Press and hold button (5) for 2 seconds.

: Press and hold button (6) for 2 seconds.

→FM1→FM2→FM3→MW1(AM1)→MW2(AM2)

Station selection

Supplied mounting hardware

Available as an option

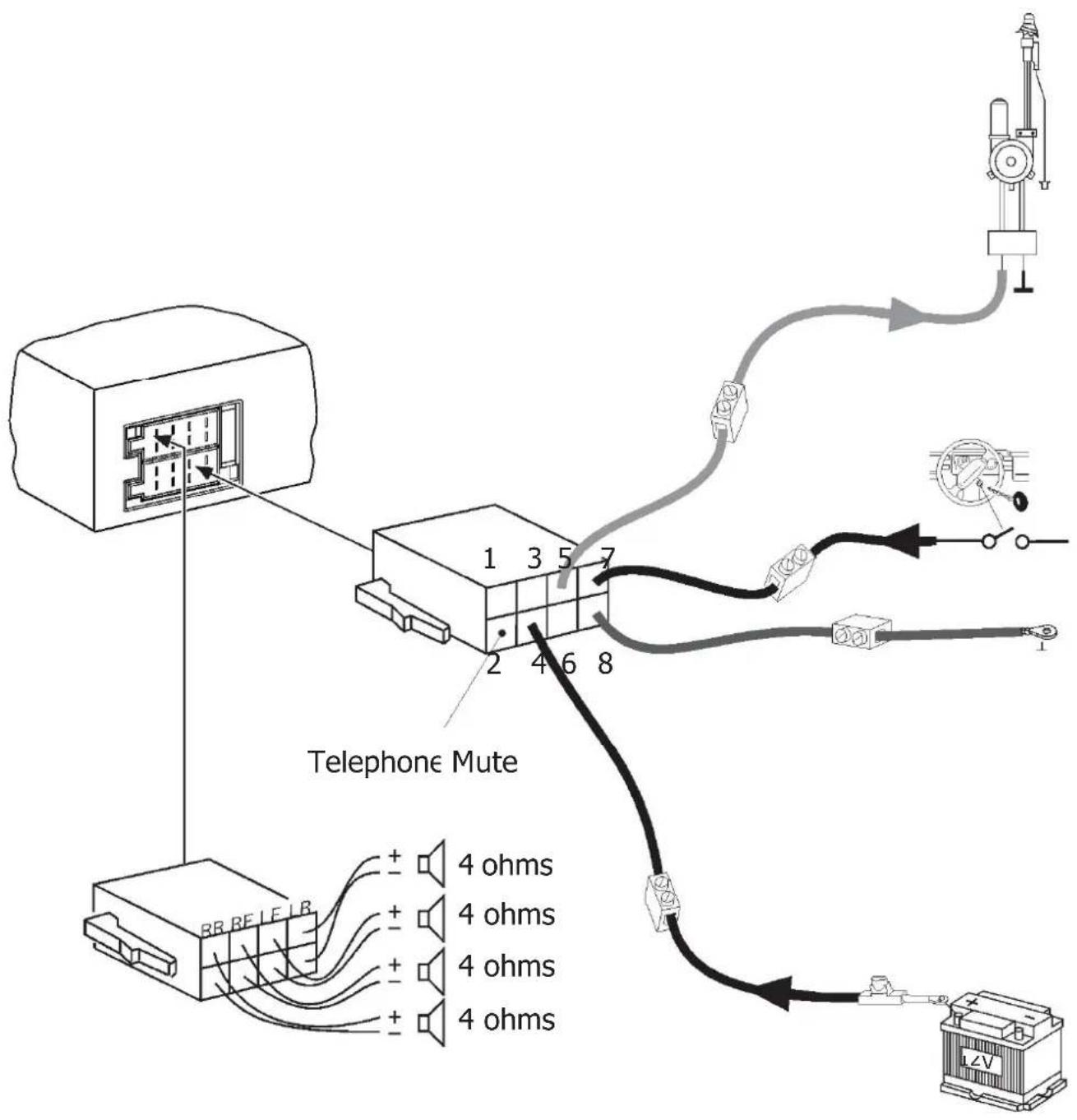

		B
1	NC	1	Speaker out RR+
2	NC	2	Speaker out RR-
3	NC	3	Speaker out RF+
4	Permanent +12V	4	Speaker out RF-
5	Auto antenna*	5	Speaker out LF+
6	NC	6	Speaker out LF-
7	TI.15/Ignition	7	Speaker out LR+
8	Ground	8	Speaker out LR-

• Switched power supply +12 V / max. 150 mA

Subject to modifications!

• Subject to modifications!
• Subject to modifications!

Evo-Sales GmbH

Hastenbecker Weg 33
