USER MANUAL EERC70EB ELECTROLUX

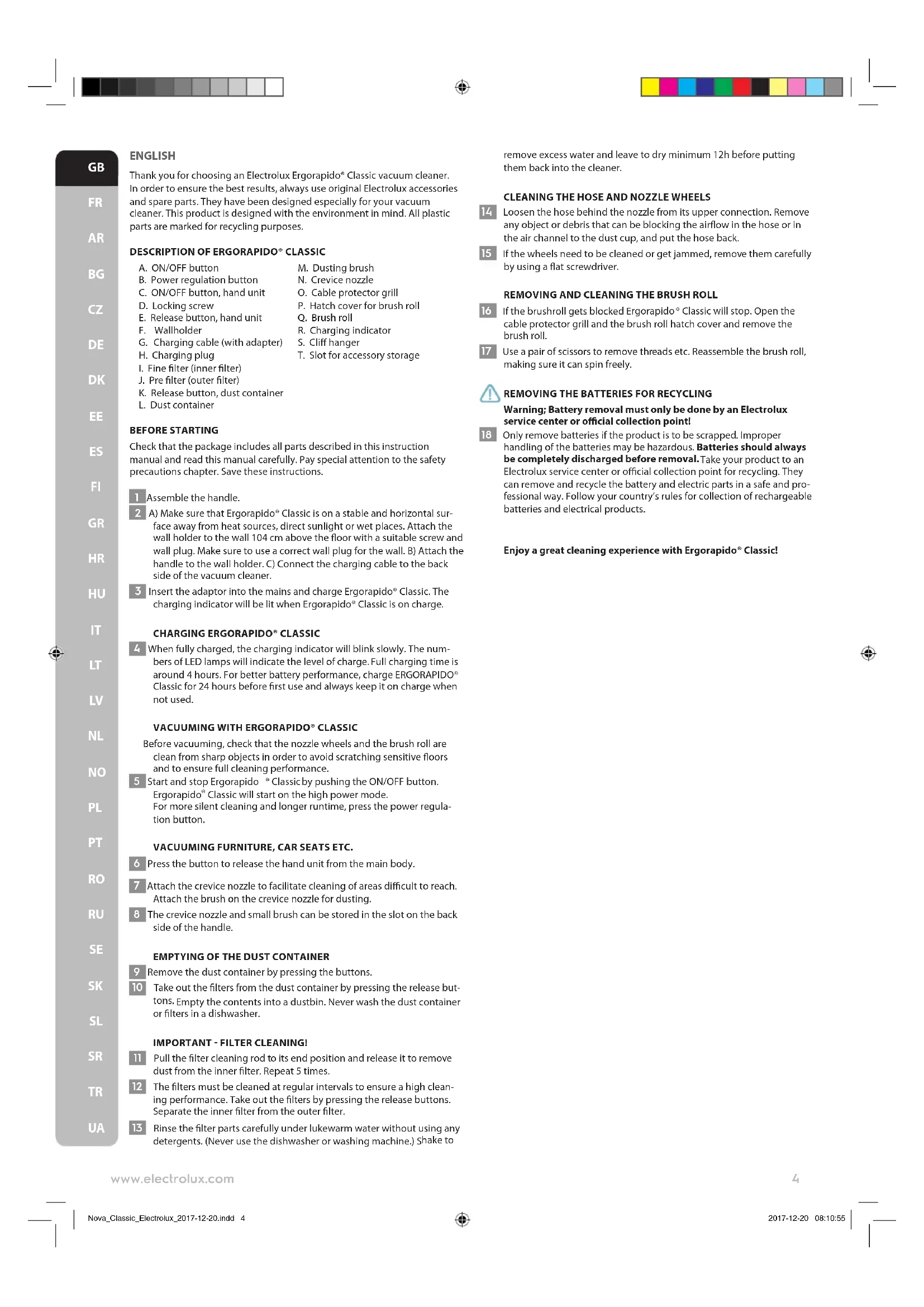

www.electrolux.com 3 Nova_Classic_Electrolux_2017-12-20.indd 3 2017-12-20 08:10:55ENGLISH Thank you for choosing an Electrolux Ergorapido® Classic vacuum cleaner. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your vacuum cleaner. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

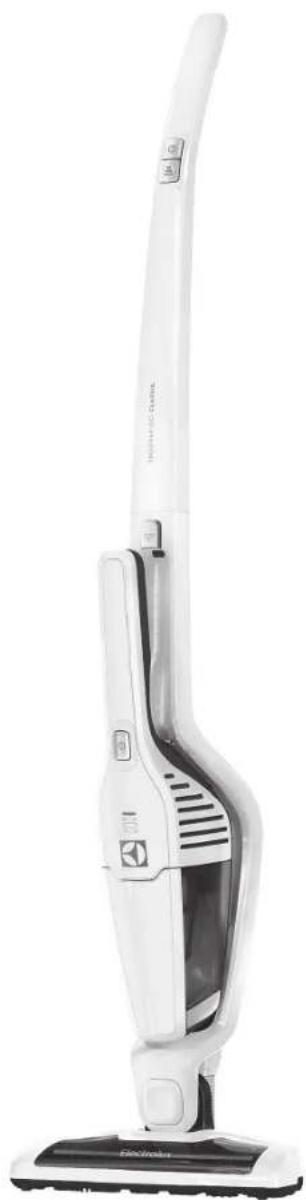

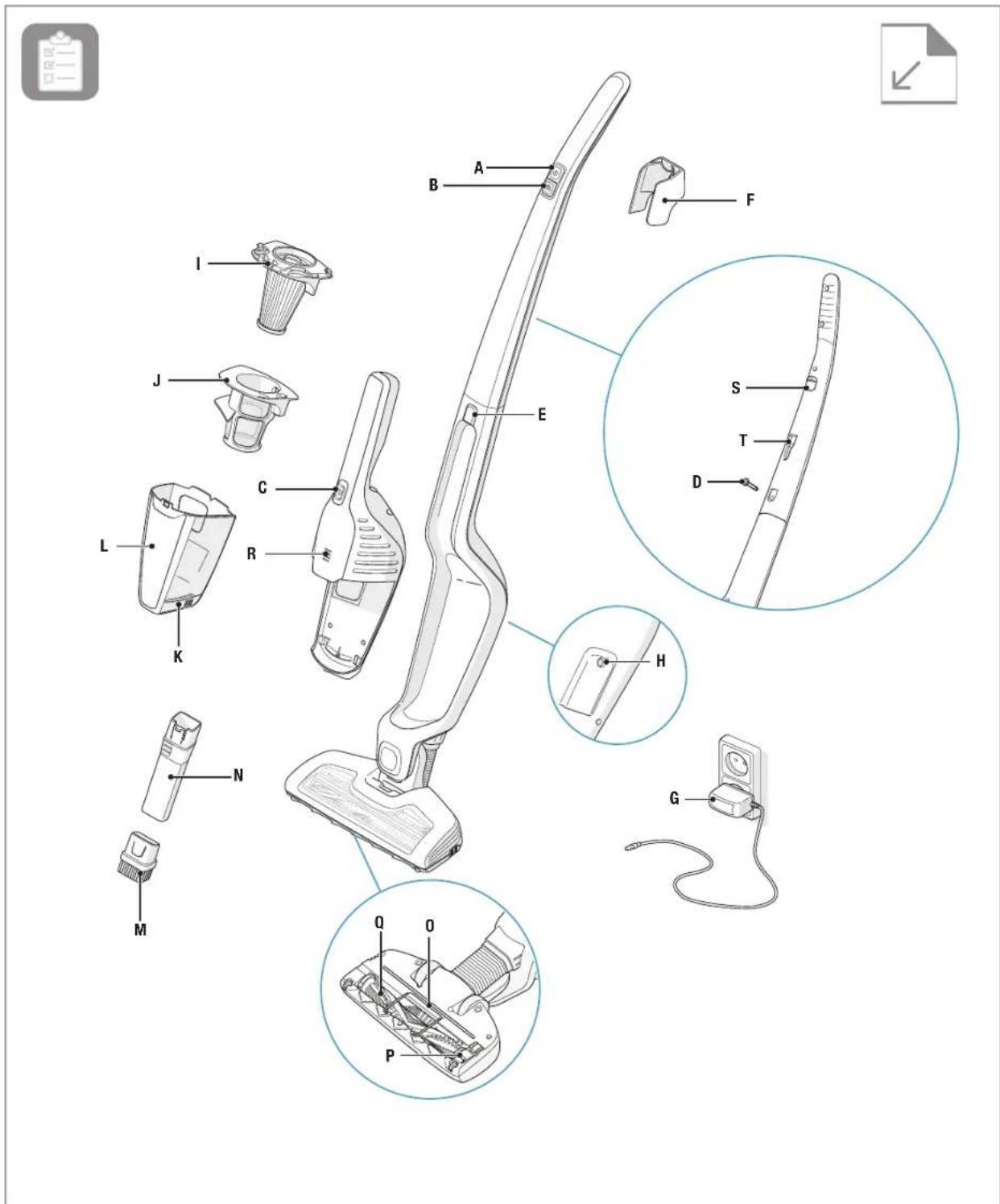

DESCRIPTION OF ERGORAPIDO® CLASSIC

A. ON/OFF button B. Power regulation button C. ON/OFF button, hand unit D. Locking screw E. Release button, hand unit F. Wallholder G. Charging cable (with adapter) H. Charging plug

I. Fine lter (inner lter)

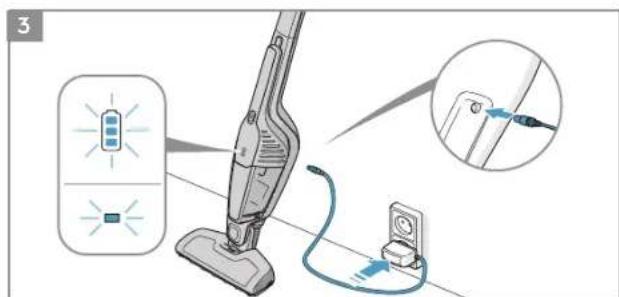

J. Pre lter (outer lter) K. Release button, dust container L. Dust container M. Dusting brush N. Crevice nozzle O. Cable protector grill P. Hatch cover for brush roll Q. Brush roll R. Charging indicator S. Cli hanger T. Slot for accessory storage BEFORE STARTING Check that the package includes all parts described in this instruction manual and read this manual carefully. Pay special attention to the safety precautions chapter. Save these instructions. 1 Assemble the handle. 2 A) Make sure that Ergorapido® Classic is on a stable and horizontal sur- face away from heat sources, direct sunlight or wet places. Attach the wall holder to the wall 104 cm above the oor with a suitable screw and wall plug. Make sure to use a correct wall plug for the wall. B) Attach the handle to the wall holder. C) Connect the charging cable to the back side of the vacuum cleaner. 3 Insert the adaptor into the mains and charge Ergorapido® Classic. The charging indicator will be lit when Ergorapido® Classic is on charge.

CHARGING ERGORAPIDO® CLASSIC

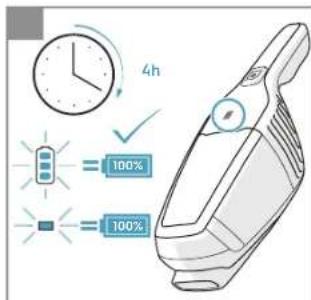

4 When fully charged, the charging indicator will blink slowly. The num- bers of LED lamps will indicate the level of charge. Full charging time is around 4hours. For better battery performance, charge ERGORAPIDO® Classic for 24hours before rst use and always keep it on charge when not used.

VACUUMING WITH ERGORAPIDO® CLASSIC

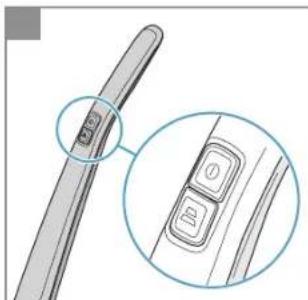

Before vacuuming, check that the nozzle wheels and the brush roll are clean from sharp objects in order to avoid scratching sensitive oors and to ensure full cleaning performance. 5 Start and stop Ergorapido

Classic by pushing the ON/OFF button. Ergorapido

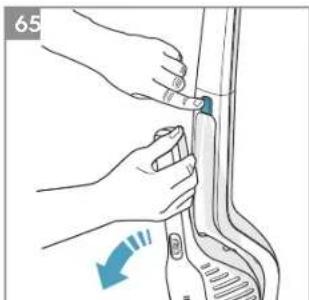

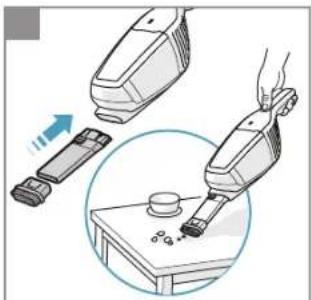

Classic will start on the high power mode. For more silent cleaning and longer runtime, press the power regula- tion button. VACUUMING FURNITURE, CAR SEATS ETC. 6 Press the button to release the hand unit from the main body. 7 Attach the crevice nozzle to facilitate cleaning of areas dicult to reach. Attach the brush on the crevice nozzle for dusting. 8 The crevice nozzle and small brush can be stored in the slot on the back side of the handle.

EMPTYING OF THE DUST CONTAINER

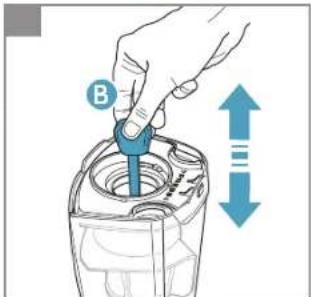

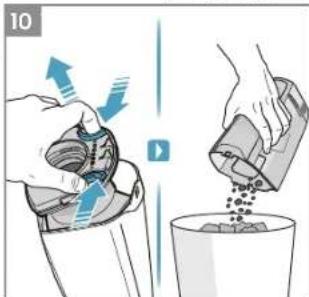

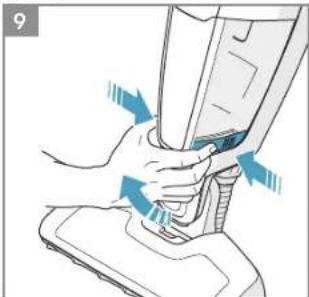

9 Remove the dust container by pressing the buttons. 10 Take out the lters from the dust container by pressing the release but- tons. Empty the contents into a dustbin. Never wash the dust container or lters in a dishwasher. IMPORTANT - FILTER CLEANING! 11 Pull the lter cleaning rod to its end position and release it to remove dust from the inner lter. Repeat 5 times. 12 The lters must be cleaned at regular intervals to ensure a high clean- ing performance. Take out the lters by pressing the release buttons. Separate the inner lter from the outer lter. 13 Rinse the lter parts carefully under lukewarm water without using any detergents. (Never use the dishwasher or washing machine.) S hake to remove excess water and leave to dry minimum 12h before putting them back into the cleaner.

CLEANING THE HOSE AND NOZZLE WHEELS

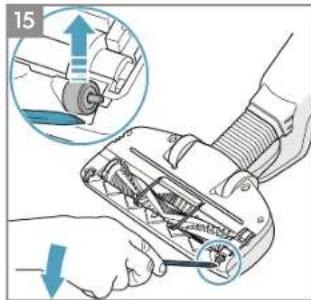

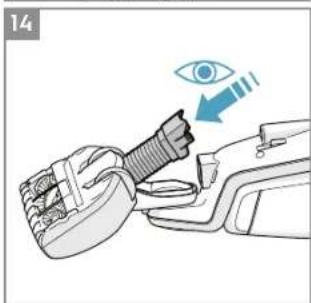

14 Loosen the hose behind the nozzle from its upper connection. Remove any object or debris that can be blocking the airow in the hose or in the air channel to the dust cup, and put the hose back. 15 If the wheels need to be cleaned or get jammed, remove them carefully by using a at screwdriver.

REMOVING AND CLEANING THE BRUSH ROLL

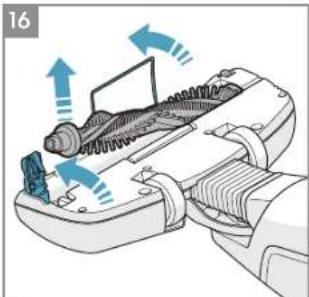

16 If the brushroll gets blocked E rgorapido ® Classic will stop. Open the cable protector grill and the brush roll hatch cover and remove the brush roll. 17 Use a pair of scissors to remove threads etc. Reassemble the brush roll, making sure it can spin freely.

REMOVING THE BATTERIES FOR RECYCLING

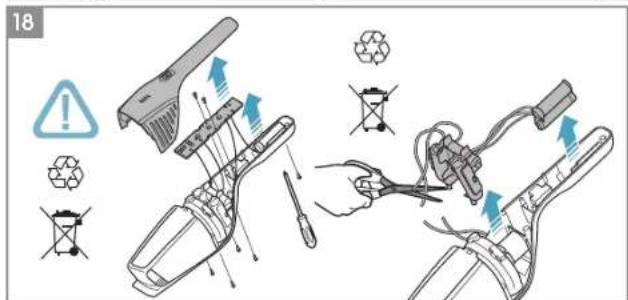

Warning; Battery removal must only be done by an Electrolux service center or ocial collection point! 18 Only remove batteries if the product is to be scrapped. Improper handling of the batteries may be hazardous. Batteries should always be completely discharged before removal. Take your product to an Electrolux service center or ocial collection point for recycling. They can remove and recycle the battery and electric parts in a safe and pro- fessional way. Follow your country’s rules for collection of rechargeable batteries and electrical products. Enjoy a great cleaning experience with Ergorapido® Classic! 4www.electrolux.com

Nova_Classic_Electrolux_2017-12-20.indd 4 2017-12-20 08:10:55SAFETY PRECAUTIONS This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision. Batteries must be removed from the appliance before it is scrapped. The battery is to be disposed of safely. Only use the charging adapter that was provided with the product. To protect the motor, battery and electronics the product should not be stored or operated in:

• An ambient temperature below 5 °C or exceeding 35 °C. If the product is stored in a temperature below 5 °C or exceeding 35 °C, let the product cool down or warm up and dry for a few hours before usage.

• A humidity level below 20% or exceeding 80% (non- condensing). If the product is stored for an extended time period (without usage or continuous charging), we recommend to store the product in normal room temperature with the batteries charged at 50% capacity or more. This will maintain the performance of the product. Attention! Dew condensation may form inside the product if the unit is moved from a cold to a warm environment or after heating up the storage room. Wait a few hours for the internal components to warm up and dry before usage. Ergorapido® Classic should only be used for normal vacuuming indoors and in a domestic environment. Make sure it is stored in a dry place. Packaging material, e.g. plastic bags should not be accessible to children to avoid suocation. Never use the vacuum cleaner:

• Close to ammable gases, etc.

• When the product shows visible signs of damage.

• On sharp objects or liquids.

• On hot or cold cinders, lighted cigarette butts, etc.

• On ne dust, for instance from plaster, concrete, our, hot or cold ashes. Caution:

• Do not leave the vacuum cleaner in direct sunlight.

• Avoid exposing the vacuum cleaner to strong heat.

• The battery cells within must not be dismantled, short circuited or placed against a metal surface.

• Never use the vacuum cleaner without its lters.

• Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.

• Mind your ngers if cleaning the inside of the oor nozzle. Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by Electrolux.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized Electrolux service centre. This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use. INDICATION LAMPS CHARGING WHAT DOES IT MEAN? DURING USAGE WHAT DOES IT MEAN? Blink slowly = 100 % fully charged 75 - 100 % capacity 50 – 95 % charged 50- 75 % capacity remaining 0 – 50 % charged 25 – 50 % capacity remaining Ergorapido® Classic needs to be recharged. Blink slowly = 100 % fully charged 0 – 95 % charged 14,4 V 10, 8 V 5www.electrolux.com

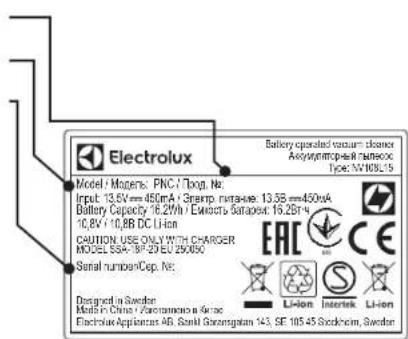

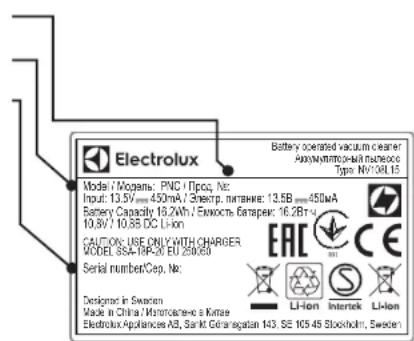

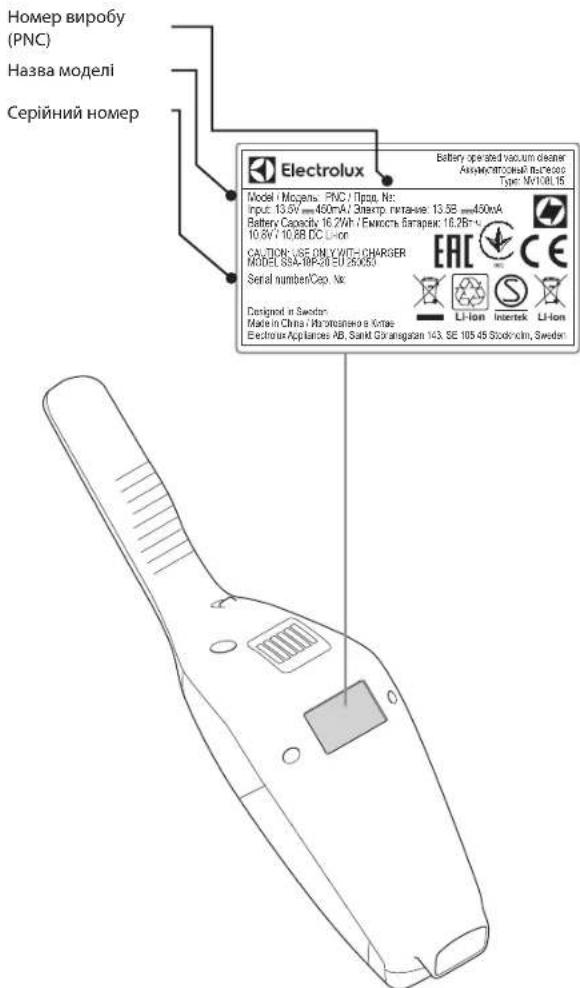

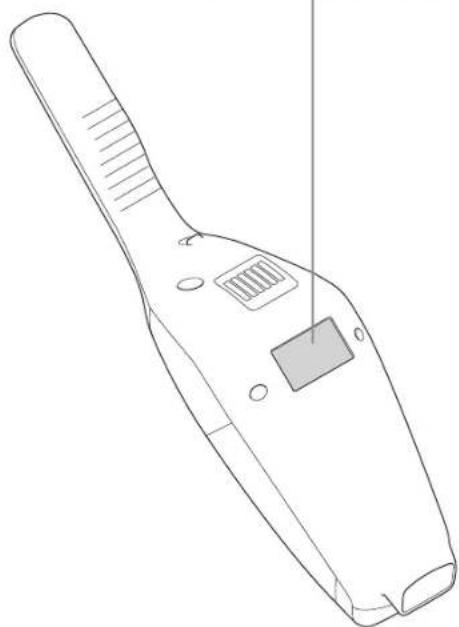

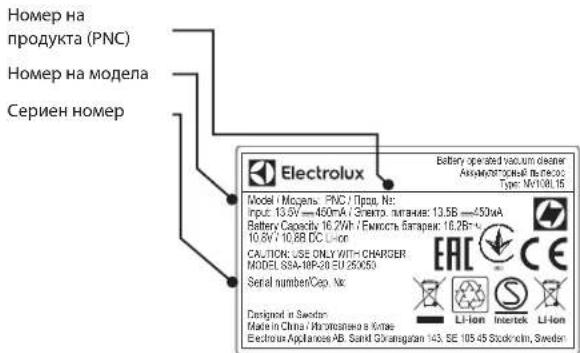

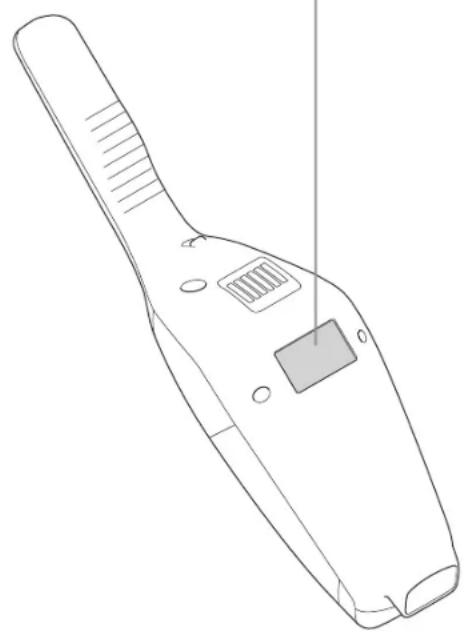

Nova_Classic_Electrolux_2017-12-20.indd 5 2017-12-20 08:10:55CUSTOMER CARE AND SERVICE When contacting the Electrolux service center, ensure that you have following data available: - Model number, - PNC number - Serial number The information can be found on the rating plate.

RUNNING TIMES FOR ERGORAPIDO®

CLASSIC Modell Volt Long runtime mode EERC70XX 10,8V 21 min ERC72XX 14,4V 30 min CONSUMABLES & ACCESSORIES www.electrolux.com/shop Filter Ref: EF144 PNC: 900 167 1529 Car Kit Ref: KIT360+ PNC: 900 168 3409 BedPro™ MINI Ref: ZE125 PNC: 900 168 0819 PNC number Model number Serial number VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service information: www.electrolux.com Register your product for better service: www.electrolux.com/productregistration Buy Accessories and Consumables for your appliance: www.electrolux.com/shop The battery should be removed from The product before disposal. Dispose of or recycle The battery in accordance with local regulations. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. Model / Модель: PNC / Прод. №: Input: 13.5V 450mA / Электр. питание: 13.5В 450мАBattery Capacity 16.2Wh / Емкость батареи: 16.2Вт·ч10,8V / 10,8B DC Li-ionBattery operated vacuum cleaner Аккумуляторный пылесос Type: NV108L15CAUTION: USE ONLY WITH CHARGERMODEL SSA-18P-20 EU 250050Designed in Sweden Made in China / Изготовлено в Китае Electrolux Appliances AB, Sankt Göransgatan 143, SE 105 45 Stockholm, Sweden Serial number/Сер. №: 6www.electrolux.com
