KVR 296 - Vacuum Cleaner Koenic - Free user manual and instructions

Product Type	2-in-1 rechargeable stick vacuum
Brand	Koenic
Model	KVR 296
Power Supply	Built-in rechargeable battery 29.6 V, mains adapter 100-240 V ~ 50/60 Hz
Suction Power	Max. 150 W
Dust Container Capacity	0.5 L
Charging Time	4 hours
Filter Type	Washable dust filter and fabric filter
Functions	High and low power suction, motorized rotating brush, use in stick or hand mode, automatic shut-off on charging base, LED charging and low battery indicator
Included Accessories	1 stick vacuum, 1 hand vacuum, 1 floor nozzle with motorized brush, 1 crevice nozzle, 1 upholstery nozzle, 1 charging base, 1 mains adapter, 1 instruction manual, 1 warranty card
Protection Class (appliance)	III
Protection Class (adapter)	II
Approximate Dimensions (H x W x D)	110 x 25 x 20 cm
Approximate Weight	2.5 kg
Maintenance	Empty dust container after each use; clean filters regularly (washable with water); clean the brush and floor nozzle
Safety	Do not vacuum liquids, hot ashes or flammable substances; indoor use only; do not leave unattended; supervision required for children over 8 years
Repairability	Battery not replaceable by user; do not repair yourself; contact an approved repairer

Frequently Asked Questions - KVR 296 Koenic

How to charge the KVR 296 vacuum?

Place the stick vacuum on the charging base. Connect the adapter to the base and to a wall outlet. The LED flashes blue during charging and stays solid blue when fully charged. Full charging takes about 4 hours.

How to empty the dust container?

Remove the hand vacuum from the stick vacuum. Press the release button of the dust container and remove it. Empty the contents. If the container is very dirty, you can wash it with tap water, then wipe and dry it completely before reassembling.

How to clean the filters?

After removing the dust container, take out the dust filter and the fabric filter. Clean them by tapping or with a brush. If very dirty, rinse them with clean water and dry them completely before putting them back.

The vacuum does not work, what to do?

First check the power supply and make sure the battery is charged. If the LED flashes red, the battery is low. Recharge the device for 4 hours. If the problem persists, clean the filters and empty the dust container.

How to use the hand vacuum?

Press the release button on the stick vacuum to release the hand vacuum. Press the On/Off button to turn it on. To recharge, place it back into the stick vacuum and lock it.

How to assemble the floor nozzle?

Attach the two parts of the floor stand and install them on the charging base. Connect the adapter. Then insert the stick vacuum into the floor nozzle and lock the assembly by pressing until you hear a click.

How to detach the brush for cleaning?

Release the floor nozzle from the stick vacuum. Press the roller brush release button under the nozzle and remove the brush. Cut entangled threads or hair with scissors. For stubborn blockages, carefully use a flat-head screwdriver.

Can I vacuum liquids with this vacuum?

No, this vacuum is designed for dry vacuuming only. Never vacuum liquids, hot ashes, lit cigarettes, or flammable substances. This could damage the device and pose a fire risk.

What is the charging time?

Full charging time is about 4 hours. The LED flashes blue during charging and becomes solid blue when charging is complete. You can charge the device at any time, even if the battery is not fully discharged.

How to store the vacuum?

Allow the device to cool sufficiently before storing. Place the stick vacuum on the charging base. You can fold the handle by pressing the release button for compact storage. Keep the device in a dry place away from heat.

USER MANUAL KVR 296 Koenic

2 in 1 Rechargeable Vacuum Cleaner
X2

1
24
图1-2-10
图中

F
Cucukce-ming
续1-4.3.2.10
P
0

Culih3
1. ( n - 2) × ( n - 3) = 0
Enh17 23
（一）审议程序

1. 2018（山东）·34
   1
   10-34-2:00
   c0d123
   B146-55
   1
   x^2 + y^2 = 1
2. 56473 49
   1

（）

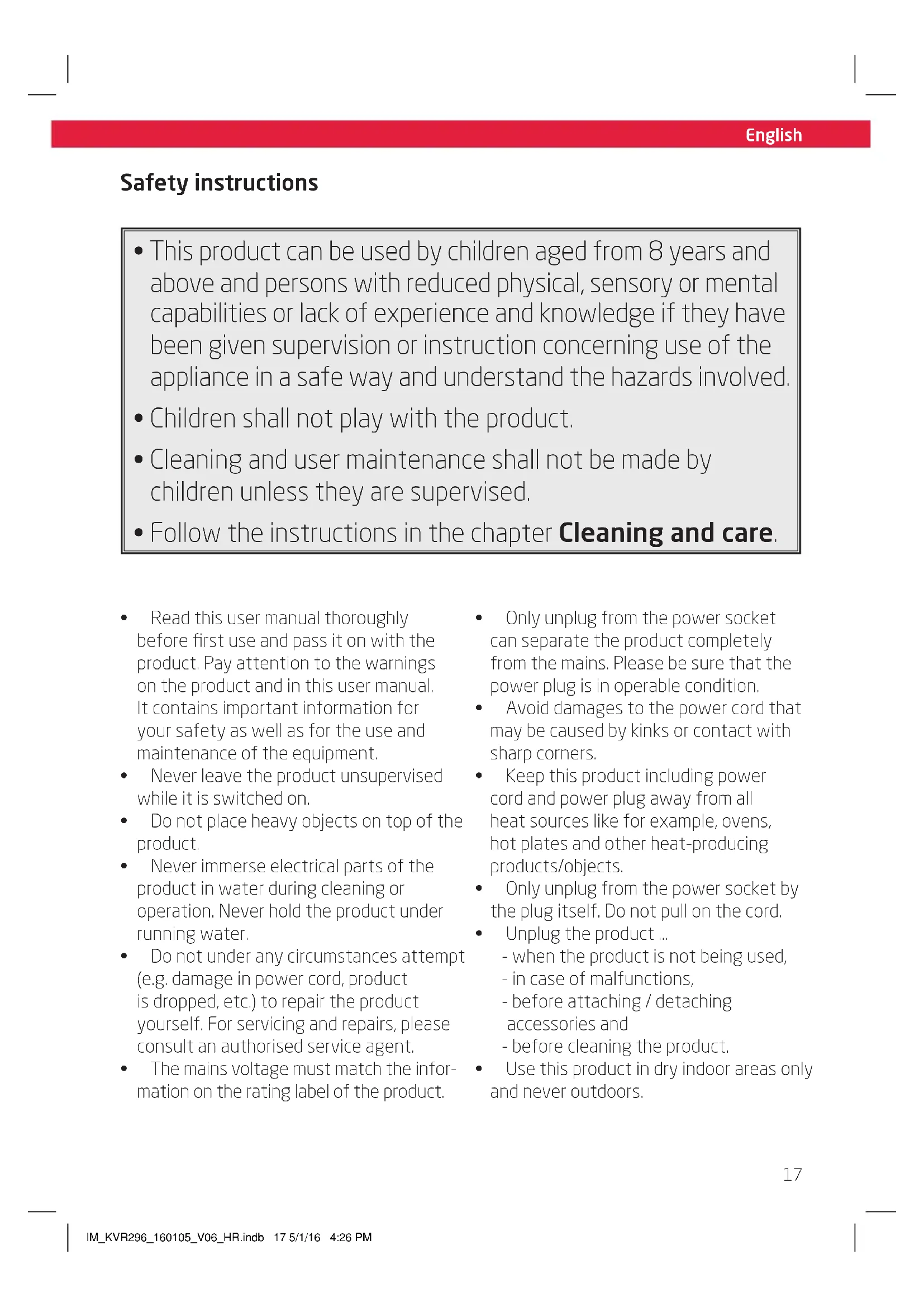

Sicherheitshinweise

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are supervised.

• Follow the instructions in the chapter Cleaning and care.

• Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

• Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

• Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
  The mains voltage must match the information on the rating label of the product.

• Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.

• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• Use this product in dry indoor areas only and never outdoors.

English

Safety instructions

This product is not intended for commercial use. It is designed for household use only.
- Do not allow the product to operate unsupervised.
Make sure that the motor unit and supply cord do not become wet.
- Use accessories supplied with the device or recommended by the manufacturer only!
This product is suitable only for private use.
Always switch the product off before disconnecting it from mains supply.
- Let the product cool down sufficiently before storing.
- Do not cover the product while in use. Fire hazard!
- Do not suck up liquids with the product.
Do not suck up lit cigarettes, hot ashes, matches, etc. Fire hazard!
- Do not suck up inflammable or explosive materials and gases. The product must not be used in rooms with explosive gases or liquids.
- Be especially careful when cleaning the stairs
- When in use, keep the product away from clothes and body parts (fingers, hair, face).
- Do not try to clean people or animals with the product.
- Only use the charging adapter provided to charge the product.
- Never expose the product/rechargeable batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The rechargeable batteries could explode.

• The rechargeable battery is permanently built into the product and cannot be replaced
• Never short-circuit the contacts of the rechargeable battery. Do not throw the rechargeable battery or the product into fire. There is a danger of fire and explosion!
• Never charge the rechargeable battery of the product unattended.

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The vacuum cleaner is designed only to vacuum dry dust and dirt. Using it for anything else can damage the device or cause injury.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Before first time use the built-in batteries must be charged for at least 4 hours, please refer to chapter Charging batteries.

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE.

By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner Do not put batteries into the household waste.

Please use the return and collection systems in your community or contact the dealer where you purchased the product.

Content

1 x Handstick vacuum cleaner
1 x Handheld vacuum cleaner
1 x Floor nozzle
1 x Crevicenozzle
1 x Upholstery nozzle
1 x Charging base
1xAdaptor
1 x User manual
1 x Warranty card

Part list

A Handstick: On/Off/ Speed button
B Handheld vacuum cleaner: On/Off/Speed button
Power indicator
D Release button
E Textile filter
F Dirt filter
G Dust container
H Floor nozzle
Power indicator on floor noodle
Floor support part front
Brush release button
Back floor support part
M Charging base
N Crevice noodle
0Uphalstery noozle
P Release button for handheld vacuum cleaner
Q Release button for folding handstick
Adaptor

English

Assembly

Floor support

1 Attach both floor support parts together and put on the charging base.
Plug one end of the adapter into the DC IN jack of the charging base.
3 Connect the adaptor to an electrical outlet.

Handstick vacuum cleaner

4 Raise the handle and lock into place. To fold back the handle, press the unlocking knob and release the handle.
Plug the handstick vacuum cleaner into the floor nozzle and lock into place. To release the floor nozzle, press the unlocking knob and pull the handstick vacuum cleaner out of the nozzle.
6 Insert the handheld vacuum cleaner into the handstick vacuum cleaner and lock into place.

Note: Make sure that the contacts of the handheld vacuum cleaner and handstick vacuum cleaner are not dirty. Clean the contacts if necessary.

Charging batteries

7 Insert the handstick vacuum cleaner into the charging base.

Note:

Make sure that the contacts of the handstick vacuum cleaner and charging base are not dirty. Clean the contacts if necessary.
- When the handstick vacuum cleaner is inserted into the charger, the product is automatically switched off, should it have still been left on by accident.
It is normal for the charging base and vacuum cleaner to become hot. It's not a cause for concern.
The vacuum cleaner can be charged at any time when it is not in use.

8 The LED indicator flashes in blue and indicates the battery is being charged. The indicator turns on steady blue, when the battery is fully charged.

LED indicator

LED color Condition
Red flashing	During operation, when battery level is low
Blue flashing	During charging
Blue steady	Charging completed. Fully charged

Vacuuming

Using handstick vacuum cleaner

9 Remove the handstick vacuum cleaner from the charging base. Press the On/Off button to turn on. The operation indicators on the floor nozzle light up and indicate that the brush roller is turning.

Vacuum Power

On/Off button	Function/Power
1 x On/ High power
2 x Low power
3 x Off

10 During short pause while vacuuming, the handstick vacuum cleaner can be left standing upright anywhere in the room. Tilt the vacuum cleaner slightly forwards in the direction of the nozzle until it locks into place.

Warning!

When the handstick vacuum cleaner is left standing, it must be switched off, because if the brush is turning while the product is standing, it could cause damage to the floor surface.

11 After vacuuming, press the On/Off button to turn off the product and return it to the charging base.

Using handheld vacuum cleaner

12 Press the release button to unlock the handheld vacuum cleaner and take it from the handstick vacuum cleaner.
13 Press On/Off button to turn on/off the handheld vacuum cleaner.
14 For charging, return the handheld vacuum cleaner back to the handstick vacuum cleaner and ensure it locks into place.

Upholstery and Crevice nozzle

15 For vacuuming upholstered furniture, mattresses, cushions, curtains, etc., insert the upholstery nozzle into the air intake opening of the handheld vacuum cleaner. For vacuuming folds, crevices and corners, insert the crevice nozzle into the air intake opening of the handheld vacuum cleaner.

English

Cleaning and care

Warning!

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Never immerse any electrical parts of the product in water or in other liquids during cleaning. Never place it under running water.

Emptying dust container and cleaning filters

Note: The dust container should be emptied every time after vacuuming.

16 Remove the handheld vacuum cleaner from the handstick vacuum cleaner. Press the release button to unlock the dust container and remove it from the suction unit.
17 Remove the dirt filter and textile filter from the dust container and clean them by tapping out or brushing out the dirt. If heavily soiled, the dirt filter can be washed out. Ensure to dry it completely before reassembly.
18 Empty the dust container. If heavily soiled, the dust container can be rinsed under running water. Wipe and dry the container with a dry cloth.

Assembly dust container and filters

19 1 Insert the dirt filter and 2 textile filter into the dust container. Place the dust container onto the suction unit and lock into place.

Cleaning floor nozzle

The floor nozzle should be cleaned at regular intervals. To clean it, release the floor nozzle from the handstick vacuum cleaner. Press the unlock button to release the brush roller.
21 Take out the brush roller from the nozzle. Cut through threads and hairs wounded round the rollers using scissors and remove them.

Note: If the wheels are blocked with threads and hairs, use a flat screw driver to remove them carefully.

Re-assemble all of the components that have previously been removed. Assembly is carried out in reverse order.

Note:

• Floor nozzles are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor nozzle at regular intervals.
• Worn undersides of floor nozzles may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. Imtron does not accept any responsibility for damage caused by worn floor nozzles.

Technical data

Re-chargeable vacuum cleaner

Rated voltage:29.6V

Vacuum power:Max.150W

Protection class : III

Battery charging time : 4 hrs.

Dust container capacity: 0.5 L

Power adaptor

Model: ZD36w360100EU

Rated Input: 100 - 240 V ~

50/60 Hz 1A

Rated output: DC 36 V 1A

Protection class : II

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work	• Interrupted power supply • Battery is empty	• Check the power supply • Re-charge battery
Product cannot absorb dust or loose suction power	• Filters are blocked with dirt • Dust container full, exceed MAX marking	• Clean and wash the filters • Empty dust container
Rolling brush does not work	• Brush is blocked with threads and hairs	• Cut and remove the threads and hairs from the brush
Floor nozzle difficult to move or get jammed	• Wheels are blocked with threads and hair	• Remove them carefully by using a flat screwdriver
