HWM550 - Soundbar SAMSUNG - Free user manual and instructions

Product type	Soundbar with wireless subwoofer
Brand	Samsung
Model	HWM550
Main unit dimensions (W x H x D)	1010.5 x 54.0 x 87.5 mm
Main unit weight	2.6 kg
Subwoofer dimensions (W x H x D)	200.0 x 392.0 x 378.0 mm
Subwoofer weight	7.2 kg
Nominal output power	30 W x 6 (6 ohms) + 160 W (3 ohms)
Supported audio formats	LPCM 2ch, Dolby Audio, DTS
Connectivity	HDMI (ARC), Optical, AUX, USB (Micro USB), Bluetooth
Power supply	AC/DC adapter 24 V
Standby power consumption	2.7 W
Main features	Sound modes (Standard, Music, Clear Voice, Sports, Movie), Surround, Bluetooth Power, Auto Power Link, Anynet+, DRC
Included accessories	Remote control, AA batteries x 2, optical cable, AC/DC adapter, subwoofer power cord, wall mount guide, wall mount brackets, screws
Safety	Auto power off after 5 minutes without signal, overvoltage protection
Care and cleaning	Wipe with a soft, dry cloth. Do not use chemicals
Repairability	Contact a Samsung authorized service center
Manual	631 pages, available for download

Frequently Asked Questions - HWM550 SAMSUNG

How to connect the soundbar via Bluetooth?

Press the Source button to select BT mode. Press and hold the Source button for more than 5 seconds to enter BT PAIRING mode. On your mobile device, search and select [AV] Samsung Soundbar Mxxx M-Series in the Bluetooth list.

What to do if the subwoofer does not connect automatically?

Check that the power cables are plugged in. If the rear LED of the subwoofer blinks blue, try manual connection: press and hold the ID SET button on the back of the subwoofer for 5 seconds (the LED turns red then blinks blue). Turn off the soundbar, then press and hold the VOL button on the remote control for 5 seconds until ID SET appears. Turn on the soundbar: the blue LED on the subwoofer should stay solid.

How to update the soundbar software?

Download the update file from the Samsung website (www.samsung.com/support) to a USB drive formatted as FAT. Connect the drive via a Micro USB adapter (not included) to the soundbar while it is off. Turn on the soundbar: UPDATE appears. When the update is complete, the soundbar turns off. Press the II button on the remote control for 5 seconds to finalize.

No sound from the soundbar, what to check?

Make sure the Mute function is not activated (press VOL to cancel). Check that the volume is not at minimum. For wired connection, the selected source (D.IN, HDMI, AUX) must match the input used. For Bluetooth, check that the device is properly paired.

The remote control does not work, what to do?

Replace the batteries with new ones (AA type). Check that no obstacles block the signal between the remote and the soundbar. If the problem persists, unplug and replug the soundbar power.

How to mount the soundbar on the wall?

Use the provided wall mount guide to mark the holes. Drill holes and insert anchors suitable for your wall. Attach the mounting screws (not included) with M5 diameter and length ≥ 35 mm. Hang the wall mount brackets (right and left) on the back of the soundbar, then suspend it on the screws.

Can I use my Samsung TV remote to control the soundbar?

Yes, if the soundbar is connected via HDMI ARC or Optical to a compatible Samsung TV. Make sure the Anynet+ function is enabled (press and hold the Right button on the soundbar remote for 5 seconds). On the soundbar, press and hold the Surround button for 5 seconds to switch to SAMSUNG-TV REMOTE mode.

How to sync audio with video if there is a delay?

Press the Sound Control button on the remote, then select AUDIO SYNC using Left/Right buttons. Adjust the delay from 0 to 300 ms with the Up/Down buttons. This function is not available in USB mode.

What to do if the subwoofer LED blinks red?

This indicates a connection error or malfunction. Check that the power cables are properly plugged. Try to reconnect the subwoofer manually (see question 2). If the problem persists, contact Samsung customer service.

How to clean the soundbar?

Use a soft, dry cloth to wipe the surface. Never use chemicals, solvents, or sprays. Avoid liquids entering the openings of the device.

USER MANUAL HWM550 SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

SAFETY INFORMATION

SAFETYWARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER- SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN.
This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
This symbol indicates that this product has included important literature concerning operation and maintenance.
Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground).
AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7 10~cm) .Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper, USER MANUAL and a detailed FULL MANUAL you can download.

USER MANUAL

See this manual for safety instructions, product installation, components, connections, and product specifications.

FULL MANUAL

You can access the customer support centre by scanning the QR code. To see the manual on your PC or mobile device, download the manual in document format from the website. (http://www.samsung.com/support)

Design and specifications are subject to change without prior notice.

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar 3

Bottom Panel of the Soundbar 4

03 Connecting the Soundbar 5

Connecting Electrical Power 5

Connecting the Soundbar to the Subwoofer 6

• Automatic connection between the subwoofer and the Soundbar 6
• Manually connecting the subwoofer if automatic connection fails

04 Connecting to your TV 9

Method 1. Connecting with a Cable

• Connecting using an Optical Cable 9
• Connecting a TV using an HDMI Cable 10

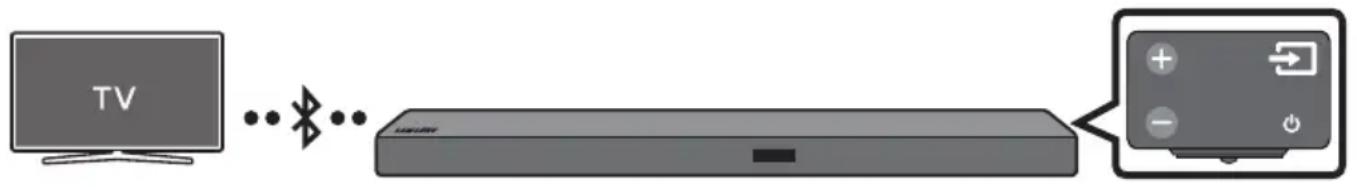

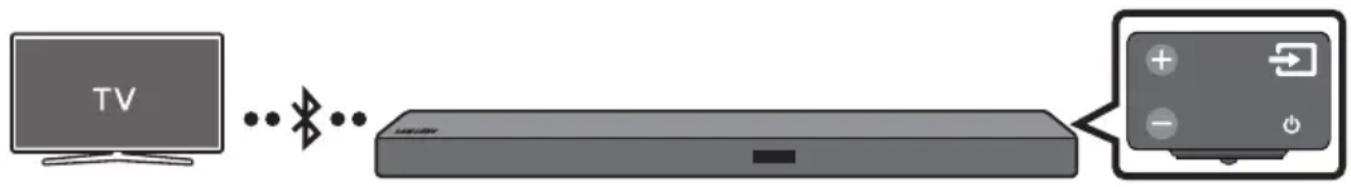

Method 2. Connecting Wirelessly

• Connecting a TV via Bluetooth 11

05 Connecting an External Device 13

Connecting using an Optical or Analogue Audio (AUX) Cable 13

Connecting using an HDMI Cable 14

06 Connecting a USB 15

07 Connecting a Mobile Device 17

Connecting via Bluetooth 17

Using the Samsung Audio Remote App 20

• Installing the Samsung Audio Remote App 20
• Launching the Samsung Audio Remote App 20

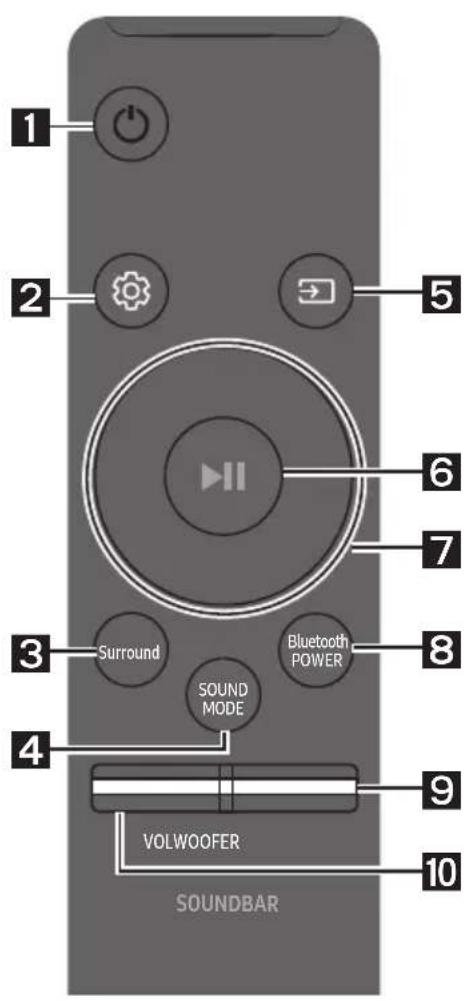

08 Using the Remote Control 21

How to Use the Remote Control 21
Adjusting the Soundbar volume with a TV remote control 24
Using the Hidden Buttons 25
Output specifications for the different sound effect modes 25

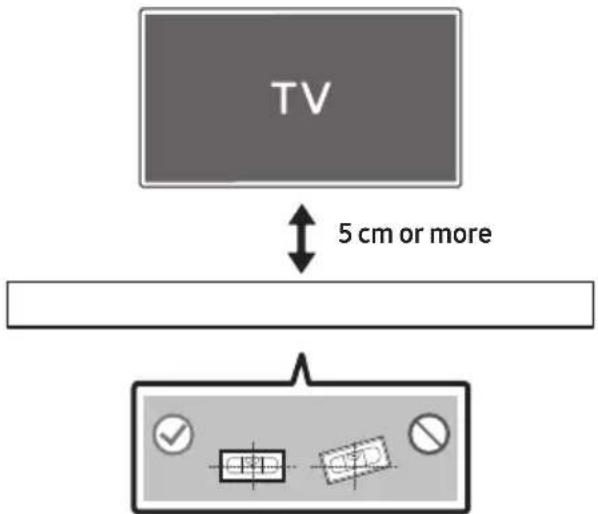

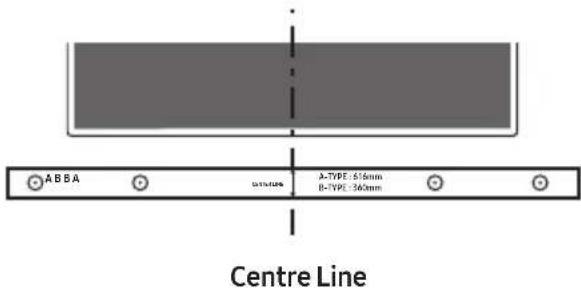

09 Installing the Wall Mount 26

Installation Precautions 26
Wallmount Components 26

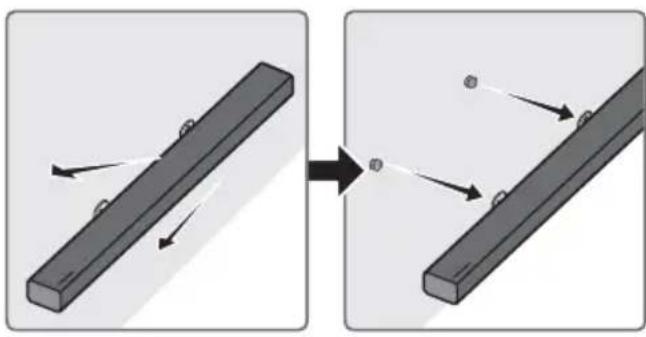

Detaching the Soundbar from the Wall 29

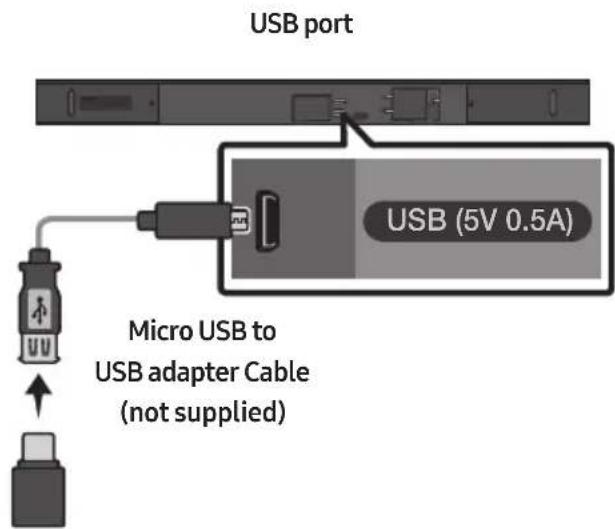

10 Software Update 29

Updating Procedure 30
If UPDATE is not displayed 30

11 Troubleshooting 31

Licence 32
Open Source Licence Notice 32
Important Notes About Service 32

15 Specifications and Guide 33

Specifications 33

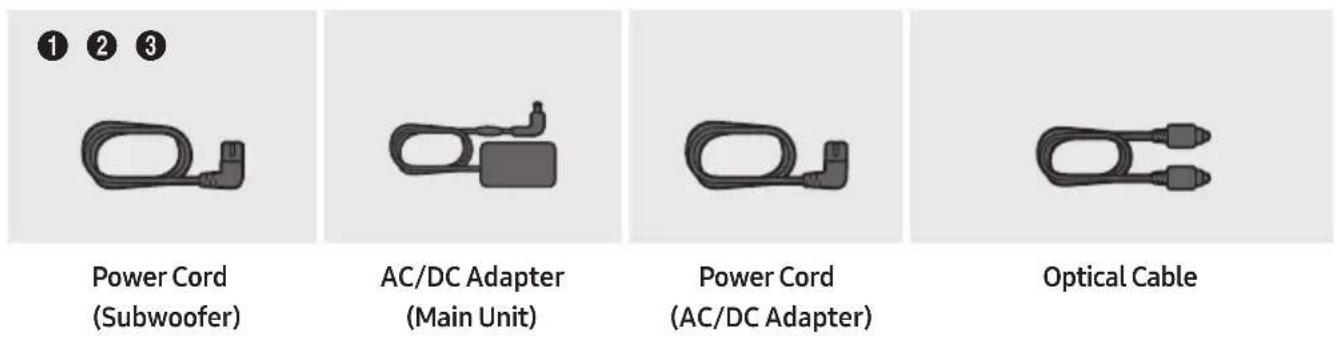

01 CHECKING THE COMPONENTS

Soundbar Main Unit Subwoofer Remote Control / Batteries

• The power connection steps are labelled (1,2,3) . For more information about power connections, see page 5.
• For Soundbar wall mounting components, see page 26.
• Micro USB to USB adapter and HDMI cables are sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.
  The appearance of the accessories may differ slightly from the illustrations above.

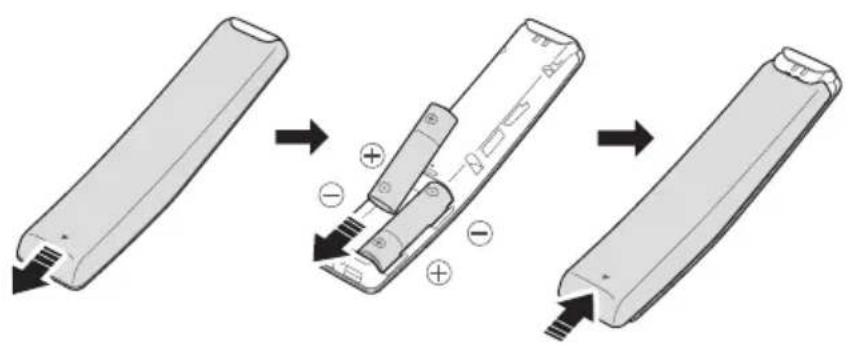

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

02 PRODUCT OVERVIEW

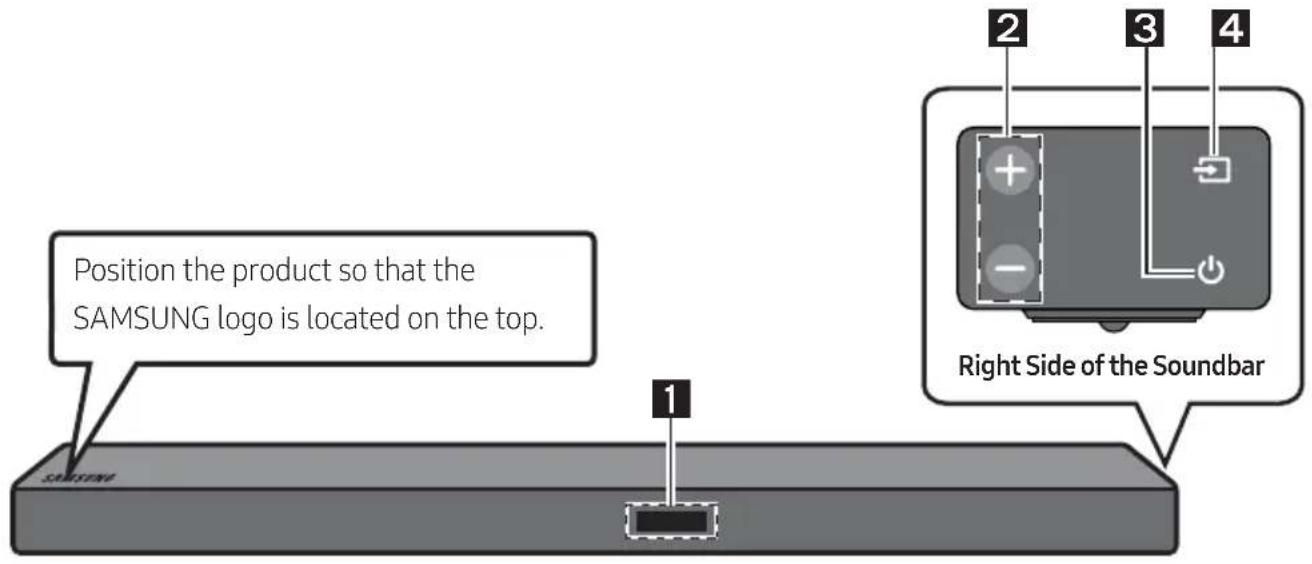

Front Panel / Right Side Panel of the Soundbar

1	Display Displays the product's status and current mode.
2	+/- (Volume) Button Adjusts the volume. · When adjusted, the volume level appears on the Soundbar's front display.
3	● (Power) Button Turns the power on and off.
4	● (Source) Button Selects the source input mode.
	Input mode Display
	Optical Digital input D.IN
	ARC (HDMI OUT) input	D.IN → TV ARC (Auto conversion)
	AUX input AUX
	HDMI input HDMI
	BLUETOOTH mode BT
	USB mode USB
	● To turn on "BT PAIRING" mode, change the source to "BT" mode, and then press and hold the (Source) button for more than 5 seconds.

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

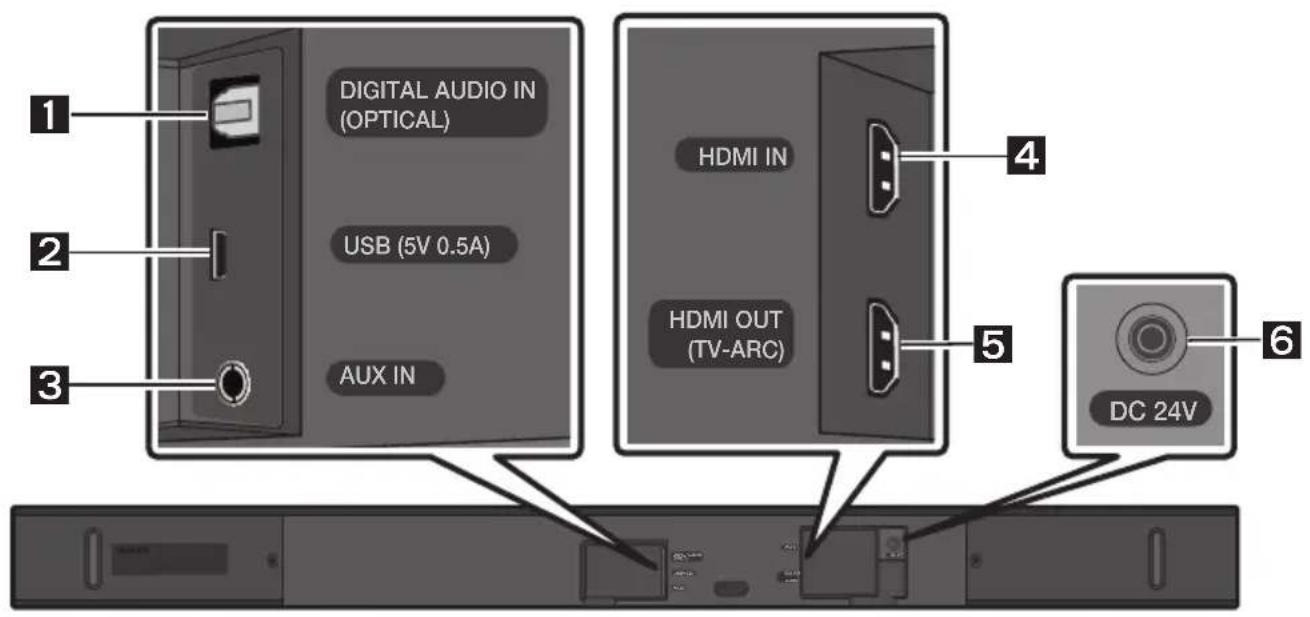

Bottom Panel of the Soundbar

1	DIGITAL AUDIO IN (OPTICAL) Connect to the digital (optical) output of an external device.

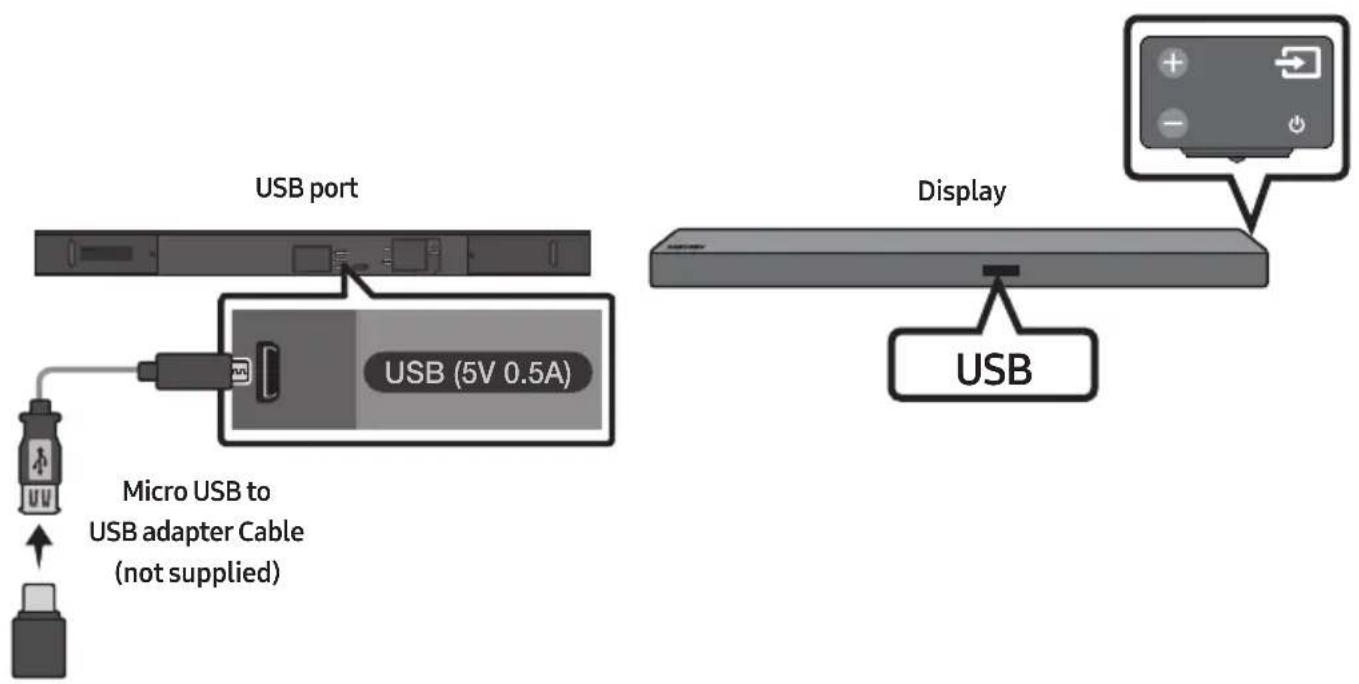

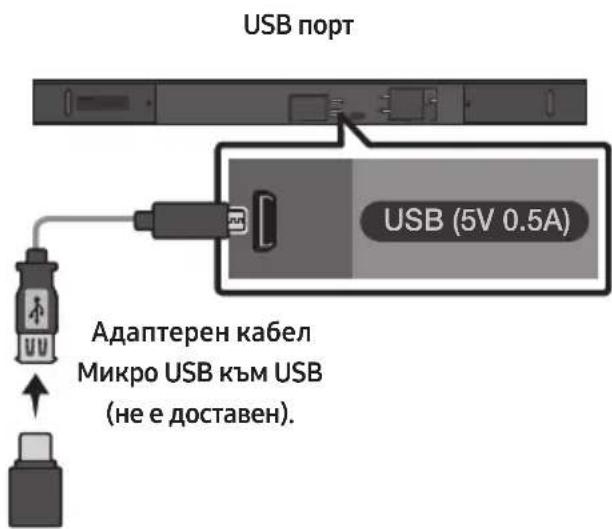

2	USB (5V 0.5A) Connect a USB device here to play music files on the USB device through the Soundbar.
3	AUX IN Connect to the Analogue output of an external device.
4	HDMI IN Inputs digital video and audio signals simultaneously using an HDMI cable. Connect to the HDMI output of an external device.
5	HDMI OUT (TV-ARC) Connect to the HDMI (ARC) jack on a TV.
6	DC 24V (Power Supply In) Connect the AC/DC power adapter.

• When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 CONNECTING THE SOUNDBAR

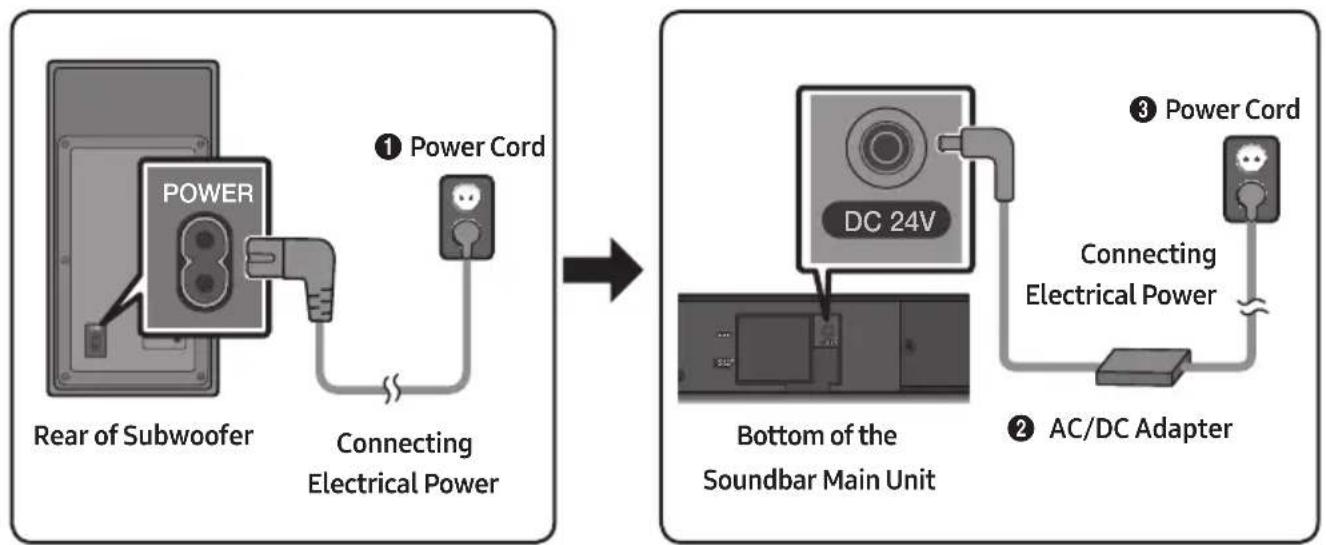

Connecting Electrical Power

Use the power components (1, 2, 3) to connect the units to electrical outlets in the following order:

1.) Subwoofer 2 ).Soundbar Main Unit.See the illustrations below.

• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label : Bottom of the Soundbar Main Unit)

• Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the subwoofer is automatically connected to the Soundbar.

• When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

LED Indicator Lights on the Rear of Subwoofer

LED Status Description Resolution
Blue	On	Successfully connected (normal operation)	-
	Blinking Recovering the connection		Check if the power cable to the main Soundbar unit is connected properly or wait for a while. (If blinking persists, try manually connecting the subwoofer. See page 7.)
Red On		Standby (with the Soundbar main unit turned off)	Check if the power cable to the main Soundbar unit is connected properly.
		Connection failed	Connect again. See the instructions for manual connection on page 7.
Red and blue	Blinking Malfunction		See the contact information for the Samsung Service Centre in the manual.

Manually connecting the subwoofer if automatic connection fails

Check before performing the manual connection

• Check whether the power cables for the Soundbar and subwoofer are connected properly.

• Make sure that the Soundbar is turned on.

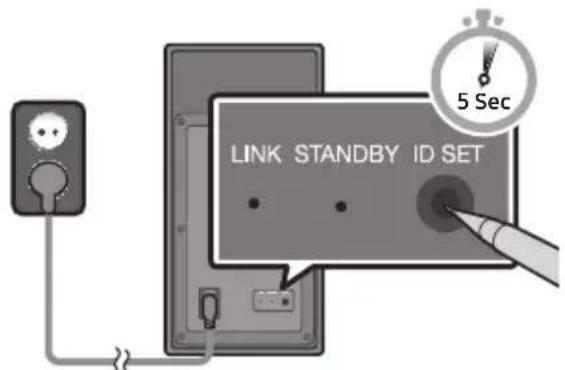

• Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.

The red indicator on the rear of the subwoofer turns off and the blue indicator blinks.

Rear of Subwoofer

1. Turn off the Soundbar.

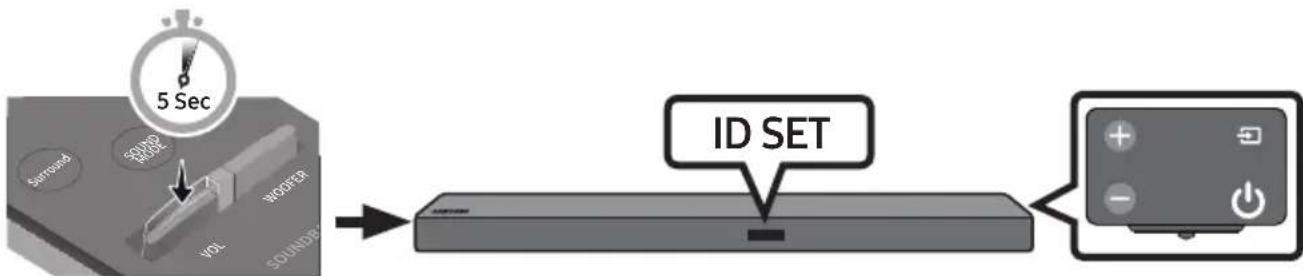

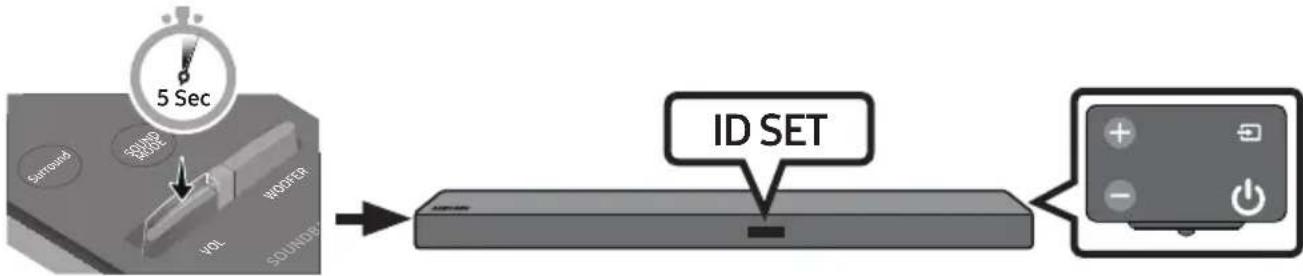

2. Press and hold the VOL button on the remote control for at least 5 seconds with the Soundbar turned off (OFF).
3. The ID SET message appears on the display of the Soundbar for 1.3 seconds, and then disappear.

1. When the blue indicator on the subwoofer blinks, turn on the Soundbar's power by pressing

(Power) button on the right side of the main unit or on the remote control.

1. When the connection is successfully established, the blue indicator on the rear of the subwoofer stops blinking and glows continuously.

2. If the connection process fails, the blue indicator will flash continuously. Go to Step 1 and start again.

NOTES

• Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.

• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.

• If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the rear will be Red after blinking Blue several times.

• If you use a device that uses the same frequency (5.8GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.
• The maximum transmission distance of the wireless signal of the main unit is about 10 meters, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer the system may not operate at all, because the wireless signal cannot penetrate metal.

PRECAUTIONS

• Wireless receiving antennas are built into the wireless subwoofer. Keep the units away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless subwoofer and Wireless Receiver Module (Sold separately) location is clear of any obstructions.

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8500S) to your Soundbar (Sold separately). For more information, see the Samsung Wireless Rear Speaker Kit manual.

04 CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

• When the Soundbar is connected to a selected Samsung TVs, the Soundbar can be controlled using the TV's remote control.

• When using optical cable, this feature can be supported by 2017 Samsung Smart TVs that support Bluetooth.

• This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

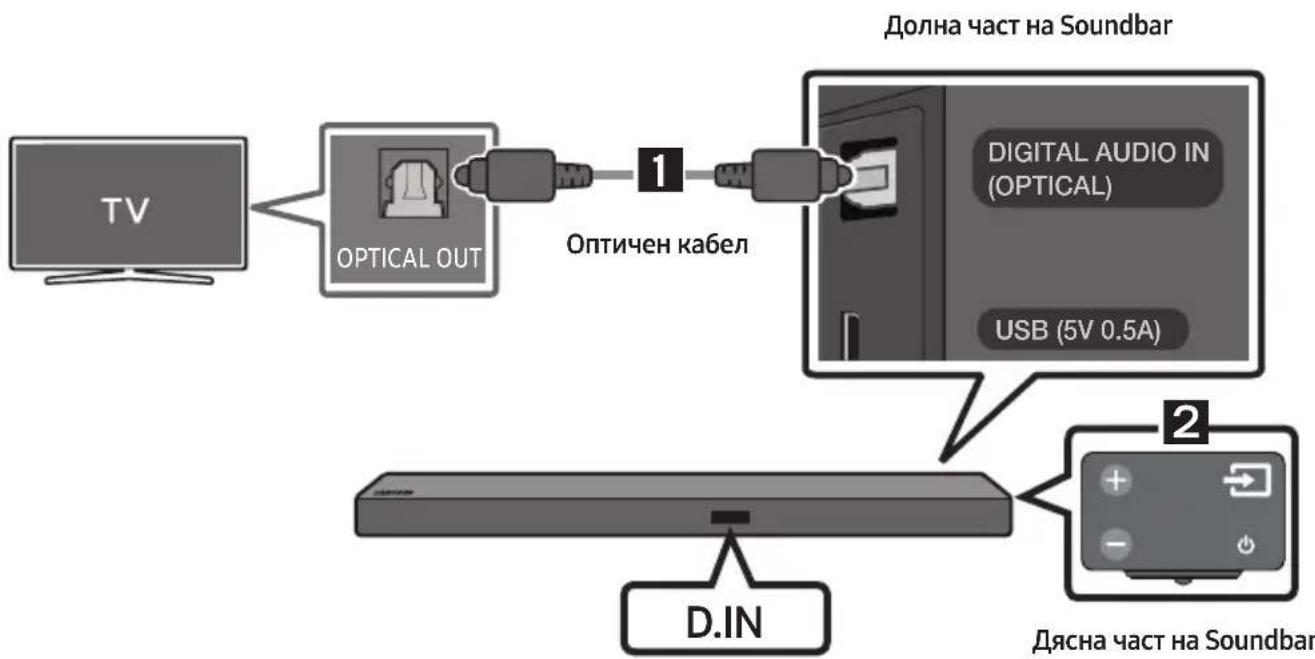

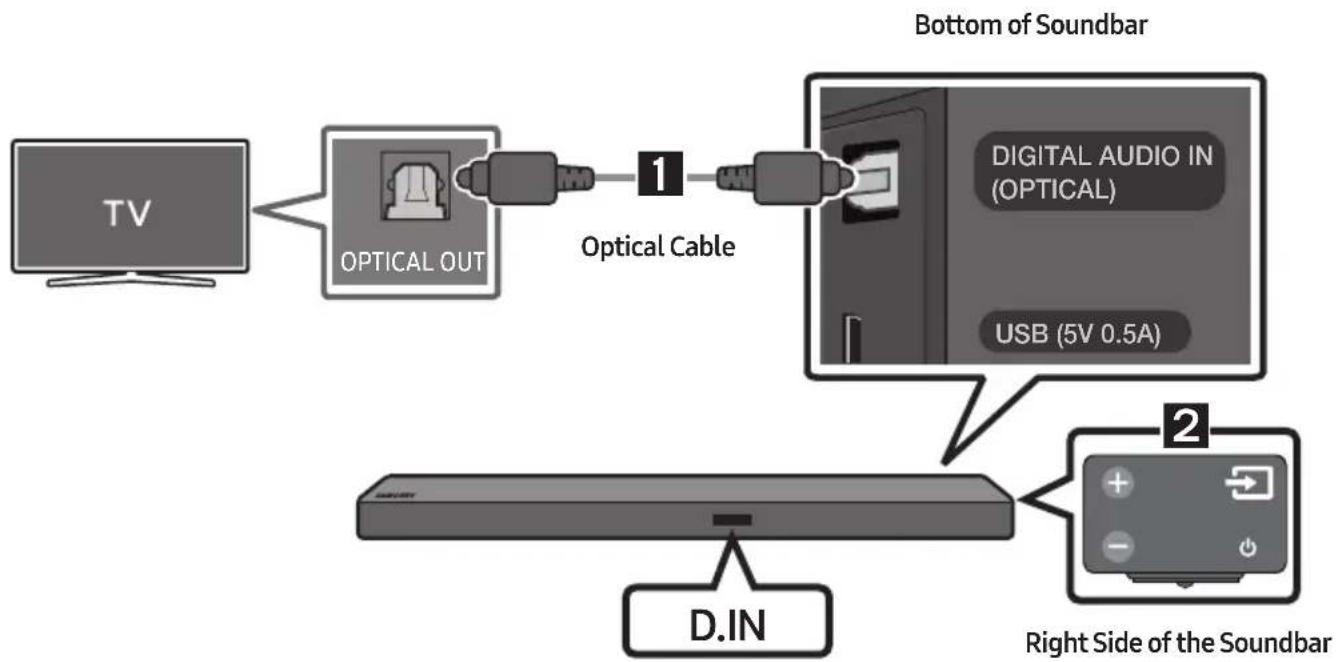

Connecting using an Optical Cable

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable.

2. Press the (Source) button on the right side panel or remote control, and then select mode "D.IN".

3. When the Soundbar is connected to a Samsung smart TV released in 2017 or later, the Bluetooth POWER function automatically turns on to enable the Soundbar to be controlled with the TV remote control. (See page 23 for details on Bluetooth POWER.)

Auto Power Link

Auto Power Link automatically turns on the Soundbar when the TV is turned on.

1. Connect the Soundbar and a TV with a digital optical cable.

2. Press the (Source) button on the right side panel or on the remote control, and then select "D.IN".

3. Press the Left button on the remote control for 5 seconds to turn Auto Power Link on or off.

4. Auto Power Link is set to ON by default. (To turn off this function, turn off Auto Power using the Soundbar.)

5. Depending on the connected device, Auto Power Link may not function.
6. This function is only available in the "D.IN" mode.

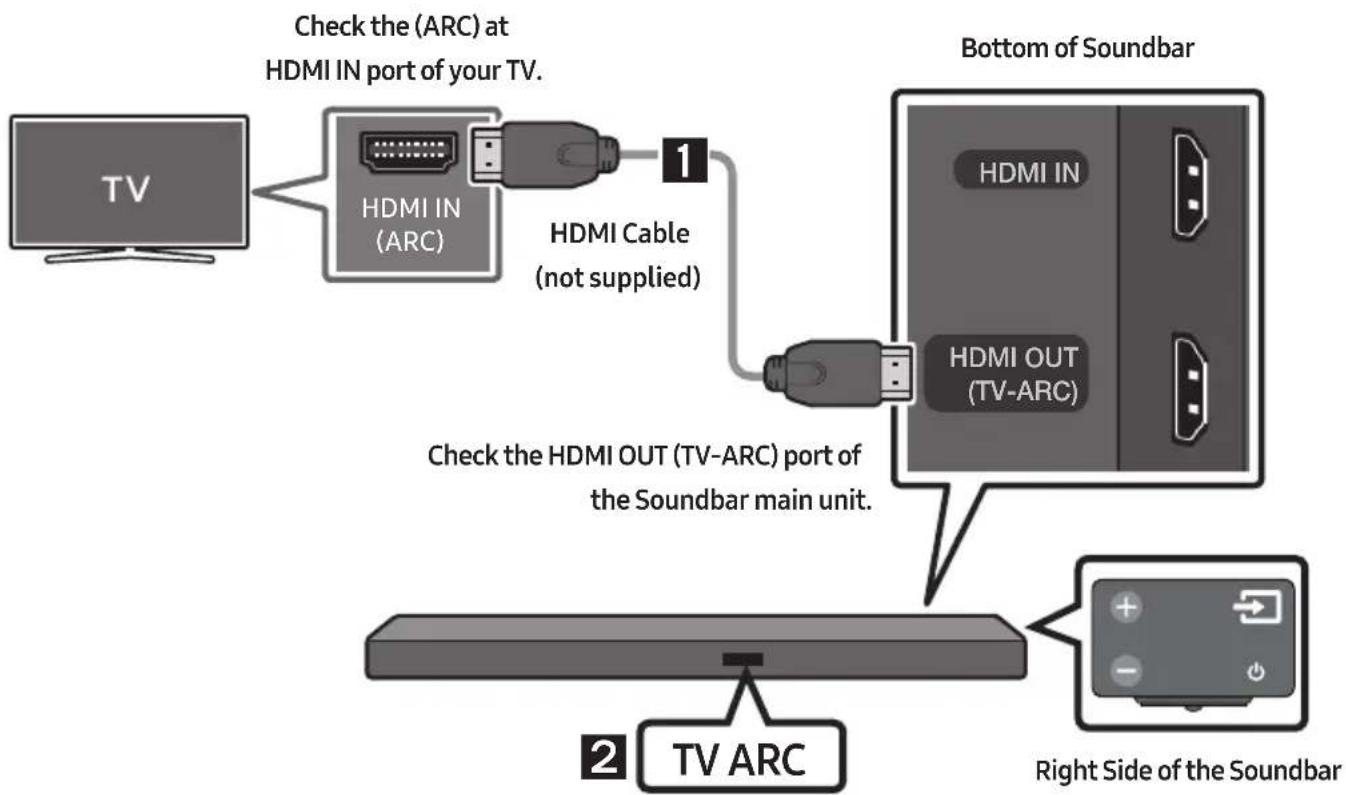

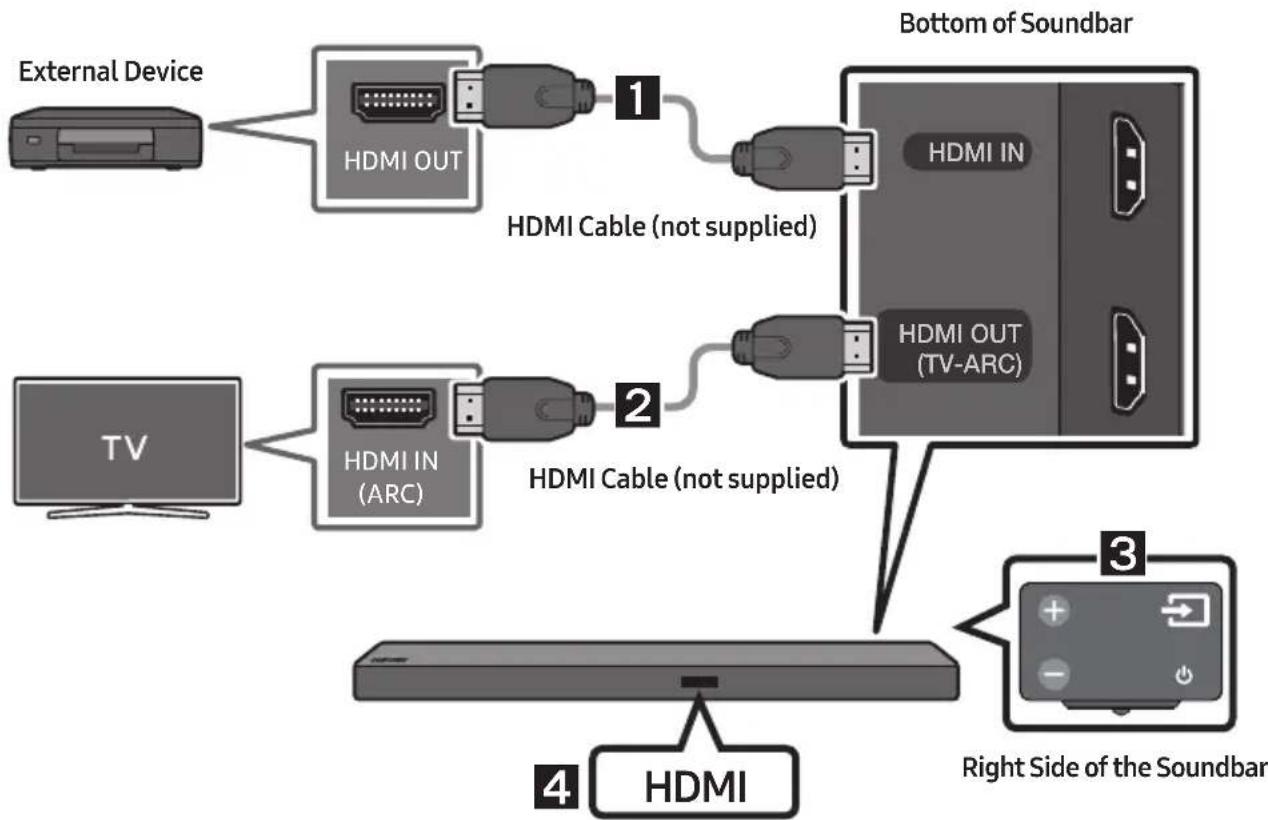

Connecting a TV using an HDMI Cable

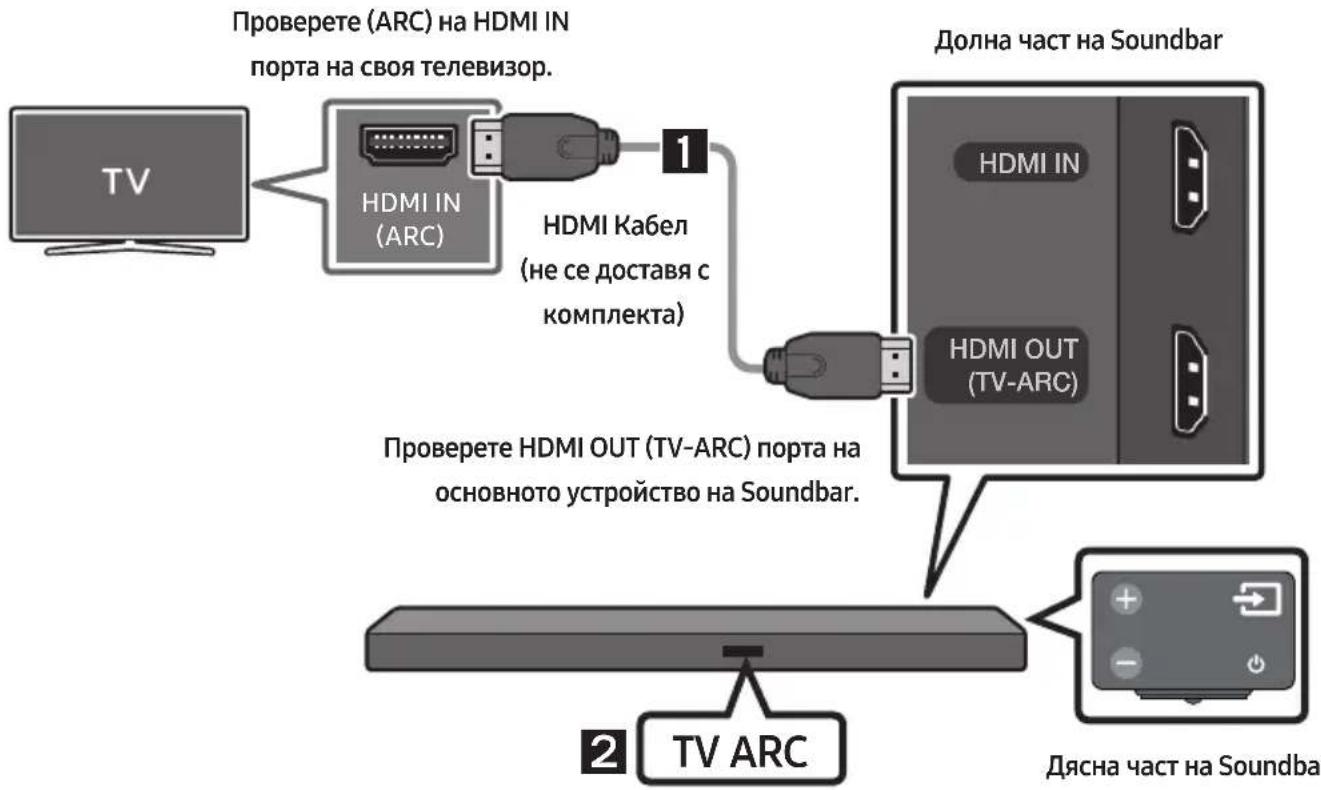

1. With the Soundbar and TV turned on, connect the HDMI cable (not supplied) as shown in the figure.

2. "TVARC" appears in the display window of the Soundbar main unit and the Soundbar plays TV sound.

3. If TV sound is inaudible, press the (Source) button on the remote control or on the right side of the Soundbar to switch to "D.IN" mode. The screen displays "D.IN" and "TV ARC" in sequence, and TV sound is played.

4. If "TV ARC" does not appear in the display window of the Soundbar main unit, confirm that the cable is connected to the correct port.

5. Use the volume buttons on the TV's remote control to change the volume on the Soundbar.

NOTES

• HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
• If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.

• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14mm .

• Anynet+ must be turned on.

• This function is not available if the HDMI cable does not support ARC.

Method 2. Connecting Wirelessly

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• Only one TV can be connected at a time.

The initial connection

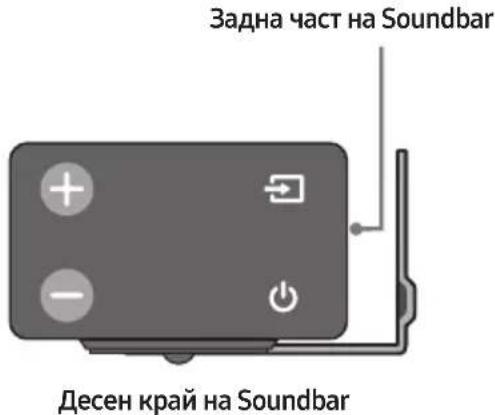

1. Press the (Source) button on the right side panel or on the remote control, and then select "BT".

2. Change "BT" to "BT PAIRING".

3. If "BT READY" appears, press and hold the (Source) button on the right side panel of the Soundbar or on the remote control for more than 5 seconds to display "BT PAIRING".

4. Select Bluetooth mode on the TV. (For more information, see the TV's manual.)

5. Select "[AV] Samsung Soundbar Mxxx M-Series" from the list on TV's screen.

An available Soundbar is indicated with "Need Pairing" or "Paired" on the TV Bluetooth device list.

To connect to the Soundbar, select the message and establish a connection.

• When the TV is connected, [TV Name] "BT" appears on the Soundbar's front display.

• You can now hear TV sound from the Soundbar.

If the device fails to connect

• If the previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar Mxxx M-Series") appears in the list, delete it.
• In "BT" mode, press and hold the (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to "BT PAIRING" mode.

Then, select "[AV] Samsung Soundbar Mxxx M-Series" from the TV's search list.

What are the BT READY and BT PAIRING statuses?

• BT READY: In this mode, you can search for previously connected TVs or connect to the Soundbar from a previously connected mobile device.
• BT PAIRING: In this mode, you can connect to a new device. (While in "BT" mode, press and hold the Source) button for more than 5 seconds on the right side of the Soundbar or on the remote control.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.

• If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

Disconnecting the Soundbar from the TV

Press the (Source) button on the right side panel or on the remote control and switch to any mode but "BT".

• Disconnecting takes time because the TV must receive a response from the Soundbar.

(The time required may differ, depending on the TV model.)

• To cancel automatic Bluetooth connection between the Soundbar and TV, press the

II (Play/Pause) button on the remote control for 5 seconds in "BT READY" status. (Toggle On Off)

05 CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired or wireless network to play the external device's sound through the Soundbar.

Connecting using an Optical or Analogue Audio (AUX) Cable

1 Optical Cable

Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using a digital optical cable.
Select "D.IN" mode by pressing the (Source) button on the right side panel or on the remote control.

2 Audio (AUX) Cable

Connect AUXIN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable.
2 Select "AUX" mode by pressing (Source) button on the right side panel or on the remote control.

Connecting using an HDMI Cable

1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device.
2. Connect an HDMI cable (not supplied) from the HDMI OUT (TV-ARC) jack on the back of the product to the HDMI IN jack on your TV.
3. Press the (Source) button on the right side panel or on the remote control, and then select "HDMI".
4. "HDMI" mode is displayed on the Soundbar display panel and sound plays.

06 CONNECTING A USB

You can play music files located on USB storage devices through the Soundbar.

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

2. Micro USB to USB adapter Cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

3. Connect your USB device to the female end of the adapter cable.

4. Press the (Source) button on the right side panel or on the remote control, and then select "USB".

5. "USB" appears in the display screen.

6. Play music files from the USB storage device through the Soundbar.

7. The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 5 minutes.

File Format Type Compatibility list

Extension	Codec	Sampling Rate	Bit Rate
*.mp3 MPEG 1 Layer2	16KHz ~ 48KHz 80kbps~320kbps
	MPEG 1 Layer3 16KHz ~ 48KHz 80kbps~320kbps
	MPEG 2 Layer3 16KHz ~ 48KHz 80kbps~320kbps
	MPEG 2.5 Layer3 16KHz ~ 48KHz 80kbps~320kbps
*.wma	Wave_Style_MSAudio1	16KHz ~ 48KHz	56kbps~128kbps
	Wave_Style_MSAudio2 16KHz ~ 48KHz 56kbps~128kbps
*.aac	AAC	16KHz ~ 96KHz	48kbps~320kbps
	AAC-LC	16KHz ~ 96KHz	128kbps~192kbps5.1ch 320kbps
	HE-AAC	24KHz ~ 96KHz	48kbps~64kbps5.1ch 160kbps
*.wav	-	16KHz ~ 48KHz	up to 3000kbps
*.ogg	OGG 1.1.0	16KHz ~ 48KHz	50kbps~500kbps
*.flac	FLAC 1.1.0, FLAC 1.2.1	16KHz ~ 96KHz	up to 3000kbps

• If there are too many folders and files stored on the USB device, it may take the Soundbar sometime to access and play files.

07 CONNECTING A MOBILE DEVICE

Connecting via Bluetooth

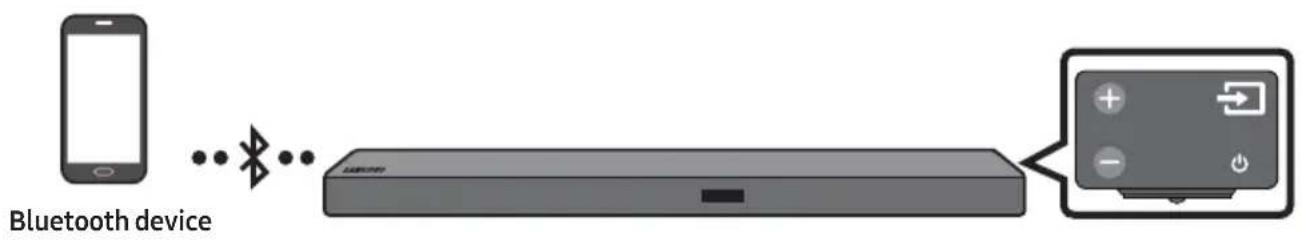

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• You cannot connect more than one Bluetooth device at a time.

The initial connection

1. Press the (Source) button on the right side panel or on the remote control, and then select "BT".

2. Change "BT" to "BT PAIRING".

3. If "BT READY" appears, press and hold the (Source) button on the right side panel of the Soundbar or on the remote control for more than 5 seconds to display "BTPAIRING".

4. Select "[AV] Samsung Soundbar Mxxx M-Series" from the list.

5. When a Soundbar is connected to the Bluetooth device, "[Bluetooth Device Name] "BT" appears in the front display.

6. Play music files from the device, connected via Bluetooth, through the Soundbar.

If the device fails to connect

• If the previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar Mxxx M-Series") appears in the list, delete it.
• In "BT" mode, press and hold the l (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to "BT PAIRING" mode.

Then, select "[AV] Samsung Soundbar Mxxx M-Series" from the Bluetooth device search list.

What are the BT READY and BT PAIRING statuses?

• BT READY: In this mode, you can search for previously connected TVs or connect to the Soundbar from a previously connected mobile device.
• BT PAIRING: In this mode, you can connect to a new device. (While in "BT" mode, press and hold the Source) button for more than 5 seconds on the right side of the Soundbar or on the remote control.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.

• If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.
  The Soundbar supports SBC data (44.1kHz, 48kHz).

• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.

• Once you have paired the Soundbar to a Bluetooth device, selecting "[AV] Samsung Soundbar Mxxx M-Series" from the device's scanned devices list will automatically change the Soundbar to "BT" mode.

• Available only if the Soundbar is listed among the Bluetooth device's paired devices.

(The Bluetooth device and the Soundbar must have been previously paired at least once.)

• The Soundbar will appear in the Bluetooth device's searched devices list only when the Soundbar is displaying "BT READY".
  Soundbar cannot be paired to another Bluetooth device, while using the Bluetooth function.

Bluetooth POWER On (Bluetooth POWER)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth POWER On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press the Bluetooth POWER button on the remote while the Soundbar is turned on.
2. "ON-BLUETOOTH POWER" appears on the Soundbar's display.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the (Source) button on the right side panel or on the remote control, and then change to any mode except "BT".

• Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if:
• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

Using the Samsung Audio Remote App

Installing the Samsung Audio Remote App

To control the Soundbar with your smart device and the Samsung Audio Remote app, download the Samsung Audio Remote app from the Google Play store.

Market search : Samsung Audio Remote

Launching the Samsung Audio Remote App

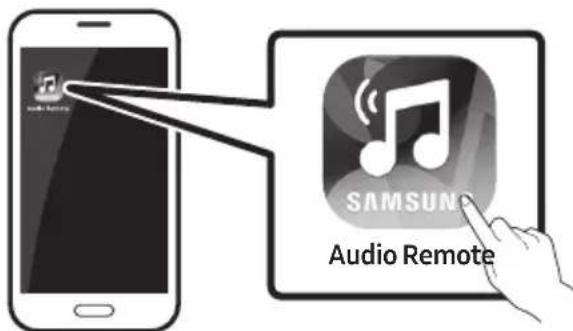

To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device, and then follow the directions on the screen.

• The Samsung Audio Remote app is only compatible with Android mobile phones and mobile devices running Android OS 3.0 or later.

08 USING THE REMOTE CONTROL

How to Use the Remote Control

1	Power	Turns the Soundbar on and off.
2	Sound Control	You can select from TREBLE, BASS, or AUDIO SYNC. • To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons. • Press and hold the (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz, and 10KHz are selectable (Left/Right) and each can be adjusted to a setting between -6~+6 (Up/Down). • If the video and audio between the TV and your Soundbar are not synchronised, select AUDIO SYNC in Sound Settings, and then set audio delay between 0~300 milliseconds by using the Up/Down buttons. (Except "USB" mode) • Audio Sync is only supported in some functions.

3	Surround Surround	The Surround Sound function adds depth and a sense of space to sound. Each time you press this button, ON and OFF alternate. • ON: Play sound over all the speakers. • OFF: You can hear the sound of the original source channel from several speakers.
4	SOUND MODE SOUND MODE	You can select the desired sound effect by choosing STANDARD, MUSIC, CLEAR VOICE, SPORTS, or MOVIE. Select the "STANDARD" mode if you want to enjoy the original sound. • DRC (Dynamic Range Control) Lets you apply dynamic range control to Dolby Digital tracks. If you press and hold the SOUND MODE button while in standby mode, DRC (Dynamic Range Control) turns on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.)
5	Source	Press to select a source connected to the Soundbar. • BT PAIRING mode To turn on "BT PAIRING" mode in "BT" mode, press and hold the Source button for more than 5 seconds. See page 17 for details. • Auto Power Down Function The unit turns off automatically in the following situations. - D.IN / HDMI / BT / USB Mode: If there is no audio signal for 5 minutes. - AUX Mode: - If the Audio (AUX) Cable is disconnected for 5 minutes. - If there is no KEY input for 8 hours when the Audio (AUX) Cable is connected. (Auto Power Down function can be turned off only in that case.) - To turn off Auto Power Down function, while in "AUX" mode, press and hold the II button for 5 seconds. "ON-AUTO POWER DOWN" / "OFF-AUTO POWER DOWN" appears on the display.
6	Play / Pause	Press the II button to pause a music file temporarily. If you press the button again, the music file plays.
7	Up/Down/Left/Right	Press the indicated areas to select Up/Down/Left/Right.
		Press Up/Down/Left/Right on the button to select or set functions. • Repeat To use the Repeat function in “USB” mode, press the Up button. • Music Skip Press the Right button to select the next music file. Press the Left button to select the previous music file. • Anynet+ / Auto Power Link You can turn Anynet+ and Auto Power Link on or off. Anynet+ and Auto Power Link are controlled by the Right and Left buttons respectively. - Anynet+ : If the Soundbar is connected to a Samsung TV through an HDMI cable, you can control your Soundbar with a Samsung TV remote control. Press and hold the Right button for 5 seconds to toggle Anynet+ ON and OFF. - Auto Power Link : If the Soundbar is connected to your TV through a digital optical cable, the Soundbar can automatically turn on when you turn on your TV. Press and hold the Left button for 5 seconds to toggle Auto Power Link ON and OFF. - Anynet+ / Auto Power Link are set to ON by default.
8	BluetoothPOWERBluetoothPOWER	Press to turn the Bluetooth POWER or volume restriction function on and off. • Bluetooth POWER function : If the Soundbar is in standby mode and the Bluetooth POWER function is On, when you turn on a previously connected Bluetooth device, the Soundbar automatically turns on and connects via Bluetooth to the device. - When the Bluetooth POWER function is on, “ON-BLUEOTHOPower” appears on the Soundbar display. To turn off the Bluetooth POWER function, press the Bluetooth POWER button once. Then “OFF-BLUEOTHOPower” appears on the front display. - If the “D.IN” mode is on and the Soundbar is connected to a Samsung smart TV released in 2017 or later, the Soundbar can be controlled with the TV remote control. In this mode, you cannot turn off Bluetooth POWER. • Volume restriction function : Because it may damage hearing when the power is turned on at high volumes, it adjusts the volume to 20 when the set volume is higher than 20. - The default value for Volume restriction is off. The set volume is maintained even when the power is turned off. - To change the setting, press the Bluetooth POWER button on the remote control for 5 seconds. With the volume restriction off, “V FREE” appears on the front display and with the function on, “V LOCK” appears.
9	WOOFER	Push the button up or down to adjust the volume of the subwoofer to -12 or -6 to +6. Pressing the button reverts the subwoofer volume to level 0.
10	VOL	Push the button up or down to adjust the volume. • Mute Press the VOL button to mute the sound. Press it again to unmute the sound.

Adjusting the Soundbar volume with a TV remote control

Use the TV menu to set the TV speaker on a Samsung TV external speakers. (For more information, see the TV's user manual.)

• After installing the Soundbar, you can adjust the Soundbar's volume using the IR remote control that came with a Samsung TV. (If you do not want to use this function, when the Soundbar is on, press and hold the Surround button for 5 seconds. "OFF-TV REMOTE" appears in the Soundbar's display and the function turns off.)

To adjust the volume using only the Samsung TV remote control, press and hold the Surround button for more than 5 seconds until "SAMSUNG-TV REMOTE" appears in the Soundbar display.

Each time the Surround button is held for 5 seconds, the mode switches in the following order: "SAMSUNG-TV REMOTE" (Default mode) "OFF-TV REMOTE" "ALL-TV REMOTE".

• To adjust the Soundbar volume with the remote control that came with a TV made by a third party manufacturer, turn the Soundbar on, press and hold the Surround button for 5 seconds ("OFF-TV REMOTE" appears on the Soundbar's display), release the Surround button, and then press and hold the Surround button again for more than 5 seconds. ("ALL-TV REMOTE" appears on the Soundbar's display.)

• This function may not be available, depending on the remote control.
  Manufacturers supporting this function:

VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA

Using the Hidden Buttons

Hidden Button		Reference page
Remote Control Button Function
Surround	TV remote control On/Off	page 24
(Source)	BT Paring page 17
▶II (Play / Pause)	Auto Power Down On/Off (AUX mode) page 22
	Initialise (Standby) page 30
VOL ID SET (Standby)	page 7
Left	Auto Power Link ON/OFF	page 10
Right Anynet+ ON/OFF	page 23
(Sound Control)	7 Band EQ page 21
SOUND MODE	DRC ON/OFF (Standby)	page 22
Bluetooth POWER	Volume restriction On/Off	page 23

Output specifications for the different sound effect modes

Effect		Input	Output
			Except Wireless Rear Speaker Kit	Include Wireless Rear Speaker Kit
Surround Surround	ON	2.0 ch	3.1 ch	5.1 ch
		5.1 ch	3.1 ch	5.1 ch
SOUND MODE SOUND MODE	STANDARD	2.0 ch	2.1 ch	4.1 ch
		5.1 ch	3.1 ch	5.1 ch
	MUSIC	2.0 ch	2.1 ch	4.1 ch
		5.1 ch	3.1 ch	5.1 ch
	CLEAR VOICE	2.0 ch	3.1 ch	5.1 ch
		5.1 ch	3.1 ch	5.1 ch
	SPORTS	2.0 ch	3.1 ch	5.1 ch
		5.1 ch	3.1 ch	5.1 ch
	MOVIE	2.0 ch	3.1 ch	5.1 ch
		5.1 ch	3.1 ch	5.1 ch

• Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from.

09 INSTALLING THE WALL MOUNT

Installation Precautions

Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.

• Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
  Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
  Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

Diameter: M5

Length: 35mm or longer recommended.

• Connect cables from the unit to external devices before you install the Soundbar on the wall.
• Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Wall Mount Guide

Holder-Screw (2 EA) Screw (2 EA) Bracket-Wall Mount L Bracket-Wall Mount R

1. Place the Wall Mount Guide against the wall surface.

The Wall Mount Guide must be level.

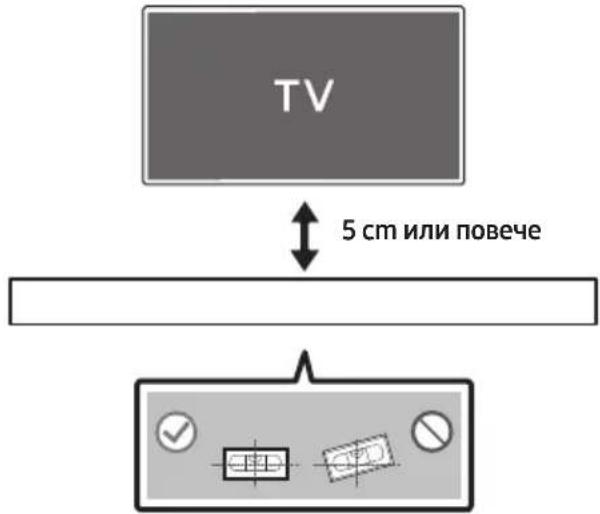

If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

1. Align the Paper Template's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

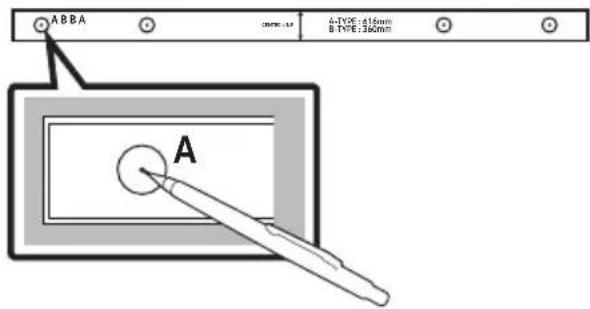

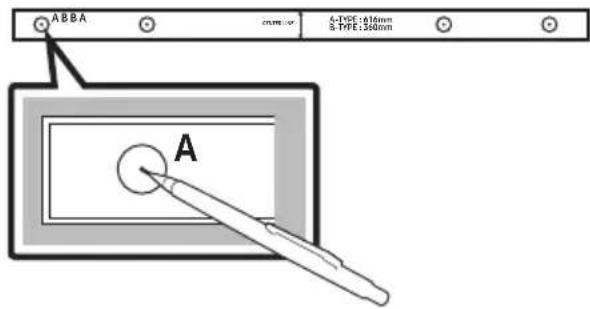

1. Push a pen tip or sharpened pencil tip through the centre of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

2. If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

3. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

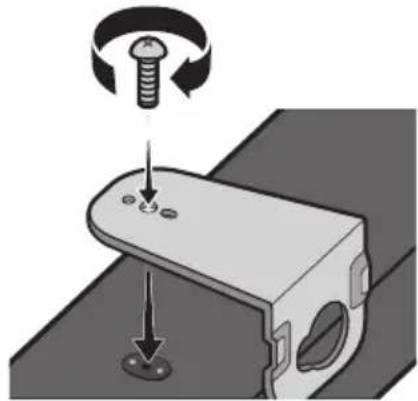

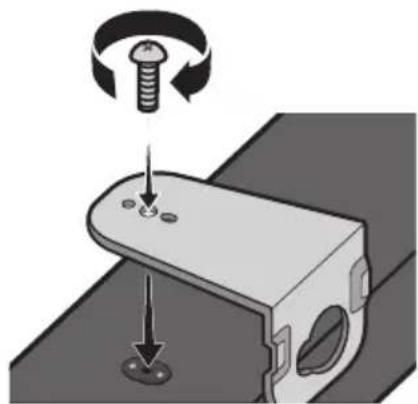

1. Use the two Screws (M4 x L12) to attach both Bracket-Wall Mount L and R to the Soundbar's bottom.

For a proper fit, make sure to align the bumps on the Soundbar to the holes on the brackets.

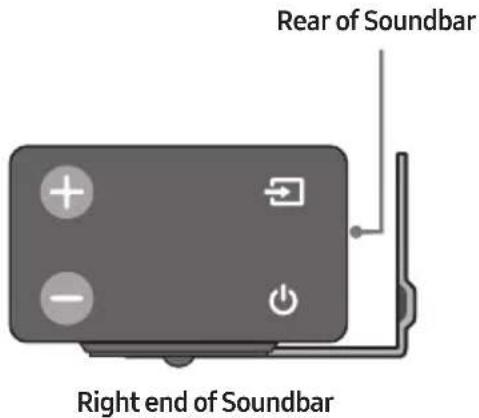

• When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

• The left and right mounts are different shapes. Make sure to position them correctly.

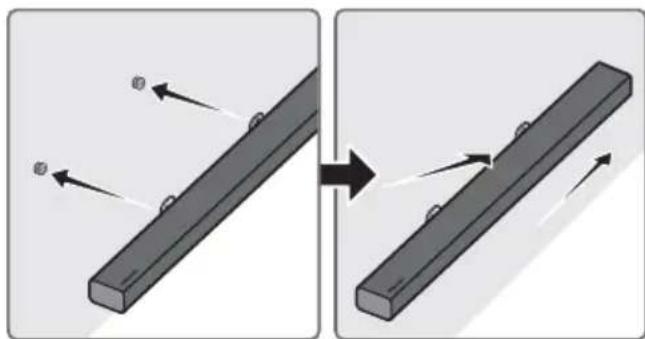

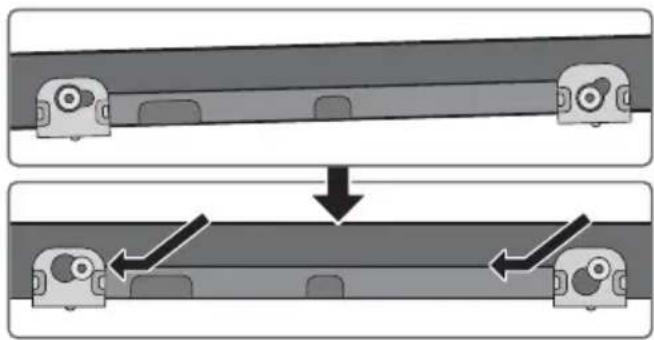

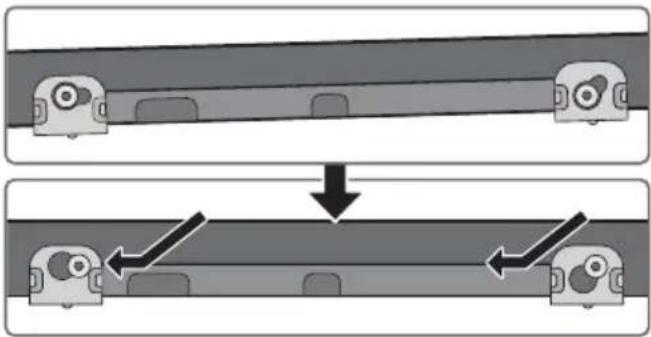

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

• Slightly tilt the Soundbar to insert both Holder-Screw heads into Bracket-Wall Mount holes. Push the Soundbar in the direction of the arrow to make sure both sides are firmly fixed.

Detaching the Soundbar from the Wall

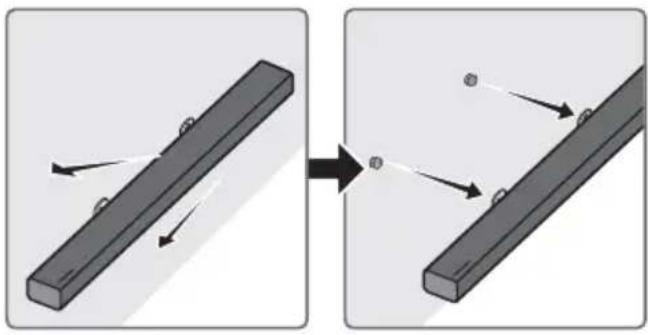

1. To separate the Soundbar from the wall mount, push it in the direction of arrow, tilt it up slightly, and then pull it away from the wall as shown.

• Do not hang onto the installed unit and avoid striking or dropping the unit.
• Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or damage the product.
• When the unit is installed on a wall, please make sure that children do not pull any of the connecting cables, as this may cause it to fall.
• For the optimal performance of a wall mount installation, install the speaker system at least 5 cm below the TV, if the TV is mounted on the wall.
• For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely to fall.

10 SOFTWARE UPDATE

Samsung may offer updates for the Soundbar's system firmware in the future.

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar.

For more information about how to download update files, go to the Samsung Electronics website at (www.samsung.com Support).

Then, enter or select the model of your Soundbar, select Software & Apps, and then Downloads.

The option name can vary.

Updating Procedure

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

2. The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

3. Follow the steps below to download the product software:
   Go to the Samsung website at (samsung.com) search for the model name - select the customer support option (the option name is subject to change)

4. Save the downloaded software to a USB stick and select "Extract Here" to unzip the folder.
5. Turn off the Soundbar and connect the USB stick containing the software update to the female port on a Micro USB adapter cable. Connect the cable to the USB port on the Soundbar.
6. Turn on the Soundbar. Within 3 minutes, "UPDATE" is displayed and updating begins.

7. When the update finishes, the Soundbar turns off. Press the button on the remote control for 5 seconds. "INIT" appears on the display and then the Soundbar turns off. The update is complete.

8. This product has a DUAL BOOT function. If the firmware fails to update, you can update the firmware again.

If UPDATE is not displayed

1. Turn off the Soundbar, disconnect and then reconnect the USB storage device that contains the update files to the Soundbar's USB port.

2. Disconnect the Soundbar's power cord, reconnect it, and then turn on the Soundbar.

3. Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.

4. Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.

5. After update is completed, the user setup in Soundbar is initialised. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too. If the connection to the subwoofer is not re-established automatically after the update, refer to page 6. If the software update fails, check if the USB stick is defective.

6. Mac OS users should use MS-DOS (FAT) as the USB format.

7. Updating via USB may not be available, depending on the USB storage device manufacturer.

11 TROUBLESHOOTING

Before seeking assistance, check the following.

The unit will not turn on.

Is the power cord plugged into the outlet?→Connect the power plug to the outlet.

A function does not work when the button is pressed.

Is there static electricity in the air?→Disconnect the power plug and connect it again.

Sound dropouts occur in BT mode.

→See the Bluetooth connection sections on pages 11 and 17.

Sound is not produced.

Is the Mute function on?→Press the VOL button to cancel the function.

Is the volume set to minimum?→Adjust the Volume.

The remote control does not work.

Are the batteries drained?→Replace with new batteries.

Is the distance between the remote control and Soundbar main unit too far?→Move the remote control closer to the Soundbar main unit.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

This issue can occur if the subwoofer is not connected to the Soundbar main unit.→Try to connect your subwoofer again. (See page 6.)

The subwoofer drones and vibrates noticeably.

Try to adjust the vibration of your subwoofer.→Push the WOOFER button on your remote control up or down to adjust the subwoofer volume. (between -12, -6 ~ +6).

12 LICENCE

DOLBY

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 OPEN SOURCE LICENCE NOTICE

To send inquiries and requests regarding open sources, contact Samsung via Email ([e-mail]).

14 IMPORTANT NOTES ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
• An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).
(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).
- You will be informed of the administration fee amount before a technician visits.

15 SPECIFICATIONS AND GUIDE

Specifications

GENERAL	USB		5V/0.5A
	Weight	Soundbar Main Unit	2.6 kg
		Subwoofer (PS-WM30)	72 kg
	Dimensions(W x H x D)	Soundbar Main Unit	1010.5 x 54.0 x 87.5 mm
		Subwoofer (PS-WM30)	200.0 x 392.0 x 378.0 mm
	Operating Temperature Range		+5°C to +35°C
	Operating Humidity Range		10 % ~ 75 %
AMPLIFIER	Rated Output power	Soundbar Main Unit	30W x 6, 6 ohm
		Subwoofer (PS-WM30)	160W, 3 ohm
Supported play formats			LPCM 2ch, Dolby AudioTM(supporting Dolby® Digital), DTS
Wireless device output power		BT max transmitter power	100mW at 2.4GHz – 2.4835GHz
		SRD max transmitter power	25mW at 5.725GHz – 5.825GHz

NOTES

Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit)

Overall Standby Power Consumption (W)		2.7W
Bluetooth Port deactivation method		Press the “Bluetooth POWER” button on the remote control when “BT” mode.

• Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit:

http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data-corner.html

CBeTInHHnLED nHdkaTopn B 3aHaTa YacT Ha cy6yepa

LED Индikatopи	Състаяне	Описане Раделени на сюбноct	-
Синьо	Вкл.	Усpenшно Свьрзвае (Hорmaлина работа)
	Мira	Вьздановаяне на Врьзкata	Проберete дали зхранвашият кабел на ochobnoto устристwo на Soundbar e Свьрзан павлино подьжава, опитайся рычно на Свьржete cy6уфера. Вижто сTRAница 7.)
Черveho Вкл.		Готовноct (ochobnoto устroduстwo на Soundbar се иЗklюнио)	Проберete дали зхранвашият кабел на ochobnoto устристwo на Soundbar e Свьрзан павлино.
		Свьрзва themselves e Heucneшно	Свьржete OTHOB. Вижто Иструкцип te 3a рыно Свьрзвае на сTRAница 7.
Черveho и синьо	Мira He	Изpenabnoct	Вижто Инфомацята за врьзka сбс сервизен цentь р на Samsung в рьковостВOTO.

PbHOCBbP3BaHe Ha cy6yepa, aKO aBTOMaTnHOTo CBbp3BaHe e HeycneUHO

PpOBepeTe, ppei Da n3BbPwIte pbUHO CBbp3BaHe

• Пюоверете далл зхарвашиткабели на Soundbarи на субуфера ссьрзанпраилho

• YBepete ce, ye Soundbar e BkIIOueH.

• HatncheTe n 3aepbKTe ID SET B 3aHaT aact Ha cy6yfepa Hn-MaIko 3a 5 cekyn. YepBHeHrT INdkaTop OTaHa Ha cy6yfepa ce n3KJIIOUBa I CINHrT INdkaTop npemrBa.

3aHaacT Ha cy6yphi

2.ИЗкlioуeteSoundbar.
3. HatncheTe n 3aIpbKte 6yToHa VOL Ha IInCTaHcNoHHoTo ynpaBHeHne Hau-MaNko 3a 5 cekyHn, JOKato Soundbar e N3KJIoueH (OFF).
4. Cb06eHHeTo 3a ID SET ce no8Ba Ha nCnpe Ha Soundbar 3a 1,3 cekyn i n cIeTob a N3Ye3Ba.

1. Korato синяг Инд Raop Ha cy6yepa Mna, Bkliouhe Te 3axpaHbaHeTo Ha Soundbar, KaTo HATnCHete 6yToHa (3axpaHbaHe) OTdACHO Ha OCHOBHOTO yCTPOiCTBO NII HA dNCTaHcIOHHOTO ynpabJIeHne.

2. Korato Bpb3kata ce yctaHOBn ycneuho, CnHnT nHnKATOp B 3aHaTa qAcT Ha cy6yepa cnnpa da Mnra N 3anOvBa Da CBETN NOCTOARHNO.

3. Ako npouecbT ha cBbP3BaHe e HeycneWeH, CnHnT nHnKaTOp ige Mira HnpeKbChato. PpemHete KbM CtbNka 1 u 3aNoyHete OTnauano

BENEXKNI

He cBbp3BaIte 3axpaHbAaJna Ka6eHa To3n npOyKT nIn BaIaIaT TeIeBN3Op KbM eIeKtpueckn KOHTaKT,IOkato BCNUK B0b3KN MekDy KOMNOHEHTTE He 6bDat 3aBbpSeHH.
- Преши да пемecтinte сии Инсталпате тои порукт, trябва да ce уberпite, ye 3axpaHbaHeto e n3KJIQUeHOи 3axpaHbAшят Ka6eJ He e CBbO3aH KbM eJeKTpUyeCKn KOHTaKT.

• Ako ochobnayt moyn e n3kIoyen, 6e3KuHnT cy6yep ige npemHe B pexmHa rTOBHOCT n CBetoIObT STANDBY B 3aHaTa qact ige CBETHe B cepBeHo, cnei kaTo e npemrHaI HraKoJIko PbTN B CnHbO.
• Ako n3no3BaTe yctpoiCtBO, Koeto n3no3Ba cBuaTa yeCTota (5,8 GHz), KaKTo Soundbar, B 6n3ocT do Soundbar, cmUeHnTa Morat da npuHnT ppeKbCbaHe Ha 3Byka.
• М akсmaHOTO pa3ctoHne Ha npedabane Ha 6e3KnHnC nHa ha ochOBnHa oKOJI e OKOJI 10 MeTpa, Ho MoXe Da Bapnpa B 3aBncIMocT OT BaWata pa6oTHa cpea. Ako MeJxOcHOBnHa MOyI n 6e3KnHnCy6yΦep mMa CTOMaHO6eTOHnHa nIi MetaHa CTeHa, cnCTemata MoXe n3o6uO da He pa6oTn, 3aIoTO 6e3KnHnT CnHnHe He MoXe Da IpoHnKHe ppe3 MeTaN.

PNEДПАЗИМЕРКИ

B 6e3xuHnA cy6yep nMa BrgaedeHn aHTeHn 3a npneMaHe Ha 6e3xuHcH cHnA. CbXpaHraBte MoDyIte daley OT BODa HnBna.
3a da cn ocHpyrnte ONTImaJIHO kaueCTBO npn CnyuHaHe, yBepTe ce, ye B 30HaTa OKOLO 6e3KUnHnB VBCOKoROBOpTeI 3a HnCKn YeCTOTn I MoUyla Ha 6e3KUnHnI npneMHNK (npoJaBa ce OTdEInHO) HMa npenTCTBnI.

3a Да постигнелу Истинскп 6eЗкунен сbpayнд 3ByK, CBbpжеTe KOMПлекТа 6e3Жични 3aДнИ ВСOKOROBOPHTELи Ha Samsung (SWA-8500S) кьМ свОЯ Soundbar (прада в ce OTделно). 3a ДОпьЛHNTeHLЯ ИНфорmaця ВИХTe рБКOBODCTBOTO 3a KOMПлекТа 6e3Жични 3aДнИ ВСOKOROBOPHTELи Ha Samsung.

04 CBbP3BAHE KbM BALUNA TEJIEBN3OP

MoKeTe Na Cnyuata 3Byka Ha TeJeBn3opa O T CBOr Soundbar Upe3 Ka6eJHa nn6e3KmUHa Bpb3ka.

Korato caynd6apbTe cBbp3aH KbM n36paHn TeleBn3Opn Samsung, toJ moKe da ce ynpabnaBa nocpeiCTBOM dNCTaHcUHOHTo ynpabIeHne Ha TeleBn3Opa.
- Пи ИЗПОЛЗВане на оптуен Кабел Тази Функциma може за ce подьржа OT смартелевизори Samsung, модали 2017 г., кочу подьржатBluetooth.
- OcbeH ToBa Ta3n FyHKuIe Bn N03BOLra Ba Da N3N0J3BaTe MeHIO To Ha TeJeBu3Opa, 3a Da 3aDaBaTe POnEtO Ha 3Byka I pa3JIuHn HAcTpoiKn, KaKTo I CInaTa Ha 3Byka I 3aRnyUbaHaTeo Ha 3Byka.

MeToI. Cbbp3BaHe 4pe3 ka6eI

Cbbp3BaHe ype3 onTnueH ka6eI

1. Cbpxke Te kaka DIGITAL AUDIO IN (OPTICAL) Ha Soundbar KbM Jka OPTICAL OUT ha TeIeBn30pa Upe3 uΦpOB oTnueH Ka6en.

2. Hatachete 6ytoHa (N3ToCHNK) Ha nane OToACHO nn Ha nctaHOnHOTo ynpabJeHne i CnTobA n36epTe pexkM ,D.IN".

Korato Soundbar e cBbP3aH KbM cMapT TeLEBn3Op Samsung, n3Jy3bI Ha na3apa cIeD 2017 r. yNkzra Ta Bluetooth POWER ce BKnOuBa aBTOMaTuHNo, 3a da moKe Soundbar da ce ynpabnBa IocpeiCTBOM dNCTaHcIOHHOTo ynpabNeHne Ha TeLEBn3Opa.

(BnKTe cTpaHnca 23 3a noDpo6Ha HOpMaunr OTHoCHO yHKuYra Bluetooth POWER.)

Auto Power Link

Bpb3kata 3a aBTOMATNUHO 3axpaHbAHe BKJIIOUBA aBTOMATNUHO Soundbar, kORATo TeIeBN3OpbT Ce BKJIIOUH.

1.CbpbkTeSoundbarNTeIeBn3opaUpe3uΦpOBoTnueHKa6eJ.

1. Hatachete 6ytoHa (N30uHnK) Ha nane la OTdACHO IIN Ha nCTaHIOHHOTO ynpabHeHne IN Cled TOBa n36epete pekIM ,D.IN".

2. Hatnche 6ytoHa HnA Bo Ha nctaHnOHHoTo ynpabHeHne 3a 5 cekyn, 3a da BkIOHTe nn n3KIOHTe Auto Power Link.

Bpb3kata 3a aBTOMaTHUHO 3axpaHbAHe no nopa36npahe c hactpoika ON. (3a da n3KJIIOHTe Ta3n fYHKsra, n3KIOUte aBTOMaTHUHO TO 3axpaHbAHe. KaTO n3PON3BaTe Soundbar.)

B 3aBnCmOCT OT CbBp3aHOTyCtPoIcTBO e Bb3MoJHo Auto Power Link da He yHKUHOHa.

TaznФyнкия e haJIuHa cAmO bpeKIM "D.IN".

Cbbp3BaHe Ha TeIeBn3Op 4pe3 HDMI ka6eI

1. Пи влочен Soundbar и телевизор сбъркete HDMI ka6ena (He e doctabeH), kaKTo e noka3aHo NaФИгypata.

2. "TVARC" ce noявая Ha ekpaHa Ha Дисплег Ha ochOBHTo yctpoiCTBO Ha Soundbar n Soundbar Bb3npOu3BexJa 3Byka Ha TeJIeBu3Opa.

3. Ako 3Bykbl Ha TelenBn30pa He ce cyBa, HATncHeTe 6byToHa (N3ToUHnK) Ha nIcTaHnOHHOTynpaBHeHne IIN B Jxchata CtpaHa Ha Soundbar, 3a da npEeKnIOHTe B pexm ,D.IN".Ha ekpaHa Ce n3BeJdA T NocJeIOBATEJIHO ,D.IN" n ,TV ARC" n Ce Bb3IpOn3BeJda 3ByKbT Ha TelenBn30pa.

4. Ako „TV ARC" He ce n3Bexka Ha ekpaHa ha dinCnne Ha ochOBHTo yCTpoiCTBO Ha Soundbar, npoBepTe daJI KabeIbTe cBbp3aH KbM npabuHnI npOT.

5. Използваite 6утонITE 3a сила Ha 3Byka Ha Дистанционноу упраВлени Ha TeleБиЗОра, 3aда поменITE силata Ha 3Byka Ha Soundbar.

BENEKNI

HDMI npedctablaBa nHTeppeic, KOITo no3Bolra uΦpOBO npedabaHe Ha Bndeo i aydno daHHI camo ue3 eINH KOHEKTop.
- Ako Telebn3OpbT mHa ARC nopT, CBpbKte HDMI ka6eJa KbM npota HDMI IN (ARC).
- Прелорьваме n3ползваши.To на HDMI ka6eI 6e3 cbpueBnHa, ako e Bb3moJHo. Ako n3пол3BaTe HDMI ka6eI c6c cbpueBnHa, n3пол3BaIte TaKbB, chIto dImaMeTbp e no-MaIbK OT 14 MM.

• Anynet+ Tpr6Ba da 6bJe BkIIOueHo.
• Ta3n ΦyHKζηr He e hαJIηuHa aKO HDMI ka6eJbT He noДьрЖa ARC.

Metod 2. Be3xuHcBbP3BaHe

Cbbp3BaHe Ha TeIeBn3Op Upe3 Bluetooth

Korato TeleBn3OpbTe cBbP3aH Upe3 Bluetooth, moKeTe da cnUwate cTpeo 3Byk, 6e3 da nMa xaoc c Ka6eInte.

• Camo einn TelenBn3Op MoKeJa 6bJe CbP3aH B daJen MOMeHT.

Cko6a 3a MoHTax Ha cTeHa D

1. NocTaBete Boaay 3a MoHTnpaHe Ha CTeHa Bbpxy NOBbpxHOCTTa Ha CTeHaT.

BodayaMOHTnpaHeHaCTeHaTpaBdapeBaH.
- AKO TeJIeBn3OpbT Bn e MOHTnpaH KbM CTehata,MOHTpaIte Soundbar HanMaIKo Ha 5 cm noT TeJIeBn3Opa.

2.Подрав overheцентралинmaHa

XapTneHnIa6IoN KbM cEHTbpaHa TeNeBn3Opa (aKo MoHTnpaTe Soundbar noT TeNeBn3Opa) n CneI TOBa fNKcnpaTe

BodayaMOHTnpaHeHaCTeHaKbMCTeHaTa C NOMOHTa Ha TIKCO.

• Ako He MOHTnPate NOI TeLeBn3Op,

noctabete LcHtpaHa IHHnB UeHTbpaHa 30HaTa 3a MOHTnpaHe.

UeHTpaHaIHHN

1. Mapкираite CBbpxa Ha xIMnkaI nI INOoctpeH MOINB ppe3 ueHTbpaHa N306paJxehnraT a OT A-TYPE BvB BCEKn KpaI Ha BoJaA, 3a Ja ot6eJekte OTbOpnte 3a ONOPHITE BnHTOBe, CneI TOBa OTCTpaHete BoDaY 3a MoNTnpaHe Ha cTeHa.

1. KaTo n3NoJ3BaTe CBpeIIO C noJxOJaU pa3Mep, npo6nIte OTBOp B CTeHaTa Bbpxy BcKa MapKnipOBka.

2. Ako MapknpoBknte He cBbnaat Ha no3nnte Ha rpeinte, noctabete noxodn ankepn nn nio6ein B OTbopnte, npden da noctabite onopnnte BHTOBe. Ako n3no3BaTe ankepn nn nIO6eIn, yBepTe ce, ye OTbopnte, kONTO npo6nBaTe, ca IOCTaTbHNO rOJeMn 3a anKePnte nn IO6eInTe, KOnTO nO3BaTe.

3. BkapaTe BnHT (He e DoctaBeH) npe3 BCEKn

Дьрхач-BИNT И След TOBa 3aВиHTe BCEKN BИNT 3ДпавОВ BTBOPa 3a ONOpEн BИNT.

6.ИЗползВаиTeДВаТаВиNTa(M4xL12)，3aДa 3akpeNiTe CkO6a 3a MoHTaЖ Ha cTeHa I NД KbMДьHOTo Ha Soundbar.3a npabNlHOTO NOCTABЯнe NOДравHete ИЗдАТИНITE Ha Soundbar KbM OTBOPnTe Ha cKo6nTe.

• Pn crno6ybaHTo ce yBepTe, ye 3aKaaykaTa Ha KOH3oJN 3a OKaYBaHe Ha cTeHa e pa3noJxKeHa 3aJ 3aHaT aact Ha Soundbar.

• JЯВATA И ДЯСHATA KOH3OJa ca c pa3JIuHa φopMa. ПocTаБeTe ГправилHo.

KoH3OJa 3a cTeHa J KOH3OJa 3a cTeHa J

1. MoNTpaIte Soundbar c npnKpeneHnte KOH30JI 3a OKaUBaHe Ha CTeHa, KaTo 3aKaUHTe KOH30JI 3a OKaUBaHe Ha CTeHa Ha DbPkau-BNHTOBete Ha CTeHaTa.

• Jeleko haKIOHete Soundbar, 3a da Bkapate Dbete rIabn Ha Dbpxkau-BHT B OTBOpITE Ha KOn3OJa 3a OKaYBaHe Ha CTeHa. HATncHete Soundbar no nocokata Ha cTpeNkata, 3a da ce yBepnte, ye Dbete cTpaHn ca 3akpenen 3dpaBO.

ДемоHTиране Ha Soundbar ot CTeHaTа

1. 3a Да OTделпe Soundbar ot CTehata, 6yTHete FO NO Nocokata Ha CTpeKkata, NaKIOHete FO JIeKO I CJIeD TOBa FOДрbHHeTe daley OT CTehata, KaKTo e NOKa3aHo.

He OKaYBaITe HnIcO Ha MOHTnpaHOToyCTpoICTBO IN BHMMaBaITe Da He ydapITe nnN3nyChete yCTPOICTBOTO.
- 3akpenete yctpoiCTBOTO 3dpaBO KbM CTehata, 3a da He naDHe. Ako yctpoiCTBOTO NaDHe, TOBa MoKe Da npuHn HapaHraBaHe IIN NOBpeHa Ha npOdyKta.
Korato yctpoiCTBOTO e MOHTnpaHO KbM CTeha, ce ybepete, ye He e Bb3MOxH0 Deua Da Dbpnat Cbbp3BaunTe Ka6eIn, TbN KaTO TOBa MoKe da Cb6Opn yCTPOiCTBOTO.
- 3a ONTUMaHa eΦeKTHBHOCT Ha CTeHHn MOHTaX MOHTpaIte BVCOKOROBOpITeHata CNTema Hai-MaIko Ha 2 INHca (5 cm) noT TeJIeBn3Opa, aKO ToI e MOHTnpaH KbM CTeHata.
COrIeHaBaWata6e30NaCHoCT,ako He MOHTnPaTe yCTpOiCTBOTO KbM CTeHata, MOHTpaIte Ro Ha Cta6nHa, paBHa IOBbPxHOCT,KbDeTo HMa BepoTHOCT Da NaIHe.

10 AKTYAJIIN3NPAHE HA COΦTYEP

Samsung Moxe da npedloxn aKtuaaun Ha cnCTemHna Pbmyep Ha Soundbar B 6bdeune.

Ako ce npedla r a ktyaun3aun, mokeTe da aKtyaun3npate fbpmyepa, kaTo cBbpxte USB yctpoicTBO c aKtyaun3aunra Ta Ha fbpmyepa, cbxpaneha B Hero, KbM USB nopTa ha Baunr Soundbar.

3adoTbHnTeHa HhOpMaun OTHOCHO3TeRnHeTo Ha faIIOBe CakTyauN3aun, nocetete ye6caHTa Ha Samsung Electronics Ha aDpec www.samsung.com Support. Cnei toBa BbVeTee NIIu N36epTe MoJeHa CBOA Soundbar, N36epTe CoOfTyep i npilooKeHn I cIeTobu N3ternHn. Imeto Ha onuTa MoKe da ce pa3nUvAba.

Ako He ce nokajke UPDATE

1.ИЗкlioуete Soundbar,ИЗвадеTeи CBьржete OTHOBO USB CTnka,КоJOTo CBДьржа Файловerte сaktyaJIи3aци,КьM USB npopta HaSoundbar.
2.ИЗклочete зхранвашия кавел на Soundbar, сед това Г CBьржete OTHOBOи Вклочete Soundbar.

• Aktyализиранeto Na Фърмуера можendeHa He pa6OTn павилно,akoydnoфайLOBete noДьржанOTSoundbar,ca cbxpaneHc USB cTika.
  He n3KlIOUBAIte 3axpaHbAHeTo n He otCTpaHbAaTe USB yCTpoiCTBOTO, JOKaTO ce akTuJIIN3aCInTe ce npINarat. OChOBnIrT MoJyI Ie ce n3KJIOnu IABTomATnHO CLeI, 3aBbPbBaHe Ha akTuJIIN3aCInTa Ha _乙 pMyepa.
• Cnéд като aktyализацята завьрши, сеницализигратnotpe6nteIckite ностюкп ha Soundbar. Рpenopьчамеда си зашиete BaшITE настюк, тaka, Че лесно ду можete ду вьзctановite сnéд aktyализаця. ИмайтпpeДВИ, Чe aktyализигрето Ha Фырмуера нулра сьци и Врьзкata Кьм cy6yфера. Ако Врьзкata Кьм cy6yфера He ce Вьзctанови abTomatnHо сnéд aktyализацята, Вьжte CTpaHица 6. Ако aktyализацята Ha coФтуера e нecyneша, поверete дani USB CTNKьт He e Deфekten.
• Потребителпе на Mac OS Тразьда нзползват MS-DOS (FAT) koTo USB формат.
• Aktyализиранeto урет USB може за не се налочь в забисимост OT
• поизвдпелся на USB стika.

11 OTCTPAHЯBAHE HA HEN3ПРABHOCTN

Ppei da nonckate cepBn3HO 6cIyKbaHe, npOBepTe cJeHTo.

YcTpoIcTBOTo He Ce BkIIOUyBa.

3axpaHbauT Ka6eBVKJIouyEn Ie B eEneKtpnueckn KONTaKT?

→CbpxKeTe 3axpaHbuaaIy IeIcE KbM eIeKtpnueckn KOHTaKT.

Дадана Функця He pa6OTи, korato ce haTnche 6yToHbT.

IIma IIn CtAnuHO eNeKTpNuecTBO BbB Bb3Dyxa?

→ИЗключeteиселаHa3axpaHbauяka6eIOTKoHTaKtAиCleДToBaFOBkIoUcTeOTHOBO.

BpeKIM BT ce noBraBat npeKbCbaHn Ha 3ByKa.

→ BnKTe pa3delenTe 3a Bluetooth cBbP3BaHe Ha cTpaHnU 11 n 17.

He ce Bb3npoN3BexJa 3ByK.

AknBpapaHa Ie yHKunraTa 3a 3arLyuBaHa He Ha 3Byka?

→HATINCHETe 6yToHa VOL,3aJa OTMeHNTe FyHKUraTa.

HactpoenJIe3ByKbT KbM MHHmMym?

→HactpoIte cnilaTa Ha 3Byka.

ДиctaHcNoHHTo ynpaBneHne He pa6oTn.

I3toeHnIinca6aTePnnte?

→3aMeHeTe C HOBN 6aTeepuN.

Pa3ctoHHeTo MeKdy DnCTaHcNoHHTo ynpabNeHne N OCHOBHO To yCtpoiCTBO Ha Soundbar TBbpde roJMy o n e?

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH,DEFINITION MULTIMEDIA INTERFAC

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 БЕДЖКА 3A

JIINCEH3A 3A

OTBOPEH KOD

3a n3npaashe Ha 3aNTBaHnI N 3aBKN BbB Bpb3Ka C n3TOUHnIte C OTBOpEN KOD Ce CBpKTe cbc Samsung ype3 ImeJ ([e-mail]).

14 BAXKHN

БЕЛEXКИ 3A

OBCJIyXBAHETO

• ΚифриTe N ИЮстрациTe B TOBa pbkoBOДСТВ 3a NOTpe6nteЯ ca празoctавен CamO 3a Справka И мога.Tа ce pa3лчabAT OT DeiCTBNTeHnI N3rIeДHa ИЗдELIneTO.
• Je da ce Naucn TaKca 3a aMHHCTpnpaHe, aKO:

(a) e n3BnKaH TexnK NO BaIe HaCToRBaHe n HЯMa IeΦeKT B npOdykTa (T.e. He cTe npOyei npkoBOdCTBOTO 3a Notpe6ntela)
(b) 3aHeceTe ypeDa B cepBn3eH ueHTbp NHaMa DeΦeKT B npOdyKTA (T.e. He cTe npOyei pBkoBOdCTBOTO 3a notpe6ntela).
Cymata 3a Ta3n TaKc3a aDMNHnCTpnpaHe
Ie Bn 6bJe Cbo6uHa, Ipei Da ce
I3BbPm KkBATo n Da e 6nlo pa6oTa nn
NoceHne Bkbu.

SIGURNOSNE INFORMACije

SIGURNOSNA UPOZORENJA

DA BISTE SMANJILI OPASNOST OD
ELEKTRICNOG UDARA, NE ODSTRANJUJE
POKLOPAC (ILI POLEDINU).
U UNUTRAŠNJOSTI NEMA DIJELOVA KOJE MOZE
SERVISIRATI KORISNIK. PREPUSTITE
SERVISIRANJE KVALIFICIRANOM SERVISNOM
OSOBLJU.

4	OPREZ OPASNOST OD ELEKTRICNOG UDARA NE OTVARAJTE
5	Ovaj simbol znači da je struja u unutrašnjosti visokog napona. Opasno je dolaziti u bilo kakav doticaj s unutarnjim sklopopova proizvoda.
7	Ovaj simbol naznačuje da je uz urežaj priložena važna dokumentacija o njugovom radu i odžavanju.
10	Proizvod II. razreda: Ovaj simbol označava da.nije potrebna sigurnosna veza s uzemljem.
~	AC napon: Ovaj simbol označava da nazivni napon označen navenimen simbolom predstavlja AC napon.
==	DC napon: Ovaj simbol označava da nazivni napon označen navenimen simbolom predstavlja DC napon.
i	Oprez, pogledajte upute za upotrebu: Ovaj simbol upićuje korisnika da potraži dodatne informacije u pogledu sigurnosti u korisničkom prisćniku.

UPOZORENJE

• Da biste smanjili opasnost od požara ili elektricnog udara, ne izlažite uredaj kisi ili vlazi.

OPREZ

DA BISTE SPRIJEČILI ELEKTRICNI UDAR, NAMJESTITE ŠIROKE KONTAKTE UTIKAÇA U SIOK UTOR, UMETNUT DO KRAJA.
- Ovaj uredaj treba uvijek biti spojen na uticnicu izmjenične struje sa zašitnim uzemljenjem.
- Da biste isključili urežaj iz struje, morate izvuci utikač iz strujne utičnice. Stoga strujni utikač treba biti spreman za rad.
- Ne izlažite ovaj urešaj kapanju ili prskanjutekućina. Ne stavljajte predmete punetekućine, poput vaza, na urešaj.
- Da biste potpuno isključili ovaj uredaj, morate izvuci utikač za napajanje iz zidne uticnice. Stoga utikač mora uvijek biti lako dostupan.

MJERE OPREZA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH,DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 OBAVIJEST O LICENCIZA UPORABU SOFTVERA OTVORENOG KODA

Za slanje upita i zahtjeva u vezi otvorenih izvora obratite se tvrtki Samsung putem e-poste ([e-mail]).

14 VAŽNA NAPOMENA VEZANA UZ SERVIS

• Slike u ovom korisničkom priručniku služe kao samo kao referencec i mogu se razlikovati od stvarnog izgleda proizvoda.
• Moguca je naplata administrativne pristoje u slučaju

(a) poziva inženjera na vaš zahtjev, a nema oštećenja na proizvodu (tj. ako niste pročitali korisnički prirucnik)
(b) da做一些te Jedinicu na popravak u servis, a nema ostecenja na proizvodu (tj. akoniste prociitali korisniicki prisncnik)
- S visinom administrativne pristojbe bit cete upoznati prije poduzimanja bilo kakvih radnji ili kućnog posjeta.

15 TEHNICKI PODACI I VODIC

Tehnicki podaci

OPćENITO	USB		5V/0,5A
	Težina	Glavna jedinica Soundbar	2,6 kg
		Subwoofer (PS-WM30)	7,2 kg
	Dimenzije (Š x V x D)	Glavna jedinica Soundbar	1010,5 x 54,0 x 87,5 mm
		Subwoofer (PS-WM30)	200,0 x 392,0 x 378,0 mm
	Raspon radne temperature		+5°C do +35°C
	Raspon vlažnosti		10 % ~ 75 %
POJACALO	Nazivna izlazna snaga	Glavna jedinica Soundbar	30W x 6, 6 ohm
		Subwoofer (PS-WM30)	160W, 3 ohm
Podržani formati za reprodukciju			LPCM 2ch, Dolby AudioTM (podržava Dolby® Digital), DTS
Izlazna snaga bežić nog urežaja		Maks. snaga BT odašiljača	100mW pri 2,4GHz - 2,4835GHz
		Maks. snaga SRD odašiljača	25mW pri 5,725GHz - 5,825GHz

NAPOMENE

Samsung Electronics Co., Ltd prirzava pravo promiene specifikacion bez prethodne obavijesti
- Težina i dimenzije su pribljžni.
- Za vise informaci o napajanju i potrosnji energiae pogledaje naljepnicu na proizvodu.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HGH.DEPIRATION MULTIMEDIA INTERFAC

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 POZNÁMKA K LICENCI OTEVRENEHO SOFTWARE

Das Benutzerhandbuch hat zwei Teile:这其中, there are two basic concepts. The first is the concept of a handbuch. It is a book that has been written by a number of authors and which includes a description of the basic concepts and their definitions. The second is a text about how to use these concepts.

BENUTZERHANDBUCH

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH,DEFINITION MULTIMEDIA INTERFERENCE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 BEKANNTMACHUNG ZU OPEN SOURCE LIZENZEN

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH,DEFINITION MULTIMEDIA INTERFERENCE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 AVATUD LÄHTEKOODI LITSENTSI TEATIS

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 AVIS DE LICENCE LIBRE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 EIDONOIHSEH TIA TIEADECIEXPHESI ANIGMIKOY ANOXTOY KQAIKA

Tva oTeiLeTe ePwTnOeic kal aItnmuata oxetikac loyiouko avoixtokwodka, EIKoivwovnoTe Tn Samsung uos noektpovkou
taxoupoeiou ([e-mail]).

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH,DEFINITION MULTIMEDIA INTERFAC

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 NYICT FORRASKODU LICENC MEGJEGYZES

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH,DEFINITION MULTIMEDIA INTERFERENCE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 AVVISO DI LICENZA OPEN SOURCE

11 PROBLEMU NOVER'SANA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH,DEFINITION MULTIMEDIA INTERFERENCE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 PAZINOJUMS PAR ATVERTA PIRMKODA LICENCI

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH,DEFINITION MULTIMEDIA INTERFERENCE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 ATVIROSIOS PROGRAMINES IRANGOS LICENCIJOS PRANEŠIMAS

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH,DEFINITION MULTIMEDIA INTERFERENCE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 INFORMACJA O LICENCJI OPEN SOURCE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 NOTIFICARE DE LICENTÀ OPEN SOURCE

Pentru a trimite intrebari sì solicitāri referitoare la software-ul open source, contactaṭi Samsung prin e-mail ([e-mail]).

14 NOTÄ IMPORTANT DESPRE SERVICE

SIGURNOSNE INFORMACije

SIGURNOSNA UPOZORENJA

DA BISTE SMANJILI OPASNOST OD

ELEKTRICNOG UDARA, NE SKIDAJTE POKLOPAC (ILI ZADNJU PLOCU).

UNUTRA SE NE NALAZE DELOVI KOJI SE MOGU

SERVISIRATI. SERVISIRANJE POVERITE

KVALIFIKOVANOM OSOBLJU SERVISA.

4	OPREZ OPASNOST OD ELEKTRICNOG UDARA. NE OTVARATI.
4	Ovaj simbol ukazuje na to da je unutar urežaja prisutan visoki napon. Svaka vrsta kontakta sa unutrašnjim komponentama ovog uredaja predstavlja opasnost.
!	Ovaj simbol ukazuje na to da se uz proizvod isporučuje važna dokumentacija koja se odnosi na rukovanje i održavanje.
	Proizvod klase II: Ovaj simbol označava da povezivanje na zašitno elektricno uzemljenje nilje neophodno.
~	Naizmenična struja: Ovaj simbol označava da naizmeničnu struju.
=	Jednosmerna struja: Ovaj simbol označava da Jednosmernu struju.
i	Oprez, videti uputstva za upotrebu: Ovaj simbol upićuje korisnika da u korisnčkom prisćniku pročita dodatne informacije u vezi sa bezbednosću.

UPOZORENJE

• Da biste smanjili opasnost od požara ili elektricnog udara, ne izlazite ovaj proizvod kiši ili vlazi.

OPREZ

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 OBAVEŠTENJE O LICENCI OTVORENOG IZVORNOG KODA

Svoje upite i zahteve u vezi sa otvorenim izvornim kodovima možete uputiti kompaniji Samsung putem e-poste ([e-mail]).

14 VAŽNA NAPOMENA O SERVISIRANJU

• Slike i ilustracije koje su upotrebljene u ovom korisničkom uputstvu date su samo kao reference i mogu se razlikovati od vašeg proizvoda.
• Administrativni troškovi mogu biti naplaceni u sledecim slučajevima:

11 RIESENIE PROBLEMOV

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 POZNÁMKA K LICENCIIS OTVORENÍM ZDROJOVÍM KÓDOM

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 OBVESTILO O ODPRTOKODNIH LICENCAH

© 2017 Samsung Electronics Co., Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country Contact Centre Web Site
■ Europe
UK 0330 SAMSUNG (7267864)		www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100		www.samsung.com/ie/support
GERMANY 06196 77 555 77		www.samsung.com/de/support
FRANCE 01 48 63 00 00		www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864)		www.samsung.com/it/support
SPAIN 00349021 72678		www.samsung.com/es/support
PORTUGAL 808 207 267		www.samsung.com.pt/support
LUXEMBURG 261 03 710		www.samsung.com/be_fr/support
NETHERLANDS 088 90 90 100		www.samsung.com/nl/support
BELGIUM 02-201 24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY 815 56480		www.samsung.com/no/support
DENMARK 707 01 970		www.samsung.com/dk/support
FINLAND 030-6227 515		www.samsung.com/ft/support
SWEDEN 0771 72 786		www.samsung.com/se/support
POLAND	801-172-678* lub [phone]* *(koszt polaczenia wedlung taryfya operadora)	http://www.samsung.com/pl/support/
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
AUSTRIA	0800-SAMSUNG (0800-7267864) [Only for Dealers] 0810-112233	www.samsung.com/at/support

Country Contact Centre Web Site
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG) www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
CZECH	800 - SAMSUNG (800-726786) www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786) www.samsung.com/sk/support
CROATIA 072726 786 BOSNIA	055 233 999 www.samsung.com/support
MONTENEGRO	020 405 888 support
SLOVENIA	080 697 267 (brezplačna številka) www.samsung.com/si/support
SERBIA	011 321 6899 www.samsung.com/rs/support
ALBANIA 045 620 202 BULGARIA	www.samsung.com/al/support
	*3000 Lěna в мржата0800 111 31, Баллага телегоннилика www.samsung.com/bg/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG)Apel Gratisuit www.samsung.com/ro/support
CYPRUS	8009 4000 only from landline, toll free www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) onlyfrom land line([phone] from mobile andland line
LITHUANIA 8-800-77777	www.samsung.com/lt/support
LATvia	8000-7267 www.samsung.com/lv/support
ESTONIA 800-7267	www.samsung.com/ee/support
