USER MANUAL PSSA 3.6 C3 PARKSIDE

GB / MT Translation of the original instructions Page

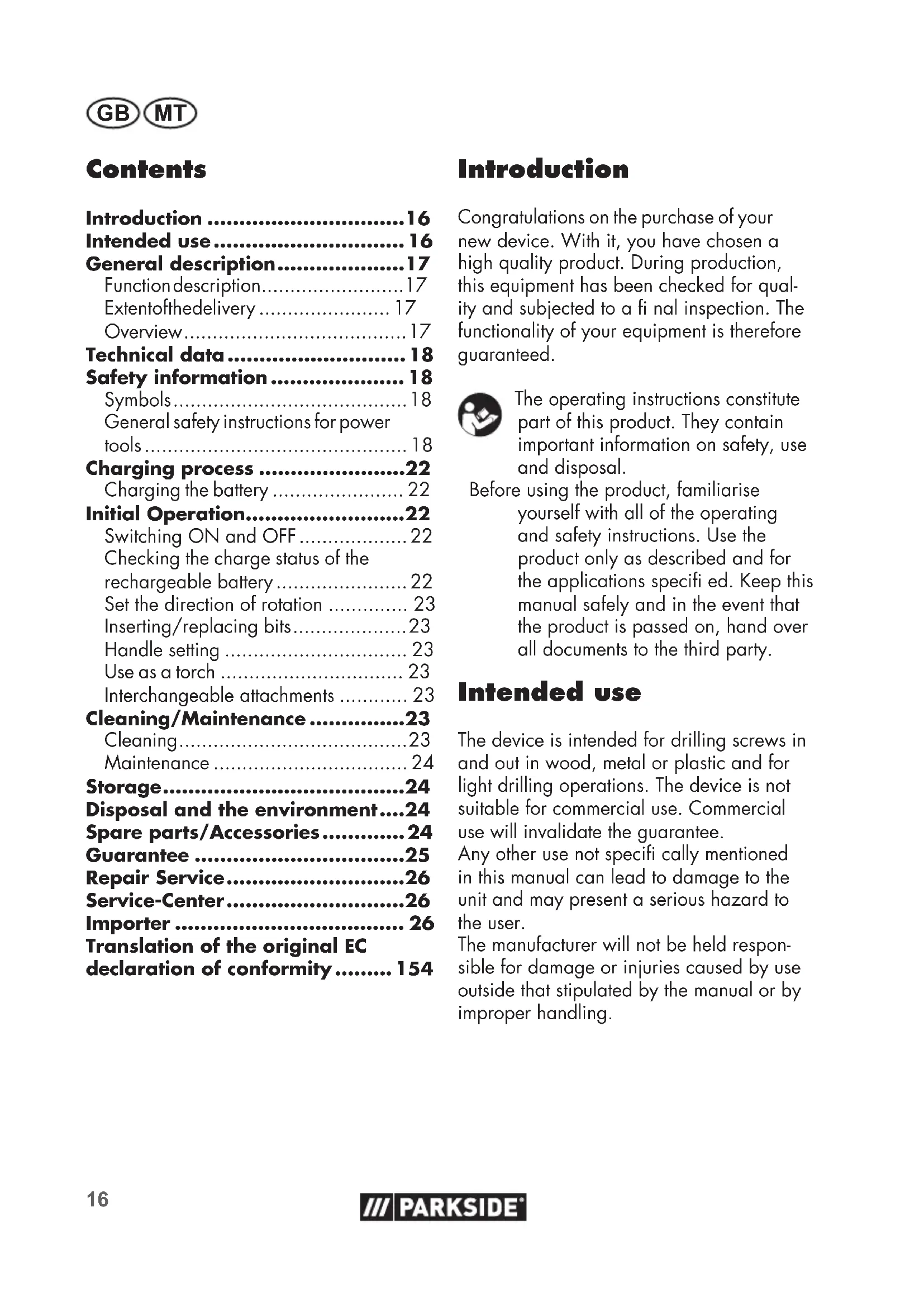

• Contents Introduction p. 16
• Intended use p. 16
• General description p. 17
• Function description p. 17
• Extent of the delivery p. 17
• Overview p. 17
• Technical data p. 18
• Safety information p. 18
• Symbols p. 18
• General safety instructions for power tools p. 18
• Charging process p. 22
• Charging the battery p. 22
• Initial Operation p. 22
• Switching ON and OFF p. 22
• Checking the charge status of the rechargeable battery p. 22
• Set the direction of rotation p. 23
• Inserting/replacing bits p. 23
• Handle setting p. 23
• Use as a torch p. 23
• Interchangeable attachments p. 23
• Cleaning/Maintenance p. 23
• Cleaning p. 23
• Maintenance p. 24
• Storage p. 24
• Disposal and the environment p. 24
• Spare parts/Accessories p. 24
• Guarantee p. 25
• Repair Service p. 26
• Service-Center p. 26
• Importer p. 26
• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for qual- ity and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications speci ed. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended use The device is intended for drilling screws in and out in wood, metal or plastic and for light drilling operations. The device is not suitable for commercial use. Commercial use will invalidate the guarantee. Any other use not speci cally mentioned in this manual can lead to damage to the unit and may present a serious hazard to the user. The manufacturer will not be held respon- sible for damage or injuries caused by use outside that stipulated by the manual or by improper handling. Translation of the original EC declaration of conformity GB MT p. 154

General description The illustration of the prin- cipal functioning parts can be found on the front foldout pages. Function description The cordless screwdriver rotates in a clock- wise and counter-clockwise direction. Furthermore, the device can be used as a torch. Please read the following descriptions for the function of the various controlling parts of the unit. Extent of the delivery Carefully unpack the appliance and check that it is complete. Dispose of the packaging material cor- rectly. - Cordless screwdriver - USB-C charging cable - 26 bits - 1 Bit holder - Case - Instruction Manual 26 bits: Slot No. No. No. No. No. No. No. Cross Cross Hexalobular socket Hexagonal

25mm A power adapter unit is not included. Overview 1 Bit adapter 2 Release key for handle setting 3 Torch (not visible) 4 Battery Indicator 5 On/off switch, torch 6 Handle 7 On/Off switch 8 Direction switch 9 LED work light 10 Power adapter 11 Charging cable USB plug 12 Charging cable connector 13 Charging socket 14 Bits 15 Bit holder 16 Covering capMTGB

• only in conjunction with the power adapter which you can purchase under “Spar e parts/ accessories”. The noise and vibration levels have been calculated according to the norms stated in the conformity statement. The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to com- pare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission

value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage condi- tions (all parts of the operating cy- cle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle). Safety information When using the device, please observe the safety instructions. Symbols Symbols in the manual Warning symbols with in- formation on damage and injury prevention Instruction symbols with information on preventing damage Wear ear protection. Help symbols with information on improving tool handling Symbols on the unit Before using for the rst time, care- fully read through the user manual. Li-Ion Do not dispose of the device with the battery installed in household waste. General safety instructions for power tools WARNING! Read all safety notices, instructions, illustra- tions and technical data thatGB MT

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pull- ing or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operation of the power tool in a damp environment is unavoid- able, please use a residual cur- rent circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the in u- ence of drugs, alcohol or medi- cation. A moment of inattention white operating power tools may result in serious personal injury. b) Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appro- priate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off- position before connecting to have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, re and/or severe injuries. Retain all safety directions and in- structions for future use. The term “Power Tools” used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-op- erated power tools (without power cord).

a) Keep work area clean and well lit. Cluttered or dark areas invite ac- cidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodi- ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.MTGB

power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising pow- er tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the pow- er tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related haz- ards. h) Do not allow yourself to be lulled into a false sense of se- curity and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Remove the plug from the wall socket and/or remove the re- chargeable battery before you change the device’s settings, change accessory parts or put away the power tool. Such pre- ventive safety measures reduce the risk of starting the power tool accidentaIly. d) Store idle power tools out of the reach of children and do not al- low persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Look after the power tool and application tool carefully. If dam- aged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for op- erations different from those intended could result in a hazardous situation. h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in un- expected situations.GB MT

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of re if a charger that is suitable for a speci c type of battery is used with other batteries. b) In the power tools, use only the batteries designed for the pur- pose. The use of other batteries may result in injuries and risk of re. c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or re. d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery uid may cause skin ir- ritations or burns. e) Do not use damaged or altered batteries. Damaged or altered batter- ies can be unpredictable and lead to re, explosion or risk of injury. f) Do not expose batteries to re or elevated temperatures. Fire or temperatures over 130°C can cause an explosion. g) Follow all instructions for charg- ing and never charge the bat- tery or the battery-powered tool outside the temperature range stated in the operating instruc- tions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and in- crease the risk of re.

a) Have your power tool serviced by a quali ed repair person us- ing only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never repair damaged batter- ies. All battery repairs should be car- ried out by the manufacturer or author- ised customer service centres only.

7) SPECIFIC SAFETY INSTRUCTIONS

FOR POWER SCREWDRIVERS: a) Hold the appliance by the in- sulated handle grips when performing work in which the screw may come into contact with hidden wiring or its own power cord. If the screw were to come into contact with a live electrical cable, metal parts of the appliance could also become live and cause an electric shock.

8) SPECIAL SAFETY DIRECTIONS FOR

BATTERY-OPERATED TOOLS a) Do not subject the battery to strong sunlight over long pe- riods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion. b) Allow a hot battery to cool be- fore charging. c) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.MTGB

Charging process Do not expose the battery to extreme conditions such as heat and impact. There is a risk of injury from leaking electrolyte solution! In case of contact, rinse with water or neutraliser and consult a doctor if contact has occurred with eyes etc. Charge the battery only in dry areas. There is a risk of injury from electric shock.

• The device may only be powered with SELV (Safety Extra Low Voltage) as marked on the device.

• Before initial use, charge the battery installed in the equipment.

• In all cases, observe the applicable safety information as well as the regula- tions and directions for environmental protection.

• Defects resulting from improper han- dling are not subject to the guarantee. Charging the battery Caution: Use a USB-C standard po- wer adapter with a supply/charge voltage of 5 V and a charge current of be- low 2.2 A. For charging, the product may only be connected to a device with one of the fol- lowing symbols:

1. Connect the charging cable connector

(12) with the charging socket (13) of the device. Insert the USB plug (11) of the charg- ing cable into a power adapter (10).

2. Plug the power adapter (10) into a socket.

3. The battery indicator (4) lights up:

red => Start of charging red and yellow => Battery appr. half charged red-yellow-green => Battery fully charged. The duration of the charging time depends on the technical data of the power adapter.

4. Once charging is complete, disconnect

the power adapter (10) from the mains supply. Initial Operation Wearing hearing protection reduc- es the risk of hearing damage. Switching ON and OFF

1. Press the on/off switch (7) to start the

device. The LED work light (9) lights up during operation.

2. To turn it off, release the on/off switch

(7). Overload protection: The safety cut-off of the device switches off in case of overload. Release the On/Off switch, the device can be switched on again after a few seconds. Checking the charge status of the rechargeable battery The battery indicator (4) signalises the state of charge of the battery.

• Press the On/Off switch, the state of charge of the battery is displayed by turning on the 3 coloured LED lights: red-yellow-green => Battery fully chargedGB MT

red and yellow => Battery appr. half charged red => Battery is empty, please charge. Set the direction of rotation You can select the direction of rotation with the direction switch (clockwise and anti- clockwise direction) and secure the device against accidental start up.

1. Wait for the device to shut-down.

2. Clockwise direction: Press

direction switch (8) to the right.

3. Anticlockwise direction: Press

direction switch (8) to the left.

4. Switch lock: Bring direction

switch to neutral position. Direction switch may only be acti- vated at a standstill to prevent dam- age to the transmission. Inserting/replacing bits Prior to commencing any work on the device, bring the direction switch (8) to the neutral position in order to prevent an accidental start up.

1. Insert the desired bit (14) or bit holder

(15) into the bit adapter (1).

2. To remove the bit or bit holder pull the

bit or bit holder out of the bit adapter. Handle setting Prior to commencing any work on the device, bring the direction switch (8) to the neutral position in order to prevent an accidental start up. The device can be locked in two hand set- tings: - Pistol grip position - Rod position Press the release key PRESS (2) and turn the handle (6) of the device by 180°. It locks into place audibly. Use as a torch

1. Press the on/off switch (5) on the un-

derside of the handle (6). The torch lights up.

2. To switch off, press the on/off switch (5)

again. Interchangeable attachments You can remove the cap (16) in order to use compatible interchangeable attachments for Series PAS 4 B2/B3 cordless screwdrivers. Grip one of the two recesses on the cap and remove the cap. Please consult the instruction manual sup- plied with the exchange attachments for assembly and disassembly of the exchange attachments. Cleaning/Maintenance Leave any work not covered in this manual to our Service Centre. Only use original parts. There is a risk of injury! Cleaning Clean and service the device regularly as follows. This guarantees a long life for your unit:MTGB

Do not jet water onto the appliance and do not clean it under owing water. This would result in the danger of an electric shock and the ap- pliance could be damaged.

• Keep the ventilation slits, motor housing and handles on the equipment clean. To do this, use a damp cloth or brush. Never use cleaning agents or solvents, which can cause irreparable damage to the unit. Maintenance The device is maintenance free. Storage

• Keep the device in the carry case sup- plied, dry and out of reach of children.

• Store the battery only in a partially charged state. The state of charge should be 40 – 60% over a longer stor- age period (1-2 LEDs are on).

• Store the device between 10 °C and 25°C. During storage, avoid extreme cold or heat so the battery does not lose power.

• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3months. Disposal and the environment Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have nished with them. Dispose of the device with the battery discharged. Do not open the device or battery. Electrical machines do not belong with domestic waste. Li-Ion Do not dispose of the device with the battery installed in household waste, re (risk of ex- plosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out. In accordance with the Directive 2012/19/EU on waste electrical and elec- tronic equipment, used electrical devices must be collected separately for disposal and recycled in an environmentally sound manner. Depending on the implementation in na- tional law, you may have the following options:

• Hand over to an of cial collection point. For more information, please contact your local waste management provider or our service centre.

• Return to the manufacturer/distributor. We will dispose of any defective devices that you send to us free of charge. This does not affect accessories enclosed with the old devices or tools without any electrical components. Spare parts/Accessories Spare parts and accessories can be obtained at www.grizzlytools.shop If you have issues ordering, please use the contact form. If you have any other questions, contact the service centre (see “Service-Center” Page 26). 26 Bits .................................. 91104080 Bit holder .............................. 91104081GB MT

Power adapter EU + USB-C charging cable ......... 80001030 Power adapter UK + USB-C charging cable ......... 80001031 Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. bits, battery capacity) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions speci ed in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identi ca- tion number (IAN 385160_2107) ready as proof of purchase for all en- quiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department speci ed below byMTGB

telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Translation of the original EC declaration of conformity We declare that the unit Cordless Screwdriver model PSSA 4 B2 Serial number: 000001 - 325000 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2014/30/EU • 2011/65/EU* & (EU) 2015/863 In order to guarantee consistency, the following harmonised standards as well as na- tional standards and stipulations have been applied: EN 62841-1:2015 • EN 62841-2-2:2014 EN 55014-1:2017/A11:2020 • EN 55014-2:2015

This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim GERMANY

• The object of the declaration described above satisfi es the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. Christian Frank Documentation Representative 154FR
