Technical specifications	Capacity: 3.5 L, Power: 1500 W, Adjustable temperature: 80-2006C, Timer: 60 minutes
Usage	Ideal for frying, grilling, roasting, and steaming, Easy to use with a touchscreen, Oil-free or very low oil preparation
Maintenance and repair	Removable and dishwasher-safe basket and tray, Easy cleaning thanks to a non-stick coating
Safety	Overheat protection system, Automatic shut-off, Cool-touch handle
General information	Dimensions: 30 x 30 x 35 cm, Weight: 5 kg, Warranty: 2 years, Included accessories: recipe book

Frequently Asked Questions - AIRFRYER Zwilling

How do I clean my Zwilling AIRFRYER fryer?

To clean your Zwilling AIRFRYER fryer, unplug the device and let it cool down. Remove the basket and drawer, then wash them in warm soapy water. Do not immerse the device in water. Use a damp cloth to wipe the exterior.

Why is my fryer not heating up?

Check that the device is properly plugged in and that the outlet is working. Also ensure that the basket is correctly in place, as the fryer will not heat if the basket is not properly inserted.

Can I cook frozen foods in the Zwilling AIRFRYER?

Yes, you can cook frozen foods in the Zwilling AIRFRYER. It may be necessary to adjust the cooking time, as frozen foods can take a little longer to cook.

What is the capacity of the Zwilling AIRFRYER fryer?

The capacity of the Zwilling AIRFRYER fryer is generally 3.5 liters, allowing you to prepare meals for several people.

Is it normal for my fryer to make noise?

A slight fan noise is normal when the fryer is operating. If you hear unusual noises, check that all components are properly in place.

How can I prevent food from sticking to the basket?

To prevent food from sticking, you can spray a little oil on the basket or the food before cooking. This helps reduce adhesion.

Can I use parchment paper in my fryer?

Yes, you can use parchment paper in the Zwilling AIRFRYER fryer, but make sure it does not block air circulation for even cooking.

How do I set the temperature and cooking time?

Use the control panel on your Zwilling AIRFRYER fryer to set the temperature and cooking time. Refer to the user manual for specific recommendations depending on the food.

Can I prepare desserts in the fryer?

Yes, you can prepare desserts like cakes or muffins in the Zwilling AIRFRYER fryer. Use heat-resistant molds.

What should I do if the device does not turn on?

If the device does not turn on, check the connection to the outlet and ensure the power cord is not damaged. If the problem persists, contact customer service.

USER MANUAL AIRFRYER Zwilling

Read these operating instructions in their entirety and with care before using the hot air fryer. Keep these operating instructions in a safe place. If you pass the appliance on to a third party, also hand over the operating instructions.

Non-observation of these operating instructions can lead to serious injury

or damage to the appliance. Zwilling accepts no liability for damage caused by failure to observe these operating instructions.

Important information for your safety is specifically marked. Be sure to observe this information in order to avoid accidents and damage to the appliance.

Safety instructions

The hot air fryer (hereinafter referred to as the "apppliance") are designed exclusively for heating hot air-fried foods without using oil in the home.

Any other use is considered improper and may result in bodily injury or property damage.

Do not put any other food items/ objects in the appliance.

Risk of fire! Do not put oil or fat in the hot air fryer.

The appliance is intended for domestic use. It is not intended for commercial use.

The appliance is not intended to be operated with a timer or a separate telecontrol system (remote control).

Certain persons are at greater risk: This appliance may be used by children 8 years of age and older and by persons with reduced physical, sensory or mental capacity or with a lack of experience and

knowledge, if such children and persons are supervised or have been instructed in the safe use of the appliance and understand the hazards resulting from using the appliance.

Children are not allowed to play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

Keep the appliance and its power cord in an a location that is not accessible to children under 8 years old.

Keep children away from the packaging material. Risk of suffocation!

Place the appliance on a dry, even surface that is not slippery.

Do not place the appliance on a hot surface or in the vicinity of strong sources of heat.

Do not let the power cable hang down. After use, store the cable in the cable compartment on the underside of the appliance.

The appliance is operated by electric power. Therefore, there is a risk of electric shock:

Only plug the appliance into a correctly installed socket.

Only operate the appliance if the voltage stated on the type plate matches the voltage of your socket.

Do not use the appliance outdoors or in damp rooms.

Make sure that the power cable is not kinked or pinched and make sure that the power cable and the appliance do not come in contact with sources of heat (e.g. hobs, gas flames).

When unplugging the appliance from the socket, always pull on the mains plug not on the cable.

Do not carry the appliance by the power cable.

Never touch the power plug with wet hands.

As long as the mains plug is plugged into the socket, live voltage exists in the appliance, even if the appliance is switched off.

After every use and in the event of danger or a defect, unplug the mains plug from the socket immediately. For this reason, keep the socket the appliance is connected to easily accessible at all times.

Unplug the mains plug from the socket prior to cleaning or maintenance of the appliance.

Never unscrew the appliance and do not make any technical modifications.

Never immerse the appliance in water or other liquids, do not clean it under running water and never put it in the dishwasher.

There is a risk of fire if the appliance is switched on:

Hot air frying can burn the food. Never use the appliance in the vicinity of flammable materials (e.g. curtains, wall cabinets) or underneath such materials. The area above the appliance must always be kept free.

Do not put the appliance down on flammable surfaces (e.g. paper napkins).

Never cover the appliance.

Do not leave the appliance unattended when it is switched on.

When the appliance is switched on and immediately after switching off, there is a risk of burns on the frying basket, on hot housing parts and on the hot air-fried food:

Steam can escape when removing the food. Keep clear of the steam, and do not bend over and hold your face over the appliance.

Do not transport or move the appliance during operation.

When food is heated excessively, harmful substances can form. Set a temperature and time suitable

for the food to be hot air-fried and remove any burnt food.

If fried food is left in the appliance for a long time, it can spoil: do not leave fried food in the appliance when you are not using it.

A faulty appliance can cause damage and injuries:

Always check the appliance for damage prior to use. If you detect any transport damage, contact the dealer from whom you purchased the appliance immediately. Never operate a faulty appliance. Nev

er operate an appliance that has been dropped.

The appliance needs to be repaired in the event of a fault or a damaged power cable. The appliance does not contain any parts that you are able to repair yourself.

Damage may occur if the appliance is handled incorrectly.

Before you store the appliance:

Unplug the appliance and let it cool down completely.

Explanation of symbols

Danger to life due to electric shock

Danger of burns on hot surfaces

Health risk

Technical specifications

Power supply 220 - 240V 50 - 60Hz

Energy consumption/Power 1400 W

Temperature range 80 - 200 °C

Timer range 1 - 30 min.

Capacity 4 |

Length of power cord 1 m

Dimensions (L × W × H) 347 × 291 × 300 ~mm

Weight 4 kg

Markings

Do not dispose of in household waste.

The appliance complies with the directives for CE and UKCA marking.

Address

ZWILLING J.A. HENCKELS (UK) LTD

16 Handley Page Way,

Old Parkbury Lane,

Colney Street, St Albans, AL2 2DQ

UNITED KINGDOM

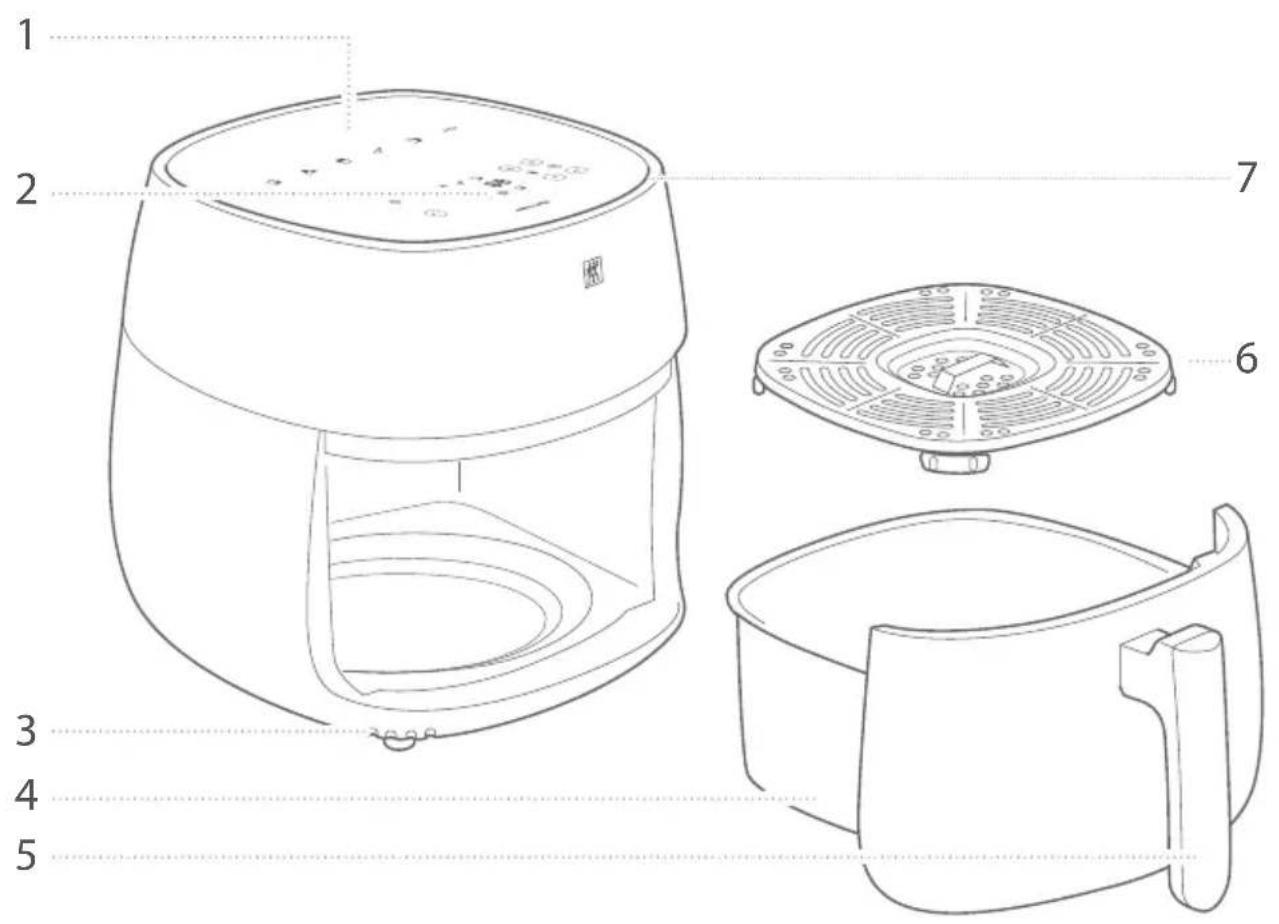

Overview

1 Recommended settings
2 Control panel
3 Ventilation openings
4 Hot air-frying basket

5 Handle
6 Hot air-frying basket
7 Air intake opening

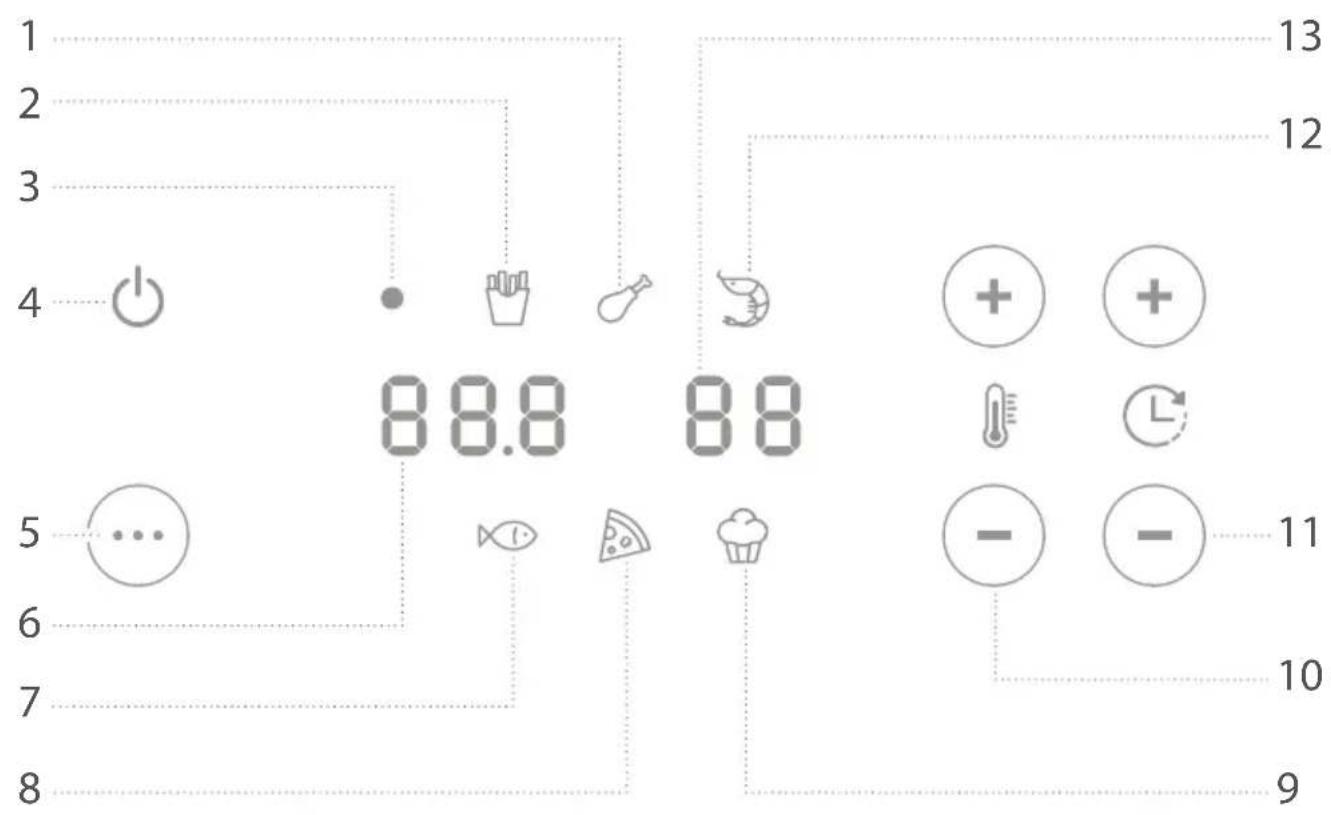

Control panel

1 Chicken symbol
2 Symbol for chips
3 Operation indicator
4 Power button
5 Program selection button
6 Temperature level bar
7 Fish symbol

*) Permanently lit = Standby Flashing = Hot air operation

8 Pizza symbol
9 Cake symbol
10 Setting the temperature
11 Time setting
12 Symbol for prawns
13 Time display

Operation

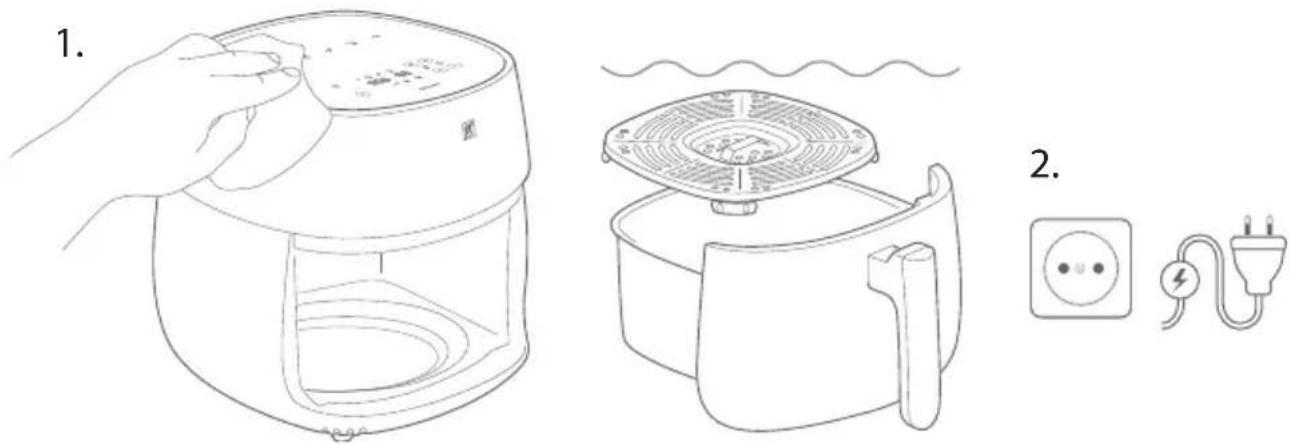

Before first time use

Clean the hot air-frying basket and the grid with drinking water (see chapter "Care"). Only then connect the hot air fryer to a suitable socket (see chapter "Technical data"). As soon as you push the hot air-frying basket by the handle completely into the appliance, the hot air fryer switches to standby mode and the power indicator lights up continuously.

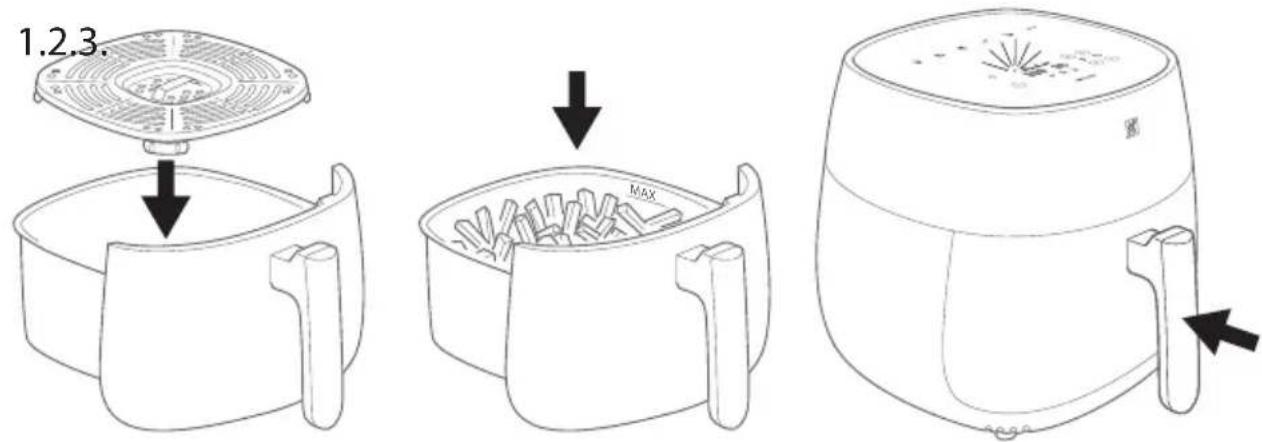

2 Filling the hot air-frying basket

Pull the hot air-frying basket out the appliance by the handle. Use the grate to ensure that hot air flows around the food on all sides and that the food does not lie in any grease that escapes. Fill the hot air-frying basket to the MAX mark at the most. Push the frying container into the device so that it is flush with the housing. The appliance is in the standby mode and the operation indicator is permanently lit.

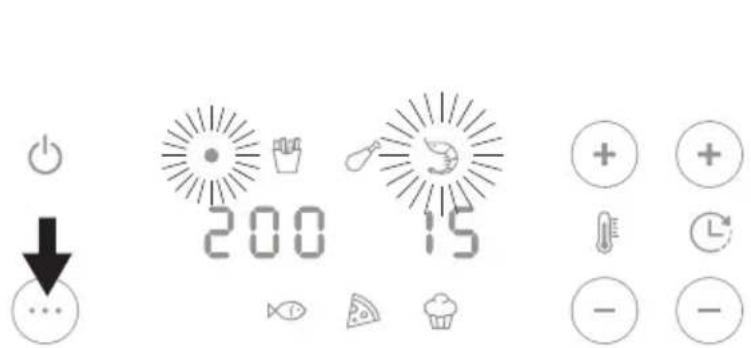

3 Selecting a hot air-frying program

Select the hot air-frying program that matches your food. Keep pressing the program selection button until the matching symbol is lit.

You can change the temperature and time in the next step.

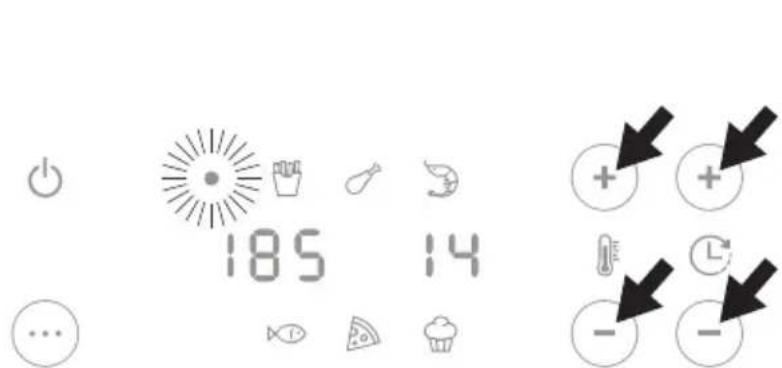

4 Changing the settings

You can change the setpoints for time and temperature using the time setting and temperature setting keys, e.g., if you are heating a smaller quantity than usual. The recommended settings are shown above the control panel and in the Zwilling app. When setting the time, note that the hot air fryer needs one minute to reach the set temperature.

When food is heated excessively, harmful substances can form. If food is not heated sufficiently, germs that are detrimental to health can survive (e.g., salmonella).

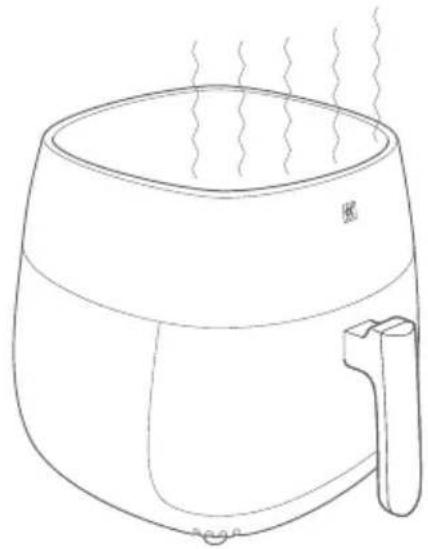

Hot air-frying

Start the configured program by pressing the On/Off button. The operating indicator flashes while the program is running. When time is up, five audible signals are output and the appliance automatically switches to standby. Press the On/Off button again if you want to stop the program before this happens. The fan has a post-run time of 40 seconds.

During operation, hot air escapes through the ventilation openings. Do not bend over the appliance!

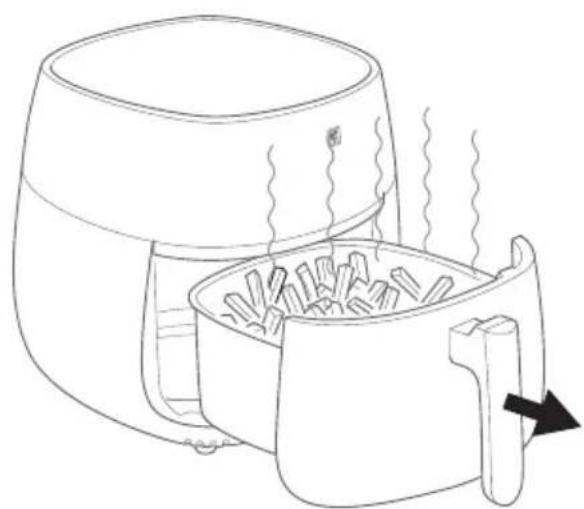

6 Removing the hot air-fried food

Always remove and hold the hot air-frying basket by the handle. Place the container on a heat-resistant coaster and remove the hot air-fried food with cooking utensils that will not burn you. You can start hot air-frying again immediately. If you remove the frying container before the program has ended automatically or was stopped by pressing the On/Off button, the program will restart from the beginning as soon as the basket is reinserted.

Hot steam can escape on opening the appliance. Do not bend over the appliance! Do not touch the metal hot air-frying basket, the grid or the appliance. Caution: The hot air-fried food is hot, too!

Care

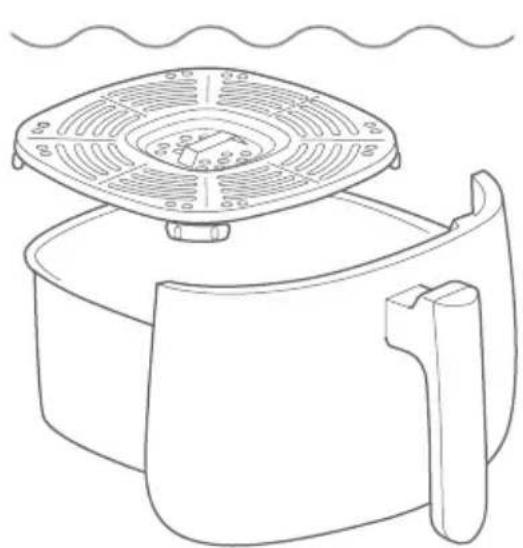

Rinsing the hot air-frying basket and grid

Always clean the hot air-frying basket and grid after use. Allow them to cool down first. You can wash both by hand or in the dishwasher. Do not use aggressive cleaning agents or scratching tools such as metal sponges or microfiber cloths. If necessary, loosen stubborn dirt in the metal basket or on the grid with oven spray beforehand.

Allow the hot air-frying basket and grid too cool down before cleaning.

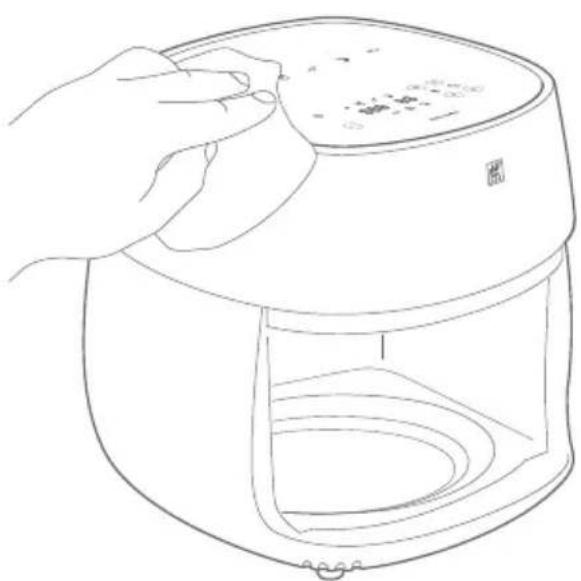

2 Cleaning the housing

Prior to cleaning, let the appliance cool down unplug the power plug. Wipe the inside and outside of the hot air- fryer with a damp cloth. Do not use microfibre cloths as they can cause fine scratches on the surface of the housing.

Prior to cleaning, unplug the power plug and let the appliance cool down.

Malfunctions

Problem Possible cause Remedy

The hot air-fried food is too dark.	The temperature is too high or the time too long.	Reduce the time.
		Reduce the temperature.
The hot air-fried food is not crispy.	The temperature is too low or the time too short.	Increase the time.
		Increase the temperature.
		Do not overfill the hot air-frying basket.
	The hot air-fried food contains too much water	Allow the hot air-fried food to drain/dry well beforehand
The hot air-fried food is not browned regularly	The hot air is not reaching all parts.	Shake or turn the hot air-fried food from time to time.
White smoke is coming out the appliance.	The hot air-fried food is very fatty and the escaping fat is causing white smoke.	There is no need to do anything.
	The hot air-frying basket still contains grease from the last use.	Always clean the hot air-frying basket after use.
Black smoke is coming out the appliance.	Caution: Fat fire!	Immediately unplug the mains plug and keep the appliance closed until it stops smoking.
The operating lamp is not lit.	Power supply interrupted.	Insert the plug into a suitable socket. Check the fuse. Do not use the appliance together with other consumers.
	Hot air-frying basket not pushed in fully.	Push in the hot air-frying basket fully, so that it closes the housing.
The hot air-frying basket is jammed.	The hot air-frying basket is too full or is skewed.	The hot air-fried food must not protrude above the MAX mark.
		Avoid skewing the basket on inserting.

Customer service

If you encounter any problems with your appliance, please contact our customer service.

Detailed information on service, repairs, warranty and product registration can be found at www.zwilling.com/service.

Disposal

The "crossed-out refuse bin" symbol demands separate disposal of decommissioned electrical and electronic appliances (WEEE).

Electrical and electronic appliances can contain dangerous and environment-hazardous substances. Do not dispose of this appliance and its packaging as unsorted domestic waste; instead, return it to a designated collection point for the recycling of end-of-life electrical and electronic equipment. In this way, you can help to conserve resources and protect the environment. Contact your local authorities for more information.

Sécurité

3 Valg of fritureprogram

CTaBbTe np6Op Ha cyxHy,poBHyIO, He cKoJIb3KyIO NOBepXHOCTb.

He yctaHabnBaIte np6op Ha

TOpRyEe NOBepXHOCTN HIN B6JIH3N CnIbHbIX ICTOUYHKOB TeIIa.

He no3BOJnTe cTeBOMy Ka6eIIO CBnCatb. NocLe nCNoJIb3OBaHnY yloXnTe Ka6eJIb B OTceK dIra Ka6eIy, paCnoJIoXeHHbI H a HIXHei CTOpOHe np6opa.

Pn6op pa6oTaet ot 3Jektpnueckoro Toka. B C8a3n c 3Tm nMeetc r onac HOCTb npaxeHnra 3JektpnuecknM TOKOM:

IopKJIouaTe np6Op TOnbKO K HauIeXaUIM o6pa3OM yCTaHOBHeHHO p03eTke.

3Kcnpnyte np6op Tolbko B TOM cnyae, ecn HapjxHne, yka3aHHoe Ha 3aBODCKoT a6nUKe, COOTBeTCTByeT HApjxHNo B BaWei PO3eTke.

He nCnoJb3OBaTb np6op noI OTKpbH TbIM He6om IV Cbipbx NOMEueHnX.

CleIte 3a TeM, yTo6bI cTeBOH Ka6eJIb He 6bln H3OrHyT nIn CdaBLeH n YTO6bI cTeBOH Ka6eJIb n np6Op He BXODIN B KOHTAKT C HCTOuHNKAMN TeIIa (HaNPmEp, KOHΦOPKAMN BAPOUHBIX NaHeJeN rA3OBbIX PINT).

Pn n3BLeueHn BnKn CeTeBOrO Ka6eJn3 po3etKn BceTgTa TAHnte He NocpeIcTBeHHo 3a BnKy. He nepeHoCHTe np6op 3a ceTeBOn Ka6eJb.

He npKacaiTecb K BnIke cTeBOrO Ka6eMaOKpbIMN INBn BnAkhbIMn pyKaMn.

Даже пи Выкюуном пиборе BHyTpн Hero ИмeeТсЯ Hanряженe, NOKA BnIka ceTeBOrO KabeЯ BCTaB ЛehaВpo3eTky.

Iocne KaJIOrO HcNoJIb3OBaHnB Cnyae OAnCHOCTN INB Cnyae HeNCnpABHOCTN HeMeIeHNO BbIHbTe BnIKy CeTeBOrO Ka6eYn3 PO3ETKn. IToI npUHe BCeTgA oBeCneuBAHTe IerKn DOCTyn K PO3ETKe, BV KOTOpYIO BCTaBNeHa BNkCa CeTeBOrO Ka6eY np6opa.

Ipeed ouhctkoi nn yxodom 3a np6opom BbIHbTe BNky cTeBOrO ka6eJn3 po3etKn.

He BckpbBaIte npn6op n He Bbl- noJIHnIe KaKnx-Jn6o TexHnueCKnx N3MeHeHn.

He norpyxaiTe npnbop B Body nI IN dpyrne XndKocTN, He ouHuaTe erO IOd cTpyeBODbl B NocydomoeuHOn MaunHe.

Pn BkIIOueHHom npnbope cyueCTByet ONaCHOCTb NOXapa:

6KapnBaembIe npOyKTbI MOrYT 3aropetbc. He nCnoJIb3yIte np6Op B6Jn3n nn noI rOpiuHmMaTePnaJaMn (HaNPmep, rApHHamn, noBeCHbIMN uKaΦamn). PpoctpaHCTBO Hn np6Opom BceIda DoJxHa 6bITb CBO6oHbIM.

He cTaBbTe npHbOp Ha IerKOBocnA MeHraUoIuecna NOBepXHOCTN (HaPn-Mep, 6ymaxHyIO caIΦeTKy).

He hakpbBaIte np6op.

He octabJnTe BkIIOueHHbI np6op 6e3 npncMOtpa.

Pn BkIIOueHHOM np6ope n cpa3y nocJe erO hCNoB3OBaHn cyuceCTBy- et onaCHOCTb OXORA npn npNKoCHOBeHN K qAWe, ropqHm qactam Kopnyca n 6xapnBaembl npOdyKTam:

Pn H3BneHm MOKET BbIXOHTb nap. JepKntecb OT npapa noaIbwe He HAKIOHnTEcb NlucOM HAD HNM.

He nepenocite n He cmeaute np6op BO BpeMa 3Kcnpyaatau.

Pn CnNkOM CNbHOM HArpeBaHnnpOyKTOB nHTAHnMoYr o6pa3OBbIBaTcB BPeHNbIe Ira 3OpOBByBeueCTBa.YCTAHABINBAIte NOxOJyUHO nO6XapNBaEmbIX npOyKTOB TeMnepatpy N BpEMy UdaJIteNoIropeBWe npOyKtBi nHTAHn.

Ecn no6xapnBaembIe npOyKtbl Ha DOJIro OCTaBnTb B np6ope, OH Mo- rYT nCnOPTntbcr, N03Tomy He OCTaBna- ete npOyKtbl B np6ope, eCIn OH He NCNoJIb3YeTcra.

HeHcnpaBHOCTb yCTpOncTBA MoKeT npNBOHTb K MaTePnaIbHOMy uIep6y n TpaBMam:

IpeepKaXdbIM NcNoIb3OBaHHeM

y6eHITecb B HcnpabHocTn np6opa. B clyuae o6hapykeHn noBpeKdEHN, nOlyueHHbIX npn nepeBO3Ke, He3aMeIInTeJbHO 6paTNTecb B TOPROByIO OprAHn3aCnIO, B KOTOpONpno6peNn np6Op. He nCNoJIb3yInTe HeNCnPabHBn np6Op. He nCNoJIb3yInTe yIaBwNn np6Op.

B cnyae HeNCnpaBHOCTN HIN NOBpeXdHnA CTeBOrO Ka6eI np6Op DOJxeh 6bITb OTpeMOHTnpOBaH.

Pn6op He coepKHT KAKHX-Jn6o Detanei, KOtOpbI Bbl MOKeTe OtpeMOHTnPOBaTb CAMOCTOaTeJbHO.

HepabnIbHoe o6paueHne c np6oPOM MOKET npBecTN K eTO NOBpeKDeHHIO.

IpeTeM, KaK cnpTaTb np6Op: N3BLeKeHTe BnIKy ceTeBOrO Ka6eJr n3 po3eTKn I daIte np6Opy OxlaAnTb- Cra.

IoRcHHe CNMBOJIOB

OnapocbIyXn3HINBpe3yltate npaKeHna 3JIeKtpueCKHM TOKOM

Onapocb noyuene oXora ot ropuNX nobepxnocte

OnacnoctbIJIa3OpOBbI

TexHnueckne xapakTepeNCTnKn

3JIeKtpoNTaHne 220-240 B\~,50-60 T

IopTe6JIeHnE 3Heprn/ 1400Bt MOUHOCTb
