MT450T - Saw Maktec - Free user manual and instructions

Brand	Maktec
Model	MT450T
Product type	Sabre saw (reciprocating saw)
Stroke length	28 mm
Max. cutting capacity (pipe)	130 mm
Max. cutting capacity (wood)	255 mm
No-load speed (min⁻¹)	0 - 2 800
Overall length	457 mm
Net weight (EPTA)	3,2 kg
Power supply	Single-phase, double insulation, without earthing
Safety class	Class II
Voltage	Corresponds to rating plate (e.g. 230 V)
Applications	Sawing wood, plastic, metal and construction materials; straight or curved cuts
Shoe adjustment	5 adjustable positions to extend blade life
Switch	Variable speed with lock for continuous operation
Blade attachment	Tool-free (clamping lever) – model MT450T
Sound pressure level (L_pA)	87 dB (A)
Sound power level (L_WA)	98 dB (A)
Vibration emission (cutting boards)	19,5 m/s²
Vibration emission (cutting beams)	22,0 m/s²
Maintenance	Carbon brush replacement; use Makita approved parts
Safety	Wear safety glasses, gloves and ear protection; use a dust mask

Frequently Asked Questions - MT450T Maktec

How to change the blade on the Maktec MT450T saw?

Make sure the tool is switched off and unplugged. Turn the collet clamping lever to the open position. Insert the blade fully into the collet until it locks. Pull on it to check it is securely fixed. To remove it, turn the lever completely in the direction of the arrow.

How to adjust the shoe of the saw?

Press the shoe button in direction 'A' until it clicks, then move the shoe to one of the five positions. Release the button by pressing in direction 'B' until it clicks to lock.

How to use the switch lock for continuous operation?

Press the trigger, push the lock button, then release the trigger. To stop, press the trigger fully then release it.

What materials can be cut with the MT450T?

This saw is designed to cut wood (up to 255 mm), plastic, metal (pipe up to 130 mm) and construction materials, in straight or curved cuts.

What is the maximum speed of the saw?

The no-load speed is variable from 0 to 2 800 min⁻¹ depending on the pressure applied to the trigger.

How to replace the motor carbon brushes?

Unplug the tool. Remove the brush holder caps with a screwdriver. Remove the worn brushes (wear mark), insert identical new brushes and replace the caps. Always replace both brushes at the same time.

What safety precautions should I take when cutting metal?

Wear gloves to protect yourself from hot chips, safety glasses and use a cooling fluid (cutting oil) to prevent rapid blade wear.

How to clean the Maktec MT450T saw?

Never use gasoline, benzine, thinner or alcohol. Clean with a soft dry cloth. Keep the ventilation slots clean and regularly remove chips from the collet.

Why does my blade loosen during use?

Make sure the blade is inserted fully into the collet. Clean the collet and blade to remove chips and foreign matter. Check that the clamping lever is in the closed position.

Where can I have my Maktec saw repaired?

Repairs and maintenance must be performed at an authorized Makita service center using genuine Makita replacement parts.

USER MANUAL MT450T Maktec

GB Recipro Saw Instruction manual

F Scie Recipro Manuel d'instructions

ENGLISH (Original instructions)

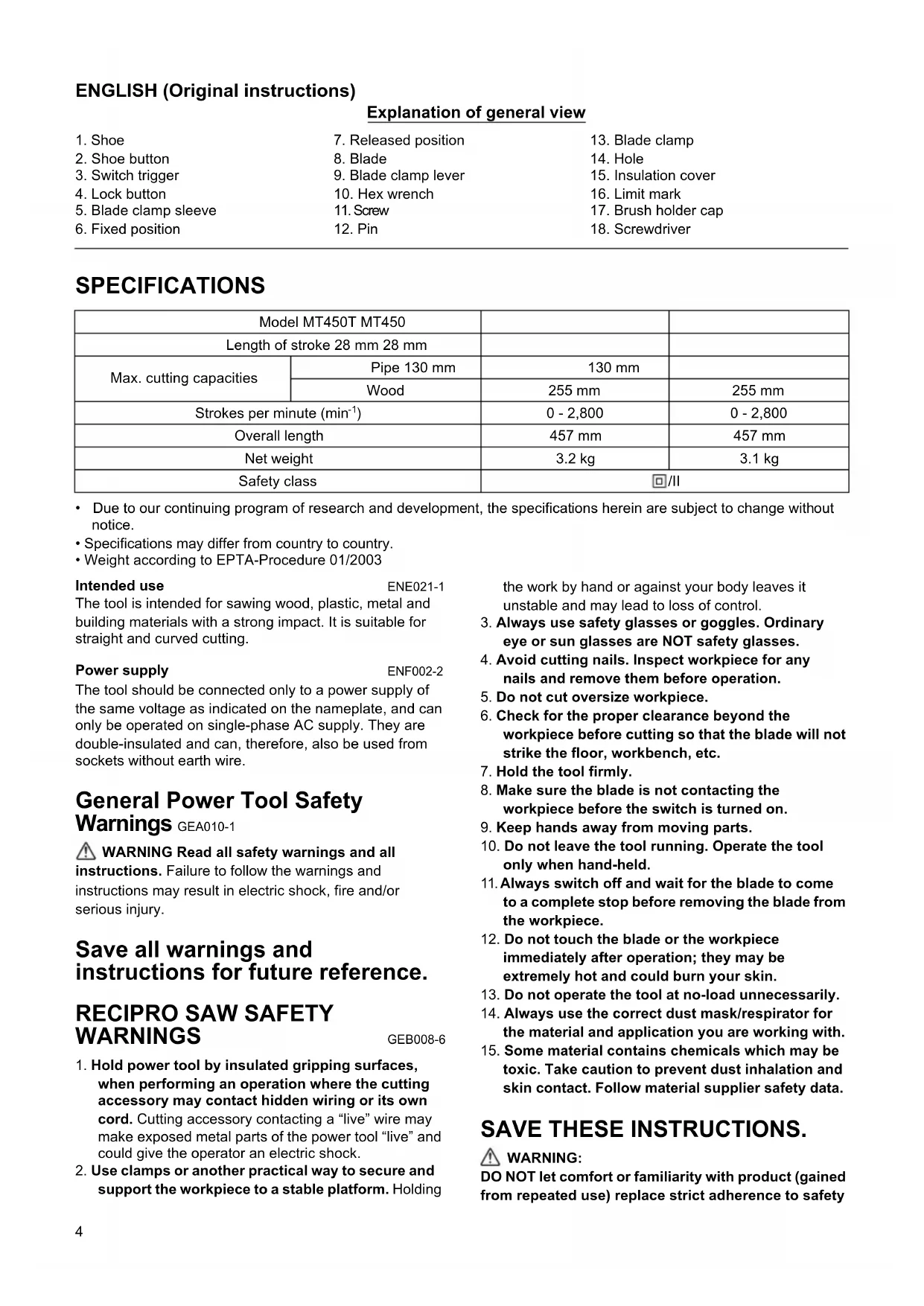

Explanation of general view

1. Shoe	7. Released position	13. Blade clamp
2. Shoe button	8. Blade	14. Hole
3. Switch trigger	9. Blade clamp lever	15. Insulation cover
4. Lock button	10. Hex wrench	16. Limit mark
5. Blade clamp sleeve	11. Screw	17. Brush holder cap
6. Fixed position	12. Pin	18. Screwdriver

SPECIFICATIONS

Model MT450T MT450
Length of stroke 28 mm 28 mm
Max. cutting capacities	Pipe 130 mm	130 mm
	Wood	255 mm	255 mm
Strokes per minute (min-1)		0 - 2,800	0 - 2,800
Overall length		457 mm	457 mm
Net weight		3.2 kg	3.1 kg
Safety class		☐/II

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
  Weight according to EPTA-Procedure 01/2003

Intended use

ENE021-1

The tool is intended for sawing wood, plastic, metal and building materials with a strong impact. It is suitable for straight and curved cutting.

Power supply

ENF002-2

The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated and can, therefore, also be used from sockets without earth wire.

General Power Tool Safety Warnings GEA010-1

WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

RECIPRO SAW SAFETY WARNINGS

GEB008-6

1. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
2. Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding

the work by hand or against your body leaves it unstable and may lead to loss of control.

1. Always use safety glasses or goggles. Ordinary eye or sun glasses are NOT safety glasses.
2. Avoid cutting nails. Inspect workpiece for any nails and remove them before operation.
3. Do not cut oversize workpiece.
4. Check for the proper clearance beyond the workpiece before cutting so that the blade will not strike the floor, workbench, etc.
5. Hold the tool firmly.
6. Make sure the blade is not contacting the workpiece before the switch is turned on.
7. Keep hands away from moving parts.
8. Do not leave the tool running. Operate the tool only when hand-held.
9. Always switch off and wait for the blade to come to a complete stop before removing the blade from the workpiece.
10. Do not touch the blade or the workpiece immediately after operation; they may be extremely hot and could burn your skin.
11. Do not operate the tool at no-load unnecessarily.
12. Always use the correct dust mask/respirator for the material and application you are working with.
13. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety

rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.

Adjusting the shoe (Fig. 1 & 2)

When the blade loses its cutting efficiency in one place along its cutting edge, reposition the shoe to utilize a sharp, unused portion of its cutting edge. This will help to lengthen the life of the blade. To reposition the shoe, push the shoe button in the "A" direction with a click and reposition as shown in the figure which allows you to make five-way adjustment. To secure the shoe, push the shoe button in the "B" direction with a click.

Switch action

CAUTION:

• Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.
• Switch can be locked in "ON" position for ease of operator comfort during extended use. Apply caution when locking tool in "ON" position and maintain firm grasp on tool. (Fig. 3)

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

For continuous operation, pull the switch trigger, push in the lock button and then release the switch trigger.

To stop the tool from the locked position, pull the switch trigger fully, then release it.

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

Installing or removing the saw blade for Model MT450T

CAUTION:

• Always clean out all chips or foreign matter adhering to the blade, blade clamp and/or slider. Failure to do so may cause insufficient tightening of the blade, resulting in a serious injury. (Fig. 4)

To install the saw blade, always make sure that the blade clamp lever is in released position on the insulation cover before inserting the saw blade. If the blade clamp lever is in fixed position, rotate the blade clamp lever in the direction of the arrow so that it can be locked at the released position

CAUTION:

• If you do not insert the saw blade deep enough, the saw blade may be ejected unexpectedly during operation. This can be extremely dangerous.

• Keep hands and fingers away from the lever during the switching operation. Failure to do so may cause personal injuries. (Fig. 5)

Insert the saw blade into the blade clamp as far as it will go. The blade clamp lever rotates and the saw blade is fixed. Make sure that the saw blade cannot be extracted even though you try to pull it out. (Fig. 6)

To remove the saw blade, rotate the blade clamp lever in the direction of the arrow fully. The saw blade is removed and the blade clamp lever is fixed at the released position

NOTE:

• If you remove the saw blade without rotating the blade clamp lever fully, the lever may not be locked in the released position. In this case, rotate the blade clamp lever fully again, then make sure that the blade clamp lever locked at the released position.
• If the lever is positioned inside the tool, switch on the tool just a second to let the blade clamp out. Switch off and unplug the tool from the mains before working on the blade clamp lever.

Installing or removing the saw blade for Model MT450

CAUTION:

• Always clean out all chips or foreign matter adhering to the blade, blade clamp and/or slider. Failure to do so may cause insufficient tightening of the blade, resulting in a serious injury. (Fig. 7)

To install the blade, loosen the screw on the blade clamp with the hex wrench. Insert the blade between the blade clamp and the slider so that the pin on the slider fits into the hole in the blade shank. If the pin cannot easily fit into the hole, remove the hex wrench from the screw and then try again.

CAUTION:

• If you tighten the screw without the pin on the slider fitting properly in the hole in the blade shank, the pin or the blade shank will be damaged. This may cause the blade to be extracted unexpectedly during operation. (Fig. 8)

After the pin fits properly into the hole, tighten the screw clockwise securely. Make sure that the blade cannot be extracted even though you try to pull it out.

To remove the blade, follow the installation procedure in reverse.

Hex wrench storage (Fig. 9)

When not in use, store the hex wrench as shown in the figure to keep it from being lost.

OPERATION

CAUTION:

• Always hold the tool firmly with one hand on insulation cover and the other on the switch handle.

• Always press the shoe firmly against the workpiece during operation. If the shoe is removed or held away from the workpiece during operation, strong vibration and/or twisting will be produced, causing the blade to snap dangerously.

• Always wear gloves to protect your hands from hot flying chips when cutting metal.

• Be sure to always wear suitable eye protection which conforms with current national standards.
• Always use a suitable coolant (cutting oil) when cutting metal. Failure to do so will cause premature blade wear. (Fig. 10)

Press the shoe firmly against the workpiece. Do not allow the tool to bounce. Bring the blade into light contact with the workpiece. First, make a pilot groove using a slower speed. Then use a faster speed to continue cutting.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

Replacing carbon brushes (Fig. 11)

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps. (Fig. 12)

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

Noise

ENG905-1

The typical A-weighted noise level determined according to EN60745:

Model MT450T

Sound pressure level (L_pA) : 87 dB (A)

Sound power level (L_WA) : 98 dB (A)

Uncertainty (K): 3 dB (A)

Model MT450

Sound pressure level (L_pA) .. 88 dB (A)

Sound power level (L_WA) : 99 dB (A)

Uncertainty (K): 3 dB (A)

Wear ear protection.

Vibration

ENG900-1

The vibration total value (tri-axial vector sum) determined according to EN60745:

Work mode: cutting boards

Vibration emission (a_h,B) .. 19.5m / s^2

Uncertainty (K): 1.5m / s^2

Work mode: cutting wooden beams

Vibration emission (a_h,wB) .. 22.0~m / s^2

Uncertainty (K): 2.0m / s^2

ENG901-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
• The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

For European countries only

ENH101-17

EC Declaration of Conformity

Makita declares that the following Machine(s):

Designation of Machine:

Recipro Saw

Model No./Type: MT450T, MT450

Conforms to the following European Directives: 2006/42/EC

They are manufactured in accordance with the following

Standard or standardized documents: EN60745

The Technical file in accordance with 2006/42/EC is available from:

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium

25.4.2013

Yasushi Fukaya

Director

Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
