USER MANUAL MT582 Maktec

Technical line drawing of a mechanical device with a central wheel and mounting brackets (no text or symbols)

Technical diagram of a mechanical device with labeled parts 1 and 2

1

Technical diagram of a mechanical device with labeled parts and an inset view showing a component detail.

2

1 B A

3

Technical diagram of a mechanical assembly with labeled parts 1 and 2

4

Diagram showing a hand operating a power saw with labeled parts 1 and 2, indicating mechanical components or operation.

5

Technical diagram of a mechanical assembly with numbered components and a dial indicator

6

1 2 ø15.88 ø15.88 ø15.88 3 4 5

7

1 2 ø b ø a ø a 3 4 5

8

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

9

Line drawing of hands operating a large circular cutter tool (no text or symbols present)

1 0

Technical diagram showing hands operating a cutting tool with labeled parts 1 and 2

1 1

Pure mechanical diagram of a spring-loaded component with no text or symbols

1 2

Technical diagram of a car seat assembly with labeled parts 1 and 2

1 3
011202

ENGLISH (Original instructions)
Explanation of general view

1-1. Depth guide	6-3. Hex bolt	8-4. Outer flange
1-2. Lever	6-4. Inner flange	8-5. Hex bolt
2-1. Clamping screw	7-1. Mounting shaft	9-1. Hex wrench
3-1. Base plate	7-2. Inner flange	11-1. Screw
4-1. Lock button / Lock-off button	7-3. Saw blade	11-2. Rip fence
4-2. Switch trigger	7-4. Outer flange	12-1. Limit mark
5-1. Hex wrench	7-5. Hex bolt	13-1. Brush holder cap
5-2. Shaft lock	8-1. Mounting shaft	13-2. Screwdriver
6-1. Saw blade	8-2. Inner flange
6-2. Outer flange	8-3. Saw blade

SPECIFICATIONS

Model			MT582
Blade diameter 185 mm - 190 mm
Max. cutting depth	when using 190 mm diameter blade	at 90° 68 mm
		at 45° 46 mm
	when using 185 mm diameter blade	at 90° 66 mm
		at 45° 44 mm
No load speed (min ^-1 )			4,900
Overall length 297 mm
Net weight 4.1 kg
Safety class /II			☐

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
  • Weight according to EPTA-Procedure 01/2003

ENE028-1

Intended use

The tool is intended for performing lengthways and crossways straight cuts and mitre cuts with angles in wood while in firm contact with the workpiece.

ENF002-1

Power supply

The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated in accordance with European Standard and can, therefore, also be used from sockets without earth wire.

ENG905-1

Noise

The typical A-weighted noise level determined according to EN60745:

Sound pressure level ( L_pA ): 95 dB(A)

Sound power level (LWA): 106 dB(A)

Uncertainty (K) : 3 dB(A)

Wear ear protection

ENG900-1

Vibration

The vibration total value (tri-axial vector sum) determined according to EN60745:

Work mode : cutting chipboard

Vibration emission ( a_h ): 2.5 m/s ^2 or less

Uncertainty (K) : 1.5 m/s ^2

ENG901-1

- The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.

- The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

ENH101-14

For European countries only

EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine:

Circular Saw

Model No./ Type: MT582

are of series production and

Conforms to the following European Directives: 2006/42/EC

And are manufactured in accordance with the following standards or standardised documents: EN60745

The technical documentation is kept by our authorised representative in Europe who is:

Makita International Europe Ltd.

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

4.12.2009

000230

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, JAPAN

GEA010-1

General Power Tool Safety Warnings

⚠ WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

GEB013-3

CIRCULAR SAW SAFETY WARNINGS

Danger:

1. Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
2. Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.

3. Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

4. Never hold piece being cut in your hands or across your leg. Secure the workpiece to stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.

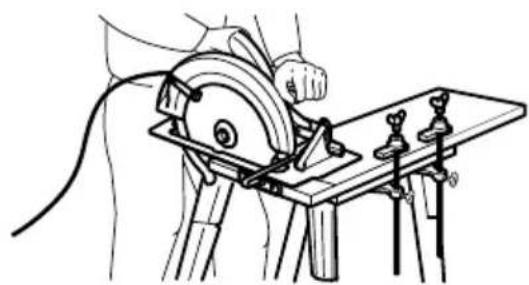

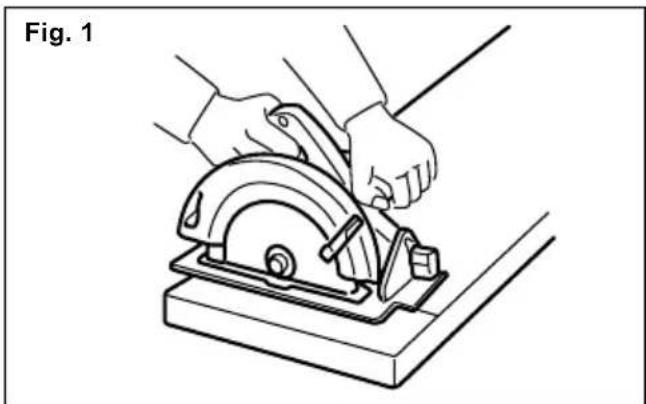

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

A typical illustration of proper hand support, workpiece support, and supply cord routing (if applicable).

000157

1. Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.
2. When ripping always use a rip fence or straight edge guide. This improves the accuracy cut and reduces the chance of blade binding.
3. Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
4. Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.
5. Causes and Operator Prevention of Kickback:

- kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;

• when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
• if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

- Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to

either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.

• When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
• When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
• Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.

Line drawing of a mechanical device mounted on a flat base (no text or symbols)

To avoid kickback, do support board or panel near the cut.
000154

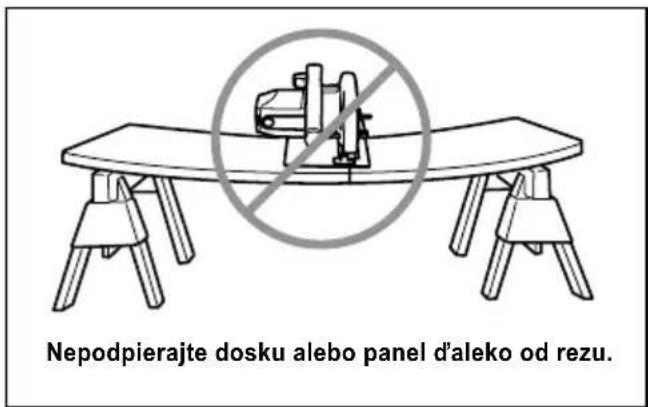

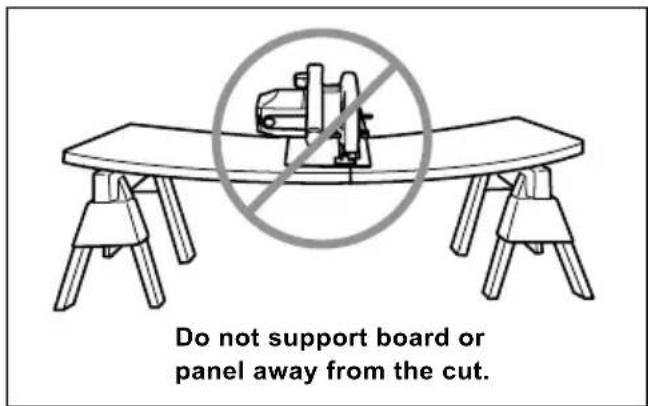

Do not support board or panel away from the cut.

000156

Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.

- Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback. - Use extra caution when making a "plunge cut" into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.

1. Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
2. Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
3. Lower guard should be retracted manually only for special cuts such as "plunge cuts" and "compound cuts." Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.
4. Always observe that the lower guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

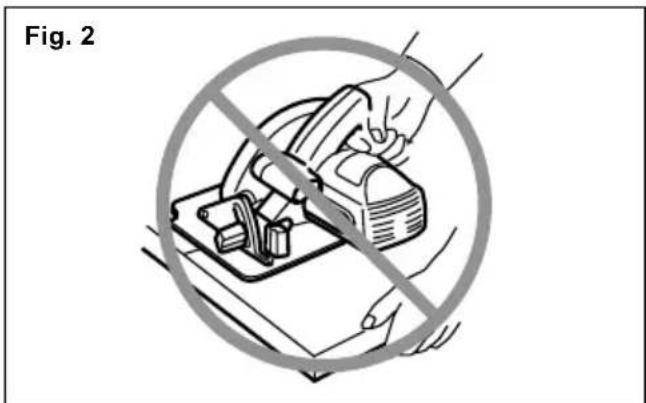

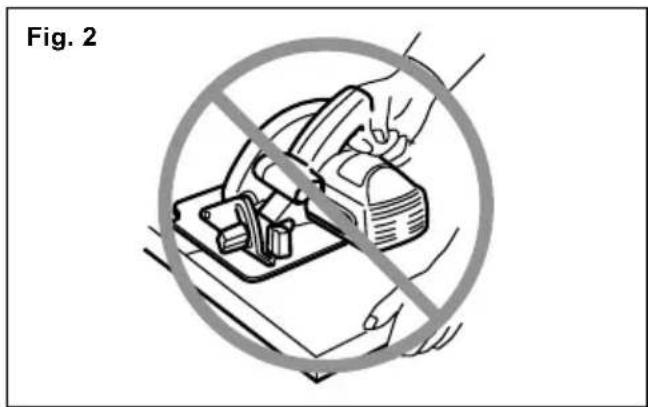

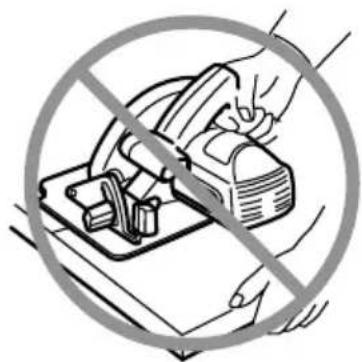

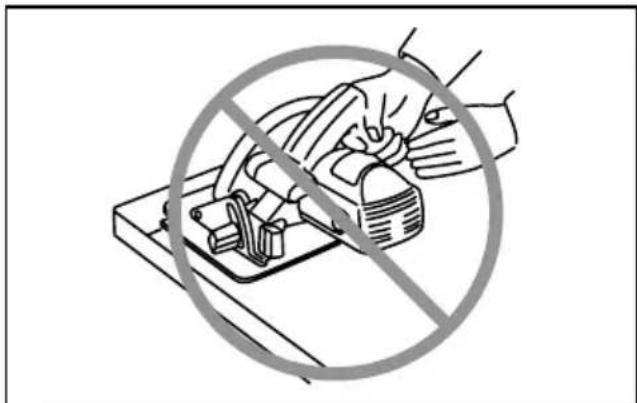

5. ALWAYS hold the tool firmly with both hands. NEVER place your hand or fingers behind the saw. If kickback occurs, the saw could easily jump backwards over your hand, leading to serious personal injury.

Illustration of a hand using a tool to cut a component, crossed out by a diagonal line (no text or symbols)

000194

1. Never force the saw. Push the saw forward at a speed so that the blade cuts without slowing.

Forcing the saw can cause uneven cuts, loss of accuracy, and possible kickback.

1. Use extra caution when cutting damp wood, pressure treated lumber, or wood containing knots. Adjust speed of cut to maintain smooth advancement of tool without decrease in blade speed.
2. Do not attempt to remove cut material when blade is moving. Wait until blade stops before grasping cut material. CAUTION: Blades coast after turn off.
3. Avoid Cutting Nails. Inspect for and remove all nails from lumber before cutting.
4. Place the wider portion of the saw base on that part of the workpiece which is solidly supported, not on the section that will fall off when the cut is made. As examples, Fig. 1 illustrates the RIGHT way to cut off the end of a board, and Fig. 2 the WRONG way. If the workpiece is short or small, clamp it down. DO NOT TRY TO HOLD SHORT PIECES BY HAND!

Line drawing of hands using a cutting tool on a workbench, labeled 'Fig. 1' (no text or symbols on the diagram itself)

000147

Illustration of a hand using a power tool to cut a component, enclosed in a circle with no text or symbols

000150

1. Before setting the tool down after completing a cut, be sure that the lower guard has closed and the blade has come to a complete stop.

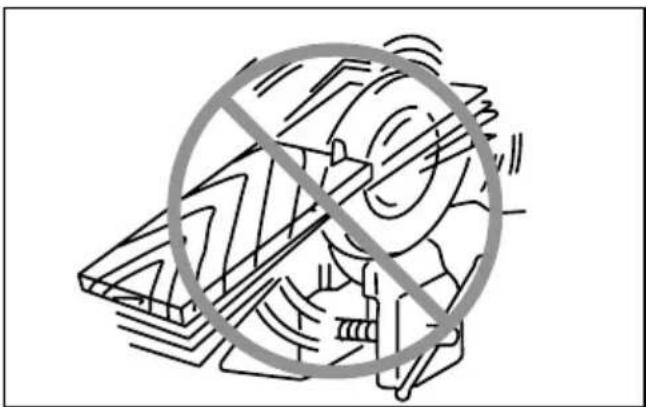

2. Never attempt to saw with the circular saw held upside down in a vise. This is extremely dangerous and can lead to serious accidents.

Cartoon illustration of a person crossed out of a large screen with a diagonal line, symbolizing no crossing (no text or symbols present)

000029

1. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.
2. Do not stop the blades by lateral pressure on the saw blade.
3. Always use blades recommended in this manual. Do not use any abrasive wheels.
4. Keep blade sharp and clean. Gum and wood pitch hardened on blades slows saw and increases potential for kickback. Keep blade clean by first removing it from tool, then cleaning it with gum and pitch remover, hot water or kerosene. Never use gasoline.
5. Wear a dust mask and hearing protection when use the tool.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.

Adjusting depth of cut

Fig.1

CAUTION:

• After adjusting the depth of cut, always tighten the lever securely.

Loosen the lever on the depth guide and move the base up or down. At the desired depth of cut, secure the base by tightening the lever.

For cleaner, safer cuts, set cut depth so that no more than one blade tooth projects below workpiece. Using proper cut depth helps to reduce potential for dangerous KICKBACKS which can cause personal injury.

Bevel cutting

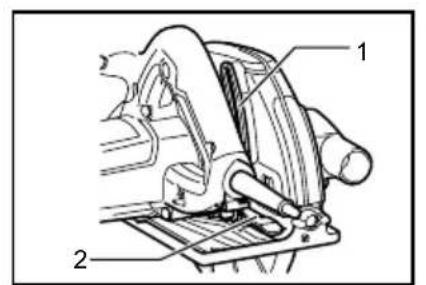

Fig.2

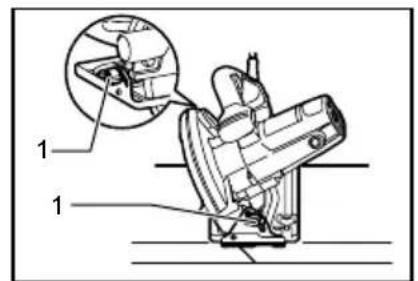

Loosen two clamping screws on the bevel plates on the front and back of the base. Set for the desired angle ( 0^-45^ ) by tilting accordingly, then tighten the clamping screws securely.

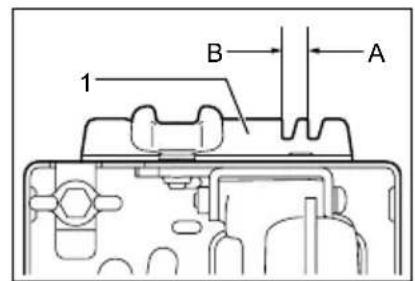

Sighting

Fig.3

For straight cuts, align the A position on the front of the base with your cutting line. For 45^ bevel cuts, align the B position with it.

Switch action

Fig.4

⚠️CAUTION:

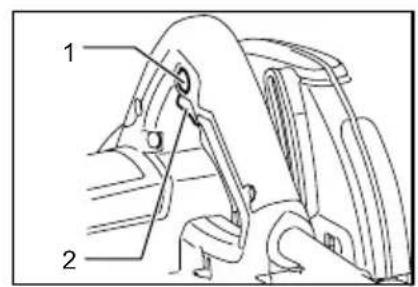

- Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

For tool with lock button

To start the tool, simply pull the switch trigger. Release the switch trigger to stop.

For continuous operation, pull the switch trigger and push in the lock button and then release the switch trigger.

To stop the tool from the locked position, pull the switch trigger fully, then release it.

For tool with lock-off button

To prevent the switch trigger from being accidentally pulled, a lock-off button is provided. To start the tool, push in the lock-off button and pull the switch trigger. Release the switch trigger to stop.

For tool without lock button and lock-off button

To start the tool, simply pull the switch trigger. Release the switch trigger to stop.

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

Removing or installing saw blade

CAUTION:

• Be sure the blade is installed with teeth pointing up at the front of the tool.
• Use only the Makita wrench to install or remove the blade.

Fig.5

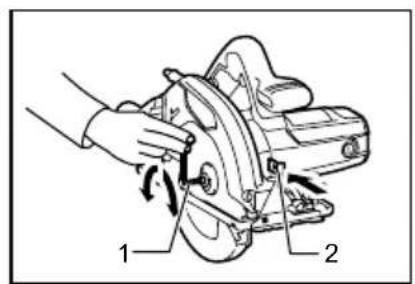

To remove the blade, press the shaft lock so that the blade cannot revolve and use the hex wrench to loosen the hex bolt counterclockwise. Then remove the hex bolt, outer flange and blade.

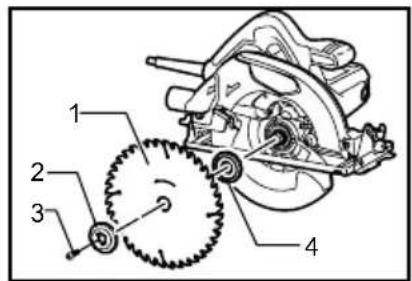

Fig.6

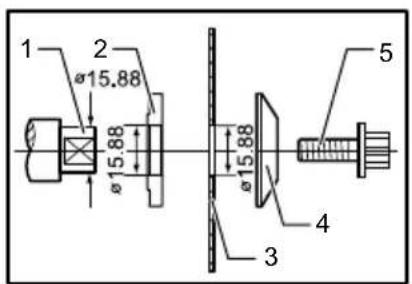

For tool with the inner flange for a 15.88 mm hole-diameter saw blade

Fig.7

Mount the inner flange with its recessed side facing outward onto the mounting shaft and then place saw blade, outer flange and hex bolt.

BE SURE TO TIGHTEN THE HEX BOLT CLOCKWISE SECURELY.

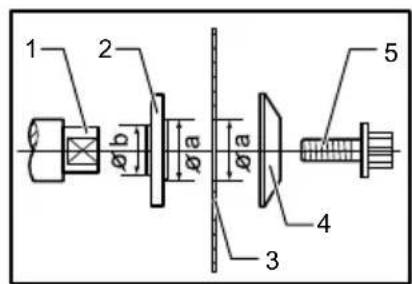

For tool with the inner flange for a other than 15.88 mm hole-diameter saw blade

Fig.8

The inner flange has a certain diameter protrusion on one side of it and a different diameter protrusion on the other side. Choose a correct side on which protrusion fits into the saw blade hole perfectly.

Next, mount the inner flange onto the mounting shaft so that the correct side of protrusion on the inner flange faces outward and then place saw blade and outer flange. BE SURE TO TIGHTEN THE HEX BOLT CLOCKWISE SECURELY.

CAUTION:

- Make sure that the protrusion "a" on the inner flange that is positioned outside fits into the saw blade hole "a" perfectly. Mounting the blade on the wrong side can result in the dangerous vibration.

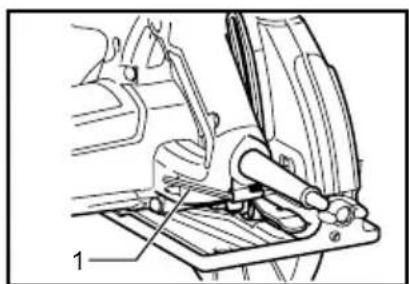

Hex wrench storage

Fig.9

When not in use, store the hex wrench as shown in the figure to keep it from being lost.

OPERATION

CAUTION:

- Be sure to move the tool forward in a straight line gently. Forcing or twisting the tool will result in

overheating the motor and dangerous kickback, possibly causing severe injury.

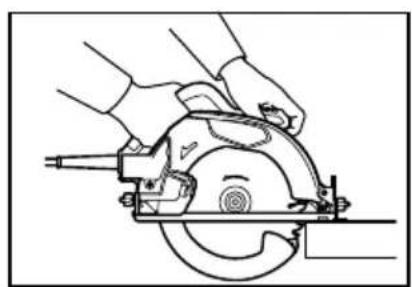

Fig.10

Always use a front grip and rear handle and firmly hold the tool by both the front grip and rear handle during operations. The tool is provided with both the front grip and rear handle. If both hands are holding saw, they cannot be cut by the blade. Set the base on the workpiece to be cut without the blade making any contact. Then turn the tool on and wait until the blade attains full speed. Now simply move the tool forward over the workpiece surface, keeping it flat and advancing smoothly until the sawing is completed.

To get clean cuts, keep your sawing line straight and your speed of advance uniform. If the cut fails to properly follow your intended cut line, do not attempt to turn or force the tool back to the cut line. Doing so may bind the blade and lead to dangerous kickback and possible serious injury. Release switch, wait for blade to stop and then withdraw tool. Realign tool on new cut line, and start cut again. Attempt to avoid positioning which exposes operator to chips and wood dust being ejected from saw. Use eye protection to help avoid injury.

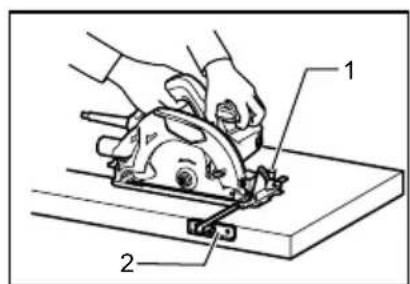

Rip fence (guide rule) (Accessory)

Fig.11

The handy rip fence allows you to do extra-accurate straight cuts. Simply slide the rip fence up snugly against the side of the workpiece and secure it in position with the screw on the front of the base. It also makes repeated cuts of uniform width possible.

MAINTENANCE

CAUTION:

- Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.

- Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

Replacing carbon brushes

Fig.12

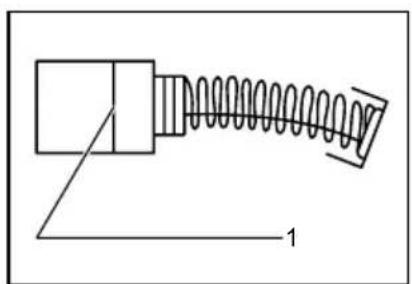

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes.

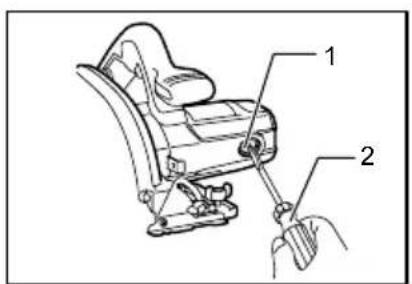

Fig.13

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps.

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

Michigan Drive, Tongwell,

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, ЯПОНІЯ

GEA010-1

Line drawing of a person using a power tool on a workbench (no text or symbols)

Line drawing of a mechanical device mounted on a flat base (no text or symbols)

Simple line drawing of a table with a diagonal line and a circular symbol, no text or symbols present.

Illustration of a hand using a tool to cut a component, crossed out by a diagonal line (no text or symbols)

000194

Illustration of hands using a cutting tool on a workbench, labeled 'Fig. 1' (no text or symbols on the diagram itself)

000147

Illustration of a hand using a power tool to cut a device, enclosed in a circle with no text or symbols

000150

Cartoon illustration of a person holding a pencil crossed out by a diagonal line, with no text or symbols present.

000029

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglia

4.12.2009

000230

Tomoyasu Kato

Dyrektor

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, JAPONIA

GEA010-1

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Line drawing of a mechanical device mounted on a flat base (no text or symbols)

Simple line drawing of a table with a diagonal line and a crossed-out mechanical component, no text or symbols present.

Illustration of a hand using a tool to cut a flatboard, crossed out by a diagonal line (no text or symbols)

000194

Illustration of hands using a cutting tool on a workbench, labeled 'Fig. 1' (no text or symbols on the diagram itself)

000147

Illustration of a hand using a tool to cut a device, crossed out by a diagonal line (no text or symbols)

000150

Cartoon illustration of a person holding a pencil crossed out by a diagonal line, with no text or symbols present.

000029

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Marea Britanie

4.12.2009

000230

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, JAPONIA

GEA010-1

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Illustration of a hand using a tool to cut a flatboard, crossed out by a diagonal line (no text or symbols)

000194

Line drawing of hands using a cutting tool on a workbench, labeled 'Fig. 1' (no text or symbols on the diagram itself)

000147

Illustration of a hand using a power tool to cut a component, enclosed in a circle with diagonal lines (no text or symbols)

000150

Cartoon illustration of a person sitting under a large stack of books with a diagonal line crossing through, no text or symbols present.

000029

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

4.12.2009

000230

Tomoyasu Kato Direktor

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, JAPAN

GEA010-1

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Line drawing of a mechanical device mounted on a flat base (no text or symbols)

Simple line drawing of a table with a diagonal line and a crossed-out mechanical component, no text or symbols present.

Illustration of a hand using a tool to cut a mechanical component, crossed out by a diagonal line (no text or symbols)

000194

Illustration of hands using a cutting tool on a workbench, labeled 'Fig. 1' (no text or symbols on the diagram itself)

000147

Illustration of a hand using a power tool to cut a box, crossed out by a diagonal line (no text or symbols)

000150

Cartoon illustration of a person sitting on a bench with a large 'no' symbol crossed out, no text or symbols present.

000029

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglia

4.12.2009

000230

Tomoyasu Kato

Igazgató

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, JAPÁN

GEA010-1

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Line drawing of a mechanical device mounted on a flat base (no text or symbols)

Simple line drawing of a table with a diagonal line and a circular symbol, no text or symbols present.

Illustration of a hand using a tool to cut a component, crossed out by a diagonal line (no text or symbols)

000194

Line drawing of hands using a cutting tool on a workbench, labeled 'Fig. 1' (no text or symbols on the diagram itself)

000147

Illustration of a hand using a power tool to cut a component, enclosed in a circle with diagonal lines (no text or symbols)

000150

Cartoon illustration of a person crossed out of a large screen with a diagonal line overlay (no text or symbols)

000029

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, Anglicko

4.12.2009

000230

Tomoyasu Kato Riaditel'

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, JAPONSKO

GEA010-1

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Line drawing of a sewing machine on a flat workbench (no text or symbols)

Aby nedošlo k spätnému nárazu, podoprite dosku alebo panel v blízkosti rezu.

000154

Illustration of a hand using a power tool to cut a component, crossed out by a diagonal line (no text or symbols)

000194

Line drawing of hands using a cutting tool on a workbench (no text or symbols)

000147

Fig. 2

Illustration of a hand using a power tool to cut a device, crossed out by a diagonal line (no text or symbols)

000150

Illustration of a person using a tool with a circular prohibition symbol (no text or symbols present)

000029

TIETO POKYNY USCHOVAJTE.

⚠️VAROVANIE:

Michigan Drive, Tongwell,

Milton Keynes, MK15 8JD, England

4.12.2009

000230

Tomoyasu Kato

ředitel

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, JAPAN

GEA010-1

Line drawing of a person using a cutting tool on a workbench (no text or symbols)

Line drawing of a mechanical device mounted on a flat base (no text or symbols)

Illustration of a hand using a tool to cut a flatboard, crossed out by a diagonal line (no text or symbols)

000194

Line drawing of a person using a cutting tool on a workbench, labeled 'Fig. 1' (no text or symbols on the diagram itself)

000147

Fig. 2

000150

Cartoon illustration of a person holding a pen crossed out of a large screen, with no text or symbols present.

000029

TYTO POKYNY USCHOVEJTE.

⚠️VAROVÁNÍ:
