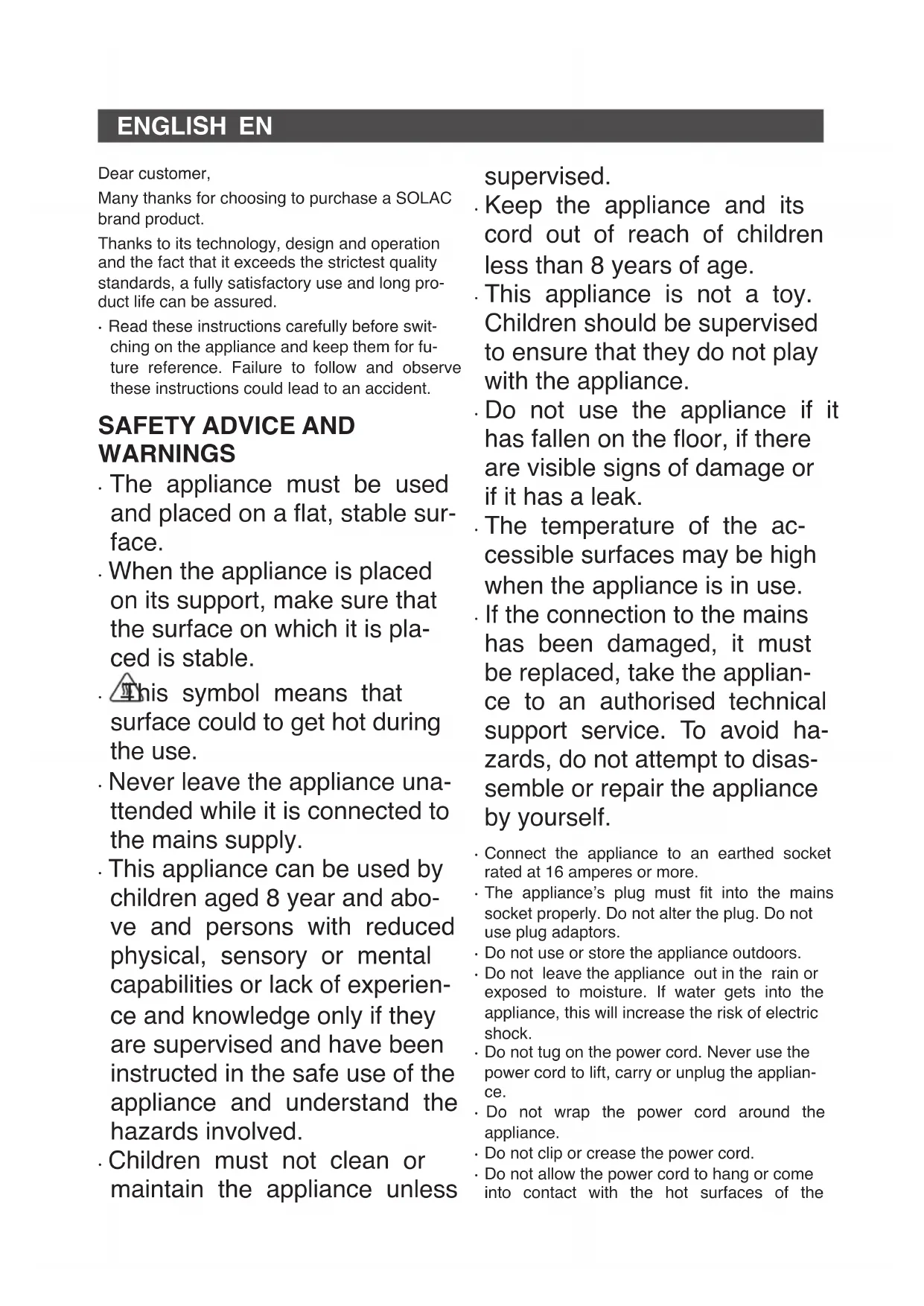

USER MANUAL CVG9512 SOLAC

Many thanks for choosing to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WARNINGS

• The appliance must be used and placed on a flat, stable surface.
• When the appliance is placed on its support, make sure that the surface on which it is placed is stable.
  This symbol means that surface could to get hot during the use.
• Never leave the appliance unattended while it is connected to the mains supply.
• This appliance can be used by children aged 8 year and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they are supervised and have been instructed in the safe use of the appliance and understand the hazards involved.
  Children must not clean or maintain the appliance unless

supervised.

• Keep the appliance and its cord out of reach of children less than 8 years of age.
  This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
  . Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
  The temperature of the accessible surfaces may be high when the appliance is in use.
  If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. To avoid hazards, do not attempt to disassemble or repair the appliance by yourself.
• Connect the appliance to an earthed socket rated at 16 amperes or more.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not tug on the power cord. Never use the power cord to lift, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.
• Do not allow the power cord to hang or come into contact with the hot surfaces of the

EN

apppliance.

• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings break, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not touch the heated parts of the appliance, as it may cause serious burns.

USE AND CARE:

• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the parts or accessories are not properly fitted.
• Do not use the appliance if any of the switches do not work.
• Use the appliance handle/s, to pick it up or move it.
• Do not use the appliance if it has tipped over.
• Do not turn the appliance over while it is in use or connected to the mains.
• To keep the non-stick coating in good condition, do not use metal or pointed utensils on it.
• Respect the MAX level indicator. (Fig.1)
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not store or transport the appliance if it is still hot.
• Keeping the iron on its rest at maximum temperature for prolonged periods may cause discolouration, which does not affect the correct operation of the appliance.
• For a correct operation, keep the soleplate in good condition; do not iron over metal objects (metal ironing board parts, buttons, zips, etc.)
• It is advisable to use distilled water, especially if the water in your area contains clay or if it is "hard" (containing lime or magnesium).
• Check that the lid is closed properly before switching the appliance on.
• Never leave the appliance connected and un-

tended if is not in use. This saves energy and prolongs the life of the appliance.

• Never rest the appliance on a surface while in use.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with pets or animals.
• Do not use the appliance to dry textiles of any kind.
• To switch the appliance off, press the ECO button for 3 seconds.

SERVICE:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

A Antiscale
B Steam blast
C Steam On/Off button
D SENSOR
E ECO/TURBO program selection
G Indicator lamps
H Filling spout
I Soleplate

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all of the products' packaging has been removed.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.
• Prepare the appliance according to the function you wish to use:

FILLING WITH WATER:

• It is essential to have filled the tank with water to be able to work with steam.
• Open the cover.
• Fill the tank, taking care to observe the MAX level (Fig.1).
• Close water inlet lid.
• Use of scented water automatically cancels the warranty
• If, during ironing, the water tank runs dry, the

EN

pump will automatically switch off after 25" to 30" to protect the micro-pump

• If the appliance were to run out of water completely with the steam selector activated, you would hear a strange noise from the micro-pump. Switch off the steam selector to prevent any damage to the system.
• Switch off the appliance and fill the water tank. When switching it on again, this noise will disappear.

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Once plugged in the appliance begins to heat up to its default ECO setting. Automatic temperature for all fabrics and optimised steam flow for efficient, safe ironing.
• Do not use temperatures higher than those indicated on the garments to be treated.
• ECO Temperature for synthetic fibres (Polyester, Nylon...). Setting
  ECO Temperature for silk, wool.
• Setting
• TURBO Temperature for cotton. (Minimum temperature for ironing with steam)
• Setting
  TURBO Temperature for linen. Max setting.
• If garment has various kinds of fibres, select the temperature for the fibre that requires the lowest temperature. (For example, select the temperature for polyester for an article made out of 60% polyester and 40% cotton).
• Wait until the indicator (G) is lit steady green, this means that the appliance has reached temperature, while it is heating or cooling the indicator will flash red.
• While using the appliance the indicator light (G) remains a steady green

PRESENCE SENSOR (D)

• The CVG is equipped with a presence sensor (D) that instantly shuts off the steam outlet if the handle is not being held. This leads to energy savings and increased autonomy of the water tank (lower water consumption).
• Steam flow is automatically re-established by holding the handle on the CVG
• Removing your hand from the handle does not switch off the selected steam function, it only interrupts the steam flow temporarily until it detects that the handle is being gripped again.

The screen continues to display the icon for the selected steam function.

DRY IRONING:

• The appliance has a steam control button (C) which, when set to off, allows dry ironing (without steam) or with steam if it is switched on, a light indicates its status, on/enabled off/ disabled.

STEAM IRONING:

It is possible to iron with steam as long as the tank has water and at any setting.

STEAM BLAST:

• This function proportions extra steam for eliminating wrinkles.
• Press the steam blast button (B), always in the TURBO position, and wait a few seconds for the steam to penetrate the fibres of the garment before pressing the button again. For optimum steam quality, do not apply more than two successive blasts at a time. If the steam indicator flashes DO NOT USE THE SUPERTEAM FUNCTION
• The steam blast button has to be pressed repeatedly to release the first shot.

VERTICAL STEAMING:

• It is possible to iron hanging curtains, items of clothing on hangers, etc. To do so, follow the instructions:
• Iron from top to bottom while pressing the steam control (B), follow the instructions given in the Steam Blast section.
• Important: for cotton and linen, it is recommended to have the soleplate in contact with the material. For other more delicate fabrics, it is recommended to keep the soleplate a few centimetres away from the fabric.

STAND-BY FUNCTION:

• In order to save energy, the appliance passes to stand-by after 3 minutes if the user does not use it.
• To resume ironing just touch any button or the handle of the iron.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Unplug the appliance from the mains.
• Drain the water out of the appliance.
• Clean the appliance.

CLEANING

• Disconnect the appliance from the mains and

EN

allow it to cool before undertaking any cleaning task.

• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.

HOW TO DEAL WITH LIME SCALE INCRUSTATIONS:

• For the appliance to work correctly it should be kept free of limescale or magnesium incrustations caused by the use of hard water.
• To avoid this kind of problem it is advisable to use distilled water.
• To prevent this kind of problem, we recommend the use of water with low lime or magnesium mineralisation.
• To do so, we recommend the use of the specific product for this kind of appliance, which can be found in specialised shops and authorised technical services.
• A specific anti-lime scale product should be used on this kind of product.
  Home-made solutions, such as the use of vinegar, are not recommended for descaling this appliance.

ANOMALIES AND REPAIR

• Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IF REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials used for the packaging of this appliance are included in a disposal, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

• This symbol means that in case you wish to dispose of the product once its working

life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.
