PAN Voltfinder - Wall socket Pancontrol - Free user manual and instructions

Product Type	Non-Contact Voltage Tester
Brand	Pancontrol
Model	PAN Voltfinder
Dimensions	16 x 2.5 x 2.5 cm
Weight	50 g
Power Supply	2 AAA batteries (1.5 V) – 3 V total
Voltage Range	12 V to 1000 V AC (50/60 Hz)
Display	Flashing LED and audible signal
Measurement Category	CAT III (fixed building installations)
Main Functions	Non-contact voltage detection, integrated LED flashlight
Operating Conditions	0°C to 50°C, relative humidity < 85%
Storage Conditions	-20°C to 60°C, relative humidity < 85%
Safety	Double insulation, CE compliance (EN-61010), do not use outdoors or in wet environments
Maintenance and Cleaning	Clean with a damp cloth and mild detergent; avoid solvents
Battery Replacement	Unscrew the cap, observe polarity, use AAA 1.5 V batteries
Warranty	2 years legal from date of purchase
Spare Parts and Repairability	Repairs by qualified personnel; contact retailer or KRYSTUFEK.at
Package Contents	Device, batteries, instruction manual

Frequently Asked Questions - PAN Voltfinder Pancontrol

How to use the PAN Voltfinder?

Turn on the device with the on/off button, place the sensor tip near the conductor to be tested. If an alternating voltage of 12 to 1000 V is present, the LED flashes and a beep sounds.

What is the detectable voltage range?

The tester detects alternating voltages from 12 V to 1000 V at 50/60 Hz.

Does the device work with direct current?

No, the PAN Voltfinder is designed only for alternating voltage (AC). It does not detect direct current.

How to change the batteries?

Unscrew the screw cap at the bottom of the device. Replace the two AAA 1.5 V batteries observing the indicated polarity, then close carefully.

What to do if the device does not turn on?

Check the battery condition. If they are depleted, replace them. If the problem persists, contact your retailer or after-sales service.

Is the device waterproof?

No, it must not be used outdoors or in a humid environment. Avoid any liquid ingress.

Can I test live cables without contact?

Yes, the tester detects voltage without direct contact. Simply bring the sensor close to the cable or socket.

What does the CAT III symbol mean?

CAT III indicates that the device is suitable for measurements on fixed building installations, such as distribution panels or circuit breakers.

How to maintain the device?

Clean it with a damp cloth and a little mild detergent. Do not use solvents or caustic products.

What is the warranty of the PAN Voltfinder?

The device comes with a legal warranty of 2 years from the date of purchase. Keep your invoice.

USER MANUAL PAN Voltfinder Pancontrol

Contactless Voltage tester

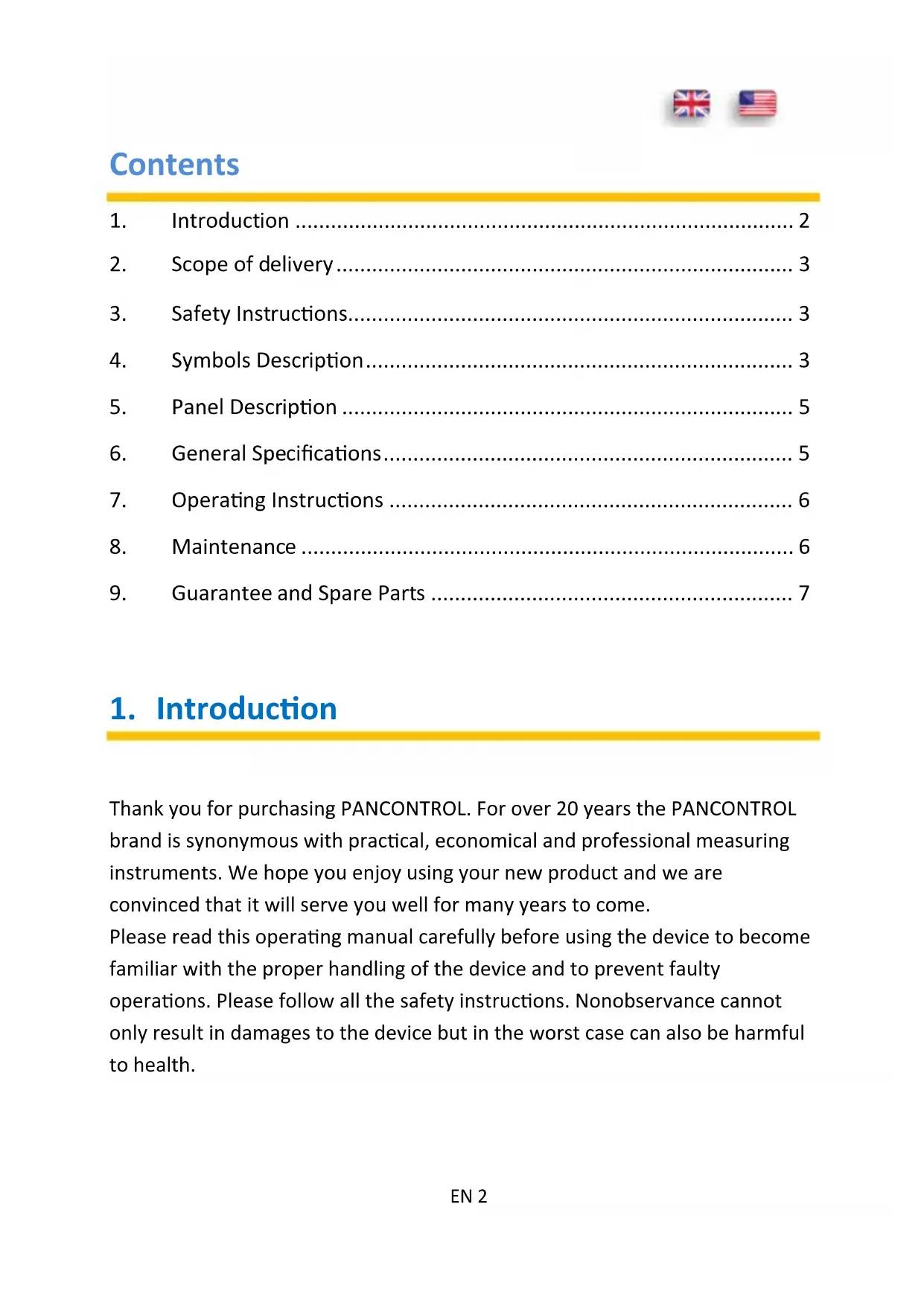

Contents

1. Introduction ...... 2
2. Scope of delivery.... 3
3. Safety Instructions.... 3
4. Symbols Description.... 3
5. Panel Description .... 5
6. General Specifications.... 5
7. Operating Instructions 6
8. Maintenance 6
9. Guarantee and Spare Parts 7

1. Introduction

Thank you for purchasing PANCONTROL. For over 20 years the PANCONTROL brand is synonymous with practical, economical and professional measuring instruments. We hope you enjoy using your new product and we are convinced that it will serve you well for many years to come.

Please read this operating manual carefully before using the device to become familiar with the proper handling of the device and to prevent faulty operations. Please follow all the safety instructions. Nonobservance cannot only result in damages to the device but in the worst case can also be harmful to health.

2. Scope of delivery

After unpacking please check the package contents for transport damage and completeness.

• Measurement device
- Battery(s)
- Manual

3. Safety Instructions

To ensure the safe use of the device, please follow all the safety and operating instructions given in this manual.

• The device must no longer be used if the housing is damaged, if a function fails, or if you suspect that something is wrong.
• If the safety of the user cannot be guaranteed, the device may not be operated and secured against use.
• Do not use the device outdoors, in humid surroundings or in environments that are subjected to extreme temperature fluctuations.
• Do not store the device in places which are exposed to direct sunlight.
• Remove the battery if the device is not used for a long time.
• If changes or modifications are made to the device, the operational safety is no longer guaranteed and the warranty becomes void.

4. Symbols Description

Conforms to the relevant European Union directive (EN-61010)

Risk of Danger. Important information See instruction manual Attention! Hazardous voltage. Risk of electric shock.

Product is protected by double insulation

Ground / Earth (max. voltage to earth)

This product should not be disposed along with normal domestic waste at the end of its service life but should be handed over at a collection point for recycling electrical and electronic devices.

CAT III

The device is designed for making measurements in building installations. Examples are measurements on junction boards, circuit breakers, wiring, switches, permanently installed sockets, devices for industrial use as well as permanently installed motors.

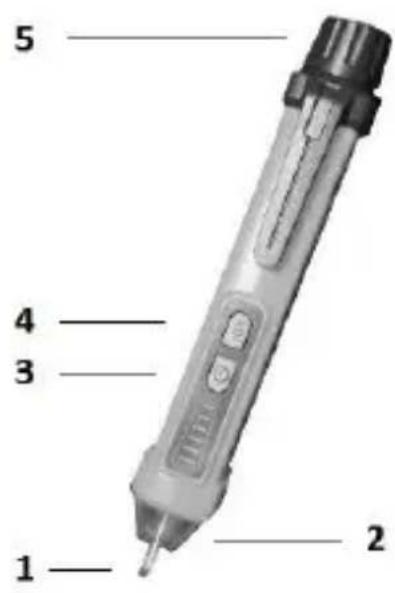

5. Panel Description

1. Voltage tester (Sensor)
2. LED flashlight
3. Power button
4. Power button for LED flashlight
5. Screw cap (Battery compartment cover)

5 4 3 1 2

6. General Specifications

Display	LED
Range	12 to 1000 V (50/60 Hz)
Operating temperature	0°C to 50°C (32°F to 122°F)< 85% Relative Humidity (%RH)
Storage temperature	-20°C to 60°C (-4°F to 140°F)< 85% Relative Humidity (%RH)
Power supply	3V (2 x 1,5 V AAA)
Weight	50 g
Dimensions	16 x 2,5 x 2,5 cm

Function	Range
AC voltage (50/60 Hz)	12 V - 1000 V

7. Operating Instructions

Note: Before each measurement check the correct funktion at a known power source.

1. Switch on the device. (Button 2)
2. Place the probe tip close to the circuit to be tested.
3. If an AC voltage is applied on the object to be measured, the LED flashes in the top and a signal tone sounds. (12 V to 1000 V)

8. Maintenance

Only authorized service technicians may repair the instrument.

Changing the battery(s)

If the device does not respond during the function test replace the battery.

1. Unscrew the cap (5).
2. Replace the batteries. Mind the correct polarity.
3. Close the battery compartment again.
4. Disposal of the flat battery should meet environmental standards.

Cleaning

If the instrument is dirty after daily usage, it is advised to clean it by using a humid cloth and a mild household detergent. Prior to cleaning, ensure that instrument is switched off and disconnected from external voltage supply and any other instruments connected. Never use acid detergents or dissolvent for cleaning.

9. Guarantee and Spare Parts

PANCONTROL instruments are subject to strict quality control. However, should the instrument function improperly during daily use, your are protected by a 24 months warranty from the date of purchase (valid only with invoice).

Only trained technicians may carry out repairs to this device. In case of spare part requirement or in case of queries or problems, please get in touch with your vendor or:

KRYSTUFEK.at

Dipl.Ing. Ernst KRYSTUFEK GmbH & Co KG
