Vigo Wall 1500 - Heating SunRed - Free user manual and instructions
Find the device manual for free Vigo Wall 1500 SunRed in PDF.
| Product Type | Patio Heater |
| Brand | SunRed |
| Model | Vigo Wall 1500 |
| Power | 1500 W |
| Supply Voltage | 220-240 V ~ 50 Hz |
| Dimensions (W x H x D) | 60 x 20 x 20 cm (approx.) |
| Weight | 3.5 kg (approx.) |
| Usage | Outdoor under cover only |
| Safety Distance | 75 cm minimum to flammable objects |
| Protection Class | Class I (earthing mandatory) |
| Protection Rating | IPX4 (estimation) |
| Residual Current Device | 30 mA maximum |
| Installation | Wall-mounted or on stand |
| Material | Painted steel and aluminum reflector |
| Heating Type | Infrared |
| Safety Functions | Safety shutdown, overheat protection |
| Maintenance and Cleaning | Clean with a damp cloth, use a brush for heating elements |
| Cable Length | 1.5 m (approx.) |
| Warranty | 2 years |
| Repairability | Spare parts available on request |
Frequently Asked Questions - Vigo Wall 1500 SunRed
User questions about Vigo Wall 1500 SunRed
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual Vigo Wall 1500 - SunRed and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Vigo Wall 1500 by SunRed.
USER MANUAL Vigo Wall 1500 SunRed

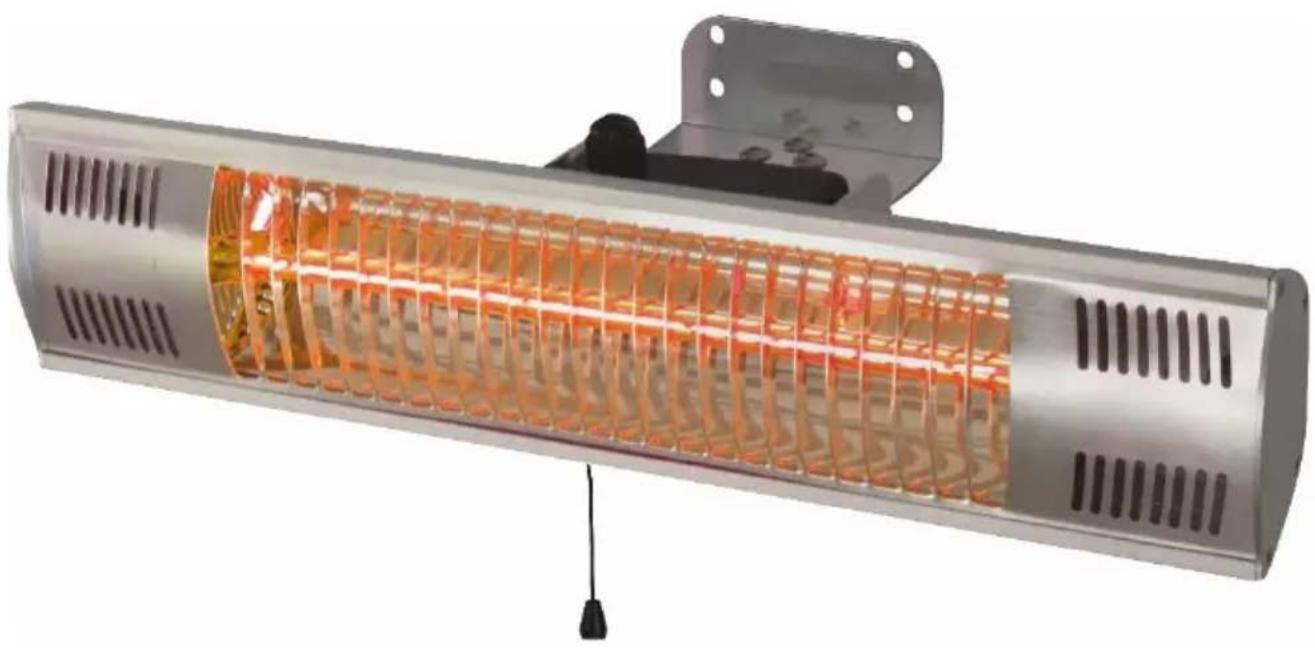

VIG-1500W Wall heater
GBPatio SI Infra pecz a DE Terrassenheizstrahler
Heater uporabo na

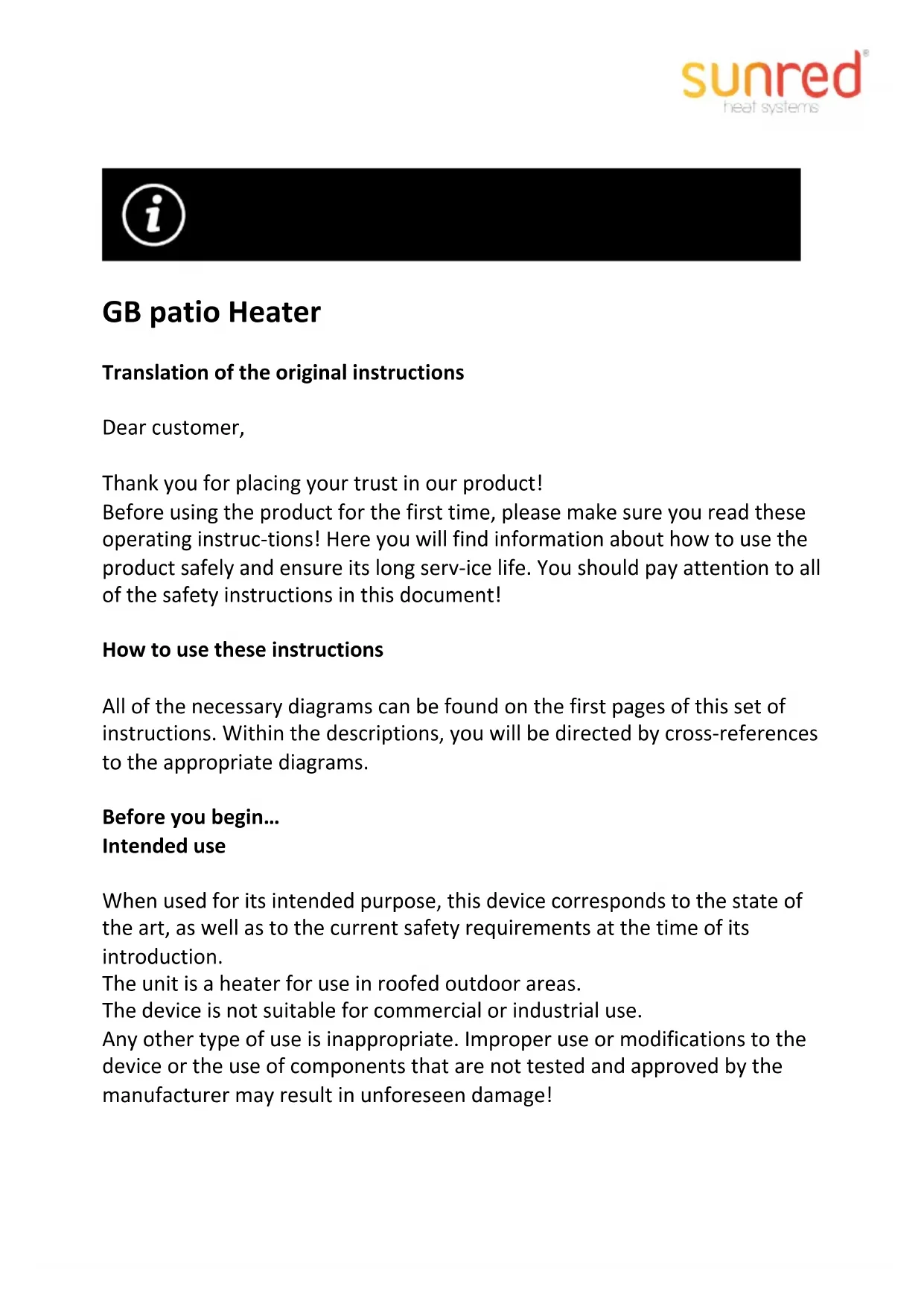

Translation of the original instructions
Dear customer,
Thank you for placing your trust in our product!
Before using the product for the first time, please make sure you read these operating instruc-tions! Here you will find information about how to use the product safely and ensure its long service life. You should pay attention to all of the safety instructions in this document!
How to use these instructions
All of the necessary diagrams can be found on the first pages of this set of instructions. Within the descriptions, you will be directed by cross-references to the appropriate diagrams.
Before you begin...
Intended use
When used for its intended purpose, this device corresponds to the state of the art, as well as to the current safety requirements at the time of its introduction.
The unit is a heater for use in roofed outdoor areas.
The device is not suitable for commercial or industrial use.
Any other type of use is inappropriate. Improper use or modifications to the device or the use of components that are not tested and approved by the manufacturer may result in unforeseen damage!
Any use that deviates from its intended use and is not included in these instructions is considered unauthorised use and relieves the manufacturer from his or her legal liability.
For your safety
General safety instructions
-
To operate this device safely, the user must have read and understood these instructions for use before using the device for the first time.
-
Observe all safety instructions! Failure to do so may cause harm to you and others.
-
Retain all instructions for use, and safety instructions for future reference.
-
If you sell or pass the device on, you must also hand over these operating instructions.
-
The device must only be used when it functions properly. If the product or part of the product is defective, it must be taken out of operation and disposed of correctly.
-
Never use the device in a room where there is a danger of explosion or in the vicinity of flammable liquids or gases.
-
Always ensure that a device which has been switched off cannot be restarted unintentionally.
-
Do not use devices with an on/off switch that does not function correctly.
-
Keep children away from the device! Keep the device out of the way of children and other unauthorised persons.
- Do not overload the device. Do not use the device for purposes for which it is not intended.
- Exercise caution and only work when in good condition: If you are tired, ill, if you have ingested alcohol, medication or illegal drugs, do not use the device, as you are not in a condition to use it safely.
- This product is not intended to be used by persons (including children) or who are limited in their physical, sensory or mental capacities or who lack experience and/or knowledge of the product unless they are supervised, or have been instructed on how to use the product, by a person responsible for their safety.
- Ensure that children are not able to play with the device.
- Always comply with all applicable domestic and international safety, health, and working regulations.
Electrical safety
- The device may only be connected to a socket that is correctly installed and grounded.
- The fuse must be a residual current circuit-breaker with a measured residual current of no more than 30mA .
- Make sure that the power supply corresponds with the connection specifications of the device before it is connected.
- The tool may only be used within the specified limitations for voltage and power (see type plate).
- Do not touch the mains plug with wet hands! Always pull out the mains plug at the plug and not by the cable.
- Do not bend, crush, pull or drive over the power cable, protect from sharp edges, oil and heat.
- Do not lift the device using the cable or use the cable for purposes other than intended.
- Check the plug and cable before each use.
- If the power cable is damaged immediately disconnect the plug. Never use the device if the power cable is damaged.
-
If the device is not in use make sure the plug is pulled out.
-
Make sure that the device is switched off before plugging in the mains cable.
- Make sure that the device is switched off before unplugging it.
- Disconnect the power supply before transporting the device.

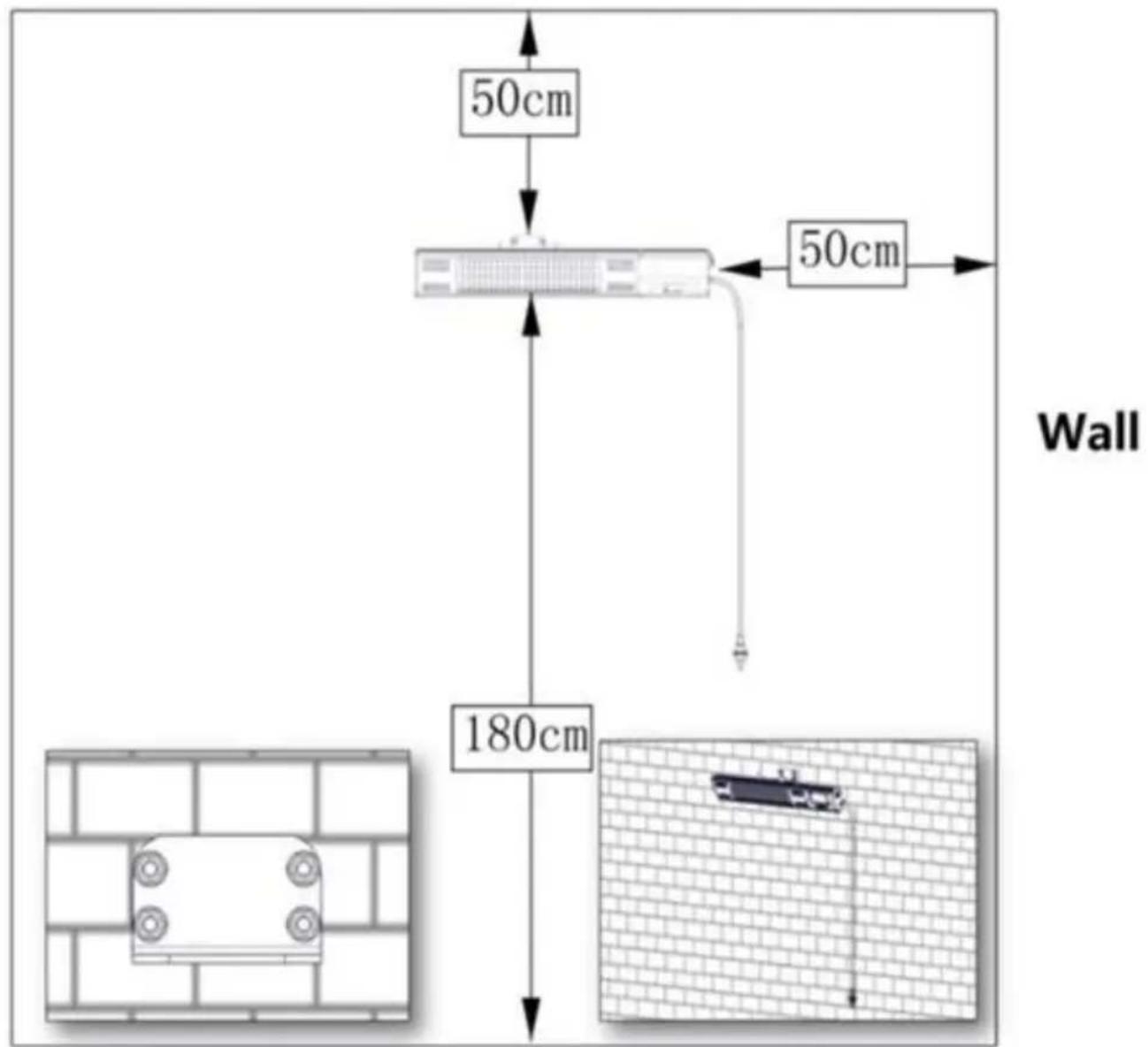

Device-specific safety instructions
The unit may not be operated indoors.
- The unit may not be operated in the vicinity of swimming pools, garden ponds etc.
- Do not move the unit when it is in use.
- Do not tilt the unit when it is in use.
- Never feed objects through the ventilation slots into the unit. Risk to life!
- The gap between the ventilation slots and flammable objects must be at least 75~cm .
The unit may not be covered. This causes a risk of fire.
- The unit must be assembled on an even, horizontal surface with space surrounding it. The safety gaps must always be adhered to.
- Never expose the unit to water or other liquids.
- Never use the heater with a timer or another switch that activates the unit automatically as this carries a risk of fire.
- The heater may not be set up directly underneath a wall power socket.
- Symbols affixed to your unit may not be removed or covered. Information on the unit that is no longer legible must be replaced immediately.
Floor
Click!
1500 Watt
Although the heater is shower proof, DO NOT use when raining or in wet conditions.
Always disconnect the power cable from the electrical supply when the patio heater is not in use.
Cleaning
- Switch the unit off and allow it to cool down completely.
- Unplug from the power source.
- Wipe the unit with a damp cloth.
- To clean the heating bars and the reflector, use a brush with long, soft bristles
Disposal
Disposal of the appliance
Appliances which are labelled with the adjacent symbol must not be disposed of in household waste. You must dispose of such old electrical and electronic equipment separately.
Through separate disposal you send old equipment for recycling or for other forms of re-use. You will thus help to avoid in some cases that damaging material gets into the environment.
Disposal of the packaging
The packaging consists of cardboard and correspondingly marked plastics that can be recycled.
- Make these materials available for recycling.
| 220-240V 50Hz | ||||
| Rose Gold Golden Tube / 8000 H | ||||
| 1500W | ||||
| 45x15x10 cm | ||||
| 1,5 kg | ||||
| Insulation: class 1 | ||||
| IP55 | ||||
| CE, GS, PAH, ROHS | ||||
| CE | ||||
All measurements are approximate.
Chere cliente, cher client,
IpebeoOpnHaHbHorO pyKOBODCTBa nO kCnlyatauN
YBaKaemble nokyatae!
MblpaBbI npOBBeHHOMy BAmn DOBepnIO K hAwei npOdyKcnn!
PpeD nepBoN 3KcNlyaTaUnei np60pa 68aTeJbHO npOHTaIte
HnCTpyKcNIO! B HeN 3NoJKe-HbI Bce peKoMeHdaUe IdJe 6e3OpacHOrO
HCNOJIb3OBaHnI npOdoJIxITeJbHO rCpOKa CnyX6bl np60pa.
O6a3aTeJbHO co6LIOJaTe Bce coDepeKaUeCe B INCTpyKcUNI NO
3KcNlyaTaUIn Tpe6o-BaHnI NO TexHnke 6e3OpacHoCTn!
ShaHOBHa KJIeHTka, ShaHOBHN KJIeHT!
