Product Type	Patio Heater
Brand	SunRed
Model	Barcelona 1
Power	2000 W
Supply Voltage	220-240 V ~ 50 Hz
Dimensions (L x W x H)	60 x 20 x 20 cm
Net Weight	4.5 kg
Approximate Heating Area	15-20 m²
Material	Steel and Glass
Heating Type	Infrared Radiation
Protection Rating	IPX4
Mounting Type	Floor or Wall Mount
Power Cord Length	1.5 m
Main Functions	Outdoor heating, two power levels (estimate)
Safety	Overheat protection, tip-over protection, protective grille
Maintenance	Clean with damp cloth, dust heating elements with a brush
Repairability	Spare parts available through SunRed after-sales service
Intended Use	Outdoor under shelter, domestic use
Energy Class	Not specified

Frequently Asked Questions - Barcelona 1 SunRed

Can I use this heater indoors?

No, this heater is designed exclusively for outdoor use under shelter. Using it indoors poses a risk of fire and intoxication.

What safety distance should I maintain from flammable objects?

A distance of at least 75 cm must be maintained between the ventilation grille and any flammable object.

How to clean the device?

First unplug the power cord and allow the device to cool completely. Clean the exterior with a slightly damp cloth. For the heating elements and reflector, use a long-bristled soft brush.

What to do if the power cord is damaged?

Immediately unplug the power cord and stop using the device. Have the cable replaced by a qualified professional.

Can I cover the device while it's operating?

No, never cover the device. This poses a fire hazard.

Does the device have overheating protection?

Yes, the heater is equipped with an overheat shutdown device and tip-over protection.

Do I need to use a grounded outlet?

Yes, the device must be plugged into a regulatory grounded outlet, protected by a residual current circuit breaker of max 30 mA.

Can I install the device directly under a wall outlet?

No, installation under a wall outlet is prohibited for safety reasons.

How to obtain spare parts?

Contact SunRed after-sales service by phone or email. Specify the Barcelona 1 model and the desired part.

What to do in case of malfunction?

First check the power supply and that the outlet works. If the problem persists, unplug the device and consult a professional or after-sales service.

USER MANUAL Barcelona 1 SunRed

BAR-1500H Ceiling electric heater

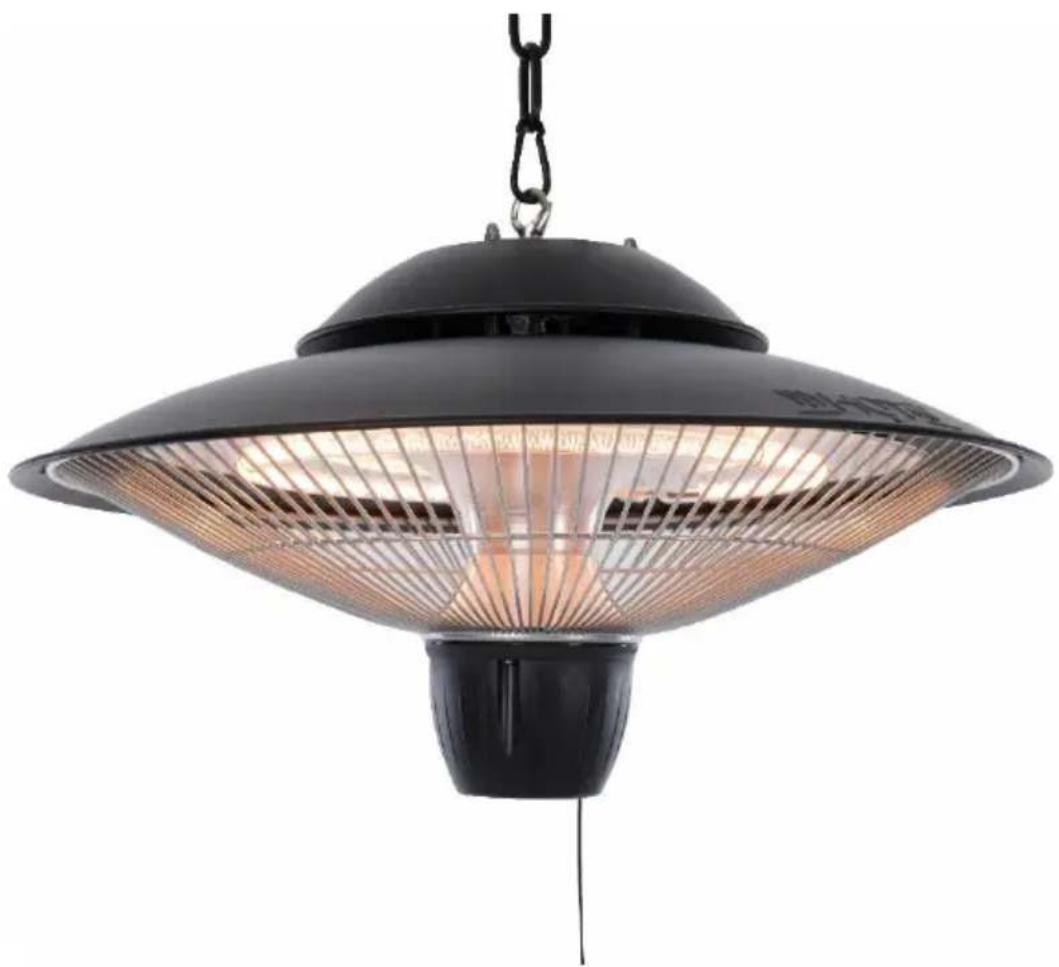

Black overhead heater with conical shade and metal frame, suspended by a chain (no text or symbols visible)

GB	Patio Heater	SI	Infra peč za uporabo na tera-sah	DE	Terrassenheizstrahler
FR	Radiateur de terrasse	HU	Teraszhósugárzó	NL	Terrasverwarmer
		HR	Električna grijalica za terasu	NO	Terrassevarmer
IT	Irradiatore di calore da terrazza	BA	Električna grijalica za terasu	DK	Terrassevarmer
CZ	Terasový ohřívač	RO	Radiator pentru terasă	SE	Terrasevarmare
SK	Terasový ohrievač	RU	Обогреватель для террасы	ES	Estufa Terraza
PL	Tarasowy promiennik ciepła	UA	Обігрівач для тераси

i

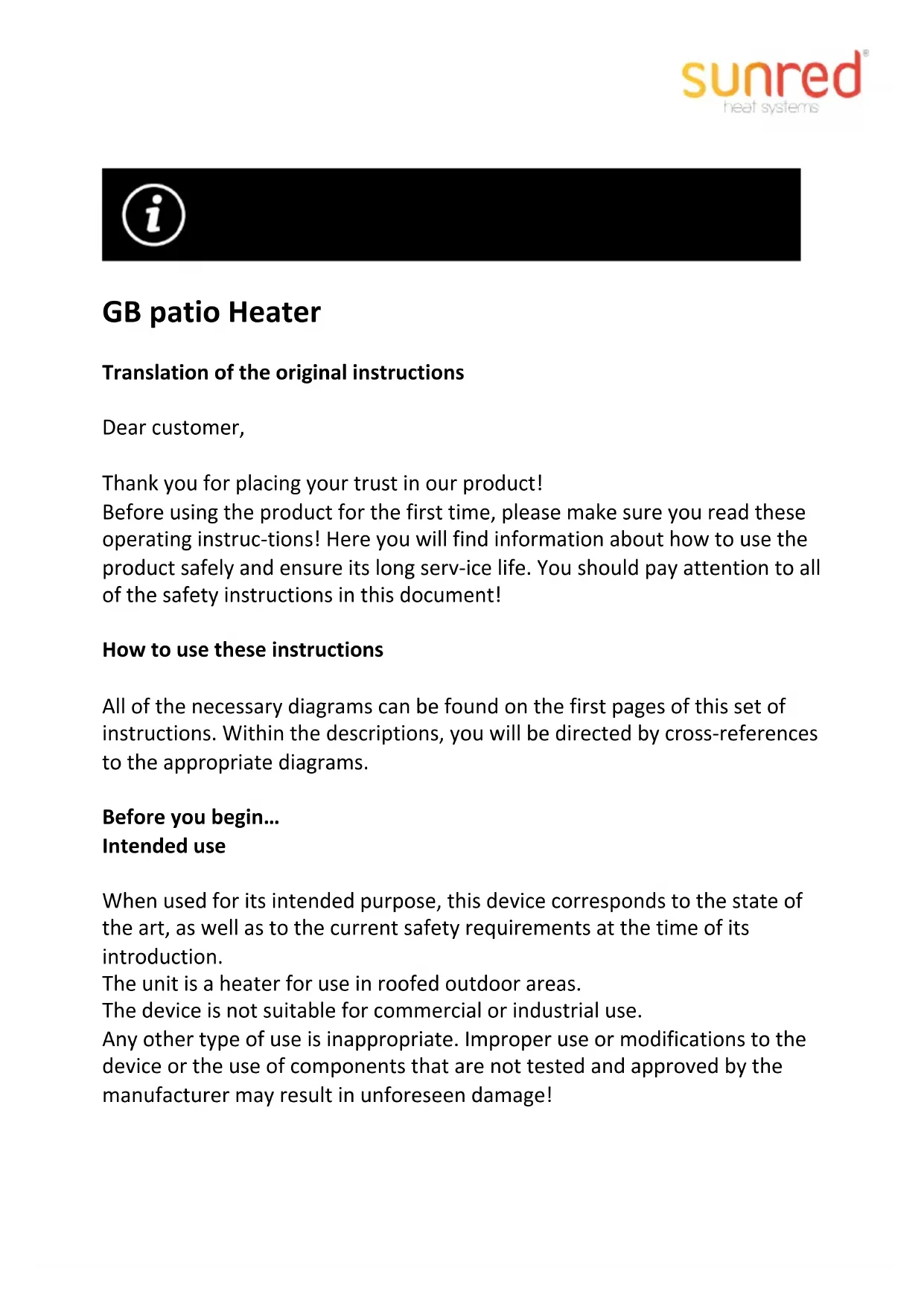

GB patio Heater

Translation of the original instructions

Dear customer,

Thank you for placing your trust in our product!

Before using the product for the first time, please make sure you read these operating instructions! Here you will find information about how to use the product safely and ensure its long serv-ice life. You should pay attention to all of the safety instructions in this document!

How to use these instructions

All of the necessary diagrams can be found on the first pages of this set of instructions. Within the descriptions, you will be directed by cross-references to the appropriate diagrams.

Before you begin...

Intended use

When used for its intended purpose, this device corresponds to the state of the art, as well as to the current safety requirements at the time of its introduction.

The unit is a heater for use in roofed outdoor areas.

The device is not suitable for commercial or industrial use.

Any other type of use is inappropriate. Improper use or modifications to the device or the use of components that are not tested and approved by the manufacturer may result in unforeseen damage!

Any use that deviates from its intended use and is not included in these instructions is considered unauthorised use and relieves the manufacturer from his or her legal liability.

Three white icons on black background: menu, wrench, and wavy line (no text or symbols)

i

For your safety

General safety instructions

- To operate this device safely, the user must have read and understood these instructions for use before using the device for the first time.

- Observe all safety instructions! Failure to do so may cause harm to you and others.

- Retain all instructions for use, and safety instructions for future reference.

- If you sell or pass the device on, you must also hand over these operating instructions.

- The device must only be used when it functions properly. If the product or part of the product is defective, it must be taken out of operation and disposed of correctly.

- Never use the device in a room where there is a danger of explosion or in the vicinity of flam-mable liquids or gases.

- Always ensure that a device which has been switched off cannot be restarted unintentionally.

- Do not use devices with an on/off switch that does not function correctly.

- Keep children away from the device! Keep the device out of the way of children and other unauthorised persons.

- Do not overload the device. Do not use the device for purposes for which it is not intended.

- Exercise caution and only work when in good condition: If you are tired, ill, if you have ingested alcohol, medication or illegal drugs, do not use the device, as you are not in a condition to use it safely.

- This product is not intended to be used by persons (including children) or who are limited in their physical, sensory or mental capacities or who lack experience and/or knowledge of the product unless they are supervised, or have been instructed on how to use the product, by a person responsible for their safety.

- Ensure that children are not able to play with the device.

• Always comply with all applicable domestic and international safety, health, and working regulations.

Electrical safety

- The device may only be connected to a socket that is correctly installed and grounded.

- The fuse must be a residual current circuit-breaker with a measured residual current of no more than 30 mA.

- Make sure that the power supply corresponds with the connection specifications of the device before it is connected.

- The tool may only be used within the specified limitations for voltage and power (see type plate).

- Do not touch the mains plug with wet hands! Always pull out the mains plug at the plug and not by the cable.

- Do not bend, crush, pull or drive over the power cable, protect from sharp edges, oil and heat.

- Do not lift the device using the cable or use the cable for purposes other than intended.

- Check the plug and cable before each use.

- If the power cable is damaged immediately disconnect the plug. Never use the device if the power cable is damaged.

- If the device is not in use make sure the plug is pulled out.

• Make sure that the device is switched off before plugging in the mains cable.
• Make sure that the device is switched off before unplugging it.
- Disconnect the power supply before transporting the device.

Device-specific safety instructions

• The unit may not be operated indoors.

- The unit may not be operated in the vicinity of swimming pools, garden ponds etc.

- Do not move the unit when it is in use.

- Do not tilt the unit when it is in use.

- Never feed objects through the ventilation slots into the unit. Risk to life!

- The gap between the ventilation slots and flammable objects must be at least 75 cm.

• The unit may not be covered. This causes a risk of fire.

- The unit must be assembled on an even, horizontal surface with space surrounding it. The safety gaps must always be adhered to.

- Never expose the unit to water or other liquids.

- Never use the heater with a timer or another switch that activates the unit automatically as this carries a risk of fire.

- The heater may not be set up directly underneath a wall power socket.

- Symbols affixed to your unit may not be removed or covered. Information on the unit that is no longer legible must be replaced immediately.

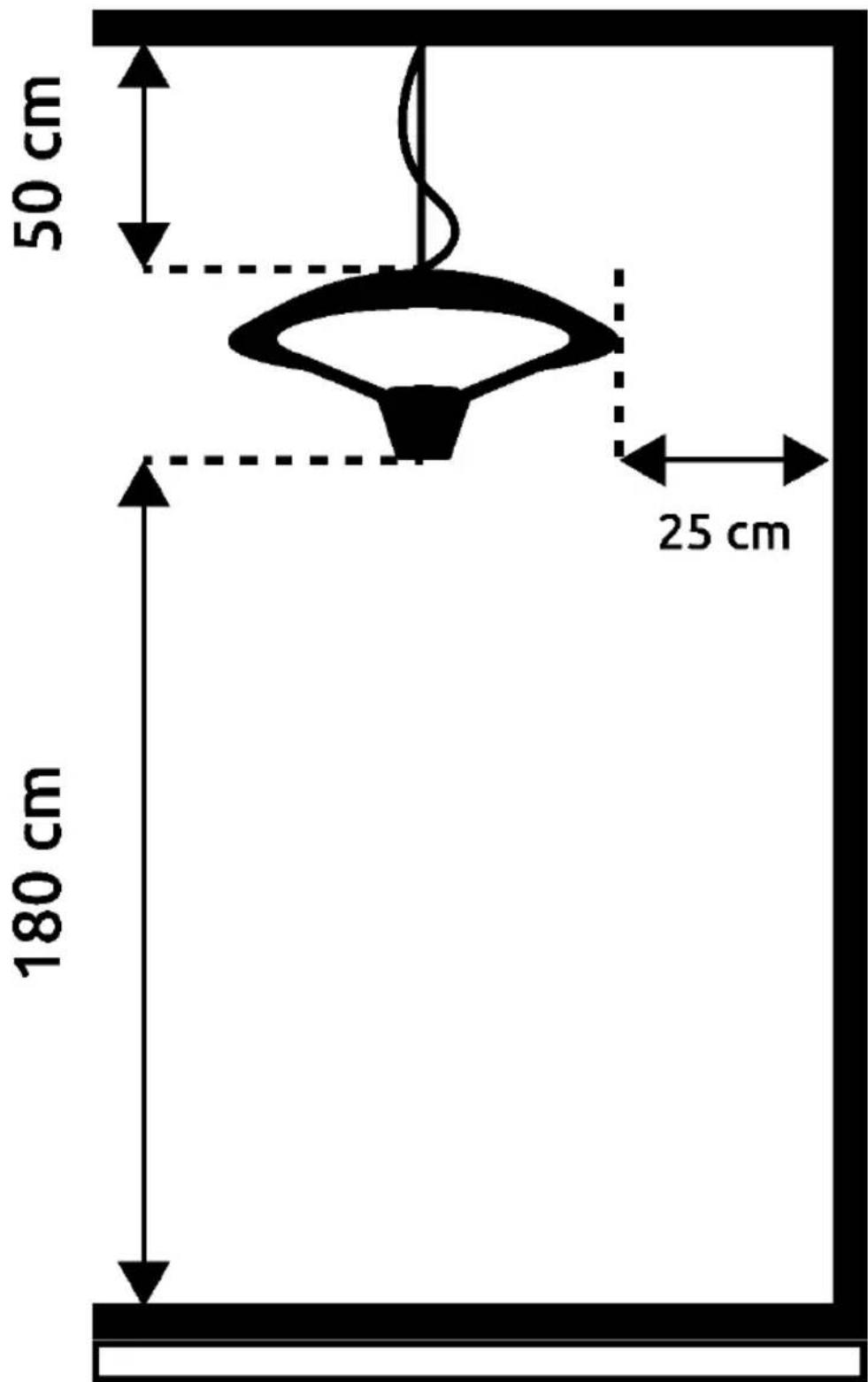

50 cm 180 cm 25 cm

	-	1500 Watt

Although the heater is shower proof, DO NOT use when raining or in wet conditions.

Always disconnect the power cable from the electrical supply when the patio heater is not in use.

Cleaning

- Switch the unit off and allow it to cool down completely.

– Unplug from the power source.

- Wipe the unit with a damp cloth.

- To clean the heating bars and the reflector, use a brush with long, soft bristles

Disposal

Disposal of the appliance

Appliances which are labelled with the adjacent symbol must not be disposed of in household waste. You must dispose of such old electrical and electronic equipment separately.

Through separate disposal you send old equipment for recycling or for other forms of re-use. You will thus help to avoid in some cases that damaging material gets into the environment.

Disposal of the packaging

The packaging consists of cardboard and correspondingly marked plastics that can be recycled.

- Make these materials available for recycling.

		220-240V 50Hz
		Halogen / 8000 H
		1500W
		42,5x25cm
		2,5 kg
		Insulation: class 1
		IP24
		CE, GS, PAH, ROHS

All measurements are approximate.
