USER MANUAL RSH16 SunRed

Sunred Patio Heater Indus

Manual—RSH16 Hanging Heater

WARNING!

Probable danger to life and risk of injury!

Use in closed spaces can be dangerous and is

FORBIDDEN.

WARNING!

Probable danger to life and risk of injury!

Please read the manual before usage.

NOTE—IMPORTANT!

Carefully remove the packaging before use, but keep the safety instruments.

These are part of the product. Please note all safety warnings mentioned in this manual.

Read the instructions in their entirety and keep them for future reference.

These must be stored with the product. This product is for household use and may not be used for commercial or contractual purposes.

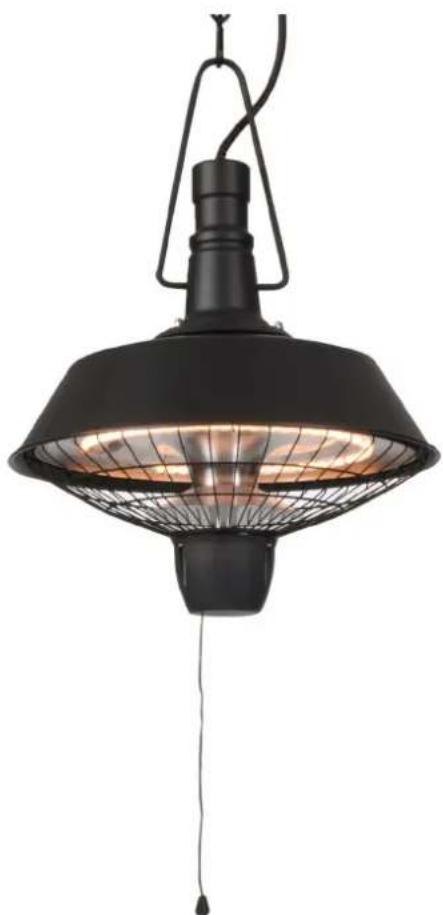

Black overhead lighting fixture with coiled glass and mesh grille (no text or symbols)

NL TERRASVERWARMER

SK TERASOVY OHRIEVAČ

Translation of the original instructions

Dear customer,

Thank you for placing your trust in our product!

Before using the product for the first time, please make sure you read these operating instructions! Here you will find information about how to use the product safely and ensure its long service life. You should pay attention to all of the safety instructions in this document!

How to use these instructions

All of the necessary diagrams can be found on the first pages of this set of instructions. Within the descriptions, you will be directed by cross-references to the appropriate diagrams.

Before you begin...

Intended use

When used for its intended purpose, this device corresponds to the state of the art, as well as to the current safety requirements at the time of its introduction.

The unit is a heater for use in roofed outdoor areas.

The device is not suitable for commercial or industrial use.

Any other type of use is inappropriate. Improper use or modifications to the device or the use of components that are not tested and approved by the manufacturer may result in unforeseen damage!

Any use that deviates from its intended use and is not included in these instructions is considered unauthorized use and relieves the manufacturer from his or her legal liability.

For your safety

General safety instructions

• To operate this device safely, the user must have read and understood these instructions for use before using the device for the first time.
• Observe all safety instructions! Failure to do so may cause harm to you and others.
• Retain all instructions for use, and safety instructions for future reference.
  • If you sell or pass the device on, you must also hand over these operating instructions.
• The device must only be used when it functions properly. If the product or part of the product is defective, it must be taken out of operation and disposed of correctly.
• Never use the device in a room where there is a danger of explosion or in the vicinity of flammable liquids or gasses.
  • Always ensure that a device which has been switched off cannot be restarted unintentionally.
• Do not use devices with an on/off switch that does not function correctly.
• Keep children away from the device! Keep the device out of the way of children and other unauthorized persons.

Electrical safety

• The device may only be connected to a socket that is correctly installed and grounded.
• The fuse must be a residual current circuit-breaker with a measured residual current of no more than 30 mA.
• Make sure that the power supply corresponds with the connection specifications of the device before it is connected.
• The tool may only be used within the specified limitations for voltage and power (see type plate).
- Do not touch the mains plug with wet hands! Always pull out the mains plug at the plug and not by the cable.
- Do not bend, crush, pull or drive over the power cable, protect from sharp edges, oil and heat.
- Do not lift the device using the cable or use the cable for purposes other than intended.

- Check the plug and cable before each use.

- If the power cable is damaged immediately disconnect the plug. Never use the device if the power cable is damaged.

- If the device is not in use make sure the plug is pulled out.

• Make sure that the device is switched off before plugging in the mains cable.

- Make sure that the device is switched off before unplugging it.

- Disconnect the power supply before transporting the device.

Device-specific safety instructions

• The unit may not be operated indoors.
  • The unit may not be operated in the vicinity of swimming pools, garden ponds etc.
• Do not move the unit when it is in use.
• Do not tilt the unit when it is in use.
  • Never feed objects through the ventilation slots into the unit. Risk to life!
  • The gap between the ventilation slots and flammable objects must be at least 75 cm.
• The unit may not be covered. This causes a risk of fire.
• The unit must be assembled on an even, horizontal surface with space surrounding it. The safety gaps must always be adhered to.
• Never expose the unit to water or other liquids.
  • Never use the heater with a timer or another switch that activates the unit automatically as this carries a risk of fire.
  • The heater may not be set up directly underneath a wall power socket.
  Symbols affixed to your unit may not be removed or covered. Information on the unit that is no longer legible must be replaced immediately.

					= RECOMMENDED
	NL - WAARSCHUWING!	PL - OSTRZEŽENIE!	DK - ADVARSEL!
	HEET OPPERVLAK!	GORĆA POWIERZCHNIA!	VARMT OVERFLADE!
	DE - WARNUNG!	SI - OPOZORILO!	NO - ADVARSEL!
	HEISSE OBERFLÄCHE!	VROĆA POVRŠINA!	VARM OVERFLATE!
	IT - AVVERTIMENTO!	HU - FIGYELEM!	SE - WARNING!
	SUPERFICIE CALDA	FORRÓ FELÜLET!	VARM YTA!
	FR - ATTENTION!	HR - UPOZORENJE!
	SURFACE CHAUDE!	VELIKA POVRŠINA!
	EN - WARNING!	BA - UPOZORENJE!
	HOT SURFACE!	VELIKA POVRŠINA!
	ES - |ADVERTENCIA!	RO - AVERTIZARE!
	|SUPERFICIE CALIENTE!	SUPRAFATA FIERBINTE!
	CZ - UPOZORENJE!	RU - ПРЕДУПРЕЖДЕНИЕ!
	VELIKA POVRŠINA!	ГОРЯЧАЯ ПОВЕРХНОСТЬ!
	SK - OPOZORILO!	UA - УВАГА!
	VROĆA POVRŠINA!	ГОРЯЧА ПОВЕРХНЯ!
	0-3 <	3-8 <	8 >

		≡	= RECOMMENDED

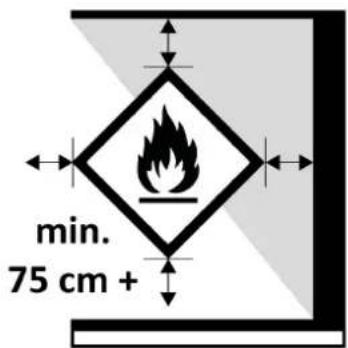

FLAMMABLE MATERIALS

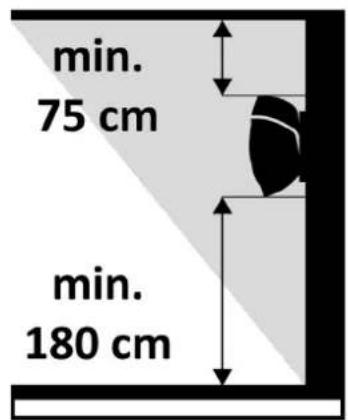

min. 75 cm +

1

1 (1x)

2 (1x)

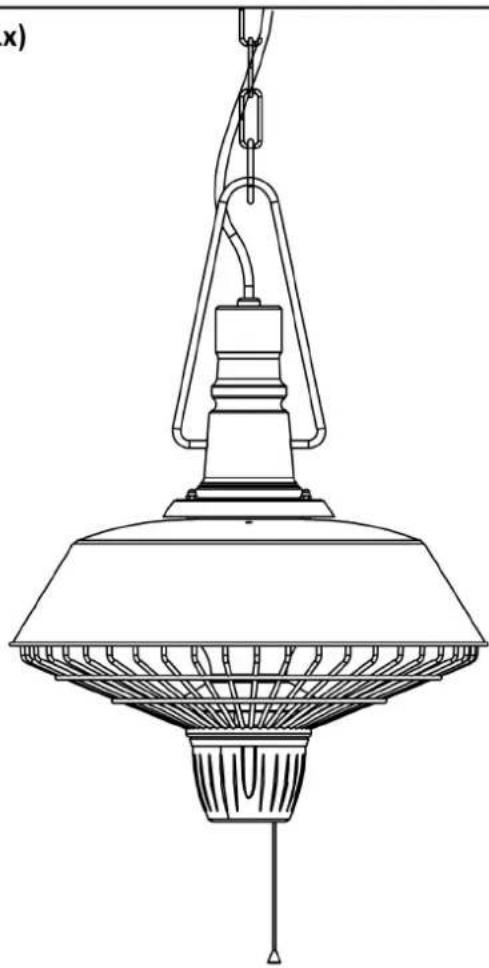

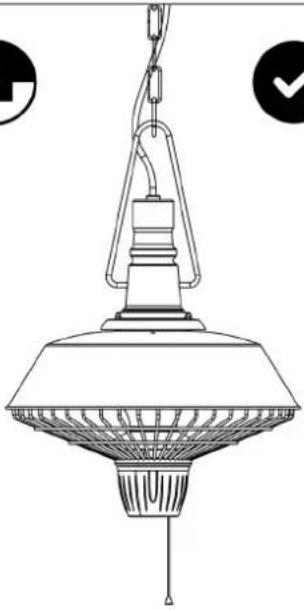

Line drawing of a ceiling lamp with adjustable shade and top structure (no text or symbols)

32

		1500 Watt

Cleaning

• Switch the unit off and allow it to cool down completely.
• Unplug from the power source.
  – Wipe the unit with a damp cloth.
• To clean the heating bars and the reflector, use a brush with long, soft bristles

Disposal

Disposal of the appliance

Appliances which are labelled with the adjacent symbol must not be disposed of in household waste. You must dispose of such old electrical and electronic equipment separately.

Through separate disposal you send old equipment for recycling or for other forms of re-use. You will thus help to avoid in some cases that damaging material gets into the environment.

Disposal of the packaging

The packaging consists of cardboard and correspondingly marked plastics that can be recycled.

- Make these materials available for recycling.

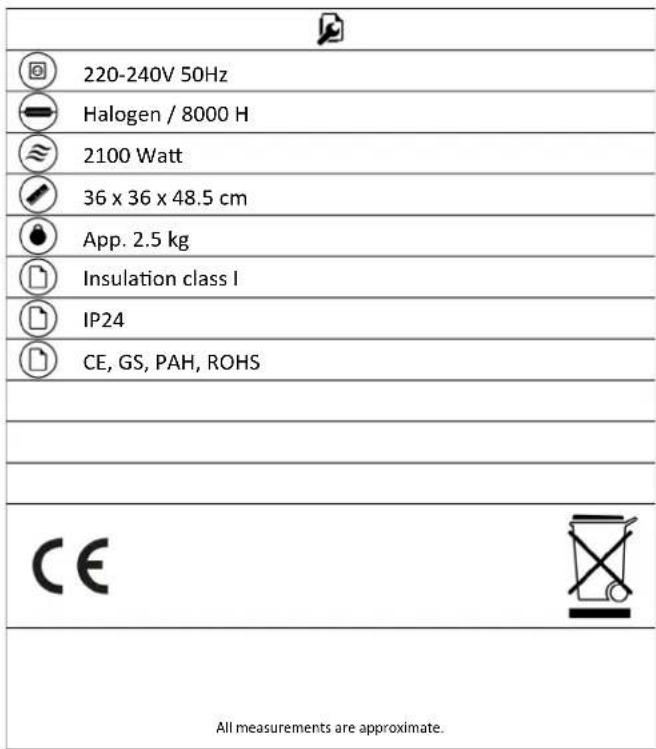

220-240V 50Hz Halogen / 8000 H 2100 Watt 36 x 36 x 48.5 cm App. 2.5 kg Insulation class I IP24 CE, GS, PAH, ROHS CE All measurements are approximate.

WARRANTY CARD

Abstract shield icon with three stars and a circular speedometer (no text or symbols)

2 years limited warranty

Please complete this form and fax or e-mail to the numbers below. Please return with a receipt to your retailer if your products becomes faulty.

• Please add a scan/copy of the receipt.
• Please add images/pictures and a description of the faulty or damaged product.

Your name:

Your address:

E-mail address:

Postcode:

Product name:

Model number:

Batch code:

(located at rating label on the rear or side of the unit.)

Place of purchase:

Date of purchase: Year:

OutTrade B.V.

De Grift 1

7711 EP Nieuwleusen

The Netherlands

Tel: +31-529—48 28 08

Fax: +31-529—48 49 10

[e-mail]

www.outtrade.eu

Please describe the fault:

EU DECLARATION OF CONFORMITY
We, OutTrade B.V.	De Grift 17711 EP Nieuwleusen
Declare under our sole responsibility that the product described below:
Brand and model name: Sunred RSH16
Equipment Classification Outdoor Patio Heater
Is in comformity with the following Standards and Directives:
Standard	With reference to RoHS Directive (EC/EU) 2015/863IEC 60335-2-30:2009(Fifth Edition)used in conjunction withIEC 60335-1:2010(Fifth Edition) incl. Corr.1:2010 and Corr.2:2011+A1:2013EN 60335-1:2012+A11:2014EN 60335-2-30:2009+A11:2012EN 62233: 2008EN 55014-1:2006+A1:2009+A2:2011EN 55014-2:2015EN 61000-3-2:2014EN 61000-3-3:2013
I hereby declare that the equipment named above has been designed to comply with the relevant sections of above referencedStandards and meets all essential requirements of the specified Directives.
Signed: R. Dijkman Signature:
Position: Managing Director
Location: Nieuwleusen, The Netherlands	Date of issue:	Nieuwleusen, 23/01/2020

OutTrade BV
