RDSILVER2000W - Heating SunRed - Free user manual and instructions

Product Type	Infrared radiant patio heater
Brand	SunRed
Model	RDSILVER2000W
Nominal power	2000 W
Supply voltage	230 V ~ 50 Hz
Required differential protection	30 mA circuit breaker
Minimum safety distance	75 cm from flammable materials
Use	Outdoor under cover (not indoor)
Protection rating	IP24
Material	Stainless steel and aluminum
Mounting type	On base
Height	180 cm
Weight	10 kg
Power cord length	1.5 m
Functions	Infrared heating, instant ignition
Control	On/off switch
Cleaning	Damp cloth, brush for heating elements and reflector
Safety instructions	Do not cover, do not use indoors, do not expose to water
Recycling	Appliance subject to WEEE, do not dispose of with household waste
Included accessories	User manual

Frequently Asked Questions - RDSILVER2000W SunRed

Can this heater be used indoors?

No, this heater is designed only for outdoor use under cover. Using it indoors poses a fire and intoxication risk.

What safety distance should be observed?

Maintain a distance of at least 75 cm between the ventilation grille and any flammable object (curtains, furniture, etc.).

How to clean the appliance?

Always unplug the appliance and let it cool completely. Use a slightly damp cloth for the exterior. For the heating elements and reflector, use a long soft-bristled brush.

What to do if the appliance does not heat?

First check that the mains socket works and that the differential circuit breaker has not tripped. If the problem persists, contact customer service. Do not attempt to repair it yourself.

Can I use the heater in the rain?

No, the appliance must never be exposed to water or other liquids. Use it only in a dry place sheltered from the weather.

How to connect the appliance?

Connect the appliance to a grounded power outlet protected by a differential circuit breaker of max 30 mA. Check that the mains voltage matches 230 V.

Is a specific differential protection required?

Yes, the installation must include a differential circuit breaker with a rated residual current of 30 mA to ensure electrical safety.

How to replace the heating element?

Replacement must be carried out by a qualified professional. Do not attempt to replace the element yourself, as this may cause electrical hazards.

The appliance turns off by itself, is that normal?

Some models have overheating protection. If the appliance turns off, let it cool down and check that no object blocks the ventilation. If the problem persists, contact customer service.

What to do in case of malfunction?

Immediately unplug the appliance. Consult the 'Troubleshooting' section of the manual. If you cannot find a solution, contact SunRed technical support with the model and serial number.

USER MANUAL RDSILVER2000W SunRed

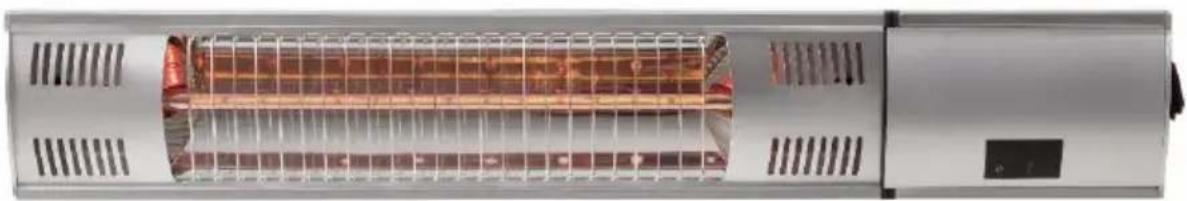

RD-SILVER-2000W Wall heater

GB Ratio SI Infra peč za DE Terrassenheizstrahler Heater uporabo na tera-sah
FR Radiateur HU Teraszhó sugárzó NL Terrasverwarmer de terrasse HR Elektricna grijalica NO Terrassevarmer za terasu
IT Irradiatore BA Elektricna DK Terrassevarmer di calore grijalica za da terazra Razza
CZ Terasovy RO Radiator pentru SE Terrasevarmare ohrivac terasa
SK Terasovy RU O6orpeBaTeNb ES Estufa Terraza ohrieva nTeppaBcI
PL Tarasowy UA 06irpiBau nA promiennik Tepacn ciepla

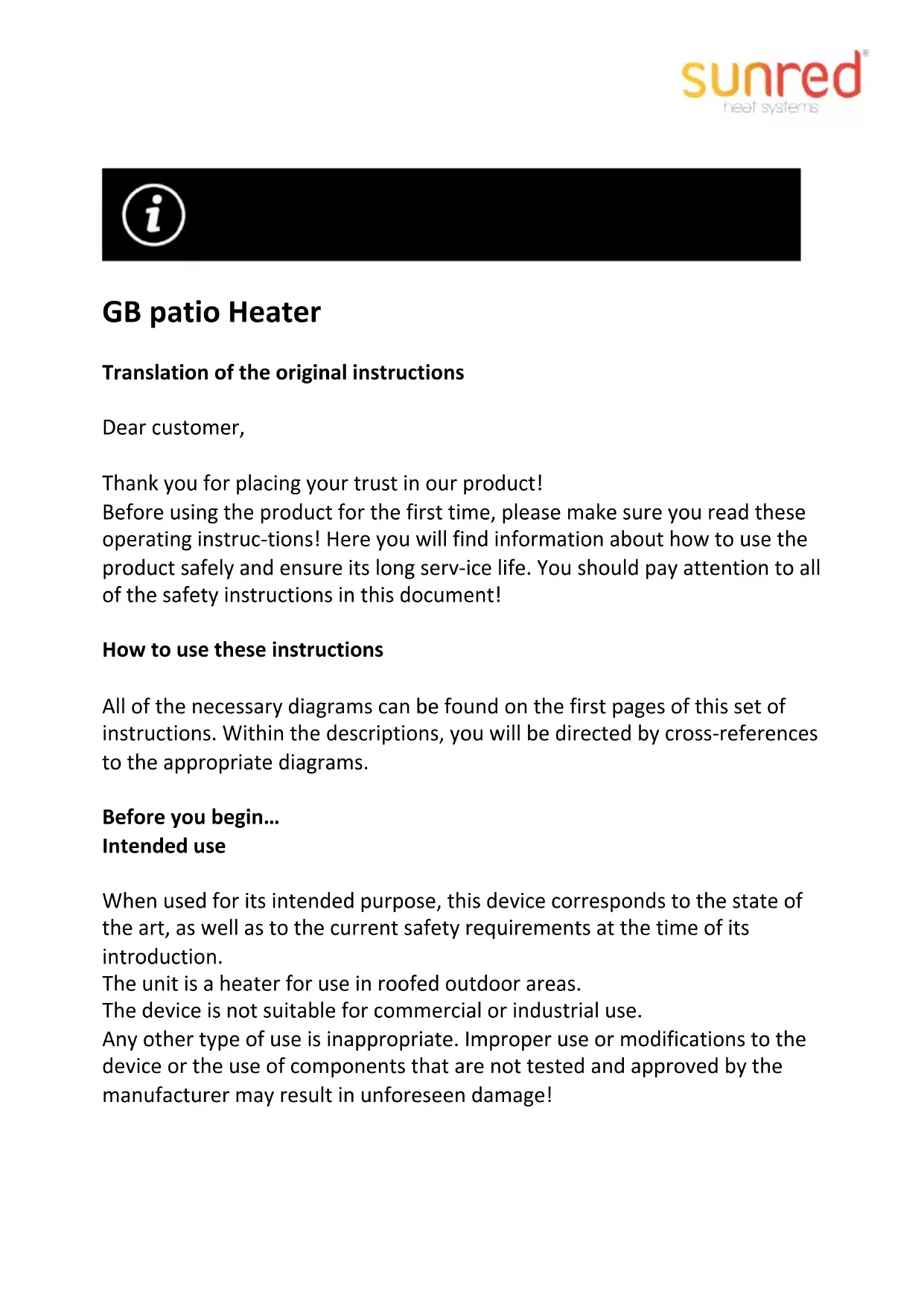

GB patio Heater

Translation of the original instructions

Dear customer,

Thank you for placing your trust in our product!

Before using the product for the first time, please make sure you read these operating instruc-tions! Here you will find information about how to use the product safely and ensure its long service life. You should pay attention to all of the safety instructions in this document!

How to use these instructions

All of the necessary diagrams can be found on the first pages of this set of instructions. Within the descriptions, you will be directed by cross-references to the appropriate diagrams.

Before you begin...

Intended use

When used for its intended purpose, this device corresponds to the state of the art, as well as to the current safety requirements at the time of its introduction.

The unit is a heater for use in roofed outdoor areas.

The device is not suitable for commercial or industrial use.

Any other type of use is inappropriate. Improper use or modifications to the device or the use of components that are not tested and approved by the manufacturer may result in unforeseen damage!

Any use that deviates from its intended use and is not included in these instructions is considered unauthorised use and relieves the manufacturer from his or her legal liability.

For your safety

General safety instructions

• To operate this device safely, the user must have read and understood these instructions for use before using the device for the first time.

• Observe all safety instructions! Failure to do so may cause harm to you and others.

• Retain all instructions for use, and safety instructions for future reference.

• If you sell or pass the device on, you must also hand over these operating instructions.

• The device must only be used when it functions properly. If the product or part of the product is defective, it must be taken out of operation and disposed of correctly.

• Never use the device in a room where there is a danger of explosion or in the vicinity of flammable liquids or gases.

• Always ensure that a device which has been switched off cannot be restarted unintentionally.

• Do not use devices with an on/off switch that does not function correctly.

• Keep children away from the device! Keep the device out of the way of children and other unauthorised persons.

• Do not overload the device. Do not use the device for purposes for which it is not intended.
• Exercise caution and only work when in good condition: If you are tired, ill, if you have ingested alcohol, medication or illegal drugs, do not use the device, as you are not in a condition to use it safely.
• This product is not intended to be used by persons (including children) or who are limited in their physical, sensory or mental capacities or who lack experience and/or knowledge of the product unless they are supervised, or have been instructed on how to use the product, by a person responsible for their safety.
• Ensure that children are not able to play with the device.
• Always comply with all applicable domestic and international safety, health, and working regulations.

Electrical safety

• The device may only be connected to a socket that is correctly installed and grounded.
• The fuse must be a residual current circuit-breaker with a measured residual current of no more than 30mA .
• Make sure that the power supply corresponds with the connection specifications of the device before it is connected.
• The tool may only be used within the specified limitations for voltage and power (see type plate).
• Do not touch the mains plug with wet hands! Always pull out the mains plug at the plug and not by the cable.
• Do not bend, crush, pull or drive over the power cable, protect from sharp edges, oil and heat.
• Do not lift the device using the cable or use the cable for purposes other than intended.
• Check the plug and cable before each use.
• If the power cable is damaged immediately disconnect the plug. Never use the device if the power cable is damaged.

• If the device is not in use make sure the plug is pulled out.

• Make sure that the device is switched off before plugging in the mains cable.

• Make sure that the device is switched off before unplugging it.
• Disconnect the power supply before transporting the device.

Device-specific safety instructions

• The unit may not be operated indoors.
• The unit may not be operated in the vicinity of swimming pools, garden ponds etc.
• Do not move the unit when it is in use.
• Do not tilt the unit when it is in use.
• Never feed objects through the ventilation slots into the unit. Risk to life!

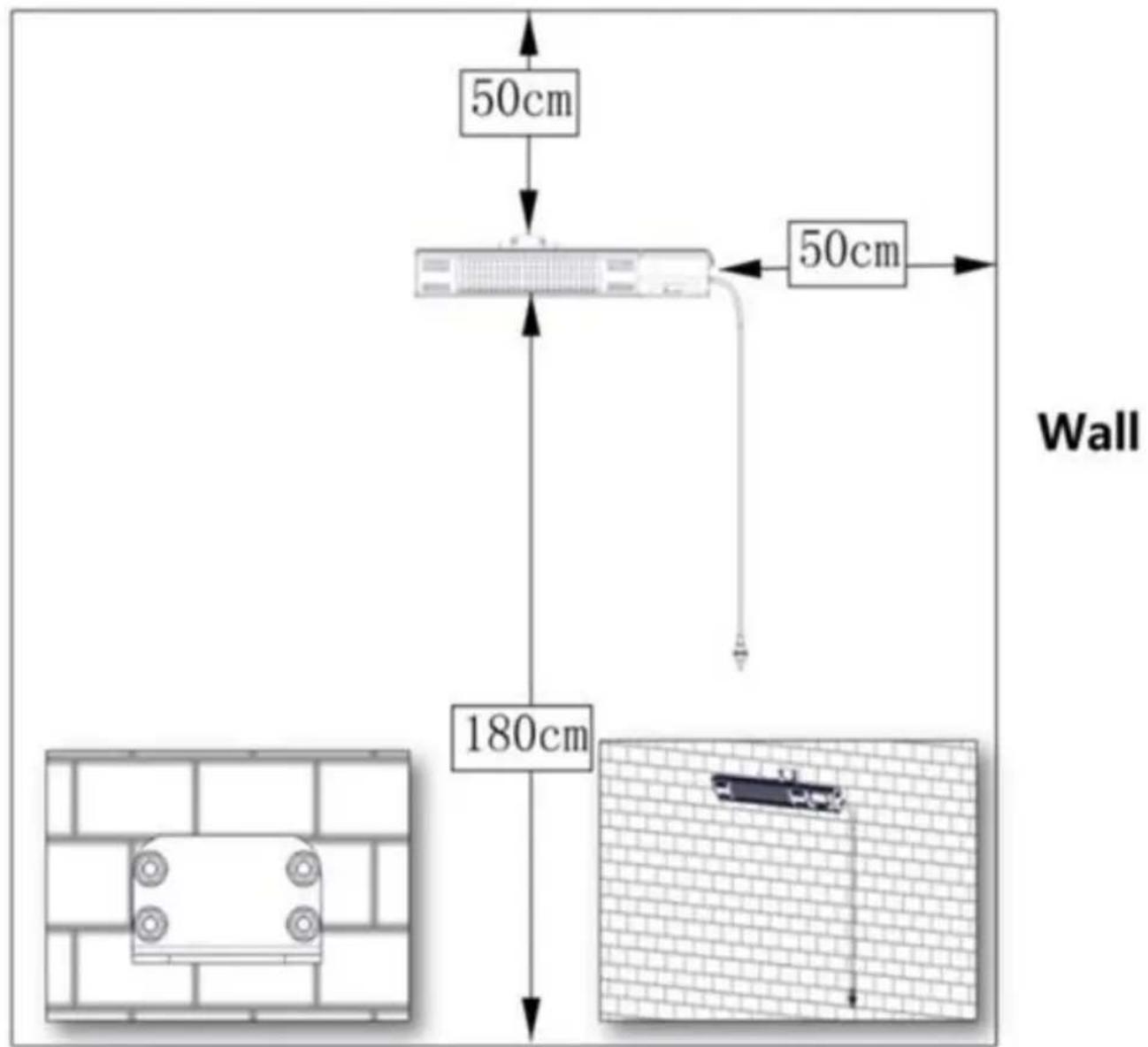

• The gap between the ventilation slots and flammable objects must be at least 75~cm .
• The unit may not be covered. This causes a risk of fire.
• The unit must be assembled on an even, horizontal surface with space surrounding it. The safety gaps must always be adhered to.
• Never expose the unit to water or other liquids.
• Never use the heater with a timer or another switch that activates the unit automatically as this carries a risk of fire.
• The heater may not be set up directly underneath a wall power socket.
• Symbols affixed to your unit may not be removed or covered. Information on the unit that is no longer legible must be replaced immediately.

Floor

Click!

1x

1x

2000 Watt

Although the heater is shower proof, DO NOT use when raining or in wet conditions.

Always disconnect the power cable from the electrical supply when the patio heater is not in use.

Cleaning

• Switch the unit off and allow it to cool down completely.
• Unplug from the power source.
• Wipe the unit with a damp cloth.
• To clean the heating bars and the reflector, use a brush with long, soft bristles

Disposal

Disposal of the appliance

Appliances which are labelled with the adjacent symbol must not be disposed of in household waste. You must dispose of such old electrical and electronic equipment separately.

Through separate disposal you send old equipment for recycling or for other forms of re-use. You will thus help to avoid in some cases that damaging material gets into the environment.

Disposal of the packaging

The packaging consists of cardboard and correspondingly marked plastics that can be recycled.

• Make these materials available for recycling.

220-240V 50Hz
Rose Gold Golden Tube / 8000 H
2000W
58,5x12x12 cm
1,8 kg
Insulation: class 1
IP54
CE, GS, PAH, ROHS
CE

All measurements are approximate.
