Product type	Gas patio heater
Brand	SunRed
Model	Propus Lounge
Usage	Outdoor only
Maximum power	14,000 W
Minimum power	5,000 W
Dimensions (height x diameter)	134 x 46 cm
Weight	Approximately 13.5 kg
Gas supply	Propane or butane (LPG)
Gas consumption	G30: 728 g/h; G31: 715 g/h
Housing material	Powder-coated steel or stainless steel
Ignition type	Piezoelectric (ignition button)
Controls	Rotary knob: OFF / PILOT / LOW / HIGH
Safety	Thermocouple, emergency stop, leak test
Maintenance and cleaning	Clean the burner and air ducts; check hoses
Storage	Vertical, sheltered from weather, frost-free
Warranty	2 years (limited)
Spare parts and repairability	Thermocouple, injector, regulator; repair by a professional

Frequently Asked Questions - Propus Lounge SunRed

How to light the Propus Lounge patio heater?

Make sure the gas is on. Press and turn the control knob counterclockwise to the PILOT position. Hold it down and press the ignition button. After 30 seconds, release the knob and turn to LOW or HIGH.

What types of gas can I use with this appliance?

Use only propane, butane, or their mixtures in LPG. Follow the specifications on the rating label.

Can I use this appliance indoors?

No, indoor use is strictly prohibited. This patio heater is designed exclusively for outdoor use in a well-ventilated area.

What to do if you smell gas?

1) Immediately shut off the gas supply. 2) Extinguish any open flames. 3) If the smell persists, evacuate the area and contact emergency services. Do not use electrical switches.

How to perform a leak test?

Prepare a soapy solution (1 part detergent to 1 part water). Apply it to all fittings. If bubbles appear, there is a leak. Tighten connections or replace defective parts. Never test with a flame.

How to safely turn off the appliance?

First close the gas valve on the cylinder, then turn the control knob to the OFF position. Allow the appliance to cool before moving or storing.

How to maintain and clean the patio heater?

Regularly clean the burner and air ducts with a soft cloth. Check the hose once a month. Do not use flammable or corrosive products.

What safety distances should be observed?

Maintain a clearance of at least 100 cm from the top and sides to combustible materials. Place the appliance on a flat, stable surface.

How to store the appliance in winter?

Turn off the gas, disconnect the cylinder and store it in a ventilated outdoor area. Store the appliance vertically sheltered from weather. Use a protective cover.

What to do if the burner does not light?

Check that the gas is on and the cylinder is not empty. Purge air from the hose by waiting 1 minute after connection. Clean the injector and burner. If the problem persists, contact a qualified technician.

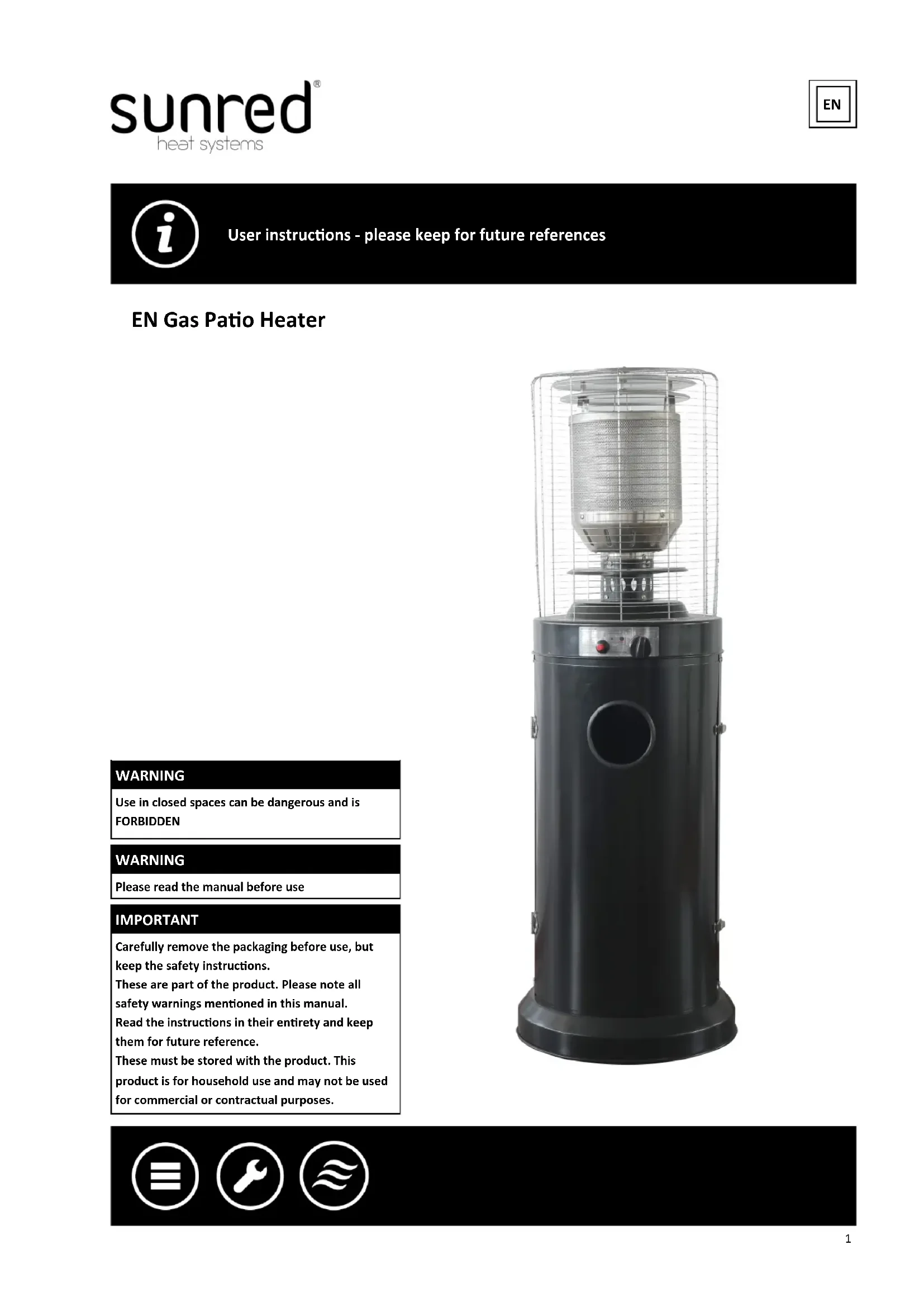

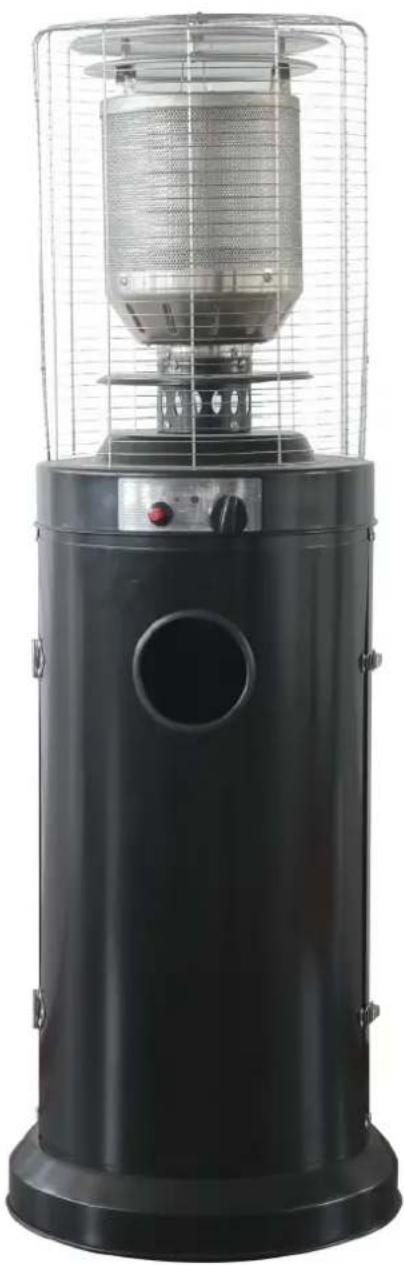

USER MANUAL Propus Lounge SunRed

User instructions - please keep for future references

EN Gas Patio Heater

WARNING

Use in closed spaces can be dangerous and is FORBIDDEN

WARNING

Please read the manual before use

IMPORTANT

Carefully remove the packaging before use, but keep the safety instructions.

These are part of the product. Please note all safety warnings mentioned in this manual.

Read the instructions in their entirety and keep them for future reference.

These must be stored with the product. This product is for household use and may not be used for commercial or contractual purposes.

Black industrial gas stove with heat exchanger and cooling cage (no visible text or symbols)

1

Warning!

1. Read these installation and operating instructions carefully before installing and using the appliance.
2. The operating and installation instructions must be kept with the appliance. If the product is sold to a third party, these documents must be supplied.
3. In case of improper use or failure to follow the safety instructions, each liability will be rejected, and the warranty does not apply.
4. For assistance or additional information consult a qualified technician or the store where you purchased your product.
5. Warning: Keep young children at a safe distance. Accessible parts may become very hot!
6. The patio gas heater may only be used outdoors.
7. The usage of the appliance and the storage of the gas cylinder must be in accordance with the regulations in force.

User and installation instructions

Contents of this document

1. Caution
2. Heater Stand and Location
3. Gas Requirements
4. Operation and Storage, Cleaning and Care
5. Parts and Specifications
6. Assembly Parts and Procedures
7. Leakage Test
8. Problems Check Test
9. Disposal of the appliance and the packaging

Important safety instructions

While using the appliance these safety instructions should always be followed to reduce the risk of fire and other damage to people and property. Read these safety instructions carefully before the appliance is put into operation. →

1

For your safety

General safety instructions

If you smell gas:

1). Shut off gas to the appliance.
2). Extinguish any open flame.
3). If odour continues, immediately call your gas supplier or your fire department.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

Device-specific safety instructions

1). For use outdoors or in amply ventilated areas.
2). An amply ventilated area must have a minimum of 25 % of the surface area open.
3). The surface area is the sum of the walls surface. (See figure 2)

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

Simple line drawing of a lamp inside a transparent cube (no text or symbols)

Fig. 2

This appliance must be installed and the gas cylinder stored in accordance with the regulations in force;

• Do not obstruct the ventilation holes of the cylinder housing;
• Do not move the appliance when in operation;
• Shut off the valve at the gas cylinder or the regulator before moving the appliance;
• The tubing or the flexible hose must be changed within the prescribed intervals;
• Use only the type of gas and the type of cylinder specified by the manufacturer;
• The LP tank used with your patio heater must meet the following requirements:
• Purchase LP tanks only with these required measurements: (30.5cm) (diameter) x 57.1 cm) (tall) with 15kg capacity maximum.
• In case of violent wind particular attention must be taken against tilting of the appliance;

1

For your safety

General safety instructions

• Do not use the patio heater for indoors, as it may cause personal injury or property damage.
• This outdoor heater is not intended to be installed on recreational vehicles and/or boats. Installation and repair should be done by a qualified service person.
• Improper installation, adjustment or alteration can cause personal injury or property damage. Do not attempt to alter the unit in any manner.
• Never replace or substitute the regulator with any regulator other than the factory-suggested replacement.

- Do not store or use gasoline or other flammable vapors or liquids in the heater unit.

- The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before use, and at least annually by a qualified service person.

- All leak tests should be done with a soap solution. Never use an open flame to check for leaks. Do not use the heater until all connections have been leak tested.

- Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF. If leak is at Hose/Regulator connection: tighten connection and perform another leak test. If bubbles continue appearing it should be returned to hose's place of purchase.

- If leak is at Regulator/Cylinder Valve connection: Disconnect, reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be returned to cylinder's place of purchase.

- Do not transport heater while it's operating.

- Do not move the heater after it has been turned off until the temperature has cooled down. Keep the ventilation opening of the cylinder enclosure free and clear of debris.

- Do not paint the radiant screen, control panel or top canopy reflector.

- Control compartment, burner and circulation air passageways of the heater must be kept clean. Frequent cleaning may be required as necessary.

The LP tank should be turned off when the heater is not in use. Check the heater immediately if any of the following occurs:

⇒ The heater does not reach temperature.
⇒ The burner makes popping noise during use (a slight noise is normal when the burner is extinguished).
⇒ Smell of gas in conjunction with extreme yellow tipping of the burner flames.

Warning!

The user assumes all risks of assembling and operating gas heater. Not heeding the warnings and instructions of this manual can result in severe bodily harm, death or material damage. If you don't read this user manual or if you cannot fully understand it, please ask your specialised dealer. The manufacturer or supplier assumes no liability for negligent user behaviour.

Warning!

When not heeding the instructions and information in this manual or in case of improper usage outside of the intended usage purposes, the manufacturer rejects any liability to product damages.

1

For your safety

General safety instructions

• The LP regulator/hose assembly must be located out of pathways where people may trip over it or in area where the hose will not be subject to accidental damage.
  • Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.
  • Adults and children should stay away from high temperature surface to avoid burns or clothing ignition.
  • Children should be carefully supervised when they are in the area of the heater.
  • Clothing or other flammable materials should not be hung on the heater or placed on or near the heater.
• Change the gas cylinder in a amply ventilated area, away from any ignition source (candle, cigarettes, other flame producing appliances, ...);
• Check that the regulator seal is correctly fitted and able to fulfill its function showed as photo right;
• Do not obstruct the ventilation holes of the cylinder housing;
• Close the gas supply at the valve of the gas cylinder or the regulator after use;
• In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be shut off and the appliance shall be investigated and rectified before it is used again;
• Check the hose at least once per month, each time the cylinder is changed, or each time before a long time of no use.
• If hose shows signs of cracking, splitting or other deterioration it must be exchanged for new hose of the same length and of the equivalent quality;
  • The use of this appliance in enclosed areas can be dangerous and is PROHIBITED;
• Read the instructions before using this appliance. The appliance must be installed in accordance with the instructions and local regulations.

For your safety

Heater stand and location

• The heater is for outdoor use only. Always ensure that adequate fresh air ventilation is provided.

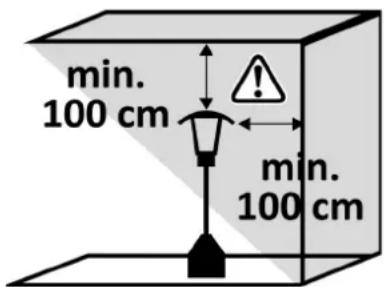

• Always maintain proper clearance to non protected combustible materials i.e. top 100 cm and sides 100 cm minimum.
  • Heater must be placed on level firm ground.
• Never operate heater in an explosive atmosphere like in areas where flammable liquids or vapors are stored.
• To protect heater from strong wind, anchor the base securely to the ground with screws.

• Use propane, butane or their mixtures gas only.
- The pressure regulator and hose assembly to be used must conform to local standard codes.
- The installation must conform to local codes, or in the absence of local codes, with the standard for the storage and handling of liquid petroleum gases.
- A dented, rusted or damaged tank may be hazardous and should be checked by your tank supplier. Never use a tank with a damaged valve connection.
- The tank must be arranged to provide for vapor withdrawal from the operating cylinder.
- Never connect an unregulated tank to the heater.

Leakage test

• Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness check must be performed at the installation site due to possible mishandling in shipment or excessive pressure being applied to the heater.
• Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied with a spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
  • The heater must be checked with a full cylinder.
  • Make sure the safety control valve is in the OFF position.
  • Turn the gas supply ON.
  • In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and re-check.
  • Never leak test while smoking.

Warning!

Do not make any changes to the device in any way. Incorrect installation, improper use, changes or modifications to the device may damage or cause injury. Manufacturer and importer can not be held responsible.

3

For your safety

How to turn on the heater

1. Turn on the valve on the gas supply cylinder completely.
2. Press and turn the variable control knob to PILOT position (counter-clockwise 90 degrees).
3. Press down the variable control knob and hold for 60 seconds. While holding down the variable control knob, press the igniter button several times until the pilot flame lights. Release the variable control knob after the pilot flame lights.
4. After the pilot flame lights, turn the variable control knob to maximum position and leave it there for 5 minutes or more before turning the knob to desired temperature position.

Control panel may differ slightly

Off: The heater is off

High: Maximum temperature position

Low: Minimum temperature position

Note:

If a new tank has just been connected, please allow at least one minute for the air I the gas pipeline to purge out through the hole.

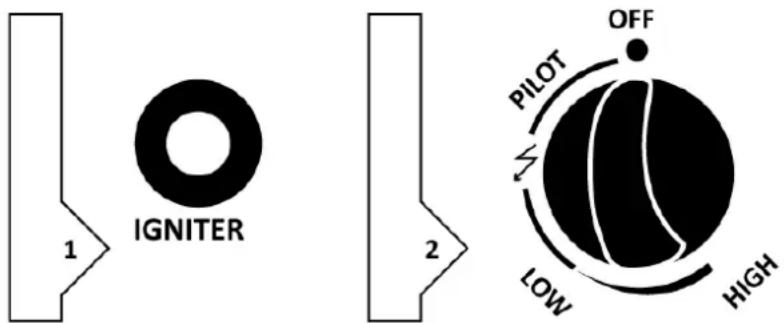

IGNITER 1 2 PILOT OFF LOW HIGH

When lighting the pilot flame make sure the variable control knob is continuously pressed down while pressing the igniter button. Variable control knob can be released after the pilot flame lights.

If the pilot flame does not light or it goes out, repeat step 3.

Note:

If the pilot light ignites but does not stay lit, turn heater control knob to OFF position, fully close propane gas valve, wait 5 minutes, then repeat steps 2–3. Now, using a lighter, ignite the pilot light through the ignition hole on the emitter screen. Once the pilot light is lit, depress control knob for 30 seconds.

How to turn the heater off

1). Turn the variable control knob to PILOT position.
2). Press and turn the variable control knob to OFF position.

Storage

1). Always close the gas valve of the gas cylinder after use or in case of a disturbance.
2). Remove the pressure regulator and the hose.
3). Check the tightness of the gas valve and if you suspect a damage, have it changed by your gas dealer.
4). Never store liquid gas cylinder in a sub-terrain, or at places without adequate air ventilation.

4

Cleaning and care

• Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that are combustible or corrosive.
- Remove debris from the burner to keep it clean and safe for use.
• Cover the burner unit with the optional protective cover when the heater is not in use.

During periods of extended inactivity or when transporting:

• Turn the control to "OFF" position.
- Disconnect LPG cylinder and move to a secure, well-ventilated location outdoors. DO NOT store in a location that will exceed 50 degrees C.
• Store heater upright in an area sheltered away from weather conditions (such as rain, sleet, hail, snow)
• If desired, cover heater to protect exterior surfaces and to help prevent dust and debris collecting in air passages.

Warning!

• DO NOT touch or move heater for at least 45 minutes after use.
• Allow all burner elements to cool before touching.

Note:

In a salt-air environment (such as near an Ocean) corrosion occurs more quickly than normal.

• Frequently check for corroded areas and repair them promptly.
• Wait until heater is cooled down before covering

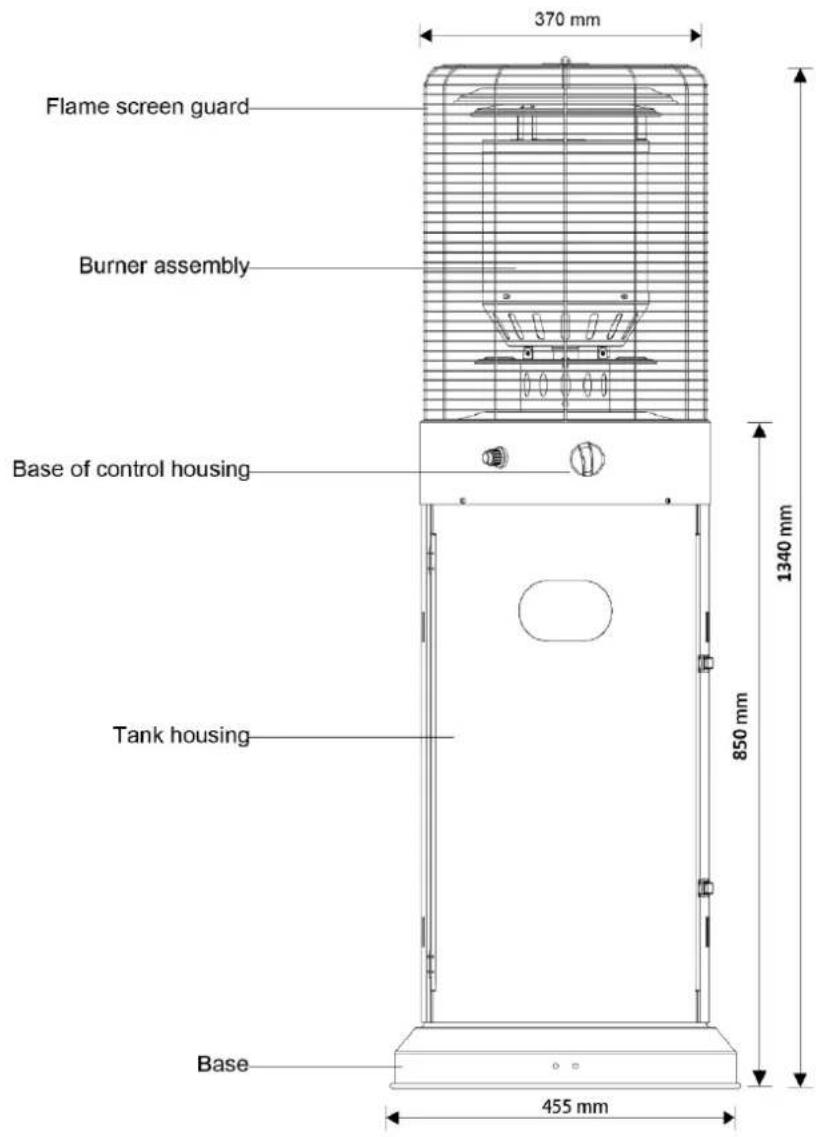

A. Construction and characteristics

• Transportable terrace/garden heater with tank housing.
  • Casing in steel with powder-coating or in stainless steel.
  Gas hose connections with metal clamp (screw caps for Germany). Heat emission from reflector.

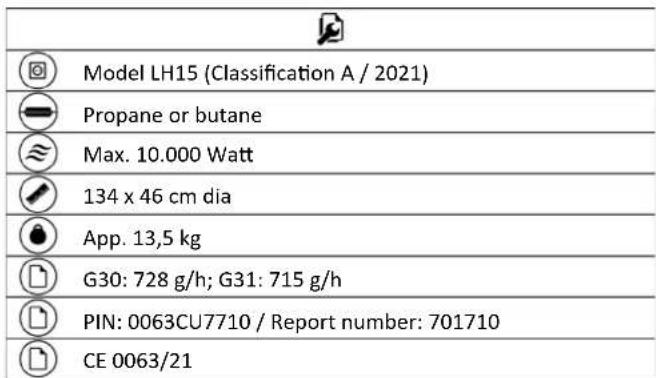

B. Specifications

• Use propane, butane or their mixtures gas only.
  • Max. wattage: 10.000 watts
  • Min. wattage: 5000 watts
• Consumption: →

C. Table of injector

• The hose and regulator assembly must conform to local standard codes.
• Regulator outlet pressure should meet the corresponding appliance category in B. Specification.
- The appliance requires approved hose in 1.4m length.

A regulator (complies with EN16129:2013 and the national regulation) of the correct pressure corresponding to the appliance category. Use 30mbar regulator for butane/propane under the category I3B/P(30). Use 30mbar regulator for butane under the category I3+(28-30/37). Use 37mbar regulator for propane under the category I3+(28-30/37). Use 50mbar regulator for butane/propane under the category I3B/P(50). It's recommended to use flexible hose that approved by EN16436: 2014.

See rating label on the next page →

RATING LABEL

4

Model	LH15B/LH15G/LH15S							MADE IN P.R.C.
Type / Classification / Année de production / Production year	Classification A / 2021		CE		0063/21
OutTrade code / number	LH15B/LH15G/LH15S
Producent / Producteur	OutTrade BV, Meeleweg 76 7711 EP Nieuwleusen, The Netherlands
Merk / Marque / Brand	Sunred
Landcode / Code du Pays / Countrycode	DE-AT			BE-FR-GR-IE-ITLU-PT-ES-GB				DK-FI-NL-NO-SE-CH
(mbar)	G30 / G31			G30		G31		G30 / G31
Categorie / Catégorie / Category	50 mbar			28-30 mbar		37 mbar		30 mbar
	I3B/P(50)			I3+(28-30/37)				I3 B/P (30)
Qn(Hs) / Qn(Hs)	10 kW			10 kW				10 kW
				X
Terrasverwarmer / Chauffage de terrasse / Patio heater	G30: 728 g/h; G31: 715 g/h
PIN: 0063CU7710	Report no.: 701710			特批次代碼在20个指定名稱內
Land van bestemming / Pays de destination / Country destination	UK	NL	BE	LU	DE	FR
			X
Warning EN - Patio heater• Read instruction manual before using. For installation follow the instructions in the instruction manual.• This patio heater is only to be used outdoors. Do not use device at home or in a closed area / space.• Use of this device in closed holds and DANGEROUS and PROHIBITED.1) For use outdoors or in well-ventilated areas.2) A well-ventilated room must be at least 25% open (see Figure 2).3) The area is the sum of the area of the walls.				• Always maintain adequate ventilation.• Keep combustible materials away from the heat.• To turn off the heater, turn the control knob to PILOT (PILOT). Press the button and then turn it on OFF (OFF).• Close the valve of the gas tank after use place the appliance in a well-ventilated room of which at least 25% the walls are open.• Replace the gas cylinder in a well-ventilated area away from ignition sources such as candles, cigarettes and other devices with flames.• Close the valve of the gas cylinder or the regulator after use.
Waarschowing: NL - Terrasverwarmer• Lees de gebruiksaanwijzing door en begijp dezel• Voor montage volg de aanwijzingen in de instructiehandleiding• Deze terrasverwarmer alleen geschikt voor gebruik buitenshuis.Gebruik het apparaat niet in huis of een gedoten ruimte.• Het gebruik van dit apparaat in afgesloten ruimtes en GEVAARLUK en VERBODEN.1) Voor gebruik buitenshuis of in goed geventileerde ruimtes.2) Een goed geventileerde ruime moet minimal voor 25% open zijn (zie figuur 2).3) Het oppervlak is de som van de oppervlakte van de wanden.				• Zorg altijd voor voldoende ventilatie.• Houd brandbare materiales uit de buurt van de verwarmer.• Om de verwarmer uit te neten, draalt u de bedieningsknop naar WAAKVLM (PILOT).Druit de knop in en draal hem maar UIT (OFF).• De toestel is geschikt voor gastype propaun / butaan.• Verwissel de gasfies (gascylinder) in een goed geventileerde ruimte, verwijdert van ontstekongsbronnen zoals kaarsen, sigaretten en andere apparaten met vlammen.• Slait de kraan van de gasfies of de drukangebar na gebruik.
Warming DE - Patio Heizung• Lesen Sie die Bedienungsanleitung vor Ingebrauchnahme durch.• Für die Installation folgen Sie den Anweisungen in der Bedienungsanleitung.• Dieser Terrassensträder nur im Freien verwenden.• Verwendung dieses Gerätes in geschlossenen Lederbumen und GEFÄHLICH und VERBOTEN.1) Für den Einsatz im Freien oder in gut belüfteten bereichen.2) Ein gut belüfteter Raum muss zu mindestens 25% offen sein (siehe Abbildung 2).3) Die Fläche ist die Summe der Fläche der Wände.				• Halten Sie immer eine ausreichende Belüfung.• Halten Sie brembare Materialen weg van der Hitze.• Zum Ausschalten der Heizung, drehen Sie den Drohlknop auf PILOT (PILOT).Drücken Sie die Taste und schalten Sie ihn aus (OFF).• Schließen Sie das Ventil der Gasflasche nach Gebrauch.• Ersetzen Sie die Gasflasche (Gasflanche) in einem gut belüfteten Ort weg von Zündquellen wie Kerzen, Zigaretten und andere Geräte mit flammen.• Schließen Sie das Ventil der Gasflasche oder des Reglers nach Gebrauch.
Attention TR - Chauffage de terrasse• Usez les instructions et comprenezles !• Pour l'installation suivez les instructions dans le manuel d'instructions• Ce chauffe-patio convient uniquement pour une utilisation extérieure.N'utilises pas l'appareil dans la maison ou dans un espace clos.• L'utilisation de cet appareil dans les espaces clos est dangereux et interdits.1) pour un usage excérieur ou dans des zones bien ventielles.2) un spacieux bien aéré doit être d'ou moins 25% ouvert (voir Figure 2).3) la surface correspond à la somme de la surface des murs.				• Promez toujours soin d'une ventilation adéquate.• Tenez les matériaux combustibles à l'écart du radiateur.• Pour éteindre l'appareil, tournez le bouton de réglage à la veilleuse (PILOT).Appuyez sur la touche et étraignez-le.• Termez le robinet de la bouteille de gaz après utilisation.• Cet appareil est adopté pour le type de gaz propane/butane.• Change la bouteille de gaz dans un endroit bien ventilé, loin de toute source d'allumage comme les bougies, les cigarettes et les autres appareils avec des flammes.• Firmez le robinet de gaz sur la bouteille de gaz après utilisation.
Fig. 2
OutTrade BV Meeleweg 76 7711 EP Nieuwleusen The NetherlandsTel: [phone] Fax: [phone] E-mail: [e-mail] www.outtrade.eu

COMPONENT OVERVIEW

A	ame screen guard
B	urner assembly
C	plinder Housing
D	ase
E	heel

Flame screen guard Burner assembly Base of control housing Tank housing Base 455 mm 370 mm 1340 mm 850 mm

COMPONENT OVERVIEW

HARDWARE CONTENTS (shown actual size)

Bolt M8 X 16

Qty. 2

M8

Flange

nut

Qty. 2

Screw M5 X 8

Qty.12

M5 Flange Nut

Qty.12

Philips

screwdriver

Qty. 1

Wrench

Qty. 1

LEAK TEST

WARNING

Read the instructions before installation.

WARNING

The device may not be used in the event of a leak. When the unit is turned on, shut off the gas supply and check the unit before using

WARNING

The recommended frequency of tubing or flexible tubing testing (at least once a month and each time the cylinder is replaced) and the need for regular replacement, if indicated on the tubing or flexible tubing. If it shows signs of cracking, cracking or other damage, it must

WARNING

1) Read the instructions before installing;
2) Do not connect the gas cylinder directly to the unit without the regulator.
3) The hoses or the flexible hose must be replaced within the prescribed intervals.

WARNING

Do not connect the gas cylinder to the unit without a regulator.

WARNING

• When the ignition flame doesn't ignite or if it's extinguished, turn the control to "OFF". It needs to be in OFF position for at least 5 minutes before ignition can be attempted again. Ensure that the control is in OFF position before igniting the gas heater again.
• If a new gas bottle has been newly connected, let gas pipe air escape through ignition flame hole for at least one minute.
• When igniting the flame, ensure that the variable control is pressed the whole time while ignition button is pressed. The variable control can be released once ignition flame is burning.
• You can observe and control the ignition flame through the little round window with sliding cover situated at the bottom of the radiation shade. The ignition flame can also be lit with a match. Slide the sliding cover to the side in order to ignite the ignition flame through

ASSEMBLY

M8 Flange Nut

x 2

M8 x 16 mm Bolts

× 2

Wrench

× 1

1

Diagram of a mechanical component with a circular base and a separate cylindrical pin, showing motion direction (no text or symbols)

2

Simple line drawing of a cylindrical container with a downward arrow indicating force or movement (no text or symbols)

Screw M5 X 8

x6

Philips screwdriver

× 1

M5 Flange Nut

x6

Screw M5 X 8

x6

Philips screwdriver

x 1

M5 Flange Nut

x6

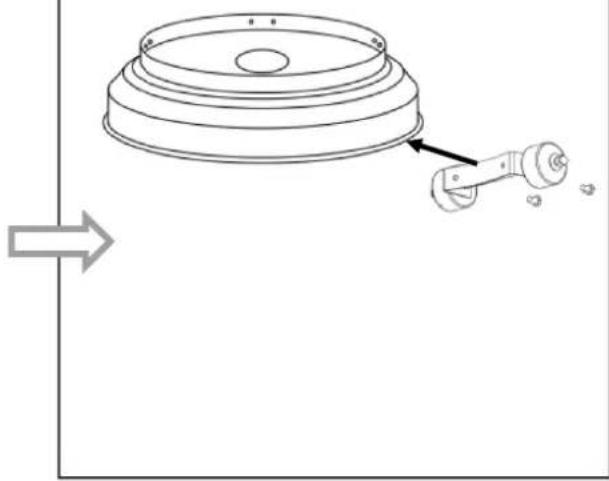

3

Technical line drawing of a cylindrical device with internal structure and an arrow indicating downward motion (no text or symbols)

ASSEMBLY

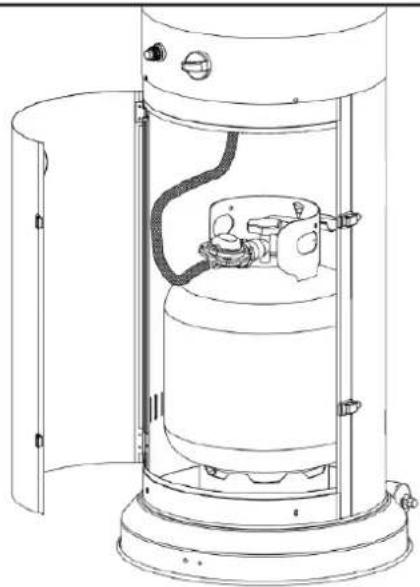

4

Technical line drawing of a vertical cylindrical device with internal fan structure and mounting bracket (no text or symbols)

WARNING

This product contains small batteries. Swallowed small batteries can cause CHOCKING HAZARD. Seek immediate medical attention if batteries are swallowed or inhaled. Keep children away from the small batteries

WARNING

Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire. After the cylinder is placed inside the heater, secure the-cylinder with block belt tight.

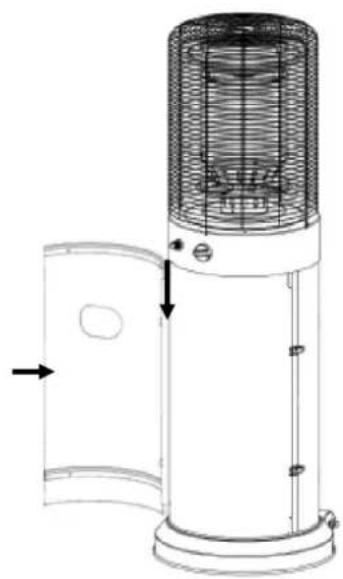

5

Technical line drawing of a cylindrical industrial device with internal components and no visible text or symbols

7

Leak test

Warning!

◆ Read the instructions before installation.
The device may not be used in the event of a leak. When the unit is turned on, shut off the gas supply and check the unit before using again.
The recommended frequency of tubing or flexible tubing testing at least once a month and each time the cylinder is replaced) and the need for regular replacement, if indicated on the tubing or flexible tubing. If it shows signs of cracking, cracking or other damage, it must be replaced with a new hose of equal length and quality

1). Read the instructions before installing;
2). Do not connect the gas cylinder directly to the unit without the regulator.
⇒ 3). The hoses or the flexible hose must be replaced within the prescribed intervals.
4). Use only the gas type and bottle type specified in this manual.

Do not connect the gas cylinder to the unit without a regulator.
◆ Use only the specified gas and bottle type.
Do not connect the gas cylinder to the unit without a regulator.
◆ Use only the specified gas and bottle type.
When the ignition flame doesn't ignite or if it's extinguished, turn the control to "OFF". It needs to be in OFF position for at least 5 minutes before ignition can be attempted again. Ensure that the control is in OFF position before igniting the gas heater again.
If a new gas bottle has been newly connected, let gas pipe air escape through ignition flame hole for at least one minute.
When igniting the flame, ensure that the variable control is pressed the whole time while ignition button is pressed. The variable control can be released once ignition flame is burning.
You can observe and control the ignition flame through the little round window with sliding cover situated at the bottom of the radiation shade. The ignition flame can also be lit with a match. Slide the sliding cover to the side in order to ignite the ignition flame through the hole with a match.

Warning!

A leak test must be performed annually and each time a cylinder is hooked up or if a part of the gas system is replaced.
Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious bodily injury, or death.

LEAK TESTING

	1). This must be done before initial use, annually,and whenever any gas Components are replaced or serviced. Do not smoke while performing this test, and remove all sources of ignition. See Leak Testing Diagram for areas to check. Turn all burner controls to the off position. Turn gas supply valve on.
	2). Brush a half-and-half solution of liquid soap and water onto all joints and connections of the regulator, hose, manifolds and valves.
	3). If the leak cannot be stopped,immediately shut off the gas supply, disconnect it,and have the patio heater inspected by a certified gas installer or dealer. Do not use the patio heater until the leak has been corrected.

PROBLEMS CHECK LIST

PROBLEM PROBABLE CAUSE SOLUTION
Pilot will not light Gas valve may	be OFF	Turn the gas valve ON
	Tank fuel empty	Clean or replace opening
	Opening blocked	Refill LPG tank
	Air in supply system	Purge air from lines
	Loose connections	Check all fittings
Pilot will not stay on Debris around pilot	und pilot	Clean dirty area
	Loose connections	Tighten connections
	Thermocouple bad	Replace thermocouple
	Gas leak in line	Check connections
	Lack of fuel pressure	Tank near empty. Refill LPG tank.
Burner will not light Pressure is low	low	Empty bottle. Fill
	Opening blocked	Remove and clean
	Control not ON	Turn the switch
	Thermocouple bad	Replace the thermocouple
	Pilot light assembly bent	Position correctly
	Not in correct location	Position correctly and try again
If the appliance is in case of any defaults or problems of assembly or use Please don’t try to modify it by yourself contact your supplier or distributor to solve it.

9

Disposal of the appliance

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Appliances which are labelled with the adjacent symbol must not be disposed of in household waste. You must dispose of such old electrical and electronic equipment separately.

Through separate disposal you send old equipment for recycling or for other forms of re-use. You will thus help to avoid in some cases that damaging material gets into the environment.

For private households: Information on Disposal for Users of WEEE this symbol on the product(s) and / or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with you national legislation.

For disposal in countries outside of the European Union This symbol is only valid in the European Union (EU). If you wish to discard this product please contact your local authorities or dealer and ask for the correct method of disposal.

Disposal of the packaging

The packaging consists of cardboard and correspondingly marked plastics that can be recycled.

Model LH15 (Classification A / 2021) Propane or butane Max. 10.000 Watt 134 x 46 cm dia App. 13,5 kg G30: 728 g/h; G31: 715 g/h PIN: 0063CU7710 / Report number: 701710 CE 0063/21

WARRANTY CARD

Abstract shield icon with three stars and a circular speedometer symbol (no text or numbers)

2 years limited warranty

Please complete this form and fax or e-mail to the numbers below. Please return with a receipt to your retailer if your products becomes faulty.

• Please add a scan/copy of the receipt.
• Please add images/pictures and a description of the faulty or damaged product.

Your name:

Your address:

E-mail address:

Postcode:

Product name:

Model number:

Batch code:

(located at rating label on the rear or side of the unit.)

Place of purchase:

Date of purchase: Year:

OutTrade B.V.

Meeleweg 76

7711 EP Nieuwleusen

The Netherlands

Tel: +31-529—48 28 08

Fax: +31-529—48 49 10

[e-mail]

www.outtrade.eu

Please describe the fault:

EU DECLARATION OF CONFORMITY
We, OutTrade B.V.	Meeleweg 767711 EP Nieuwleusen
Declare under our sole responsibility that the product described below:
Brand and model name: Sunred LH15
Equipment Classification Outdoor Patio Gas Heater
Is in comformity with the following Standards and Directives:
Standard With reference to GAR Regulation (EU) 2016/426EN 14543:2017CE 0063
I hereby declare that the equipment named above has been designed to comply with the relevant sections of above referenced Standards and meets all essential requirements of the specified Directives.
Signed: R. Dijkman Signed for and on	behalf of: OutTradeB.V.
Position: Managing Director
Location: Nieuwleusen, The Netherlands	Date of issue:	Nieuwleusen, 28/07/2021

OutTrade BV

Black industrial gas stove with mesh chamber and control panel (no visible text or symbols)

Waarschuwing!

Simple line drawing of a lamp inside a transparent cube (no text or symbols)

Fig. 2

Off: The heater is off

High: Maximum temperature position

Low: Minimum temperature position

Kennisgeving

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Abstract shield icon with three stars and a circular speedometer symbol (no text or numbers)

Black industrial gas stove with mesh chamber and control panel (no visible text or symbols)

1

Warnung!

Simple line drawing of a lamp inside a transparent cube (no text or symbols)

Fig. 2

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Abstract shield icon with three stars and a circular speedometer symbol (no text or numbers)

Black industrial gas stove with heat exchanger and cooling cage (no visible text or symbols)

Warnung!

Simple line drawing of a lamp inside a transparent cube (no text or symbols)

Fig. 2

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Abstract shield icon with three stars and a circular speedometer symbol (no text or numbers)
