Atria Flame - Heating SunRed - Free user manual and instructions

Product type	Outdoor radiant heater
Brand	SunRed
Model	Atria Flame
Usage	Outdoor only, very well ventilated areas (opening ≥25% of surface)
Fuel	Propane, butane or mixture (LPG)
Total height	2150 mm
Weight	28 kg
Main material	Steel with powder coating
Flame screen	Stainless steel
Ignition	Electric impulse (AA battery)
Flame adjustment	Variable from Low to High
Glass tube	Heat resistant, protect from thermal shock
Compatible gas tank	LPG cylinder 10 kg max. (diameter ≤31 cm, height ≤66 cm)
Hose length	≤60 cm, CE approved, resistant from -20°C to 80°C
Supply pressure	Regulator conforming to local standards (max. input 100 PSI)
Cleaning	Warm soapy water, never use abrasive or flammable products
Maintenance	Annual hose check, orifice cleaning, leak inspection
Safety	Thermocouple, safety shut-off, leak test with soapy solution
Storage	Sheltered from weather, temperatures ≤50°C, frost-free
Supplied parts	Reflector, top plate, glass tube, burner, tank, wheels, screws, keys

Frequently Asked Questions - Atria Flame SunRed

What type of gas to use with the SunRed Atria Flame?

Use propane, butane or their mixture (LPG). The cylinder must comply with local regulations, with a maximum capacity of 10 kg, a diameter ≤31 cm and a height ≤66 cm.

Can I use this heater indoors?

No, indoor use is strictly prohibited. The device is designed for outdoor or very well ventilated areas (at least 25% open surface). Used in an enclosed space, it can cause poisoning or explosions.

How to check for gas leaks?

Perform a test with soapy water (1 part liquid detergent to 1 part water). Apply to fittings and connections. If bubbles appear, there is a leak. Never use a flame to check for leaks. If a leak is found, close the gas supply and tighten the connections.

What to do if I smell gas?

Immediately close the gas valve and extinguish any flame. Do not operate any electrical switch and do not call from the area. Evacuate people, ventilate the area, and contact your gas supplier or fire department from a safe location.

How to light the Atria Flame heater?

Ensure an AA battery is in place (+ terminal facing outward). Open the gas cylinder valve, press the control knob and turn it to the pilot position. Press the ignition button to light the burner, hold for 4 seconds then release. Then turn the knob to the desired temperature setting (LOW or HI).

Can the glass tube break?

Yes, the glass tube is fragile. Protect it from thermal shock (avoid cold water splashes when hot). Do not use if it has chips. Wait for it to cool completely before cleaning or touching.

How to clean the heater?

Use warm soapy water and a soft cloth. Never use abrasive, corrosive, or flammable products. For the glass tube and reflector, clean the inside with soapy water if carbon deposits appear. Ensure all parts are dry before relighting.

How to store the appliance in winter?

Turn off the heater, close the gas cylinder valve and disconnect it. Store the appliance vertically in a place sheltered from the weather (rain, snow, hail) and at a temperature below 50°C. Cover it to protect from dust. The gas cylinder should be stored outdoors, in a ventilated area.

Where to find spare parts?

The list of parts is in the manual. You can order spare parts (reflector, glass tube, burner, etc.) from your dealer or the manufacturer. Use only original parts to ensure safety.

What to do if the pilot doesn't light?

Check that the gas cylinder is not empty and that the gas valve is open. Ensure the AA battery has sufficient power. If the pilot does not light, wait 5 minutes before trying again (full shut-off period). If the problem persists, check the connections and burner orifice. Consult the Troubleshooting section of the manual for other causes.

USER MANUAL Atria Flame SunRed

Manual Square Flame Torch (UK)

Handleiding Flame Torch (NL)

Certified by international recognized standards.

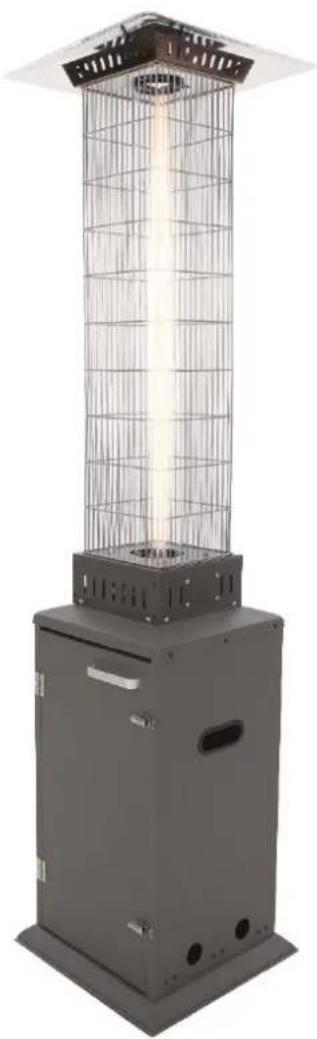

The infra-red with heat wave outdoor heater.

Variable control gas valve with electric pulse Igniter.

Steel with powder coated or stainless steel.

2150mm total height.

Cover with extend warming area.

Please keep this manual for future references

Manual Square Flame Torch (UK)

Certified by international recognized standards.

The infra-red with heat wave outdoor heater.

Variable control gas valve with electric pulse Igniter.

Steel with powder coated or stainless steel.

2150mm total height.

Cover with extend warming area.

Please keep this manual for future references

WARNING

• Read the instructions before installation and use.
  This appliance must be installed and the gas the gas cylinder stored in accordance with the regulations in force.
• This appliance requires installation by a competent person.
• For use only in well-ventilated areas. An amply ventilated area must have a minimum of 25% of the surface area open. The surface area is the sum of the walls surface.
  The use of this appliance in enclosed areas can be dangerous and is prohibited.
  This appliance shall be not used for the heating of domestic premises.
• This appliance shall be used for space heating only.
  This appliance shall not be used in basements or below ground level.
  This appliance has no atmospheric sensing device. It shall be used for heating well-ventilated buildings used for animal rearing, or for outdoor use only.
  Use only the type of gas and the type of cylinder specified by the manufacturer.
• Do not place items on or against this appliance.
• Do not store chemicals or flammable materials or spray aerosols near this appliance.
• Do not operate this appliance in an explosive atmosphere like in areas where gasoline or other flammable liquids or vapors are stored.
• Protect the hot glass tube from rain, water splash or anything that will cause a sudden change in temperature which may lead to cracking or shattering.

WARNING

• Turn off the gas valve immediately if smell of gas is detected.
• Extinguish any open flame.
• If odor continues, contact your gas supplier immediately.

WARNING

The user assumes all risk in the assembly and operation of the gas heater. Failure to follow the warnings and instructions in this manual can result in severe personal injury, death or property damage. If user cannot read or fully understand the instruction manual, please contact your dealer. Manufacturer or supplier will not be responsible for user's negligence.

CAUTION

• Installation and repair should be done by a qualified service person.
• Improper installation, adjustment, alteration can cause personal injury or property damage.
• Do not attempt to alter the unit in any manner.
  This appliance must be installed and the gas cylinder stored in accordance with the regulation in force.
• Do not move the appliance when in operation.
• Shut off the valve at the gas cylinder or the regulator before moving the appliance.
• The tubing or the flexible hose must be changed every year.
  In case of violent wind particular attention must be taken against tilting of the appliance.
• Do not store or use gasoline or other flammable vapors or liquids into the heater unit.
  The whole gas system, hose regulator, pilot or burner should be inspected for leaks or damages before use.
  All leak tests should be done with a soap solution. Never use an open flame to check for leaks.
• Do not use the heater until all connections have been leak tested.
• Turn off immediately the gas valve if smell of gas is detected.
• Do not transport the heater while it's operating.
• Do not move the heater after it has been turned off until the temperature has cooled down.
• Keep the ventilation opening of the cylinder enclosure free and clear of debris.
• Do not paint radiant screen, control panel or top canopy reflector.
  Control compartment, burner and circulation air passageways of the heater must be kept clean.
• Frequent cleaning may be required as necessary.
• The LP tank should be turned off when the heater is not in use.

• Check the heater immediately if any of the following exists:

• The heater does not reach temperature.

• The burner makes popping noise during use (a slight noise is normal when the burner is extinguished).
  Smell of gas in conjunction with extreme yellow tipping of the burner flames.

The LP regulator/hose assembly must be located out of pathways where people may trip over it or in area where the hose will not subject to accidental damage.
Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.
- Change the gas cylinder in a well ventilated area, away from any inflammation source.
- Check that the regulator seal is fitted and that is in good condition.
- Do not obstruct the ventilation holes of cylinder housing.
Adults and children should stay away from high temperature surfaces to avoid burns or clothing ignition.
Children should be carefully supervised when they are in the area of the heater.
- Use may replace the rubber hose by himself and note the length of the hose is 60cm . And the hose must be required by the national conditions.
- LP Characteristics-Flammable, explosive, heavier than air-settles in low areas.
In its natural state, propane has no odor. For your safety, an odorant is added that smells like rotten cabbage.
- Contact with liquid LP can cause freeze burns to skin.
This heater is shipped from the factory for Propane, Butane and their mixture (commonly called LPG) use only
- Use only 10kg (Dia. can not exceed 31cm & Height can not exceed 66cm ) LP gas cylinders conforms to local regulation in force (same as commonly used on gas grills) with safety valves.
- When heater is not in use, turn Control Valve OFF. Close the valve of the gas cylinder or the regulator after use.

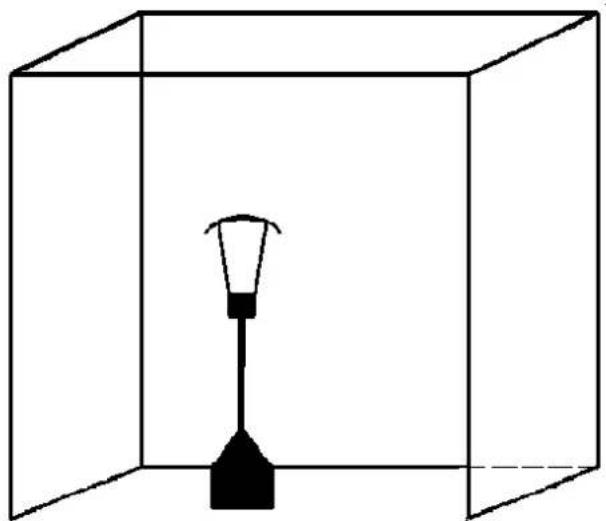

The use of this appliance in enclosed areas can be dangerous and is "PROHIBITED"

1) For use outdoors or in amply ventilated areas.
2) An amply ventilated area must have a minimum of 25% of the surface area open.
3) The surface area is the sum of the walls surface.

Warning:

• Never use the heater while it is raining, the glass tube would break when it suddenly met water
  Always turn off the heater while there is a rain.
• Never splash any liquid to the glass tube when the heater is working
  The glass tube will be extremely hot when it is working. Never try to touch it and keep the children away from the heater
  Always ensure the heater stands firmly, the glass tube may break if the heater was fell down onto ground.
• Never use the heater if the glass tube has any crack

HEATERS STAND AND LOCATION

The heater is primarily for outdoor use only. Always ensure that adequate fresh air ventilation is provided.
Always maintain proper clearance to combustible materials, i.e. top 45cm (18") and sides 70cm (28") minimum
- Heater must be placed on level firm ground.
- Never operate heater in an explosive atmosphere like areas where gasoline or other flammable liquids or vapors are stored.

GAS REQUIREMENTS

• Use propane, butane, propane and butane mixture.
  Maximum inlet pressure of regulator must to exceed 100 PSI.
  The pressure regulator and hose assembly to be used must conform to local standard codes.
  Use correct pressure regulators conform to local regulation in force and specification in page 7 of this manual.
• The installation must conform to local codes, or in the absence of codes, with the standard for storage and handling of liquid petroleum gases.
  A dented, rested or damaged propane tank may be hazardous and should be checked by your tank supplier.
• Never use a propane tank with a damaged valve connection.
  The propane tank must be arranged to provide for vapor withdrawal from the operation cylinder.
• Never connect an unregulated propane tank to the heater.
  The rubber hose which connect the regulator and inlet should not longer than 60~cm
• The rubber hose should be got CE approval, and heat resistant should be between -20^ to 80^

LEAKAGE TEST

Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness check must be performed at the installation site due to possible mishandling in shipment or excessive pressure being applied to the heater.

• The heater must be checked with a full cylinder.
• Make sure the safety control valve is in the OFF position.
• Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied with a spray bottle, brush or rag.
• Soap bubbles will appear in case of a leak.

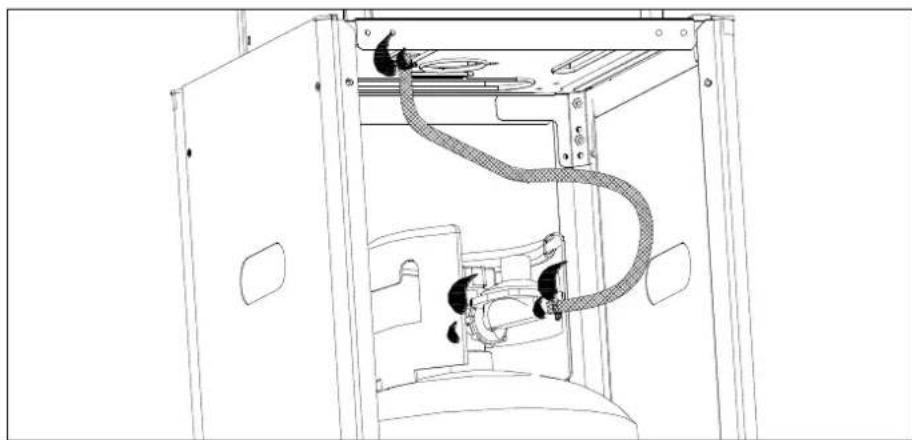

• Leakage test points. See pictures below.
• Turn the gas supply ON.
• In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and recheck. Contact your dealer for assistance if bubbles continue to appear.
• Never leak test while smoking.

FUEL GAS ODDER

LP gas and natural gas have manmade odorants added specifically for detection of fuel gas leaks. If a gas leak occurs

you should be able to smell the fuel gas .Since Propane (LP) is heavier than air you should smell for the gas odor low to the floor. ANY GAS ODDR IS YOUR SIGNAL TO GO INTO IMMEDIATE ACTION!

• Do not take any action that cloud ignite the fuel gas. Do not operate any electrical switches. DO not pull any power supply or extension cords. Do not light matches or any other source of flame. Do not use your telephone.
  Get everyone out of the building and away from the area immediately.
• Propane (LP) gas is heavier than air and may settle in low areas. When you have reason to suspect a propane leak, keep out of all low areas.
  Use your neighbor's phone and call your fuel gas supplier and your fire department. Do not reenter the building or area.
• Stay out of the building and away from the area until declared safe by the firefighters and your fuel gas supplier.
• FINALLY, let the fuel gas service person and the firefighters check for escaped gas. Have them air out the building and area before you return. Properly trained service people must repair any leaks, check for further leakages, and then relight the appliance for you.

OPERATION

LIGHTING INSTRUCTIONS

Check and ensure that an AA battery is inside the ignition chamber And has power. Ensure the anode (+) faces outside.

TO TURN THE HEATER

1. Turn on the valve on the gas supply cylinder completely.
2. Push the control knob in it and turn it the "pilot" position.
3. Press the "igniter" button several times to light the burner. Hold it for 5 seconds. Release the Control Knob after the burner lights.

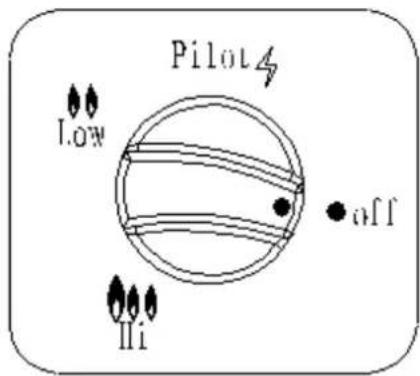

4. Turn the Control Knob to switch to desired temperature position.

5. Turn the knob to "LOW" position for small flame. See picture of

• Turn the knob to "Hi" position for big flame. See picture of "

Note:

If the pilot flame dose not light or it goes out,

Shut off the control knob. A 5-minute complete shutoff period is necessary before relighting.

Please confirm the control knob on the off position before to light the heater.

-If a new tank has just been connected, please allows at least one minute for the air in the air in the gas pipeline to purge out through the pilot hole.

• When lighting the pilot flame make sure that the variable control knob is continuously pressed down while pressing the lighter button. Variable control knob can be released after the pilot flame lights.

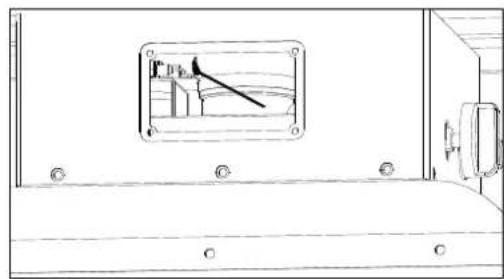

• Pilot flame can be watched and checked from the square window with sliding lid(Figure 1&2) located at the bottom of the flame screen The pilot also can be lighted by match.

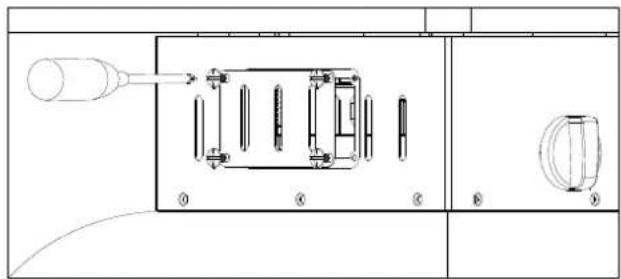

Take off the sliding lid, through the window to light the pilot by match.

TO TURN OFF THE HEATER

1. Press and turn the variable control knob to OFF position.

2. Turn off the valve on the gas supply cylinder completely.

Figure1
Figure2

CLEANING AND MAINTENANCE:

To enjoy outstanding performance of your heater for years make sure to perform the following maintenance activities on a regular basis:

• Keep exterior surfaces clean.

--Use warm soapy water for cleaning. Never use flammable, corrosive or abrasive cleaners.

While washing your unit, be sure to keep the area around the burner and pilot assembly dry at all time. If the gas control is exposed to water in any way, do NOT try to use it. It must be replaced.

After a long break from operation, the unit should be inspected for spiders, spider webs or other insects

Air flow must be unobstructed. Keep controls. Burner and circulating air passageways clean. Signs of possible blockage include:

--Gas dour with extreme yellow tipping of flame.

--Heater does NOT reach the desired temperature.

--Heater glow is excessively uneven.

--Heater makes popping noises.

• Spider and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
• Carbon deposits may create a fire hazard. Clean reflector and glass tube inside with soapy water if any carbon develops. Always be careful when cleaning the glass tube.

STORAGE:

Between uses:

• Turn the control knob to "OFF" position.
• Turn LPG cylinder to "OFF" position.

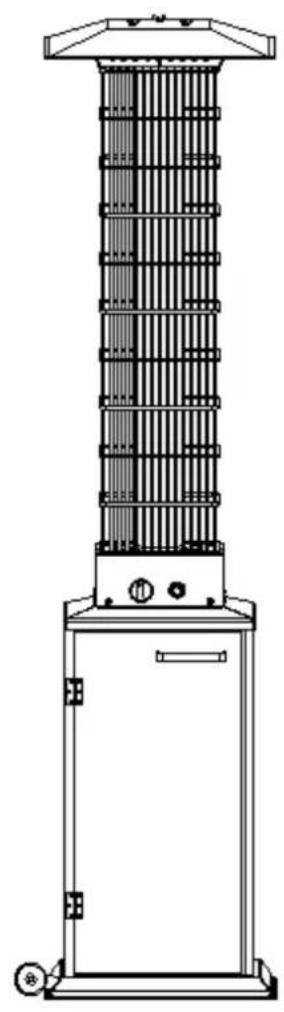

• Store heater upright in an area sheltered away foam weather conditions (such as rain, sleet, hail, snow)
• If desired, cover heater to protect exterior surfaces and to help prevent dust and debris collecting in air passages.

During periods of extended inactivity or when transporting:

• Turn the control to "OFF" position.
• Disconnect LPG cylinder and move to a secure, well-ventilated location outdoors. DO NOT store in a location that will exceed 50 degrees C.
• Store heater upright in an area sheltered away from weather conditions (such as rain, sleet, hail, snow)
• If desired, cover heater to protect exterior surfaces and to help prevent dust and debris collecting in air passages.

WARNING FOR YOUR SAFETY · DO NOT touch or move heater for at least 45 minutes after use. · Allow all burner elements to cool before Touching

NOTE · In a salt-air environment (such as near an Ocean) corrosion occurs more quickly than normal · Frequently check for corroded areas and Repair them promptly. · Wait until heater is cool before covering.

Part No.	Part Name	QTY
A	Reflector	1
B	Upper plate	1
C	Glass tube	1
D	Burner assembly	1
E	Tank	1
F	Wheel	1

Part No.	Part Name	QTY	Picture	Remarks
1	Bolt M8	2
2	Nut M8	2
3	Bolt M5	8
4	Nut M5	12
5	Washer Φ6	6
6	Wrench	1
7	Reflector support	3
8	Wing nut M6	3
9	Rubber ring	1
10	Wrench 8mm	1

Construction and characteristics:

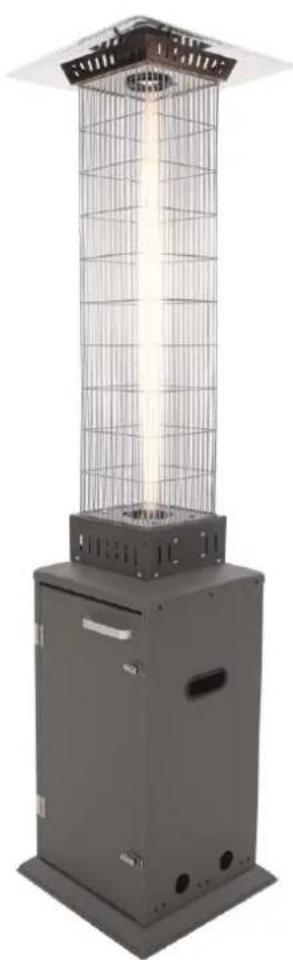

• Transportable terrace/garden heater with tank housing
• Stainless steel flame screen
  heat emission from reflector

B. Specifications

For outdoor use only

Weight: 28Kgs

Height: 2150mm

Countries of destination, pressure.

APPLIANCE CATEGORY:	13+(28-30/37)		13B/P(30)	13B/P(50)	13B/P(37)
TYPES OF GAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mbar	37 mbar	30 mbar	50mbar	37mbar
OUTLET PRESSURE OF REGULATOR:	30mbar	37 mbar	30 mbar	50mbar	37mbar

Using the proper regulator according to outlet pressure of regulator as showed in the table above.

C. Table of injector

APPLIANCE CATEGORY:	13+(28-30/37)		13B/P(30)	13B/P(50)	13B/P(37)
TYPES OF GAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mbar	37 mbar	30 mbar	50mbar	37 mbar
TOTAL HEAT INPUT (Hs): (Qn)	11KW (800g/h)
INJECTOR SIZE:	1.6 mm for main burner0.18 mm for pilot burner			1.4 mm for main burner0.18 mm for pilot burner	1.5 mm for mainburner0.18 mm for pilot burner
The marking, for example, 1.16 on the injector, indicates that the size of injector is 1.6 mm

The hose and regulator assembly must conform to local standard codes.
Regulator outlet pressure should meet the corresponding appliance category in B. Specification.

General components & features

Familiarize yourself with all components before proceeding. Refer to page 4 for Hardware and Components, and page 5 for specifications.

Do NOT attempt to assemble unless all components are available. If you believe a component is missing or damaged, contact customer service for assistance.

Note: All hardware is mounted on a cardboard pack.

Additional Requirements

The following items are not included, but are necessary for the proper assembly of your heater. Do NOT attempt to assemble without proper tools. An open end wrench (10 &13mm) is necessary and is included in the parts bag.

Tools needed:

• Adjustable opening wrench (20cm/8" long)
• Slip joint pillars (23cm/9" long)
• Philips screw-driver w/ medium blade
• Teflon plumbing tape for joints
  Spray bottle of soap solution for leakage test

Finished

The installation must conform with local building codes, or in absence of local codes,

HEATER ASSEMBLY

1 Phillips head screwdriver, 1adjustable spanner

1.Assemble wheel(M) to the base, insert M8(1) and tighten M8 nut(2)	2. Assemble the rubber ring to one end of glass tube
Put the end with rubber ring to burner assembly and assemble the glass tube	4 Connect the tube(F) to the burner assembly by 8 screws 3/16″(3) and tighten all screws
5 Screw and tighten the reflector (A), put on the washer(5) and assemble the reflector(A) by wing nuts(9).	3Connect Burner assembly to the tank by 8 screws(7) and 8 nuts M5(4)

Caution:

The connections on this outdoor Heater has been checked at the factory for leaks. Recheck all connections, as movement in shipping can loosen connections. Check for leaks even if your unit was assembled for you at the store.

WARNING

1. The whole gas system, hose, regulator, or burner should be inspected for leak before each use.
2. Check the hose assembly for sign of extreme abrasion, cuts or wear. Suspected areas should be leak tested.
3. Make sure the ventilation opening of the cylinder enclosure, control compartment, burner and circulation air passageways of the heater are free and clear of debris. If debris, spider or insect nests are found, clean the holes with heavy duty pipe cleaner or compressed air.
4. Always keep a dry chemical fire extinguisher readily available. For safety, always allow a 5-minute complete shut off period before re-lighting a hot heater.
5. Do not move the heater, or cover it with protective cover after it has been turned off until the temperature has completely cooled down.

Troubleshooting

PROBLEMS	PROBABLE CAUSES	SOLUTIONS
Pilot will not light	Gas valve may be OFF	Turn the gas valve ON
	Tank fuel empty	Refill LPG tank
	Opening blocked	Clean or replace opening
	Air in supply system	Purge air from lines
	Loose connection	Check all fittings
Pilot will not stay on	Debris around pilot	Clean dirty area
	Loose connection	Tighten connection
	Thermocouple bad	Replace Thermocouple
	Gas leak in line	Check connections
	Lack of fuel pressure	LPG cylinder is near empty
Burner will not light	Gas pressure is low	LPG cylinder is near empty
	Orifice blocked	Remove, clean and replace
	Control not on	Turn valve to ON
	Thermocouple bad	Replace Thermocouple
	Pilot light assembly bent or not in correct location	Place pilot light in correct position and retry

Any repairs to the patio heater must be carried out by a qualified person

Handleiding Flame Torch (NL)

APPLIANCE CATEGORY:	13+(28-30/37)		13B/P(30)	13B/P(50)	13B/P(37)
TYPES OF GAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mbar	37 mbar	30 mbar	50mbar	37mbar
OUTLET PRESSURE OF REGULATOR:	30mbar	37 mbar	30 mbar	50mbar	37mbar

Using the proper regulator according to outlet pressure of regulator as showed in the table above.

C. Table of injector

APPLIANCE CATEGORY:	13+(28-30/37)		13B/P(30)	13B/P(50)	13B/P(37)
TYPES OF GAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mbar	37 mbar	30 mbar	50mbar	37mbar
TOTAL HEAT INPUT (Hs): (Qn)	11KW (800g/h)
INJECTOR SIZE:	1.6 mm for main burner0.18 mm for pilot burner			1.4 mm for main burner0.18 mm for pilot burner	1.5 mm for main burner0.18 mm for pilot burner
The marking, for example, 1.16 on the injector, indicates that the size of injector is 1.6 mm

The hose and regulator assembly must conform to local standard codes.
Regulator outlet pressure should meet the corresponding appliance category in B. Specification.

INSTRUCTIONS D'ALLUMAGE

APPLIANCE CATEGORY:	13+(28-30/37)		13B/P(30)	13B/P(50)	13B/P(37)
TYPES OF GAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mbar	37 mbar	30 mbar	50mbar	37mbar
OUTLET PRESSURE OF REGULATOR:	30mbar	37 mbar	30 mbar	50mbar	37mbar

Using the proper regulator according to outlet pressure of regulator as showed in the table above.

C. Table of injector

APPLIANCE CATEGORY:	13+(28-30/37)		13B/P(30)	13B/P(50)	13B/P(37)
TYPES OF GAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mbar	37 mbar	30 mbar	50mbar	37 mbar
TOTAL HEAT INPUT (Hs): (Qn)	11KW (800g/h)
INJECTOR SIZE:	1.6 mm for main burner0.18 mm for pilot burner			1.4 mm for main burner0.18 mm for pilot burner	15 mm for mainburner0.18 mm for pilot burner
The marking, for example, 1.16 on the injector, indicates that the size of injector is 1.6 mm

The hose and regulator assembly must conform to local standard codes.
Regulator outlet pressure should meet the corresponding appliance category in B. Specification.

Manual Square Flame Torch (UK)

Handleiding Flame Torch (NL)
