Brand	SilverCrest
Model	SHTT 2200 B1
Product type	Ionic hair dryer with touch sensor
Rated power	1900 - 2300 W
Mains voltage	220 - 240 V ~
Frequency	50/60 Hz
Protection class	II (double insulation)
Number of fan speeds	2
Number of heat settings	3
Cool air function	Yes (Cool-Shot button)
Ionic function	Yes
Touch sensor	Yes (automatic start when held)
Included accessories	Concentrator and diffuser
Overheat protection	Yes
Warranty	3 years
IAN reference	497179_2204
Customer service France	0800 919270
Customer service Belgium	0800 12089

Frequently Asked Questions - SHTT 2200 B1 SILVERCREST

How does the touch sensor work?

The TOUCH sensor automatically turns the appliance on when you hold it by the handle. If you release the hairdryer, it turns off. For permanent shutdown, use the fan speed switch.

How do I clean the air intake grille?

Remove the air intake grille by turning it slightly counterclockwise. Clean it with a soft-bristled brush, as well as the inner grille. Replace it by turning clockwise until it clicks into place.

What accessories are provided with the hairdryer?

The hairdryer comes with a concentrator for targeted drying and a diffuser for gentle drying or shaping curls.

What should I do if the appliance shuts off suddenly?

The appliance is equipped with overheat protection. Unplug it, let it cool down for a few minutes, then use it again. If the problem persists, contact customer service.

How do I use the cool air function?

Press the cool air button (Cool-Shot) during operation to get a cool airflow, ideal for setting the hairstyle after drying.

Can I use the hairdryer in the bathroom?

No, it is forbidden to use the appliance near water (sink, shower, bathtub) even when switched off. Unplug after each use and install a 30 mA residual current circuit breaker for safety.

What is the maximum power of the hairdryer?

The rated power is between 1900 and 2300 W depending on the mains voltage.

How do I benefit from the warranty?

Keep the receipt and the IAN 497179_2204 reference. Contact customer service by phone or email, then return the defective appliance with the supporting documents.

Can children use this appliance?

Yes, from 8 years under adult supervision, provided they have received instructions on safe use and understand the risks.

Where can I find the IAN number?

The IAN 497179_2204 number is on the product rating plate, on the cover page of the manual (bottom left) or on the sticker on the back or bottom of the appliance.

USER MANUAL SHTT 2200 B1 SILVERCREST

Operating instructions

FR BE

SÈCHE-CHEVEUX IONIQUE AVEC CAPTEUR TACTILE

Mode d'emploi

CZ

IONTOVÝ VYSOUŠEČ VLASŮ S DOTYKOVÝM SENZOREM

Návod k obsluze

SK

IÓNOVÝ SUŠIČ NA VLASY S DOTYKOVÝM SENZOROM

Návod na obsluhu

DK

HÄRTÖRRER MED ION-TEKNOLOGI, MED BERÖRINGSSENSOR

GB/IE Operating instructions Page 1

Package contents and transport inspection .... 2

Description of the appliance .... 3

Technical data 3

Safety instructions .... 3

Preparation 5

Operation 5

Heating and blower levels 6

Cold air level 6

Ionisation function 7

Drying and styling hair 7

Cleaning 8

Cleaning the housing 8

Cleaning the air intake grille 9

Storage 9

Troubleshooting 9

Disposal....10

Disposal of the appliance 10

Disposal of the packaging 10

Kompernass Handels GmbH warranty....11

Service 12

Importer 12

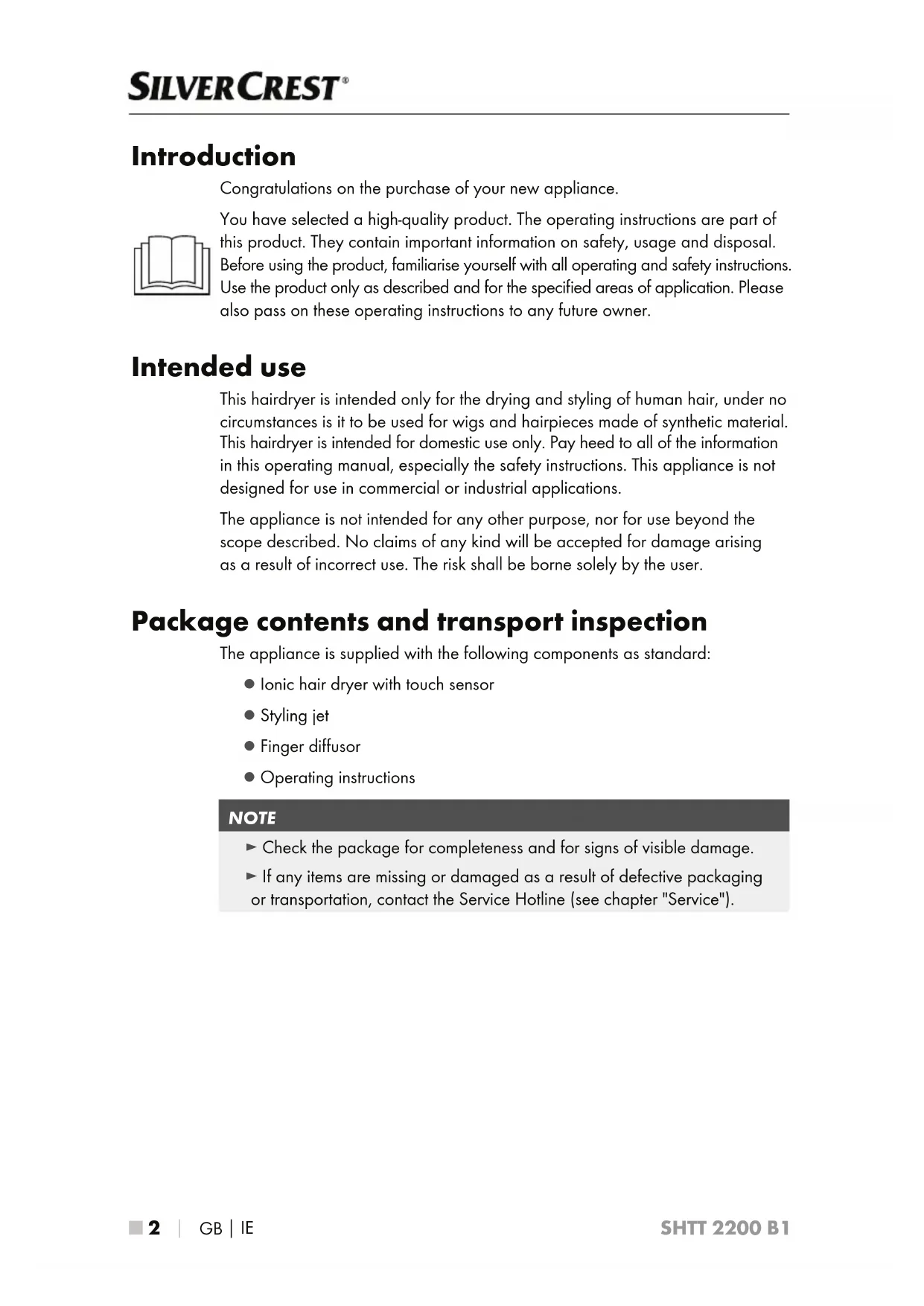

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner.

Intended use

This hairdryer is intended only for the drying and styling of human hair, under no circumstances is it to be used for wigs and hairpieces made of synthetic material. This hairdryer is intended for domestic use only. Pay heed to all of the information in this operating manual, especially the safety instructions. This appliance is not designed for use in commercial or industrial applications.

The appliance is not intended for any other purpose, nor for use beyond the scope described. No claims of any kind will be accepted for damage arising as a result of incorrect use. The risk shall be borne solely by the user.

Package contents and transport inspection

The appliance is supplied with the following components as standard:

• Ionic hair dryer with touch sensor
• Styling jet
• Finger diffusor
• Operating instructions

NOTE

▶ Check the package for completeness and for signs of visible damage.
▶ If any items are missing or damaged as a result of defective packaging or transportation, contact the Service Hotline (see chapter "Service").

Description of the appliance

Figure A:

① Styling jet
② Air intake grille
3 Sensor field touch
4 Hanger eye
5 Control lamp
⑥ Blower level switch (2 levels)
⑦ Heater level switch (3 levels)
⑧ Cold air button ✿ (Cool-Shot)

Figure B:

9 Finger diffuser

Technical data

Mains voltage 220 - 240 V ~ (alternating current), 50/60 Hz
Rated power 1900 - 2300 W
Protection class	II / ☐ (double insulation)

Safety instructions

RISK OF ELECTRIC SHOCK

• Connect the hairdryer only to a correctly installed mains power socket providing electrical current at the level detailed on the rating plate.
  ▶ Under no circumstances may the hairdryer be submerged in liquids, or liquids be permitted to enter the appliance housing. Do not expose the appliance to humidity and do not use it outdoors. If liquid gets into the housing, disconnect the appliance from the mains power socket immediately and have it repaired by a qualified technician.
  ▶ Unplug the hairdryer from the power socket if defective operation is apparent and before cleaning it.

RISK OF ELECTRIC SHOCK

▶ To disconnect the appliance, pull only on the plug itself, not on the power cable.
- Do not wrap the power cable around the appliance and protect the cable from being damaged.
To avoid potential risks, damaged mains cables should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.
- Do not kink or crush the power cable and route it in such a way as to prevent people from stepping on or tripping over it.
▶ Do not use extension cables.
▶ Never touch the hairdryer, the power cable or the plug with wet hands.
- Disconnect the hairdryer from the power source immediately after use. The appliance is completely free of electrical power only when you unplug it.
- You must not open or repair the housing of the hairdryer. Doing so can lead to risks and also invalidates the warranty. Arrange for the hairdryer to be serviced and repaired only by qualified specialists.

Never use the appliance near water, and keep it away from sinks, baths and other similar containers. Water in the proximity of the appliance is hazardous, even if the appliance is switched off. Always disconnect the plug from the mains power socket after use. As additional protection, the installation of a residual current circuit-breaker with an activation power rating of not more than 30 mA is recommended for the power circuit in the bathroom. Ask your electrician for advice.

⚠ WARNING! RISK OF INJURY!

This appliance may be used by children aged 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised, or have been instructed in the safe use of the appliance and have understood the potential risks.
▶ Children must not use the appliance as a plaything.
- Cleaning and user maintenance should not be performed by children unless they are under supervision.
▶ Never leave the appliance unattended while it is plugged in.
▶ Never place the hairdryer close to sources of heat and protect the power cable against potential damage.
▶ Do not use the hairdryer if it has been dropped or is damaged in any way. Have the appliance checked and/or repaired by qualified technicians if necessary.
- Do not cover the air intake grille while operating the appliance. Clean it at regular intervals.
The hairdryer becomes hot when it is in use. Hold it only by the grip when it is hot.

NOTE

▶ No user action is required to switch the product between 50 and 60 Hz. The product adapts automatically to either 50 or 60 Hz.

Preparation

1) Remove all parts of the appliance and the operating instructions from the carton.
2) Remove all packaging material.

Operation

This appliance is fitted with a contact sensor. This means that the hairdryer only switches on if you are holding it in your hand and touching the sensor field ③ at the same time.

Heating and blower levels

1) Insert the plug into the mains power socket.

The hairdryer is fitted with two function switches. You can use these to separately select the strength of the air flow (blower level switch ⑥) and the heat level (heat level switch ⑦):

Blower levels

0 hairdryer is switched off

reduced airflow

increased airflow

Heat levels

reduced heat level medium heat level high heat level

2) Select the desired blower level using the blower level switch ⑥. The control lamp ⑤ illuminates and shows that the hairdryer will start as soon as the sensor field TOUCH ③ is contacted.

3) Select the desired heating level using the heating level switch ⑦.

4) If you are not holding the hairdryer in the hand: take hold of the hairdryer with your hand on its handle. This means that you will be touching the sensor field TOUCH ③ and the hairdryer will switch on. If you put the hairdryer down for a short time, it will switch off automatically.

NOTE

The sensor-controlled cut-off is not suitable for switching off the hairdryer permanently. If you are not using the hairdryer switch it off using the blower level switch ⑥.

5) Once you have finished using it, switch the appliance off by switching the blower level switch ⑥ to "0". The indicator lamp ⑤ goes out. Then remove the plug from the wall socket.

Cold air level

With the cold air button ⑧ you can produce a cooler air flow with any combination of blower and heat levels.

Ionisation function

This hairdryer is fitted with an ionisation function.

If hair is dried using a normal hairdryer, the hair becomes charged statically and starts to "fly".

The ionisation function ensures that this charging of the hair is neutralised and cancelled. The hair becomes soft, supple, shiny and easier to style.

Please note, however, that the ionisation function will only work optimally if the attachments (finger diffuser ⑨ / styling jet ⑪) are removed as the attachment will interfere with the application of the ions to the hair. Therefore, use the hair-dryer without attachments for maximum ionisation effect.

Drying and styling hair

■ To quickly dry hair, we recommend first of all using a high blower and heater setting for a short period. After drying the hair, switch to a lower blower and heat level to shape the hairstyle.

With the supplied styling jet ① you can apply a directed airflow to shape and style your hair. Fit the styling jet ① by pushing it with light pressure onto the hairdryer so that it snaps into place and sits evenly on the hairdryer. If you no longer require the styling jet ①, wait until the appliance has cooled down and pull it off with a downwards snapping motion:

Diagram showing a rectangular block interacting with a curved surface, with an arrow indicating direction (no text or symbols)

If you wish to dry your hair especially gently, or create a so-called "air-dried wave", then use the finger diffuser ⑨. Start by removing the styling jet ① with a downwards snapping motion.

Fit the finger diffuser ⑨ by pushing it with light pressure onto the hairdryer so that it snaps into place and sits evenly on the hairdryer.

If you no longer require the finger diffuser ⑨, wait until the appliance has cooled down and pull it off with a downwards snapping motion:

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

Before you comb your hair out, allow it to cool so that the shaping and styling can retain its form.

■ You can use the cold air button ⚙️ to cool your hair down.

Cleaning

RISK OF ELECTRIC SHOCK

▶ Always remove the plug from the mains power socket before cleaning the appliance.
▶ UNDER NO CIRCUMSTANCES should you immerse the appliance in water or other liquids during cleaning!
▶ After being cleaned, the hairdryer must be completely dry before using it again.

WARNING - RISK OF INJURY!

▶ Allow the appliance to cool sufficiently before cleaning it.

CAUTION - PROPERTY DAMAGE!

▶ Do not use any aggressive cleaning liquids or solvents. They could damage the surface.

Cleaning the housing

■ Use a soft cloth lightly moistened with a mild soap solution to clean the housing and attachments.

■ Dry all parts thoroughly before re-using the appliance.

Cleaning the air intake grille

WARNING - RISK OF FIRE!

▶ Clean the air intake grille ② at regular intervals with a soft brush.

1) Turn the air intake grille ② anticlockwise a little way so that it can be removed from the hairdryer.
2) Clean the grille on the appliance and the grille on the air intake ② using a soft brush.
3) Push the air intake grille ② back onto the hairdryer so that the tabs on the air intake grille ② click back onto the recesses on the hairdryer housing. Turn the air intake grille ② clockwise a little way so that it clicks into place and sits tightly.

Storage

CAUTION - PROPERTY DAMAGE!

▶ Do not package or transport the hairdryer until it has cooled down. Otherwise, it could damage other items.

■ Clean the hairdryer as described in Chapter "Cleaning".
■ Store the hairdryer in a dust-free and dry location.

Troubleshooting

If your hairdryer does not function as expected, first remove the plug from the mains power socket and allow the appliance to cool down for a few minutes. The appliance is fitted with an overheating protector!

If the appliance still does not function, consult the service location detailed under "Service".

Disposal

FR

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 497179_2204 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 497179_2204.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 497179_2204

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 14

Diagram showing a rectangular block interacting with a curved surface and an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

⚠️ WARNUNG! BRANDGEFAHR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matières

Introduction 26

Usage conforme 26

Diagram showing a rectangular block interacting with a curved surface and an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing motion direction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 42

WAARSCHUWING! LETSELGEVAAR!

Diagram showing a rectangular block interacting with a curved gray object, with an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

⚠ WAARSCHUWING – LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....54

Diagram showing a rectangular block transforming into a tilted square with an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

POZOR - HMOTNÉ ŠKODY!

POZOR - HMOTNÉ ŠKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

Wstep 66

Diagram showing a rectangular block interacting with a curved gray object, with an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....78

Diagram showing a rectangular block interacting with a curved surface, with an arrow indicating direction (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción....90

Uso previsto 90

Diagram showing a rectangular block interacting with a curved surface, with an arrow indicating direction (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning....102

Anvendelsesområde 102

Pakkens indhold og transporteftersyn....102

Diagram showing a rectangular block interacting with a curved surface, with an arrow indicating direction (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....114

Diagram showing a rectangular block interacting with a curved surface and an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing motion direction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 126

Diagram showing a rectangular block interacting with a curved gray object, with an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Kazalo

Uvod....138

Predvidena uporaba 138

Vsebina kompleta in pregled po prevozu 138

Opis naprave....139

Diagram showing a rectangular block interacting with a curved surface and an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 497179_2204

Garancijski list

Diagram showing a rectangular block interacting with a curved surface, with an arrow indicating direction (no text or symbols)

Ako Vašu kosu želite osušiti posebno pažljivo, ili kod takozvanih „trajnih sušenih na zraku“, koristite štapićasti difuzor ⑨. U tu svrhu također prvo koncentrator ① pokretom preklapanja povlačenjem skinite prema dolje.

Postavite štapićasti difuzor ⑨ naprijed uz lagani pritisak na sušilo za kosu, tako da ulegne i zauzme ravnomjeran položaj na sušilu za kosu.

Kada Vam štapićasti difuzor ⑨ više nije potreban, pričekajte da se uređaj ohladi i pokretom preklapanja ga povlačenjem skinite prema dolje:

Illustration of a hairdryer with a hand holding a small object, no text or symbols present

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NJEMAČKA

www.kompernass.com

Cuprins

Introducere....162

Diagram showing a rectangular block interacting with a curved surface, with an arrow indicating direction (no text or symbols)

Illustration of a hairdryer with a hand holding a small object, no text or symbols present

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Съдържание

Въведение....174

Употреба по предназначение....174

Diagram showing a rectangular block interacting with a curved gray object, with an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

Two identical diagrams showing a trash bin with no visible text or symbols, each marked with 'X' and a black rectangle below (no text or symbols present)

Diagram showing a rectangular block transforming into a tilted square with an arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a hand holding the blade, showing no text or symbols

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ГЕРMANIA

www.kompernass.com

PDF ONLINE www.lidl-service.com
