USER MANUAL 78511 UNOLD

Instructions for use Model 78511

Technical specifications 12

Explanation of symbols 12

For your safety 12

Before using the appliance the first time .. 13

Your new mixer 14

Assembly 15

Operation 15

Cleaning and care 16

Tips 16

Maximum fill quantities 16

Recipes 16

Guarantee conditions 54

Waste Disposal / Environmental

Protection 58

Specification technique 18

Disposition/Protection

Dimensions: Approx. 41.9 × 22.0 × 33.4 cm

Power cord: Approx. 100 cm

Weight: Approx. 4.55 kg

Housing: Plastic, white/anthracite

Features: Continuously adjustable speed

Mixing bowl, 4 liter volume

Splash guard designed for easy filling

Planetary mixer

T-mixing hook, kneading hook and wire whisk, made of cast aluminium

Accessories: 1 T-mixing hook, 1 kneading hook and 1 wire whisk, splash guard,

operating instructions

Technical details subject to change.

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

FOR YOUR SAFETY

General safety information

1. Please read the following information and keep it for future reference.
2. This appliance is not intended for use by persons (including children) with limited physical, sensory or mental abilities or with lack of experience or limited knowledge, unless they are supervised by a person who is responsible for their safety or have been instructed on how to use the appliance.
3. Children should be supervised in order to ensure that they do not play with the appliance.
4. Keep the appliance out of the reach of children.
5. Connect appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.
7. Never immerse the appliance or the power cord in water or other liquids.

8. Do not clean the motor block or power cord in a dishwasher.

9. The motor block should never come into contact with water or other liquids. In case this ever happens, all parts must be completely dry before operating the appliance again.

10. The appliance is intended for household use only, or for similar areas of use, such as:

11. kitchenettes in businesses, offices or other workplaces,
    for use by guests in hotels, motels or other lodgings,

12. in private guesthouses or holiday homes.

13. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the power cord for inspection and repair to our after sales service (for address, see warranty terms). Unauthorized repairs can result in serious risks to the user and void the warranty.

14. If the power cord of this appliance is damaged, it must be replaced by the manufacturer or his after sales service department

or person with similar qualifications, to prevent hazards.

1. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.
2. Unplug the appliance from the power supply after use and before cleaning. Never leave the appliance unattended when it is plugged in to the power supply.

Information on setup and operation of the appliance

1. Do not place the appliance or power cord near open flames during operation.
2. Never touch the appliance or power cord with wet hands.
3. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.
4. Always use the mixer on a level, uncluttered and heat-resistant surface.
5. Make sure that the power cord does not hang over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.
6. Never wrap the power cord around the appliance.
7. Route the power cord so that there is no possibility of the cord being pulled or tripped over.
8. Use the mixer only indoors.

9. Before attaching or removing accessories or mixing utensils, switch off the appliance and unplug it from the electrical outlet.

10. Do not plug the appliance into the electrical outlet until the desired accessory has been attached. Never operate the appliance without accessories attached.

11. Make sure that the mixing bowl does not come into contact with hot objects.
12. After use and before cleaning, switch off the appliance and unplug it from the electrical outlet.
13. Before switching the appliance on again, the speed switch must be set to „AUS“ (OFF) before you plug the appliance into the electrical outlet.
14. Do not reach into the appliance while it is in operation - Danger of injury!
15. Caution: Avoid contact with moving parts of the appliance when it is in operation. Keep hands, hair or other objects such as spatulas away from the moving parts of the appliance - Danger of injury!
16. The appliance is suitable only for processing of foods.
17. Do not put hot ingredients in the mixing bowl, since this could damage the bowl.
18. Always wait until the motor stops before disassembling the appliance!

Caution! To avoid accidents, never touch the rotating parts of the appliance and do not insert objects or body parts into the appliance during operation.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and any transport safety devices.
2. Check to make sure that all accessories are present.
3. Make sure that the speed switch is set to "AUS" (OFF).

4. Clean the motor block with a damp cloth, as described in the chapter "Cleaning and care" on page 16.

5. All removable accessories, such as the mixing bowl, kneading hook, etc. can be cleaned in warm water with mild dishwashing detergent; then rinse with clear water and dry thoroughly.

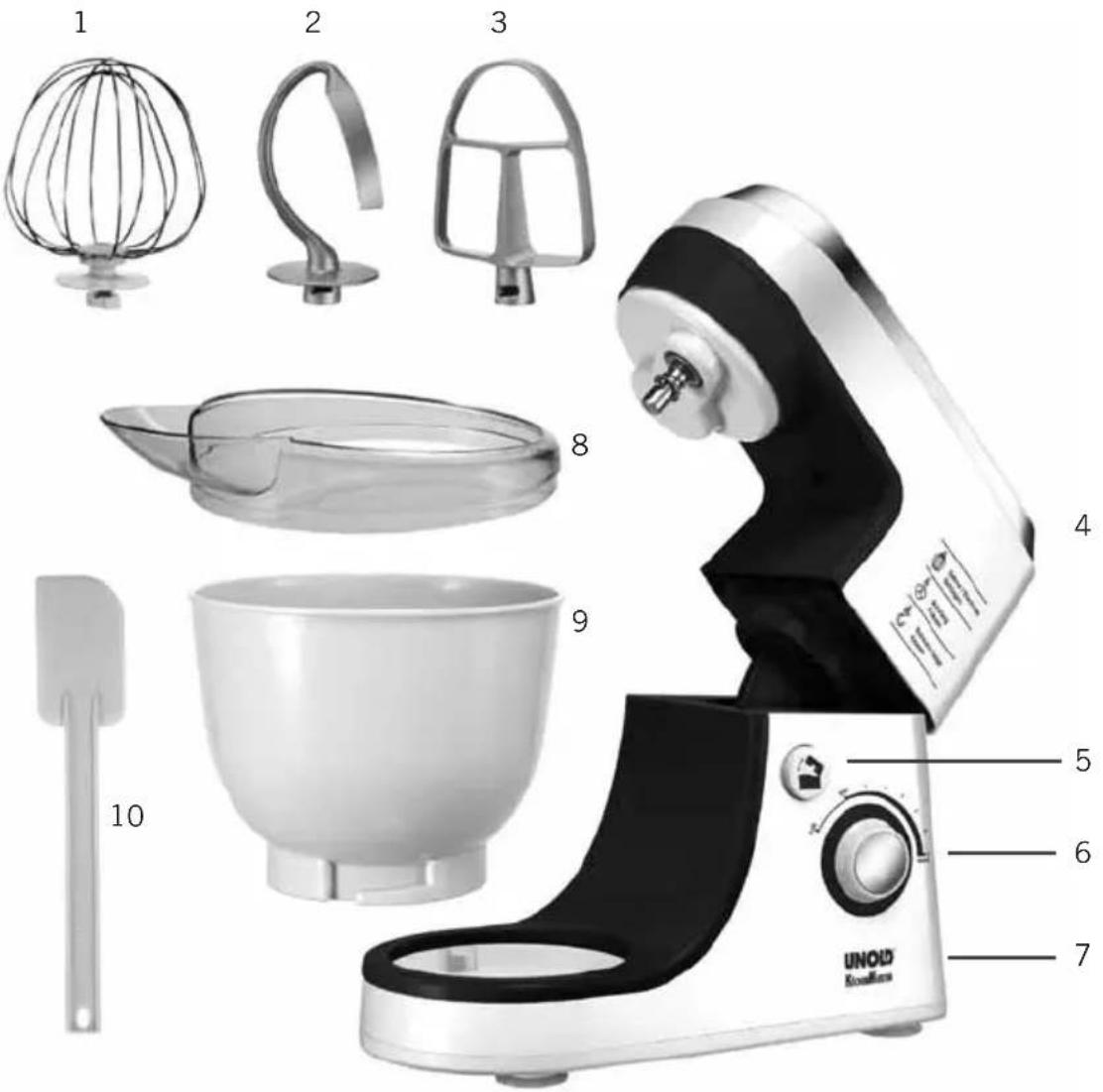

YOUR NEW MIXER

1 Wire whisk
2 Kneading hook
3 T-mixing hook
4 Swivel arm
5 Release button
6 Speed switch
7 Motor block
8 Splash guard

9 Mixing bowl

10 Spatula

ASSEMBLY

1. Make sure that the appliance is not plugged into the electrical outlet. The speed switch must be set to "AUS" (OFF).
2. Make sure that the motor block is positioned firmly on the kitchen countertop.
3. Press the release button.
4. The swivel arm moves upward.
5. Select the desired mixing utensil:

T-mixing hook: cake batter, mashed potatoes, spaetzle dough

Kneading hook: yeast dough, bread dough, noodle dough

Wire whisk: beating of eggs, cream, waffle batter, biscuit dough and all various moustes. Do not use the wire whisk for heavy doughs, because it could bend or break.

1. Attach the desired mixing utensil. Make sure that the mixing utensil is attached so that the notch on the mixing utensil matches the driver pin on the axle of the swivel

arm. Turn the mixing utensil clockwise until it is tightly seated.

1. Make sure that the mixing utensil locks into place, since otherwise the ingredients cannot be mixed properly.
2. Now place the mixing bowl under the swivel arm. Place the bowl in the holder and turn it clockwise until it locks into place.
3. If desired, you can now put the splash guard on the mixing bowl. Press the splash guard firmly onto the bowl so that it cannot slip. The splash guard provides protection against splashing, but also makes it easier to add additional ingredients. If you wish to change the mixing utensil in between, the splash guard does not have to be removed.
4. Press the release button and push the swivel arm down until it locks into place. You will hear a click when the swivel arm locks correctly into place.

Important: Do not hold your fingers between the motor block and the swivel arm - Danger of injury due to pinching.

1. To disassemble the appliance, perform the above steps in reverse sequence.

OPERATION

1. Make sure that the appliance is not plugged into the electrical outlet. The speed switch must be set to "AUS" (OFF).
2. Check to make sure that the appliance has been assembled correctly.
3. Plug the power cord into an electrical outlet.
4. Switch on the appliance by setting the speed switch to „ON“ (EIN). Select a lower speed at the beginning. You can adjust the speed continuously up to the „Max“ position.
5. The individual Levels from 1-6 are suitable for the following steps. Always begin with a low speed and then slowly switch to a higher speed. In doing so, you avoid spraying and raising dust from the ingredients.

Level 1:

Mixing of ingredients without having to crush coarse ingredients (e.g. pieces of fruit in cream) or for marbling (stirring fruit puree in curd cheese).

Level 2:

Addition of flour, ground nuts, etc. into dough so that dust is not raised from the dry ingredients. Mixing of ingredients without spraying.

Level 3:

Whipping cream - cream has greater volume when it is whipped slowly.

Level 4:

Whipping egg whites, stirring batter, kneading dough.

Level 5/6:

Kneading heavy dough. Attention: Begin mixing this dough at a lower level.

1. If too much dough sticks to the edge of the bowl, switch the appliance off in between and unplug it from the electrical outlet. Move the swivel arm upward and use a spatula to scrape the dough from the edge of the bowl.
2. When your dough is finished, switch off the appliance by setting the speed switch to "AUS" (OFF) and unplug it from the electrical outlet. Move the swivel arm upward and remove the bowl.
3. Use the dough as desired.
4. Remove the mixing utensil and clean the mixer as described in „Cleaning and care".

CLEANING AND CARE

1. Before cleaning, switch off the appliance and unplug it from the electrical outlet.
2. You can wipe off the motor block with a damp cloth and then dry it thoroughly.
3. All removable accessories, such as the mixing bowl, kneading hook, etc. can be cleaned in warm water with mild dishwashing detergent; then rinse with clear water and dry thoroughly.
4. Important: the mixing utensils are not dishwasher-suitable.

5. The mixing bowl is dishwasher-suitable and can be cleaned in the top basket of the dishwasher.

6. Do not use any abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can damage the appliance.

7. Do not immerse the motor block in water or other liquids.
8. The appliance must be completely dry before you use it again.
9. When completely dry, store the mixer in a dry, safe place so that it is protected from dust, shocks, heat and moisture.

TIPS

Make sure that ingredients such as butter or eggs are at room temperature before mixing them.

When beating egg whites, make sure there is no egg yolk in the bowl; otherwise, the egg whites will not become stiff.

If you need eggs for a recipe, beat them in a separate container and then put them in the mi

xing bowl. This makes it easier to remove any egg shell which may have fallen into the bowl.

Always start mixing or kneading at a slow speed and then increase the speed as needed.

If the mixer is too sluggish, remove half of the dough or batter and mix it in two batches.

MAXIMUM FILL QUANTITIES

Wire whisk: 7 egg whites, ingredients for one cake bottom with max. diameter of 30~cm

T-mixing hook: Cake mixture with max. 500 g flour, max. weight of the batter 1.2 kg

Kneading hook: Yeast dough, such as bread dough: max. 700g flour, max. total weight of dough 1.2kg . Light yeast dough, such as raisin bread: max. 500g flour, max. total dough quantity of 1.0kg , noodle dough with max. 500g flour and approx. five eggs.

Do not exceed the specified maximum quantity, because it would overload the machine.

With heavy yeast doughs (such as bread dough), mix the dry ingredients, switch on the appliance and slowly add the liquid to the ingredients.

If you have accidentally filled the appliance with too much dough, divided the dough, remove half and knead the two dough portions separately.

RECIPES

For the T-mixing hook

Marble Cake

250 g margarine, 250 g sugar, 2 envelopes vanilla sugar, 4 eggs, 250 ml milk, 400 g flour, 1 envelope baking powder, 50 g corn starch, 40 g cocoa powder, 40 g sugar, 2-3 tbsp milk, powdered sugar or frosting.

Beat the margarine with the sugar and vanilla sugar until foamy. In the process, please note: first mix at Level 1 for approx. one minute, then at Level 3 for approx. two to three minutes, then

Level 4 until the dough is loosely mixed. Add the eggs one at a time. Combine the flour with the baking powder and cornstarch and alternately add the flour mixture and milk to the batter. Put about 2/3 of the batter in a greased ring or loaf pan.

Combine the cocoa powder with the sugar and a little milk in a separate container and then add this mixture to the remaining batter in the mixing bowl. Mix the batter again and then spoon

the dark batter on top of the light batter in the baking pan.

Use a fork to make a spiral pattern through the two batters, then bake at 175^ for about 45 minutes. Remove the pan from the oven and turn the cake onto a cooling rack. As soon as the cake has cooled, dust with powdered sugar or coat with frosting, as desired.

For the kneading hook

Pizza Dough

200 g flour, 10 g fresh yeast, 1/2 tsp sugar, 1/2 cup lukewarm milk, 3 tbsp oil, 1/2 tsp salt

Stir the yeast with the sugar, milk and 1-2 tbsp flour in a cup and let stand about 15 minutes in a warm place.

Put the rest of the flour in the mixing bowl and add the yeast mixture, oil and salt. Knead all ingredients thoroughly. In the process, please note: Run at Level 1 for approx. one minute, then slowly increase to Level 4 until the dough releases from the bowl and has a silky shine.

Let the dough rest again for about 30 minutes.

Then roll out into two round crusts, place on a baking sheet and top as desired.

For the wire whisk

Meringue Kisses

4 egg whites, 200g powdered sugar

Beat egg whites at level 4 to 5. whites until stiff, then trickle in sugar gradually.

Use a spoon or piping bag to make small mounds on a baking sheet lined with baking paper. Bake at 100^ until the meringue mixture is firm and dry. If the kisses brown too quickly, open the oven door slightly.

You can add finely ground nuts or cocoa powder to the meringue mixture before baking.

Swabian Light Waffles

125 g butter or margarine, 30 g sugar, 100 g flour, 4 eggs, 1 envelope vanilla sugar, 5 tbsp cream.

Beat egg whites with the wire whisk until stiff (add 1 tbsp of the sugar just before they become stiff). Beat butter or margarine until foamy, then mix in egg yolks, sugar and vanilla sugar. Fold in sifted flour and cream, alternately. Then fold in the beaten egg whites.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

SPÉCIFICATION TECHNIQUE

Puissance:350W,220-240V\~，50Hz

Dimensions:Env. 41,9× 22,0× 33,4cm

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties.

Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

CONDITIONS DE GARANTIE

E-Mail [e-mail]

SCHWEIZ

MENAGROS SA

Route der Servion

CH-1083Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN

"Quadra-net" Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

TRAITEMENT DES DÉCHETS / PROTECTION DE L'ENVIRONNEMENT
