USER MANUAL 78501 UNOLD

Black-and-white photo of a modern kitchen blender with a glass lid and side grates, no visible text or symbols.

Bedienungsanleitung

Modell 78501

Technical Specifications 16

Explanation of symbols 16

For your safety 16

Your new food processor 18

Before using the appliance the first time .. 19

Inserting and removing the mixing bowl ... 19

Safety switch.... 19

Using the chopping blade 19

Using the mixing blade 20

Using the grating and slicing discs ..... 21

Cleaning and care 22

Recipes 22

Guarantee conditions 24

Waste Disposal / Environmental Protection 24

White plastic object with a tapered top and two curved blades, resembling a mechanical component (no text or symbols visible)

Zum Zerkleinern von

Close-up of a kitchen utensil with a cylindrical container and handle (no text or symbols visible)

3D rendered image of a white plastic mechanical component with two curved blades (no text or symbols)

Five identical black plastic electronic components with no visible text or symbols

E-Mail [e-mail]

SCHWEIZ

MENAGROS SA

Route der Servion

CH - 1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN

„Quadra-net“ Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

TSCHECHIEN

befree.cz s.r.o.

Škroupova 150

537 01 Chrudim

Telefon [phone]

Weight: Approx. 1.5 kg

Power cord length: Approx. 90 cm

Housing: Plastic, white/anthracite

Features: Compact food processor

Chopping blade for chopping and kneading

Shredder for grating and slicing

Mixing blade for whipped cream, egg whites and light sponge batters

Mixing bowl for processing about 0.5 liters of liquid

Tamper with scale

Short-term operation: one minute

Accessories: Chopping blade, mixing blade, disc holder, 3 slicing discs, 2 grating discs, operating instructions

Technical details subject to change.

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

FOR YOUR SAFETY

General safety information

1. Please read the following information and keep it for future reference.
2. This appliance is not intended for use by persons (including children) with limited physical, sensory or mental abilities or with lack of experience or limited knowledge, unless they are supervised by a person who is responsible for their safety or have been instructed on how to use the appliance.
3. Children should be supervised in order to ensure that they do not play with the appliance.
4. Keep the appliance out of the reach of children.
5. Connect appliance only to an AC power supply with voltage corresponding to the voltage on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.

7. Never immerse the appliance or the power cord in water or other liquids.

8. The appliance is intended for household use only, or for similar areas of use, such as:

■ kitchenettes in businesses, offices or other workplaces,
■ agricultural enterprises,
■ for use by guests in hotels, motels or other lodgings,
■ in private guesthouses or holiday homes.

1. Do not clean the appliance or power cord in a dishwasher.

2. Unplug the appliance from the electrical outlet before you disassemble and clean the appliance, remove or attach single parts or move the appliance to another location.

3. Do not use the appliance with accessories of other manufacturers or brands, to prevent damage.

4. Unplug the appliance from the power supply after use and before cleaning. Never leave the appliance unattended when it is plugged in to the power supply.

5. Check the appliance, the plug and the power cord regularly for wear or damage. If the power cord or other parts become damaged, send the appliance for inspection and repair to our after sales service (for address, see warranty terms). Unauthorized repairs can result in serious risks to the user and void the warranty.

Information on setup and operation of the appliance

1. The appliance is suitable for indoor use only.

2. Never touch the appliance or power cord with wet hands.

3. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface. Do not place the appliance or power cord near open flames during operation.

4. Always use the food processor on a level, uncluttered and non-slip surface.

5. Make sure that the power cord does not hang over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.

6. Do not wrap the power cord around the appliance and avoid kinking of the power cord to prevent damage.

7. Route the power cord so that there is no possibility of the cord being pulled or tripped over.

8. Do not move the appliance as long as it is in operation, to prevent injuries.

9. Do not use hot liquids. Make sure that the ingredients are not hotter than room temperature.

10. The cutting utensils are very sharp! Take care not to injure yourself when attaching and removing the slicing and grating discs.

11. The chopping blade is also very sharp. When inserting the blade in the appliance and during cleaning, always hold the blade by the top edge, never on the knife blade.

12. Do not lift the appliance by pulling on the mixing bowl handle when the mixing bowl is locked in the appliance, since this could damage the appliance or break the handle.

13. Do not overfill the mixing bowl. The maximum capacity for ingredients is 0.5 l. If you overfill the container with ingredients, this could damage the appliance.

14. Do not use the appliance if the disc holder is defective, in order to avoid injuries and damage to the appliance.
15. Do not switch on the appliance if the mixing bowl is empty.
16. Always use the tamper to add more ingredients. Never add or push ingredients with your hand!
17. Never insert hard objects such as bones or cooking spoons into the filling shaft. Danger of injury.
18. If ingredients stick to the inside of the mixing bowl, switch off the appliance, unplug it from the power supply and then loosen the ingredients using a spatula.
19. The short-term operating time is 1 minute. After one minute of operation, allow the appliance to cool before continuing, in order to avoid overheating of the motor.
20. Caution: Avoid contact with moving parts of the appliance when it is in operation. Keep hands, hair or other objects away from the appliance: Danger of injury!
21. If you want to empty the mixing bowl, always remove the chopping blade or the disc first.
22. Switch off the appliance and wait until the motor has stopped before you remove the lid.
23. Clean the appliance after every use.

To avoid accidents, never touch the rotating parts of the appliance and do not insert objects or body parts into the appliance during operation.

Caution! The grating and slicing discs and the chopping blade are very sharp: Danger of injury! Never reach or insert objects into the appliance while it is in operation: Danger of injury!

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

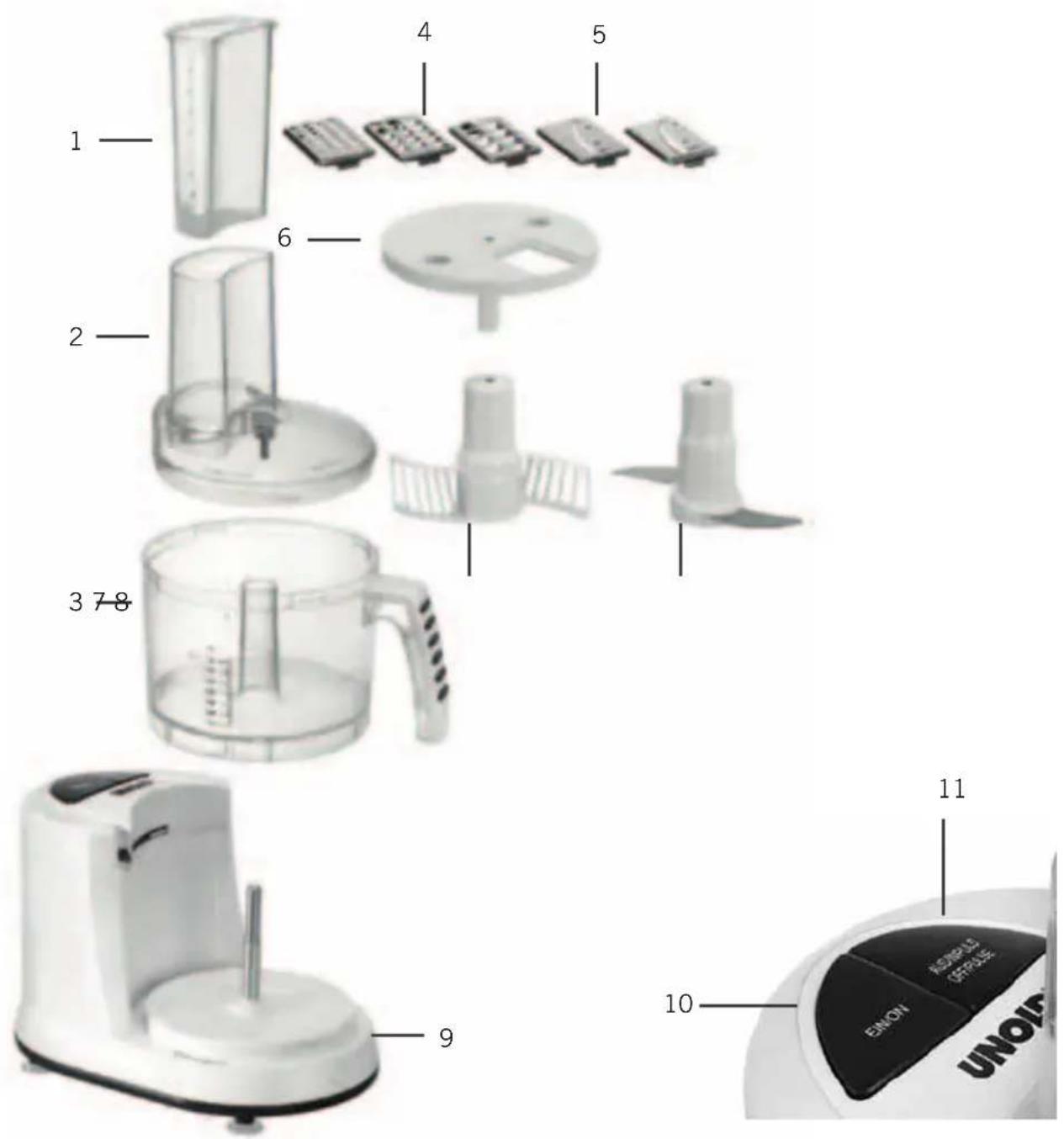

YOUR NEW FOOD PROCESSOR

1 Tamper with scale
2 Lid with filling shaft
3 Mixing bowl with scale
4 Grating discs
5 Slicing discs
6 Disc holder
7 Mixing blade
8 Chopping blade

9 Appliance base with drive shaft
10 ON switch
11 OFF/PULSE switch

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and transport safety devices.
2. Clean all removable parts as described in the chapter on cleaning and care.

Caution: The chopping blade and the individual discs are very sharp: Danger of injury. Handle these utensils very carefully.

INSERTING AND REMOVING THE MIXING BOWL

1. Place the mixing bowl on the appliance base. Make sure that the handle of the mixing bowl is positioned somewhat toward the back and then turn the bowl by the handle clockwise corresponding to the arrow mark in the direction of "Closed" on the appliance base, until the bowl locks into place. The arrow on the bottom edge of the mixing bowl must be exactly over the circle mark on the appliance base.
2. Select a utensil and insert it in the mixing bowl. How to correctly insert the individual utensils is described below.
3. The mixing bowl and the corresponding mixing or cutting utensil must always be inserted before you put ingredients into the bowl.
4. Place the lid on the mixing bowl. The filling shaft of the lid should initially be positioned

so that the small nose that can be seen beneath the filling shaft is in front of the guide rail on the appliance base.

1. Now turn the lid clockwise until this nose locks into the appliance base. You will hear a loud click when this happens. The arrow on the top edge of the mixing bowl must be exactly under the circle mark on the lid.
2. To remove the lid, hold the mixing bowl with one hand by the handle and turn the lid counter-clockwise until the nose slips out of the guide rail. Remove the lid from the appliance.
3. To remove the mixing bowl, turn it in the direction of the arrow to "Open" until it can be removed from the appliance base by lifting the handle.

SAFETY SWITCH

The appliance is equipped with a safety switch that prevents the appliance from being operated if it has not been assembled correctly. The appliance can only be switched on after all parts have been mounted correctly.

USING THE CHOPPING BLADE

White plastic object with a pointed tip and two curved blades, no text or symbols visible.

For chopping

vegetables, fruits, bread and rolls for making bread crumbs, meat, chocolate, nuts.

You will get very good results if you first cut the ingredients into about 1-inch cubes.

Kneading dough

Use butter or margarine at refrigerator temperature and do not knead the dough excessively long. Before using the dough after kneading, you should knead it briefly on the worktop by hand.

1. Caution: Do not switch on the appliance without first putting ingredients in the mixing bowl, since this can damage the motor.

2. Do not operate the appliance longer than one minute at a time. After one minute, let the appliance cool briefly before continuing.

3. The maximum capacity for ingredients is 0.5 l. Do not exceed this quantity, in order not to damage the appliance. Also take into account that many foods, such as meat, increase in volume as a result of chopping.

4. Make sure that the mixing bowl is seated correctly on the appliance base.
5. Remove the blade guard from the chopping blade.

Do not touch the blades; they are very sharp. Danger of injury.

1. Place the chopping blade carefully onto the shaft in the mixing bowl.

2. Caution: both the shaft in the appliance and the inside of the utensils have a flattened side. All utensils can be inserted only if both flattened sides are aligned.

Close-up of a kitchen utensil with a handle and central knob (no text or symbols visible)

1. Fill the desired ingredients into the mixing bowl. Be careful not to overfill the bowl.

2. Caution: If you want to knead dough, first put all dry ingredients into the mixing bowl.

Then add the required liquid by pouring it through the filling shaft while the appliance is mixing.

1. Place the lid on the bowl and lock it into place.

2. Plug the power cord into an electrical outlet.

3. Switch on the appliance by setting the switch to „On“. The blade starts to turn. You can also press the “Off/Pulse” button, in which case the appliance will operate in short, powerful bursts. Use the Pulse switch only in intervals; if you work longer than five minutes, use the continuous function.

4. If ingredients stick to the inside of the mixing bowl, switch off the appliance, unplug it from the power supply and then loosen the ingredients using a spatula.

5. When the ingredients have reached the desired consistency, switch the appliance off by means of the "Off/Pulse" switch and unplug it from the power supply.

6. Wait until the chopping blade has stopped moving.

7. Remove the lid.

8. Carefully remove the chopping blade from the bowl. Do not touch the blades; they are very sharp. Danger of injury.

9. Empty the ingredients from the mixing bowl.

10. As soon as all parts have been cleaned, put the blade guard back on the chopping blade to prevent injuries.

USING THE MIXING BLADE

White plastic mechanical component with two curved blades, no visible text or symbols

For mixing, whipping

cream, beating egg whites and making sponge batter. If you use ultra-high temperature cream, refrigerate it first for several hours before whipping.

1. Read the information in the chapter on "Using the chopping blade".
2. Place the mixing blade carefully onto the shaft in the mixing bowl.
3. Caution: both the shaft in the appliance and the inside of the utensils have a flattened side. All utensils can be inserted only if both flattened sides are aligned.
4. Fill the desired ingredients into the mixing bowl. Be careful not to overfill the bowl.
5. Place the lid on the bowl and lock it into place.

6. Plug the power cord into an electrical outlet.

7. Switch on the appliance by setting the switch to „On“. The mixing blade starts to turn. You can also press the “Off/Pulse” button, in which case the appliance will operate in short, powerful bursts. Use the Pulse switch only in intervals of five to ten seconds.

8. If ingredients stick to the inside of the mixing bowl, switch off the appliance, unplug it from the power supply and then loosen the ingredients using a spatula.
9. When the ingredients have reached the desired consistency, switch the appliance

off by means of the "Off/Pulse" switch and unplug it from the power supply.

1. Wait until the mixing blade has stopped moving.

2. Remove the lid.

3. Carefully remove the mixing blade from the bowl.
4. Empty the ingredients from the mixing bowl.

USING THE GRATING AND SLICING DISCS

Five identical black plastic electronic components with grid-like top surfaces, arranged in a row (no text or symbols visible)

For slicing and grating

vegetables, fruits, bread for bread crumbs, cheese, Parmesan, herbs, chocolate

Note that the plastic can become discolored from some foods, such as carrots. Such discolorations

can easily be removed with a little butter.

Ingredients that can melt (such as chocolate or hard cheese) should be processed for only a short time, to prevent them from becoming too warm.

Do not operate the appliance longer than one minute at a time. After one minute, let the appliance cool briefly before continuing.

1. Read the information in the chapter on "Using the chopping blade".
2. Carefully attach the desired disc on the disc holder. Insert the disc from above into the opening in the disc holder. Make sure that the flat side of the disc matches the flat side of the opening. Only then can the disc lock into place. Do not continue until after checking to make sure that the disc is firmly in place.

Caution: The blades of the discs are very sharp: Danger of injury.

1. Now place the disc holder onto the shaft in the mixing bowl.
2. Caution: both the shaft in the appliance and the inside of the utensils have a flattened side. All utensils can be inserted only if both flattened sides are aligned.
3. Place the lid on the appliance.
4. Switch on the appliance by setting the switch to „On“. The mixing blade starts to turn. You can also press the “Off/Pulse” button, in which case the appliance will operate in short, powerful bursts. Use the Pulse switch only in intervals of five to ten seconds.

5. Add the ingredients through the filling shaft. If the ingredients are too large, they must first be halved or quartered or cut to the size of the filling shaft.

6. Always use the tamper to add more ingredients. Never add or push ingredients with your hand!

7. Never insert hard objects such as bones or cooking spoons into the filling shaft. Danger of injury.

8. When you have finished processing the ingredients, switch the appliance off by means of the "Off/Pulse" switch and unplug the appliance from the power supply.

9. Wait until the disc holder has stopped moving.

10. Remove the lid.

11. Carefully remove the disc holder from the bowl. This is easier to do if you lift the bowl from the base and replace it offset somewhat from the original position. This pushes the disc holder up and you can remove it easily and safely.

12. The blades of the discs are very sharp. Danger of injury.

13. Due to the design of the appliance, it is possible that small pieces of food can remain on the disc holder.

14. Empty the ingredients from the mixing bowl.

15. To remove the disc from the disc holder, turn the disc holder around and press the disc downward out of the holder.

Please be very careful, since the cutting edges are sharp and there is a risk of injury.

CLEANING AND CARE

1. Before cleaning, always turn off the appliance and unplug it from the power supply.
2. Clean the appliance after every use.
3. Do not immerse the appliance base and power cord in water or other liquids.
4. With the exception of the appliance base, all parts can be cleaned in the dishwasher (top basket). You can also wash all parts except the appliance base in warm water with a little mild dishwashing detergent.
5. The cutting utensils are very sharp! Take care not to injure yourself when cleaning the slicing and grating discs and the chopping blade.

6. Never leave the cutting utensils in the dish-water, in order to avoid injuries.

7. Wipe off the appliance base with a moist cloth and then dry it thoroughly.

8. Do not use any abrasive scouring agents, steel wool, metal objects, disinfectants or hot cleaning agents, since they can damage the appliance.
9. As soon as the chopping blade has been cleaned, put the blade guard back on, in order to prevent injuries.
10. The various slicing and grating discs can be stored inside the tamper.
11. The appliance must be completely dry before you use it again.
12. When completely dry, store the food processor in a dry, safe place so that it is protected from dust, shocks, heat and moisture.

RECIPES

Apple Horseradish

Grating disc, fine

1 red apple

ca. 2 cm horseradish (preferably from top end, since it is more tender)

1 tsp cream

1 pinch sugar

Grate apple and horseradish with fine grating disc, season with cream and sugar. Serve with cooked meat or smoked fish

Creamed Kohlrabi

Grating disc, coarse

1 medium kohlrabi

1 tbsp butter

1 tbsp chopped parsley

1 tbsp sweet cream

salt, pepper, nutmeg

Peel kohlrabi and grate with the coarse grating disc. Melt butter in a pan. Steam kohlrabi in butter until firm to the bite. Season with salt, pepper and nutmeg, add cream and sprinkle with parsley.

Pear Cake

Sponge batter for 20 cm baking pan for singles

50 g butter

1 egg

50 g sugar

1 envelope vanilla sugar

1 tbsp amaretto

1 heaped tsp cocoa

100 g flour

1 tsp baking powder

1-2 pears

Use mixing blade to mix butter, egg, sugar, vanilla sugar and amaretto. Add cocoa powder, flour and baking powder and mix in with Pulse switch.

Spread batter in a greased springform pan.

Peel pears, quarter, core and cut into fans and press into the batter.

Bake at 160^ C about 30 minutes.

Tip: Prepare the batter without cocoa and cover with apples or apricots cut into fans.

Waffle Batter

Mixing blade

50 g melted butter

1 egg

50 g sugar

1 envelope vanilla sugar

1 tsp rum

100 g flour

1/2 tsp baking powder

Use mixing blade to mix butter, egg, sugar, vanilla sugar and rum. Add flour and baking powder and mix in with Pulse switch. Ladle by portions into a standard waffle maker and bake until golden brown.

Whipped Cream

Mixing blade

200 ml whipping cream

1 envelope vanilla sugar

Use mixing blade to beat cooled cream and vanilla sugar until stiff. Pause frequently to check consistency.

Au Gratin Potatoes

Slicing disc, coarse

2 potatoes

100 ml sweet cream

1/2 onion

1 egg

50 g grated Swiss cheese

salt, pepper, nutmeg

Peel potatoes and slice using the coarse slicing disc. Peel the onion and slice thickly.

Alternately layer potatoes and onions in a greased casserole.

Whisk cream with egg and seasonings, pour over the potatoes and sprinkle with cheese. Bake at 160^ C about 30 minutes.

Carrot Slaw

Grating disc, medium

1 carrot

1 apple

1 tbsp walnuts

2 tbsp orange juice

1 tsp oil

Peel carrot, core and quarter apple.

Grate apple and carrot with the medium grating disc, sprinkle with walnuts, add orange juice and oil and mix.

Potato Chips

Slicing disc, fine

2 mealy potatoes

1 tbsp vegetable oil

1 tbsp paprika powder

Wash and peel potatoes. Slice in thin slices with the fine slicing disc. Marinate with oil and paprika powder.

Cover the baking sheet with baking paper.

Spread potatoes on baking sheet and bake at 180^ C until brown.

Minced Meat

Chopping blade

150 g pork cutlet

1/2 onion

1 egg yolk

salt, pepper

Chop all ingredients with the chopping blade.

You can also use the chopping blade for chocolate, herbs, nuts, dry bread crumbs, cheese, horseradish, ginger, etc.

Liver Dumplings (as soup garnish)

Chopping blade

150 g beef liver

1/2 onion

1 roll, soaked in water and squeezed out

2 tbsp fine bread crumbs

1 egg

salt, pepper, nutmeg

Chop all ingredients with the chopping blade.

Heat 1 liter beef broth. Using a small teaspoon, spoon small amounts of the mixture into the boiling liquid and let steep until done.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

GUARANTEE CONDITIONS

We guarantee our appliances for 24 months, or in case of commercial use for 12 months, from the date of purchase in case of defects that occur during normal use and are demonstrably due to a factory fault. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

Service address on page: 15

SPÉCIFICATION TECHNIQUE

Puissance : 250 watts, 230 V\~, 50 Hz

White plastic mechanical component with two curved blades, no visible text or symbols

Pour hacher

Close-up of a kitchen utensil with a cylindrical handle and central knob (no text or symbols visible)

White plastic mechanical component with flanged ends (no text or symbols visible)

Five black plastic electronic components with circular cutouts, arranged in a row (no visible text or symbols)

CONDITIONS DE GARANTIE

White plastic object with a conical top and two curved blades, no text or symbols visible.

Close-up of a kitchen utensil with a cylindrical lid and handle (no text or symbols visible)

White plastic kitchen knife with two blades (no text or symbols visible)

Five identical black plastic electronic components with circular and square cutouts, arranged in a row (no text or symbols visible)

3D rendered image of a white conical object with two curved blades, no text or symbols visible

Per tritare

Close-up of a kitchen utensil with a handle and central knob (no text or symbols visible)

White plastic mechanical component with two curved blades, no visible text or symbols

Per montare

Five black plastic heat exchangers with grid-like top surfaces, arranged in a row (no text or symbols visible)

White plastic mechanical component with two curved blades (no text or symbols visible)

Para picar

Close-up of a kitchen utensil with a cylindrical lid and handle (no text or symbols visible)

White plastic mechanical component with two curved blades, no visible text or symbols

Para batir y montar

Five identical black plastic electronic components with grid-like surfaces, arranged in a row (no text or symbols visible)

White plastic mechanical component with two curved blades, no visible text or symbols

Pro sekání

Close-up of a kitchen utensil with a central knob and curved handle (no text or symbols visible)

White plastic object with a tapered top and two curved base blades (no text or symbols visible)

Five grayscale industrial plastic components with no visible text or symbols

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

White plastic mechanical component with two curved blades (no text or symbols visible)

Do rozdrabniania

Close-up of a kitchen utensil with a cylindrical container and handle (no visible text or symbols)

White plastic mechanical component with two curved blades, no visible text or symbols

Five different plastic electronic components arranged in a row (no visible text or symbols)

Do cięcia i tarcia
