| Product type | Silent garden shredder (designated as meat grinder) |
| Brand | Bosch |
| Model | AXT 2500 HP |
| Power consumption (mode S6 40%) | 2500 W |
| Power consumption (mode S1) | 2300 W |
| No-load speed | 40 rpm |
| Max throughput | 150 kg/h |
| Max branch diameter | 40 mm |
| Weight | 26 kg |
| Protection class | II (double insulation) |
| Supply voltage | 230 V ~ 50 Hz |
| Minimum electrical protection | 16 A |
| Collection bag included | Yes |
| On/Off switch | With restart protection |
| Rotation direction switch | Forward/reverse for unblocking |
| Knife rotor | Adjustable, replaceable |
| Compression plate | Adjustable, wear part |
| Noise level (intensity) | 78 dB(A) |
| Guaranteed noise level LWA | Less than 92 dB(A) |
| Maintenance | Regular cleaning of ventilation slots, bearing lubrication |
| Safety | Restart protection, automatic shutdown in case of overload, rotating knife |
| Spare parts available | Compression plate (ref. 1 601 000 001), knife rotor, maintenance spray |
| Customer service | France: 0 800 05 50 51, Belgium: +32 (0)2 / 525 51 43 |
| Environmental label | Blue Angel (RAL UZ54) |
Frequently Asked Questions - AXT 2500 HP BOSCH
User questions about AXT 2500 HP BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Meat Grinder in PDF format for free! Find your manual AXT 2500 HP - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AXT 2500 HP by BOSCH.
USER MANUAL AXT 2500 HP BOSCH
Bosch AXT xxxx
Made in Germany 2xxx
0 600 xxx xxx
XXXXXXXXX
CE
820
11

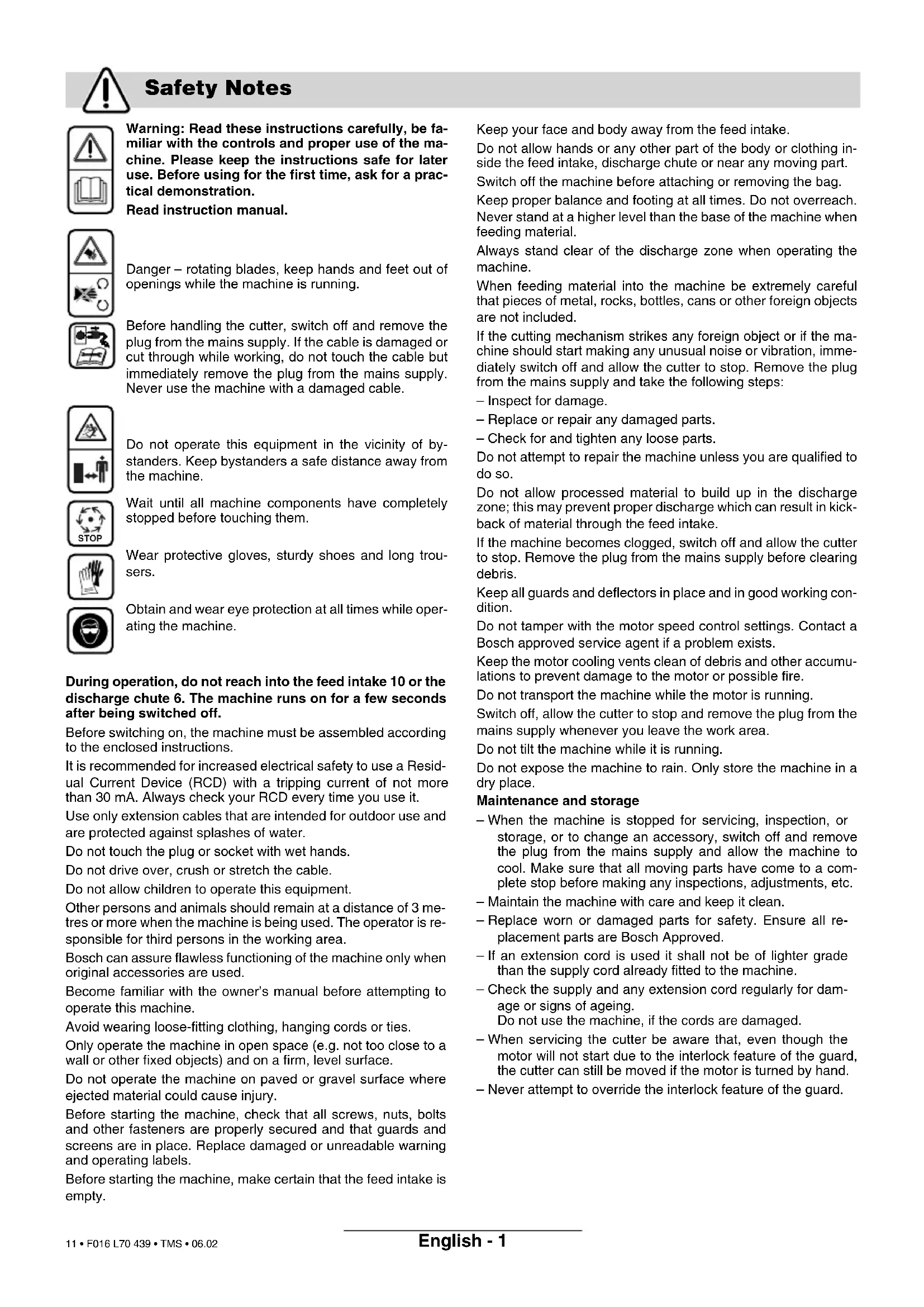

Sicherheitshinweise
Environmental label "Blue Angel".
Awarded for extra quiet operation.
RAL UZ54
Entsorgung
Senior Vice President Head of Product
Engineering Certification
ppa. Amata i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
Warning: Read these instructions carefully, be familiar with the controls and proper use of the machine. Please keep the instructions safe for later use. Before using for the first time, ask for a practical demonstration.
Read instruction manual.
Danger – rotating blades, keep hands and feet out of openings while the machine is running.
Before handling the cutter, switch off and remove the plug from the mains supply. If the cable is damaged or cut through while working, do not touch the cable but immediately remove the plug from the mains supply. Never use the machine with a damaged cable.
Do not operate this equipment in the vicinity of bystanders. Keep bystanders a safe distance away from the machine.
Wait until all machine components have completely stopped before touching them.
Wear protective gloves, sturdy shoes and long trousers.
Obtain and wear eye protection at all times while operating the machine.
During operation, do not reach into the feed intake 10 or the discharge chute 6. The machine runs on for a few seconds after being switched off.
Before switching on, the machine must be assembled according to the enclosed instructions.
It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.
Use only extension cables that are intended for outdoor use and are protected against splashes of water.
Do not touch the plug or socket with wet hands.
Do not drive over, crush or stretch the cable.
Do not allow children to operate this equipment.
Other persons and animals should remain at a distance of 3 metres or more when the machine is being used. The operator is responsible for third persons in the working area.
Bosch can assure flawless functioning of the machine only when original accessories are used.
Become familiar with the owner's manual before attempting to operate this machine.
Avoid wearing loose-fitting clothing, hanging cords or ties.
Only operate the machine in open space (e.g. not too close to a wall or other fixed objects) and on a firm, level surface.
Do not operate the machine on paved or gravel surface where ejected material could cause injury.
Before starting the machine, check that all screws, nuts, bolts and other fasteners are properly secured and that guards and screens are in place. Replace damaged or unreadable warning and operating labels.
Before starting the machine, make certain that the feed intake is empty.
Keep your face and body away from the feed intake.
Do not allow hands or any other part of the body or clothing inside the feed intake, discharge chute or near any moving part.
Switch off the machine before attaching or removing the bag.
Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material.
Always stand clear of the discharge zone when operating the machine.
When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.
If the cutting mechanism strikes any foreign object or if the machine should start making any unusual noise or vibration, immediately switch off and allow the cutter to stop. Remove the plug from the mains supply and take the following steps:
- Inspect for damage.
– Replace or repair any damaged parts.
– Check for and tighten any loose parts.
Do not attempt to repair the machine unless you are qualified to do so.
Do not allow processed material to build up in the discharge zone; this may prevent proper discharge which can result in kick-back of material through the feed intake.
If the machine becomes clogged, switch off and allow the cutter to stop. Remove the plug from the mains supply before clearing debris.
Keep all guards and deflectors in place and in good working condition.
Do not tamper with the motor speed control settings. Contact a Bosch approved service agent if a problem exists.
Keep the motor cooling vents clean of debris and other accumulations to prevent damage to the motor or possible fire.
Do not transport the machine while the motor is running.
Switch off, allow the cutter to stop and remove the plug from the mains supply whenever you leave the work area.
Do not tilt the machine while it is running.
Do not expose the machine to rain. Only store the machine in a dry place.
Maintenance and storage
- When the machine is stopped for servicing, inspection, or storage, or to change an accessory, switch off and remove the plug from the mains supply and allow the machine to cool. Make sure that all moving parts have come to a complete stop before making any inspections, adjustments, etc.
- Maintain the machine with care and keep it clean.
- Replace worn or damaged parts for safety. Ensure all replacement parts are Bosch Approved.
- If an extension cord is used it shall not be of lighter grade than the supply cord already fitted to the machine.
- Check the supply and any extension cord regularly for damage or signs of ageing.
Do not use the machine, if the cords are damaged.
- When servicing the cutter be aware that, even though the motor will not start due to the interlock feature of the guard, the cutter can still be moved if the motor is turned by hand.
- Never attempt to override the interlock feature of the guard.
Product Specification
Quiet shredder AXT 2200 HP AXT 2500 HP
| Part number 0 600 852 0.. 0 600 852 1.. | |
| Power consumption, S 6 (4/6 min) ^1 | [W] 2 200 2 500 |
| Power consumption, S 1 [W] 2 000 2 300 | |
| No-load speed [rpm] 40 | 40 |
| Capacity max. | [kg/h] |
| max. Branch diameter | [mm] |
| Collecting bag | |
| Weight. approx. | [kg] |
| Protection class | |
^1) The S 6 operating mode (40 %) indicates a load profile of 4 min load and 6 min idle time. For practical application, continuous operation is permitted.
2) Depending on the hardness of the wood.

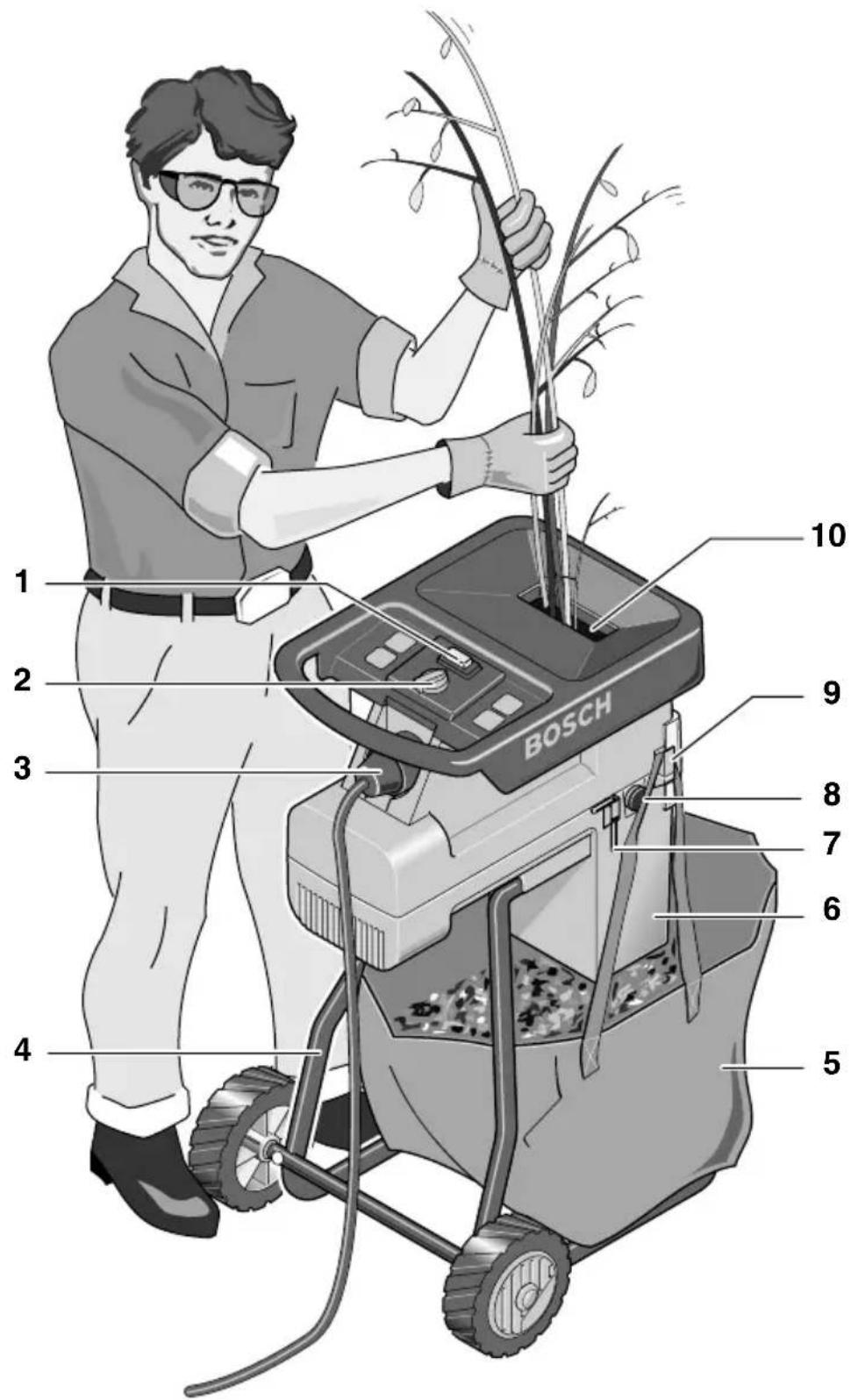

Operating Controls
1 On/Off switch
2 Rotational direction switch
3 Mains plug**
4 Undercarriage
5 Collecting bag/Cover*
6 Discharge chute
7 Allen Key
8 Adjustment knob
9 Hooks for collecting bag
10 Feed intake
11 Serial Number
*Optional accessory
**Country specific
*Not all of the accessories illustrated or described are included as standard delivery.
Intended Use
The product is intended for cutting of fibrous and woody garden waste for composting.
Assembly

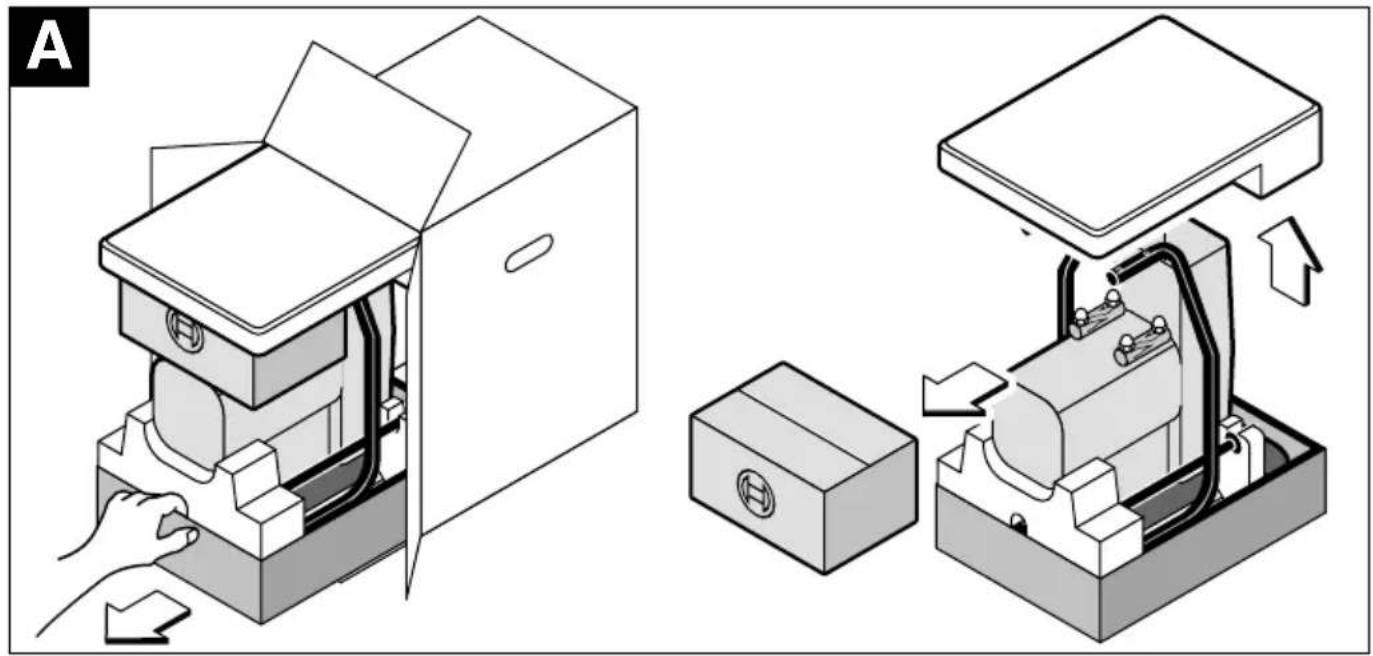

Remove the machine from the package
(see figure A

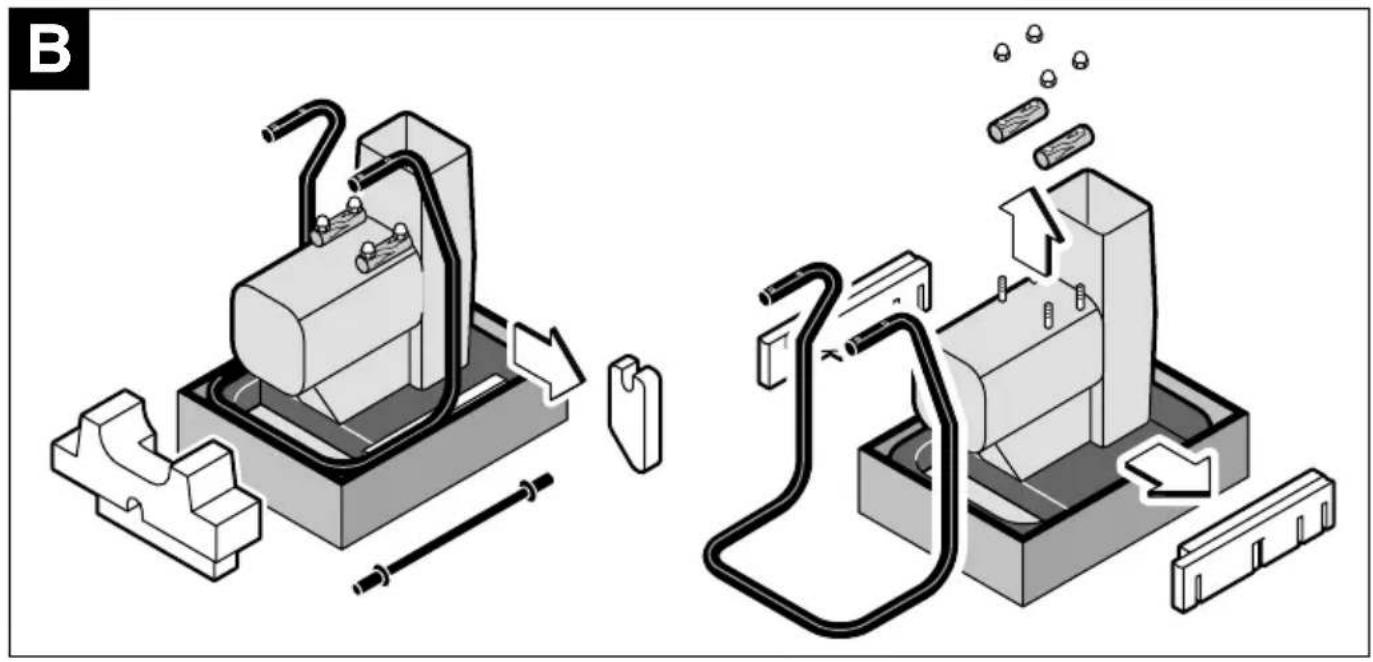

Remove the wooden pieces (transport protection) (see figure B)

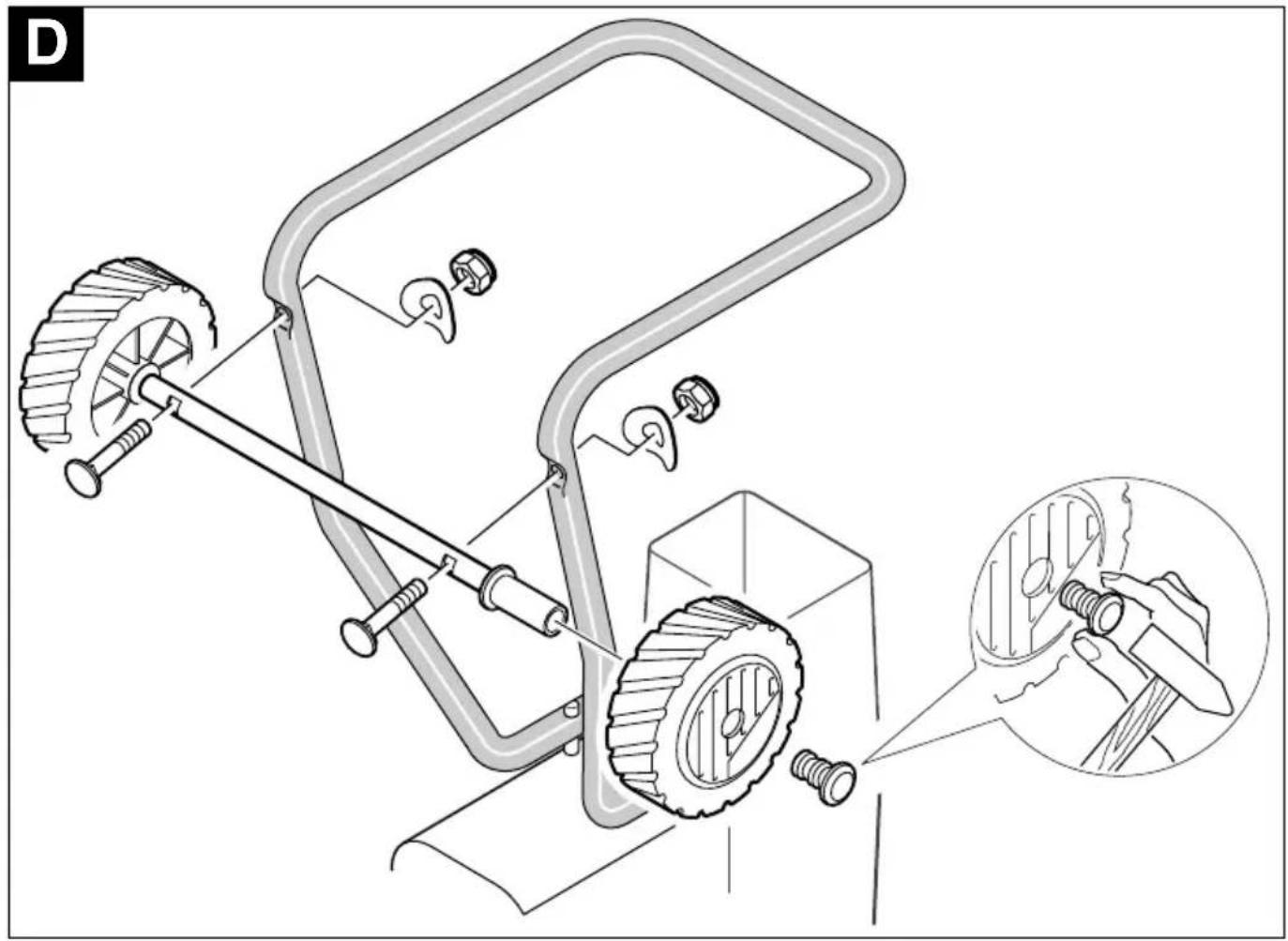

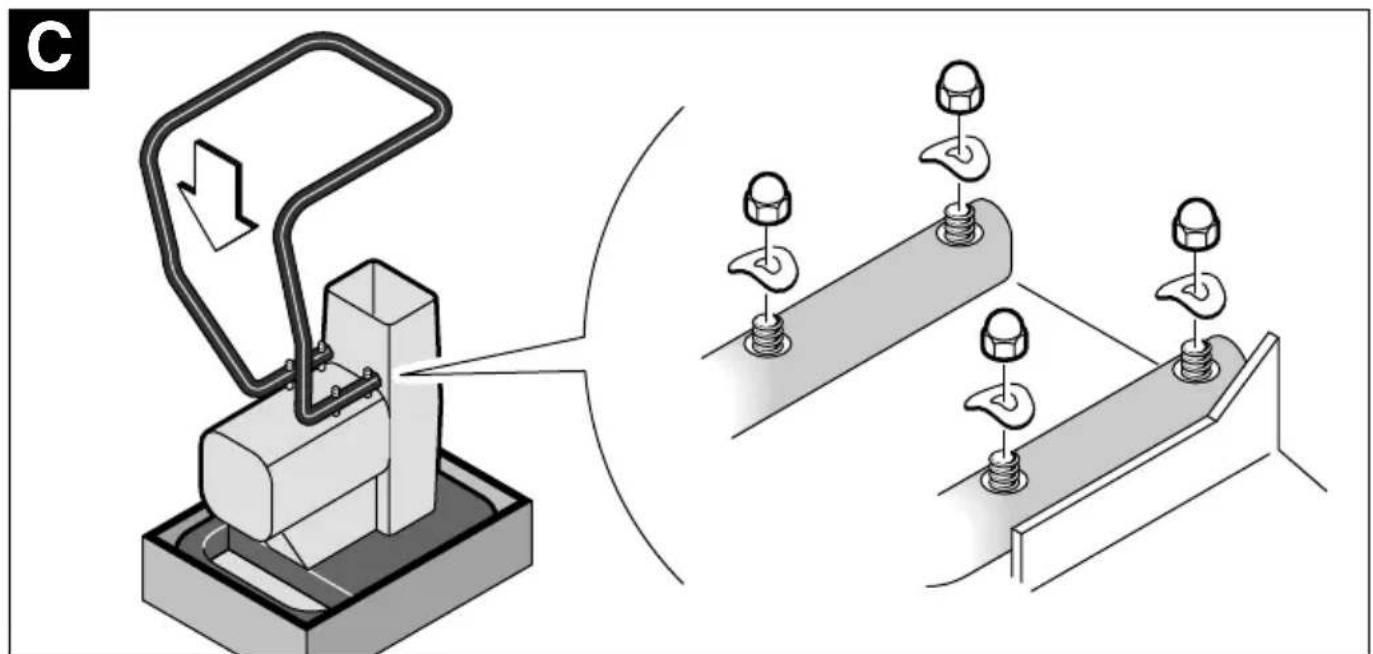

Mount the wheels and the undercarriage
(see figuC D ).
When transporting without the stand, always use the transport safety piece.
Before Use
Always use the correct supply voltage! The voltage of the power source must agree with the value given on the nameplate of the machine. Machines designated for 230 V can also be operated with 220 V.
The circuit must at least be protected as follows:
AXT 2200 HP = 10 A,
AXT 2500 HP = 16 A.
When being operated with a generator the following power rating is required:
AXT 2200 HP — 3,5 kVA/2800 W
AXT 2500 HP — 4,0 kVA/3300 W.
(e. g. Bosch generator units G-3600-series).
An extension cable with a cross section that is too small causes a distinct reduction in the performance capabilities of the machine. For cables to 25 m in length, a cross section of at least 3 × 1.5 mm^2 is required, for cables more than 25 m in length, the cross section must be at least 2.5 mm^2 .
Always completely unwind cable reels.
Always place the machine on firm level ground. During operation, do not tilt or move.
Remove earth from roots. Foreign material such as stones, glass, metals, fabrics or plastics must not enter the feed intake. Otherwise this could damage the cutting roller 13.
Starting and Stopping
The rotational direction switch 2 must be turned to the right. The feed intake 10 must be empty (see figure E).
Starting:
Set the on/off switch 1 to "I".
Stopping:
Set the on/off switch 1 to "O".
The motor will coast after switching off!
Restart Protection
A mains failure causes the on/off switch 1 to return to the "0" position. The machine cannot restart on its own when the power returns.

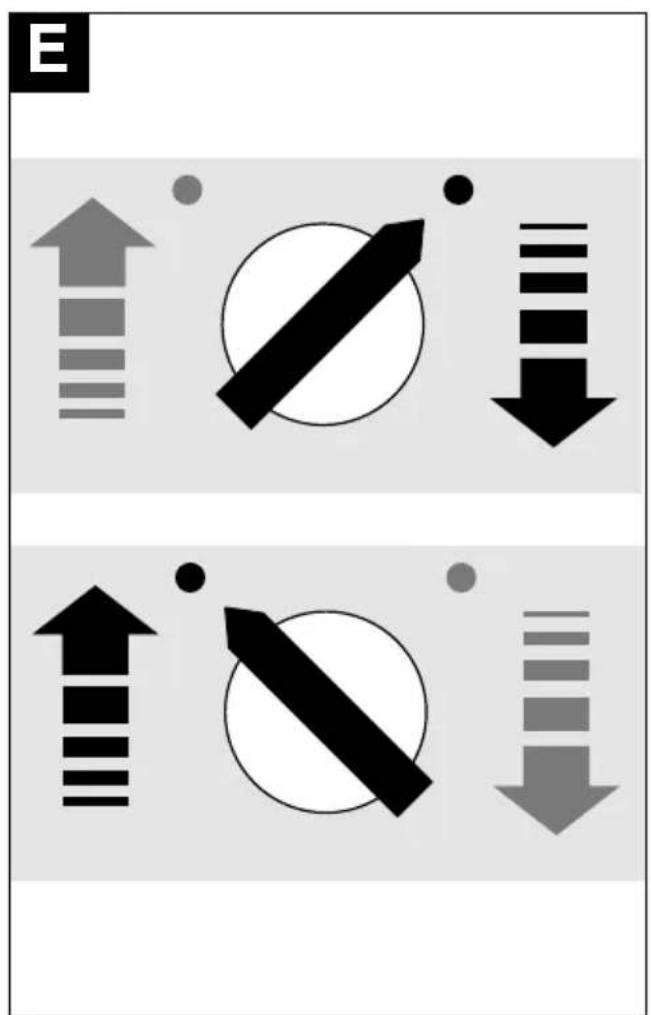

Rotational direction switch 2 (see figure E)
Before switching the rotational direction, always switch the machine off and wait until it stops.
Right position: The cutting roller pulls in and shreds the material.
Left position: The cutting roller runs backward and frees jammed material.
Overload Protection
Overloading (e. g. blocking of the cutting roller) causes the machine to stop after a few seconds. The on/off switch 1 springs to the "0" position. Switch the rotational direction switch 2 to the left position (backwards) and after a short period restart the machine.
Working Instructions
Always wear eye protection and wear gloves during use.
To collect the shredded material, hang the carrying straps of the collection sack 5 on the hooks 9 on both sides of the machine.
Insert the material to be shredded. The material will be fed by the cutter roller 13 without further assistance.
Longer material standing out from the machine could lash out when being pulled in by the knives! Please keep at safe distance!
Only insert as much material so that the feed intake 10 will not be blocked up.
Shred withered, moist material and garden waste which has been stored for some days alternately with branches.
This prevents the cutting roller 13 from clogging.
Do not fill soft waste such as kitchen rubbish into the shredder but compost directly.
Take care that the shredded material can fall freely from the discharge chute 6 – danger of backing up!
The ventilation slots must not be covered by the collecting bag or the shredded material.
Avoid blocking the discharge chute 6 with shredded material as this could result in kickback of material through the feed intake opening.
Advice on Shredding
Branches become harder to shred depending on the type, age and dryness of the wood.
For best results, shred fresh branches soon after they have been cut.
Soft garden waste should be shredded in smaller loads, particularly when wet. Any blockages can be avoided by intermittently shredding branches.

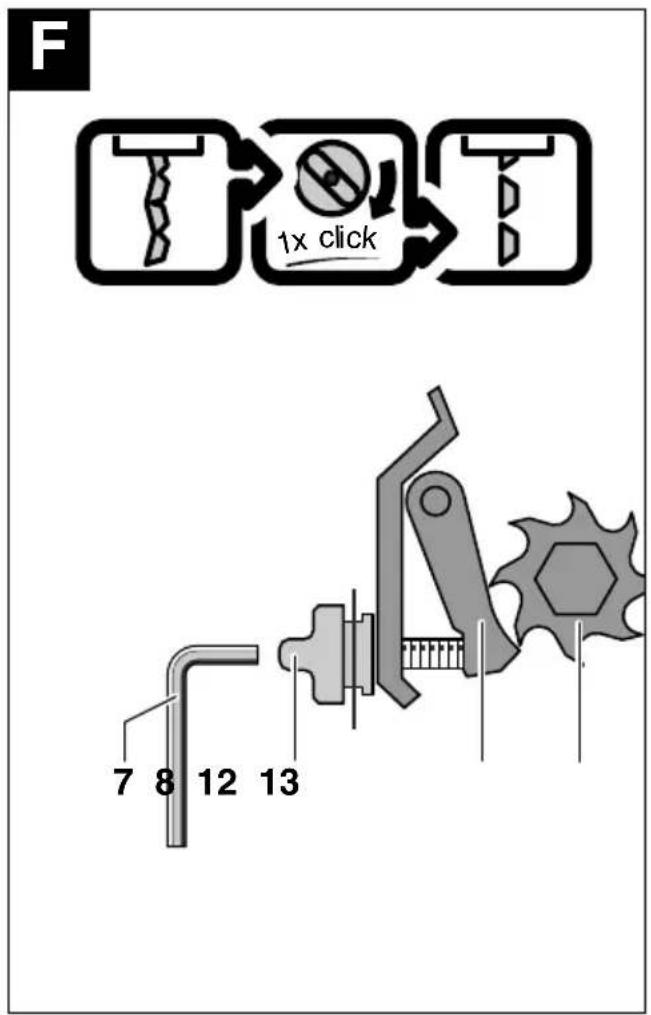

Pressure Plate Adjustment (see figure F)
The pressure plate 12 is factory adjusted and does not require adjustment before the first use.
Adjustment of the pressure plate 12 is necessary as a result of wear (shredded material, e. g. branches, hangs together as a chain and is not properly cut through):
Place the rotational direction switch 2 in the position to the right and switch on the machine.
With the motor running, turn the adjustment knob 8 (if necessary, using the Allen key 7) one notch to the right (clockwise direction) until a light grinding sound can be heard (the cutting roller 13 cuts the pressure plate 12 to the proper clearance, and some small aluminium shavings fall out of the ejection chute 6).
Readjust only to the required extent, otherwise the pressure plate 12 could wear unnecessarily.
Malfunctions
Before switching the rotational direction, always switch the machine off and wait until it stops.
The material to be shredded is not pulled in:
■ The cutting roller 13 is running backward: Switch rotational direction.
■The material to be shredded is soft and wet: Push into machine with a piece of wood or change to shredding branches.
■The material to be shredded jams in the feed opening 10: Place rotational direction switch 2 in the left position to free the material.
Thick branches are not pulled in:
■ Check cutting roller 13: If heavily worn, it must be replaced.
Shredded material is not completely separated and hangs together as a chain:
■ Adjust pressure plate 12 (according to Section "Pressure Plate Adjustment").
■ If the pressure plate 12 can no longer be adjusted, it must be replaced.
The motor does not run:
■The overload protection has tripped: Allow the motor to cool. Place rotational direction switch 2 in the left position (backwards) and switch on the machine again. Allow the blockage clear. Then switch off and switch the rotational direction back to "right".
Check the house fuse. The circuit must be protected with at least the following fuse sizes:
AXT 2200 HP = 10 A, AXT 2500 HP = 16 A.
Direction of rotation switches automatically:
■When the machine is suddenly blocked (e. g. because of a large branch), the direction of rotation of the cutting roller switches automatically. In this case switch the machine off, wait until it stops and switch it on again.
Cutting Roller is blocked
- Place rotational direction switch 2 in the left position, switch machine on. The cutting roller 13 runs backwards and releases the shredded material (or foreign material). A special gear construction with rotational angle play allows the motor to start in the opposite rotational direction even if the cutting roller 13 is blocked. In extreme cases loosen pressure plate 12 (anti clockwise) before switching the machine on backwards.
- When the caught material is free, switch off machine, set rotational direction switch 2 to the right position and switch back on. Readjust the pressure plate if necessary.
- If the blocking cannot be eliminated by actions 1 and 2, the cutting roller 13 must be removed, checked for damage, and cleaned as described in section "Exchanging the Cutting Roller/Pressure Plate".
Maintenance and storage
■Before any work on the machine itself, remove plug from the mains supply.
For safe and proper working, always keep the machine and the ventilation slots clean.
The shredder must not be cleaned with high-pressure cleaners or running water.
The tightness of the fastening screws of the undercarriage should be checked from time to time.
The cutting roller 13 and the pressure plate 12 have a life expectancy of several years under normal usage and when adjustment according to instructions.
Before storing the machine, remove the cutting roller (as described in the Section "Replacing the Cutting Roller/Pressure Plate") and clean. Then treat the cutting roller with preservation spray (Accessory, Order No. 1 609 200 399) and grease the bearings.
If the machine should happen to fail despite the care taken in manufacture and testing, repair is to be carried out by an authorised after-sales service agent.
For all correspondence and spare parts orders, always include the 10-digit part number (typ) from the nameplate of the machine!

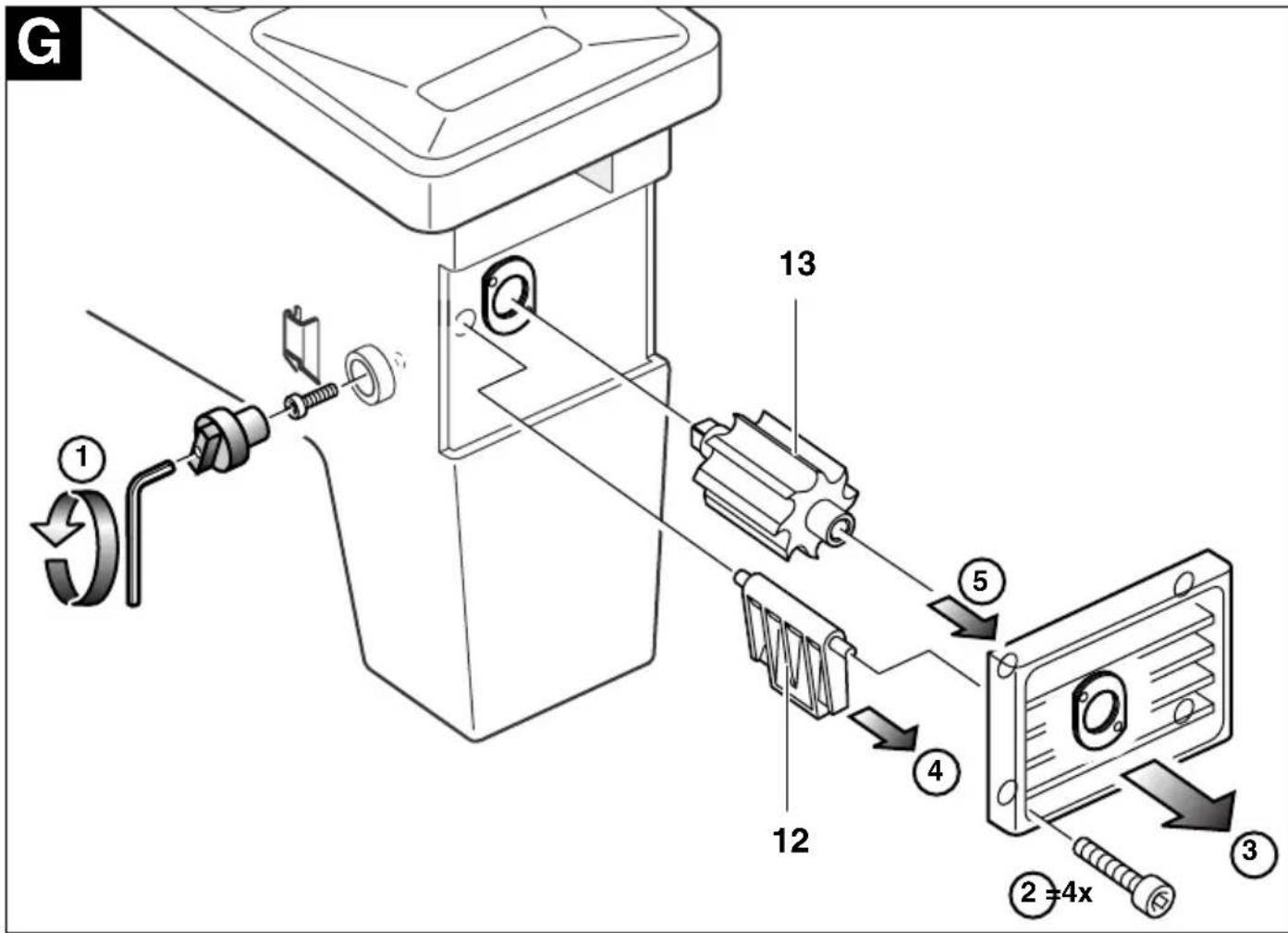

Removing the Cutting Roller/Pressure Plate (see figure G)
■Before any work on the machine itself, remove plug from the mains supply.
- Disassemble the cutting roller 13/pressure plate 12, sequence ① - ⑤.
– Clean the cutting roller 13.
– Clean and grease the bearings. - Reassemble the individual parts in the sequence ⑤ - ①.
- Afterwards turn adjustment knob 8 to the right until a light grinding sound can be heard and some small aluminium shavings fall out of the ejection chute 6. In case of stiffness of the adjustment knob 8, e. g. due to dirt, loosen it with aid of the Allen key 7.
The following exchangeable parts are available:
Pressure plate ...... Part No. 1 601 000 001

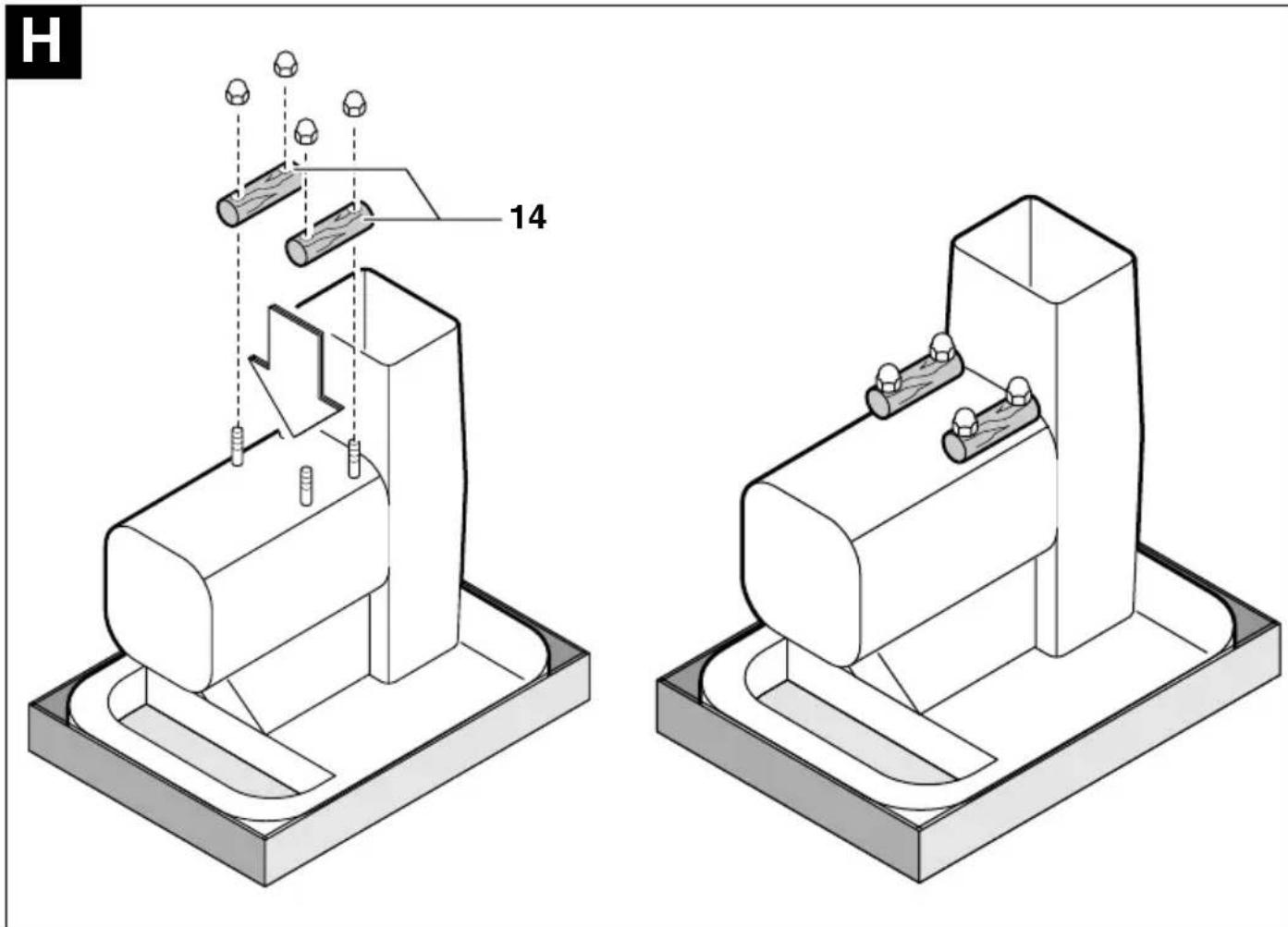

Transport Protection (see figure H)
When transporting without the stand, always use the transport safety 14 piece!
Environmental Protection
Environmental label "Blue Angel". Awarded for extra quiet operation.
RAL UZ54
Disposal
Power tools, accessories and packaging should be sorted for environmental-friendly recycling.
Only for EC countries:
Do not dispose of power tools into household waste!
According to the European Directive 2002/96/EC on waste electrical and electronic equipment and its incorporation into national law, power tools
that are no longer suitable for use must be separately collected and sent for recovery in an environmental-friendly manner.
Service
Exploded views and information on spare parts can be found under: www.bosch-pt.com
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham-Uxbridge
Middlesex UB 9 5HJ
Service....+44 (0) 18 95 / 83 87 82
Fax Service +44 (0) 18 95 / 83 87 89
©Advice line.... +44 (0) 18 95 / 83 87 91
Fax Advice.... +44 (0) 18 95 / 83 87 93
Ireland
Beaver Distribution Ltd.
Greenhills Road
Tallaght-Dublin 24
Service....+353 (0)1 / 4 14 94 00
Fax +353 (0)1 / 4 59 80 30
Australia and New Zealand
Robert Bosch Australia Pty. Ltd.
RBAU/SPT
1555 Centre Road
P.O. Box 66
3168 Clayton/Victoria
① +61 (0)1 / 3 00 30 70 44
Fax +61 (0)1 / 3 00 30 70 45
www.bosch.com.au
Declaration of Conformity
Measured values determined according to 2000/14/EC (1.60 m height, 1 m distance away).
Typically the A-weighted noise level of the product is: sound pressure level 78 dB (A); sound power level 89 dB (A).
We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 60 pr EN 13683 according to the provisions of the directives 89/336/EEC, 98/37/EC, 2000/14/EC.
2000/14/EC: The guaranteed sound power level L_WA is lower than 92 dB (A). Conformity assessment procedure according to Annex V.
Leinfelden, 09.2003.
Dr. Egbert Schneider Dr. Eckerhard Strötgen
Senior Vice President Head of Product
Engineering Certification
ppa. Amata i.v. NuOyen
Robert Bosch GmbH, Power Tools Division
Subject to change without notice
335
Protection de surcharge
Robert Bosch France S.A.
Service Après-vente/Outillage
Senior Vice President Head of Product
Engineering Certification
ppa. Aetaka i.v. NuOyen
Robert Bosch GmbH, Power Tools Division
Senior Vice President Head of Product
Engineering Certification
ppa. Aneka i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
Senior Vice President Head of Product
Engineering Certification
ppa. Aneka i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification
ppa. Aneka i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
Senior Vice President Head of Product
Engineering Certification
ppa. Aneka i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
Derved undgå man, at knivvalsen 13 overbelastes.
Senior Vice President Head of Product
Engineering Certification
Senior Vice President Head of Product
Engineering Certification
ppa. Amara i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
Senior Vice President Head of Product
Engineering Certification
Senior Vice President Head of Product
Engineering Certification
ppa. Amata i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
Senior Vice President Head of Product
Engineering Certification
i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification
ppa. Aneka i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
Power Tools Division
70745 Leinfelden-Echterdingen
www.bosch-pt.com
F016 L70 439 (06.02) O / 71
