USER MANUAL ST 200 ATIKA

Original instructions - Safety instructions - Spare parts

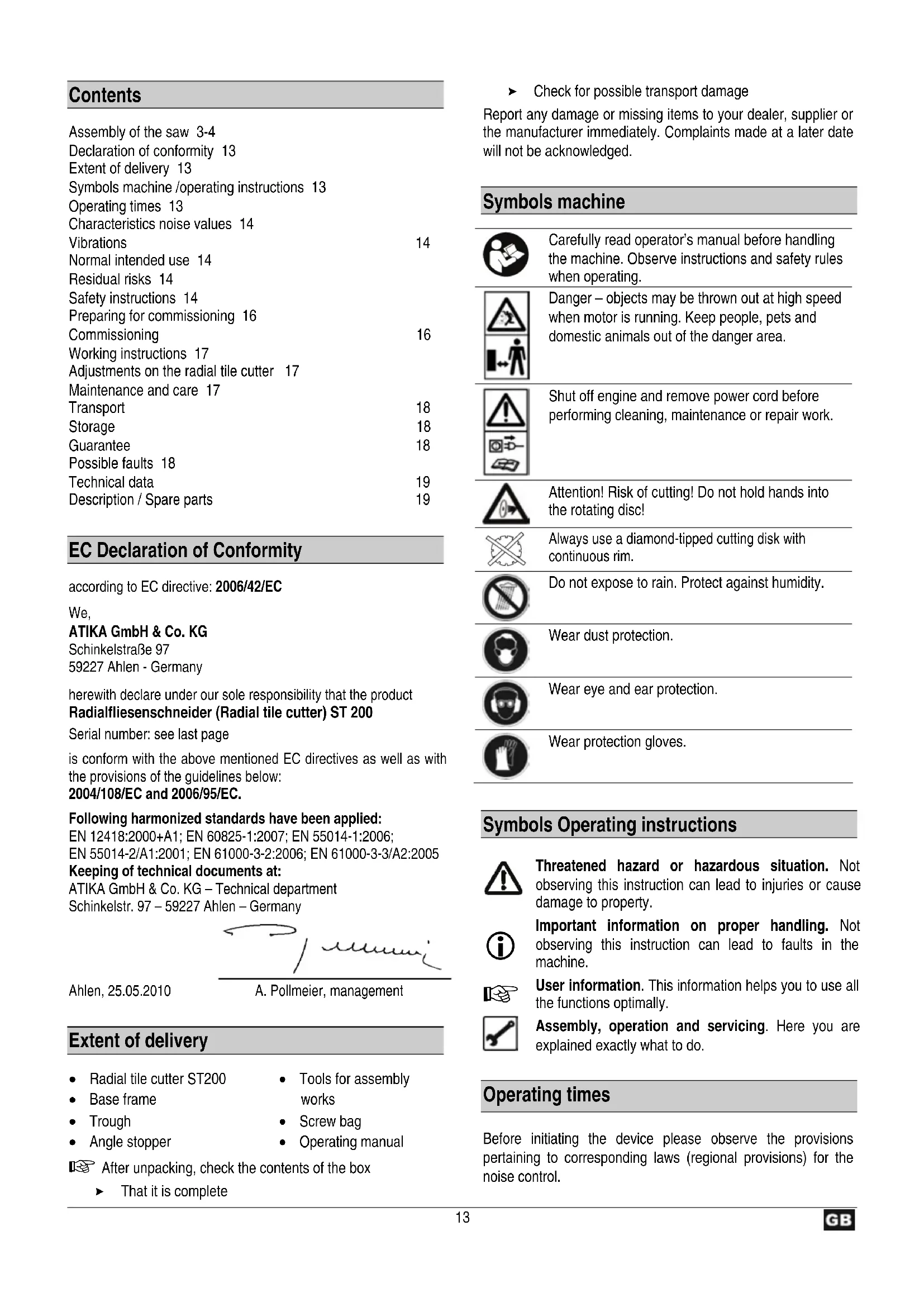

Assembly of the saw 3-4

Declaration of conformity 13

Extent of delivery 13

Symbols machine /operating instructions 13

Operating times 13

Characteristics noise values 14

Vibrations 14

Normal intended use 14

Residual risks 14

Safety instructions 14

Preparing for commissioning 16

Commissioning 16

Working instructions 17

Adjustments on the radial tile cutter 17

Maintenance and care 17

Transport 18

Storage 18

Guarantee 18

Possible faults 18

Technical data 19

Description / Spare parts 19

EC Declaration of Conformity

according to EC directive: 2006/42/EC

We.

ATIKA GmbH & Co. KG

Schinkelstraße 97

59227 Ahlen - Germany

herewith declare under our sole responsibility that the product

Radialfliesenschneider (Radial tile cutter) ST 200

Serial number: see last page

is conform with the above mentioned EC directives as well as with

the provisions of the guidelines below:

2004/108/EC and 2006/95/EC.

Following harmonized standards have been applied:

EN 12418:2000+A1; EN 60825-1:2007; EN 55014-1:2006

EN 55014-2/A1:2001; EN 61000-3-2:2006; EN 61000-3-3/A2:2005

Keeping of technical documents at:

ATIKA GmbH & Co. KG - Technical department

Schinkelstr. 97 - 59227 Ahlen - Germany

Ahlen, 25.05.2010

A. Pollmeier, management

Extent of delivery

• Radial tile cutter ST200
• Tools for assembly
• Base frame
• Trough
  Angle stopper

After unpacking, check the contents of the box

That it is complete

Check for possible transport damage

Report any damage or missing items to your dealer, supplier or the manufacturer immediately. Complaints made at a later date will not be acknowledged.

Symbols machine

Carefully read operator's manual before handling the machine. Observe instructions and safety rules when operating.

Danger - objects may be thrown out at high speed when motor is running. Keep people, pets and domestic animals out of the danger area.

Shut off engine and remove power cord before performing cleaning, maintenance or repair work.

Attention! Risk of cutting! Do not hold hands into the rotating disc!

Always use a diamond-tipped cutting disk with continuous rim.

Do not expose to rain. Protect against humidity.

Wear dust protection.

Wear eye and ear protection.

Wear protection gloves.

Symbols Operating instructions

Threatened hazard or hazardous situation. Not observing this instruction can lead to injuries or cause damage to property.

Important information on proper handling. Not observing this instruction can lead to faults in the machine.

User information. This information helps you to use all the functions optimally.

Assembly, operation and servicing. Here you are explained exactly what to do.

Operating times

Before initiating the device please observe the provisions pertaining to corresponding laws (regional provisions) for the noise control.

Characteristic noise values

EN ISO 3744 and EN ISO 11201:1995

Usage of the radial tile cutter with standard cutting-off wheel.

	No-load
Sound levels LWA	73,6 dB(A)	85,2 dB(A)
Sound levels at the work-place LPA	60,6 dB(A)	72,2 dB(A)

The values given are emission values and must therefore not simultaneously represent safe workplace values too. Although there is a relationship between emission and immersion levels, it can be reliably deduced whether additional precautionary measures are necessary or not. Factors, which can influence the immersion level currently existing at the workplace include the duration of the effects, the special type of the workroom, other noise sources, etc. e.g. the number of machines and other adjacent processes. The permissible workplace values can also vary from country to country. This information should however enable an improved assessment of the danger and risk to be carried out.

Vibrations

Vibration level: < 2.5m / s^2

Measuring uncertainty: K = 1,5

The indicated vibration emission level has been measured according to a standardised test method and can be used to compare power tools.

It can also be used for an initial estimate of exposure.

Warning!

The vibration emission level can differ from the indicated value during actual use of the power tool depending on the manner of usage.

It is necessary to define safety measures to protect the operator that are based on an estimate of exposure at the actual conditions of usage (for this, all parts of the operation cycle have to be considered, e.g. times during which the power tool is cut off and times during which it is switched on but runs in no-load mode).

Normal intended use

• The radial tile cutter is only provided for the application in the home and handcraft fields. It is provided exclusively for cutting small and medium-sized marble and granite slabs, bricks and tiles of all kinds, according to the machine size.
• The device shall not be used for cutting wood or metals. Risk of injuries existing!
• Use only cutting-off wheels appropriate for the machine, no saw blades.
• Only workpieces which have been securely mounted and aligned can be processed.

• The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
  The relevant accident prevention regulations for the operation as well as the other generally acknowledged occupational medicine and safety rules must be complied with.

• Any other use is deemed not to be use as prescribed. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.

• Unauthorised modifications on the radial tile cutter exclude a liability of the manufacturer for damages of any kind resulting from it. Load
• The radial tile cutter shall only be assembled, used and maintained by persons who are familiarised with it and instructed about the risks. Repair works may only be carried out by us or by a customer service agent nominated by us.
• The machine may not be used in a potentially explosive environment or be exposed to the rain.

Residual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the "Safety information" and the "Intended usage" as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Risk of injury for fingers and hands by contacts with the running cutting-off wheel.
• Risk of injury for fingers and hands by touching the diamond wheels on not covered sections.
• Injury by catapulted workpiece parts.
• Risk from electricity, by using non-standard electrical connections.
• Touching live parts of opened electrical components.
• Impairment of hearing when working on the machine for longer periods of time without ear protection.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Safety instructions

In case of improper usage radial tile cutters can be dangerous. If electrical tools are used, the fundamental safety precautions must be met to preclude the risks of fire, electric shock and injuries to persons.

Before commissioning this product, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

Pass the safety instructions on to all persons who work with the machine.
1 Keep these safety instructions in a safe place.
- Make yourself familiar with the equipment before using it, by reading and understanding the operating instructions.
- Do not use the machine for unsuitable purposes (see "Normal intended use").

• Mount the machine on a non-slip and level surface (risk of tipping).
• Avoid abnormal posture. Provide a safe standing position and keep at any time the balance.

• Be observant. Attend to what you do. Start working with rationality. Do not use the device when you are tired or under the influence of drugs, alcohol or medicaments. One moment of carelessness when using the device can result in serious injuries.
  Wear suitable work clothes:

• do not wear loose-fitting clothes or jewellery; they can catch in moving parts.
  slip-proof shoes

• wear a hair-net if your hair is long

• Wear protective clothing:

• ear protection (Sound intensity level at workplace can exceed 85 dB (A))

• safety goggles
  gloves

• Dust protection mask when carrying out works that produce a lot of dust

• Keep your workplace in an orderly condition! Untidiness can result in accidents.
  Take into consideration environmental influences:

• Do not use the device in moist or wet ambience.

• Do not expose the radial tile cutter to rain.

• Provide for good illumination.

• Never leave the machine unattended.

Children and youngsters less than 18 years of age and people who have not read the operating manual must not operate the machine.
- Keep other persons away.

Do not allow other persons, especially children, to touch the tool or cable.

• Keep them away from your working area.
• Do not overload the machine! You work better and safer in the given performance range.
• Do not advance the tile in the machine faster than it can be cut by the cutting disk.
• Only operate the machine with complete and correctly attached safety equipment and do not alter anything on the machine that could impair the safety.
• Do not use any cutting-off wheels which do not correspond to the indicated characteristics of this instruction manual.
• Do not use any cutting-off wheels which have a maximum rotational frequency of less than 3000 revolutions per minute.
• Choose a diamond-tipped cutting disk that is suited for the material to be cut.
• Do not exceed the safe operating speed of the cutting disk.
• Do not perform dry cuts using cutting disks that are designed for wet cutting.
• Do not use the cutting disk for grinding work, e.g. to grind the edge of a cut tile. Do not perform radius or round cuts.
• Pay attention to that the water pump is covered with water.

The use of other tools and other accessories can signify a risk of injury for you.

• Do not touch electrical components of the machine (e.g. switch) by wet hands.
• Make sure that all plug-type connections are in a dry place and do not rest on the ground.

• Switch the machine off and remove the mains plug from the socket when

• carrying out repair works

• maintenance and cleaning

• Elimination of failures (that includes also freeing a blocked cutting-off wheel)

• transport and storage

• Leaving the radial tile cutter (also for short-term interruptions)

• Attention! Cutting-off wheel keeps running for a moment after switching off! Do not brake the cutting-off wheel with the hand or lateral pressure.

• The cutting disk needs approx. 40 seconds to come to a complete stop after the machine has been deenergised. Wait until the cutting disk has come to a complete stop and then pull the mains plug out of the socket before carrying out any adjusting, maintenance and cleaning work.

• Maintain your radial tile cutter with care:

• Keep the tools sharp and clean to be able to work better and more safely.

• Follow the servicing instructions and the information about changing tools.

• Keep handles dry and free of oils and grease.

• Check the machine for possible damage:

Before continuing to use the machine, the protective devices must be inspected to ensure that they work perfectly and with their intended function
- Check whether the movable parts function perfectly and do not stick or whether the parts are damaged. All parts must be correctly installed and fulfil all conditions to ensure perfect operation of the saw
- Damaged guards and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.
- Damaged or illegible safety warning labels should be replaced immediately.

• Do not allow any tool key to be plugged in!
• Store the unused machine in a dry locked place away from the reach of children.

Electrical safety

Design of the connection cable according to IEC 60 245 (H 07 RN-F) with a core cross-profile section of at least

• 1.5 ~mm^2 for cable lengths up to 25 ~m

• 2.5mm^2 for cable lengths over 25m

• Long and thin connection lines result in a potential drop. The motor does not reach any longer its maximal power; the function of the device is reduced.
  Plugs and coupler outlets on connection cables must be made of rubber, non-rigid PVC or other thermoplastic material of same mechanical stability or be covered with this material.

The connector of the connection cable must be splashproof.
- When running the connection line observe that it does not interfere, is not squeezed, bended and the plug connection does not get wet.
- Do not use the cable for purposes for which it is not meant. Protect the cable against heat, oil and sharp edges. Do not use the cable to pull the plug from the socket.
Wind off completely the cable when using a cable drum.
Regularly check the extension cables and replace them if they are damaged.
- Do not use any defective connection cables.
- When working outdoors, only use extension cables especially approved and appropriately labelled for outdoor use.
- Do not set up any provisional electrical connections.
- Never bypass protective devices or deactivate them.
The device must be connected via the fitted PRCD (residual-current-operated circuit breaker).

The electrical connection or repairs to electrical parts of the machine must be carried out by a certified electrician or one of our customer service points. Local regulations - especially regarding protective measures - must be observed.
Repairs to other parts of the machine must be carried out by the manufacturer or one of his customer service points.
Use only original spare. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Preparing for commissioning

To achieve perfect function of the machine, follow the notes given in these instructions

√ You have to attach the following parts:

• Base frame
  Cooling water pump

Assembly of the base frame and the cooling water pump B - D

1. Assemble the main pillars (1) with the screws (4) and the spring washers (5) on the frame. B
2. Screw the clamp holders (6) with the star handle nuts (7) and the coach bolts (8) on the frame (3).
3. Put the trough (9) into the frame (3).
4. Put the cooling water pump (26) into the intended gap of the trough. D
5. Fill water into the trough until the cooling water pump is covered with water.
6. Put the radial tile cutter into the trough.

Commissioning

Mains connection

Compare the voltage given on the machine model plate e.g. 230V with the mains voltage and connect the saw to the relevant and properly earthed plug

Alternating current motor: Use a shockproof plug, mains voltage 230V with residual current circuit breaker and 10 A inert fuses.
- Use connection cable or extension cable respectively with a cross section of at least 1,5mm^2

Daily checks of the PRCD (residual-current-operated circuit breaker)

The device must be connected via the residual-current-operated circuit breaker (PRCD).

Perform this check once in a day.
When changing the location no further test is required.

1. Directly plug the PRCD into the outlet (vertical).
2. Press the green Reset key - you will hear a click and the indicator will light up orange.

3. To check the PRCD press the blue test key. The indicator panel should no longer light.

4. Press the Reset key again - the indicator panel will light up orange.

5. The machine can be startet.

Switch on

Do not use any device where the switch can not be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.

Check that the PRCD is operative: indicator panel orange.

Press the green button (I) on the switch. At the same time, check whether the rotating direction of the cutting-off wheel corresponds to the indicated rotational direction on the protection cover (arrow).

If there is a power cut, the machine switches off automatically. To switch on again, first press the red and then the green button.

Switching off

Press the red button (0) on the switch.

Working instructions

Before commencing work, ensure the following:

• Workplace tidied?
  Is the radial tile cutter stably mounted?
• You may not start to operate the machine until you have read these operating instructions, observed all the instructions given and installed the machine as described!

Working with the radial tile cutter

Keep your hands always in a safe distance to the rotating cutting-off wheel.

• Do not start working before the cutting-off wheel has reached its maximum rotational frequency.
• Pay attention to that the cooling water pump (26) washes water to the cutting-off wheel.
• Only workpieces which have been securely mounted and aligned can be processed.

Ensure that you always comply with the safety instructions given on p. 13 ff.

Adjustments on the radial tile cutter

Replacing cutting-off wheel

Before replacing the cutting-off wheel pull out the power plug.

• Do not use any damaged cutting-off wheels or such which have changed their shape.
• Only use sharp cutting-off wheels.

Replacing cutting off wheel E - F

1. Loosen the screws (29) and remove the covering cap (28). E
2. Put the ring spanner wrench (36) on the flange and the installation wrench (35) on the motor shaft end and loosen the flange (32).

Left-handed thread!

1. Remove the flange.
2. Now you can remove the cutting-off wheel (33).
3. Check the spindle, spindle nut and flanges for damages, wearing or loose fit before mounting the cutting disk. Immediately replace damaged or worn parts.
4. The installation of the cutting-off wheel is carried out in reverse order.

Observe the rotational direction!

1. Fasten the flange tightly.

Left-handed thread!

1. Screw on the covering cap (28).

Carrying out angle cuts

When performing the adjustment works pay attention to that the machine is switched off and pull the saw head backwards.

Adjusting from 0^ - 90^ H

1. Loosen the star handled nut (14) and turn the angle stopper (13) until the desired angle is indicated on the scale (0^ - 90^) . H
2. Refasten the star handled nut in order to fix the adjusted angle.
3. Put the tile on the stop rail (11) and the angle stopper (13).
4. Start the machine and wait until the cooling water is flushed to the cutting-off wheel.
5. Pull the cutting unit (18) by moving the handhold (23) slowly and constantly through the tile.
6. Switch off the machine after finishing the cut.

Setting of litre cut (jolly cut) G

1. Loosen the set screws (24) on both sides of the machine and pull then the cutting unit (18) by moving the handhold (23) to the desired position until the desired angle is indicated. G
2. Refaster the set screws (24).
3. Carry out the cut as described in point, Adjusting from 0^ - 90^ .

Maintenance and cleaning

Before each maintenance and cleaning work

• switch off device
• wait for standstill of the radial tile cutter
• pull out main plug

For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.

Use only original parts. Other parts can result in unexpected damages and injuries.

Observe the following in order to keep the operability of the radial tile cutter :

Clean and oil all moving parts regularly.
- Remove dust and dirt with a cloth or a brush.
- Do not clean the machine with running water or high-pressure cleaners.
- Do not use solvents for the synthetic parts (petrol, alcohol, etc.) as these can damage the synthetic parts.
- Clean the collecting trough and the cooling water pump after each application in order to guarantee the cooling of the cutting-off wheel.

Never use any grease!

Use for instance environmentally acceptable spray oil.

Transport

Remove the mains plug before each transport.

Transport the radial tile cutter only when the cutting unit is fixed:

• Loosen the star handled nuts of the stopper (17).
• Push transportation locks to the cutting device (18).
• Refasten the star handled nuts.

That's how you avoid injuries on the hands.

Drain the cooling solution completely before any transport.

Storage

Remove the mains plug from the socket.

• Store unused equipment in a dry, locked place out of the reach of children.
  Before a longer storage observe the following in order to prolongate the service life of the machine and to guarantee a smooth running operation:

• thoroughly clean the machine

• treat all movable parts with an environmentally friendly oil

Never use any grease!

Guarantee

Please observe the enclosed terms of guarantee.

Possible faults

Before each maintenance and cleaning work

• switch off device
• wait for complete standstill of the radial tile cutter
• pull out main plug

After repair and before re-operation control and reactivate all security installations.

Fault Possible cause Removal
Radial tile cutter does not work.	no power extension cable damaged main plug, motor or switch defect	Check power supply, power socket and fuse protection Check extension cable, exchange defect cable immediately Have motor or switch checked by an approved electrician or replaced by original spare parts.
Radial tile cutter cuts with interruptions	extension cable damaged internal loose connection on-off switch defect	Check extension cable, exchange defect cable immediately Please contact the after sales service.
Cutting-off wheel gets hot	Cutting-off wheel is edgeless or defect Missing cooling	Replace cutting-off wheel Check cooling water pump and hose Refill water
Motor hums, cutting-off wheel stops	Cutting-off wheel blocks	Remove object

Technical data

Radial tile cutter

Typ ST

Motor rating P_1 800 W

Mains voltage / Mains frequency 230 V~ / 50 Hz

No-load speed _0 3000

Cutting-off wheel x bore x thickness max. 200× 25,4× 2,2mm

Cutting depth for 90^ 35 mm

Cutting depth for 45^ 25 mm

Cutting length 400 mm

Table size 500 x 385 mm

Dimensions (length x bright x height) 855 x 545 x 935 mm

Weight ca. 27 kg

Protection art IP 54

Protection classe

II - protective insulated

Description of device / spare parts

Pos.	Denomination	Order-No.
1.	Main pillar	364003
2.	Attaching flap	364004
3.	Frame	364005
4.	Cheese head screw with hexagon socket M10 x 40	390050
5.	Spring washer A 10	391915
6.	Clamp holder	364006
7.	Star handled nut M6	388042
8.	Coach bolt with cup square screw M6 x 16	390154
9.	Trough	364007
10.	Table plate (3 pieces)	364008
11.	Stopper bar (2 pieces) with scale	364009
12.	Safety label	364010
13.	Angle fence complete	364011
14.	Star handled nut M6 for angle adjustment	388042
15.	Guide bar
16.	Scale for guide bar	364013
17	Stopper for longitudinal section/transport	364014
18.	Cutting unit
19.	On-off switch	364015

Pos.	Bezeichnung	Order-No.
20.	Fan	364016
21.	Fan cooling	364017
22.	Capacitor	364018
23.	Handhold	364019
24.	Set screw for litre cut	364020
25.	Splash guard	364021
26.	Cooling water pump	364022
27.	Hose	364023
28.	Covering cap	364024
29.	Screw M5 x 8	390067
30.	Disc A 5,3 mm	391672
31.	Spring washer A Ø 5mm	391908
32.	Flange	364025
33.	Cutting-off wheel Ø 200 x Ø 25,4 x 2,2 mm	364026
34.	Hexagonal wrench SW10	364027
35.	Installation wrench	364028
36.	Socket wrench	364029
37.	PRCD (residual-current-operated circuit breaker)	364031

Sommaire

Montage 3-4

2004/108/ES a 2006/95/ES.

2004/108/EG, 2006/95/EG.

Vagasmelyseg 45^ -nal 25 mm

2004/108/EG, 2006/95/EG.

A. Pollmeier, management

2004/108/EG, 2006/95/EG.

2004/108/EG, 2006/95/EG.

Uporabljeni so bili naslednjih harmonizirani standardi:

EN 12418:2000+A1; EN 60825-1:2007; EN 55014-1:2006;

EN 55014-2/A1:2001; EN 61000-3-2:2006; EN 61000-3-3/A2:2005
