Product type	Decorative paper pendant lamp
Brand	Normann
Model	Norm 06
Material	Folded paper (lampshades) and plastic or metal (base and rings)
Dimensions (approximate)	Height: approx. 40 cm, Diameter: approx. 30 cm (depending on folding)
Weight	Approximately 0.5 kg
Power supply	Mains electricity (E27 bulb, not included)
Maximum wattage	60 watts
Color	White or colored depending on version (not specified)
Main functions	Ambient lighting, interior decoration, assembly by folding
Box contents	7 lampshades (numbers 4, 3, 2, 1), bases, rings (L, M, S), base module, suspension module, instructions
Assembly	Completely manual by folding and fitting, no tools required
Care and cleaning	Dust with a soft, dry cloth. Do not use liquid products.
Bulb replacement	Easy thanks to the flexible base of the lamp
Safety	Do not exceed 60 watts. Use a suitable bulb. Keep away from heat sources.
Spare parts and repairability	The paper lampshades are fragile. If torn, replace the set. The rings and bases are reusable.
Warranty	2 years (according to applicable law)
Country of origin	Denmark (Normann brand)

Frequently Asked Questions - Norm 06 Normann

How to assemble the Norm 06 lamp?

Follow the folding instructions in order: start with the numbered lampshades 4 on the base, then 3 on ring L, then 2 on M, and finally 1 on S. Finish with the base module and suspension.

What type of bulb to use?

Use an E27 socket bulb with a maximum wattage of 60 watts. LED or incandescent bulbs are suitable.

Is the lamp supplied with a bulb?

No, the bulb is not included. You must purchase it separately.

How to clean the luminaire?

Use a soft, dry cloth to dust. Never use water or liquid cleaning products as the paper could become deformed.

Can I change the bulb easily?

Yes, the flexible base of the lamp allows easy access to the socket without disassembling the whole set.

What to do if a lampshade is torn?

The lampshades are made of paper and therefore fragile. It is possible to order spare parts from the manufacturer or replace the lampshade with another provided in the kit (if available).

Can the lamp be used with an LED bulb?

Yes, dimmable LED or non-dimmable bulbs are suitable, provided the maximum wattage of 60W is not exceeded.

How to hang the lamp from the ceiling?

After complete assembly, the lamp can be suspended from a hook or fitting suitable for the weight. The suspension module has a heptagonal cone that attaches around the wire.

Is the lamp repairable?

Yes, the plastic parts (bases, rings) are reusable. In case of damage, you can replace only the paper lampshades.

Where to find the complete manual?

The complete manual is available for free download on the site notice-facile.com in PDF format.

USER MANUAL Norm 06 Normann

ASSEMBLY INSTRUCTIONS

MONTAGEANLEITUNG

INSTRUCTIONS D'ASSEMBLAGE

INSTRUCCIONES DE MONTAJE

Line drawing of a symmetrical, fan-like architectural structure with curved and straight lines (no text or symbols)

Indhold:

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

I sokkelelement

Three abstract geometric line drawings composed of connected rectangular segments, no text or symbols present.

I ringelement S I ringelement M

Two abstract geometric patterns with radial segments and triangular cutouts, no text or symbols present

Simple line drawing of a symmetrical, arch-like shape with dashed internal lines and corner brackets (no text or symbols)

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Symmetrical abstract line drawing resembling a leaf or arch shape with dashed internal lines (no text or symbols)

Soklen 'knipses' sammen til en 7-kantet cylinder med den matte side udad.

1.

Three-step line drawing showing hand manipulation of a mechanical part, with arrows indicating steps (no text or symbols)

Diagram showing a flower-like structure before and after transformation, with no text or symbols present.

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper or tool, with no visible text or symbols

1.

Line drawing of hands holding a tool over a table with lines (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Ringelement korrekt fastmonteret.

1.

Line drawing of a flower with petal-like petals and a central geometric structure (no text or symbols)

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Line drawing of two hands folding a folded paper or pyramid shape with red arrows indicating direction (no text or symbols)

Bøj og saml bundmodulet. Sørg for at samlingen vender indad.

1.

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

Abstract line drawing of a symmetrical geometric pattern with radiating lines (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

I basenhet

Three connected 3D block structures with dashed outlines, no text or symbols present

I ringenhet S I ringenhet M

Two abstract geometric line drawings with triangular cutouts and dashed internal lines, no text or symbols present.

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

7 lampskärmsenheter I

Pure geometric diagram of a symmetrical, teardrop-shaped structure with dashed internal lines (no text or symbols)

7 lampskärmsenheter 2

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

7 lampskärmsenheter 3

Symmetrical abstract diagram with curved and dashed lines forming a teardrop-like shape (no text or symbols)

7 lampskärmsenheter 4

Monteringsinstruktioner:
1.

Three-step line drawing showing hand positioning and folding process of a mechanical part (no text or symbols)

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a small object over a line, no text or symbols present

Technical line drawing of a hexagonal mechanical or architectural component with internal components and no visible text or symbols

Korrekt monterad ringenhet.

1.

Line drawing showing a hand holding a small object with a red arrow indicating direction, alongside a detailed line drawing of a flower-like structure (no text or symbols)

Line drawing of a flower with petal-like petals and a central geometric structure (no text or symbols)

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Vik lampskärmsenheterna markerade "2" och montera dem på ringenheten "M" hela vägen runt. Montera ringenhet "S".

MONTERINGSINSTRUKTIONER TILL NORM 06 LARGE/SVENSKA

1.

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper or pyramid shape with red arrows indicating direction (no text or symbols)

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

Abstract line drawing of a geometric structure with radiating lines (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

I grunnelement

Three connected 3D block structures with dashed outlines, no text or symbols present

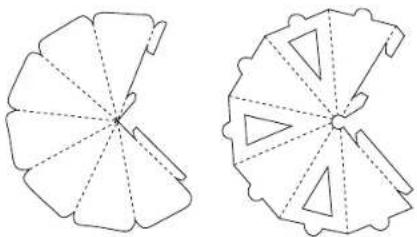

I ringelement S I ringelement M

Two abstract geometric patterns with radial segments and triangular cutouts, no text or symbols present

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Symmetrical abstract diagram with curved and dashed lines forming a teardrop-like shape (no text or symbols)

Three-step line drawing showing hand positioning and folding process (no text or symbols)

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a tool over a metal bracket (no text or symbols)

Technical line drawing of a hexagonal mechanical or architectural component with internal components and no visible text or symbols

Line drawing showing a hand holding a small object with arrows indicating direction, alongside a detailed illustration of a flower with a central stem and base (no text or symbols)

Line drawing of a flower with multiple petals and a central geometric structure (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper into a triangular pyramid (no text or symbols)

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

Abstract line drawing of a symmetrical geometric pattern with radiating lines (no text or symbols)

Den ferdigmonterte grunnmodulen.

1.

Line drawing of a symmetrical, fan-like architectural structure with curved eaves and a vertical line (no text or symbols)

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

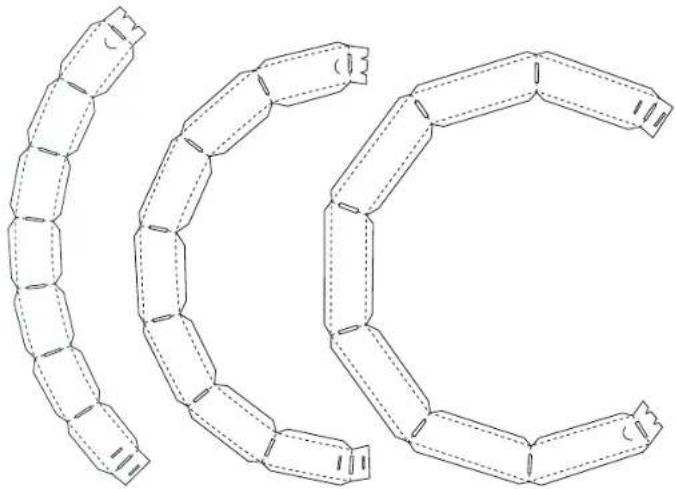

I base element

Three connected 3D block structures with dashed outlines, no text or symbols present

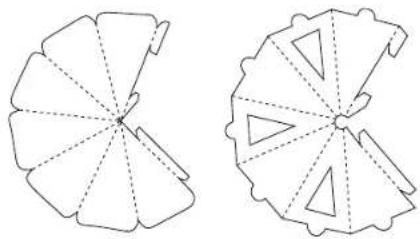

I ring element S I ring element M

Two abstract geometric line drawings with triangular cutouts and dashed internal lines, no text or symbols present.

I base module I suspension module

Simple line drawing of a symmetrical, arch-like shape with dashed internal lines (no text or symbols)

7 lampshade elements no.

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

7 lampshade elements no. 2

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

7 lampshade elements no. 3

Symmetrical abstract shape with curved and dashed lines, no text or symbols present

7 lampshade elements no. 4

Assembly instructions:
1.


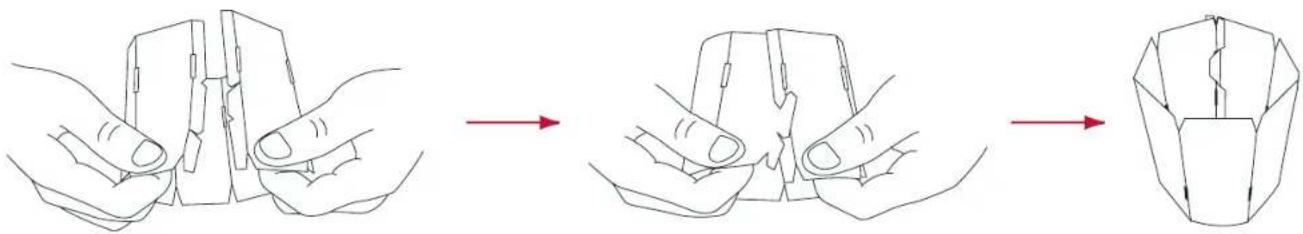

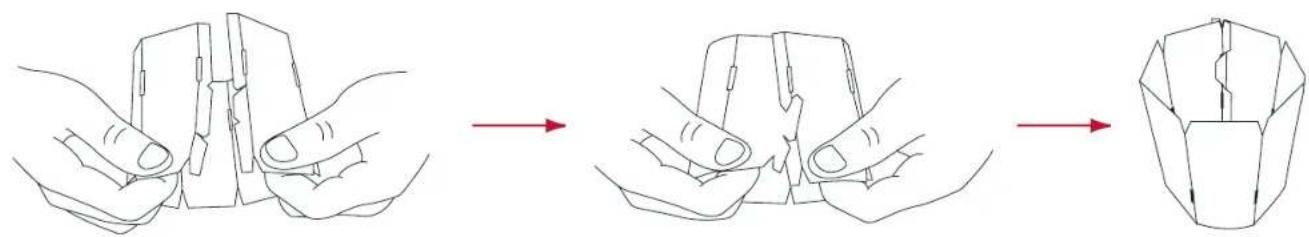

'Snap' the base together into a 7-sided cylinder with the matt side out.

1.

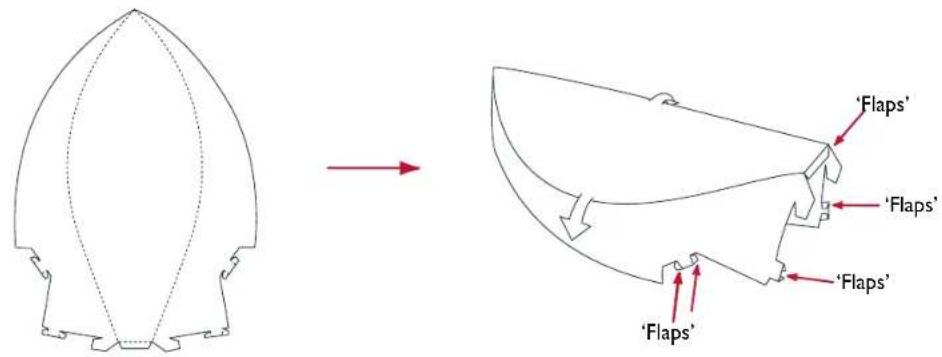

Fold the 7 lampshade elements marked '4' as shown. Fold carefully along the curve of the shade element.
Fold the 'flaps' in with the matt side out.

Three-step line drawing showing hand positioning and folding process (no text or symbols)

Hook the shade element onto the narrow part of the opening on the base element.

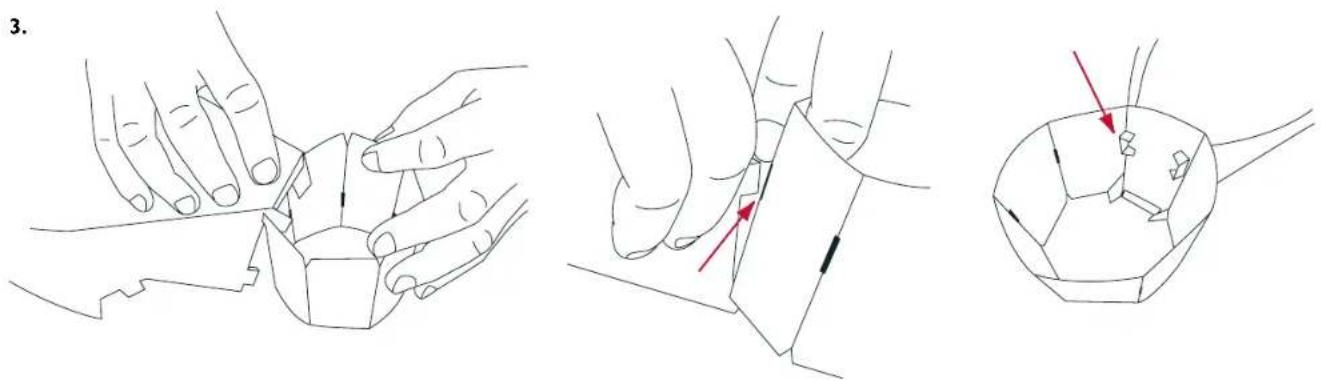

Turn the base element upside down and guide the 'flaps' through the holes, folding them over at the back to lock the module.

1.

Place the next shade element on the base next to the first one and continue until all 7 lampshade elements no. 4 have been fitted. Remember to lock the modules on the inside of the base.

1.

Line drawing of two hands holding a mechanical component, no text or symbols present

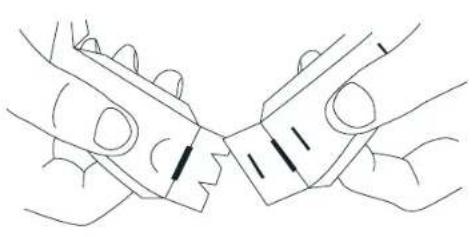

Take the ring element marked 'L' and fold the strengthening edges over. Assemble the ring element using the 'flaps'.

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a small object over a line, no text or symbols present

Mount ring element 'L' onto the 'flaps' on the lampshade element and lock them by straightening out the 'flaps'.

1.

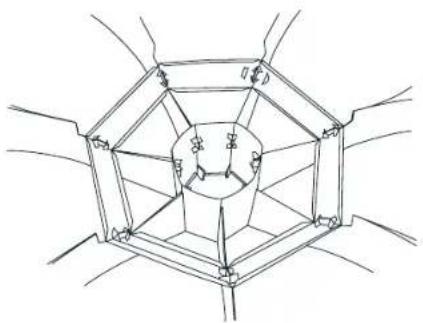

Technical line drawing of a hexagonal structural framework with internal components (no text or symbols)

Correctly mounted ring element.

1.

Line drawing showing a hand holding a small object with a red arrow indicating direction, alongside a detailed close-up of a flower-like structure (no text or symbols)

Fold the 7 lampshade elements marked '3'. Fold over carefully along the curve of the shade element. Mount the first shade element onto the ring element by pushing the 'flaps' through the hole where the other 'flaps' are also located.

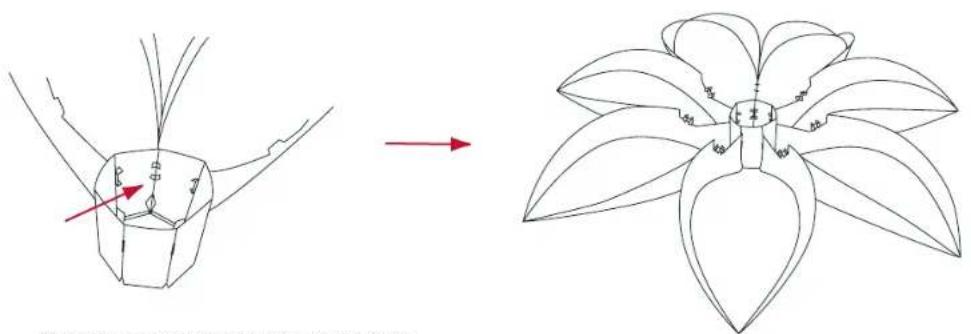

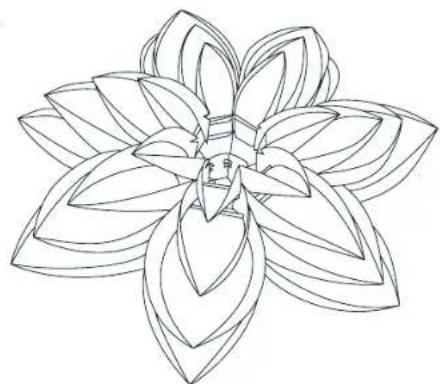

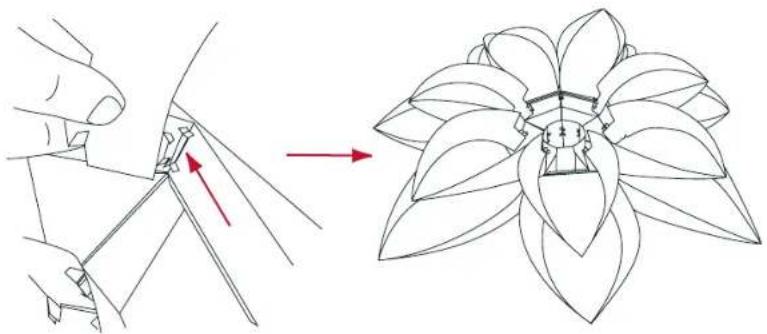

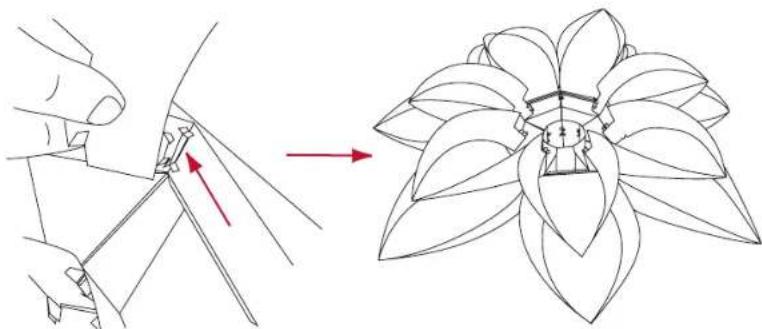

Mount the rest of the lampshade elements similarly all the way round. Remember to lock the modules at the back.

1.

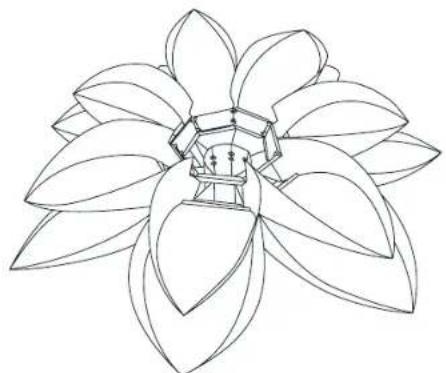

Line drawing of a flower with multiple petals and a central truss structure (no text or symbols)

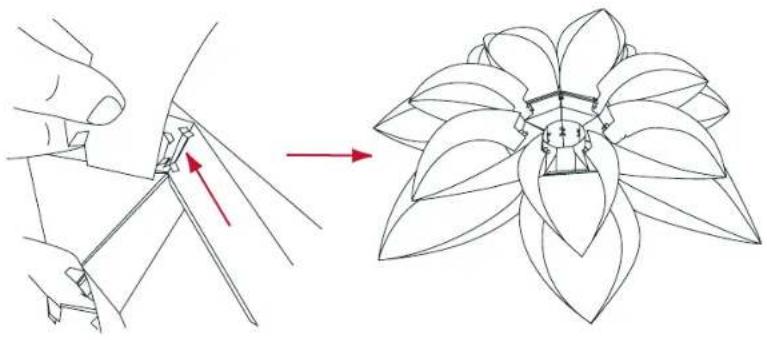

Assemble and mount ring element 'M' onto the lampshade elements marked '3'.

1.

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Fold the lampshade elements marked '2' and mount them onto ring element 'M' all the way round. Mount ring element 'S'.

ASSEMBLY INSTRUCTIONS NORM 06 LARGE/ENGLISH

1.

Line drawing of a lotus flower with multiple petal-like petals (no text or symbols)

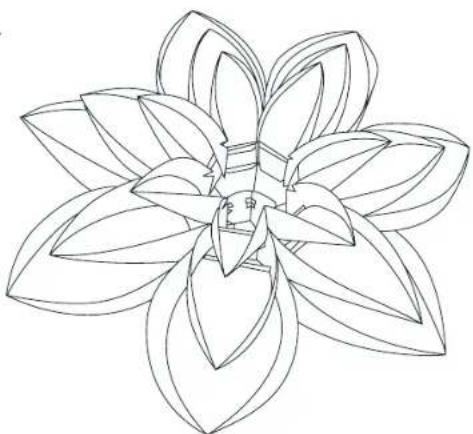

Fold the 7 lampshade elements marked 'I' and mount them onto ring element 'S' all the way round.

1.

Line drawing of two hands folding a folded paper or pyramid shape with red arrows indicating direction (no text or symbols)

Bend and assemble the base module. Make sure joints turn inwards.

1.

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

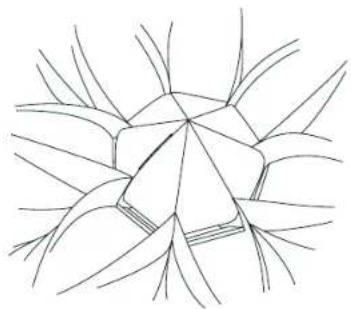

Fit the base module into the slots on the inner lampshade elements. (The slots are the small cut-outs).

Abstract line drawing of a geometric structure with radiating lines (no text or symbols)

The fully assembled base module.

1.

Bend the suspension module in the 6 directions and assemble around the wires so as to form a 7-sided cone.
Turn the lamp around so the opening at the top of the lamp is turned upwards. Lower the suspension module into the opening and push the 'flaps' through the holes. Turn down the strengthening edges horizontally so they lock the suspension module.

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

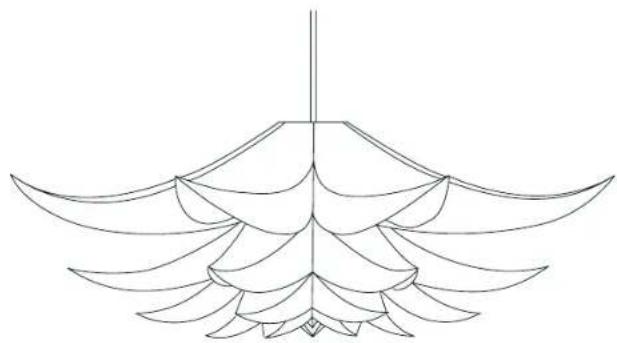

The fully assembled lamp ready for hanging. The lamp can be hung without removing the light fitting. Bulbs can be easily changed through the flexible base of the lamp.

MAX 60 WATT

Inhalt:

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

I Sockelelement

Three connected 3D block structures with dashed outlines, no text or symbols present

| Ringelement S | Ringelement M

Two abstract geometric patterns with radial segments and triangular cutouts, no text or symbols present

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines and corner brackets (no text or symbols)

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Symmetrical abstract diagram with curved and dashed lines forming a teardrop-like shape (no text or symbols)

Three-step line drawing showing hand positioning and folding process of a mechanical part (no text or symbols)

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a tool over a metal bracket (no text or symbols)

Technical line drawing of a hexagonal structural framework with internal components (no text or symbols)

Line drawing showing a hand holding a small object with arrows indicating direction, alongside a detailed close-up of a flower-like structure (no text or symbols)

Line drawing of a flower with multiple petals and a central geometric structure (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper into a triangular pyramid (no text or symbols)

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

Abstract line drawing of a geometric structure with radiating lines (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

I socle

Three connected 3D block structures with dashed outlines, no text or symbols present

I anneau S I anneau M

Two abstract geometric line drawings with triangular cutouts and dashed internal lines, no text or symbols present.

I module de base I module de suspension

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines and corner brackets (no text or symbols)

7 abats-jour n°1

Pure geometric diagram of a symmetrical, teardrop-shaped structure with dashed internal lines (no text or symbols)

7 abats-jour n°2

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

7 abats-jour n°3

Symmetrical abstract line drawing resembling a leaf or arch shape with dashed internal lines (no text or symbols)

7 abats-jour n°4

Three-step line drawing showing hand positioning and folding process (no text or symbols)

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a small object over a line, no text or symbols present

Technical line drawing of a hexagonal structural framework with internal components (no text or symbols)

Line drawing showing a hand holding a small object with a red arrow indicating direction, alongside a detailed close-up of a flower-like structure (no text or symbols)

Line drawing of a flower with multiple petals and a central geometric structure (no text or symbols)

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper or pyramid shape with red arrows indicating direction (no text or symbols)

Line drawing of two hands holding a small object with a red arrow pointing to a specific area (no text or symbols present)

Abstract line drawing of a geometric structure with radiating lines (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

Three-step line drawing showing hand positioning and folding process (no text or symbols)

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a tool over a metal bracket (no text or symbols)

Technical line drawing of a hexagonal structural framework with internal components (no text or symbols)

Line drawing showing a hand holding a small object with arrows indicating direction, alongside a detailed illustration of a flower with petals and stem (no text or symbols)

Line drawing of a flower with multiple petals and a central truss structure (no text or symbols)

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper or pyramid shape with red arrows indicating direction (no text or symbols)

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

Abstract line drawing of a geometric structure with radiating lines (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

I elemento base

Three connected 3D block structures with dashed outlines, no text or symbols present

Two abstract geometric patterns with radial segments and triangular cutouts, no text or symbols present

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines and corner brackets (no text or symbols)

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Symmetrical abstract diagram with curved and dashed lines forming a teardrop-like shape (no text or symbols)

Three-step line drawing showing hand positioning and folding process (no text or symbols)

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a tool over a metal bracket (no text or symbols)

Technical line drawing of a hexagonal structural framework with internal components (no text or symbols)

Line drawing showing a hand holding a small object with arrows indicating direction, alongside a detailed close-up of a flower-like structure (no text or symbols)

Line drawing of a flower with multiple petals and a central geometric structure (no text or symbols)

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper into a triangular pyramid (no text or symbols)

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

Abstract line drawing of a geometric structure with radiating lines (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

I basiselement

Three connected 3D block structures with dashed outlines, no text or symbols present

I ringelement S I ringelement M

Two abstract geometric patterns with radial segments and triangular cutouts, no text or symbols present

I basismodule I hangmodule

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

7 lampenkap-elementen nr. 1

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

7 lampenkap-elementen nr. 2

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

7 lampenkap-elementen nr. 3

Symmetrical abstract line drawing resembling a leaf or arch shape with dashed internal lines (no text or symbols)

7 lampenkap-elementen nr. 4

Three-step line drawing showing hand manipulation of a mechanical part, with arrows indicating steps (no text or symbols)

Line drawing of two hands holding a mechanical component (no text or symbols)

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a tool over a table or ruler (no text or symbols present)

Technical line drawing of a hexagonal structural framework with internal components (no text or symbols)

Line drawing showing a hand using scissors to cut a flower with a red arrow indicating the process (no text or symbols present)

Line drawing of a flower with multiple petals and central structure (no text or symbols)

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper or crystal structure with red arrows indicating direction (no text or symbols)

Line drawing of two hands holding a small object with a red arrow pointing to the tip (no text or symbols)

Abstract line drawing of a geometric structure with radiating lines (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

I elemento base

Three connected 3D block structures with dashed outlines, no text or symbols present

Two abstract geometric line drawings with triangular cutouts and dashed lines, no text or symbols present.

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

7 elementos do abajur n.° I

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

Symmetrical abstract diagram with curved and dashed lines forming a teardrop-like shape (no text or symbols)

Three-step line drawing showing hand positioning and folding process of a mechanical part (no text or symbols)

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a tool over a metal bracket (no text or symbols)

Technical line drawing of a hexagonal structural framework with internal components (no text or symbols)

Line drawing showing a hand holding a small object with arrows indicating direction, alongside a detailed illustration of a flower with petals and stem (no text or symbols)

Line drawing of a flower with multiple petals and a central truss structure (no text or symbols)

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Line drawing of a lotus flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper into a triangular pyramid (no text or symbols)

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

Insira o módulo base nas ranhuras dos elementos internos do abajur. (As ranhuras são os pequenos cortes).

Abstract line drawing of a geometric structure with radiating lines (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

Three-step line drawing showing hand positioning and folding process (no text or symbols)

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper or tool, with no visible text or symbols

1.

Line drawing of hands holding a tool over a metal sheet (no text or symbols)

Technical line drawing of a hexagonal structural framework with internal components (no text or symbols)

Line drawing showing a hand holding a small object with arrows indicating direction, alongside a detailed illustration of a flower with a central stem and base (no text or symbols)

Line drawing of a flower with detailed petals and central structure (no text or symbols)

Line drawing of a flower with multiple petals and central stamen (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper cone with red arrows indicating direction (no text or symbols)

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

Abstract line drawing of a geometric structure with radiating lines (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)

Pure diagram of vertical rectangular shapes with dotted lines, no text or symbols present

베이스 구성요 소 1개

Pure line drawing of two interlocking chain structures with dashed outlines, no text or symbols present

링 구성요소 S1개

Abstract geometric pattern with radial lines and dashed segments (no text or symbols)

베이스 모듈 1개

Abstract geometric pattern with triangular cutouts and a central circle (no text or symbols)

매달기 모듈 1개

Simple line drawing of a symmetrical, arch-like shape with dashed internal lines (no text or symbols)

1번 전등갓 구성요소 7개

Simple line drawing of a symmetrical, fan-like shape with dashed internal lines (no text or symbols)

2번 전등갓 구성요소 7개

Simple line drawing of a symmetrical, teardrop-shaped object with dashed internal lines (no text or symbols)

3번 전등갓 구성요소 7개

Symmetrical abstract geometric shape with curved and dashed lines, no text or symbols present

4번 전등갓 구성요소 7개

조립 안내:
1.

Three-step line drawing showing hand manipulation of a mechanical part, with arrows indicating steps (no text or symbols)

Line drawing of two hands holding a mechanical component, no text or symbols present

Line drawing of two hands holding a piece of paper with a ruler, no text or symbols present

1.

Line drawing of hands holding a tool over a metal bracket (no text or symbols)

Technical line drawing of a hexagonal mechanical or architectural component with internal components and no visible text or symbols

올바로 올려진 링 구성요소

1.

Line drawing showing a hand holding a small object with arrows indicating direction, alongside a detailed close-up of a flower-like structure (no text or symbols)

Line drawing of a flower with multiple petals and a central geometric structure (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of a flower with multiple petal-like petals (no text or symbols)

Line drawing of two hands folding a folded paper into a triangular pyramid (no text or symbols)

Line drawing of two hands performing a medical or surgical procedure with a red arrow indicating a point of interest (no text or symbols present)

Abstract line drawing of intersecting lines forming a symmetrical geometric pattern (no text or symbols)

모두 조립된 베이스 모듈

1.

Simple line drawing of a funnel-shaped device with a bulb at the base and a red arrow pointing to the tip (no text or symbols)

Line drawing of a symmetrical, fan-like architectural structure with layered eaves (no text or symbols)
