Norm 69 - Lighting Normann - Free user manual and instructions

Product type	Decorative pendant lamp
Brand	Normann
Model	Norm 69
Material	Polypropylene (plastic)
Color	Matte white
Dimensions (estimated)	Diameter 45 cm, height 35 cm
Weight (estimated)	1.5 kg
Power supply	Mains, E27 socket
Maximum bulb wattage	60 W (incandescent or LED equivalent)
Number of pieces	69 numbered pieces
Assembly	Without tools or glue, snap-fit assembly
Lighting characteristics	Anti-glare, optimized diffusion
Surface orientation	Matte side facing outward
Suspension	Two suspension pieces included
Bulb replacement	Via the flexible bottom of the lamp
Care	Clean with a soft dry cloth
Safety	Do not exceed 60 W, maintain the gap between socket and suspension piece
Package contents	69 numbered pieces, cable, socket, two suspension pieces, manual
Manual available	French, English, German, etc. (free download)

Frequently Asked Questions - Norm 69 Normann

How long does it take to assemble the Norm 69 lamp?

Assembly can take 30 minutes to 1 hour depending on your experience. It is recommended to follow the order of the numbered pieces and only take out one set of pieces at a time from the packaging.

What type of bulb to use?

Use an E27 base bulb with a maximum wattage of 60 W. Equivalent LED bulbs are recommended for better energy efficiency.

How to replace the bulb?

The bulb is easily replaced via the flexible bottom of the lamp. It is not necessary to disassemble the socket.

Can I paint the lamp?

It is not recommended to paint the pieces as this could affect the fit and light diffusion. The lamp is designed to be used in matte white.

How to clean the Norm 69 lamp?

Clean with a soft dry cloth to remove dust. Avoid chemicals or water that could damage the plastic.

What to do if a piece does not snap in properly?

Check that you are using the correct piece number and that the matte side is facing outward. If necessary, fold the reinforcements as shown in the manual.

Can the lamp be installed on a sloped ceiling?

Yes, the suspension is flexible. Make sure the ceiling hook is sturdy and the cable is long enough. Maintain the gap between the socket and the suspension piece.

What tools are needed for assembly?

No tools or glue are needed. All pieces snap together manually. Simply follow the number order.

Can I use a bulb stronger than 60 W?

No, it is imperative to respect the maximum wattage of 60 W to avoid any risk of overheating or damage to the lamp.

How to hang the lamp from the ceiling?

Pass the cable through the suspension pieces as indicated. The first piece mounts around the cable with the tip downward, then slide it into the base. The second serves as a guide piece.

USER MANUAL Norm 69 Normann

ASSEMBLY INSTRUCTIONS

MONTAGEANLEITUNG

INSTRUCTIONS D'ASSEMBLAGE

INSTRUCCIONES DE MONTAJE

Symmetrical geometric line drawing resembling a stylized lamp or decorative object (no text or symbols)

Norm 69

Simple line drawing of a grid-like structure with two hands holding the bottom edge (no text or symbols)

Sokkel 'knipses' sammen til en 12-kantet cylinder. Ombukkede kant opad.

Line drawing of hands holding a cylindrical object with internal cutouts (no text or symbols)

Line drawing of a cylindrical object with segmented cutouts (no text or symbols)

1.

Line drawing of a symmetrical V-shaped object with two notches and a central cutout (no text or symbols)

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

Line drawing of hands holding a piece of paper or document (no text or symbols present)

Diagram of a mechanical or structural component with arrows indicating direction, no text or symbols present

SAMLEINSTRUKTION NORM 69/DANSK

1.

Line drawing of a symmetrical geometric structure resembling a tower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial lines and triangular segments, no text or symbols present

Abstract geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or rose (no text or symbols)

Diagram showing a dissection of a virus-like structure before and after, with no text or symbols present.

1.

Symmetrical geometric pattern composed of overlapping triangles and polygons (no text or symbols)

Simple line drawing of a grid-like structure with two hands holding the bottom edge (no text or symbols)

Line drawing of hands holding a cylindrical object with internal puzzle pieces (no text or symbols)

Line drawing of a cylindrical container with internal geometric cutouts (no text or symbols)

1.

Line drawing of a symmetrical geometric shape resembling a V-shape or T-shape (no text or symbols)

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

Line drawing of hands holding a triangular object over a striped surface (no text or symbols)

Diagram of a mechanical or structural component with arrows indicating direction, no text or symbols present

1.

Abstract geometric line drawing resembling a stylized flower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial segments and central circle (no text or symbols)

Symmetrical geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or mandala (no text or symbols)

Symmetrical geometric pattern composed of overlapping triangles and polygons (no text or symbols)

Simple line drawing of a grid-like structure with two hands holding the bottom edge (no text or symbols)

Sokkelen settes sammen til en 12-kantet sylinder. Den brettede kanten skal vende oppover.

Line drawing of hands holding a cylindrical object with internal cutouts (no text or symbols)

Line drawing of a cylindrical object with segmented edges and a cutout pattern (no text or symbols)

1.

Line drawing of a symmetrical V-shaped object with two notches and a central cutout (no text or symbols)

6 stk. deler merket med '11' tas ut av pakken. Overflodig materiale i de to spaltene prikkes ut.

1.

Pure mechanical diagram showing a gear or cam mechanism without any text, numbers, or symbols

Delene brettes som vist. Forsterkningskantene brettes fullstendig.

1.

Line drawing of hands holding a small object over a striped surface (no text or symbols)

Diagram of a mechanical or structural component with arrows indicating direction, no text or symbols present

MONTERINGSINSTRUKER NORM 69/NORSK

1.

Line drawing of a symmetrical geometric structure resembling a stylized flower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial lines and triangular shapes, no text or symbols present

Abstract geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or mask (no text or symbols)

Diagram showing a virus-like structure before and after transformation, with no visible text or symbols

1.

Abstract geometric pattern composed of overlapping angular shapes (no text or symbols)

Lamp kit with 69 parts. May be assembled without the use of tools or glue. Maximum light use efficiency. Totally glare-free. Note! It is very important that the elements are assembled in the correct sequence, so you should only take one set of elements out of the package at a time.

All elements should be assembled with the matt side outwards.

1.

Simple line drawing of a grid-like structure with two hands holding it (no text or symbols)

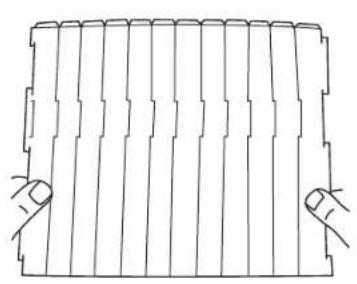

"Snap" the central element together to form a 12-sided cylinder.
The folded-up edge should be uppermost.

Line drawing of hands holding a cylindrical object with internal cutouts (no text or symbols)

Line drawing of a cylindrical object with stepped cutouts and a fluted top (no text or symbols)

1.

Line drawing of a symmetrical geometric shape resembling a V-shape or folded garment (no text or symbols)

Take six of the elements marked '11' out of the package. Remove any superfluous material from the two slits.

1.

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

Fold the elements as shown.
Fold the reinforcing edges up all the way around.

1.

Line drawing of hands holding a small object over a striped surface (no text or symbols)

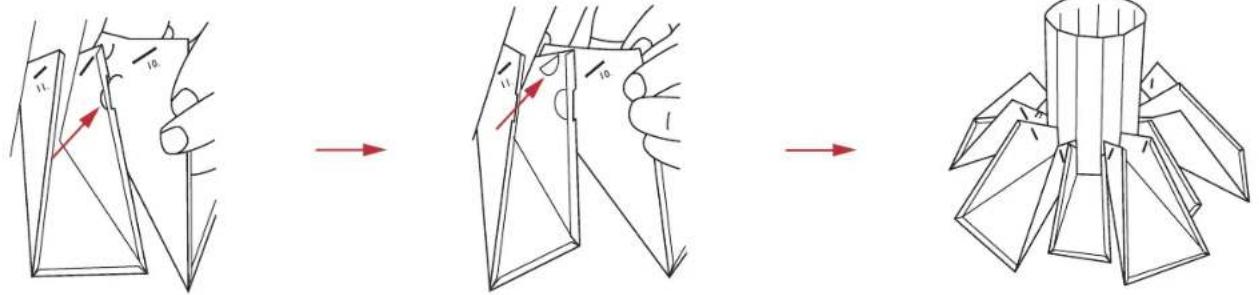

Insert the flaps of the elements into the slits in the central cylinder and cut off the ends on the inside.

Diagram of a mechanical component with arrows indicating direction, no text or symbols present

1.

Abstract geometric line drawing resembling a stylized flower or mechanical component (no text or symbols)

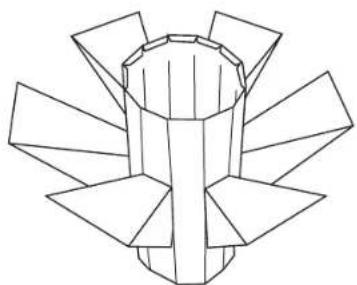

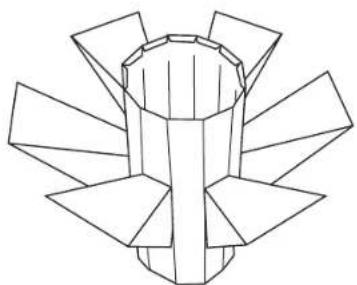

Cylinder with the '11' elements mounted. Turn upside down.
Take six of the '10' elements and fold them in the same way as the '11' elements.

1.

Attach the six '10' elements to the '11' elements, as shown.

1.

Symmetrical geometric diagram with radial lines and triangular segments, no text or symbols present

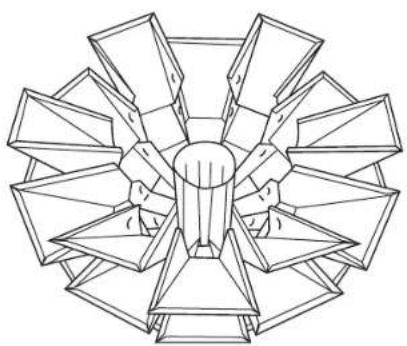

Fold and attach six of each of the '9', '8' and '7' elements in the same way.

1.

Abstract geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

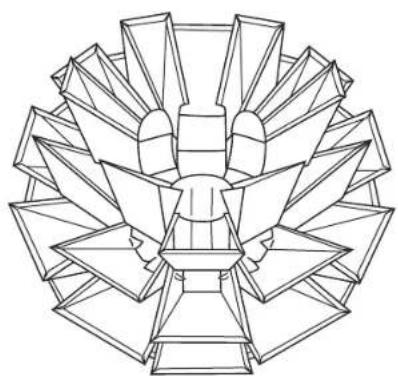

Fold and attach six of each of the '6', '5' and '4' elements in the same way.

1.

Abstract geometric line drawing resembling a stylized flower or geometric sculpture (no text or symbols)

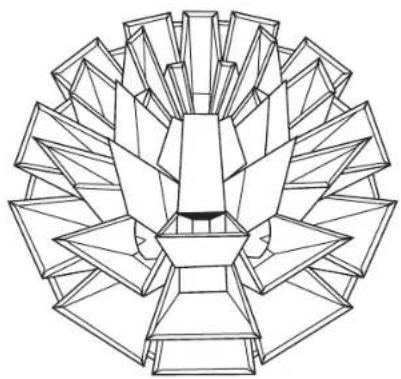

Finally, fold and attach six of the '3', '2' and '1' elements.

1.

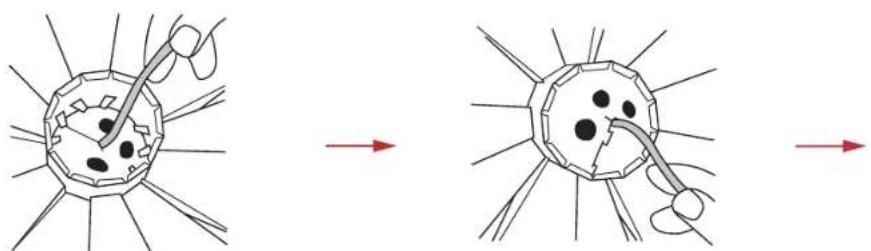

"Snap" the first hanging element around the cable with the point downwards. IMPORTANT! There must be a gap between the bulb socket and the hanging element, so the accompanying spacer MUST be fitted to the cable as shown in the drawing.

1.

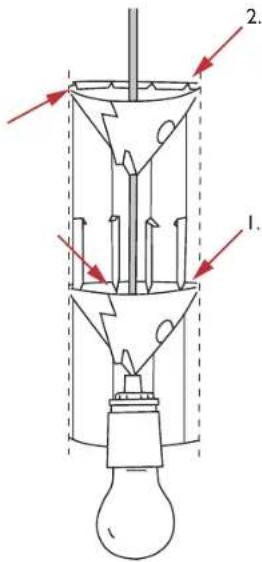

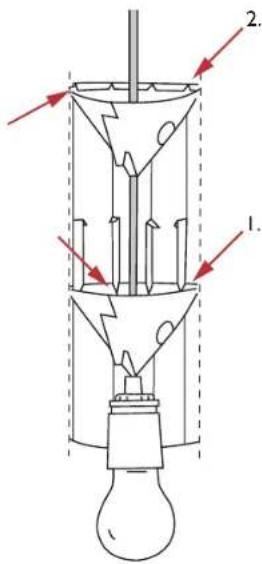

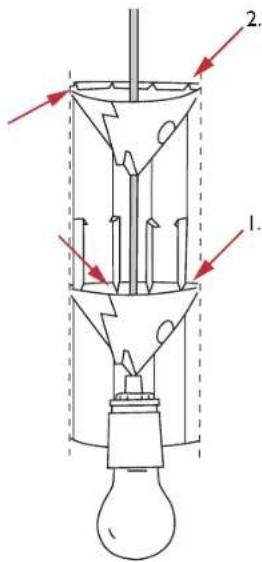

Lower the bulb and bulb socket into the cylinder and press the first hanging element down past the "flaps". Attach the second hanging element to the cable with the point downwards. Lower this into the cylinder, where it will ensure that the lamp hangs straight.

1.

Symmetrical geometric pattern resembling a stylized flower or starburst design (no text or symbols)

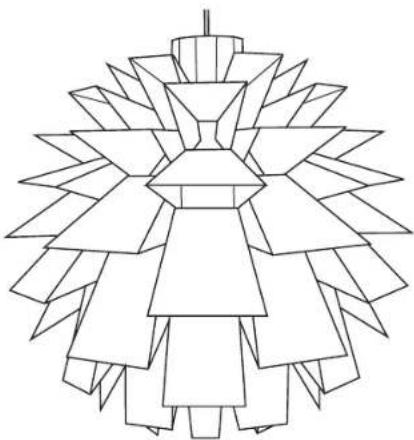

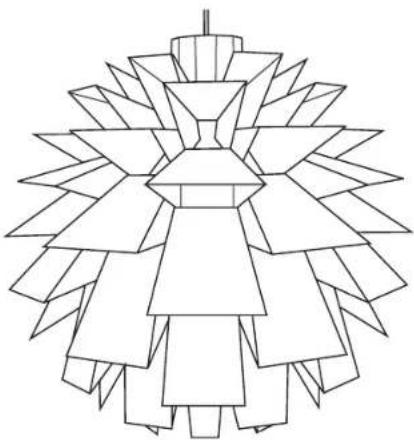

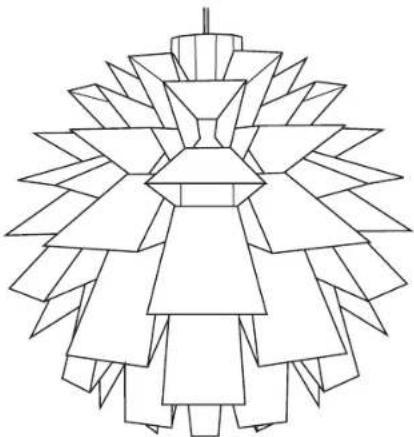

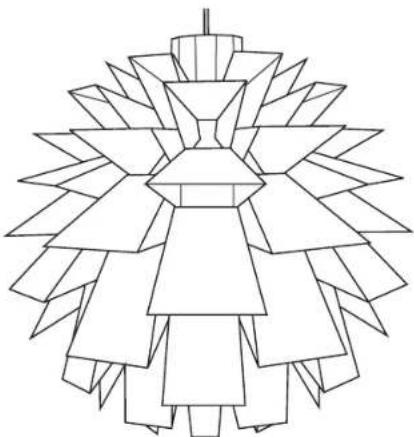

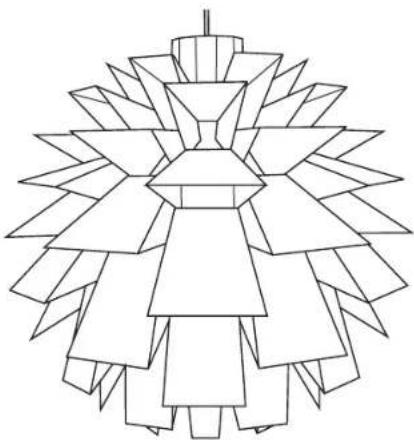

Finished lamp ready for hanging.

Hanging the lamp.

The lamp can be suspended without removing the bulb socket. Bulbs can easily be replaced via the flexible bottom of the lamp.

MAX. 60 WATT

Three-step diagram showing a mechanical component being folded into a cylindrical housing, with no text or symbols present.

Line drawing of a symmetrical V-shaped object with two side protrusions and a small notch, no text or symbols present.

Pure mechanical diagram showing a folded paper or sheet with arrows indicating direction (no text or symbols)

Diagram showing a hand holding a tool and a close-up of a mechanical component with arrows indicating motion (no text or symbols)

Line drawing of a symmetrical geometric structure resembling a tower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial segments and central circle, no text or symbols present

Symmetrical geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized face or mask, composed of interconnected triangles and polygons (no text or symbols)

Diagram of a medical procedure showing needle insertion into a circular device (no text or labels)

Simple line drawing of a cell with internal organelles and radiating lines (no text or symbols)

Abstract geometric pattern composed of overlapping angular shapes (no text or symbols)

Three-step diagram showing a cylindrical object being folded into a segmented cylindrical structure, with arrows indicating process flow (no text or symbols)

Line drawing of a symmetrical V-shaped object with two notches and a central cutout (no text or symbols)

Pure mechanical diagram showing a folded paper or sheet with arrows indicating direction (no text or symbols)

Diagram showing a hand using a tool to cut a sheet of paper, then to cut a cylindrical object with arrows indicating rotation (no text or symbols present)

Abstract geometric line drawing resembling a stylized flower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial segments and central hub (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or rose (no text or symbols)

Symmetrical geometric pattern resembling a stylized sun or flower, composed of overlapping triangles and rectangles (no text or symbols)

Simple line drawing of a grid-like structure with two hands at the bottom (no text or symbols)

Line drawing of hands holding a cylindrical object with internal geometric lines (no text or symbols)

Line drawing of a cylindrical object with geometric cutouts, resembling a container or mechanical part (no text or symbols)

1.

Line drawing of a symmetrical geometric shape resembling a V-shape (no text or symbols)

Pure mechanical diagram showing a gear or cam mechanism without any text, numbers, or symbols

Line drawing of hands holding a small object over a striped surface (no text or symbols)

Diagram of a mechanical or structural component with arrows indicating direction, no text or symbols present

INSTRUCCIONES DE MONTAJE NORM 69/ESPAÑOL

1.

Abstract geometric line drawing resembling a stylized flower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial lines and triangular segments, no text or symbols present

Abstract geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or rose (no text or symbols)

Diagram of a surgical procedure on a circular object with radiating lines (no text or labels)

Simple line drawing of a virus-like structure with radiating lines and central circular elements (no text or symbols)

Symmetrical geometric pattern composed of overlapping triangles and polygons (no text or symbols)

Simple line drawing of a grid-like structure with two hands at the bottom (no text or symbols)

Line drawing of hands holding a cylindrical object with internal cutouts (no text or symbols)

Line drawing of a cylindrical object with segmented internal structure (no text or symbols)

1.

Line drawing of a symmetrical V-shaped object with two notches and a central cutout (no text or symbols)

Pure mechanical diagram showing a moving component with arrows indicating motion, no text or symbols present

Line drawing of hands holding a small object over a striped surface (no text or symbols)

Diagram of a mechanical or structural component with multiple blades and a curved top, showing directional arrows (no text or symbols)

1.

Line drawing of a symmetrical geometric structure resembling a tower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial lines and triangular shapes, no text or symbols present

Abstract geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or rose (no text or symbols)

Symmetrical geometric pattern resembling a stylized sun or flower, composed of overlapping triangles and radial lines (no text or symbols)

Simple line drawing of a grid-like structure with two hands placed at the bottom (no text or symbols)

Line drawing of hands holding a cylindrical object with internal geometric lines (no text or symbols)

Line drawing of a cylindrical object with stepped cutouts (no text or symbols)

1.

Line drawing of a symmetrical V-shaped object with two side cutouts (no text or symbols)

Pure mechanical diagram showing a gear or cam mechanism without any text, numbers, or symbols

Line drawing of hands holding a small object over a striped surface (no text or symbols)

Diagram of a mechanical or structural component with arrows indicating direction, no text or symbols present

1.

Abstract geometric line drawing resembling a stylized flower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial blades and central hub, no text or symbols present

Symmetrical geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or rose (no text or symbols)

Diagram of a biological structure with a tool interacting with a circular cell-like form (no text or labels)

Simple line drawing of a sun with a mouth and rays, no text or symbols present

Symmetrical geometric pattern composed of overlapping triangles and polygons (no text or symbols)

Simple line drawing of a grid-like structure with two hands holding the bottom edge (no text or symbols)

Line drawing of hands holding a cylindrical object with internal cutouts (no text or symbols)

Line drawing of a cylindrical object with segmented internal structure (no text or symbols)

1.

Line drawing of a symmetrical V-shaped object with two notches and a label 'II.' (no text or symbols on the object itself)

Pure mechanical diagram showing a folded paper or sheet with arrows indicating direction (no text or symbols)

Line drawing of hands using a tool to cut or mark a piece of material (no text or symbols)

Diagram of a mechanical or structural component with multiple blades and a curved top, showing directional arrows (no text or symbols)

1.

Abstract geometric line drawing resembling a stylized flower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial segments and central circle (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or mask (no text or symbols)

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Simple line drawing of a sun-like shape with radiating lines and a curved line inside, resembling a stylized face or abstract form (no text or symbols)

1.

Symmetrical geometric pattern resembling a stylized flower or fan structure (no text or symbols)

灯具已组装完毕，可供悬挂。

悬挂灯具

Three-step diagram showing a cylindrical object being folded into a segmented cylindrical structure, with arrows indicating process flow (no text or symbols)

Line drawing of a symmetrical V-shaped object with two notches and a central cutout (no text or symbols)

Pure mechanical diagram showing a gear or cam mechanism without any text, numbers, or symbols

Abstract geometric line drawing resembling a stylized flower or mechanical component (no text or symbols)

Symmetrical geometric diagram with radial lines and triangular shapes, no text or symbols present

Abstract geometric line drawing resembling a stylized flower or floral pattern (no text or symbols)

Abstract geometric line drawing resembling a stylized flower or rose (no text or symbols)

Diagram showing a virus-like structure before and after dissection, with arrows indicating process direction (no text or symbols)

1.

Symmetrical geometric pattern composed of overlapping triangles and polygons (no text or symbols)

吊り下げるばかりになった完成ランプ

ランプの吊り下げ
