Product type	Modular hanging lamp
Brand	Normann
Model	Norm 03
Category	Lighting
Maximum power	60 W
Bulb type	E27 (standard socket)
Suspension type	Cable
Strips material	Plastic
Side elements material	Plastic
Number of strips	31
Number of side elements	18
Number of marks per strip	31
Assembly type	Insertion and snap-fit assembly
Weight	Approximately 1.5 kg
Care and cleaning	Clean with a soft, dry cloth
Safety instructions	Do not exceed 60 W; check assembly stability
Spare parts available	Strips, side elements, top, bottom, cable, socket
Repairability	Replacement of individual parts possible
Intended use	Indoor
Package contents	Strips, side elements, top, bottom, cable with socket, bulb not included

Frequently Asked Questions - Norm 03 Normann

What type of bulb to use for the Norm 03?

Use an E27 bulb with a maximum power of 60 W.

How to assemble the strips onto the side elements?

Insert each strip into the slots of the side elements respecting the orientation (top side A and bottom side B). For 31 strips, use the corresponding 31 marks.

How many side elements are needed for the Norm 03?

You need 18 side elements to assemble the complete lamp.

How to attach the top and bottom of the lamp?

Insert a side element into the top and bottom by snapping the small tab into the designated hole.

How to install the cable and socket?

From the top, pass the cable with the socket and bulb through the lamp, then fix the suspension module and pull to rest on the top.

What type of cleaning is recommended?

Clean the lamp with a soft, dry cloth. Do not use abrasive or liquid products.

Can I exceed 60 W?

No, the maximum power is 60 W. Exceeding it may cause overheating and fire risk.

Where can I find spare parts for the Norm 03?

Contact Normann customer service or check authorized retailers to order strips, side elements, top, bottom, cable, or socket.

Is the lamp repairable if it breaks?

Yes, parts are individually replaceable. You can replace a damaged strip or side element.

What materials are used for the Norm 03 lamp?

The lamp is mainly made of plastic for the strips, side elements, top, and bottom.

USER MANUAL Norm 03 Normann

Assembly instruction:

1.2.

Take out the roll with strips. Roll out and tear off the first strip by the dotted line.

Insert the strip on the side element. Please note that both the strip and the side element have a top and a bottom. A: Top B = Bottom. Insert the strip at the first mark into the first slit of the side element.

3.

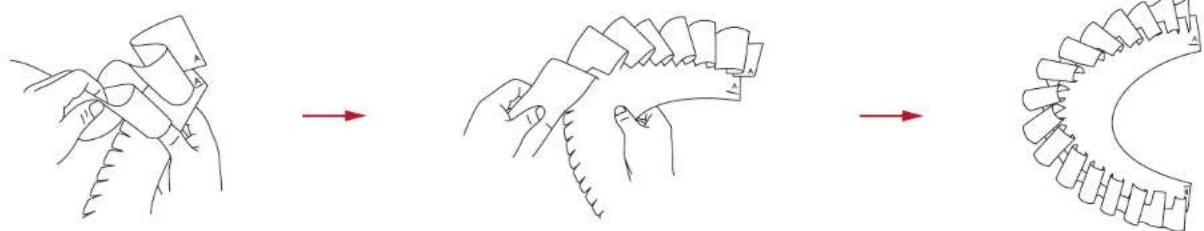

Insert the next mark into the next slit. Now continue exactly the same way with the remaining slits. 31 slits in total.

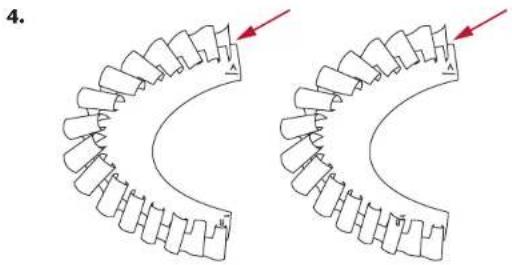

Repeat step 2 and step 3 with strip no. 2 and side module no. 2. Remember to begin each side module from the same side. Now continue exactly the same way by inserting all strips into the side modules. 18 side modules in total.

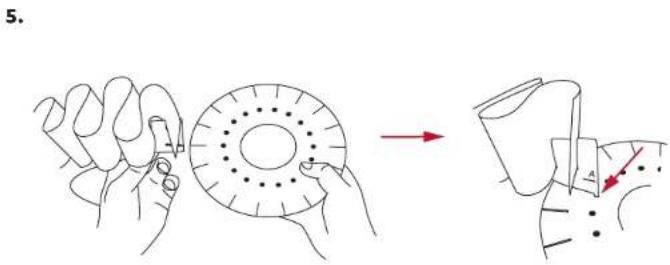

Take the top module and insert the completed side element. Slit against slit. The side element is secured to the top module by clicking the small slip down the hole.

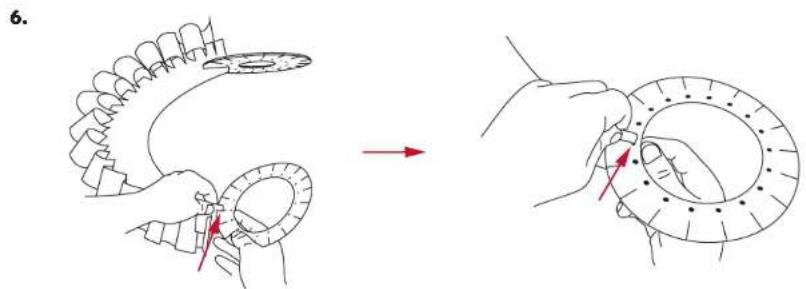

Take the bottom module and insert the completed side module. Slit against slit. The side element is secured to the bottom module by clicking the small slip down the hole.

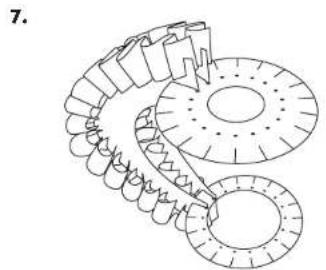

Two side elements secured to the top and bottom modules.

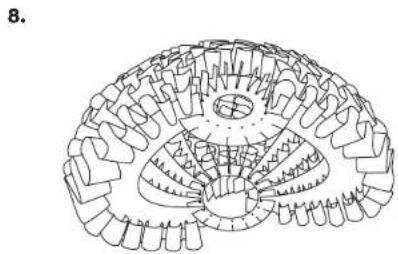

Half of the side elements secured to the top and bottom modules. Continue until all 18 side modules are secured.

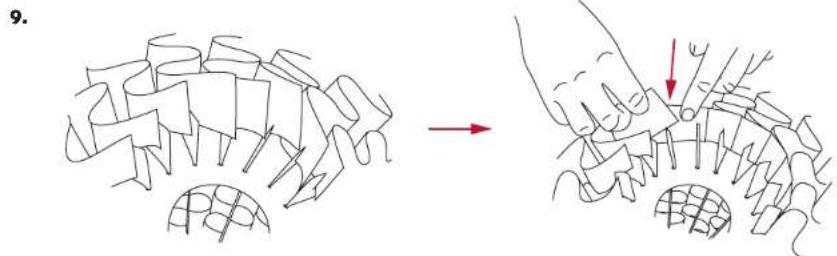

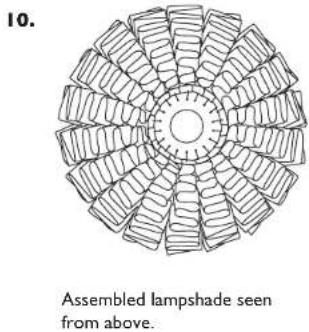

All strips are arranged nicely by tightening the top of the strip in the side element. This way you create an even edge on the top and bottom of the lampshade.

ASSEMBLY INSTRUCTION NORM 03/ENGLISH

1.

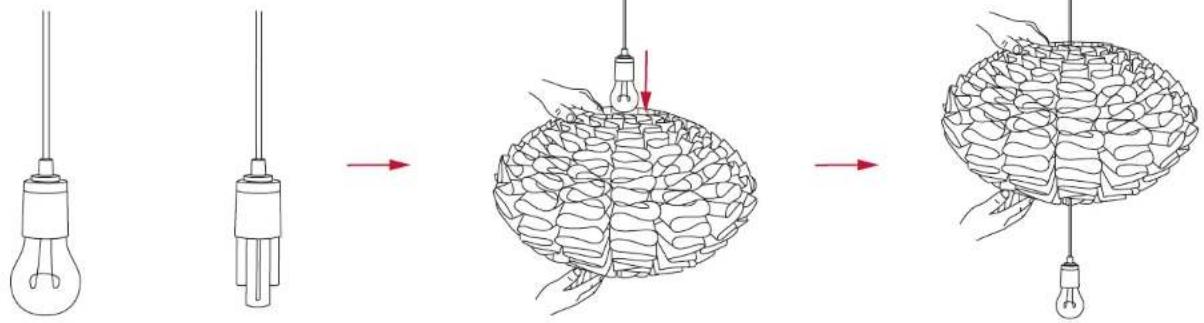

   Lower the cord with complete fixing and light bulb through the lampshade. (Fixtures not included).

2.

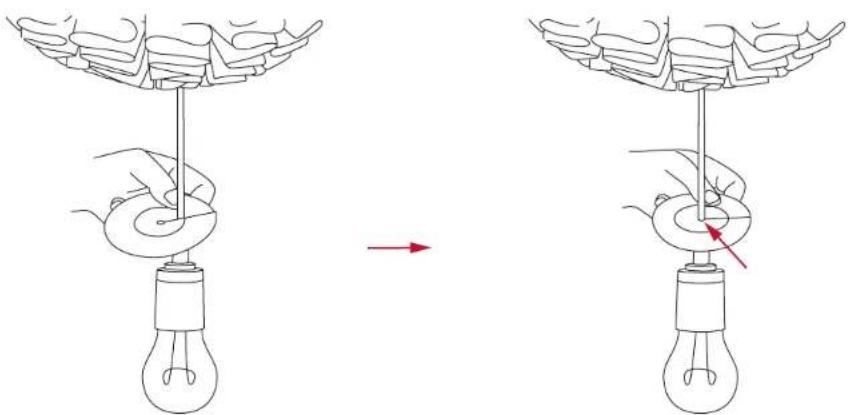

   Fit the suspension piece around the cord.

3.

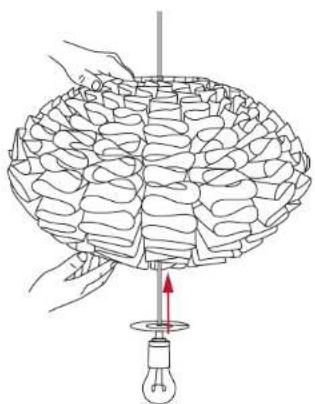

   Now pull it all up through the lampshade until the suspension piece rests on the top module.

4.

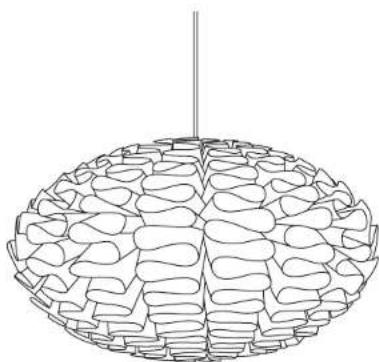

   Completed lamp shade. Ready to hang.
   MAX: 60 WATT or low energy light bulbs.
