Product type	Air dehumidifier
Brand	SUNTEC Wellness
Model	DryFix 20 Lumio
Power supply	230 V ~ 50 Hz (estimated)
Main functions	Continuous dehumidification, automatic, laundry drying, ventilation (purified air), timer 0-24h, humidity indicator light (blue/green/red)
Water tank capacity	Not specified, automatic shut-off when full
Water drainage	Water tank or continuous drainage via hose
Air filter	Activated carbon filter, washable, replaceable (ref. 16882)
Maintenance and cleaning	Clean with a soft, dry cloth; filter: vacuum or wash with mild detergent
Safety	Use by children aged 8 and above under supervision; do not immerse; minimum distance 50 cm from walls; do not cover the grilles
Refrigerant	R290, quantity < 1 kg, sealed circuit
Operating temperature	5 °C to 32 °C
Operating humidity	10% to 90% RH
Warranty	24 months
Manufacturer	Suntec Wellness GmbH, Holzstraße 2, 40221 Düsseldorf, Germany
Spare parts available	Activated carbon filter (ref. 16882)
Repairability	Repairs by qualified personnel only

Frequently Asked Questions - DryFix 20 Lumio SUNTEC

How to activate the continuous dehumidification function?

Press the Mode button (5) until the manual dehumidification indicator (11) lights up. Use the Plus (2) and Minus (4) buttons to set the desired humidity between 30% and 80%. For independent continuous dehumidification, press Minus until 'CO' appears.

How to use the laundry drying mode?

Press the Mode button (5) to select the laundry drying icon (10). Speed and humidity are set automatically. Place laundry near the airflow for faster drying.

What to do if the water tank is full?

The device emits an audible warning and displays the Water tank full symbol (8). Stop the device, unplug it, remove the tank by the handle, empty the water, clean it, and replace it correctly.

How to clean the air filter?

Unplug the device. Open the filter cover, carefully remove the filter. Vacuum the dust or wash it with water and mild detergent. Rinse thoroughly, let dry. For replacement, use reference 16882 (activated charcoal filter).

How to install the continuous drainage hose?

Unplug the device. Insert the drainage hose into the opening at the back. Place the other end in a drain. Ensure the hose is not kinked and that the water tank is properly in place.

Why is the device not working?

Check that the device is powered on, the water tank is empty and properly placed, and the air outlet louvers are open. If the full tank indicator is lit, empty it. The device may also be in defrost mode (normal process).

What do the colors of the indicator light mean?

The indicator changes according to ambient humidity: blue for < 50%, green between 50% and 70%, red for > 70%.

Can I use the device in a room with a gas appliance?

Yes, but the room must be regularly ventilated to prevent gas accumulation.

How to store the device for long periods of non-use?

Unplug the device, empty the water tank, clean it, clean the air filter, replace it. Store the device vertically, away from sunlight.

Where to buy a replacement filter?

Activated carbon filters are available from your dealer. Reference: 16882, designation: activated carbon filter DryFix 20 Lumio/PRO, brand Suntec Wellness.

USER MANUAL DryFix 20 Lumio SUNTEC

R290, GWP: 3, 60g = 0.00018t CO2e

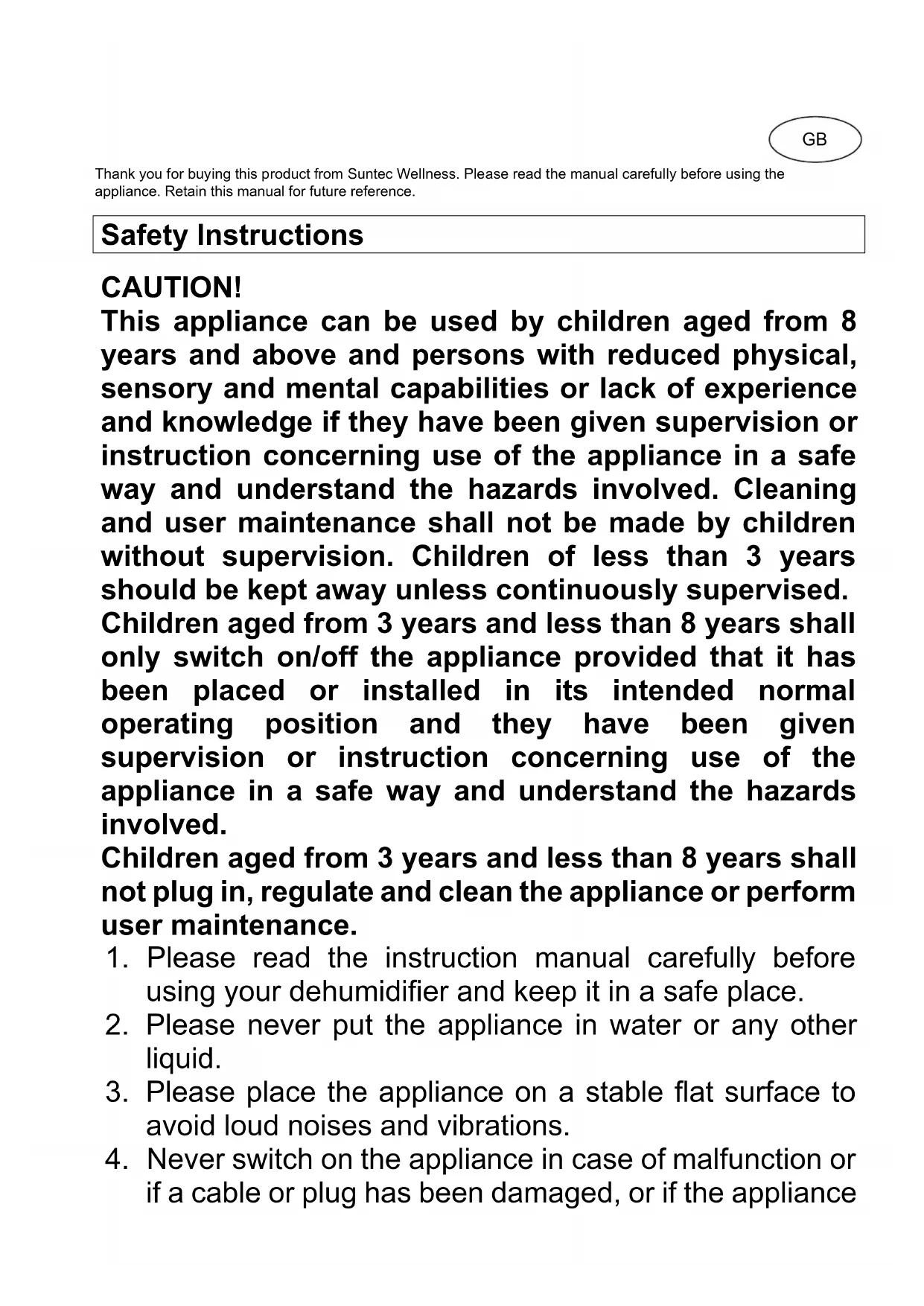

Thank you for buying this product from Suntec Wellness. Please read the manual carefully before using the appliance. Retain this manual for future reference.

Safety Instructions

CAUTION!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. Please read the instruction manual carefully before using your dehumidifier and keep it in a safe place.
2. Please never put the appliance in water or any other liquid.
3. Please place the appliance on a stable flat surface to avoid loud noises and vibrations.
4. Never switch on the appliance in case of malfunction or if a cable or plug has been damaged, or if the appliance

has been dropped or damaged in any other way.

1. Repairs to electrical equipment must only be carried out by qualified persons; incorrect repairs can be a major source of danger to users and will invalidate the warranty.
2. Please unplug the appliance when not using it, before moving it and/or before cleaning it.
3. Please only operate the appliance at the mains voltage indicated on the rating label.
4. Please do not use an extension cord to connect the unit.
5. Please use the appliance only in the household and only for the purpose for which it was designed.
6. Please do not take the appliance out of the household.
7. Please do not operate the appliance near heating appliances and flammable or hazardous objects.
   12.If the dehumidifier is used in a room with appliances that emit gas, the room must be regularly and frequently ventilated.
8. Please empty and dry the water tank and the appliance if it is not used for a long time. This will prevent mould growth and unpleasant odours inside the appliance.
9. Please do not place heavy objects on the appliance.
10. Please do not hang curtains or wet clothes directly in front of the air outlet, this will cause the unit to overload.
11. Do not lead the drainage tube outside when the temperature is low. Please empty the water tank before moving the unit to avoid water spillage.
12. Please do not tip the appliance as leaking water may cause damage to the appliance.
13. If the connection cable has been damaged, please do not use the drain hose outside.

If the connection cable has been damaged, please

contact your supplier to avoid danger.

1. If there is a smoke smell or smoke during operation, please unplug the appliance immediately and contact your supplier.
2. Please pull only on the plug and not on the cable.
3. Please do not modify the unit in any way. Please do not attempt to disassemble or repair the unit yourself.
4. Please operate the unit with dry hands only.
5. Please do not insert any foreign objects into the unit.
6. Please do not operate the appliance outside. Sun, rain, or low temperature may cause damage to the unit or electric shock.
7. Please never cover the outlet or inlet of the unit.
8. The unit should be placed at least 50~cm away from the wall or other obstacles/objects.
9. Please keep the dust filter and air outlet/inlet grilles clean. They should be cleaned regularly to ensure best performance.

Important. The appliance must always be stored and transported in an upright position. If in doubt, we recommend that you wait at least 24 hours before switching the hours before switching the unit on again.

Installation

• To save energy and ensure optimal performance of the appliance, please close all doors and windows in the room.
• Please place the appliance on a flat level surface.
• To avoid loud noises and vibrations, you can place a small carpet or rubber mat under the unit.

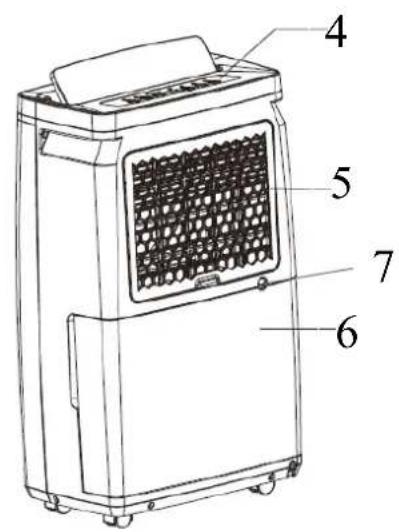

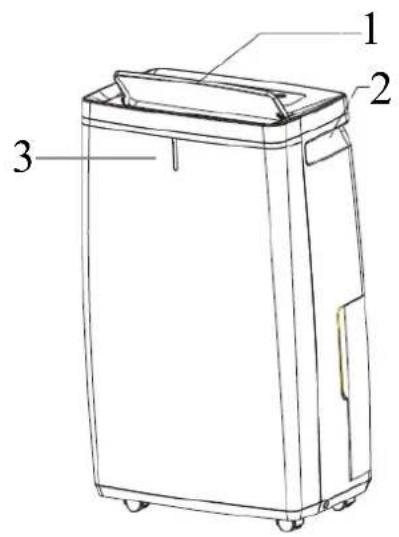

1 Air outlet
2 Handle
3 Color indication of humidity < 50% blue 50% 70% green >70% red
4 Control panel

5 Air inlet/ filter cover
6 Water tank
7 Drainage hole

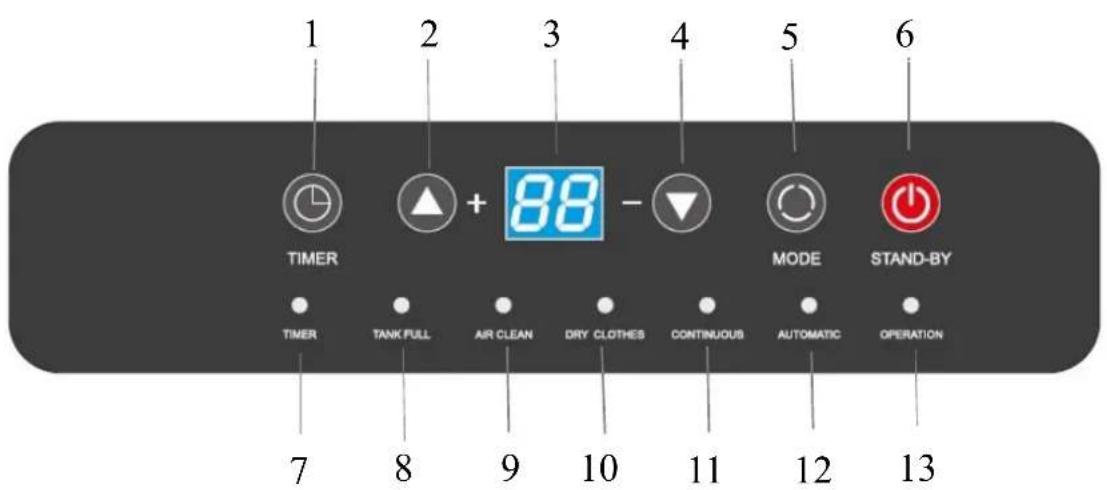

Control panel

Buttons:

1 Timer
2 Up button
3 Digital display
4 Down button
5 Mode
6 On/Off

Light indicators

7 Timer
8 Tank full
9 Air clean
10 Dry clothes
11 Continuous dehumidification
12 Automatic dehumidification
13 Operation

On/Off:

• Please connect the plug of the device to a power outlet.
• Please make sure the water tank is empty before switching on the device.
• Please open the air outlet manually.
• Please press the On/Off button (6) to switch the device on or off.
  The unit will automatically start with the previous setting when it is turned on.

Mode:

• Please press the mode button (5) after turning on the unit to select between ventilation function, dry clothes, continuous dehumidification or automatic dehumidification.

Continuous dehumidification:

• Please press the mode button (5) to switch on the continuous dehumidification function. The continuous dehumidification indicator (11) lights up. In this mode, you can set the desired dehumidification level, the unit dehumidifies with low ventilation speed (not adjustable).
• Please use the up and down buttons (2 and 4) to set the dehumidification level from 30% - 80% .
  To switch on continuous dehumidification regardless of the existing humidity, please press the down key (4) until "CO" appears on the display.

Automatic dehumidification:

• Please use the mode button (5) to switch on the "automatic dehumidification" function. The automatic dehumidification indicator (12) lights up.
• The ventilation speed and humidity level cannot be set in this mode. The unit dehumidifies automatically and with high ventilation speed when the ambient humidity is ≥ 70% and with low ventilation speed at 55% - 70% humidity. If the ambient humidity is below 50% , the compressor turns off, only the ventilation function remains active at low speed.

Dry Clothes:

• Please press the mode button (5) to switch on the dry clothes function. The "dry clothes" indicator (10) lights up.
• The ventilation speed and humidity level are set automatically and cannot be adjusted manually. The device dehumidifies automatically and at a high ventilation speed.
• With this function, you can dry clothes, shoes or carpets faster.

Ventilation mode "Clean air":

• Please press the mode button (5) to switch on the ventilation function. The "Air clean" indicator (9) lights up.
• In this mode, only the fan is operation at a low level, and the air is cleaned by the integrated active carbon filter.

Timer:

• When the unit is on, please press the timer- button (1) to set the desired time hour by hour from 0-24 hours.

Light indication:

If the ambient humidity is below 50% , the indicator light will turn blue.
If the ambient humidity is between 50% and 70% , the indicator light is green.
If the ambient humidity is above 70% , the indicator light is red.

Drainage

Water tank:

• As soon as the water tank is full, the device stops operating, a warning tone sounds and the "Water tank full" indicator (8) lights up.
• Please switch off the device and disconnect the power plug.
• Please pull out the water tank carefully and tip out the water by using the handle.
  Clean the empty tank and then carefully push it back into the unit.

Continuous drainage:

• Please disconnect the power plug.
• You will find the drainage opening on the back of the unit (7).
• Please insert the drainage hose into the opening and replace the water tank.
• Please place the other end of the hose into a collection container so that the water can continuously drain away.
• Please make sure that the hose is tightly connected to prevent the water from leaking.

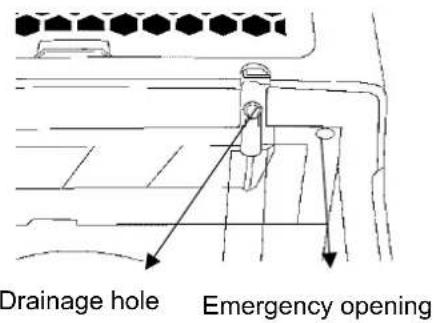

Please note: Next to the drainage opening there is an "emergency opening" which is used to drain the water into the water tank if the drainage opening is blocked or if a vacuum has been formed. If the water leaks out of the emergency opening, please go through the following steps:

o Please check if the drainage opening is not blocked.

o Please check whether the drainage hose has not been kinked
o Please squeeze the drainage hose a few times to remove the vacuum
o Please shorten the drainage hose a bit

Maintenance

To avoid injuries, please switch off the device and disconnect the power plug before starting maintenance or cleaning.

Cleaning

• Please disconnect the power plug.
• Please clean the device with a dry and soft cloth. For heavy dirt, please use a lightly wet cloth.
• Please do not use chemical solvents (such as gasoline, alcohol, etc.). The surface as well as the whole housing could be damaged.

Cleaning the filter

• Please open the filter cover and carefully remove the filter.
• To remove the dust from the filter, please use a vacuum cleaner or dab it lightly.
• If the filter is very dirty, wash it in water with neutral detergent, rinse well with water and let it dry.
• The active carbon filter can be replaced if necessary. You can get replacement filters from your vendor:

o Item no.: 16882
o Item name: DryFix 20 Lumio/ PRO active carbon filter
o Brand: Suntec Wellness

• Carefully insert the filter back into the unit and close the filter cover.

Storage

• Please unplug the unit and bundle the power cord.
• Please empty the water tank, wipe out the tank with a cloth and reinstall it.
• Please clean the air filter as described above and then reinstall it in the unit.
• For storage, place the unit in an upright position and avoid direct sunlight.

Troubleshooting

problem	cause	solution
The unit is not working	Is the unit connected to the power source?	Plug-in the unit.
	Is the 'water tank full' indicator lighting up (water tank is full or incorrectly placed)?	Empty the water tank and install it correctly.
	Is the water tank installed correctly?	Please check the position of the water tank.
	Are the air outlet slats open?	Please open the air outlet slats.
	The unit is in defrost mode.	This is a normal process and helps to protect internal parts. Once the process is complete, the unit returns to normal operation.
The dehumidification performance is insufficient	Is the air inlet or outlet blocked?	Check the air inlet and outlet and remove any obstructing objects
	Is the air filter dirty?	Clean the air filter as described in the operating instructions
	Does the unit operate in the fan mode?	Please switch to dehumidification mode.
	Is the room temperature/humidity too low high?	The unit should be operated at the air temperature of 5°C - 32°C and a humidity of 10%-90%. The unit cannot dehumidify the air optimally at ambient temperature and/or humidity level below/above this.
Humidity does not drop	Is the room size too large?	Please observe the recommended room size indicated on the packaging.
	Are all windows and doors in the room closed?	Please close all doors and windows if necessary.
Loud noises during start-up	Does the unit stand upright on the stable surface?	Place cheek the position of the unit.
	The circulation of the refrigerant inside may cause noise.	The noises disappear as soon as the refrigerant circuit has stabilised.
Unpleasant smells during start-up.	This is not a defect.	Unpleasant smells during start up are normal and will disappear after a short time. If the surrounding objects are heavily soiled, e.g. by cigarette smoke, this can also lead to unpleasant smells from the air outlet.
The start-up is interrupted.	Is the room temperature higher than the operating temperature?	The unit restarts automatically as soon as the ambient temperature has dropped.
The clothes do not get dry.	Is the laundry too far away from the unit?	Please make sure the laundry is exposed to the air flow.
	Is the room temperature lower than the operating temperature?	The laundry dries more slowly when the ambient temperature is low. Try drying your laundry in another room.
There is water in the water tank (before the first start-up).	This is not a defect.	Some water may remain after the factory function test has been carried out.

Refrigerant

(CE) N 842/2006: This dehumidifier contains the refrigerant R290. The amount of refrigerant is less than 1kg and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore, only trained technicians with refrigerant certificate make a filling or emptying. Suntec your dehumidifier does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.

R290, GWP: 3, 60g = 0.00018t CO2e

EC-Declaration of Conformity

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIAMTRONIC and the Sun logo are registered trademarks. © 2021 SUNTEC WELLNESS GMBH

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicate such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

No liability is assumed for printing errors and mistakes.

R290, GWP: 3, 60g = 0.00018t CO2e

R290, GWP: 3, 60g = 0.00018t CO2e

R290, GWP: 3, 60g = 0.00018t CO2e

R290, GWP: 3, 60g = 0.00018t CO2e

EZ-izjava o sukladnosti

Ureţaj je napravljen u skladu sa zahtjevima Europske unije glede zdravlja i sigurnosti. EZ izjava o sukladnosti osnova je za CE-oznaku na uredaju.

Izlaskom ovih uputa za upotrebu sve prethodne upute postaju nevazece. SUNTEC, SUNTEC Wellness,

KLIMATRONIC i logotip u obliku suntca su registirane marke. © 2021 SUNTEC WELLNESS GMBH.

Napomena u svezi okolisa

m = 311

Ovaj simbolPokazuje da se ovaj proizvod unutar Europse unije ne smije baciti u obični kućni OTPad. Kako bi se spriječile moguće posljedice za okoliš i ljudsko zdravlje, molimo vas da zbrinete OTPadni urežaj odgovorno i da takoto potićete odživu ponovnu uporabu materijala i sirovina. Urežaj kome je prošaoŽivotni vijek predajte na prikupnim stanicama ili se obratite trgovini u kooj ste ga kupili. Tako ce proizvod biti ekološki zbrinut i sasvim sigurno recikliran.

Za zabune i za tiskarske pogreske ne preuzimamo nikakvo jamstvo.

Zahvaljujemo Vam sto ste kupili ovaj uredaj marke Suntec Wellness. Prije prve upotrebe, molimo procitajte pažljivo ovaj prisčnik. Čuvajte ga za kasnije savjete ili ga predajte novom vlasniku ukoliko ēte dati uredaj drugoj osobi.

Vremenski programator:

• Za podesavanje vremena od 0-24 sata molimo pritisnite tipku za vremenski programator (1) kada je uredjuključen.

R290, GWP: 3, 60g = 0.00018t CO2e

EZ-izjava o sukladnosti

Aparat je napravljen u skladu sa zahtjevima Evropske unije u odnosu na zdravlje i sigurnost. EZ izjava o sukladnosti osnova je za CE-oznaku na aparatu.

Izlaskom ovog uputstva za upotrebu sva prethodna uputstva postaju nevazeca. SUNTEC, SUNTEC Wellness, KLIKATRONIC i logotip u obliku sunca su registirane marke. © 2021 SUNTEC WELLNESS GMBH.

Napomena o zašiti okoliša

Ovaj simbolPokazuje da se ovaj proizvod unutar Evropske unije ne smije baciti u obicni kuci otpad. Da bi se spijecile moguce posljedice za okoliis i ljudsko zdravlje, molimo vas da zbrinete opadni aparat odgovorno i da takoto poticete odrzivu ponovnu upotrebu materijala i sirovina. Aparat kome je prošaoŽivotni vijek predajte na stanicama za priukpljanje posebnog OTPada ili se obratite trgovini u kooj ste ga kopili. Tako ce proizvod biti ekoloski zbrinut i sasvim sigurno recikliran.

Za zabune i za stamparske greiske ne preuzimamo nikakvu garanciju.

Zahvaljujemo se vam za nakup naprave znamke Suntec Wellness. Pred zagonom naprave natancho preberite navodila za uporabo. Navodila shranite za kasnejse potrebe

VARNOSTNI NAPOTKI

R290, GWP: 3, 60g = 0.00018t CO2e

Izjava o skladnosti ES:

Naprava ustreza bistvenim zdravstvenim in varnostnim zahtevam Evropske unije. Izjava o skladnosti ES je osnova za oznako CE te naprave.

Z izdajo teh navodil za uporabo, vsa prejsnja postanejo neveljavna. SUNTEC, SUNTEC Wellness, KLIMATRONIC in logotip sonca so registirane blagovne znamke. © 2021 SUNTEC WELLNESS GMBH

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Dusseldorf

Germany

SUNTEC WELLNESS GMBH

HOLZSTRABE 2

40221 DUSSELDORF

NÉMETORSZAG

www.suntec-wellness.de

Garanciajegy

vasarlas helye

vasarlas datuma

cikszam/EAN

Kedves Vásárló,
