USER MANUAL Monsun 2.500 Moodlight SUNTEC

White water dispenser with blue control panel and 'LED' button (no visible text or symbols on device body)

Sicherheitshinweise

Labeled diagram of a portable water heater with numbered parts and internal components

Line drawing of a kitchen sink with a water bottle and lid, no text or symbols present

Line drawing of a hand using a handheld device to lift a cylindrical container (no text or symbols)

1

Illustration of hands using a mechanical device to lift a cylindrical component (no text or symbols)

Illustration of hands assembling a mechanical component (no text or symbols visible)

3

Illustration of a hand holding a mechanical device with a handle and lever (no text or symbols)

Reinigung

Simple line drawing of a square sink with a circular hole and a rectangular object on top (no text or symbols)

Simple line drawing of a hand holding a checkmark inside a notebook (no text or symbols)

Simple line drawing of a cylindrical object with a cross mark on its side and coiled lines below (no text or symbols)

White portable water purifier with blue control panel and 'POWER LED' button (no visible text or symbols beyond branding)

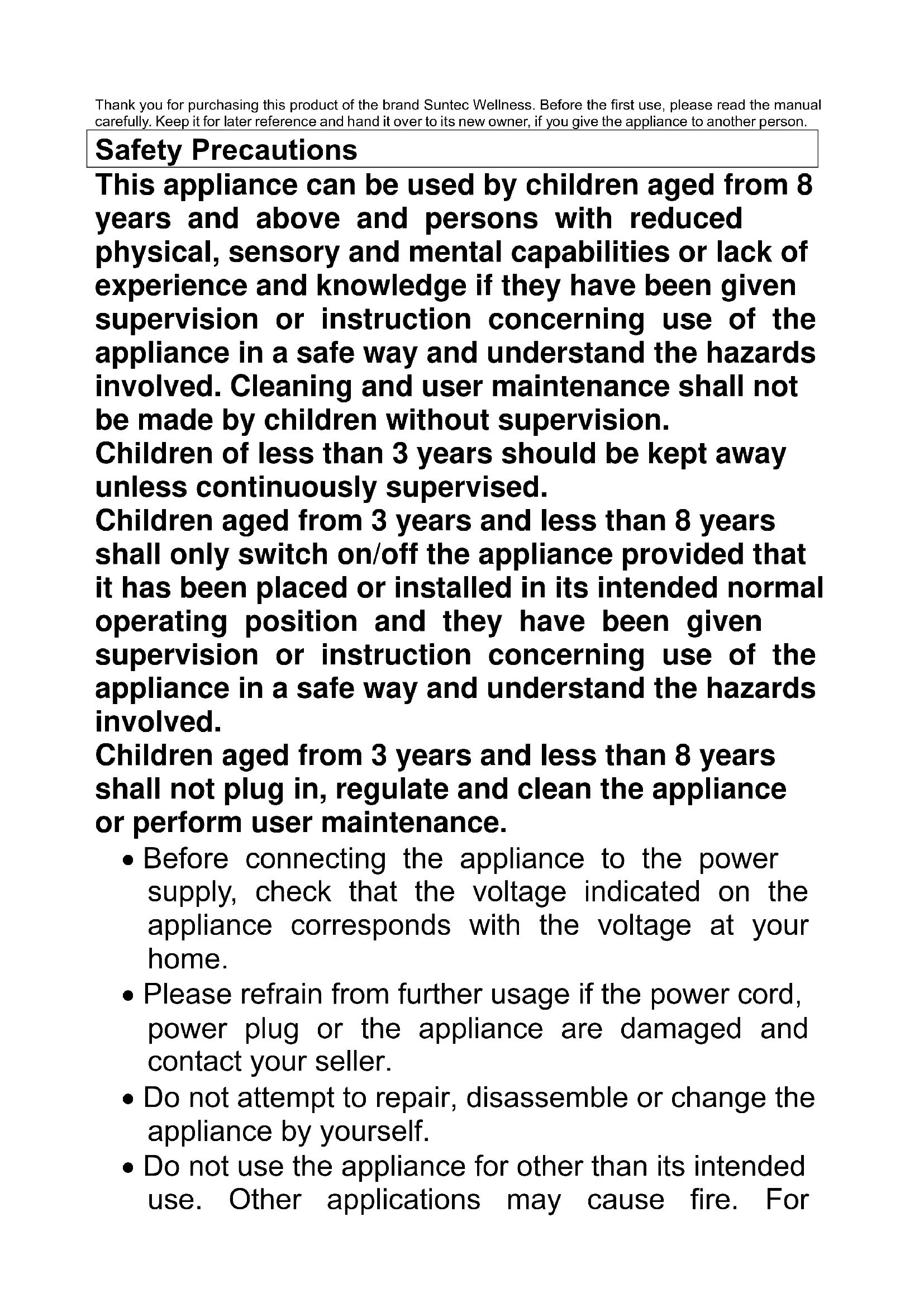

Safety Precautions

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Before connecting the appliance to the power supply, check that the voltage indicated on the appliance corresponds with the voltage at your home.
• Please refrain from further usage if the power cord, power plug or the appliance are damaged and contact your seller.
• Do not attempt to repair, disassemble or change the appliance by yourself.
• Do not use the appliance for other than its intended use. Other applications may cause fire. For

domestic indoor use only.

- Only operate the appliance on a flat, stable and dry surface. Do not tilt the appliance to avoid leaking water.

- Remove the appliance from the wall socket when it is not in use, before cleaning, in case of malfunctions, when exchanging the floater or when emptying and filling the water tank.

- Do not insert any objects into the appliance as this may cause electric shocks, fire or damages to the appliance.

- Do not leave the appliance unattended.

- Please make sure that the ventilation parts are not blocked and free from dust or foreign objects.

- Do not fill water into the mist outlets.

- Do not reach into the water during operation and do not touch any parts that are inside the water. The ultrasonic atomizer may become very hot and can cause burns.

- Do not pull on the power cord but on the power plug when removing the appliance from the power outlet. Make sure that your hands are dry.

- Do not let the cord hang over the edge of the table or come into contact with hot or sharp surfaces.

- Please keep a minimum distance of 10cm to walls and 1m to ceilings. Do not place the appliance in the immediate surroundings of curtains, drapes or other electrical appliances.

- Never immerse the appliance into water or other liquids to avoid electric shocks.

- Do not use the appliance near flammable materials, gases or vapors.

- Do not operate the unit with an empty water tank.

- Please make sure that no water can enter the base to prevent damage to the appliance.

- Do not fill the appliance with hot or cold water. The water should be at room temperature.

- Keep the appliance away from heat sources such as ovens and avoid direct sunlight.

- Do not add any additives to the water. Aromatic oils may only be added to the aroma oil container, not directly in the water.

- The use of accessories not recommended by Suntec may cause harm.

- If the appliance has been exposed to sub-zero temperatures, allow it to warm up at room temperature for approx. 30 minutes before operation.

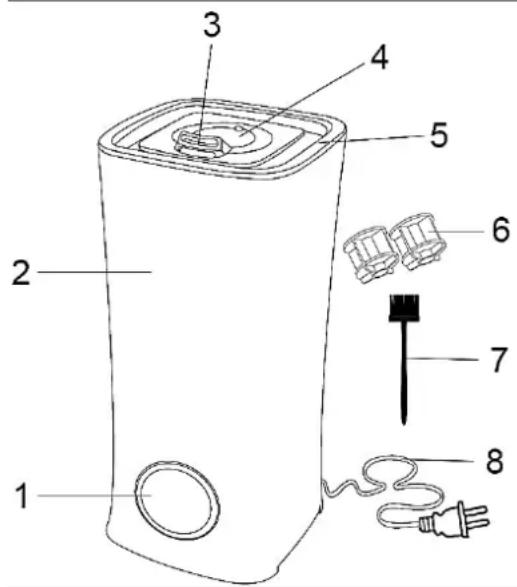

Components

Labeled diagram of a water heater with numbered parts and internal components

1. Control panel with LED light ring
2. Housing
3. Mist outlets
4. Aroma oil container
5. Lid
6. Spare floaters
7. Cleaning brush
8. Power cord with power plug

Operation

• Operating voltage: 100-240V\~, 50/60Hz, 25-28W
• Control panel:

On/Off button

POWER + LED -

Mist level increase

On/Off button for LED light

Mist level decrease

- Please lift the lid to fill the water tank with water. Please use tap-water instead of purified water (water

without minerals) to ensure the functionality of the appliance. Do not exceed the max. amount of water.

- Please reinsert the lid and connect the appliance to the power supply. Press the button "Power" to switch on the appliance.

- You may rotate the direction of the inner mist outlet on the lid by 360^ as you wish. The outer mist outlet is fixed to the lid and not movable.

- Mist levels:

☐ You can use the "+" and "-" buttons to select between three mist levels, which are indicated by the LED light ring on the control panel:

■ Blue LED – High mist level
■ Green LED – Medium mist level
- Red LED – Low mist level

- LED lighting:

During operation, the LED lighting colour inside the water tank is changed automatically. The lighting of the water tank and the lighting ring can be switched off by pressing the "LED" button on the control panel and can be switched on again pressing "LED" or the "+" and "-" buttons.

- Aroma function:

If you want to use aroma oils, open the lid of the aroma oil container. Place a piece of non-woven fabric in the container and wet it with an aroma oil of your choice. Alternatively, you can put the oil directly into the aroma oil container, but not directly into the water tank. Please replace or wash the fabric and aroma oil container with detergent and dry both before using a new aroma oil.

Line drawing of a kitchen sink with a water bottle pouring liquid from a container (no text or symbols)

- If there is not enough water in the water tank, the LED light ring flashes for 60 seconds and then turns off automatically. Press the "Power" button to switch off the unit, then disconnect it from the power supply. Please refill the tank with water and reconnect the unit to the power supply.

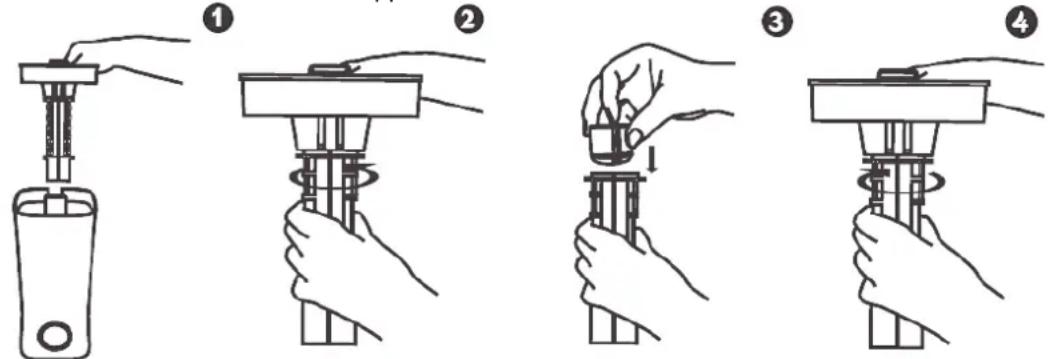

- Floater exchange:

If the mist release decreases after a longer use, it could be an indication for a defective floater. If you notice signs of wear on the floater, please replace it by following the steps below.
○ Make sure that the appliance is turned off and then lift the lid and tube up (see fig.1).
- Hold the lid firmly and turn the tube counterclockwise to separate lid and tube (see fig.2).
Exchange the floater with the exchange floater. Please make sure that the side with the label „UP“ points upwards (see fig.3).
○ Place the lid back onto the tube and turn the tube clockwise to reconnect both elements (see fig.4).
- Put the lid and tube back on the appliance.

Illustration showing four-step steps of a hand tool application on a device, labeled 1 to 4.

Cleaning

• Always disconnect the appliance from the power outlet and let it cool before cleaning. Never immerse the appliance or its electrical components in water to prevent electric shocks.
• Wipe over the exterior of the appliance with a soft wet cloth and then wipe dry with a dry cloth.
• Please fill clean water into the water tank and use the cleaning brush to clean the oscillator at the bottom of the water tank. Rinse the water tank and wipe all interior surfaces with a soft, dry cloth. The water tank should be cleaned weekly.
• Please do not use any aggressive and chemical cleaning agents or abrasive cleaning agents such as steel wool.

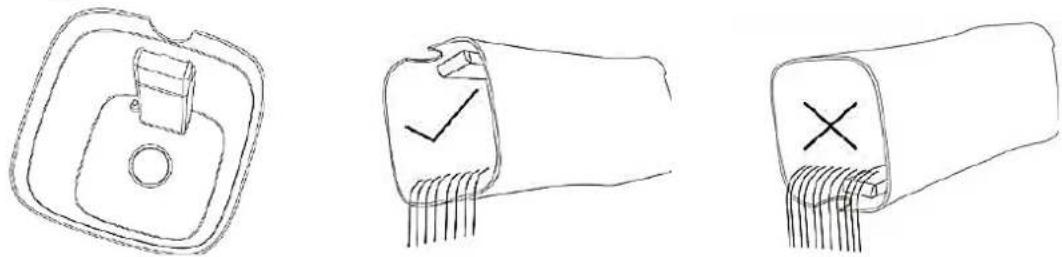

- When rinsing the water tank, please pay attention to the correct water flow direction as shown in the following pictures:

- You can purchase two spare floaters and one cleaning brush as a set from your seller :

○ Item number: 14635
- Item description: Maintenance set for Monsun 2.500 moodlight
○ Brand: Suntec

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
- Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
- If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website www.suntec-wellness.de and learn more.
• Without a proof of purchase, generally there will be no repair or replacement.
- In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
- The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
• The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment.

Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun-Logo are registered trademarks. © 2018/02 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

KLIMATRONIC®

Monsun 2.500 moodlight

White water dispenser with blue control panel and 'POWER LED' button (no visible text or symbols beyond branding)

Labeled diagram of a water heater with numbered parts and internal components

Line drawing of a kitchen sink with a lid and water droplet (no text or symbols)

Line drawing of a hand using a handheld device to lift a cylindrical object into a container (no text or symbols)

Diagram showing two hands holding a mechanical component with labeled parts ① and ②

Illustration of hands assembling a mechanical component (no text or symbols visible)

Illustration of a hand holding a mechanical device with a spring mechanism (no text or symbols)

Limpieza

Simple line drawing of a square sink with a rectangular component on top and a circular hole at the bottom (no text or symbols)

Simple line drawing of a hand holding a checkmark inside a rounded rectangular frame (no text or symbols)

Simple line drawing of a cylindrical object with a cross mark on its side and multiple vertical lines extending outward (no text or symbols)

White water purifier with blue control panel and 'Power LED' button (no visible text or symbols beyond branding)

Labeled diagram of a water heater with numbered parts and internal components

Line drawing of a kitchen sink with a water bottle and lid, no text or symbols present

Line drawing of a hand using a handheld device to lift a cylindrical object (no text or symbols)

1

Illustration of a hand holding a mechanical device with a spring (no text or symbols)

Line drawing of hands assembling or adjusting a mechanical component (no text or symbols)

3

Illustration of a hand holding a mechanical component with a handle and spring (no text or symbols)

Nettoyage

Simple line drawing of a square sink with a circular hole and a rectangular component on top (no text or symbols)

Simple line drawing of a hand holding a clipboard with a checkmark (no text or symbols)

Simple line drawing of a cylindrical object with a cross mark on its top surface and internal lines (no text or symbols)

White water dispenser with blue control panel and 'POWER LED' button (no visible text or symbols beyond branding)

Labeled diagram of a portable electronic device with numbered parts and internal components

Line drawing of a pottery lathe with a lid and handle, no text or symbols present

Line drawing of a hand using a handheld device to lift a cylindrical container (no text or symbols)

1

Line drawing of a hand holding a mechanical component with a spring (no text or symbols)

2

Line drawing of hands assembling or adjusting a mechanical component (no text or symbols)

3

Illustration of hands using a tool to lift a cylindrical object (no text or symbols visible)

Pulizia

Simple line drawing of a sink with a rectangular component and circular base (no text or symbols)

Simple line drawing of a hand holding a checkmark on a piece of paper (no text or symbols)

Simple line drawing of a cylindrical object with a cross mark on top and coiled wires below (no text or symbols)

White water purifier with blue control panel and 'Power LED' buttons (no visible text beyond branding)

Labeled diagram of a portable electronic device with numbered parts and internal components

Line drawing of a kitchen sink with a water bottle pouring liquid from a small bowl (no text or symbols)

Line drawing of a hand using a handheld device to lift a cylindrical object into a container (no text or symbols)

Illustration of a hand holding a mechanical component with a coiled spring (no text or symbols)

Line drawing of hands assembling or adjusting a mechanical component (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including a numbered step indicator (③) and figure number (④)

Reiniging

Simple line drawing of a square sink with a central handle and circular hole (no text or symbols)

Hand holding a checkmark inside a rounded rectangular frame (no text or symbols)

Simple line drawing of a cylindrical object with a cross mark on its side and multiple curved lines extending outward (no text or symbols)

© 2018/02 SUNTEC WELLNESS GMBH

White water purifier with blue control panel and 'Power LED' button (no visible text or symbols beyond branding)

Labeled diagram of a water heater with numbered parts and internal components

Line drawing of a kitchen sink with a bottle and lid, no text or symbols present

White portable water heater with blue control panel and 'POWER LED' button (no visible text or symbols beyond branding)

Zahvaljujemo Vam što ste kupili ovaj uređaj marke Suntec Wellness. Prije prve upotrebe, molimo pročitajte pažljivo ovaj priručnik. Čuvajte ga za kasnije savjete ili ga predajte novom vlasniku ukoliko ćete dati uređaj drugoj osobi.

Labeled diagram of a device with numbered parts including a plug, socket, and power plug

1. Poslužno polje s LED-rasvjetnim prstenom
2. Kućište
3. Ispusti maglice
4. Spremnik za aromatično ulje
5. Poklopac
6. Rezervni plovak
7. Četkica za čišćenje
8. Strujni kabel s mrežnim utikačem

Stavljanje u pogon

- Opskrba električnom energijom: 100-240V\~, 50/60Hz, 25-28W

- Poslužno polje:

Line drawing of a washing machine with a lid and water droplet (no text or symbols)

- Ako nema dovoljno vode u spremniku za vodu, LED-rasvjetni prsten treperi u trajanju od 60 sekundi, a zatim se automatski isključuje. Molimo pritisnite tipku "Power" kako biste isključili uređaj i odspojite ga od napajanja električnom energijom. Molimo sada napunite spremnik vodom i spojite uređaj ponovno na napajanje električnom energijom.

• Zamjena plovka:

Line drawing of a hand using a handheld device to lift a cylindrical object (no text or symbols)

1

Illustration of a hand holding a mechanical device with a coiled spring (no text or symbols)

Illustration of hands assembling or adjusting a mechanical component (no text or symbols visible)

③

Illustration of a hand holding a mechanical device with a handle and spring (no text or symbols)

Čišćenje

• Molimo svaki put prije čišćenja odvojite uređaj od dovoda električne energije i ostavite ga da se ohladi. Molimo Vas nikada nemojte uranjati uređaj ili njegove električne sastavne dijelove u vodu, kako biste izbjegli električne udare.
• Molimo koristite za čišćenje vanjskih površina uređaja vlažnu, meku krpu a za sušenje suhu krpu.
• Molimo napunite spremnik za vodu čistom vodom i koristite četkicu za čišćenje oscilatora na dnu spremnika za vodu. Molimo isperite spremnik za vodu i obrišite sve unutarnje površine mekanom, suhom krpom. Spremnik za vodu treba se čistiti tjedno.
• Molimo Vas nemojte koristiti agresivna ili kemijska sredstva za čišćenje kao i bilo koja gruba sredstva za čišćenje, npr. čeličnu vunu.
• Molimo pazite pri ispiranju spremnika za vodu na ispravni smjer, kao što je prikazano na sljedećim slikama:

Simple line drawing of a square sink with a rectangular component on top and a circular hole at the bottom (no text or symbols)

Simple line drawing of a hand holding a checkmark on a piece of paper (no text or symbols)

Simple line drawing of a cylindrical object with a cross mark on its top surface and coiled lines below (no text or symbols)

White water heater with blue control panel and 'UNITED ALABETHAN' logo (no visible text or symbols on body)

Zahvaljujemo Vam što ste kupili ovaj uređaj marke Suntec Wellness. Prije prve upotrebe, molimo pročitajte pažljivo ovaj priručnik. Čuvajte ga za kasnije savjete ili ga predajte novom vlasniku ukoliko ćete dati uređaj drugoj osobi.

Labeled diagram of a water heater with numbered parts and internal components

Line drawing of a kitchen sink with a bottle and lid, no text or symbols present

Illustration showing four-step steps of a mechanical device manipulation process, labeled 1 to 4.

Čišćenje

White water dispenser with blue control panel and 'POWER LED' button (no visible text or symbols beyond branding)

Varnost previden

Labeled diagram of a water heater with numbered parts and internal components

Line drawing of a kitchen sink with a water bottle and lid, no text or symbols present

Line drawing of a hand using a handheld device to lift a cylindrical object (no text or symbols)

1

Illustration of a hand holding a mechanical device with a coiled spring (no text or symbols)

Illustration of hands assembling or adjusting a mechanical component (no text or symbols visible)

3

Illustration of a hand holding a mechanical device with a handle and spring (no text or symbols)

Čiščenje

Simple line drawing of a square sink with a rectangular component on top and a circular hole at the bottom (no text or symbols)

Simple line drawing of a hand holding a checkmark inside a rounded rectangular frame (no text or symbols)

Simple line drawing of a cylindrical object with a cross mark on its top and coiled fibers at the bottom (no text or symbols)

White water purifier with blue control panel and 'LED' button (no visible text or symbols on body)

Labeled diagram of a portable electronic device with numbered parts and internal components

Line drawing of a kitchen sink with a bottle and lid, no text or symbols present

Illustration showing four-step instructions for using a handheld device to adjust the battery, with numbered steps and hand gestures.

Čistenie

White portable water heater with blue control panel and 'Power LED' button (no visible text or symbols beyond branding)

Labeled diagram of a portable electronic device with numbered parts and internal components

Line drawing of a kitchen sink with a water bottle and lid, no text or symbols present

Line drawing of a hand using a handheld device to lift a cylindrical object into a container (no text or symbols)

Diagram showing two hands holding a mechanical device with labeled parts ① and ②

Line drawing of hands assembling a mechanical component (no text or symbols)

Diagram showing a hand holding a mechanical device with numbered callouts (③ and ④) indicating steps of operation.

Čištění

White water dispenser with blue control panel and 'POWER LED' button (no visible text or symbols beyond branding)

Labeled diagram of a portable electronic device with numbered parts and internal components

Line drawing of a kitchen sink with a bowl and water droplet (no text or symbols)

Simple line drawing of a hand using a handheld device to lift a cylindrical object (no text or symbols)

1

Line drawing of a hand holding a mechanical component with a spring (no text or symbols)

②

Line drawing of hands assembling or adjusting a mechanical component (no text or symbols)

③

Illustration of hands using a tool to press or install a mechanical component (no text or symbols visible)

Tisztítás

White water purifier with blue control panel and 'Power LED' button (no visible text or symbols beyond branding)

Labeled diagram of a device with numbered parts and internal components, including a plug, cable, and connector.

Line drawing of a kitchen sink with a water bottle pouring liquid from a container (no text or symbols)

Simple line drawing of a hand using a handheld device to lift a cylindrical container (no text or symbols)

Diagram showing two hands holding a mechanical device with labeled parts ① and ②

Line drawing of hands assembling or adjusting a mechanical component (no text or symbols)

Diagram showing a hand holding a mechanical device with numbered callouts (③ and ④) indicating steps of assembly or inspection.

Czyszczenie

Line drawing of a square sink with a central rectangular component and circular base (no text or symbols)

Simple line drawing of a hand holding a checkmark (no text or symbols present)

Simple line drawing of a cylindrical object with internal lines and a cross mark on the top (no text or symbols)

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Düsseldorf

Germany
